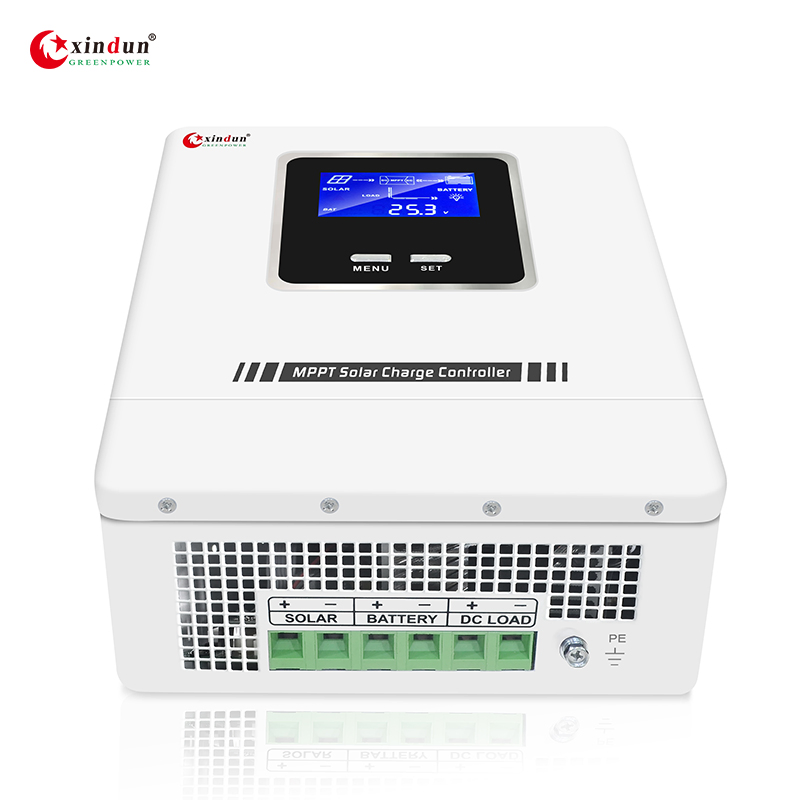

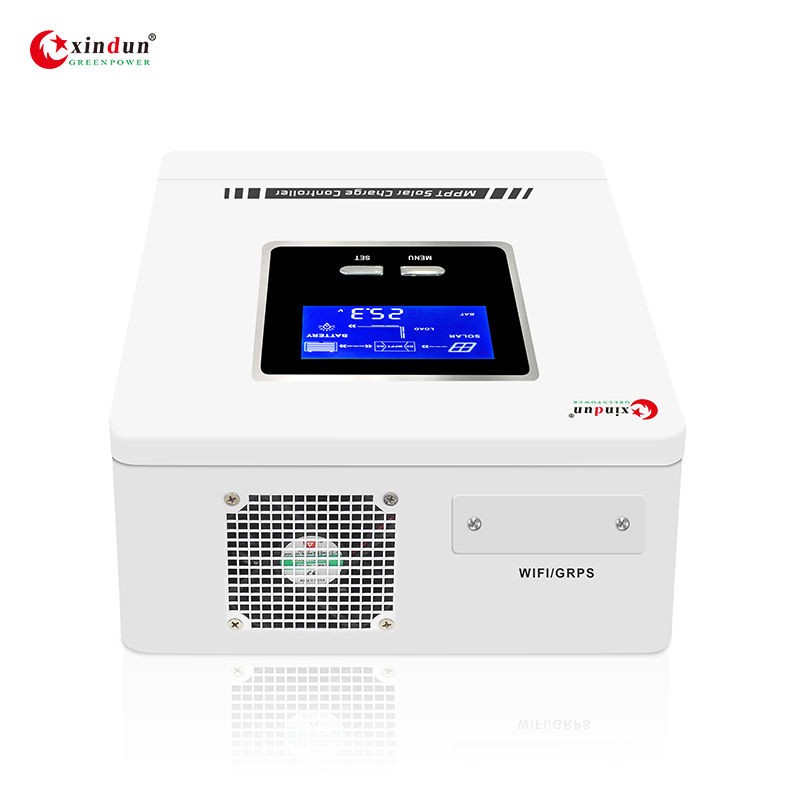

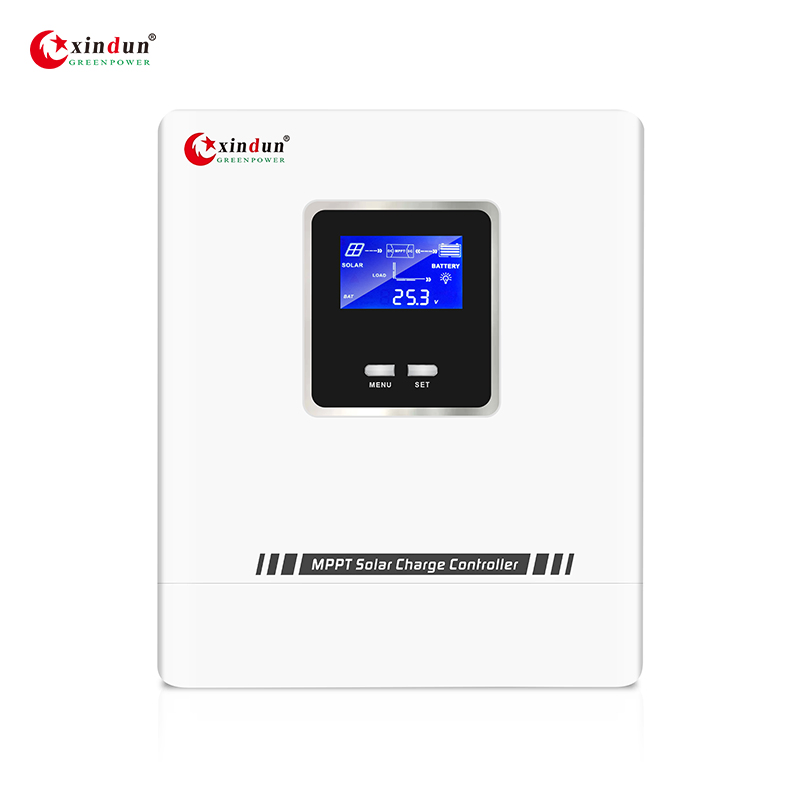

WiFi MPPT 12 Volt 24V 48VDC Solar Smart PV Charge Battery Charger Controller

1 / 5

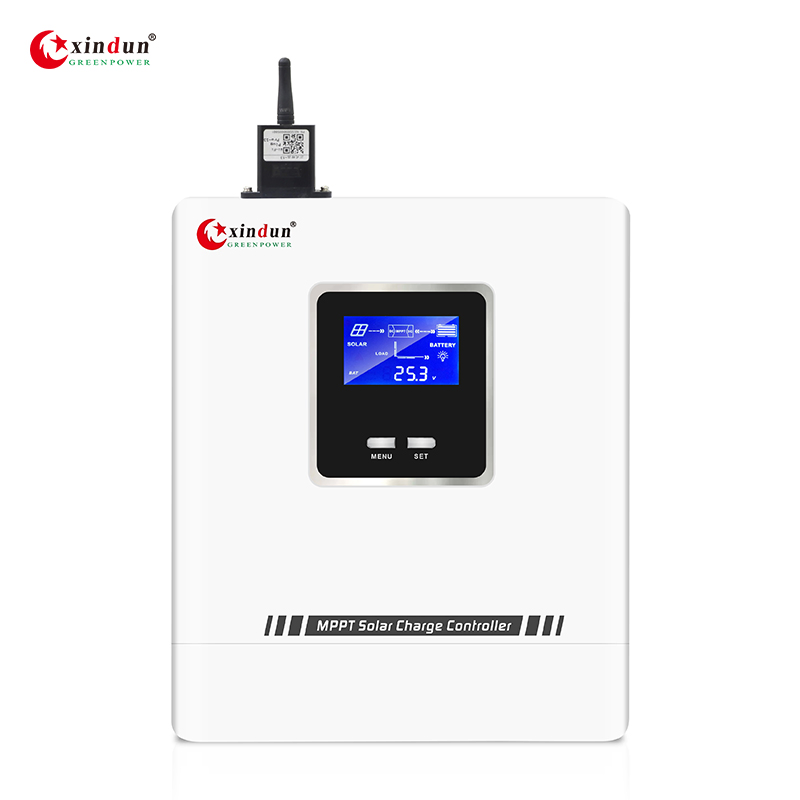

WiFi MPPT 12 Volt 24V 48VDC Solar Smart PV Charge Battery Charger Controller

Customization:	Available
After-sales Service:	Free Parts
Warranty:	2 Years

Send Inquiry

Product Description

Basic Info.

Model NO.

XD-Wonder2

Condition

New

Certification

ISO, CE

Application

Collector Controller, Charger Controller, Solar Working Station, Voltage Controller

Rated Voltage

12V/24V/48V

Rated Current

10A/20A/30A/40A/50A/60A/80A/100A

Color

White Solar Controller/OEM/ODM

MPPT Tracking Efficiency

>99%

Type

MPPT, MPPT Solar Charger Controllers

Max PV Power

140W~5600W

Conversion Efficiency

>98%

Cooling Method

Intelligent Fan Control

HS Code

8537109090

Production Capacity

50000 Pieces/Year

Inverter Feature

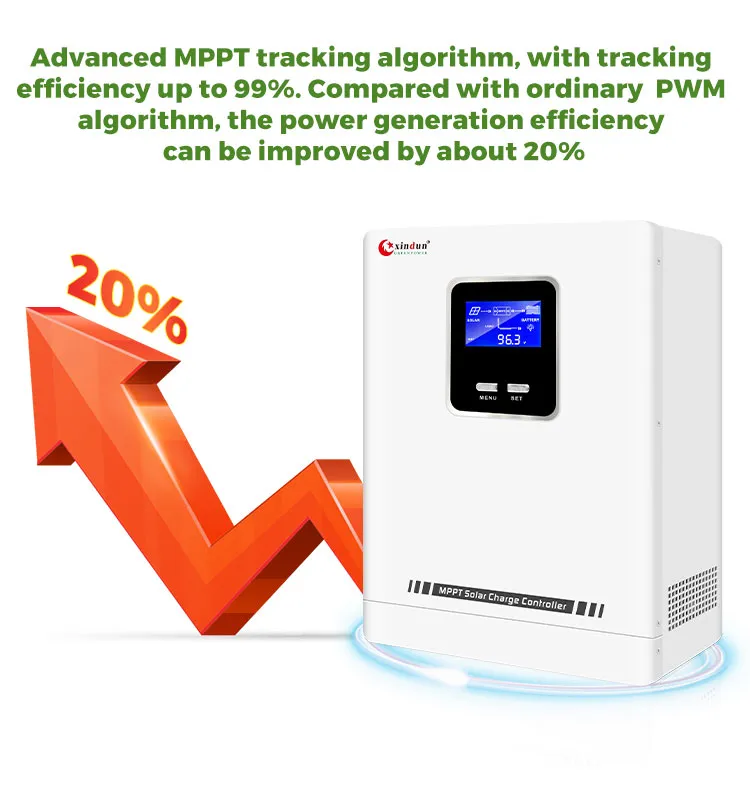

Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Compared with ordinary PWM algorithm, the power generation efficiency can be improved by about 20%.

LCD graphic display of photovoltaic power generation data and simulation of power generation process.

Multiple load working modes can be set to adapt to different working occasions.

Ultra wide photovoltaic input voltage range, more convenient system configuration.

It supports a variety of lead-acid batteries and lithium batteries, and users can customize the charging and discharging parameters.

Lithium battery activation function.

Full range of electronic protection functions: battery anti reverse connection, PV anti reverse connection, charging over-current, DC output over-current, over temperature, over-voltage and undervoltage protection.

Intelligent battery management function, extending battery life.

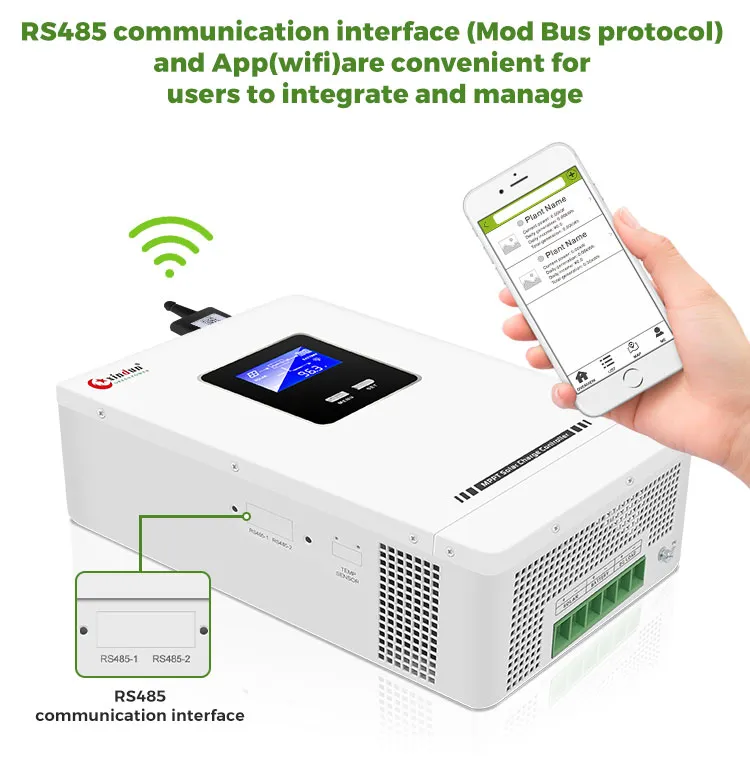

RS485 communication interface (Mod Bus protocol) and mobile phone APP are convenient for users to integrate and manage.

Highlight

Specification

Model: Wonder2	10124, 20124, 30124	1048, 2048, 3048	40124, 50124, 60124	4048, 5048, 6048	80124, 100124	8048, 10048
Rated Current	10A/20A/30A		40A/50A/60A		80A/100A
Rated System Voltage	12V/24V	48V	12V/24V	48V	12V/24V	48V
Max PV Input Voltage(Voc)	120V	180V	120V	180V	120V	180V
MPPT Tracking Efficiency	>99%
Conversion Efficiency	>98%
Battery Type	Lead acid battery/Lithium battery/Custom
Communication	RS485/APP(WIFI monitoring or GPRS monitoring)

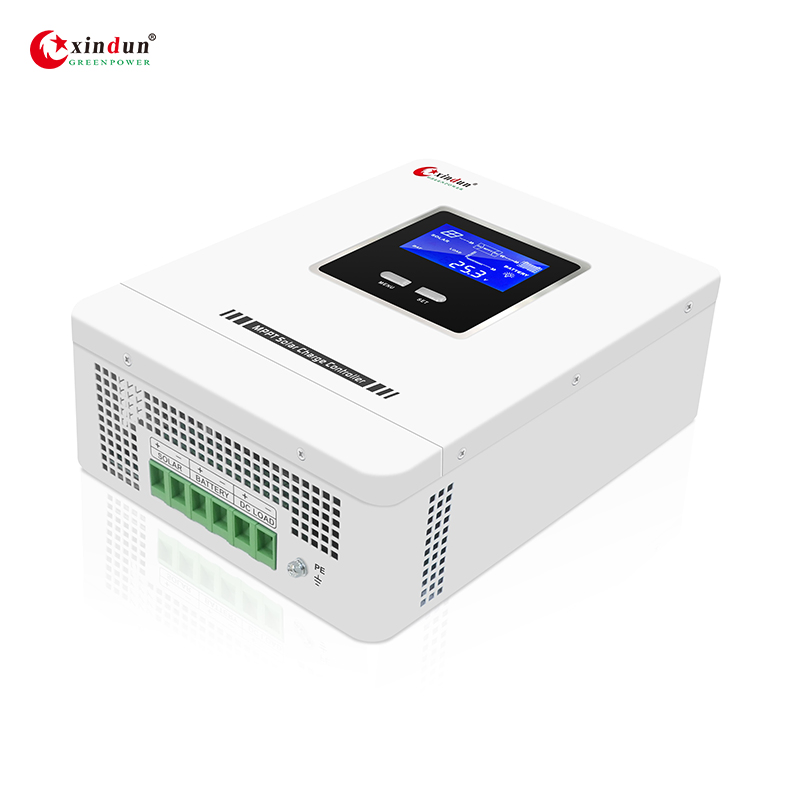

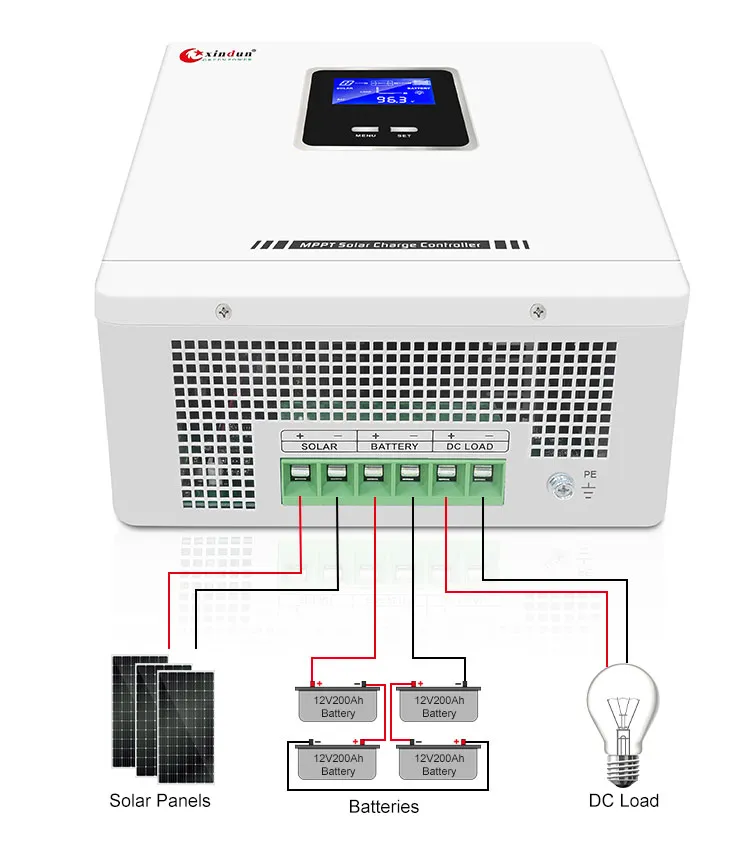

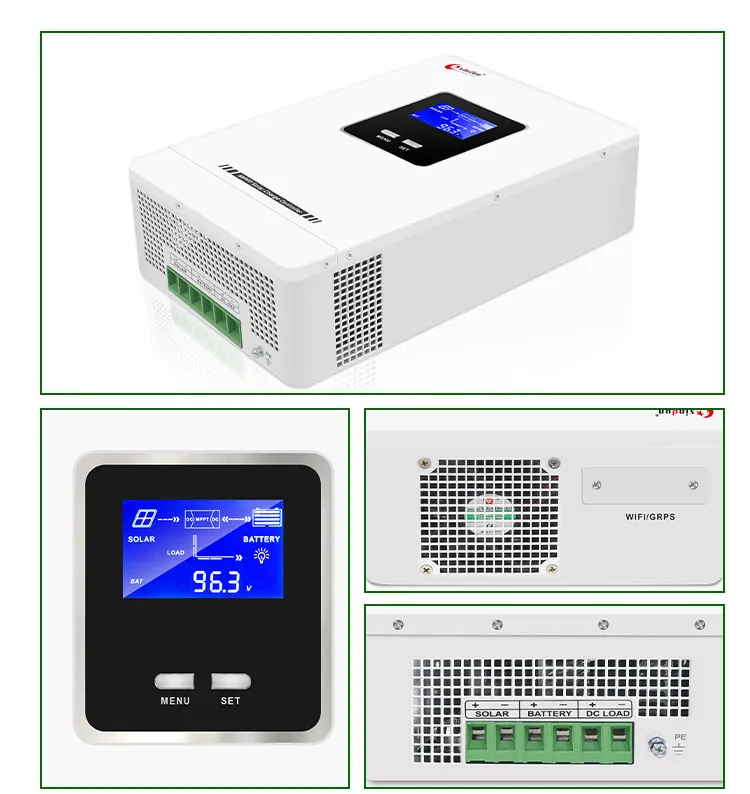

Product Detail & Wiring Diagram

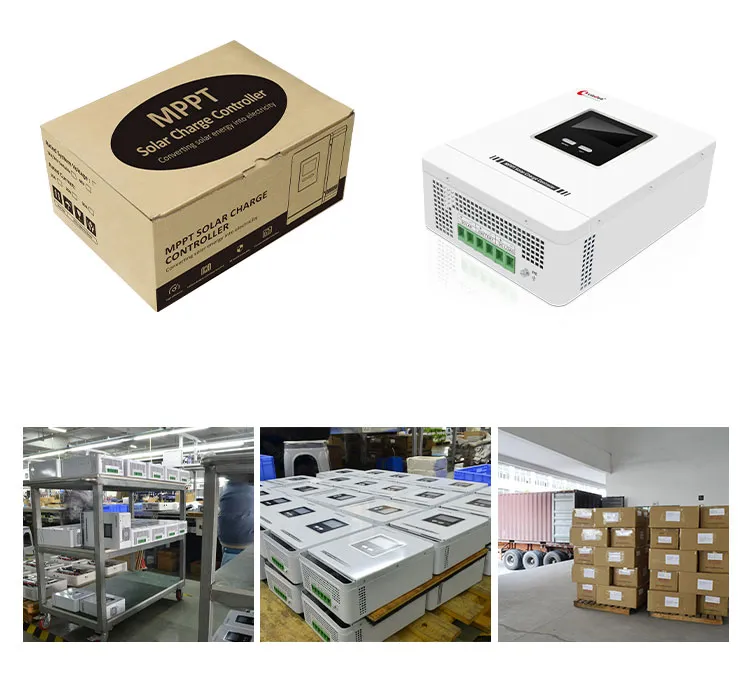

Packing & Delivery

Package: Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.

Shipping:
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.

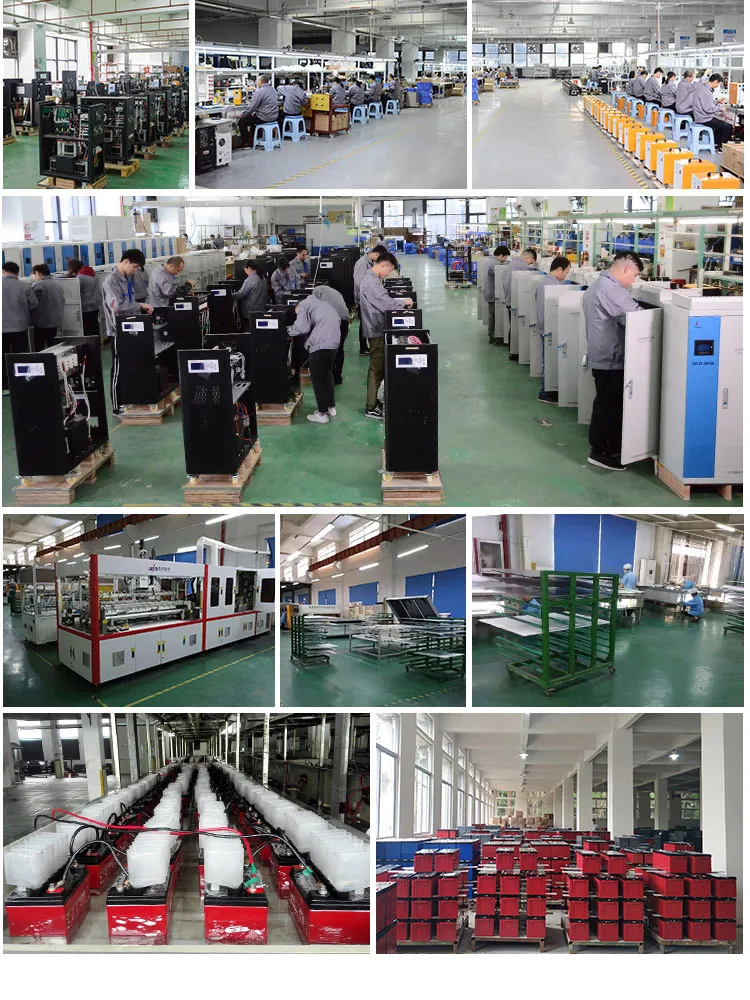

Workshop

Frequently Asked Questions

What is the tracking efficiency of this MPPT controller?

The controller utilizes an advanced MPPT tracking algorithm, achieving a tracking efficiency of over 99%, which can improve power generation by approximately 20% compared to PWM controllers.

Which battery types are supported?

It supports a wide range of batteries including various lead-acid batteries and lithium batteries. Users can also customize charging and discharging parameters for other battery types.

Can I monitor the system remotely?

Yes, the device features an RS485 communication interface (Mod Bus protocol) and supports mobile phone APP monitoring via WiFi or GPRS modules.

What safety protections are built into the device?

It includes a full range of electronic protections: battery and PV anti-reverse connection, charging over-current, DC output over-current, over-temperature, and over/under-voltage protection.

What is the maximum PV input voltage?

Depending on the model, the maximum PV input voltage (Voc) is 120V for 12V/24V systems and 180V for 48V systems.

How does the cooling system operate?

The controller uses an intelligent fan control system that adjusts cooling based on the internal temperature to ensure optimal performance and longevity.
