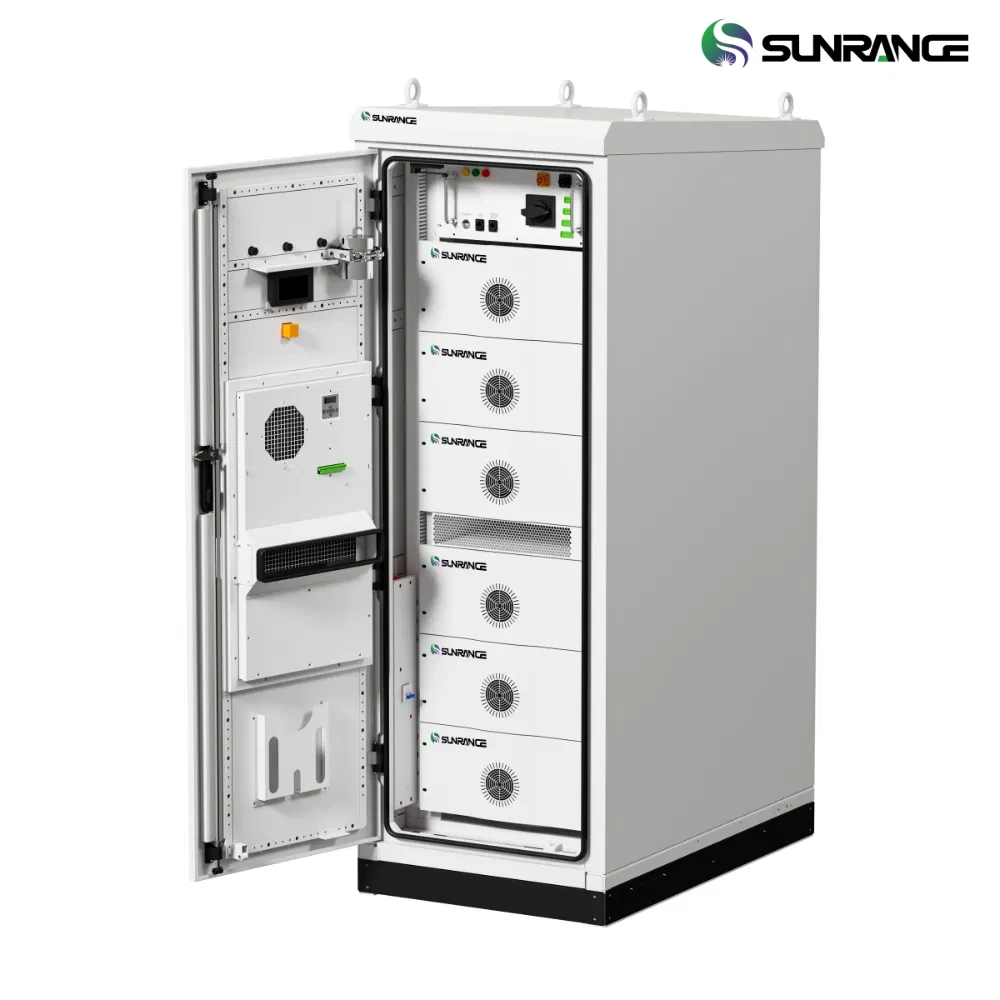

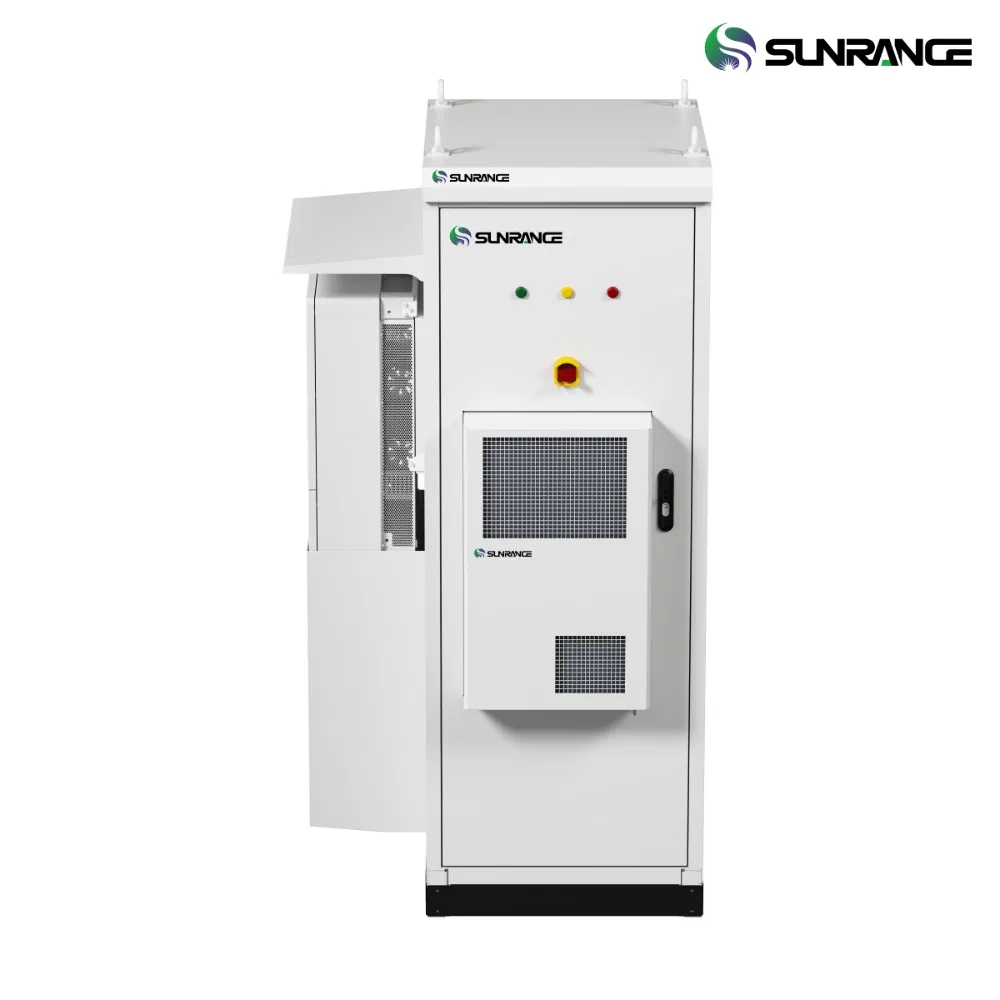

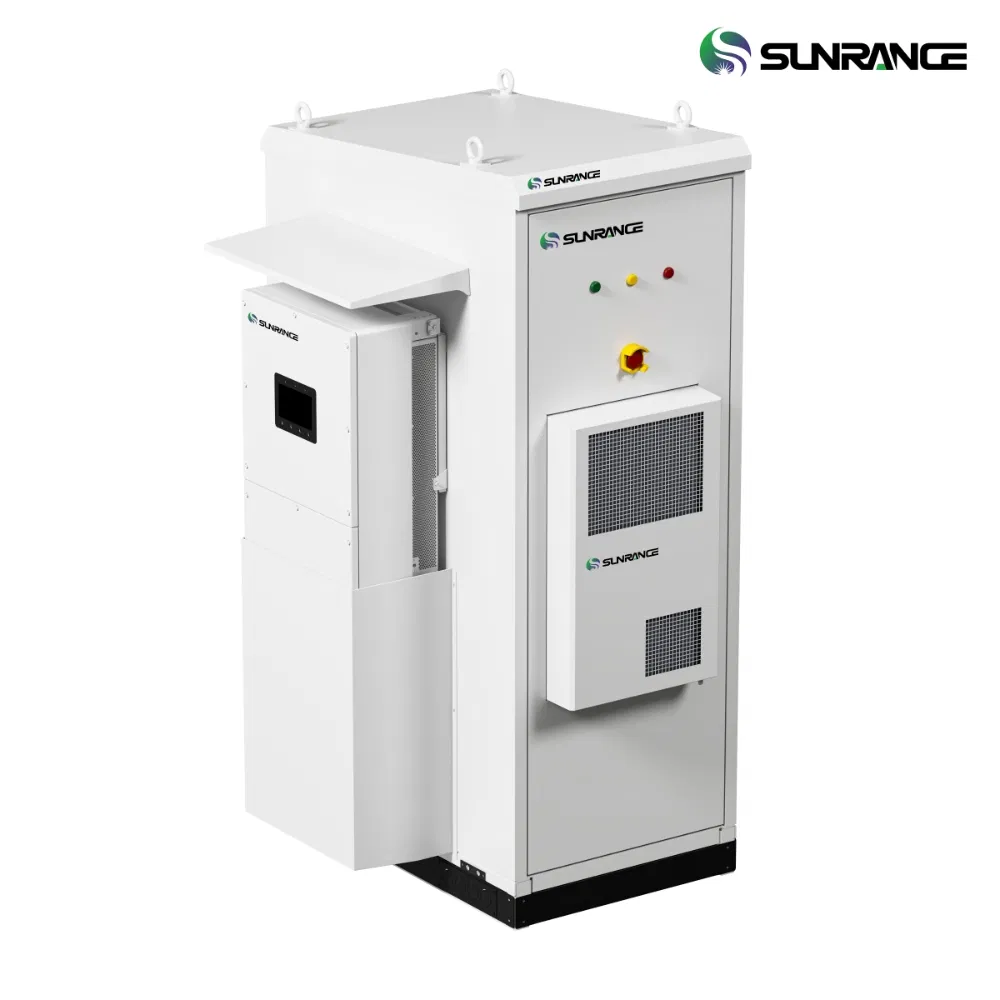

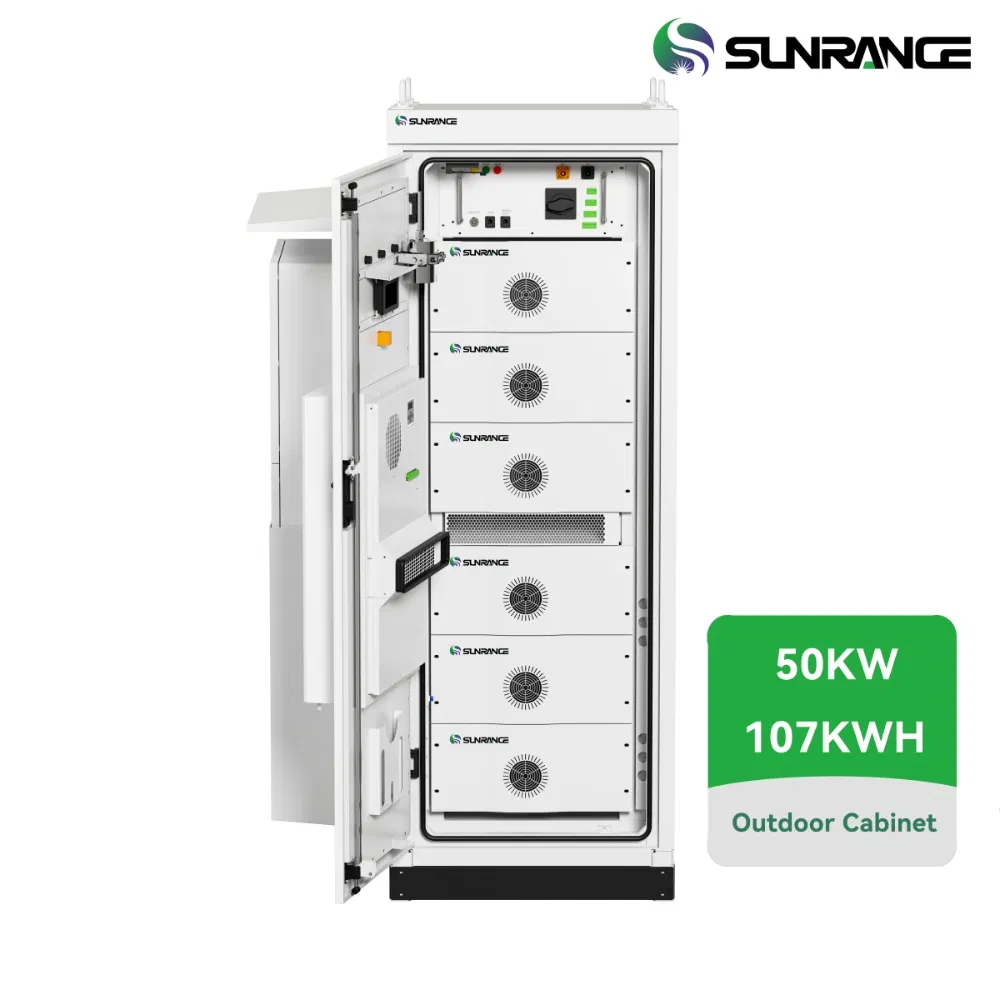

Sunrange Hybrid Solar System 215kwh Ess Air Cooling Bess Lithium Power Storage Cabinet with Vehicle Charging

📊 Basic Info

Model NO.SR-eBank-50120F

CertificationISO, CB, CE

ApplicationIndustrial, Commercial

Rated Energy107.5kwh

Rated Voltage384V

Cycle Life8000 Times

IP RatingIP54

Max.PV Input96 Kw

🔍 Product Description

The series of small-scale optical storage integrated outdoor cabinet energy storage system adopts modular design, featuring easy integration, easy deployment, and easy expansion. It guarantees system security and is ideal for peak shaving, valley filling, self-generation/consumption, demand management, and off-grid power backup.

🛠️ Technical Specification

Module: SR-eBank-50120F Parameters
Number of battery packs	6
Voltage range	336~438V
Rated energy	107.5kWh
Max. continuous current	140A
Discharge Depth	90%
MPPT voltage range	150~850VDC
AC rated output power	50kVA
Frequency	50/60Hz
Cooling Method	Air cooling
Dimension (WHD)	W750H2000D1100mm
Expansion Support	Up to 90kW / 252.9kWh

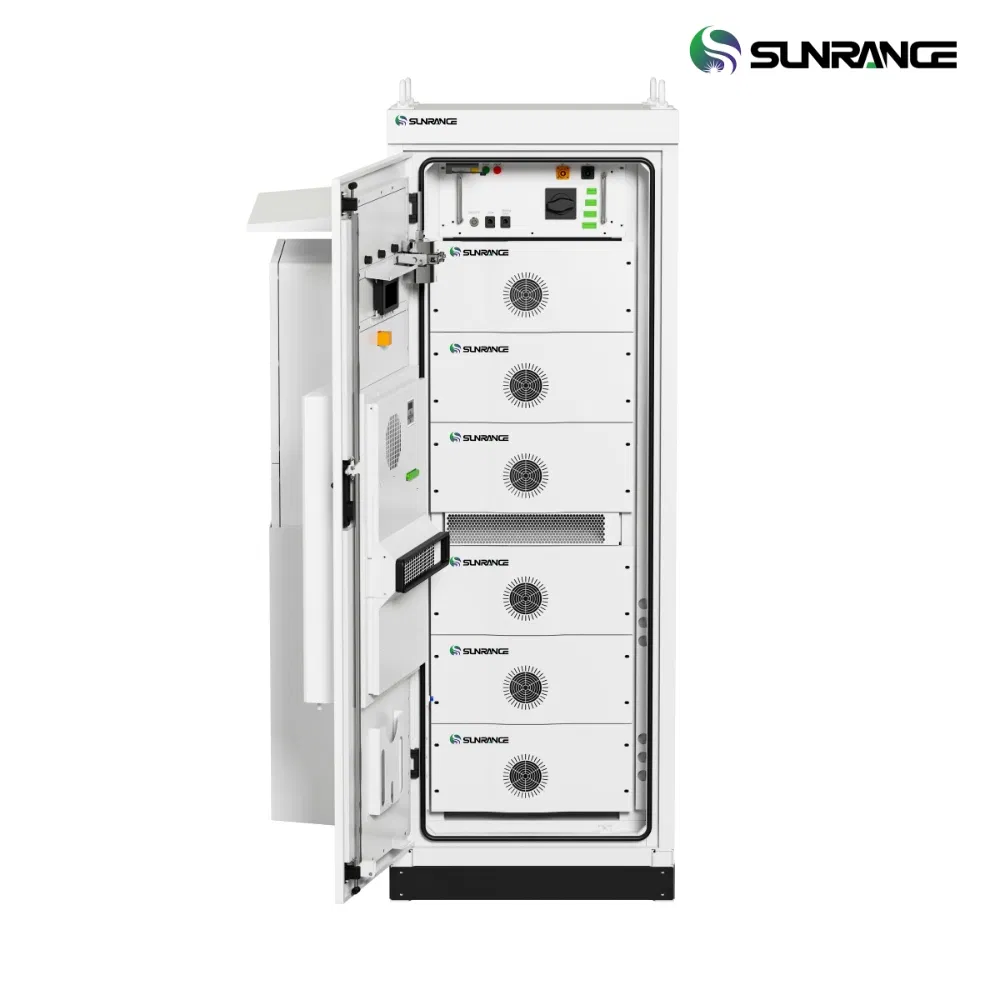

📸 Product Details

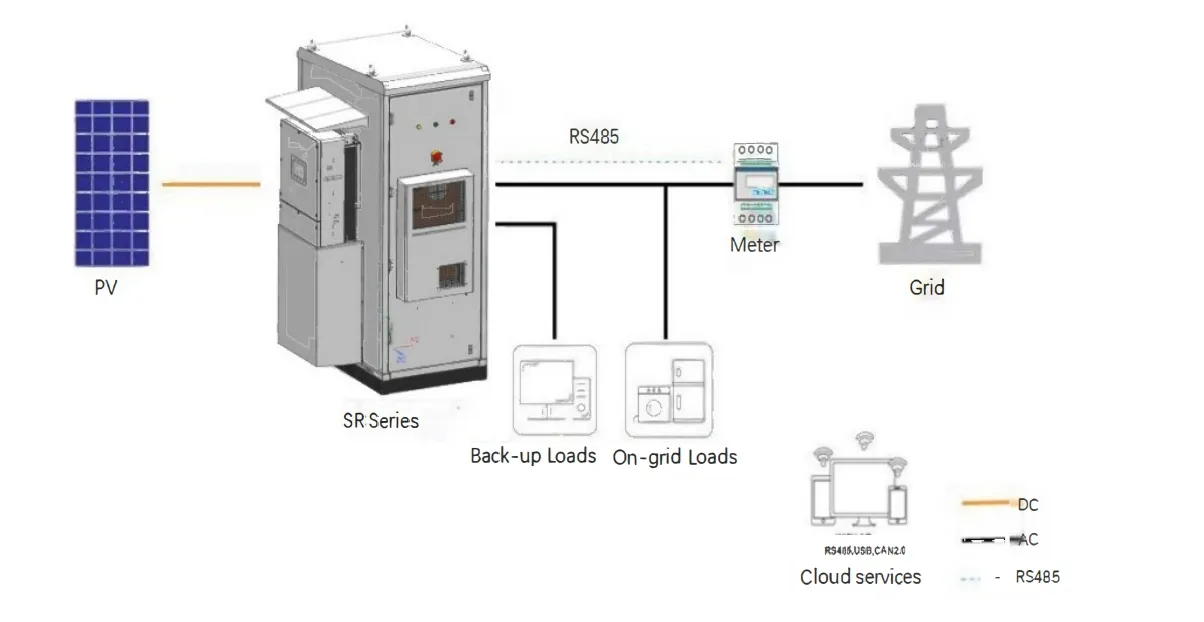

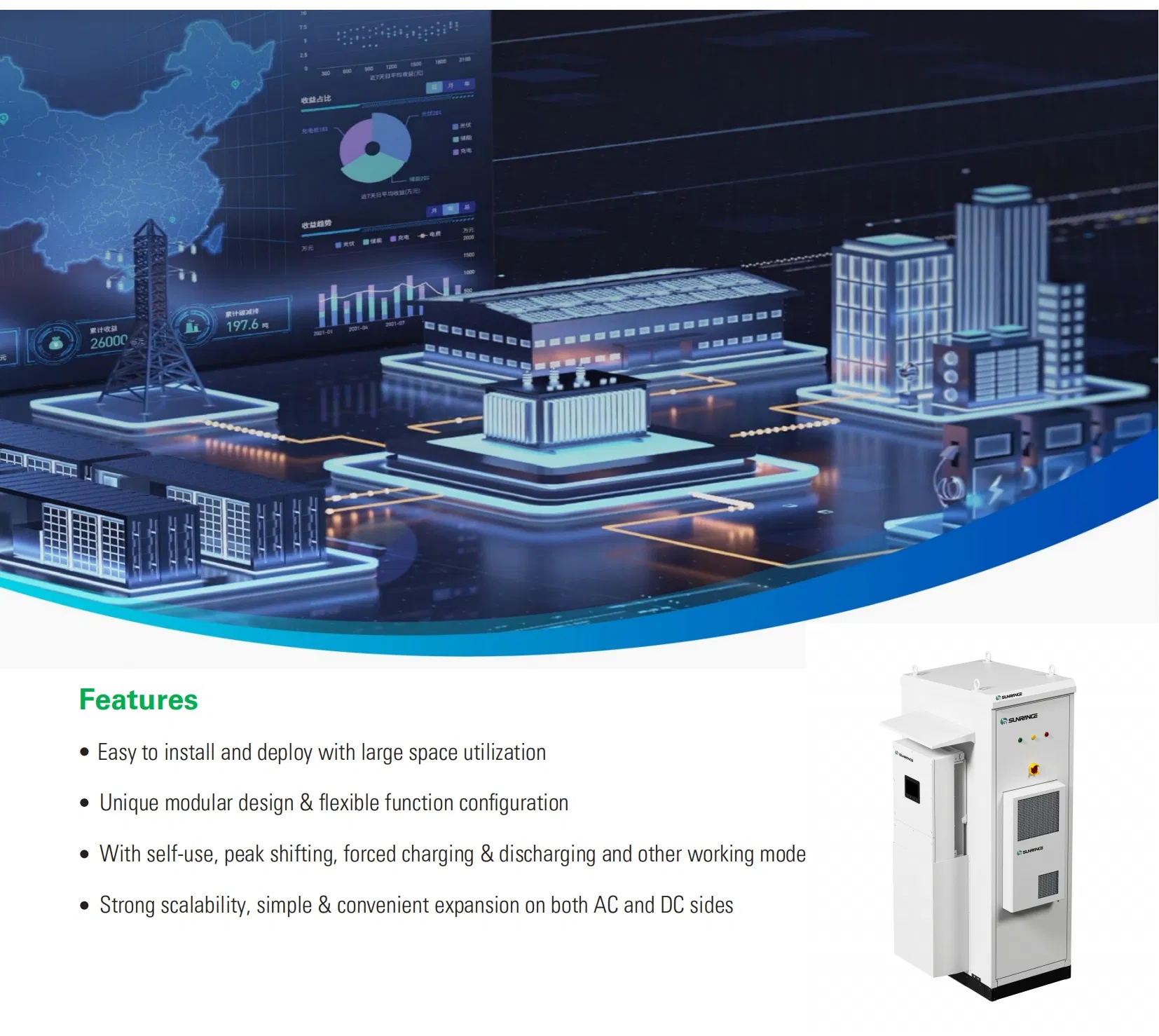

🌐 System Overview

✅ Technical Support & Certifications

❓ Frequently Asked Questions

1. What is the battery life expectancy of the SR-eBank-50120F?

The system features a high-performance lithium battery with a cycle life of over 8,000 times and a design life of 10+ years.

2. Can this energy storage system be used outdoors?

Yes, the cabinet is designed with an IP54 enclosure protection rating and an air-cooling system, making it suitable for outdoor industrial and commercial environments.

3. Is the system expandable if my power needs increase?

Absolutely. The system supports parallel expansion up to a capacity of 90kW / 252.9kWh to meet growing energy demands.

4. What are the primary applications for this ESS cabinet?

It is ideal for peak shaving, valley filling, demand management, off-grid power backup, and integrated solar-storage-charging stations.

5. What communication protocols does the system support?

The system supports multiple communication interfaces including CAN, RS485, WiFi, and Ethernet (ETH) for seamless monitoring and management.

6. What is the operating temperature range?

The system is designed to operate reliably in environment temperatures ranging from -30℃ to 50℃.
