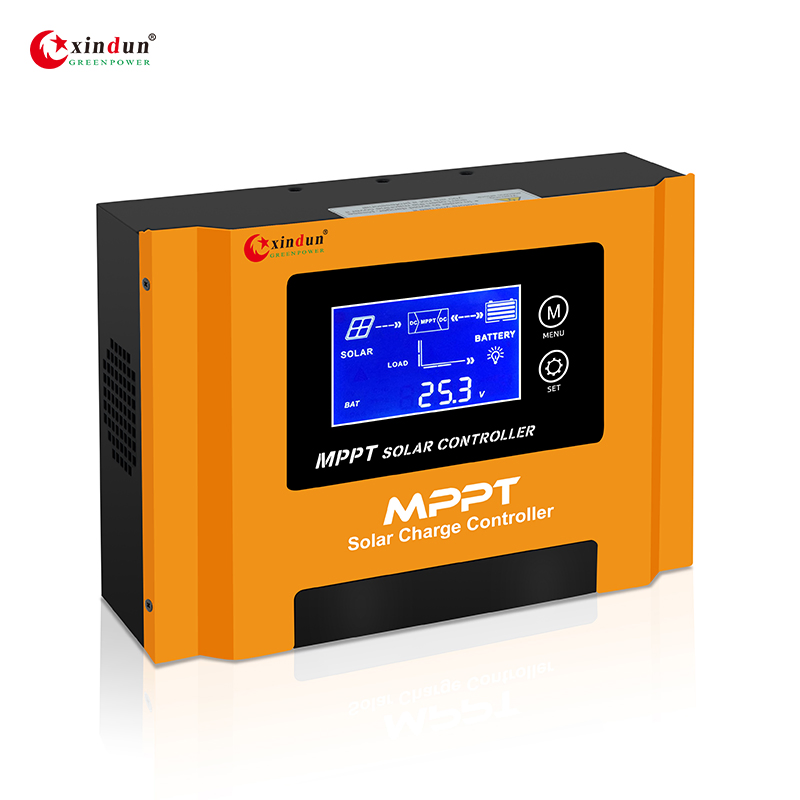

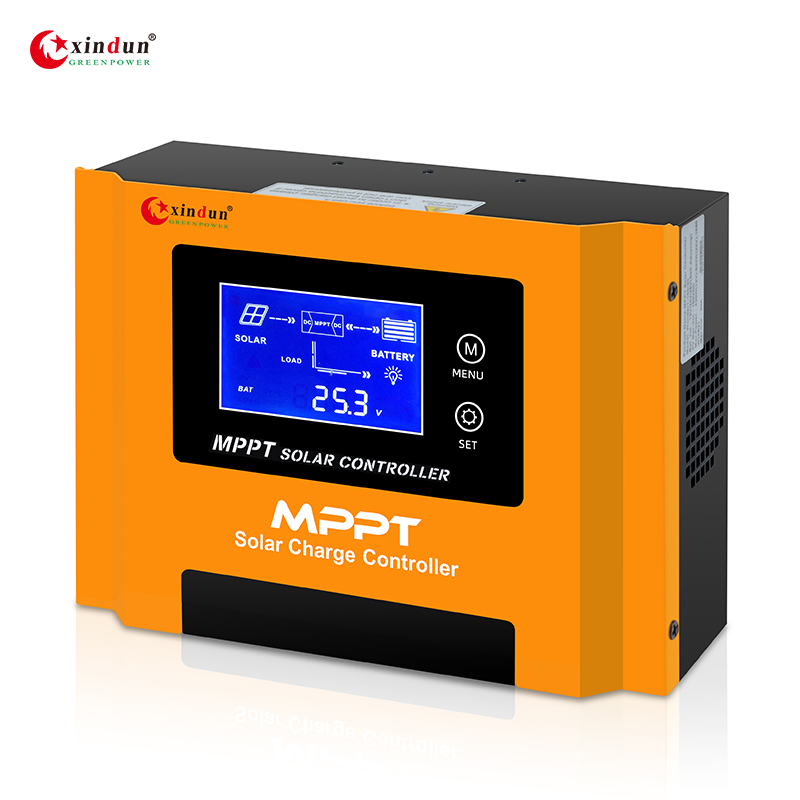

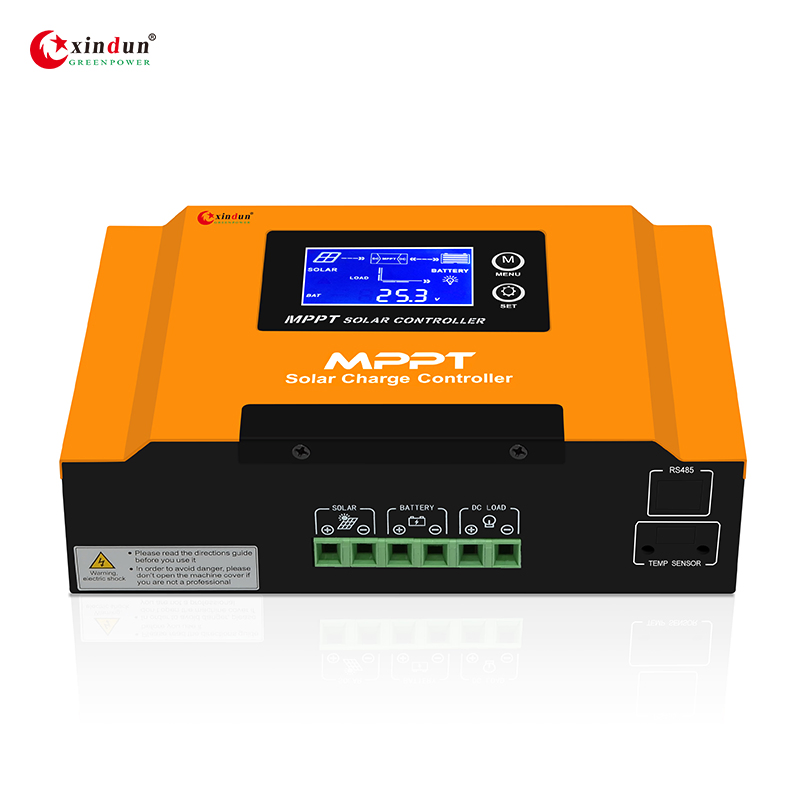

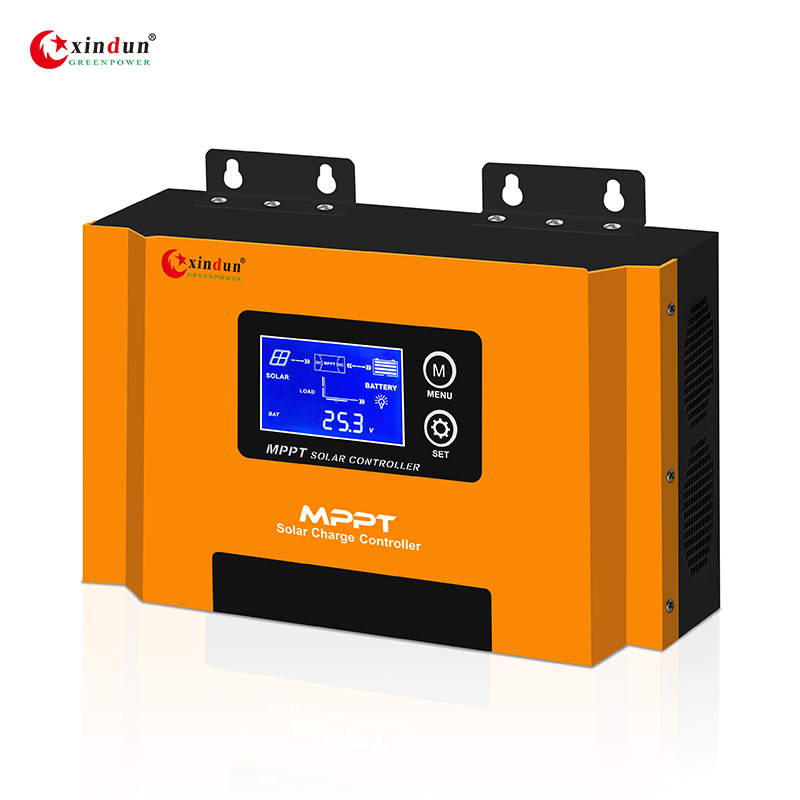

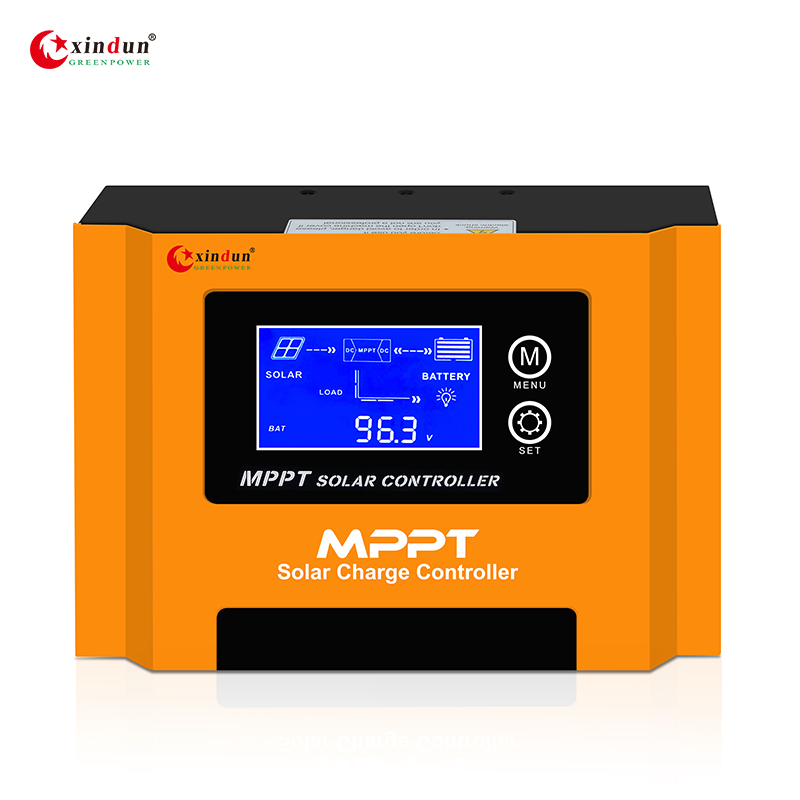

12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
1 / 5
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller
12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller

12V 24V 20A 30A 40 60 100 AMP Smart Solar MPPT Battery Charge Controller

Customization: Available
After-sales Service: Yes
Warranty: 2 Years
Send Inquiry

Product Description

ℹ

Basic Information

Model NO.:XD-Wonder1
Condition:New
Certification:ISO, CE
Application:Controller Station, Voltage Controller
Rated Voltage:12V/24V/48V
Rated Current:10A - 100A
Work Time:1~24h
MPPT Efficiency:>99%
Conversion Efficiency:>98%
Max PV Input:150V
Cooling:Intelligent Fan
Display:LCD Display
⚡

Inverter Features

1. Advanced MPPT tracking, 99% tracking efficiency. Compared with PWM, the generating efficiency increases near 20%.
2. LCD display showing PV data and charts simulating power generation process.
3. Wide PV input voltage range, convenient for flexible system configuration.
4. Intelligent battery management function to extend battery life.
5. RS485 communication port optional for advanced monitoring.
🔍

Product Details

Solar MPPT Controller Detail

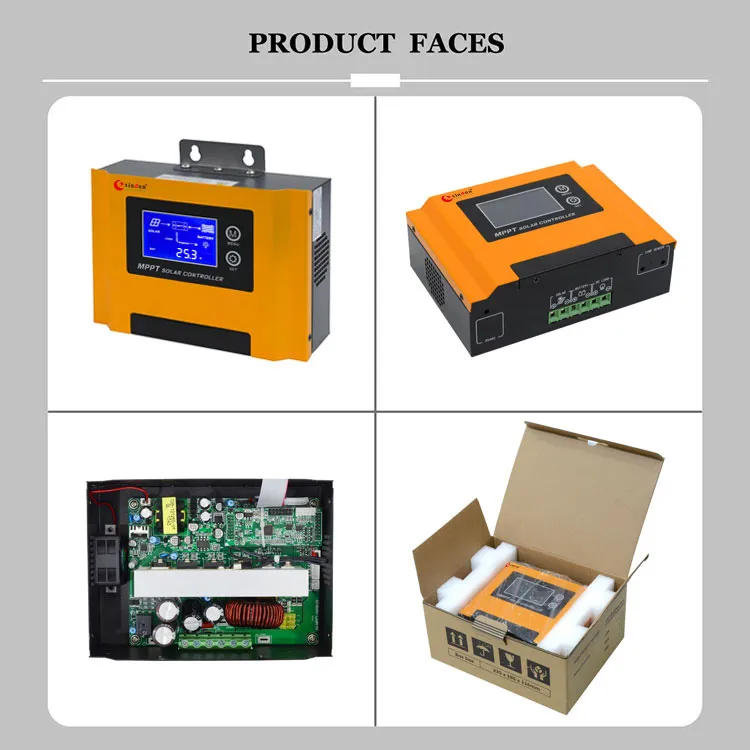

Solar MPPT Controller UI
📋

Specifications

Model: Wonder1 150/10, 20, 30 150/40, 50, 60 150/80, 100
Rated Current 10A/20A/30A 40A/50A/60A 80A/100A
Rated System Voltage 12V/24V/48V Auto Recognition
Max PV Input Voltage(Voc) 150V
Battery Type Lead acid battery (Base on user specification)
Charge Mode MPPT maximum power point tracking
Charging Method Three stages: constant current(MPPT); constant voltage; floating charge
Conversion Efficiency >98%
Protection Over-voltage/under-voltage/over-temperature/PV anti-reverse
Communication RS485/APP (WIFI monitoring or GPRS monitoring)
🔌

Wiring Diagram & Application

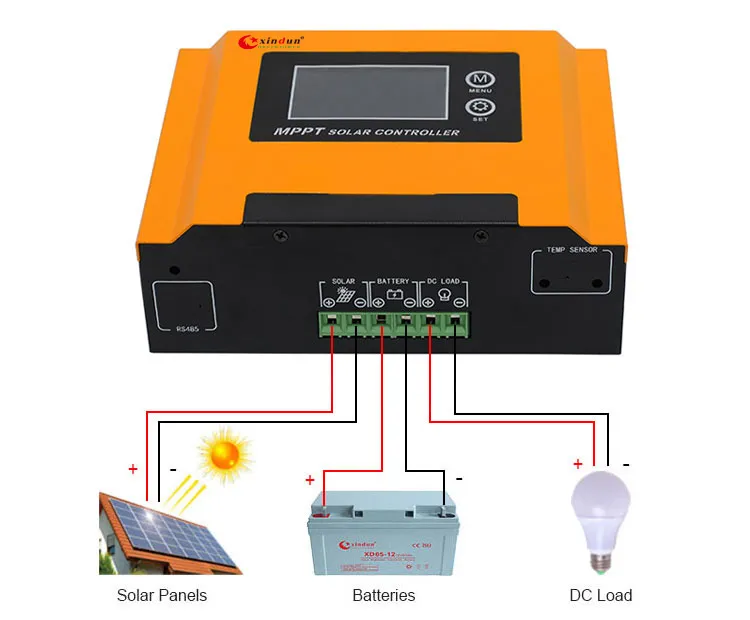

Wiring Diagram

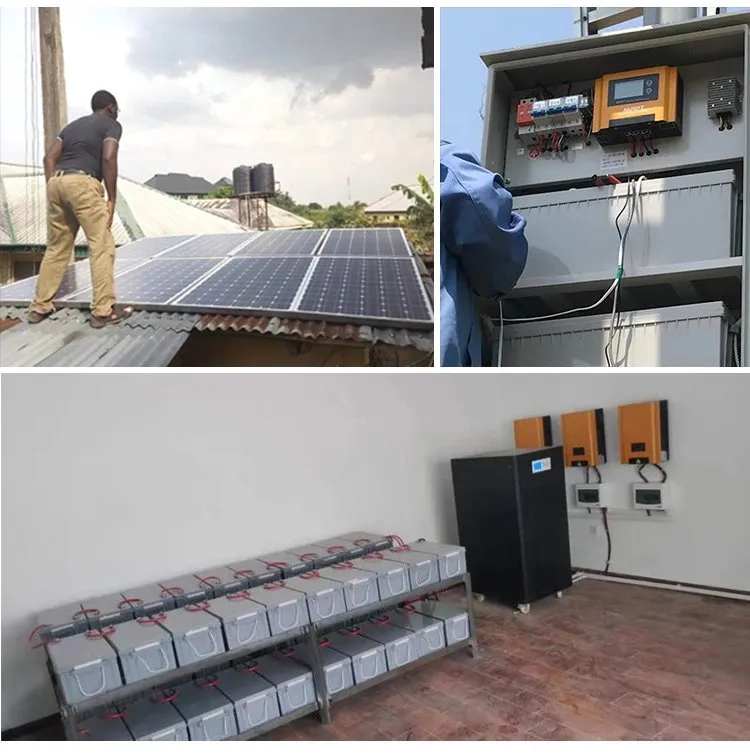

Application Scenario
📦

Package & Shipping

Packaging: Carton Box for standard packaging, or Wooden Box recommended for Samples to ensure protection during transportation.

Shipping Methods:

  • Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
  • By air or by sea for batch goods.
  • Customer specified freight forwarders or negotiable methods.
  • Delivery time: 7 days for samples; 10 to 25 days for batch goods.
🏭

Manufacturing & Workshop

Company Overview
Workshop Quality Control

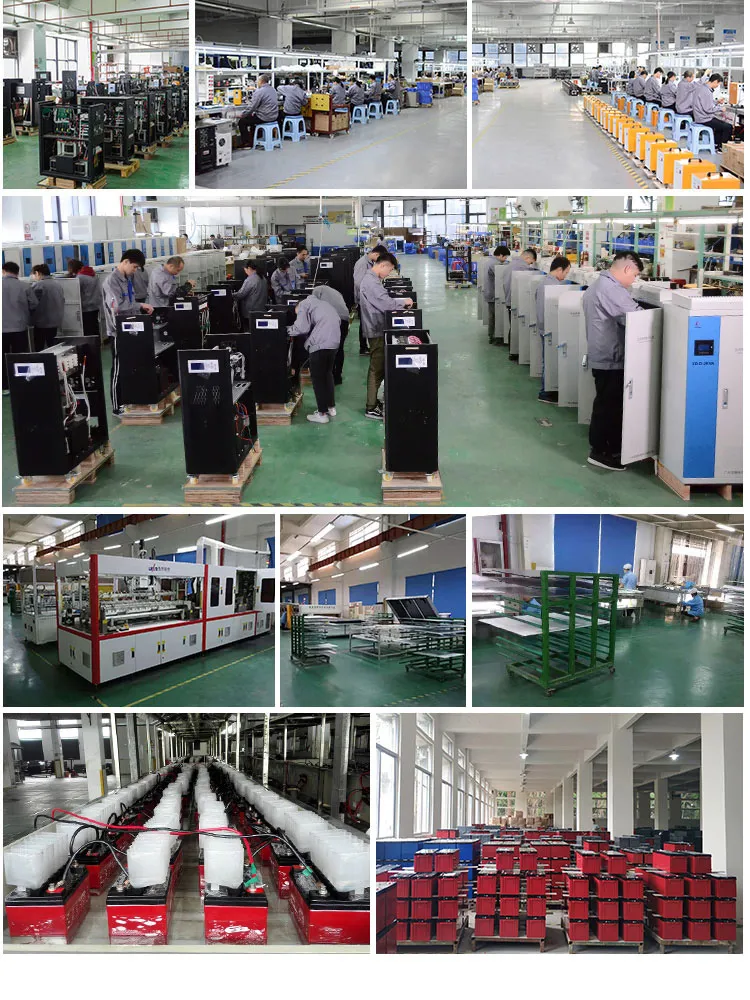

Assembly Line
❓

Frequently Asked Questions

What is the tracking efficiency of this MPPT controller?
The controller features advanced MPPT tracking with an efficiency of over 99%, which increases generation efficiency by nearly 20% compared to PWM controllers.
Does the controller support different system voltages?
Yes, the XD-Wonder1 supports 12V, 24V, and 48V systems with automatic voltage recognition for easier setup.
What kind of batteries can I use with this device?
It is designed for lead-acid batteries, but the charge specifications can be adjusted based on the user's requirements.
Can I monitor the system data remotely?
Yes, the device comes with an optional RS485 communication port and supports WiFi or GPRS monitoring via a dedicated app.
What protections are built into the controller?
The controller includes multiple safety features: over-voltage, under-voltage, over-temperature, and PV anti-reverse protection.
What is the maximum PV input voltage supported?
The maximum PV input voltage (Voc) is 150V, making it suitable for a wide range of solar panel configurations.
