Smart Queue EV Charger Fleet Management Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Overview

Model NO. 80KW-600KW Location Public Use
Charging Interfaces One Pile with Multiple Charges Start Mode Credit Card, Mobile Remote, RFID
Rated Power 40kw To 600kw Weight 194kg-274kg
Gun Barrel Length 5 Meters / 7 Meters Number of Guns 2 individual
Body Size 750X410X1700(mm) HMI 7-Inch LCD Touch Screen + LED
Connection 4G / Ethernet Origin China
P

Product Description

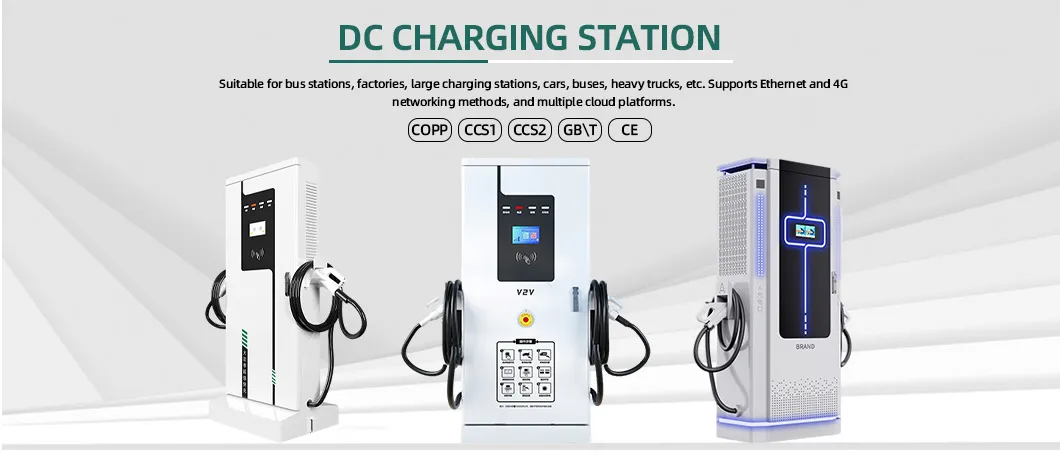

EV Charger Banner
EV Charger Series
Product Introduction:
Power range from 40KW to 600KW. Supports OCPP protocol, CCS1, CCS2, and GB/T standards. Features IP54 waterproof rating, with a continuous adjustable voltage range of 50-1000V. Constant power voltage range is 200-1000V. Supports simultaneous charging with two guns. Suitable for bus stations, factories, large charging stations, cars, buses, heavy trucks, etc. Supports Ethernet and 4G networking methods, and multiple cloud platforms. Includes gun temperature monitoring, short circuit, over-temperature, over-current, leakage, over/under-voltage protection, and lightning protection. The charging station has been debugged before leaving the factory. Users can directly power on and use it without any secondary debugging. It adopts advanced DC fast charging technology, providing rapid energy replenishment, shortening charging time, and improving charging efficiency.

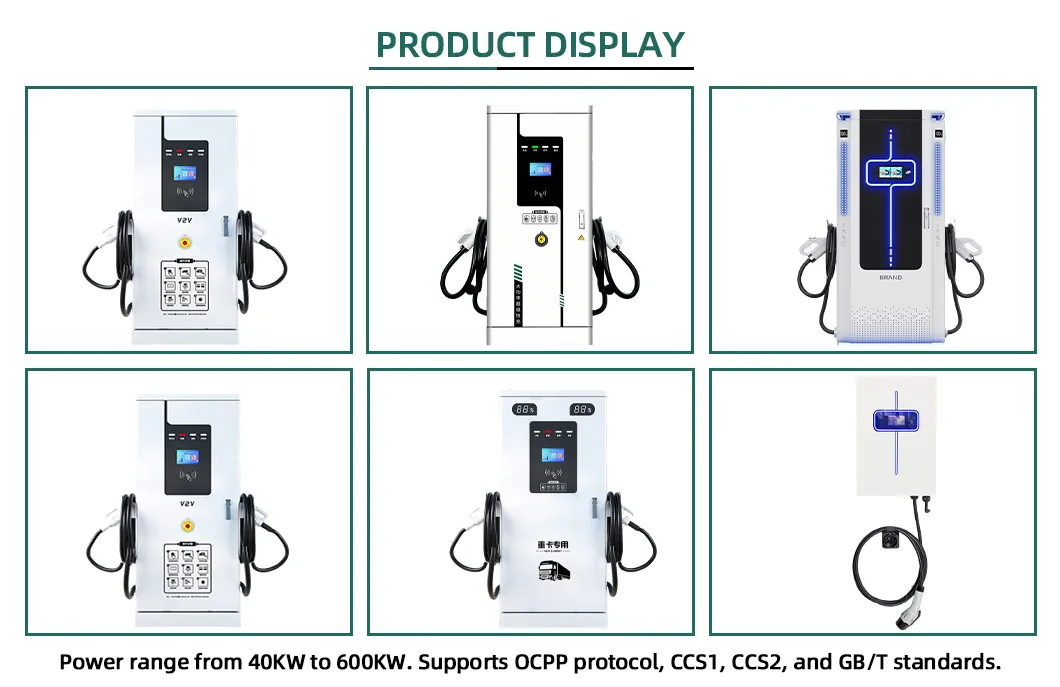

High Efficiency Charger
Product Detail 1
Product Detail 2
Product Detail 3

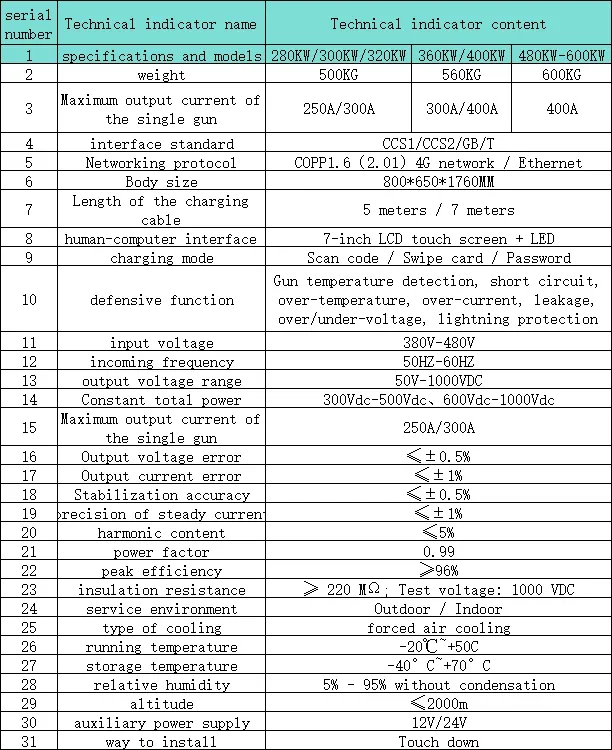

Product Detail 4

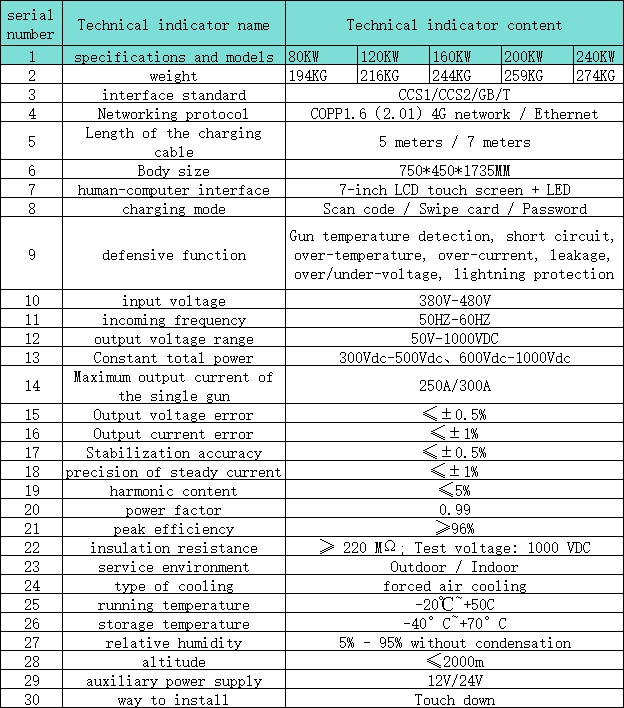

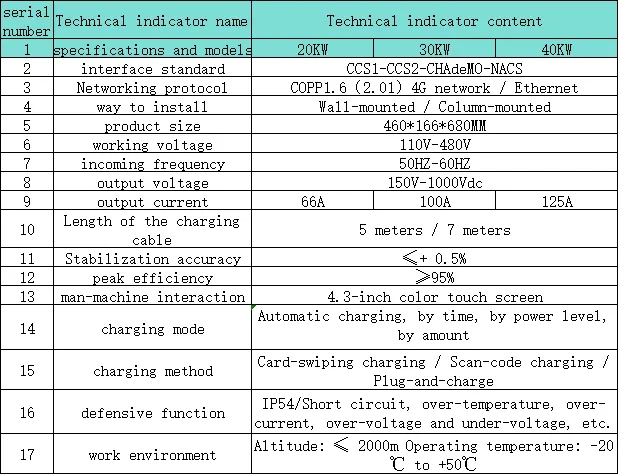

Technical Diagram
Design Criterion CCS1, CCS2, GB/T Protection Level IP54
Charging Mode Scan code, Swipe card, VIN code, Password Cloud Platform OCPP 1.6 (2.0.1)
Defensive Function Gun temperature detection, short circuit, over-temperature, over-current, leakage, over/under-voltage, lightning protection

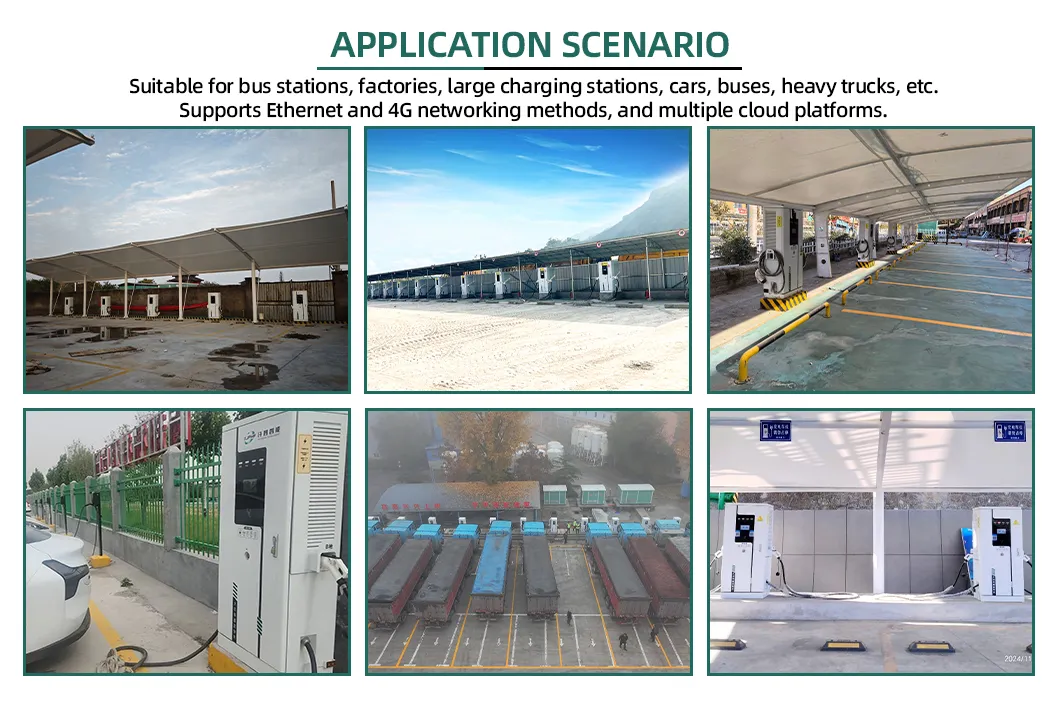

Compact EV Station
C

Company Profile

Factory View
We are an AAA-rated credit enterprise, holding ISO400, ISO900, ISO1400, ISO500, and ISO certifications. We also possess numerous software copyrights, certificates such as those for honest businesspeople, and various third-party inspection reports for our equipment. We actively participate in large-scale domestic and international exhibitions and have established partnerships with numerous renowned enterprises both at home and abroad.
Certifications
S

Packaging & Shipping

Packaging Process
We adopt packaging methods that are sufficient to protect the equipment, and they support sea transportation, air transportation and land transportation.
?

FAQ

Are you a factory or a trading company?
We are a manufacturer, welcome to visit our factory at any time!
What products can we buy from you?
We mainly offer wallbox/Portable AC EV chargers (3.5kw-44kw), integrated floor-mounted fast DC Charging stations (30kw-480kw), mobile chargers with energy storage (3.5kwh-161kwh), and Solar System products.
Can you customize the design and put our logo on the products?
Yes, we can make your design and put your logo on the products.
What is your typical delivery time?
Generally, it will take 7 to 35 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Do you test all your goods before delivery?
Yes, we perform a final inspection of all goods before delivery to ensure quality.
What payment methods do you accept?
We accept all major payment methods including T/T, PayPal, Credit Card, Western Union, and Bank Transfer.
