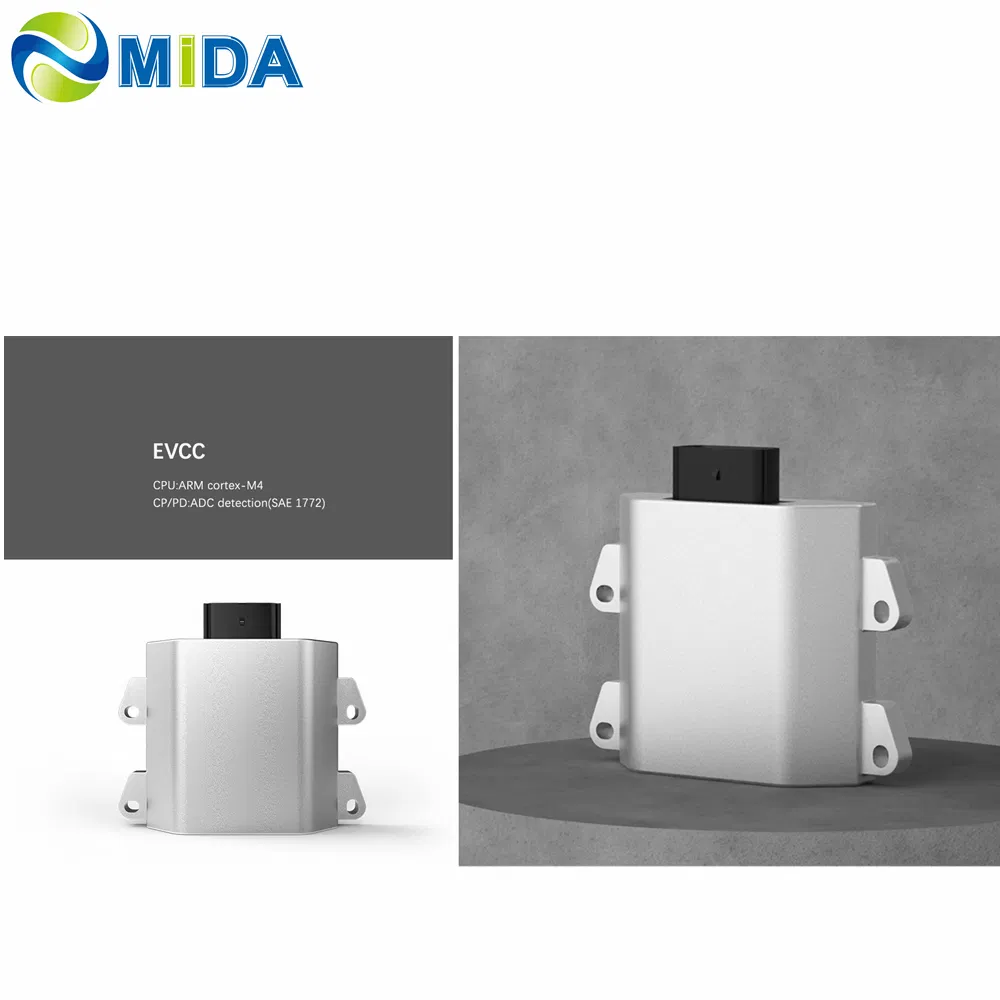

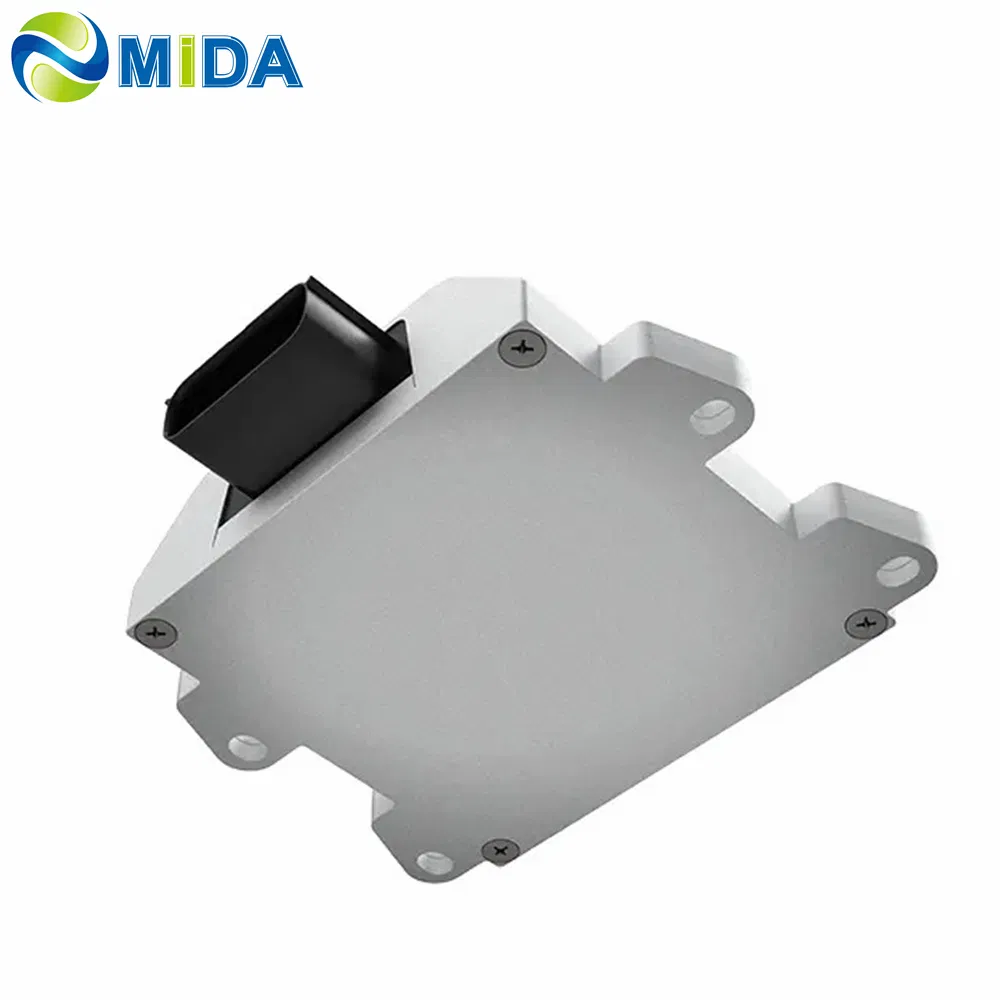

| Model NO. | GQEVPLC-V3.3 |
| Rated Voltage | 9V~28V |
| Consumption Active | <130mA |
| Evcc Wakeup by | Cp |
| Transport Package | Carton |
| Specification | 135*152*230mm |
| HS Code | 8504409999 |
| Production Capacity | 50000 pieces/Year |
| Charging Mode | CCS (AC and DC Charging) |
| Input Voltage | DC 9V~28V (Typical DC24V, DC12V) |

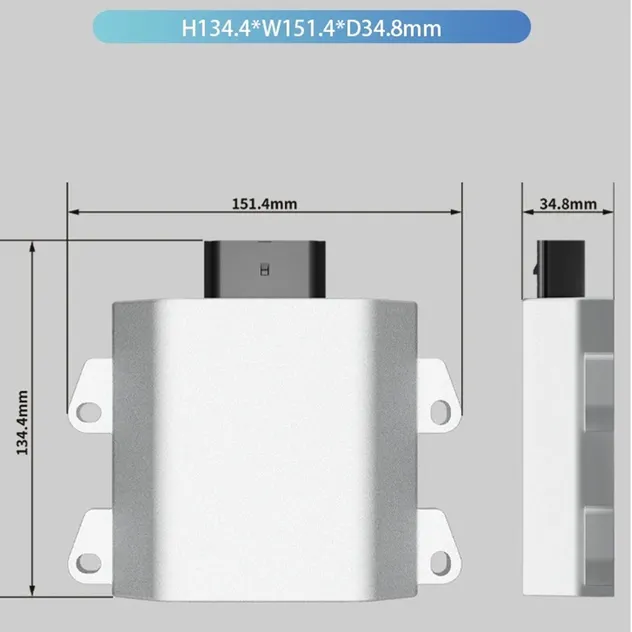

| Dimension(mm) | 151.5 x 135 x 35.3 (+0.5) Include connector |
| Serial Port | GB/T27930 CAN interface with BMS |
| Power Consumption@Active | <95mA (Vin DC24V) |
| CCS(DC Combo) Interface | CP, PE, PD |
| Peak Consumption (Inlet Lock) | 350mA (Vin DC24V) |
| Inlet Lock Motor Interface | DC12V 3-Wire / DC24V 4-Wire for Actuators |
| EVCC Wake-up | CP |
| PLC Standard | HomePlug Green PHY v1.1 |
| Supported Standards | ISO/IEC15118, DIN70121, SAE2847-2, SAE J2931-4, CHAdeMO V1.0.1 |
We are a professional supplier of electric vehicle components, providing high-quality solutions including EV plugs, charging sockets, cables, connectors, and integrated controllers. All products are manufactured to meet international standards including CE, TUV, and UL certifications, ensuring safety and reliability for global markets.
