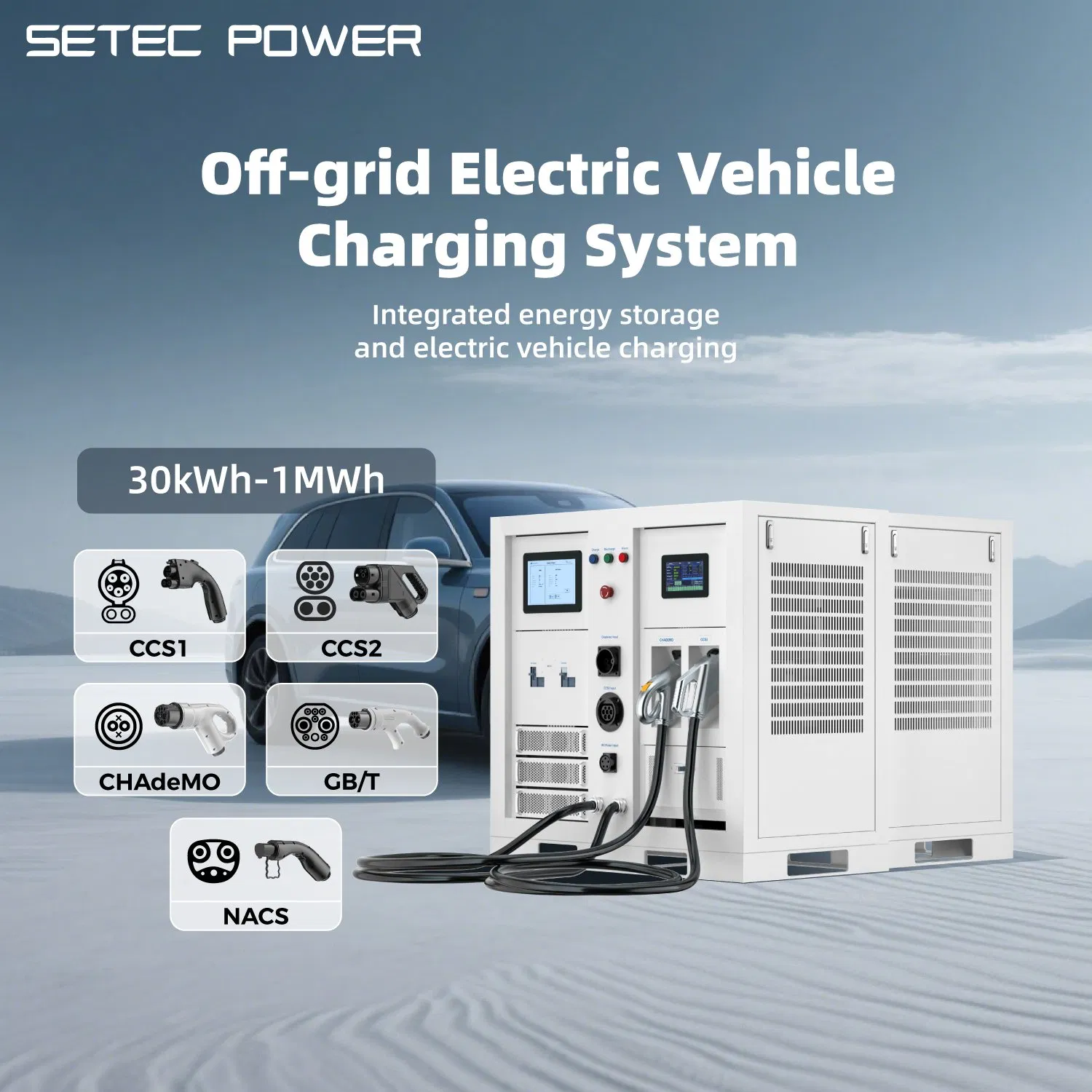

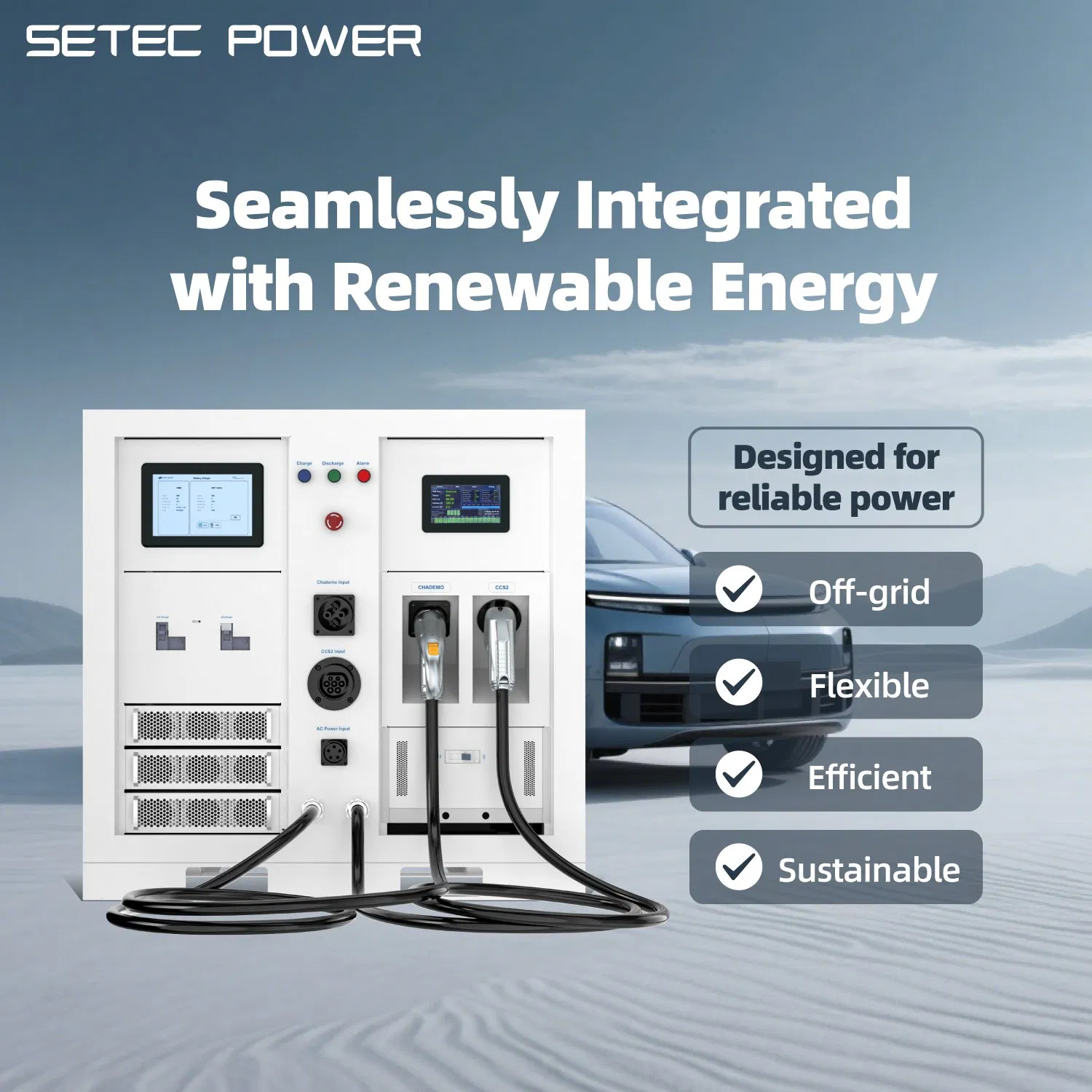

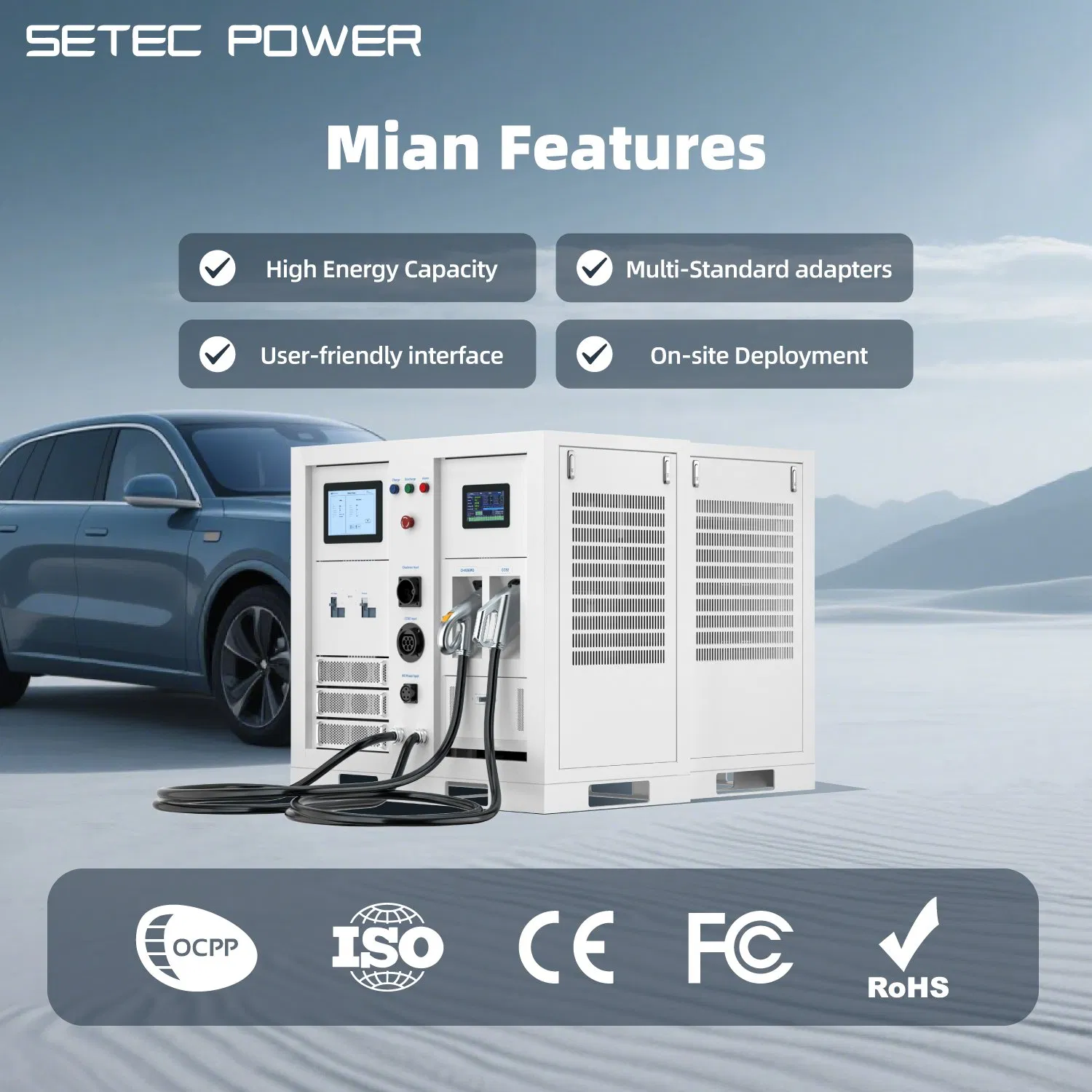

SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
1 / 5
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System
SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System

SETEC POWER 30kWh-1MWh Off-grid Electric Cars charging System Large Capacity Option Battery Storage System

Customization: Available
Nominal Voltage: 410V
Warranty: 2 years
Send Inquiry

Product Description

Basic Information
Nominal Capacity
120kWh
Cycle Life
6000
Input Models
DC/AC Charge
Output Voltage
410V
Output Power
120kW
Battery Type
LFP
Network
Ethernet / WIFI / 4G
Communication
OCPP 1.6 / 2.0 / TCP
Touch-Display
10" Daylight Readable
Operation Temp
-20ºC to +50ºC
Product Description
30kWh-1Mwh CCS CHAdeMO NACS Solar Energy Battery Storage System PowerOnTheGo Classic
Ideal for roadside assistance, backup power supply, and site vehicle charging.
Battery Storage System
Technical Parameters
Category Feature Specification (120kWh Model)
Optional Output Adapters CCS1 / CCS2 / CHAdeMO / GB/T / NACS
Electrical Input Models DC: CCS/CHAdeMO/NACS Inlet; AC: 480/380Vac 3-Phase
Output Power 120kW (Customizable)
Battery Type & Life LFP, 6000 Cycles

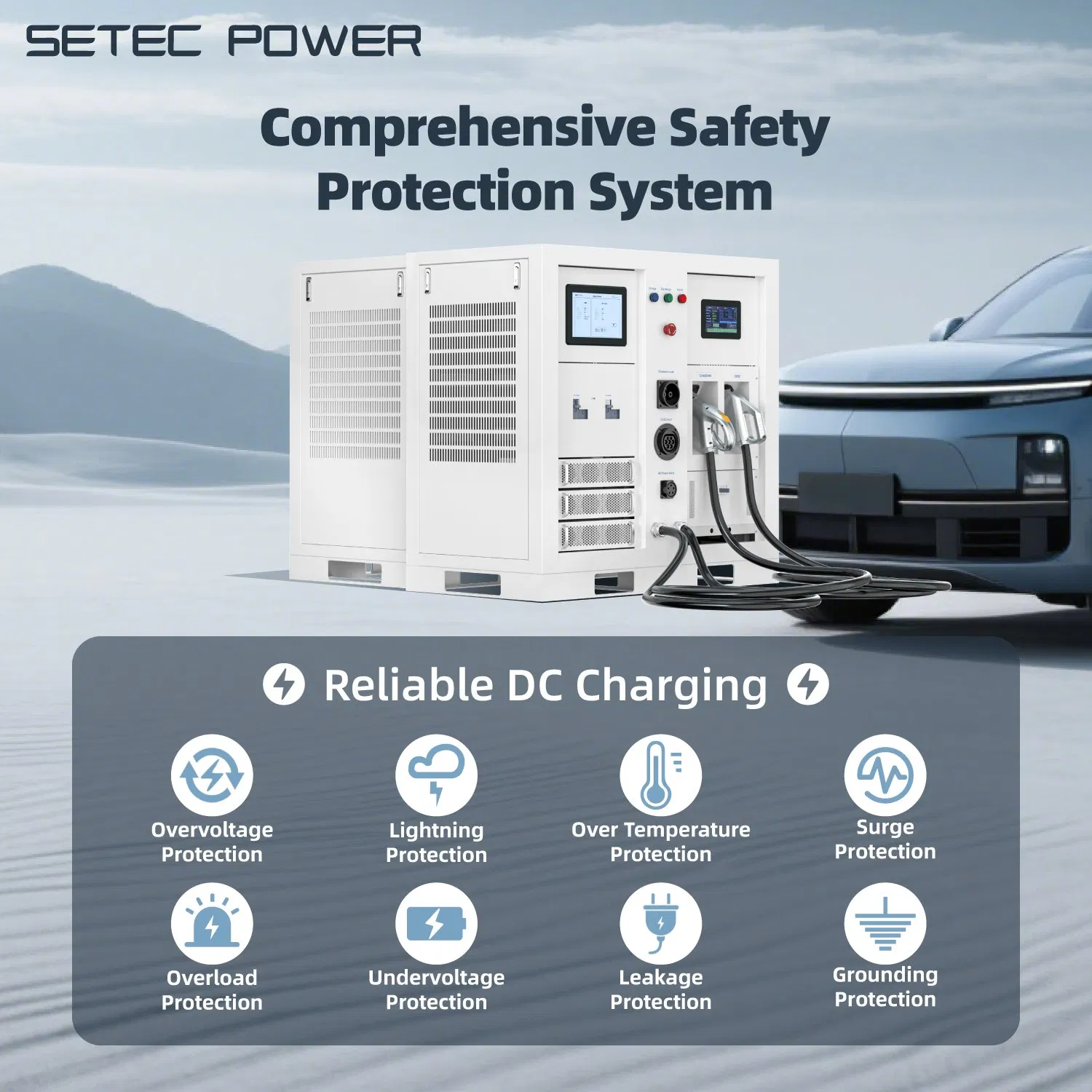

Security Protection Over Charge/Discharge, Over Current, Short Circuit, Surge, Temp Protection

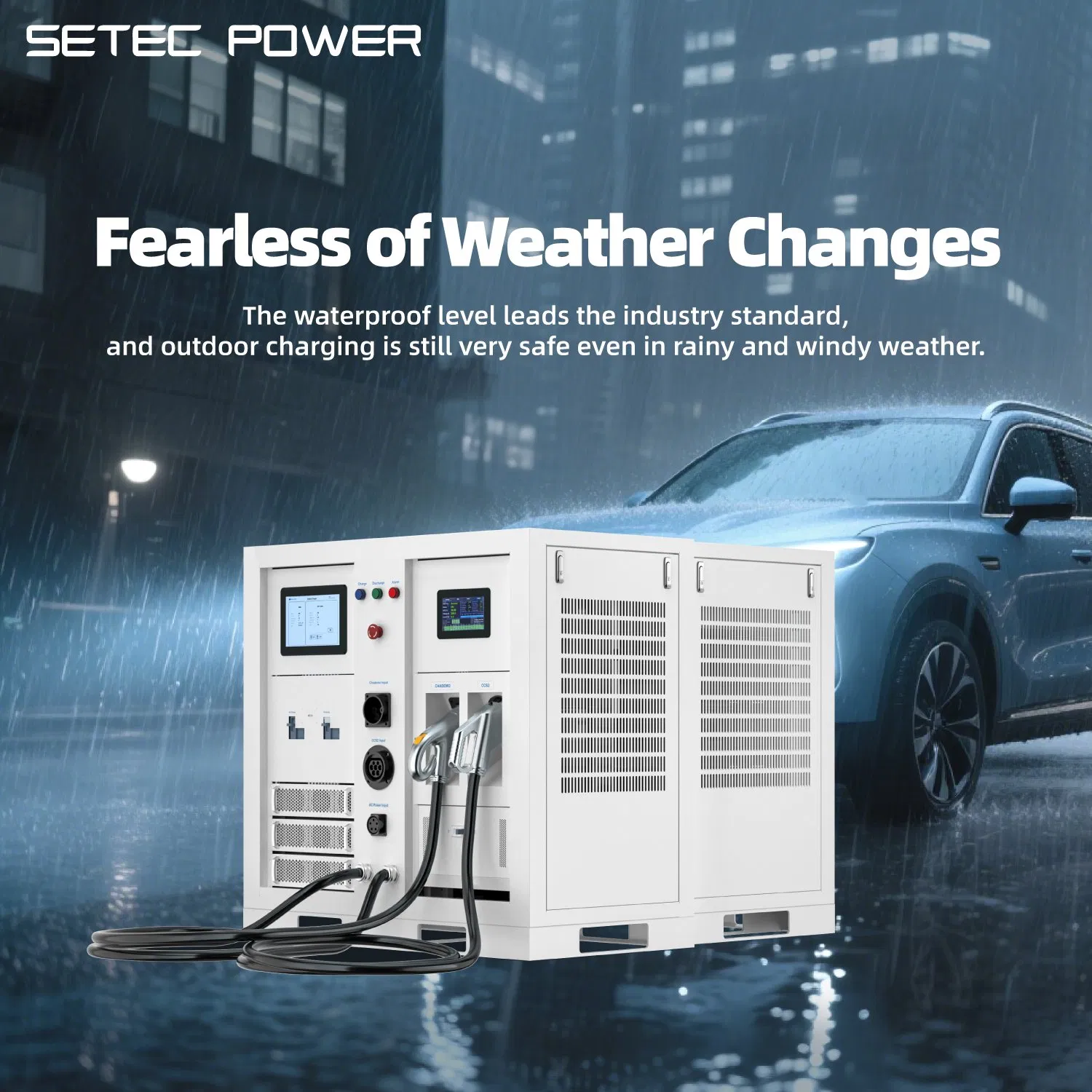

Environment Working Conditions -20ºC to +50ºC; Altitude <2000m; Fan Cooling

* Capacity can be customized up to 1Mwh. Adapter cable length standard is 5 meters, also customizable.

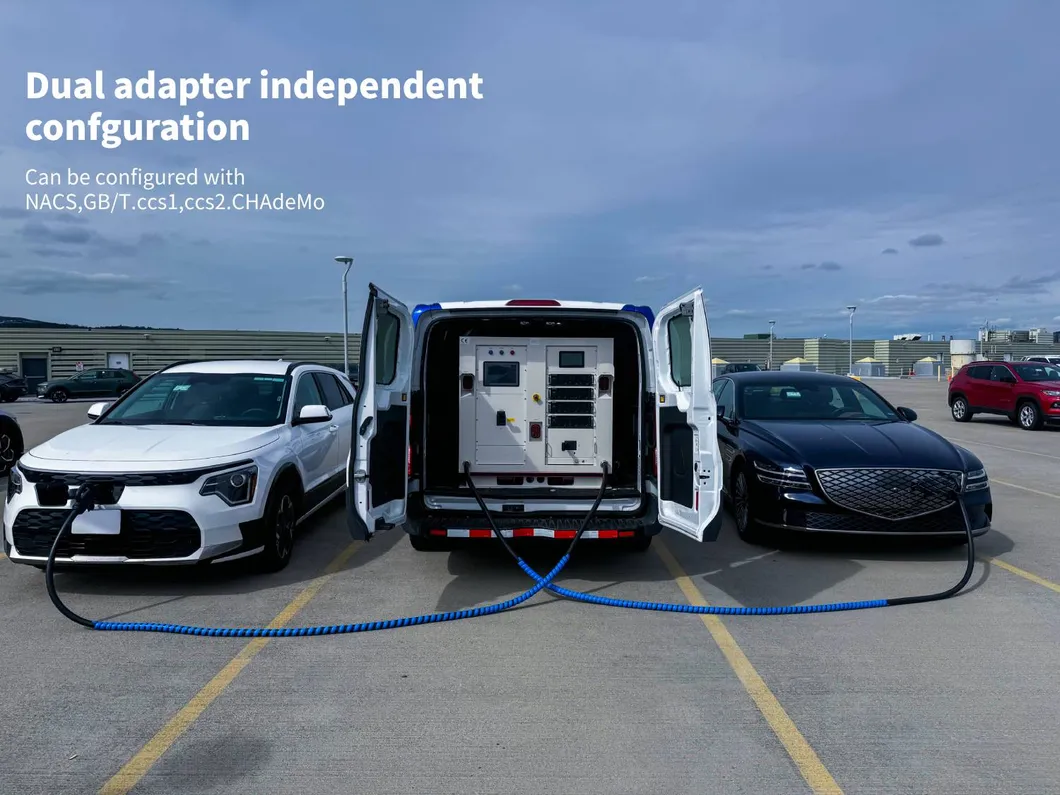

Product View 1

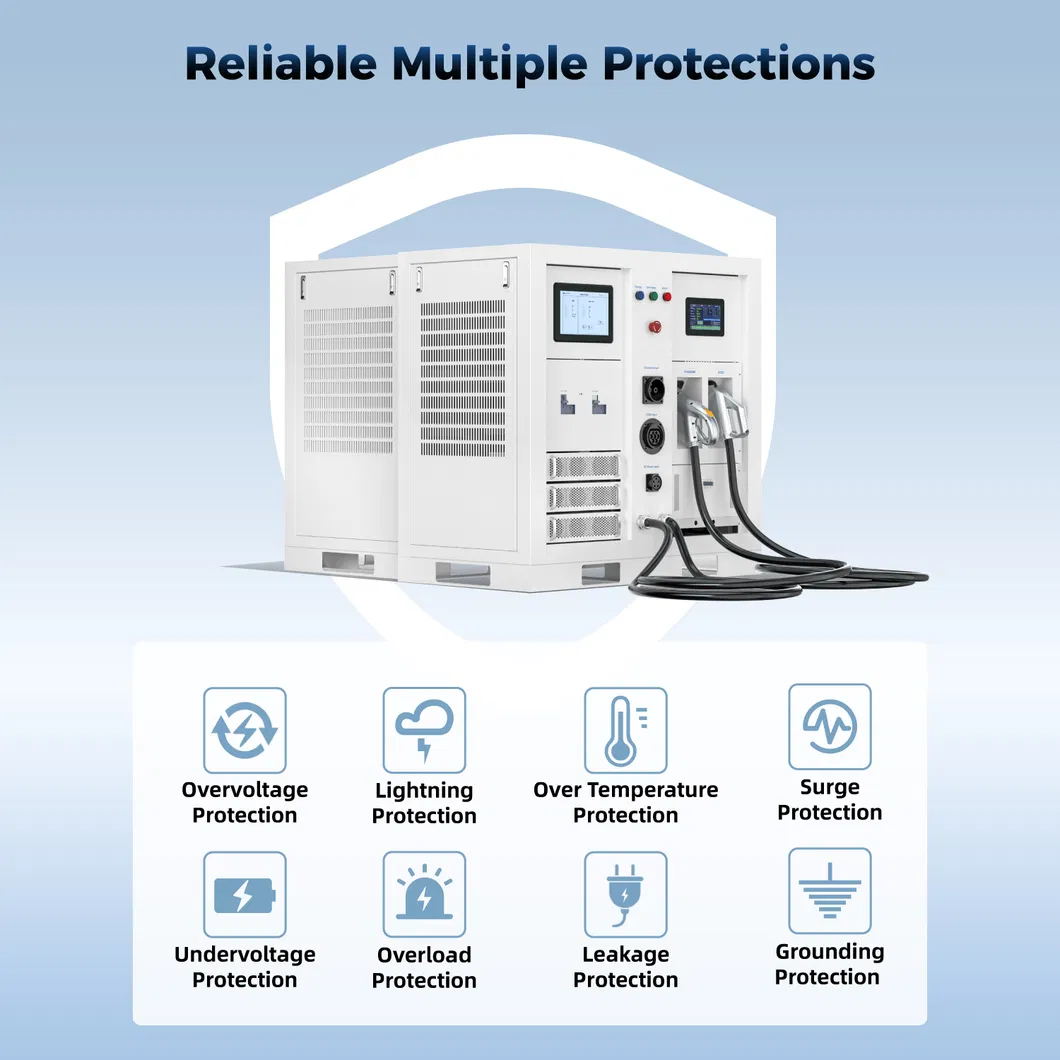

Product View 2

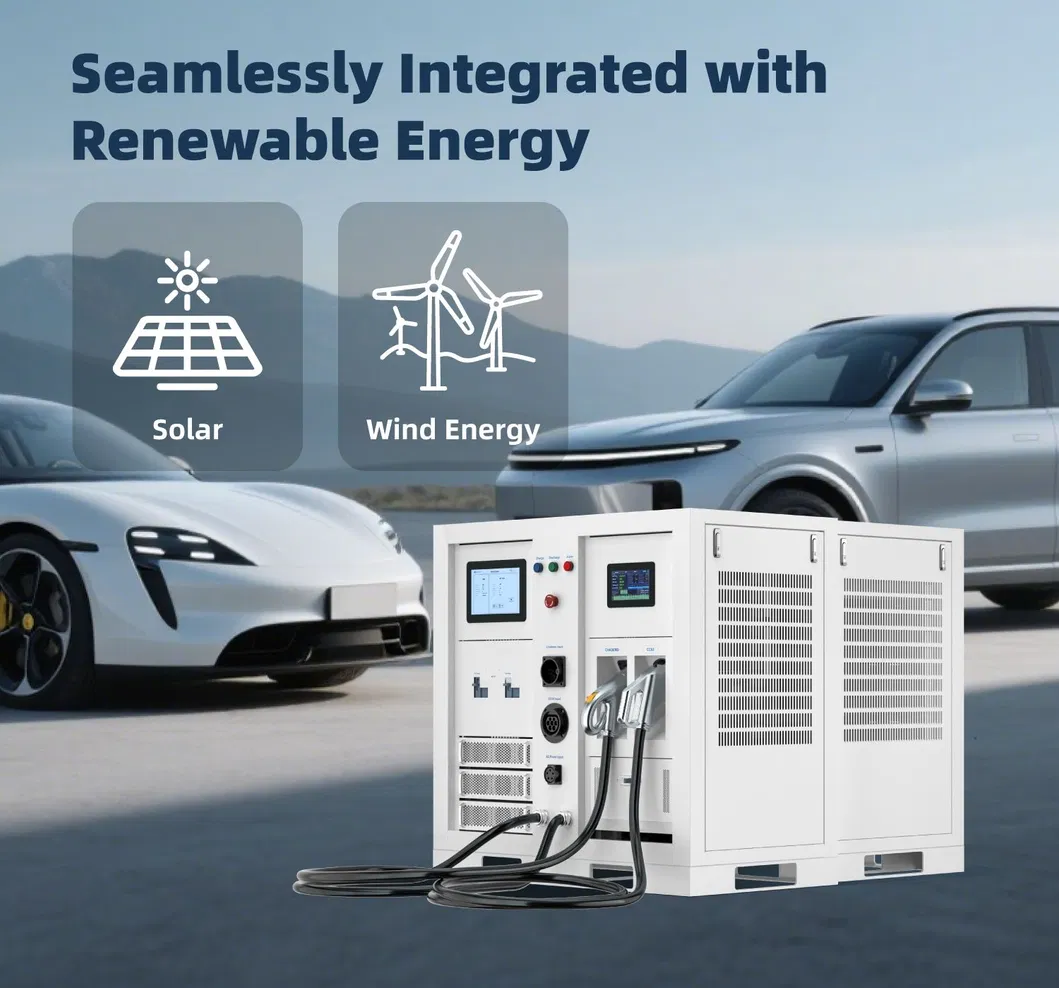

Product View 3

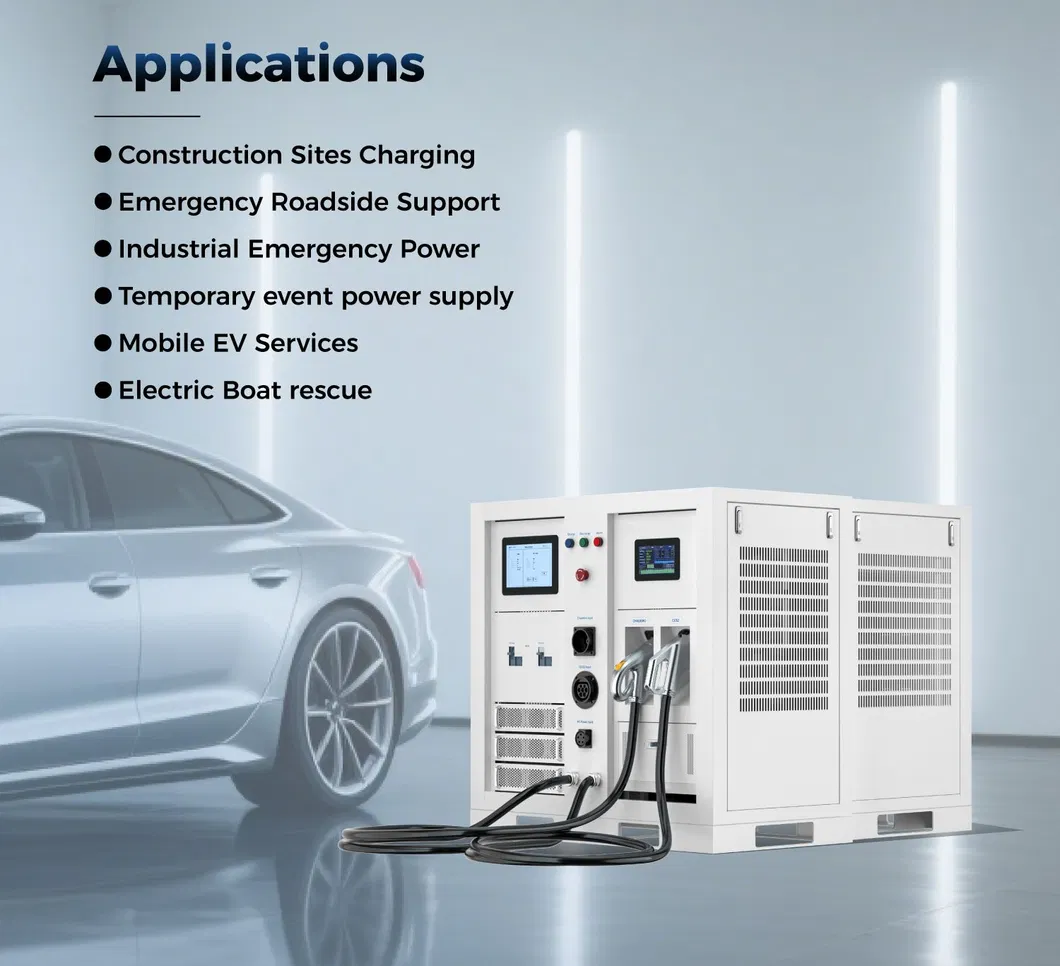

Product View 4

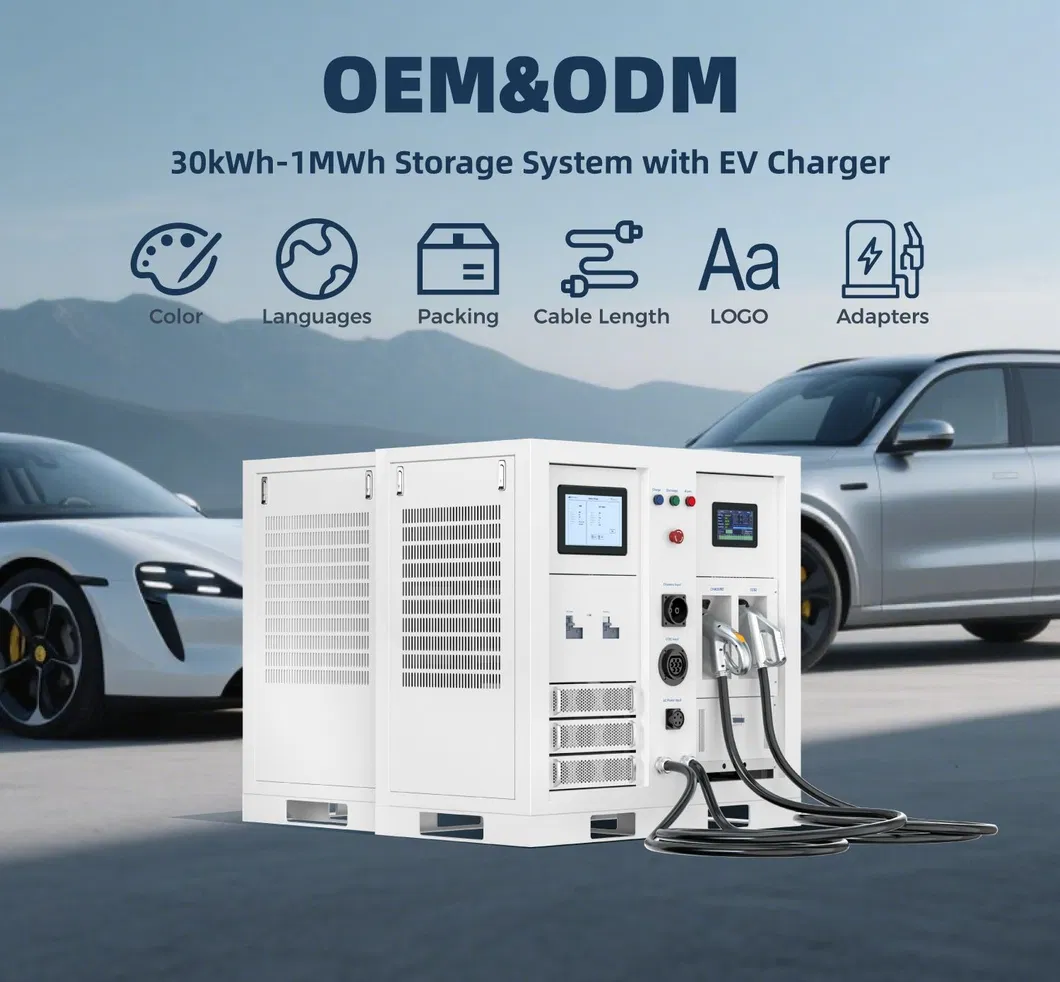

Product View 5
Customization Banner
Global Presence & Cases
Partners

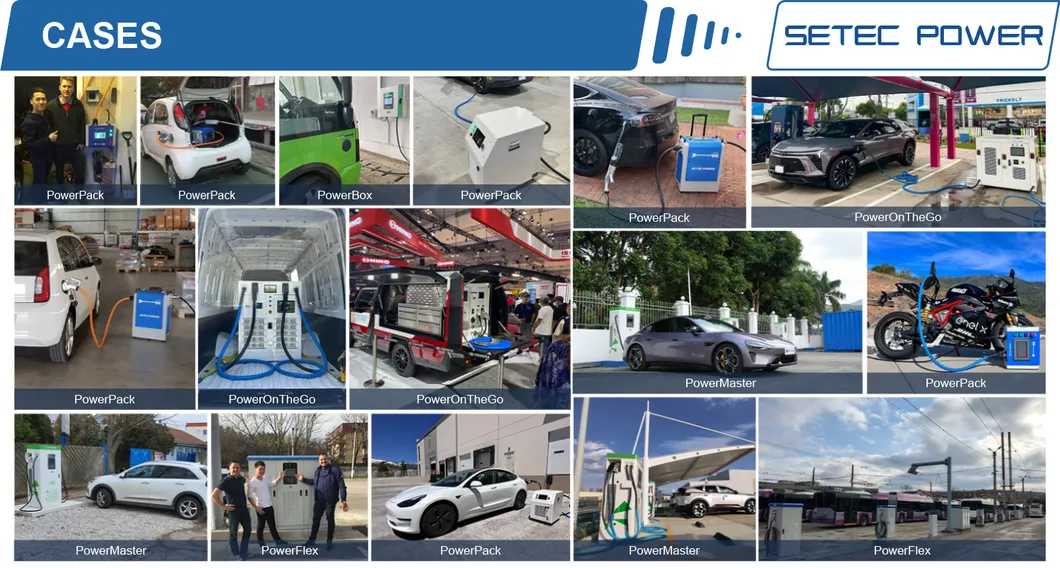

Project Case
Manufacturing Excellence

Established in 2004, the enterprise is one of the earliest in China dedicated to the research and development of electric vehicle charging stations and customized solutions. With over 80,000 square meters of production and R&D facilities, the focus remains on high-quality production processes and sustainable development.

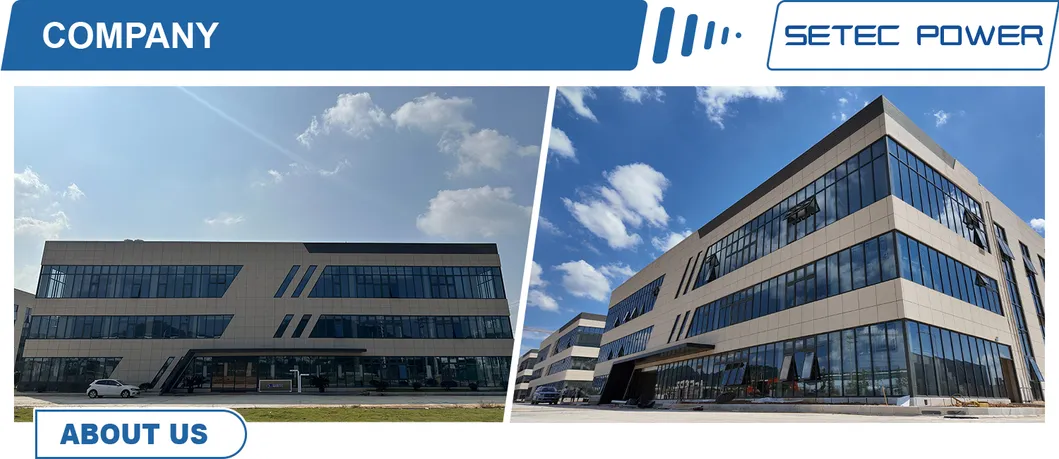

Factory Facility

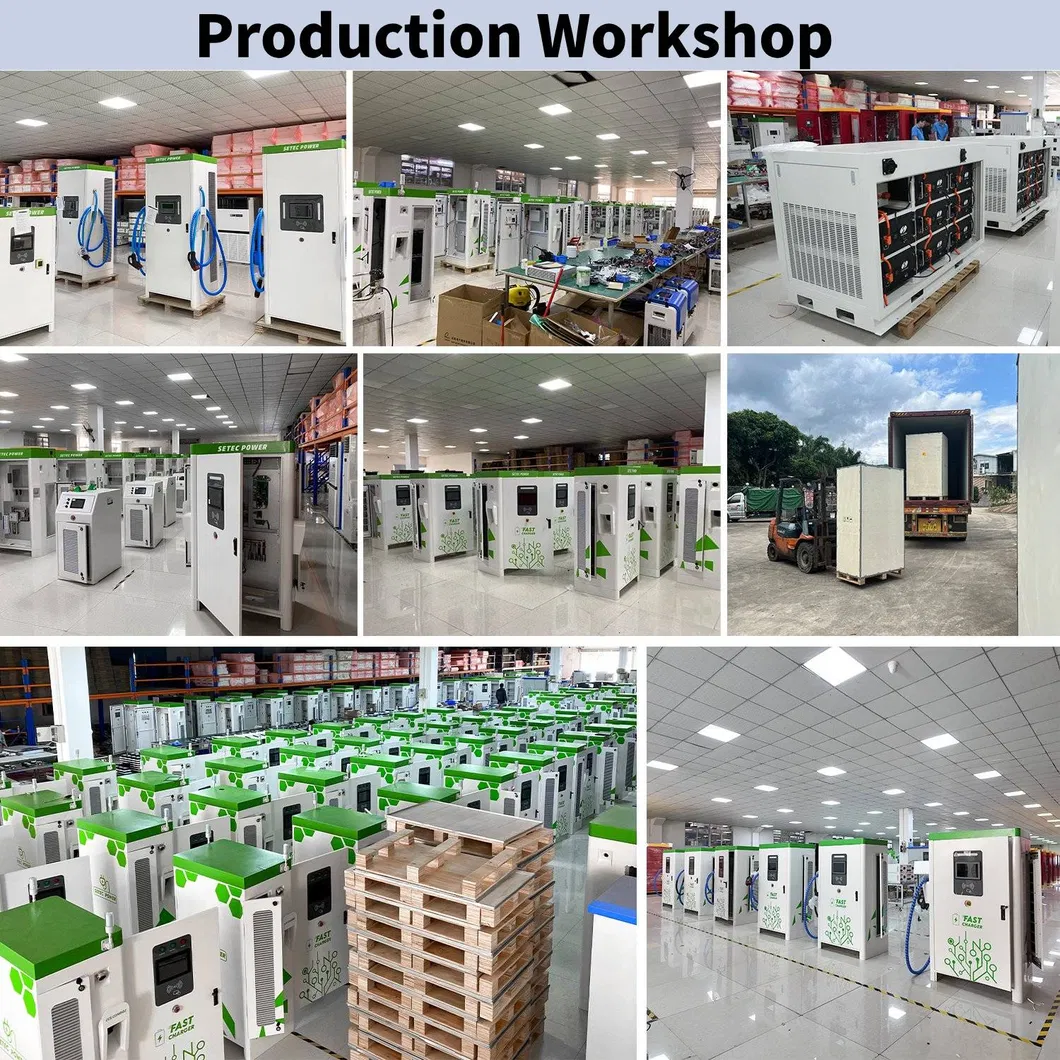

Production Line
Certificates
Exhibition
Frequently Asked Questions
What is the battery technology used in this system?
The system utilizes high-quality LFP (Lithium Iron Phosphate) batteries, known for their safety, stability, and long cycle life of up to 6000 cycles.
Which electric vehicle charging standards are supported?
Our system is highly versatile and supports multiple global standards including CCS1, CCS2, CHAdeMO, GB/T, and NACS.
Can the storage capacity be customized for specific projects?
Yes, the capacity is fully customizable ranging from 30kWh up to 1MWh to meet various application requirements from roadside assistance to large-scale site charging.
What are the environmental requirements for operation?
The system is designed to operate in temperatures ranging from -20ºC to +50ºC and at altitudes up to 2000m, featuring an efficient fan cooling system.
What kind of protection features are included?
The system includes comprehensive protection: Over/Under Voltage, Overload, Short Circuit, Over/Under Temperature, Surge Protection, and Communication Failure alerts.
What is the standard warranty for this equipment?
We provide a standard 2-year warranty on the system, ensuring reliable performance and professional technical support.
