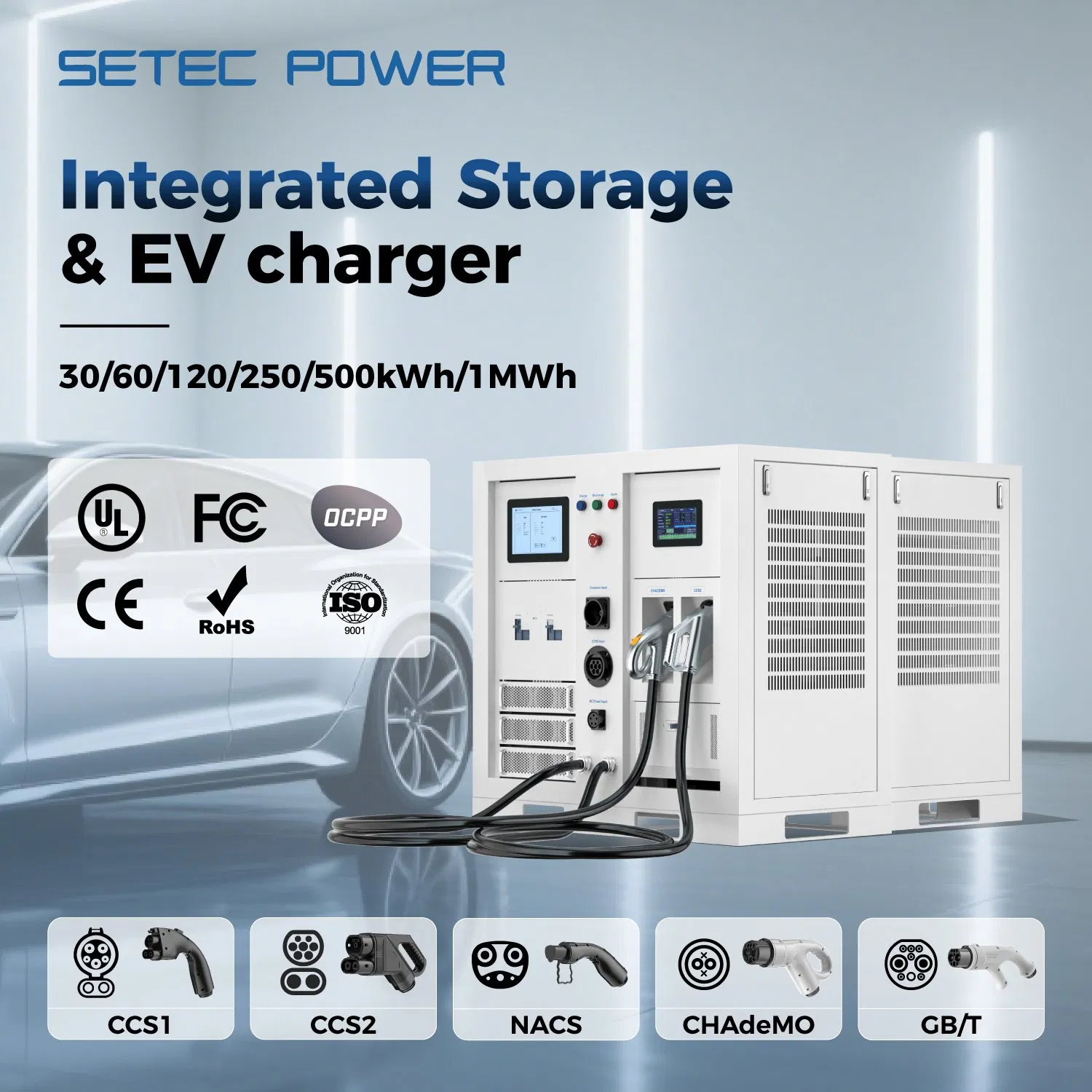

SETEC POWER Mobile Energy Storage System and integrated EV charging machine
SETEC POWER Mobile Energy Storage System and integrated EV charging machine
SETEC POWER Mobile Energy Storage System and integrated EV charging machine
SETEC POWER Mobile Energy Storage System and integrated EV charging machine
SETEC POWER Mobile Energy Storage System and integrated EV charging machine
1 / 5
SETEC POWER Mobile Energy Storage System and integrated EV charging machine
SETEC POWER Mobile Energy Storage System and integrated EV charging machine
SETEC POWER Mobile Energy Storage System and integrated EV charging machine
SETEC POWER Mobile Energy Storage System and integrated EV charging machine
SETEC POWER Mobile Energy Storage System and integrated EV charging machine

SETEC POWER Mobile Energy Storage System and integrated EV charging machine

Customization: Available
Nominal Voltage: 410V
Warranty: 2 years
Send Inquiry

Product Description

1
Basic Information
Nominal Capacity120kWhCycle Life6000
Input ModelsDC/AC ChargeOutput Voltage410V
Output Power120kWBattery TypeLFP
NetworkEthernet / WIFI / 4GCommunicationOCPP 1.6 / OCPP 2.0 / TCP
Touch-Display10" Daylight ReadablePayment MethodRFID / OCPP
Operation Temp-20℃ to +50℃Working Humidity5%-95% Without Condensation
Working Altitude<2000mCooling MethodFan Cooling
Package Size500.00cm * 200.00cm * 200.00cmGross Weight4000.000kg
2
Product Description
30kWh-1Mwh CCS CHAdeMO NACS Solar Energy Battery Storage System PowerOnTheGo Classic

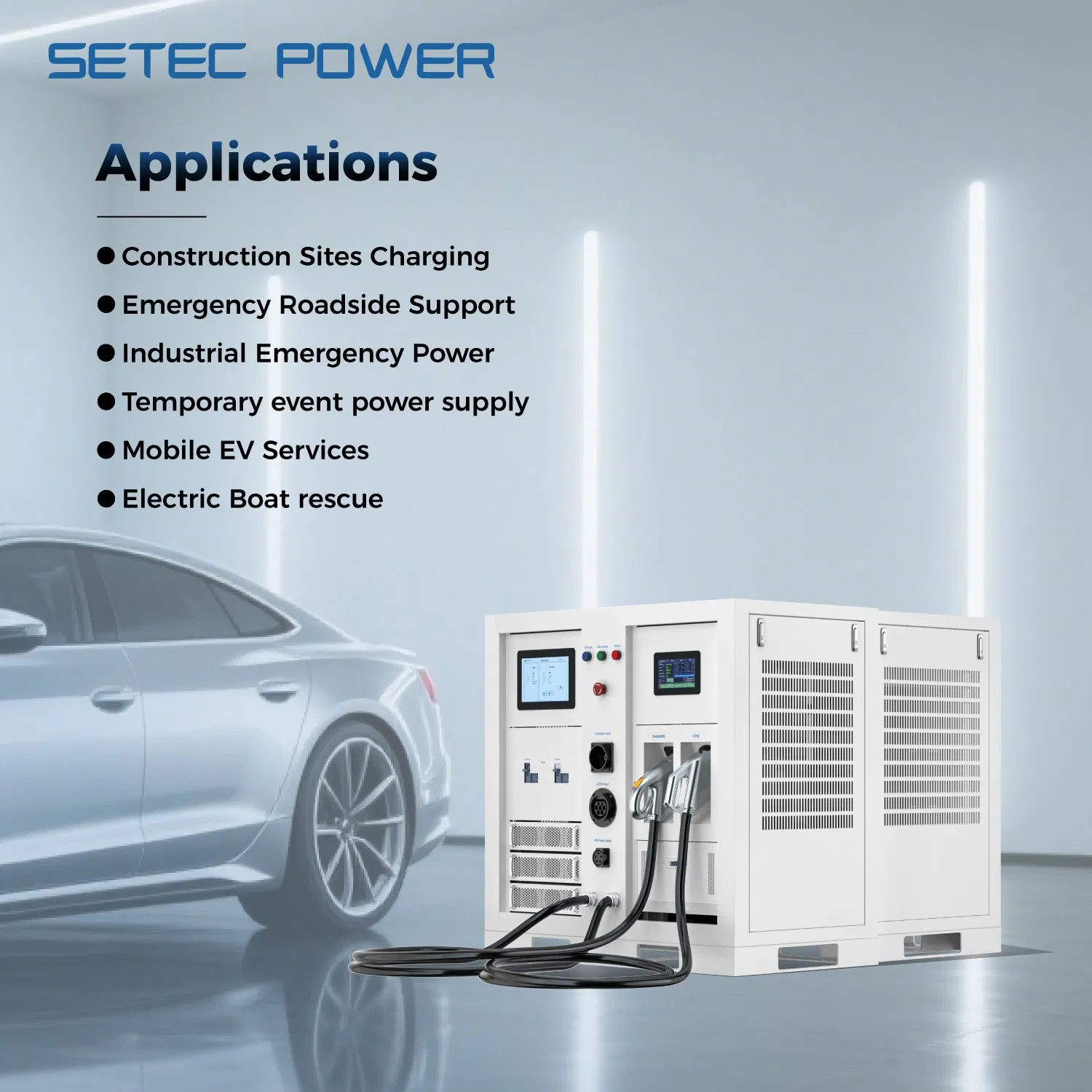

Highly versatile solution suitable for roadside assistance, backup power supply, and site vehicle charging.
Mobile Energy Storage System
3
Technical Parameters
Data Category Specification Details
OPTIONAL Output Adapters CCS1 / CCS2 / CHAdeMO / GB/T / NACS
Electrical Input Models DC: CCS1 / CCS2 / CHAdeMO / GB/T / NACS Inlet
AC: 480/380Vac Three-phase
Output 410V / 120kW

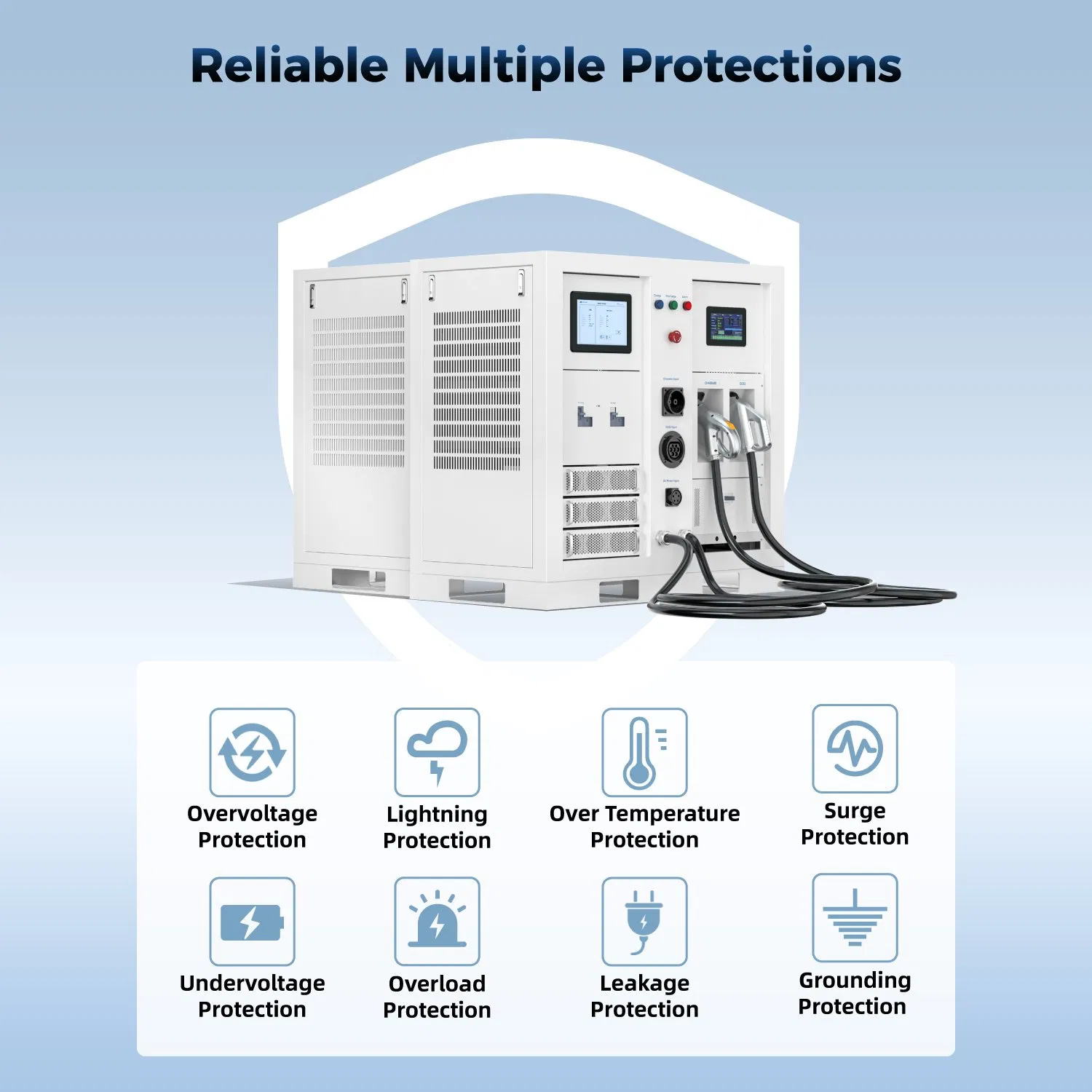

Security Multiple Protection Batteries: Over Charge/Discharge, Over Current, Temp Protection, Short Circuit.
Device: Over/Under Voltage, Overload, Surge Protection.
Environment Working Conditions MTBF: 100,000 hours | Warranty: 2 years
4
Visual Display

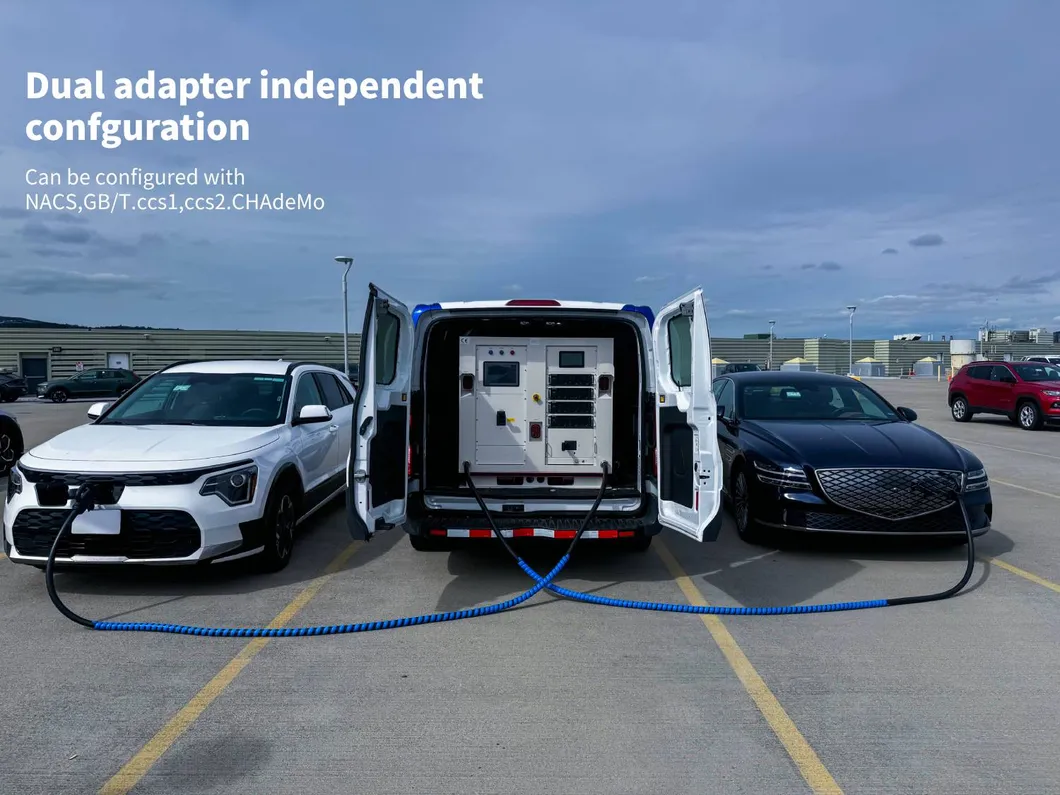

Energy Storage System Detail
Energy Storage System Interior

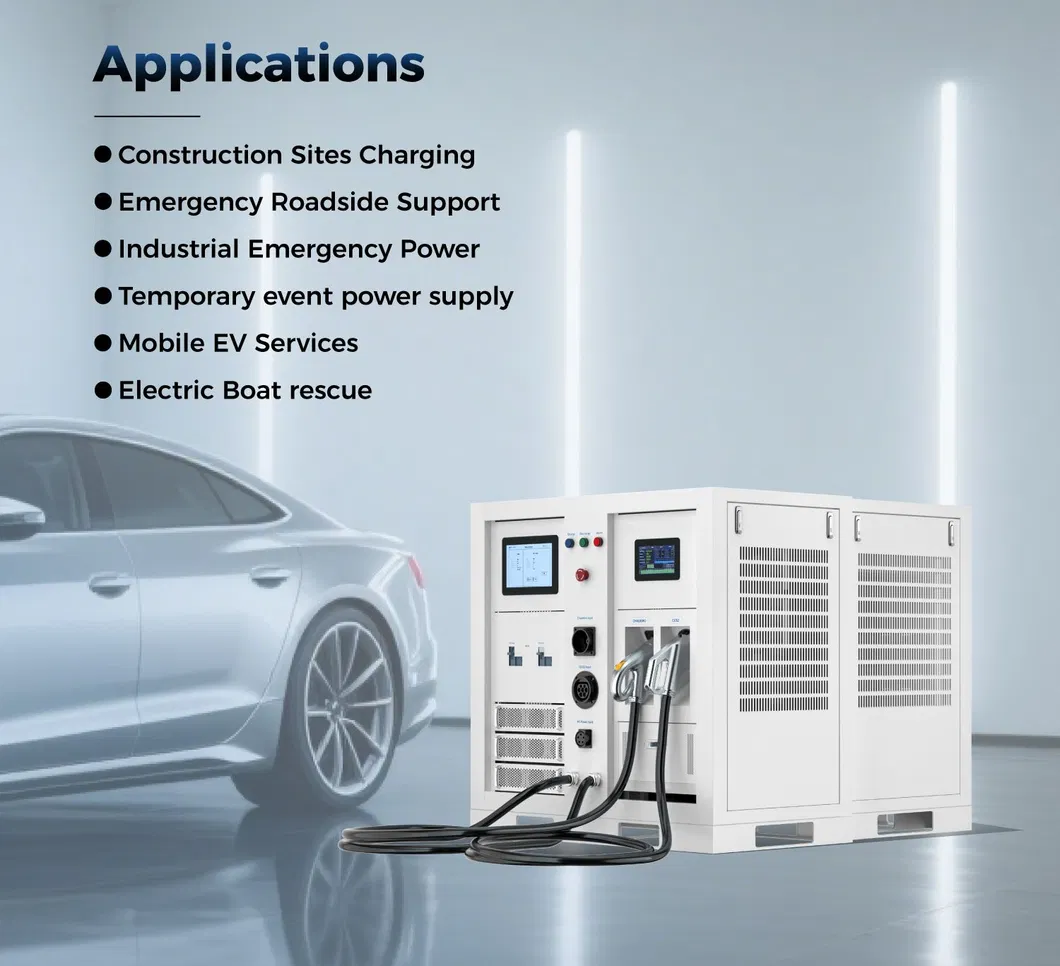

Charging Interface

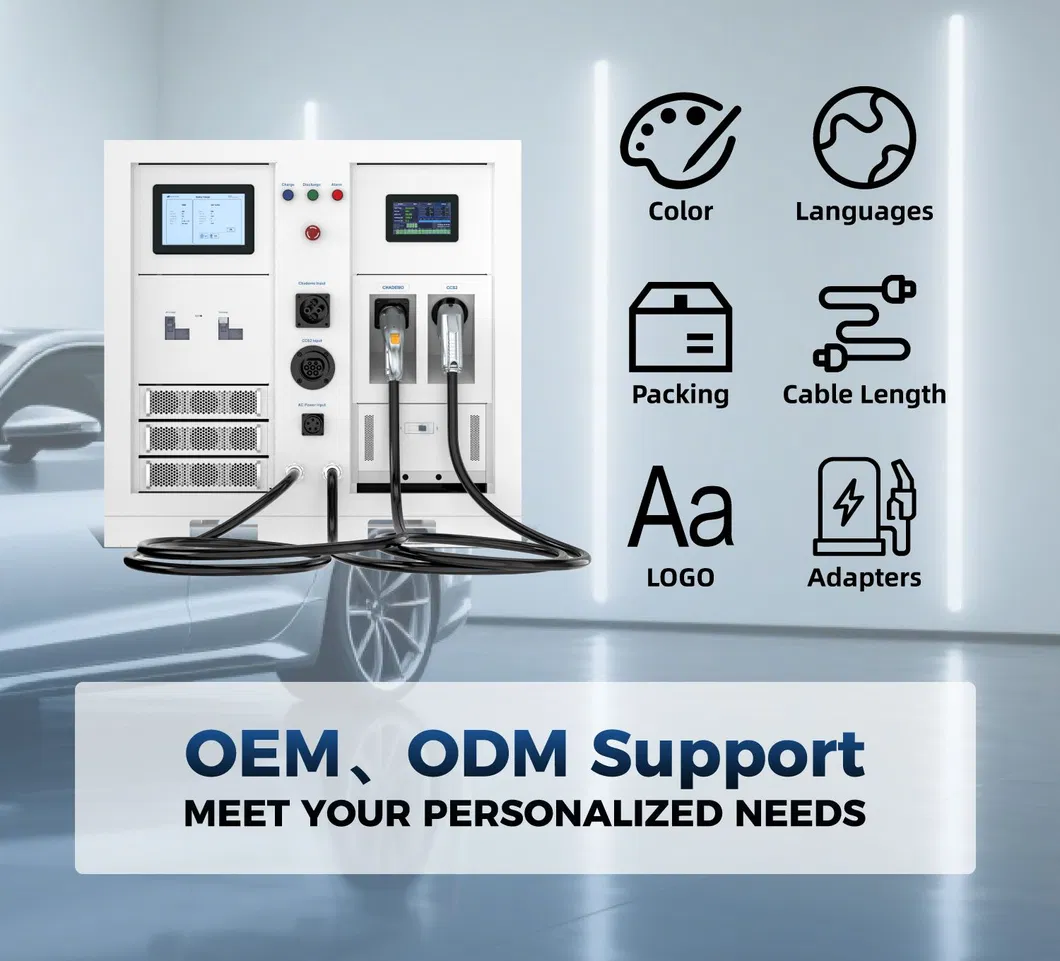

System Operation
Case Study

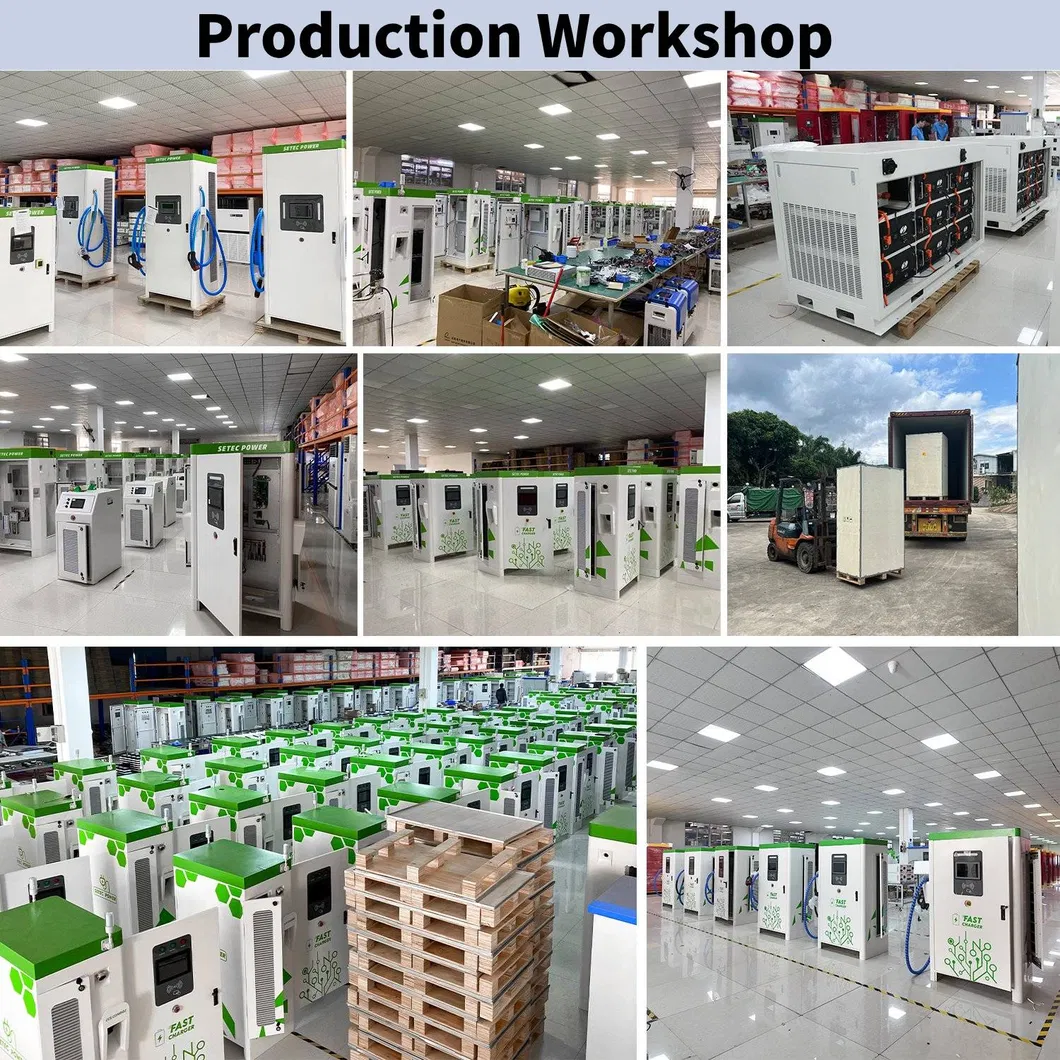

Production Facility
5
Global Presence
Established in 2004, the company is one of the earliest enterprises dedicated to the research and development of electric vehicle charging stations and customized solutions. With 80,000+ square meters of production and R&D facilities, the focus remains on providing reliable charging services for electric vehicle owners globally.
Partners
Certificates
Exhibition
Frequently Asked Questions
What is the primary use for the Mobile Energy Storage System?
It is designed for roadside assistance, backup power supply, and onsite vehicle charging where fixed infrastructure is unavailable.
What battery technology is used in this system?
The system utilizes LFP (Lithium Iron Phosphate) battery technology, known for its high safety standards and long cycle life of up to 6000 cycles.
Which EV charging standards are supported?
The system is highly compatible, supporting CCS1, CCS2, CHAdeMO, GB/T, and NACS charging standards.
What are the connectivity options for monitoring?
The device supports Ethernet, WIFI, and 4G networks, utilizing OCPP 1.6 or OCPP 2.0 protocols for remote management and communication.
Can the system operate in extreme weather conditions?
Yes, it is designed to operate in temperatures ranging from -20ºC to +50ºC and includes built-in over/under temperature protection.
What safety protections are integrated into the device?
It includes comprehensive protection against over/under voltage, overload, short circuits, surge protection, and battery-specific protections like overcharge and discharge management.
