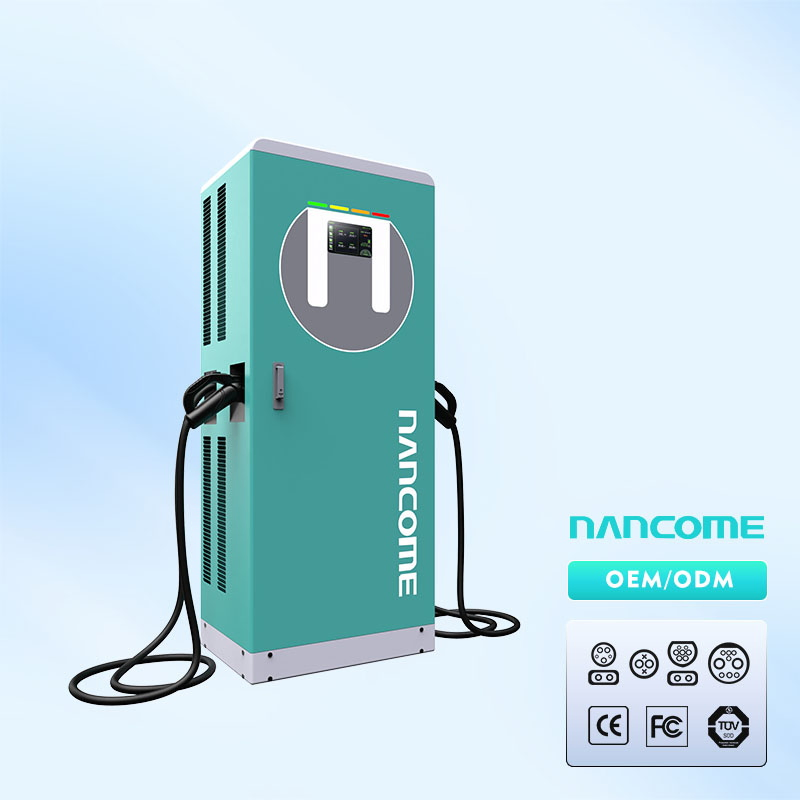

Boasting a versatile rated power range from a substantial 60kW to a mind-bending 180kW, this charger is built to service an assorted lineup of electric vehicles. Effortlessly matching power needs with its input voltage of AC380V±20% and catering to a wide breadth of charging requirements with an output of 200-1000VDC.
The ability to deliver an output current from 0 to 200A through a single charging gun underscores its dedication to speed. The accompanying 5m cable provides the spatial freedom for EV drivers, allowing for a hassle-free connection regardless of parking constraints.
Accuracy is critical, and with a class 1.0 measurement accuracy rating, this charger guarantees precision. The safeguarding features are formidable, with current limit protection at ≥110% rated value, stability accuracy within ≤±0.5%, and steady current precision at ≤±1%.
Electrical performance shines with a ripple coefficient at ≤±0.5%, efficiency at ≥95%, and a stellar power factor of ≥0.98. We maintain a harmonious electrical environment with THD at ≤5%, thus preserving the longevity and health of both the charger and the vehicle's battery.

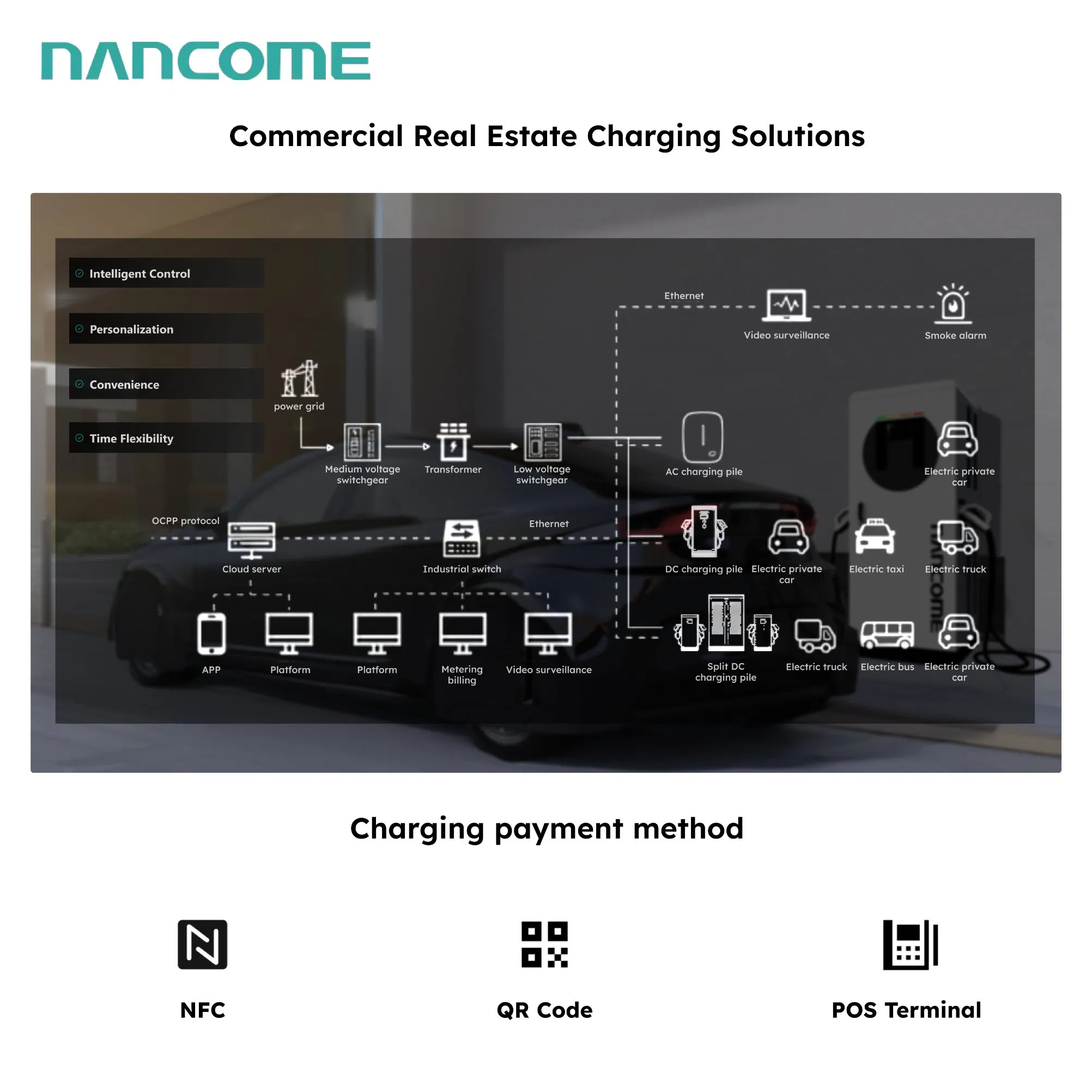

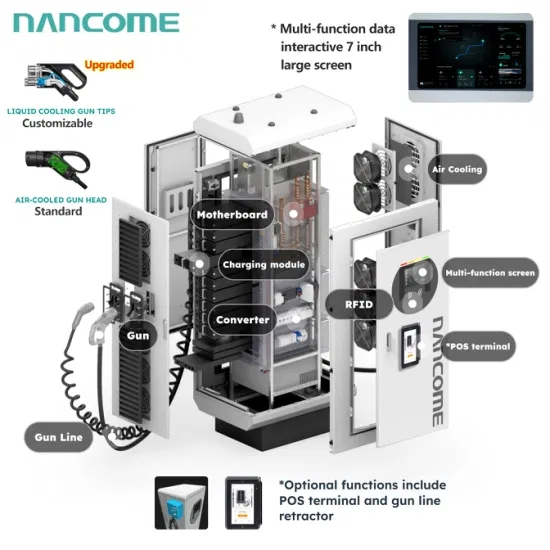

At the helm of the charger's functions is a 7-inch color touchscreen that stands as the gateway to fully customizable charging sessions. With a variety of charging modes—automatic full charge, fixed power, fixed quantity, and time-based charging—it addresses the needs of various users. Slide charging and code-based charging methods, along with credit card payment options, offer user convenience and security.
| Specification | 60kW | 120kW | 160kW | 240kW |
|---|---|---|---|---|
| Installation method | Vertical / Floor Standing | |||
| Input voltage | AC380V±20% | |||
| Output voltage | 200-1000VDC | |||
| Single gun output current | 0-100A | 0-200A | 0-200A | 0-200A |
| Cable length | 5m (Standard) | |||
| Efficiency | ≥95% | |||
| Power factor | ≥0.98 (above 50% load) | |||
| HMI | 7-inch bright color touch screen | |||
| Protection level | IP54 | |||
