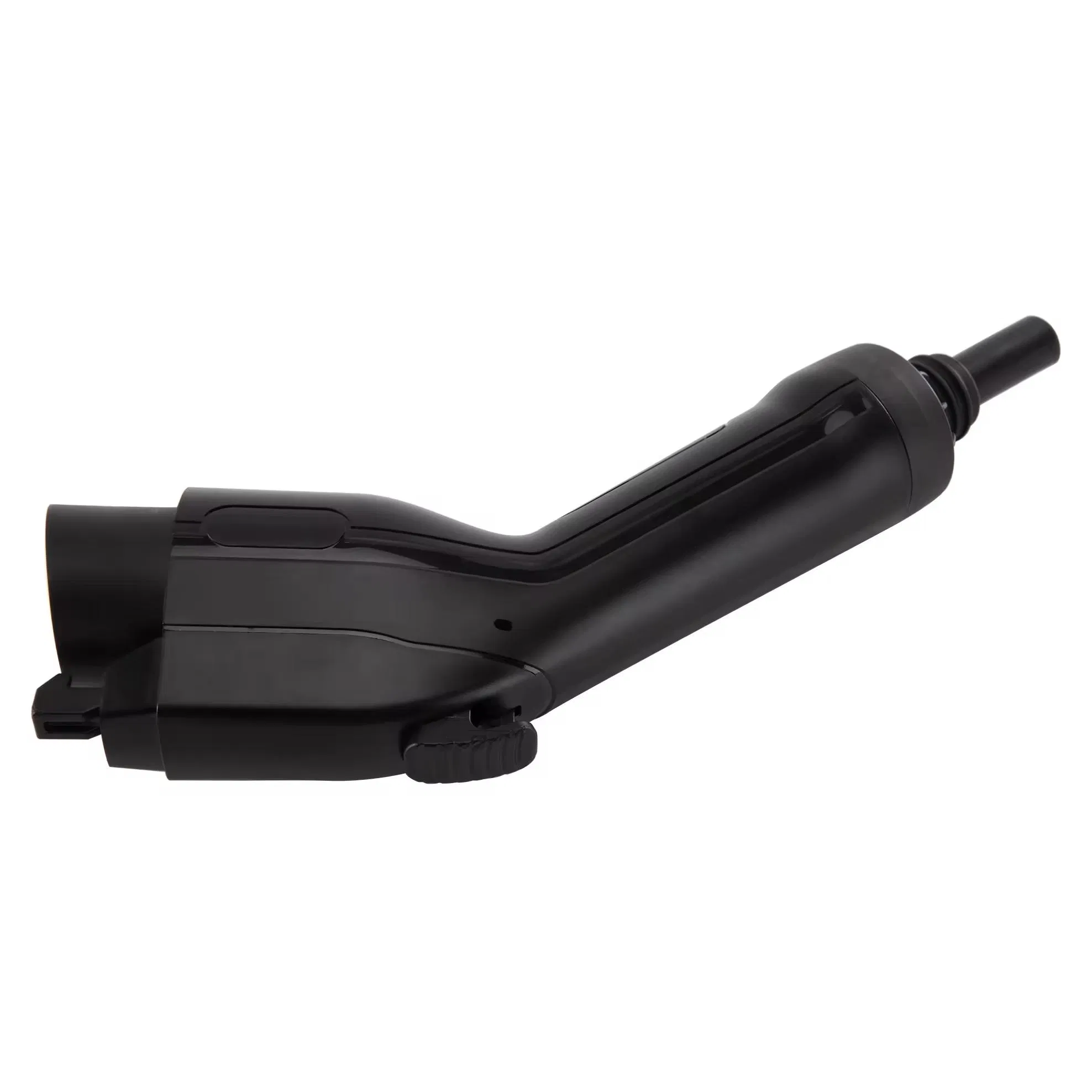

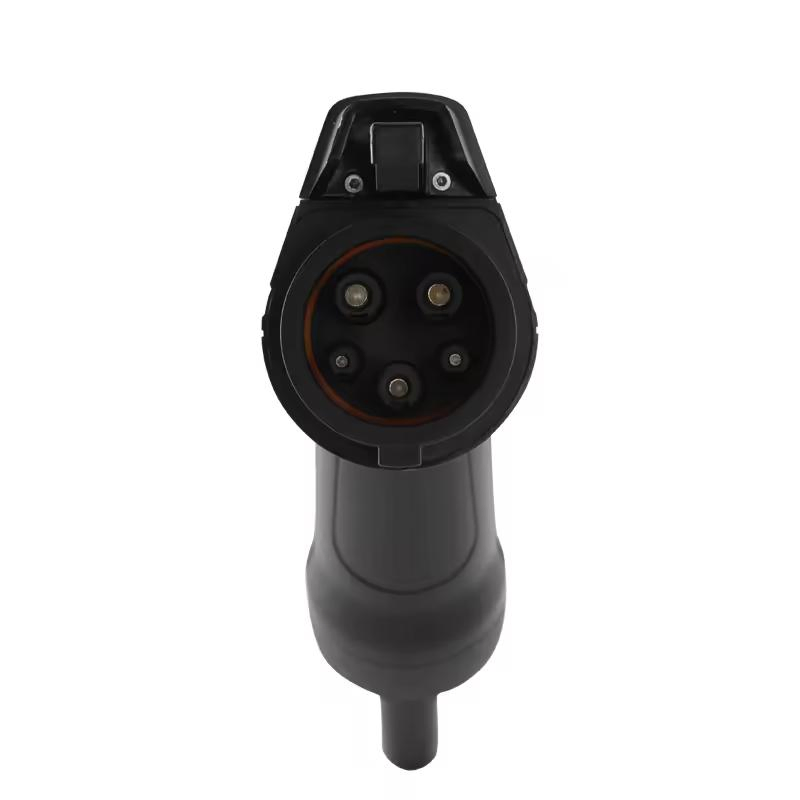

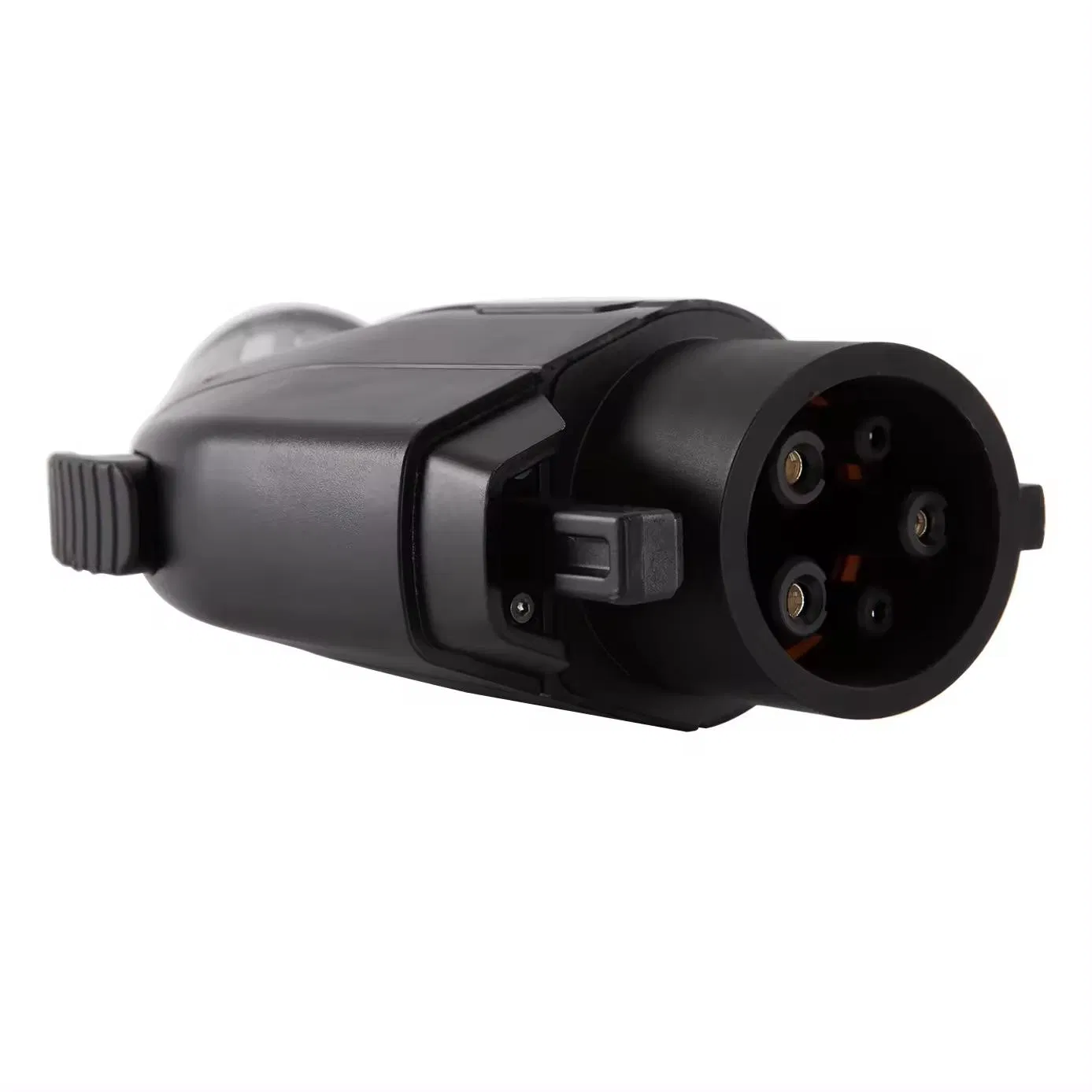

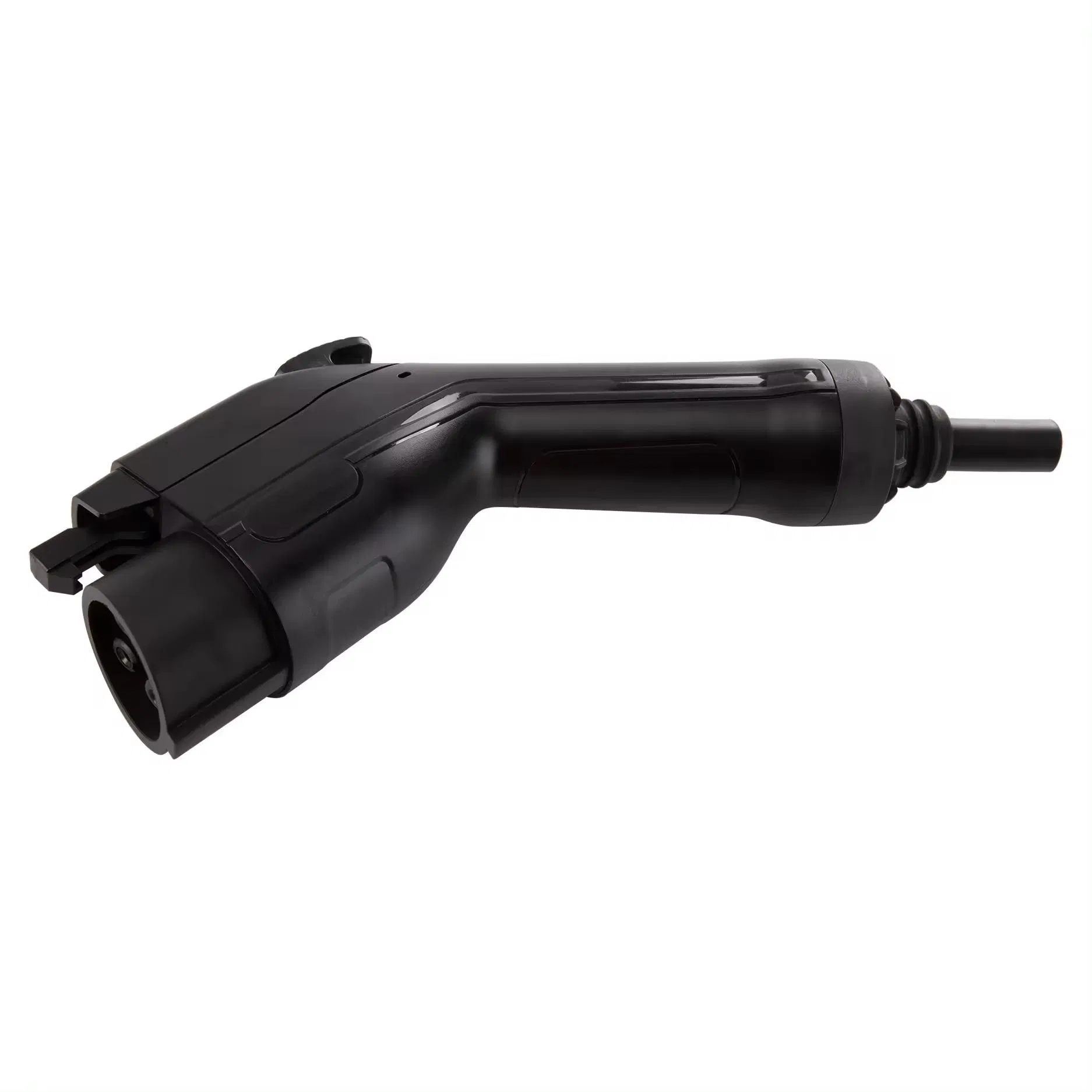

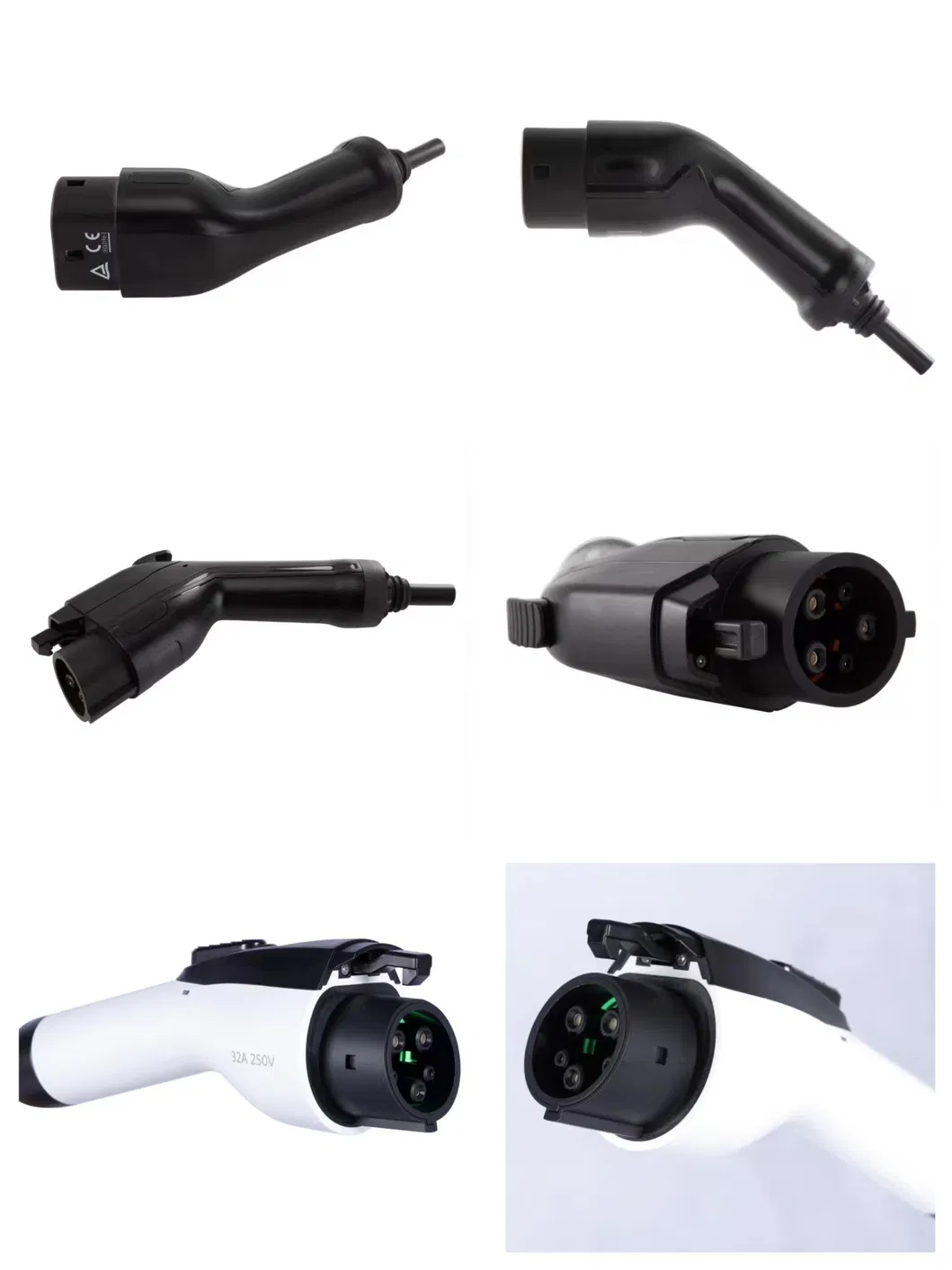

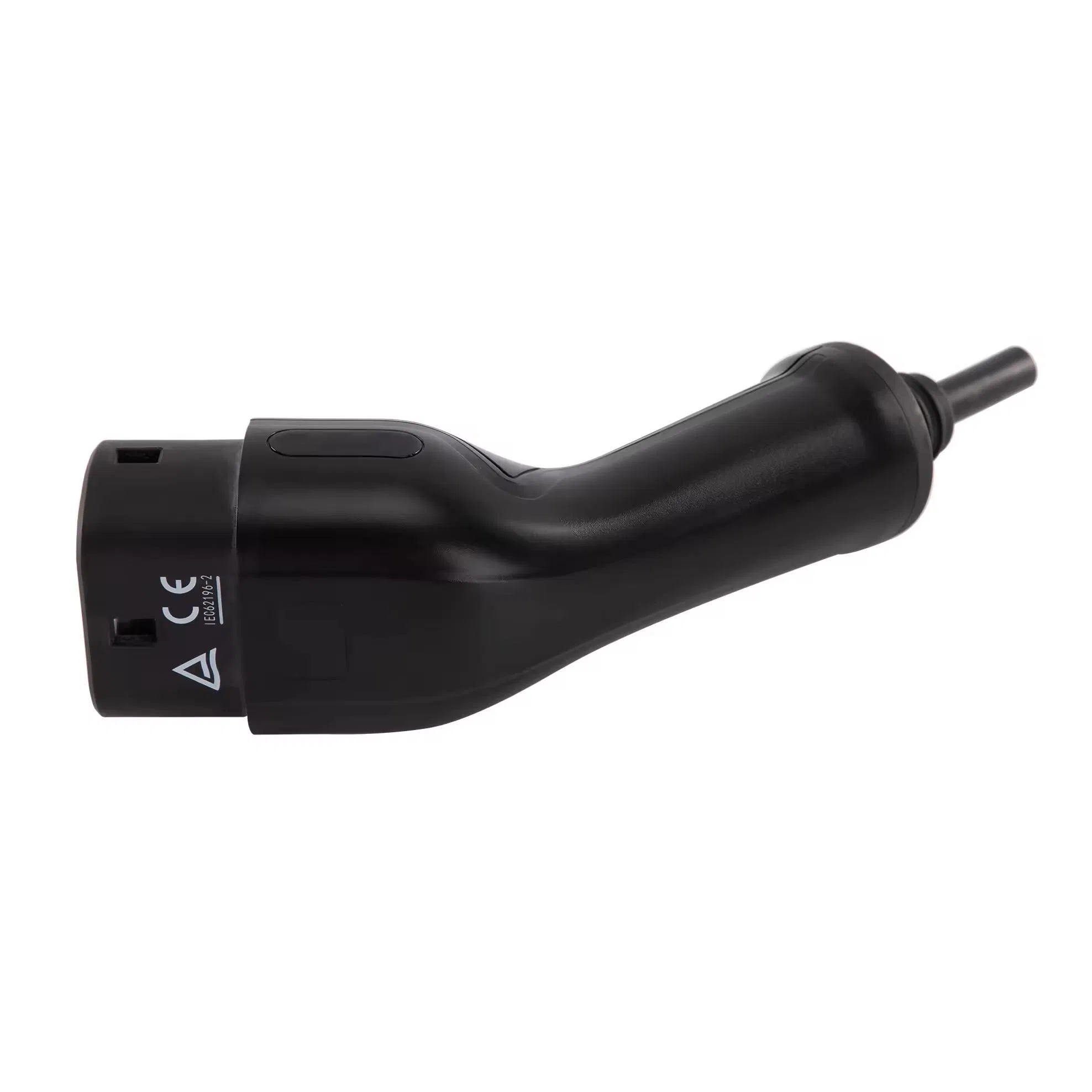

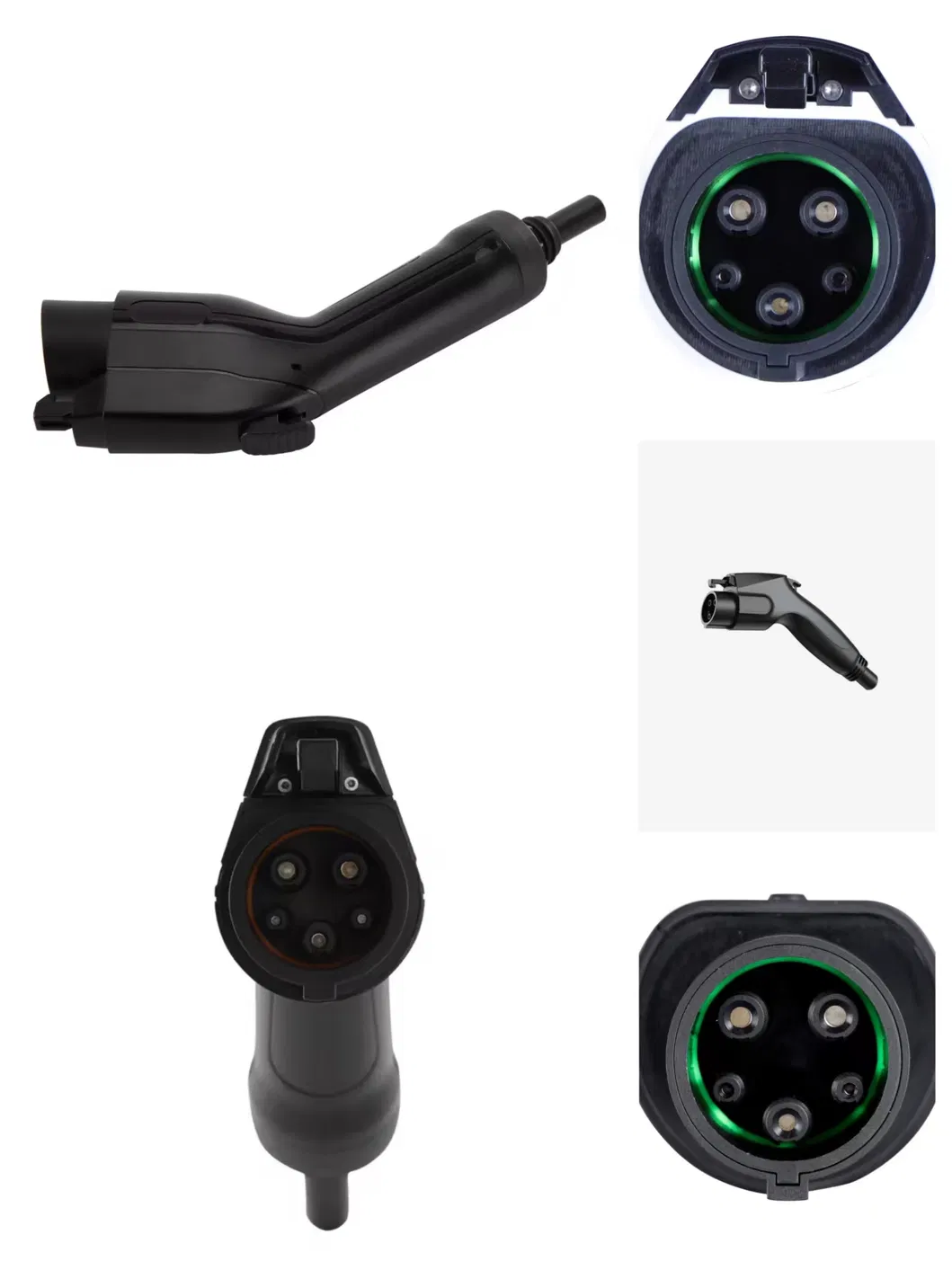

AC SAE J1772 Type 1 EV Plug Connector For Electric Car Charging
Type 1 is a single phase plug and is standard for EVs from America and Asia. It allows you to charge your car at a speed of up to 7.4 kW, depending on the charging power of your car and grid capability.
| Rated Current | 16A-80A |
| Rated Voltage | 110V/240V AC |
| Insulation Resistance | >500MΩ |
| Contact Resistance | 0.5 mΩ Max |
| Withstand Voltage | 2500V |
| Flammability Rating | UL94V-0 |
| Mechanical Lifespan | >10000 Mating Cycles |
| Casing Protection Rating | IP55 |
| Terminal Material | Copper alloy, silver plated + thermoplastic top |
| Operating Temperature | -30ºC to +50ºC |

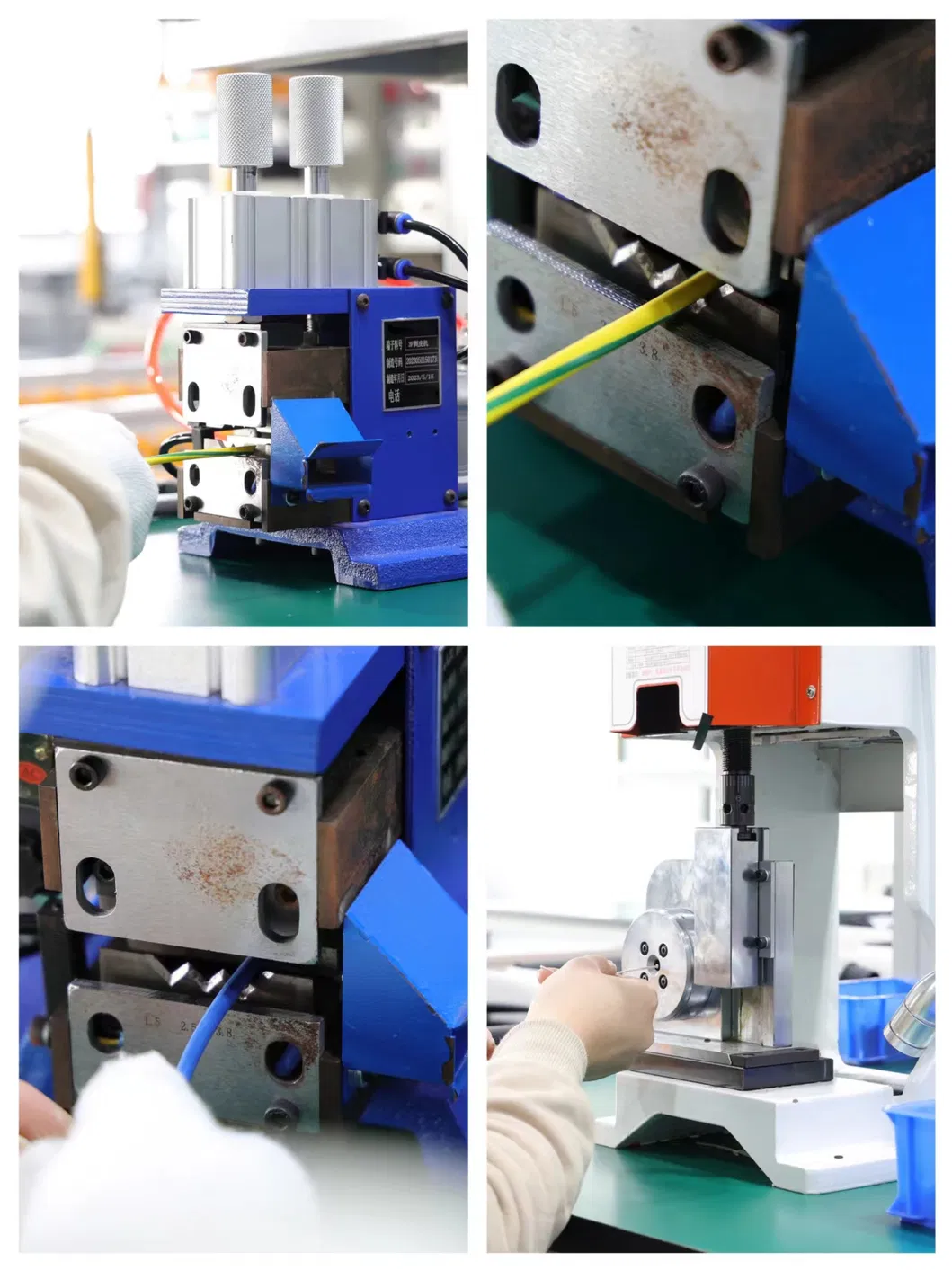

Integrated coating process and crimp termination ensure durability over time. Modular design allows replacement of individual components.
Simple design for easy installation in any compatible vehicle, eliminating the need for complicated adapters.
Affordable option using less technology and infrastructure compared to DC rapid charging methods.
Features overvoltage and overcurrent protection to protect against electric shocks and vehicle damage.

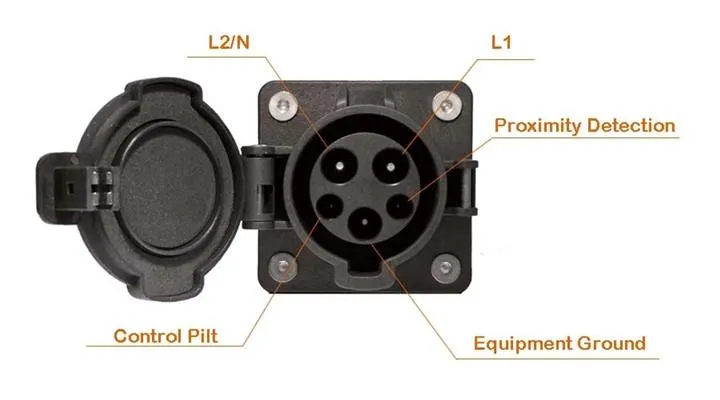

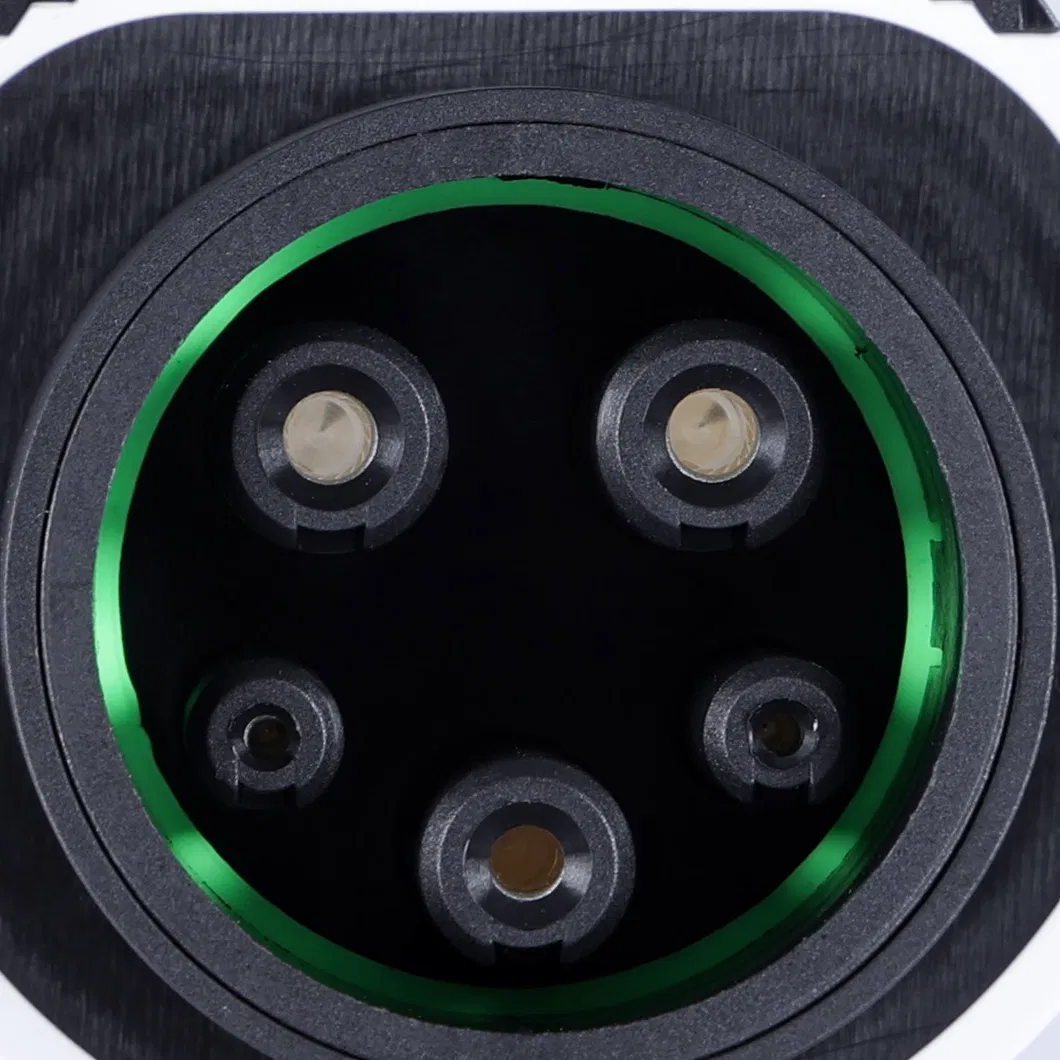

Insert arrangement:
Functional definition:
| Contact Name | Functional Definition |
|---|---|
| L1 | Live Wire |
| L2/N | Neutral Wire |
| Equipment Ground | PE |
| Control Pilot | Control Pilot |
| Proximity Detection | Proximity Detection |
The manufacturer is a forward-looking enterprise involved in research, development, and manufacturing of electric vehicle charging products. Holding certifications such as ISO9001:2015 and IATF16949:2016, products also meet TUV, CE, UKCA, UL, and CQC standards.

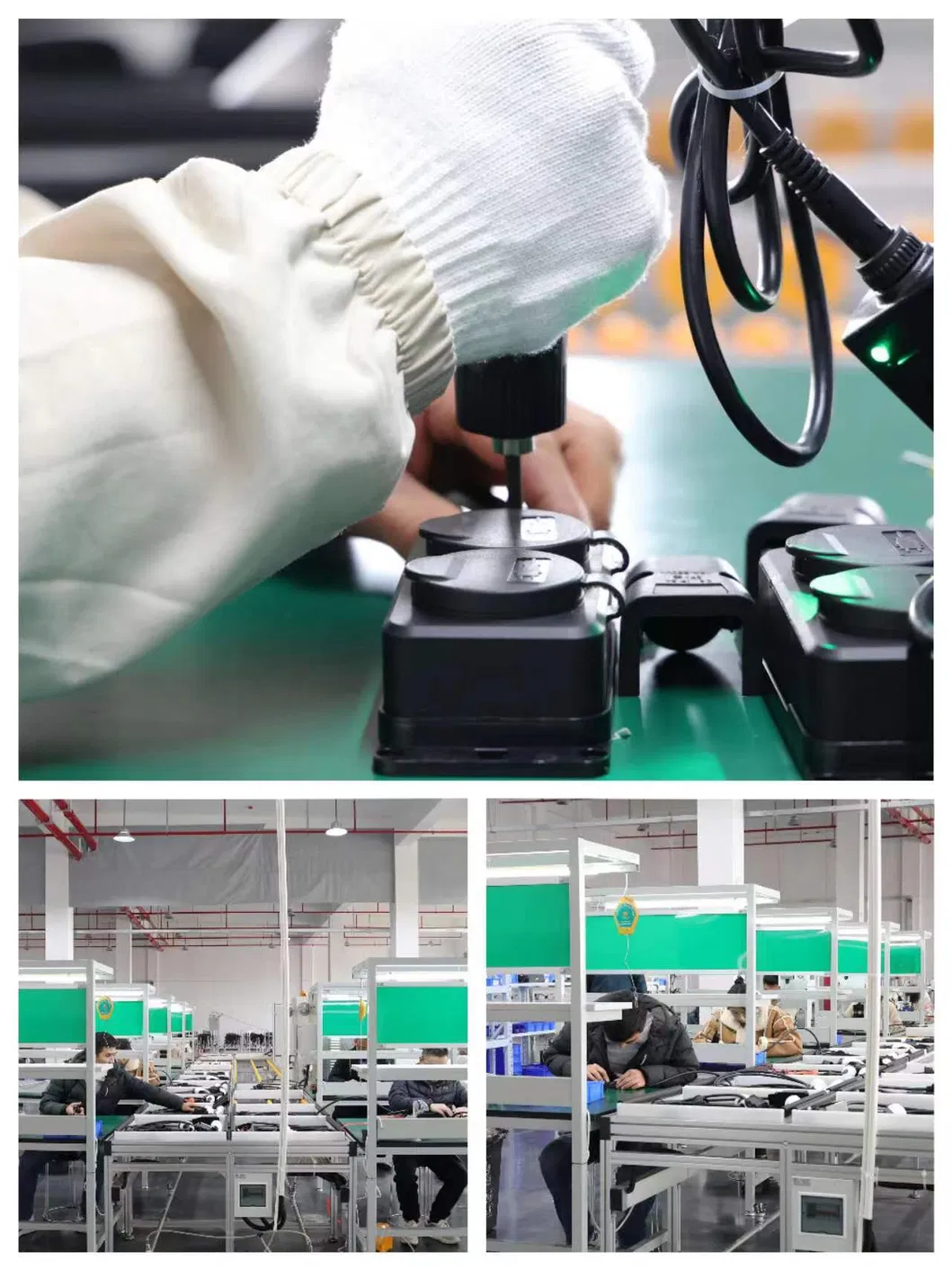

With a dedicated R&D team of over 100 professionals and a manufacturing facility equipped with over 200 large-scale production machines, the factory handles the complete industrial value chain from core components to control systems. Solutions are provided for residential, commercial, and industrial sectors globally.
