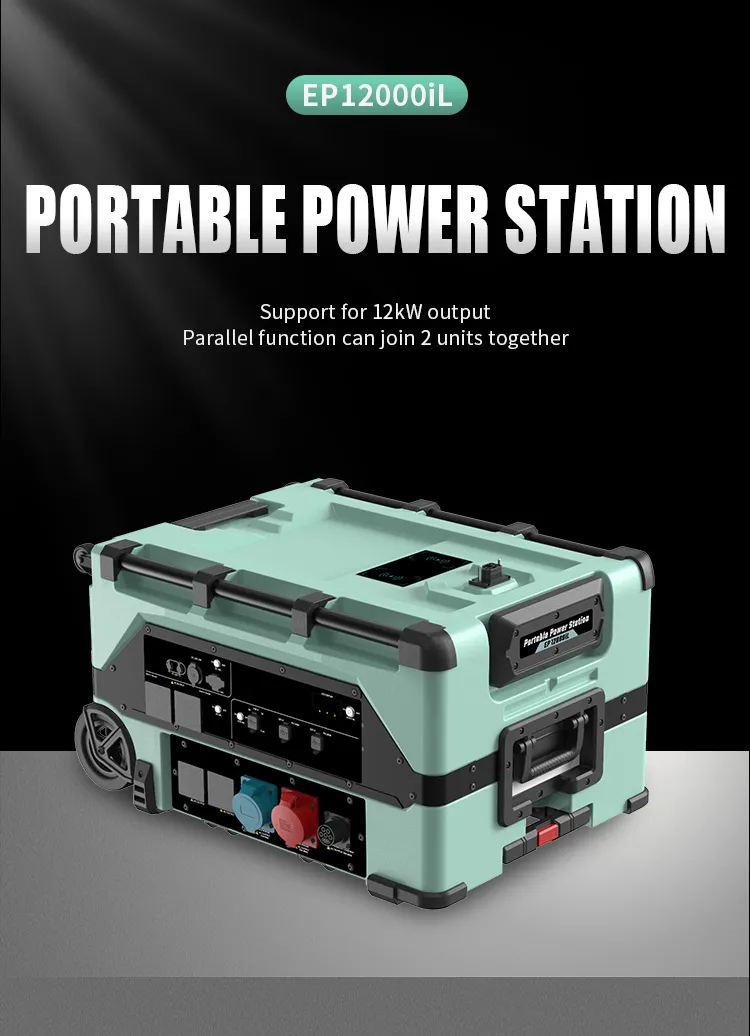

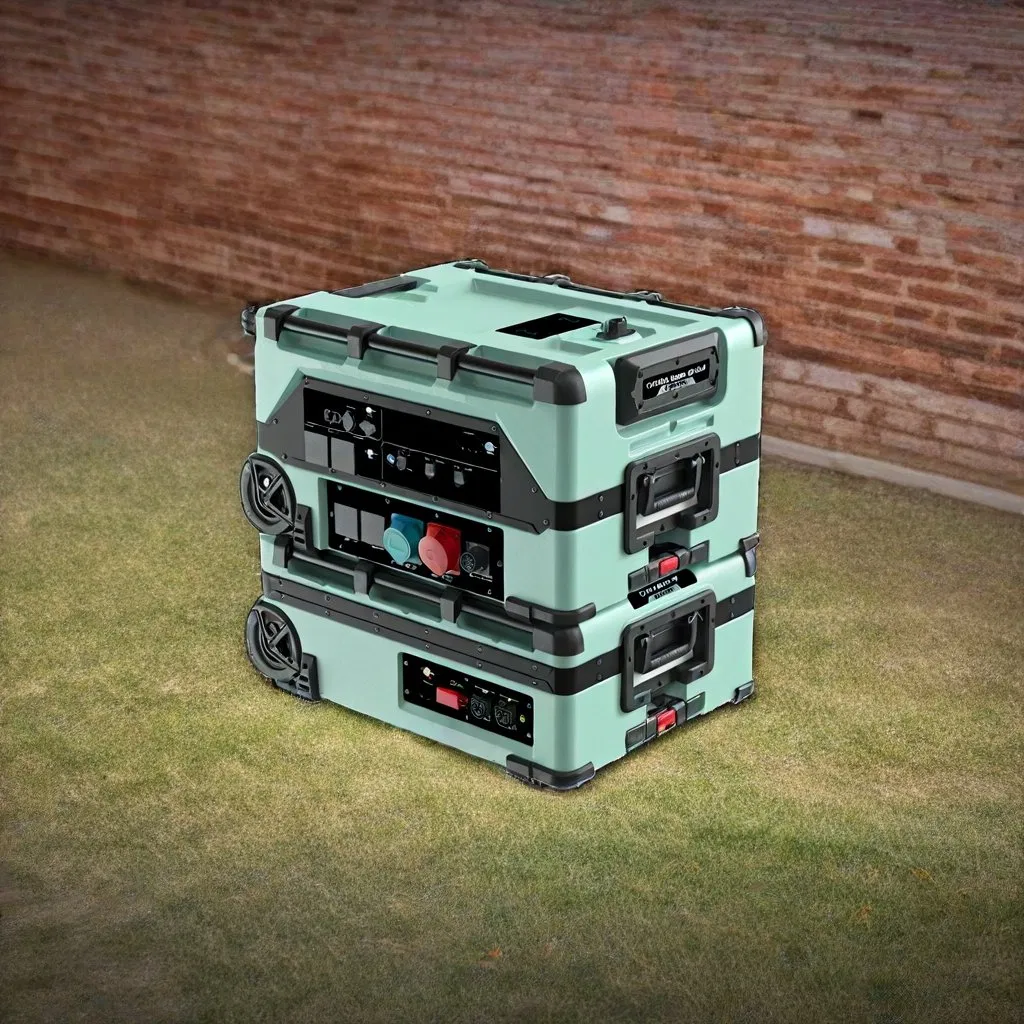

Portable Solar Wind Hybrid System 12000W Home Energy Storage System

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
EP12000iL
Cycle Life
3000
Nominal Capacity
7680wh
Multiple Charging
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kwh
Fast Charging
70mins Fully Charged
Inverter Type
Bi-Directional Inverter
Three-Phase Output
Yes
Protection Grade
Unit IP53 / Battery IP66
Package Size
97.00cm * 75.00cm * 57.00cm

Product Advantages

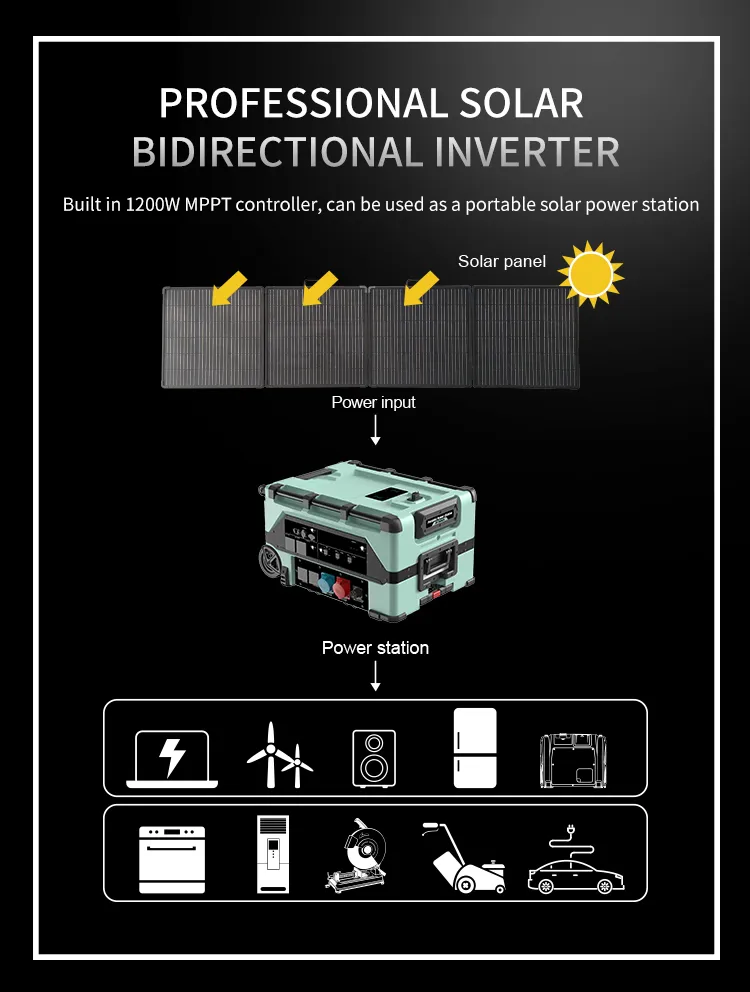

  • Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
  • Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

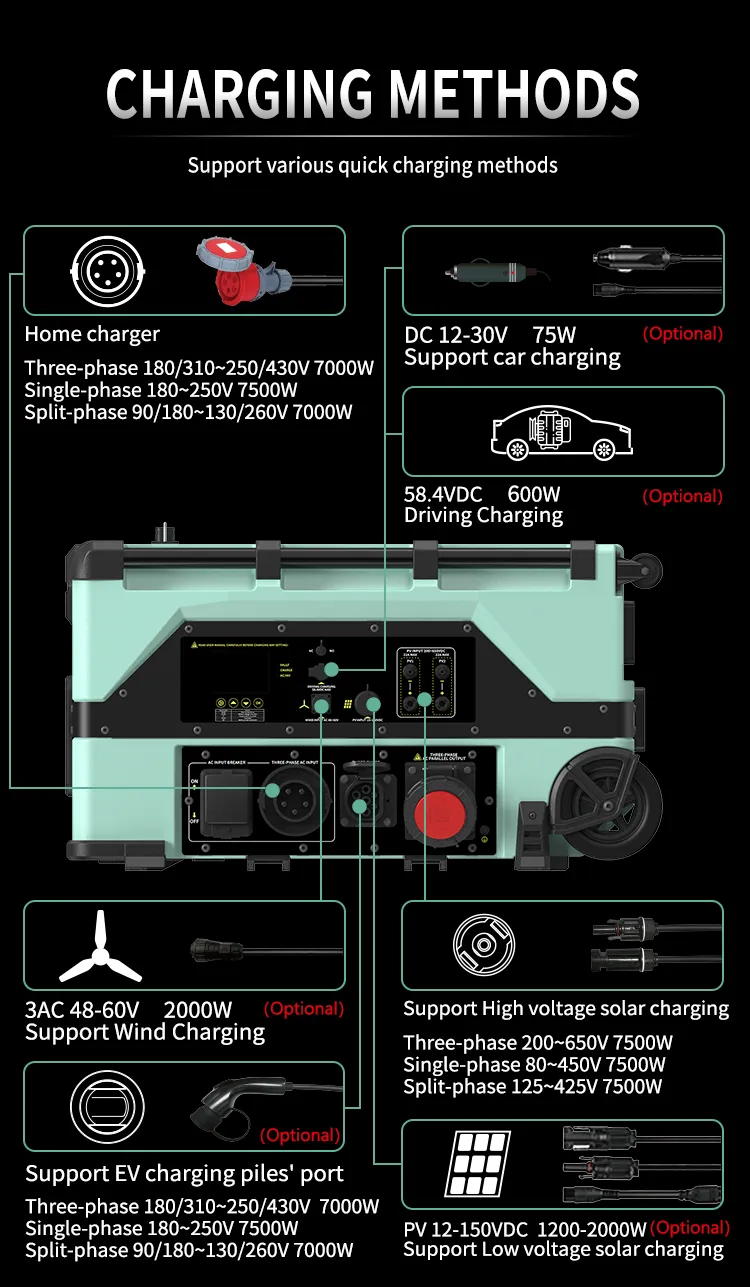

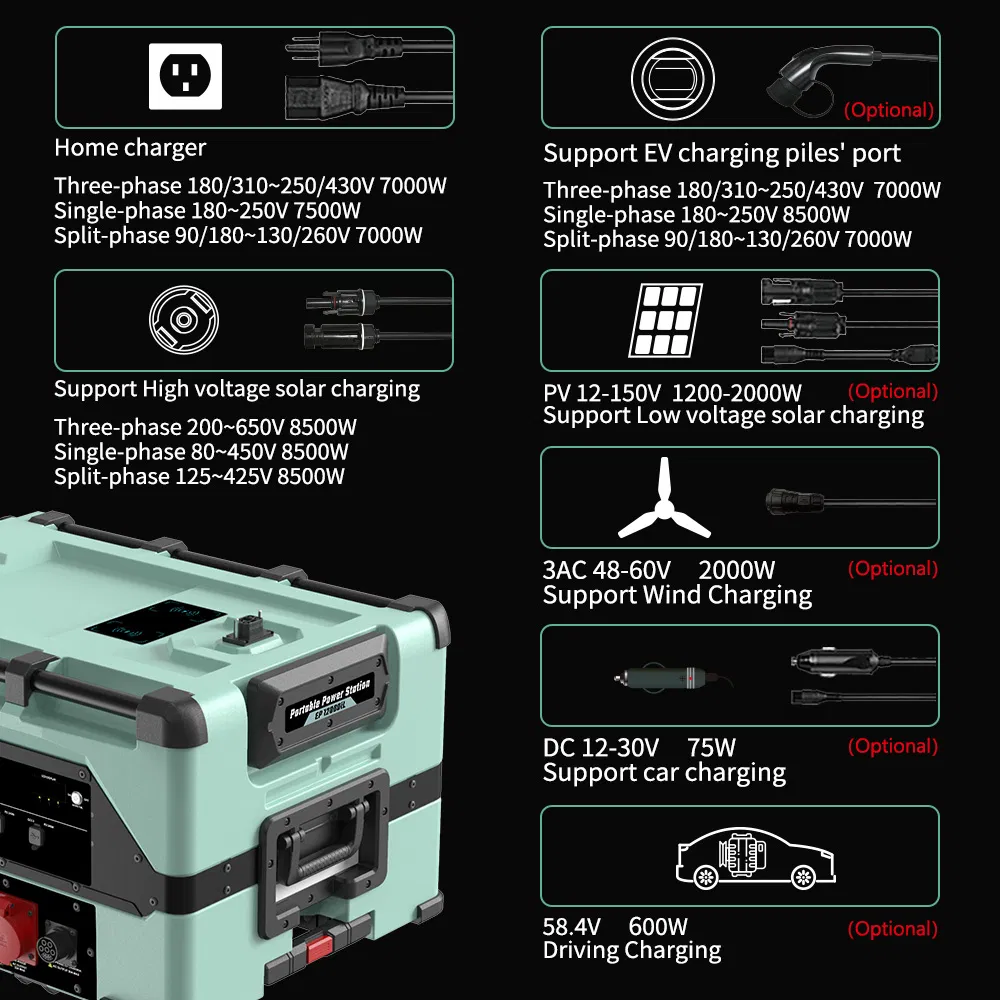

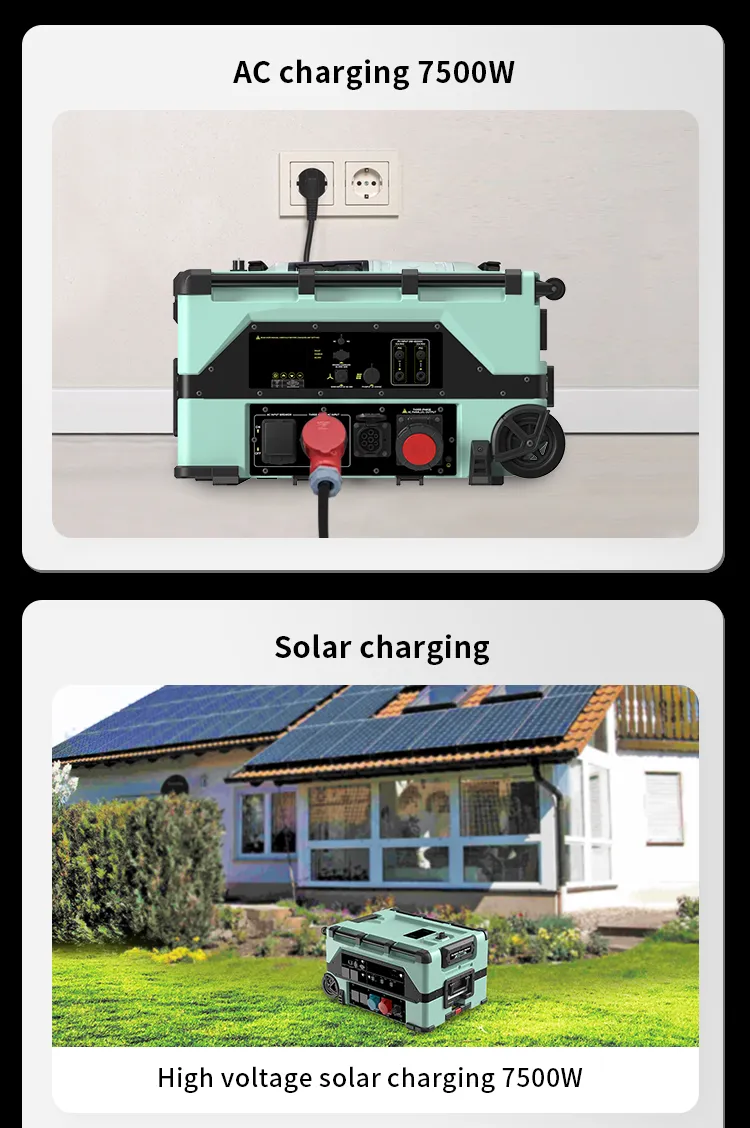

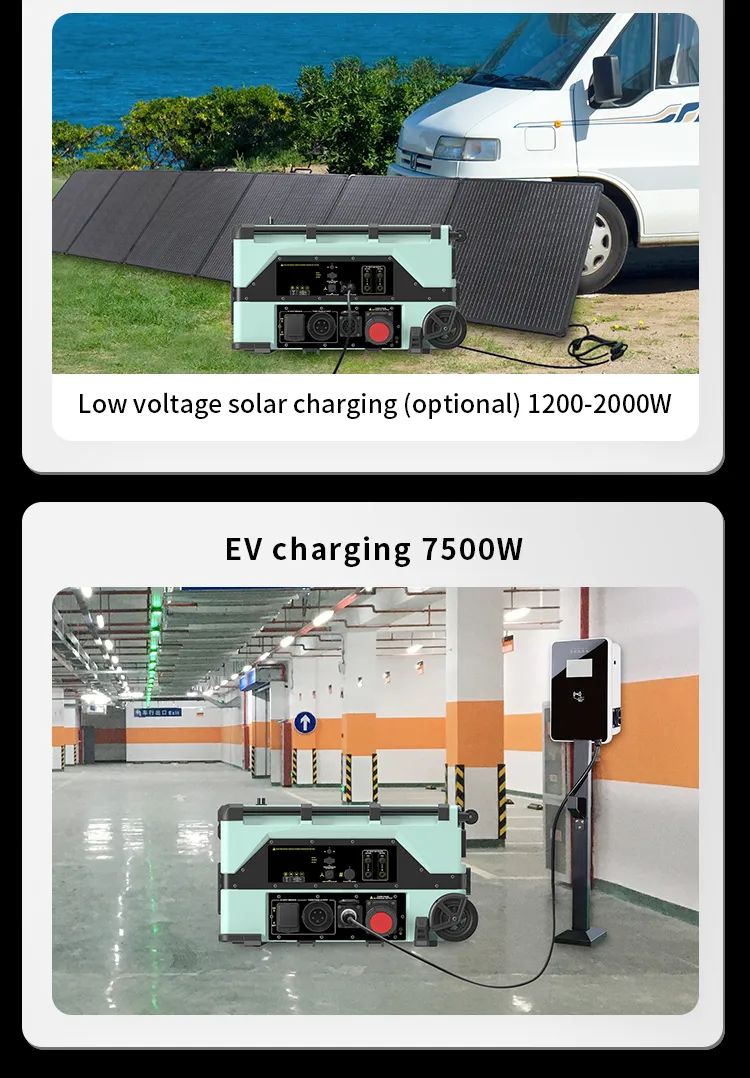

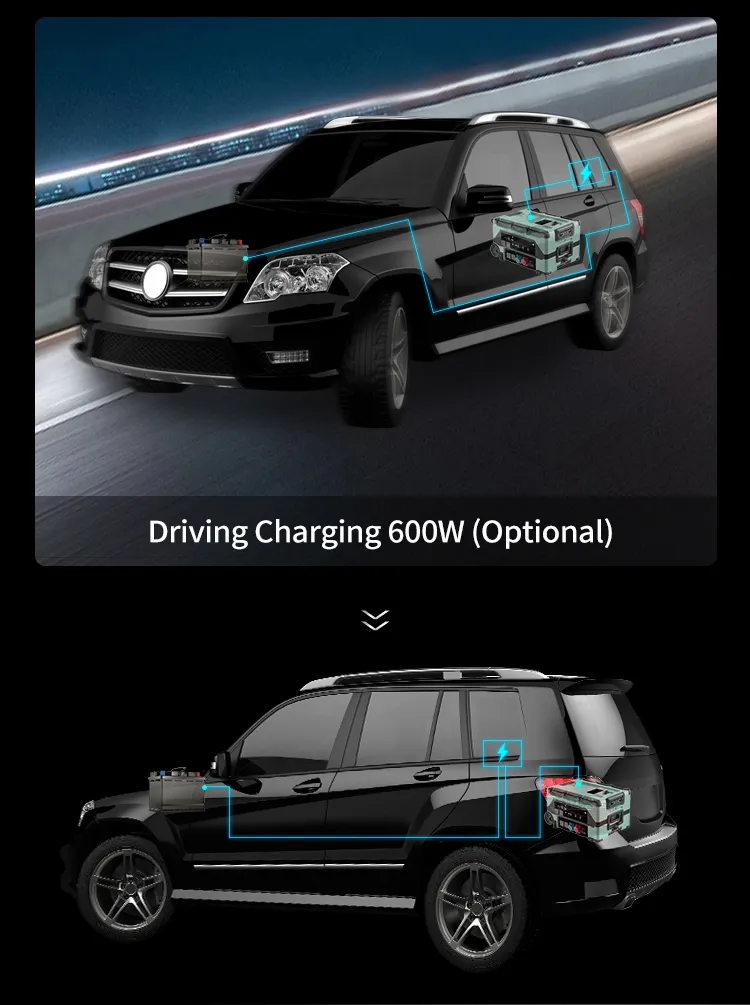

  • Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.
  • Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

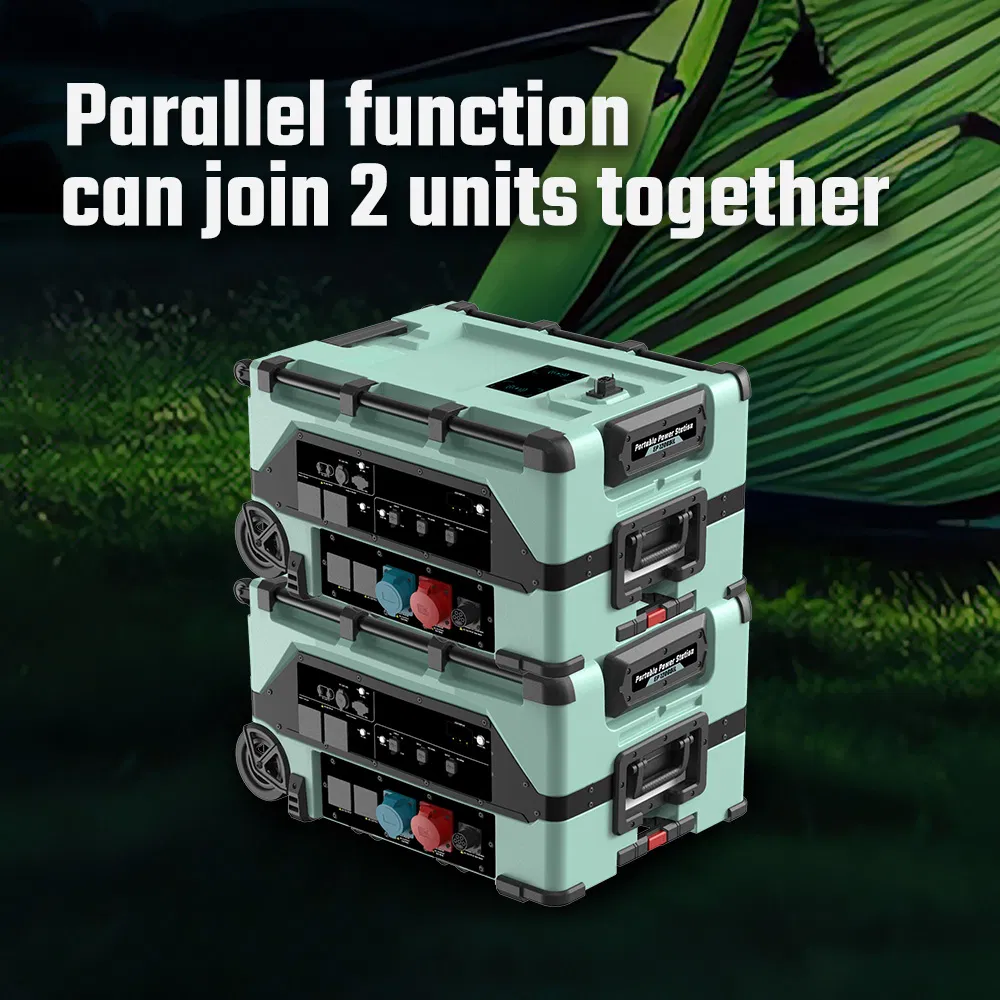

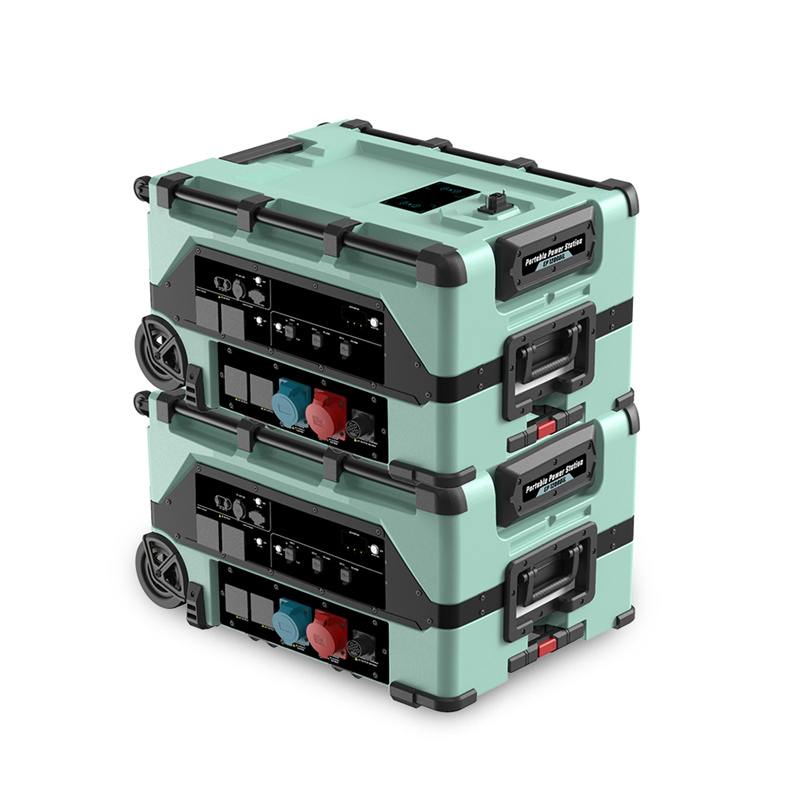

  • Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.
  • Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.
  • The four-wheel chassis and large-diameter wheel can be switched at any time, carrying without any burden.
  • Patented dual channel cooling system and V-0 level flame-retardant casing.
  • Intelligent control and monitor by smartphone APP.
  • Better quality with 5 years warranty.

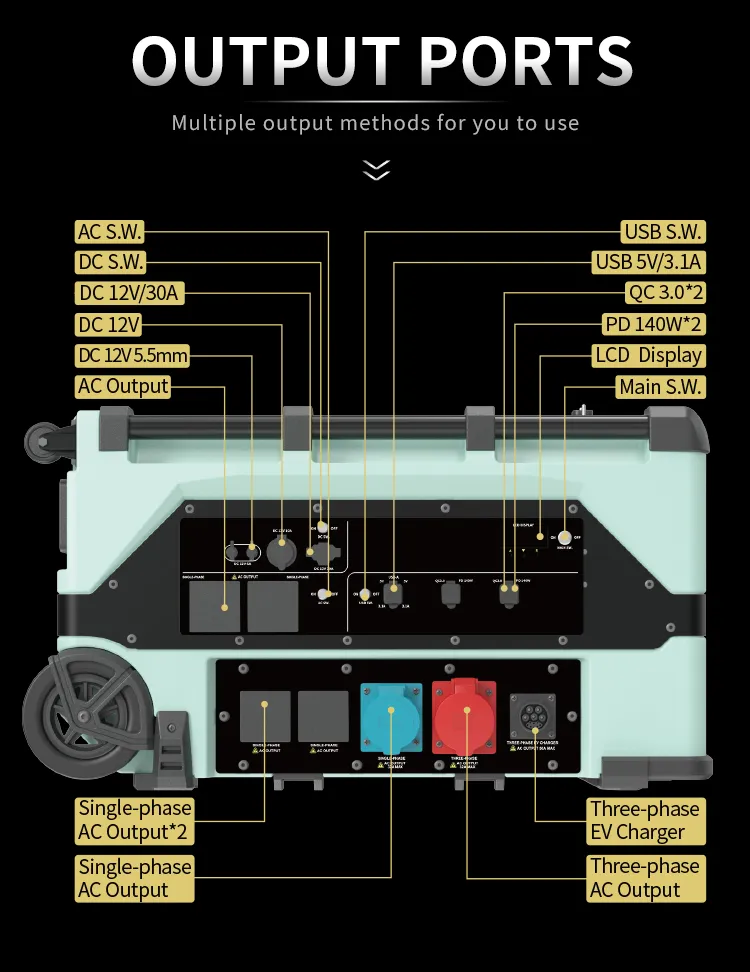

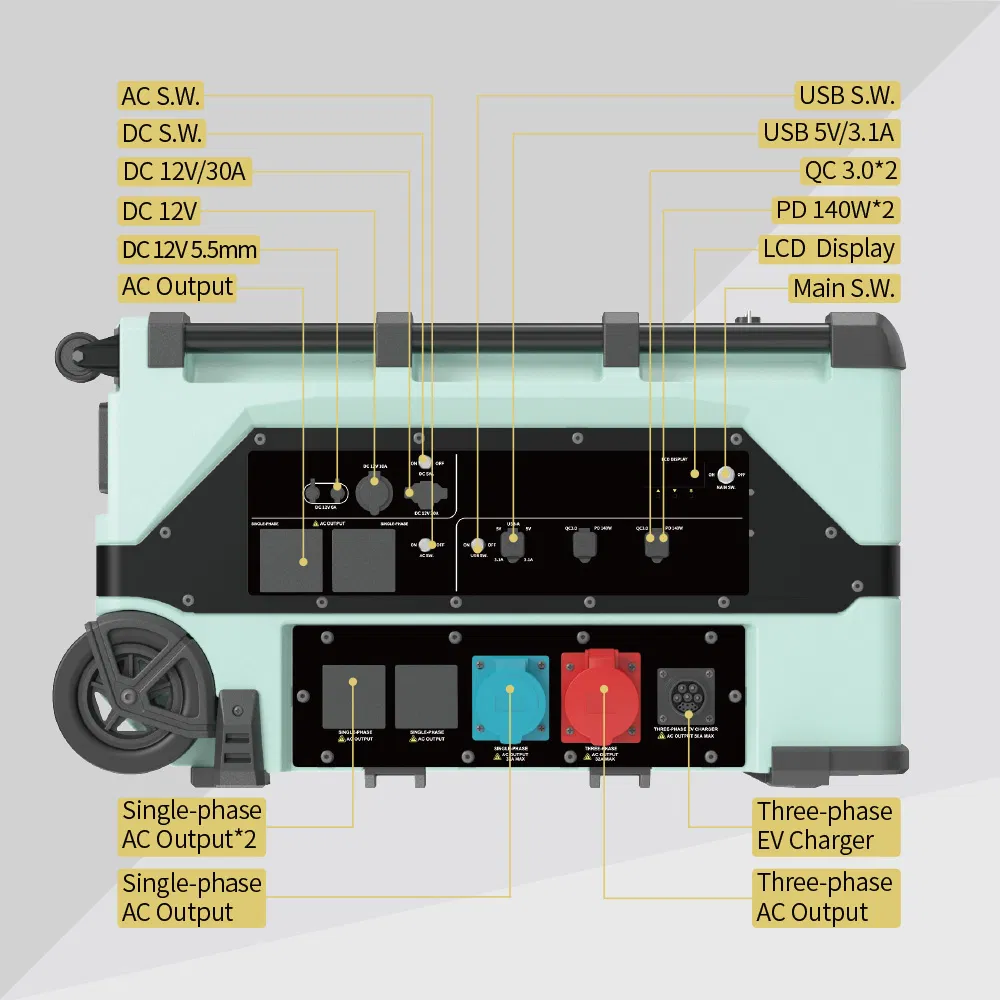

Product Parameters (Output)

Output Type Rated Power Peak Power Voltage Details
AC Three-phase 12000VA 24000VA 220/380V, 230/400V, 240/415V
AC Single-phase 11000VA 22000VA 220/230/240V
AC Split-phase 10000VA 20000VA 100/200V, 110/220V, 120/240V
DC Output XT90 (12V/30A), Cigarette Port (12V/10A) 5521 Port (12V/6A)
USB Output Type-C PD 140W, QC3.0 18W USB 5V/3.1A

Detailed Photos

System Overview

Professional Capability

We are a high-tech company integrated with research, manufacture and sales. We provide products and service on inverter generators, Internet of things, power equipment, automation equipment, and electrical products. Devoted to research and development of intelligent electromechanical products, we insist on independent innovation.

Possessing more than 70 critical patents in power equipment and intelligent controller fields, we maintain a leading position in the industry. Our products have earned an excellent reputation in Europe and North America markets for their superior quality and performance. We are committed to bringing innovative, reliable energy solutions to customers worldwide.

Frequently Asked Questions

What is the total capacity and can it be expanded?
The base unit has a 7680Wh LiFePO4 battery. It is highly expandable; you can stack up to 31 extra batteries for a total capacity of 245kWh.
How fast can the system be fully charged?
The system supports super-fast charging, reaching a full charge in as little as 70 minutes via AC utility or high-voltage solar input.
What types of AC output does the EP12000iL support?
It supports three-phase (12kW), single-phase (11kW), and split-phase (10kW) AC outputs, making it compatible with various global power standards.
Can this system charge electric vehicles (EVs)?
Yes, it features a built-in electric vehicle charger that can replace traditional charging stations, supporting car charging up to 22kW.
Is the system durable for outdoor use?
The main unit is rated IP53 and the battery packs are IP66, providing excellent protection against dust and water. It also features a V-0 level flame-retardant casing.
What is the warranty period for this product?
The product comes with a 5-year warranty, ensuring long-term reliability and support for your energy storage needs.
