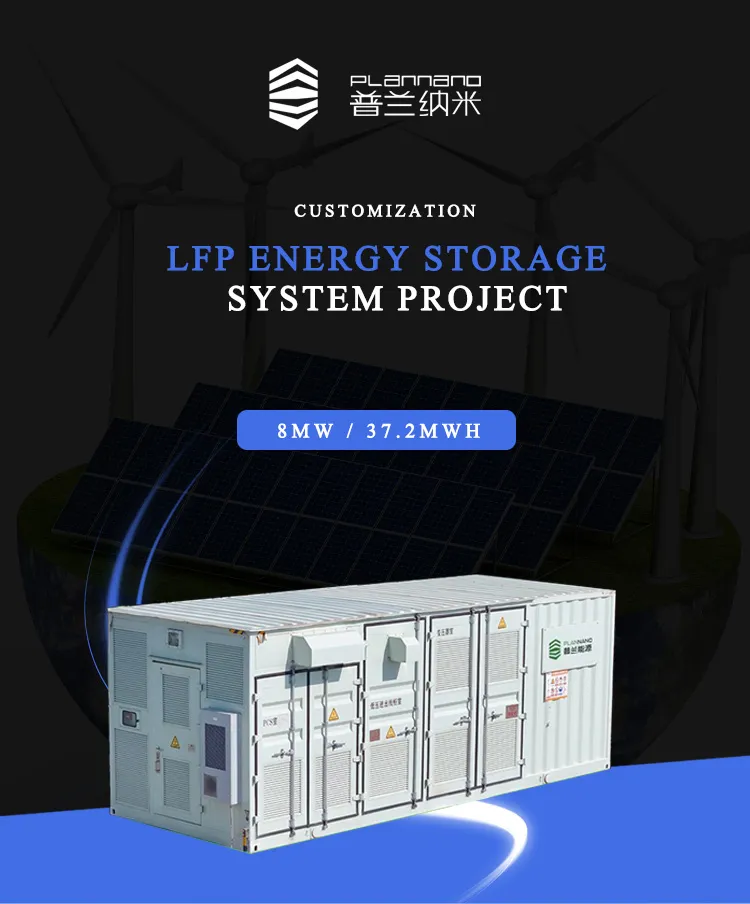

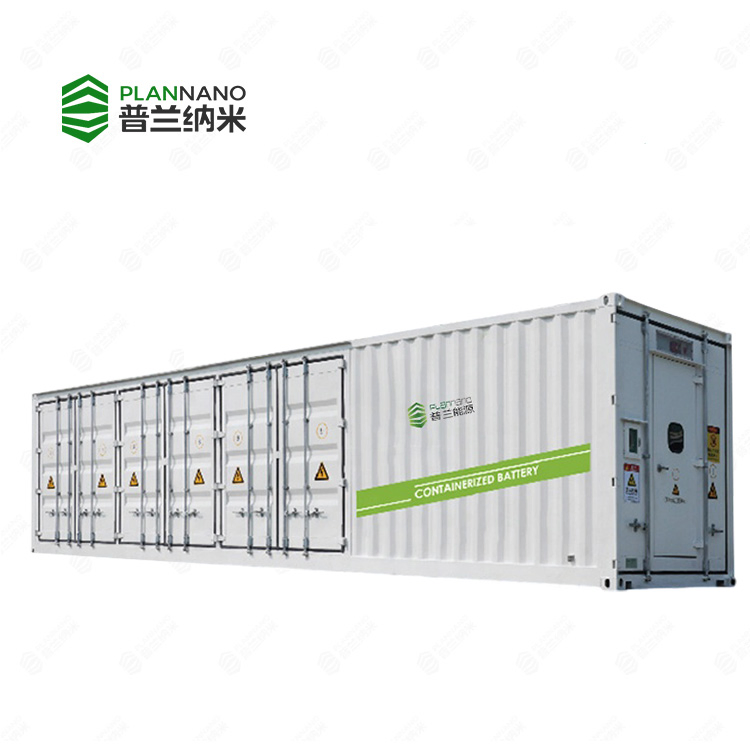

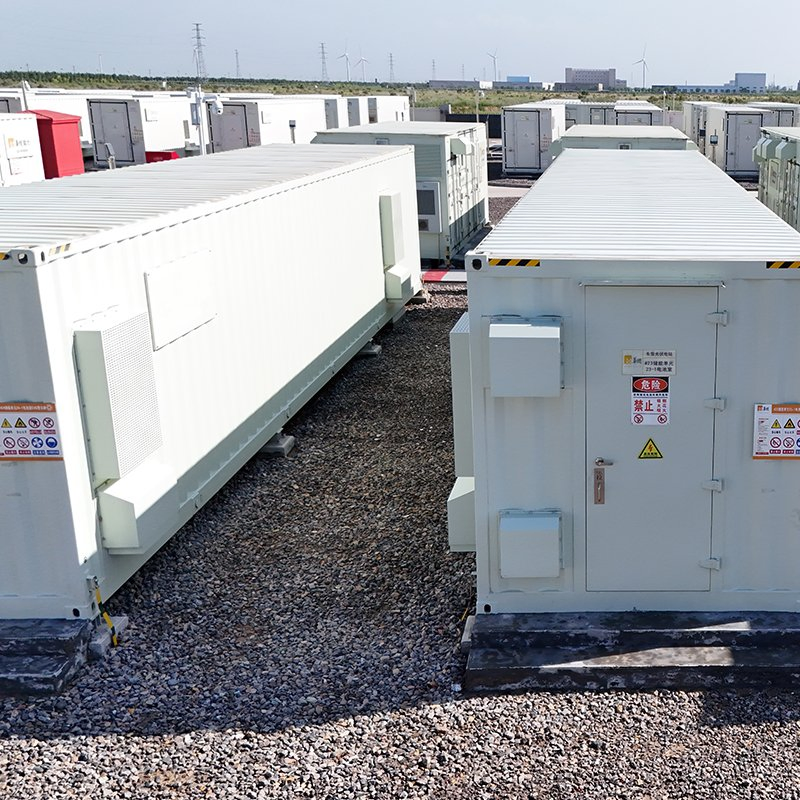

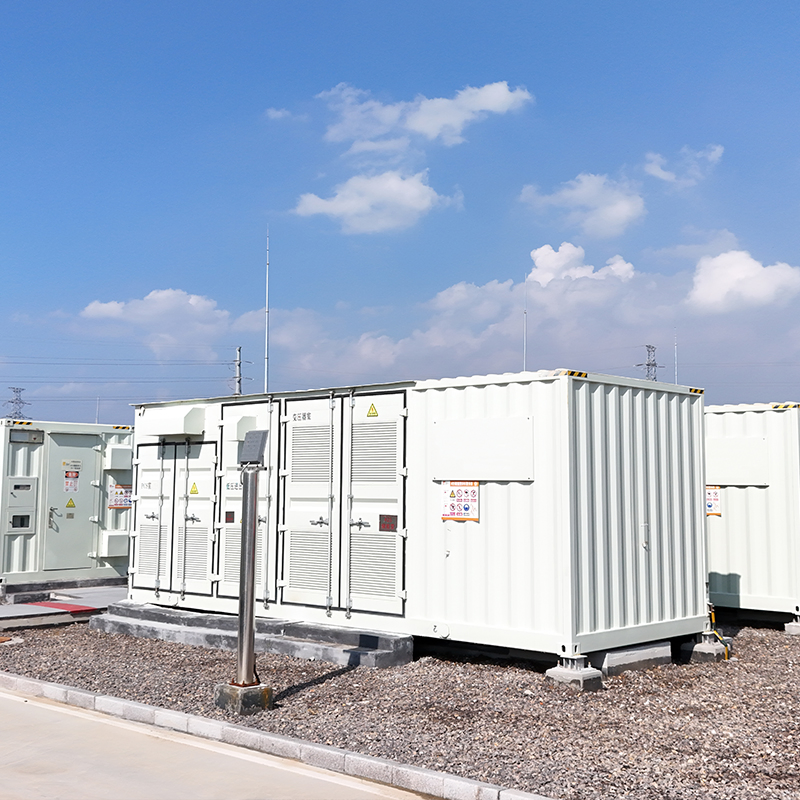

Plannano 8MW Ultra Large Capacity Lithium Titanate Energy Storage System: Ultra Fast Charging and Discharging of Lithium Titanate Lithium-Ion Batteries

1 / 5

Plannano 8MW Ultra Large Capacity Lithium Titanate Energy Storage System: Ultra Fast Charging and Discharging of Lithium Titanate Lithium-Ion Batteries

Customization:	Available
Container Size:	W13716D2438H2591mm
Weight:	<70t

Send Inquiry

Product Description

Basic Information

Model NO.

PLPF-DZ-8MW/37.2MWh

Nominal Voltage

1331.2V

Warranty

3 Years

Nominal Capacity

5.015mwh

Cycle Life

>=6000 @100%Dod, 80%Eol

Battery Type

LiFePO4

Customize

Can Be Customized

Ambient Temp

-30℃ to 60℃

Communication

RS485

Transport

Container

Origin

China

Product Description

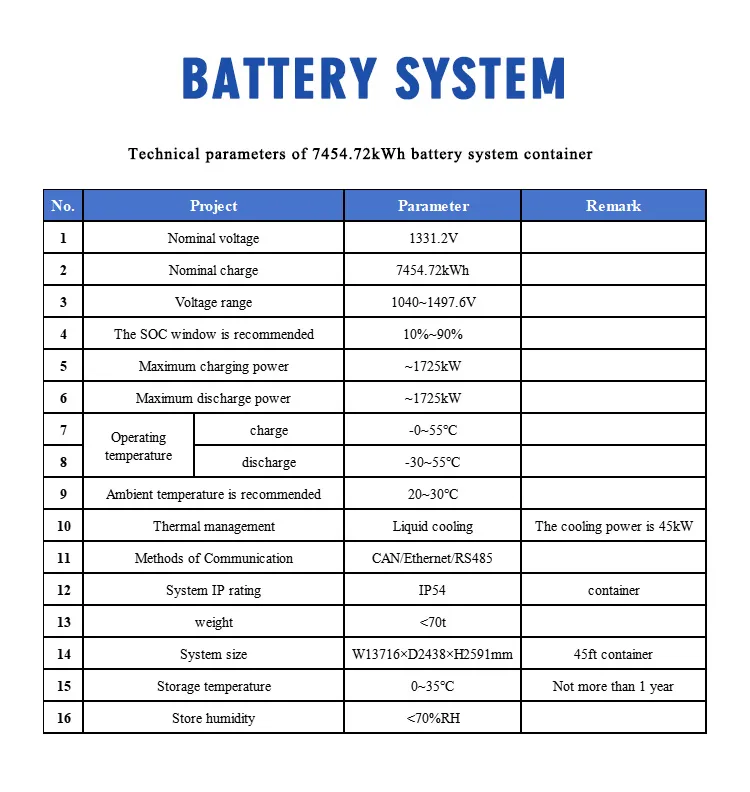

Product Parameters

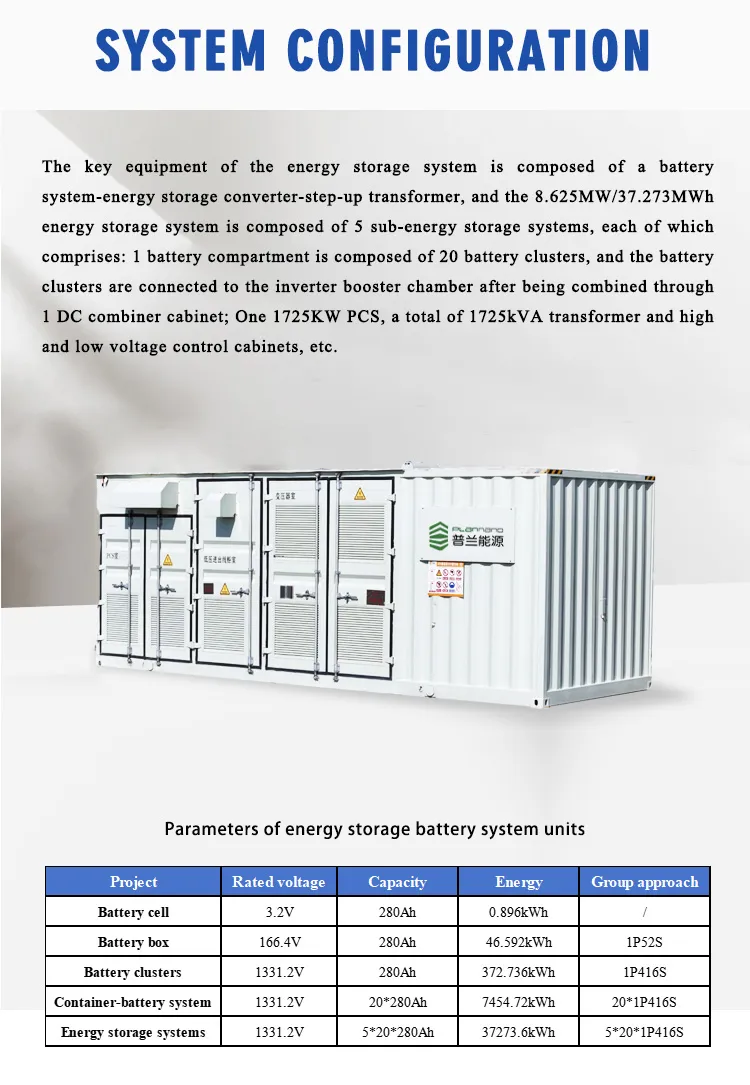

Product model	PLPF0314C0-1331R2A
Rated battery capacity	37.2MWh
Battery voltage range	1331.2V
System Parameters

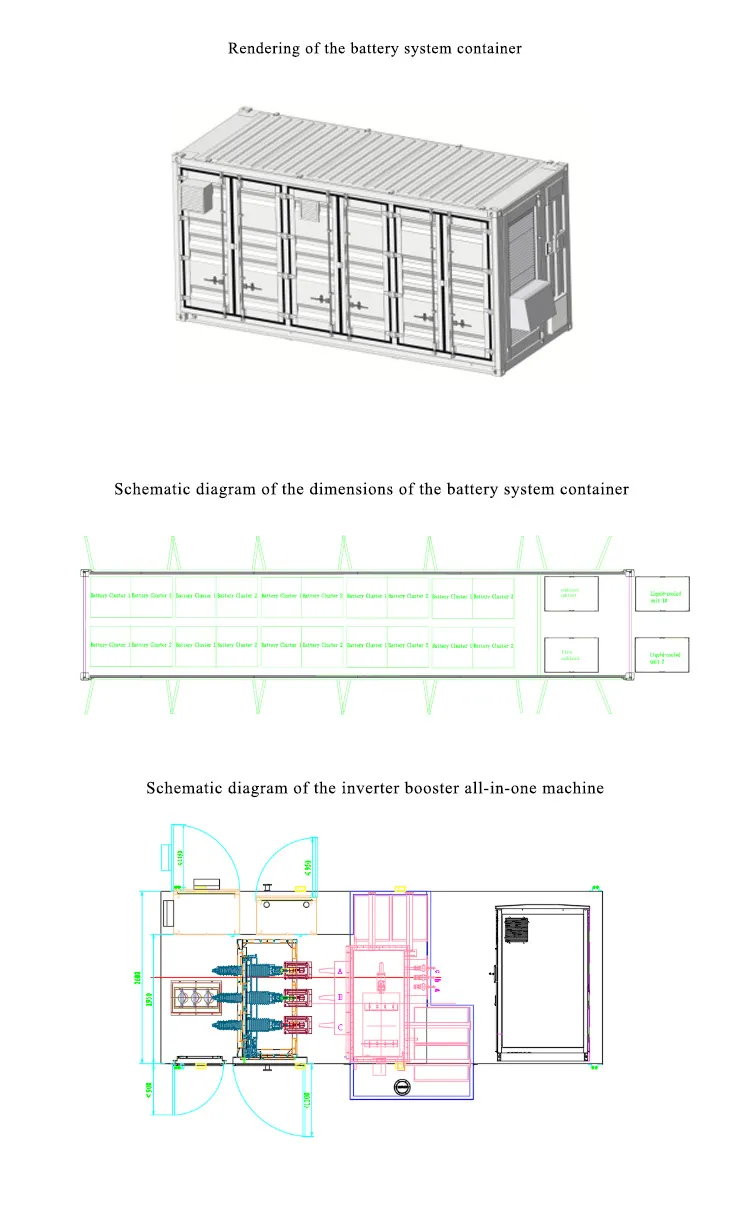

Size (W x D x H)	W13716 × D2438 × H2591mm
Operating temperature	- 30~ 60ºC (>40ºC derating)

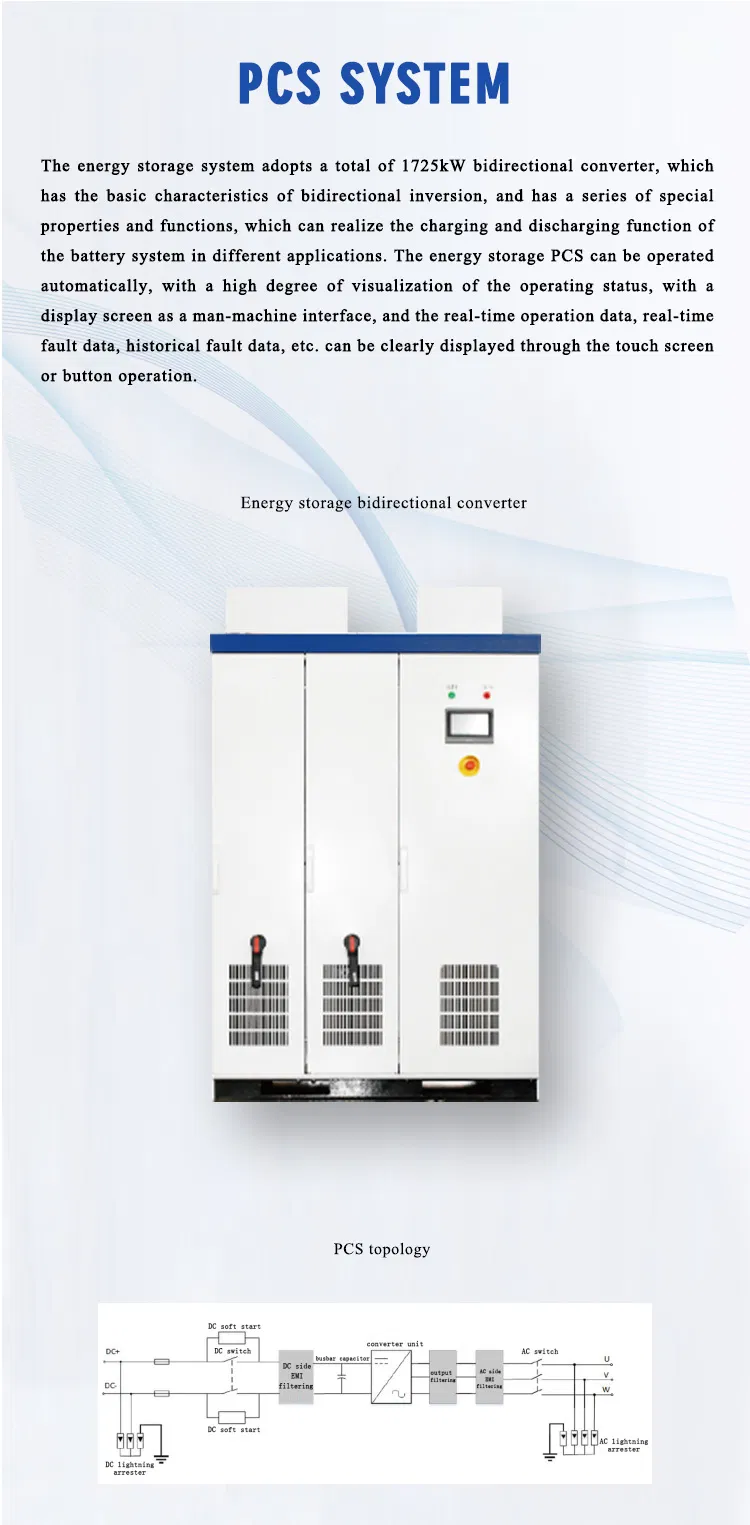

Converter cooling method	Temperature controlled forced air cooling

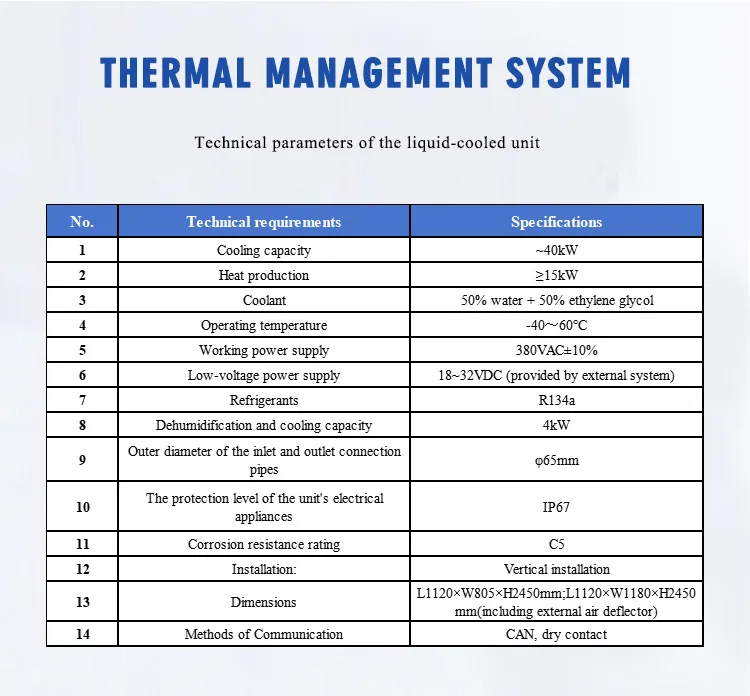

Battery temperature control	Industrial grade air conditioning

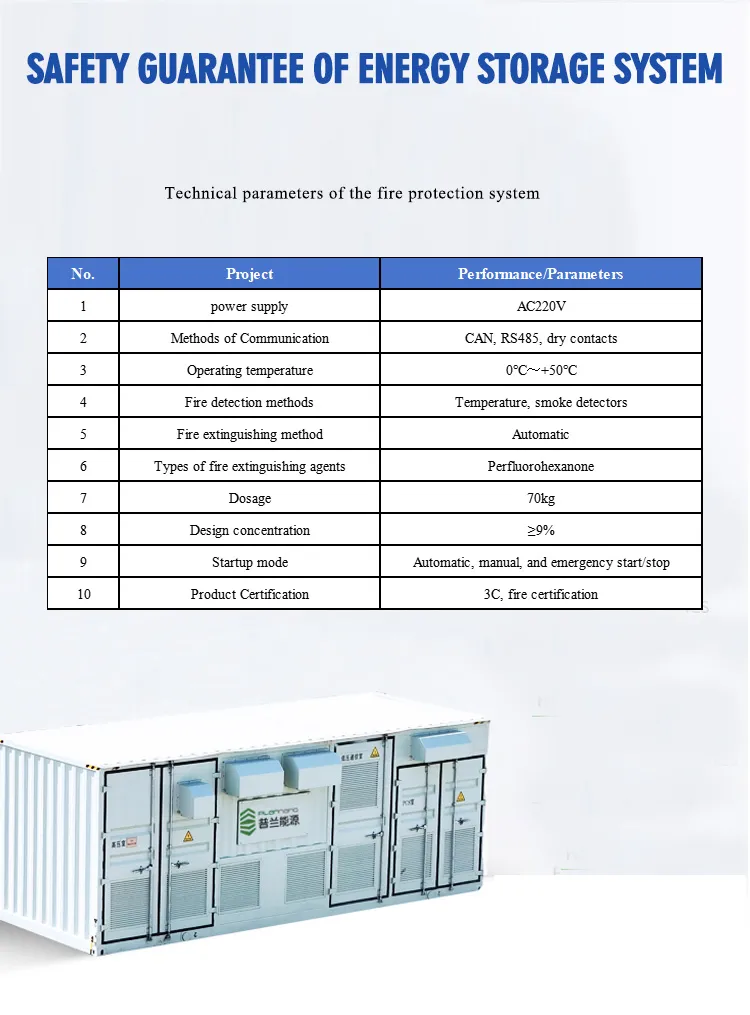

Fire extinguishing system	Fire protection system + water fire protection (optional)
Maximum altitude	5000m ( > 3000m derating )
Display	Touch Screen
Communication Interface	RS485/CAN/Ethernet
Monitoring system	Included
Access control system	Optional

Frequently Asked Questions

How To install And Use The Product?

We provide comprehensive English manuals and instruction videos. Detailed steps covering disassembly, assembly, and operation are shared with all customers to ensure smooth implementation.

What if I Don't Have Export Experience?

We work with reliable forwarder agents who can manage shipping via sea, air, or express directly to your doorstep. We assist in selecting the most suitable shipping service for your needs.

How is Your Technical Support?

We provide lifetime online technical support. Our engineering team is available for video calls to resolve any post-delivery issues and can provide overseas assistance if necessary.

How Can I Make Sure it's a Secure Transaction?

Transactions can be processed through professional industry platforms that protect buyer interests, ensuring payment is only released once the shipment and details are confirmed.

Can You Get The Product Customized For us?

Yes, customization options are available including specific branding, machine colors, and unique designed patterns to meet your technical requirements.

What is the standard warranty and life cycle?

The product comes with a 3-year warranty and is designed for a cycle life of over 6000 cycles at 100% Depth of Discharge (DoD) until 80% End of Life (EoL).
