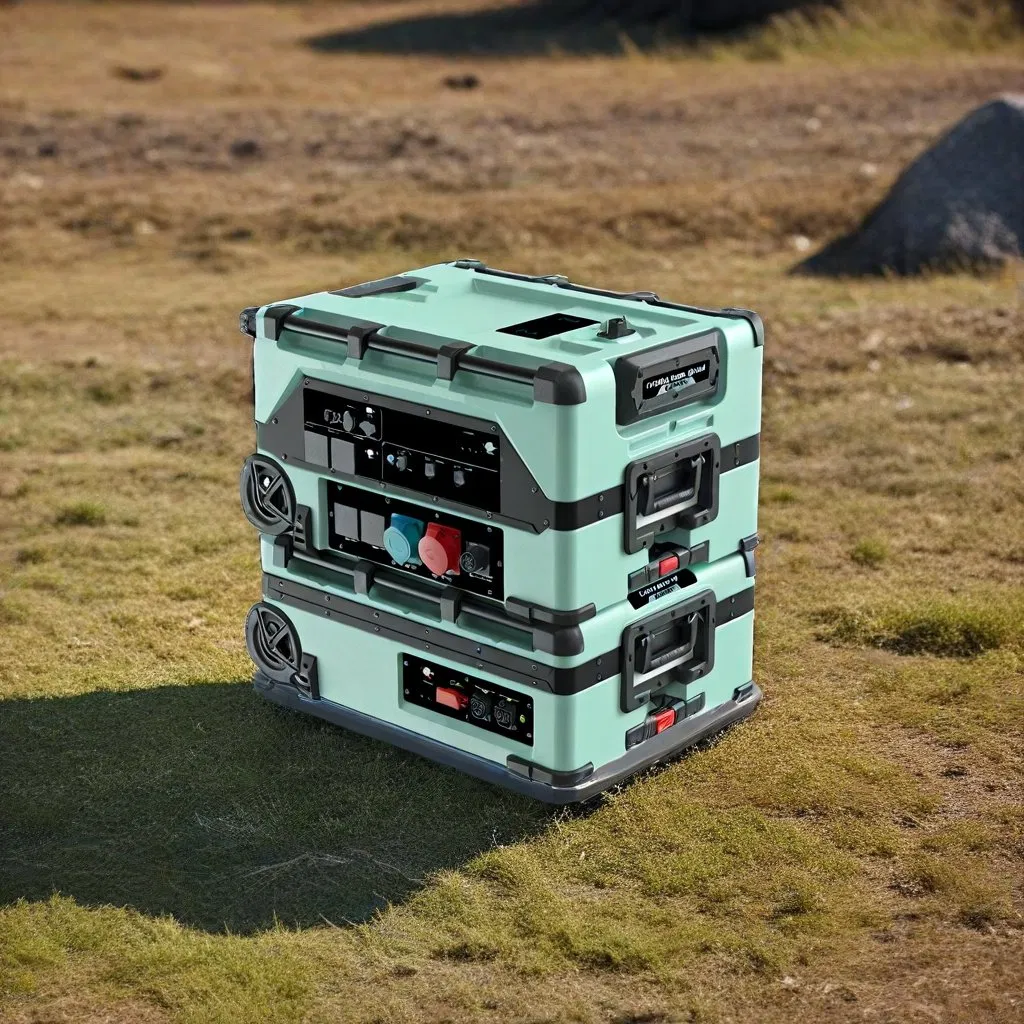

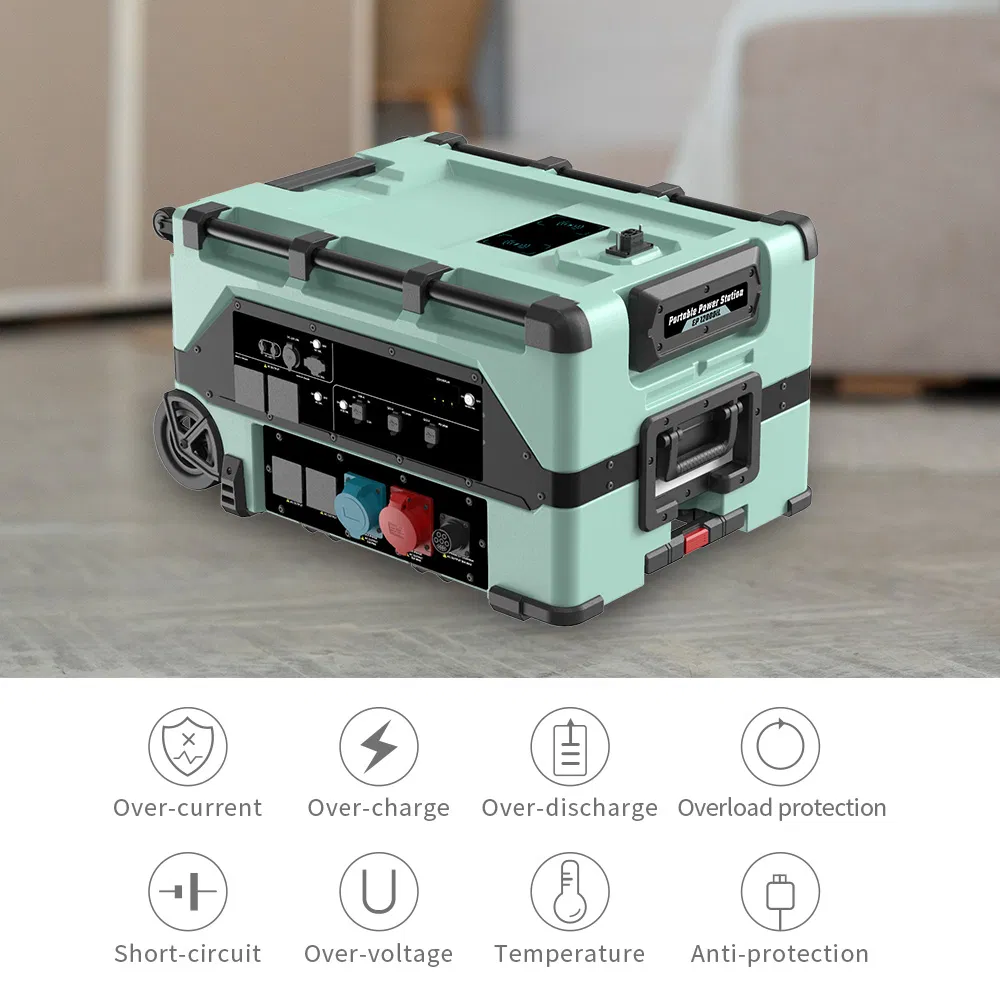

12000W Outdoor Camping LiFePO4 Battery Solar Generator Solar Power System

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Information

Model
EP12000iL
Cycle Life
3000
Nominal Capacity
7680Wh
Multiple Charging
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kWh
Super Fast Charging
70mins Fully Charged
Certificates
CE RoHS IEC62619 Un38.8 MSDS
Inverter Type
Bi-Directional Inverter
Three-Phase Output
Yes
APP Function
Yes
Portability
Drawbar & Wheels
Origin
China

Product Advantages

  • Built-in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, supporting 12kW output and 8.5kW charging.

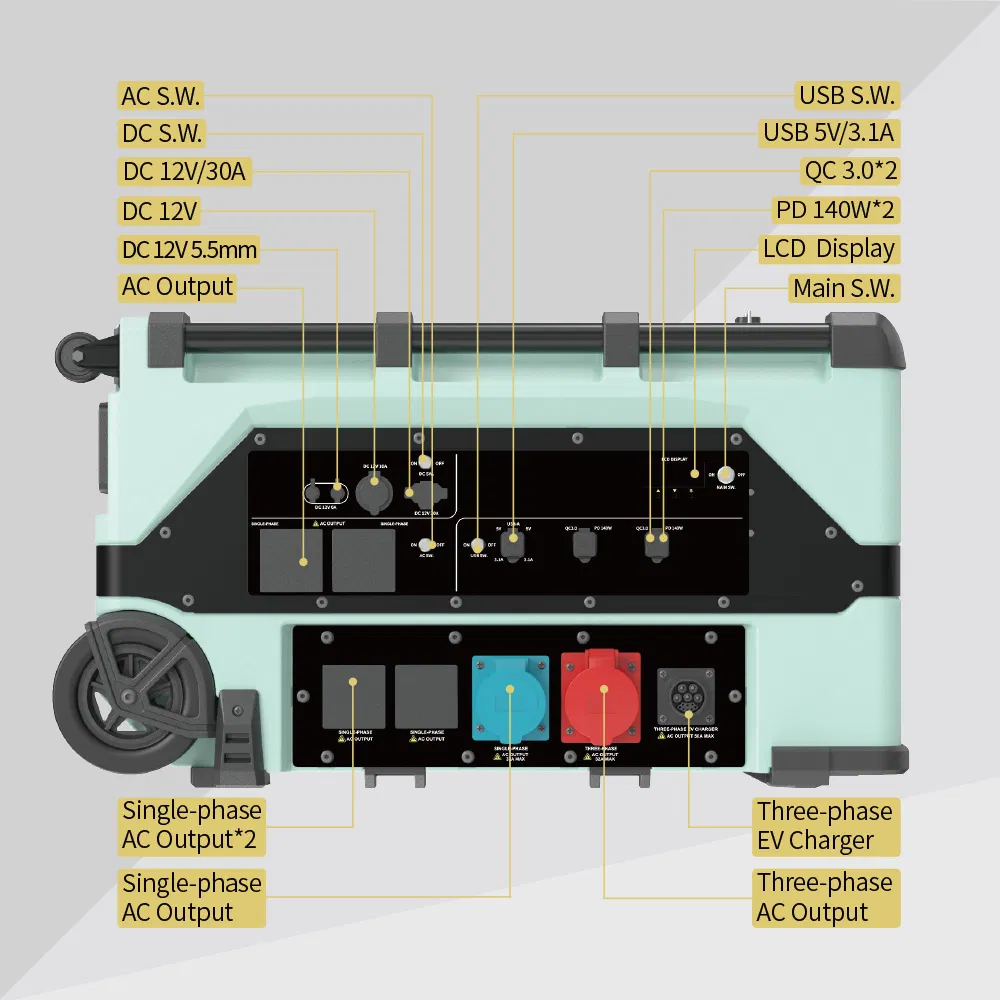

  • Supports continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

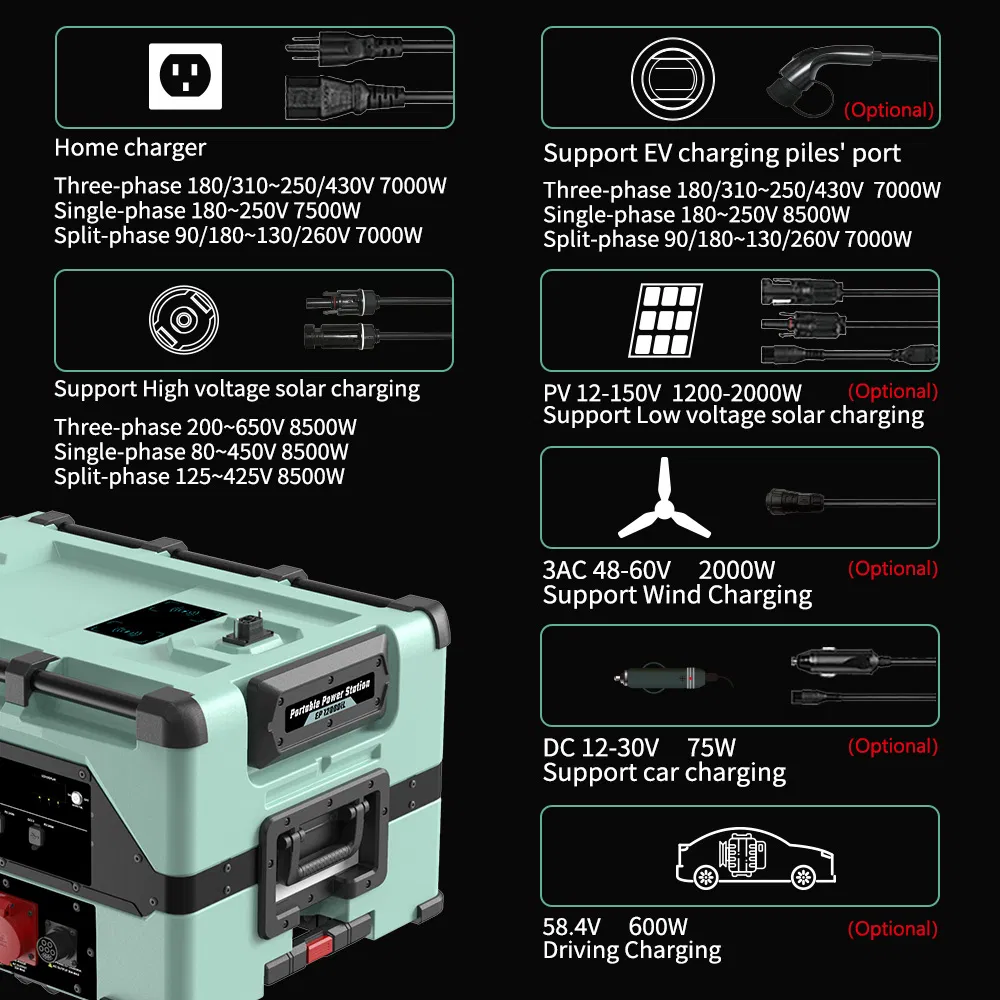

  • Versatile charging: utility, high-voltage/low-voltage solar, EV charger, driving, AC generator, and wind turbine.
  • Massive expansion: Up to 31 extra batteries can be stacked for a total capacity of 245kWh.

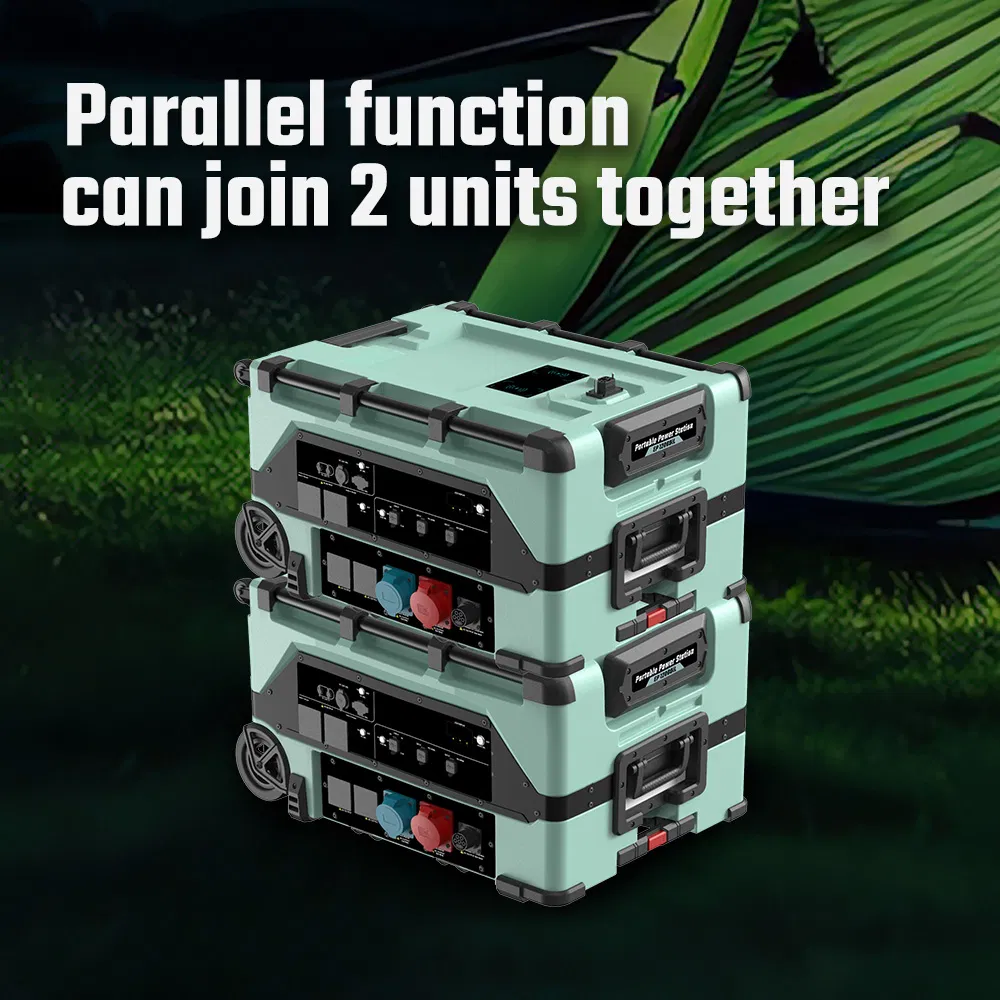

  • Patented stacked parallel technology allows joining 2 units for a continuous output of 24kW.
  • Built-in EV charger can replace charging stations to charge vehicles up to 22kW.
  • Rugged design: Unit IP53 and Battery Pack IP66 protection with a four-wheel chassis.
  • Intelligent control and monitoring via smartphone APP.

Technical Parameters

Feature Main Unit (EP12000iL) Extra Battery (EP12000B)
Dimensions 840X670X490mm 840X610X345mm
Net Weight 100kg 70kg
Battery Type LiFePO4, 7680Wh (150Ah) LiFePO4, 7680Wh (150Ah)
AC Output (Rated) 12000VA (3-Phase) / 11000VA (1-Phase) N/A
Transfer Time ≤10ms N/A
Solar Input (HV) Max. 2×9000W (200~650VDC) N/A
📷

Detailed Gallery

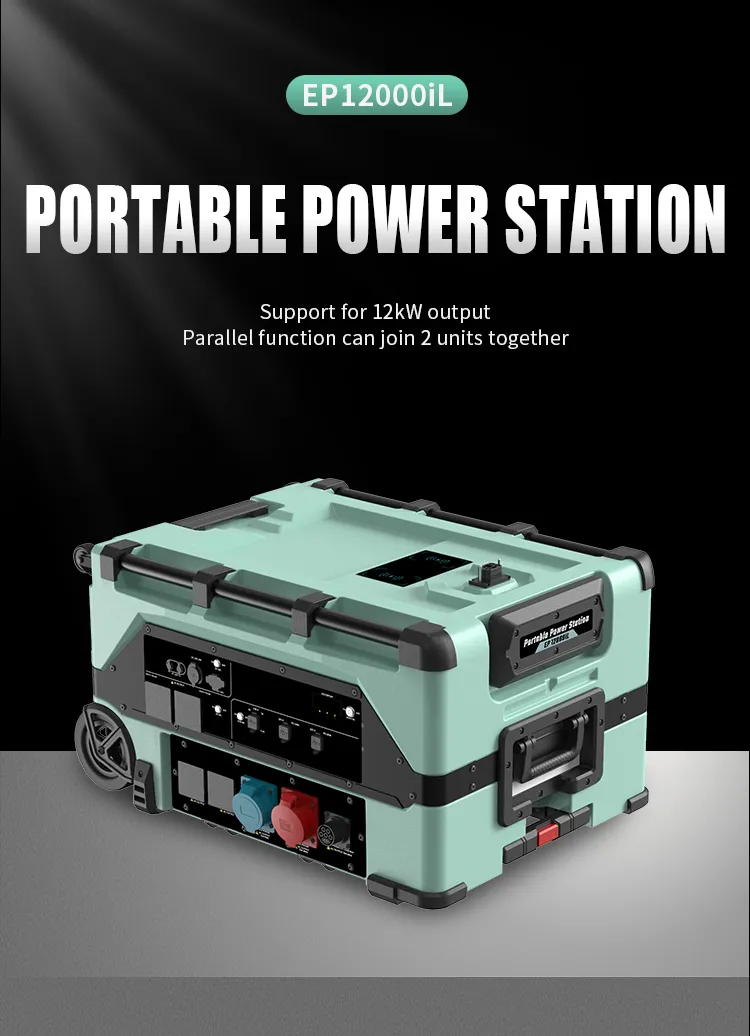

Solar Power System 1

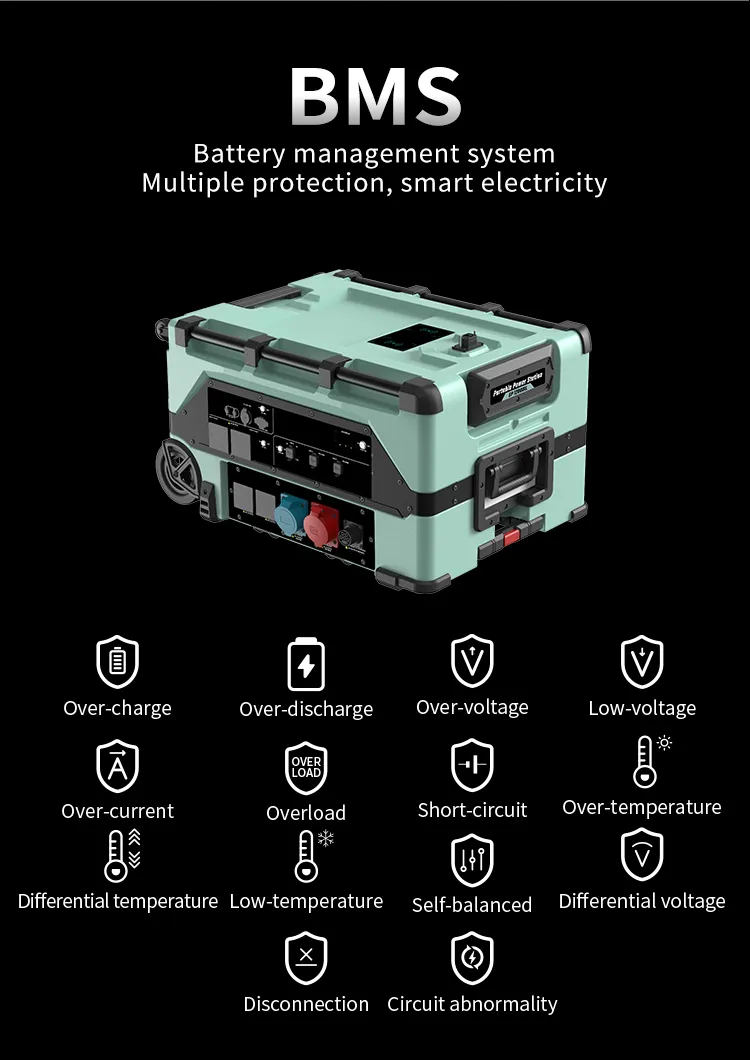

Solar Power System 2

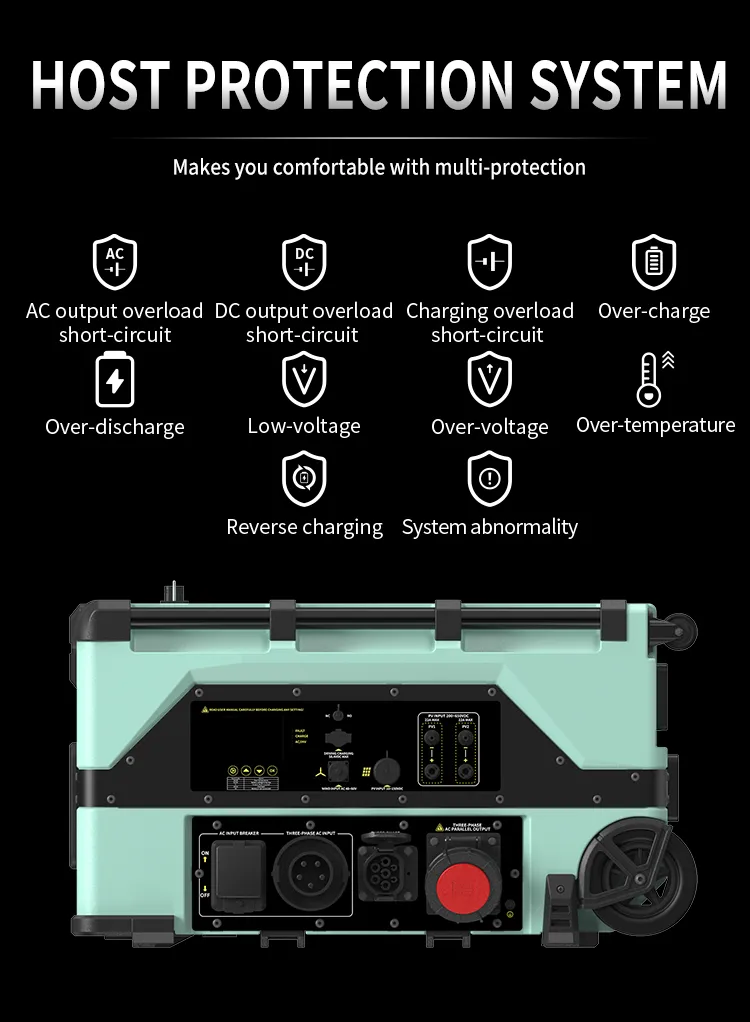

Solar Power System 3

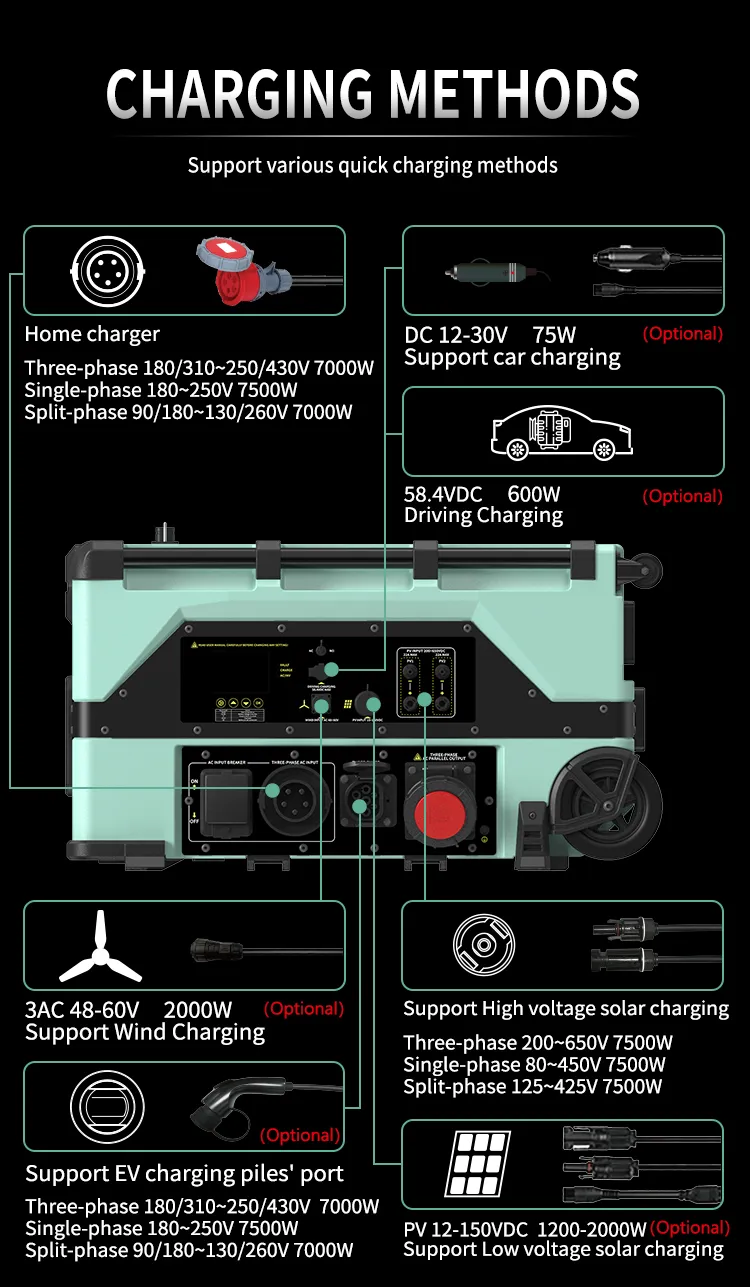

Solar Power System 4

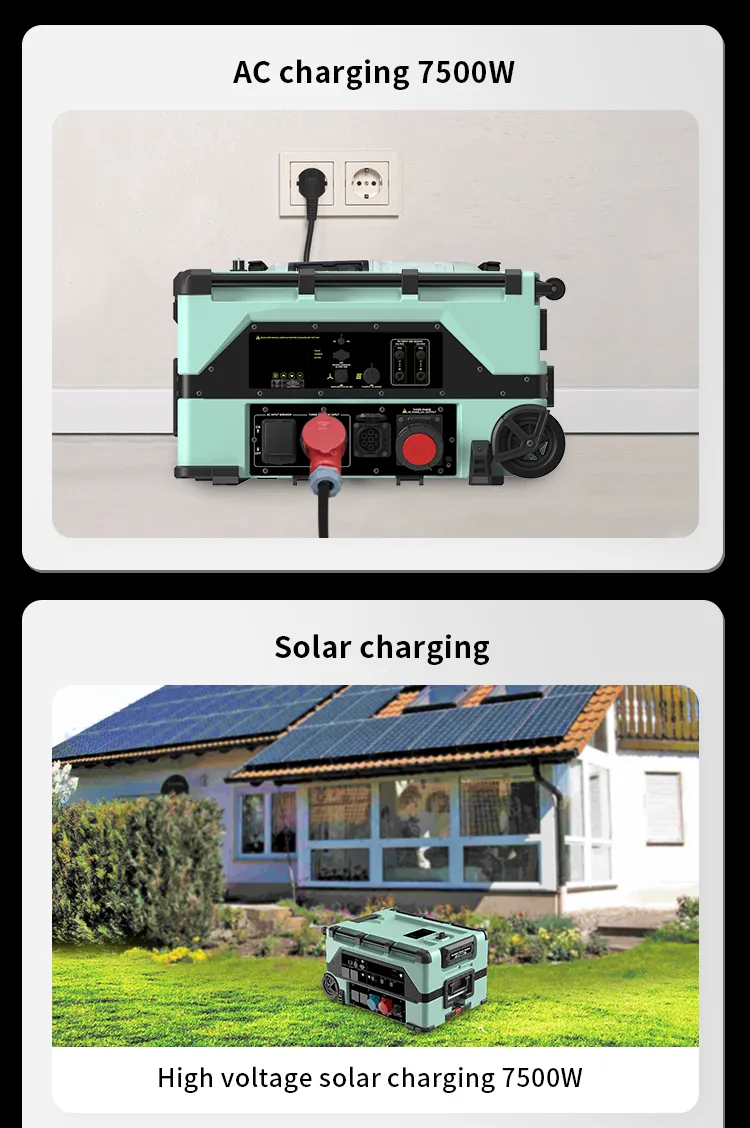

Solar Power System 5

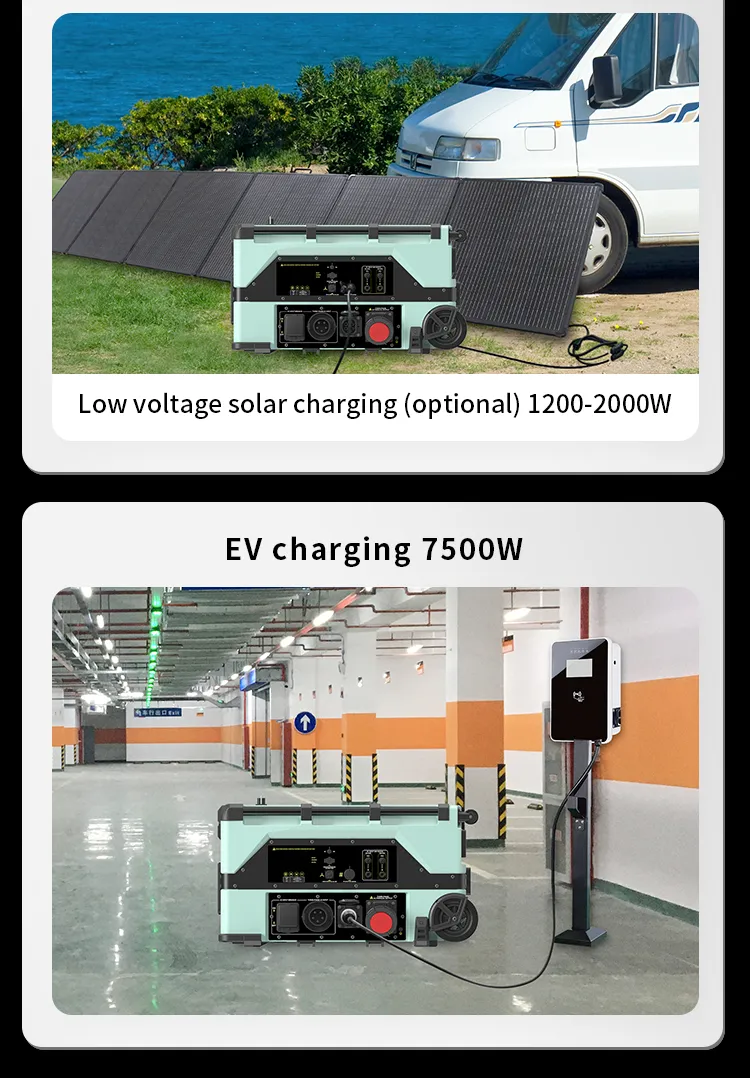

Solar Power System 6

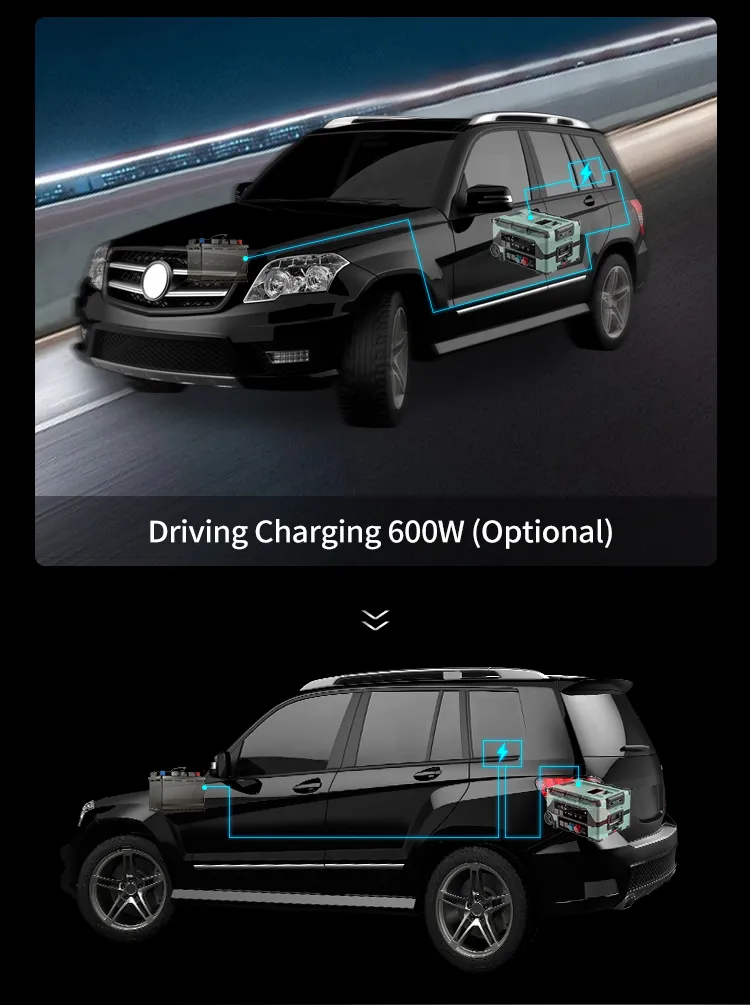

Solar Power System 7
Solar Power System 8

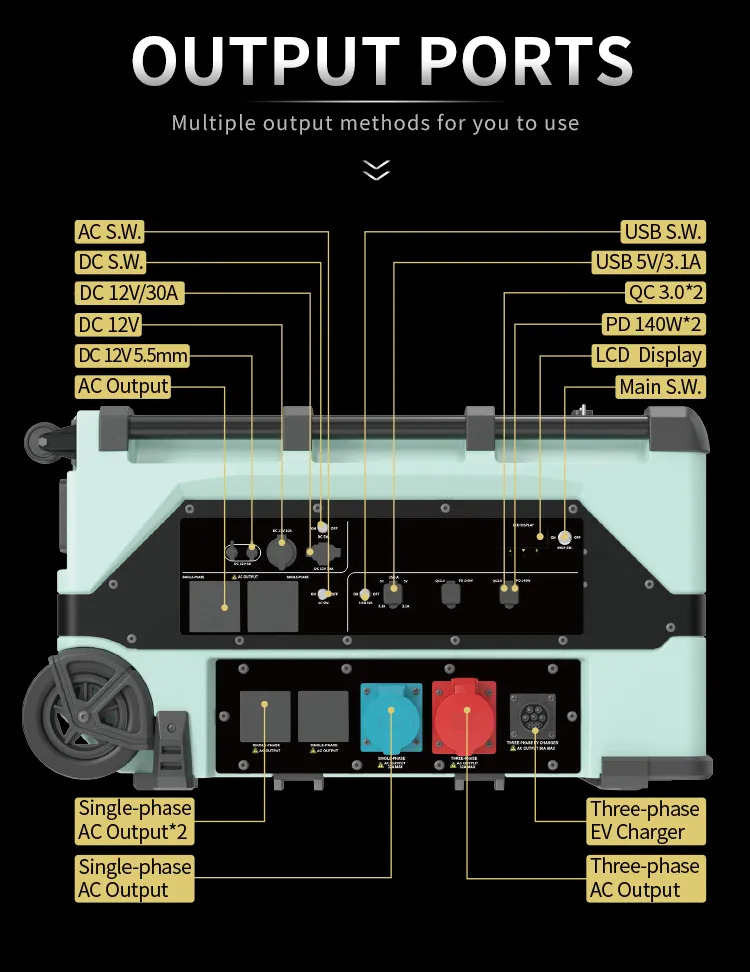

Solar Power System 9

About the Manufacturer

Founded in March 2015, we are a high-tech enterprise integrated with research, manufacture, and sales. We specialize in inverter generators, Internet of Things (IoT) power equipment, and automation electrical products. With more than 70 critical patents, we maintain a leading position in intelligent electromechanical technology.

Our commitment is to bring innovative, high-quality products to the global market, ensuring trust and respect through excellent service and superior product performance.

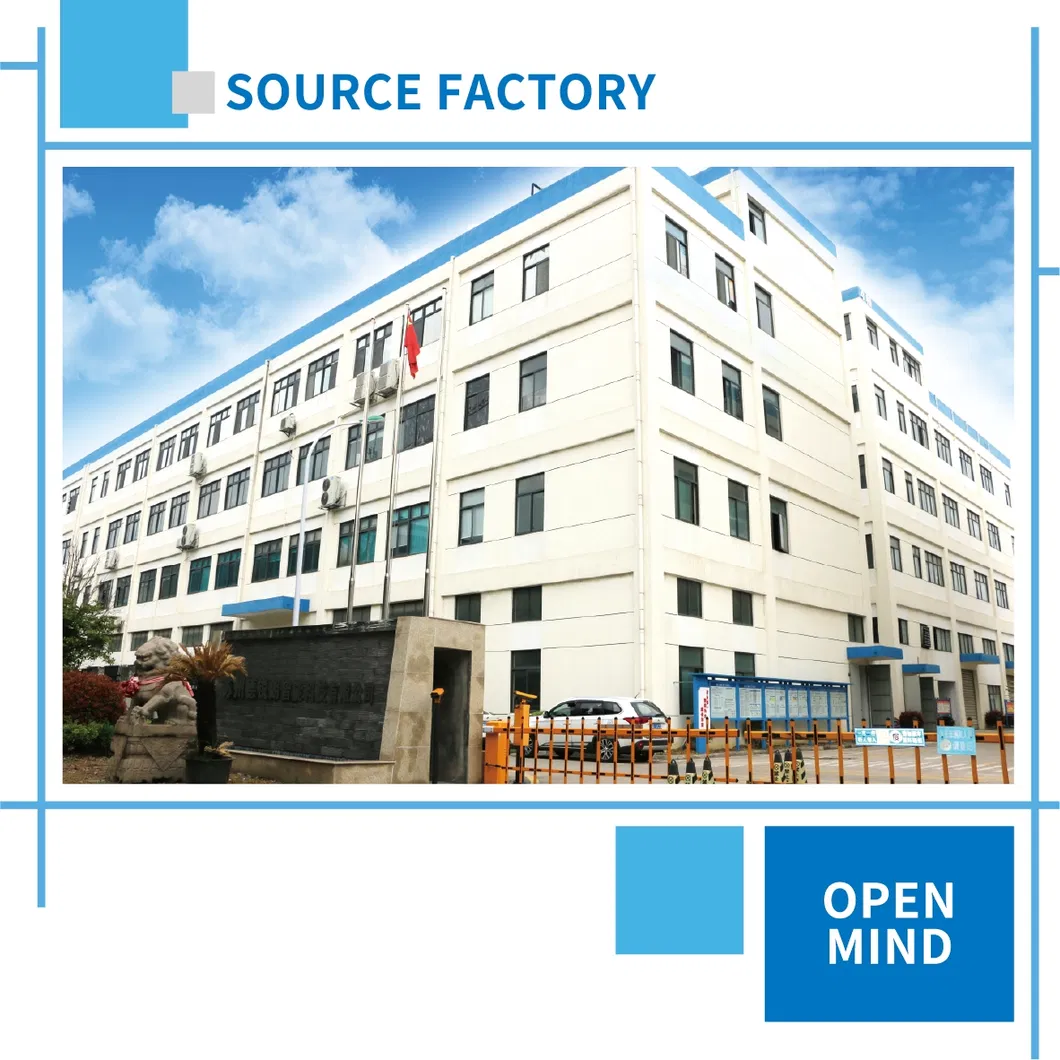

Factory View 1

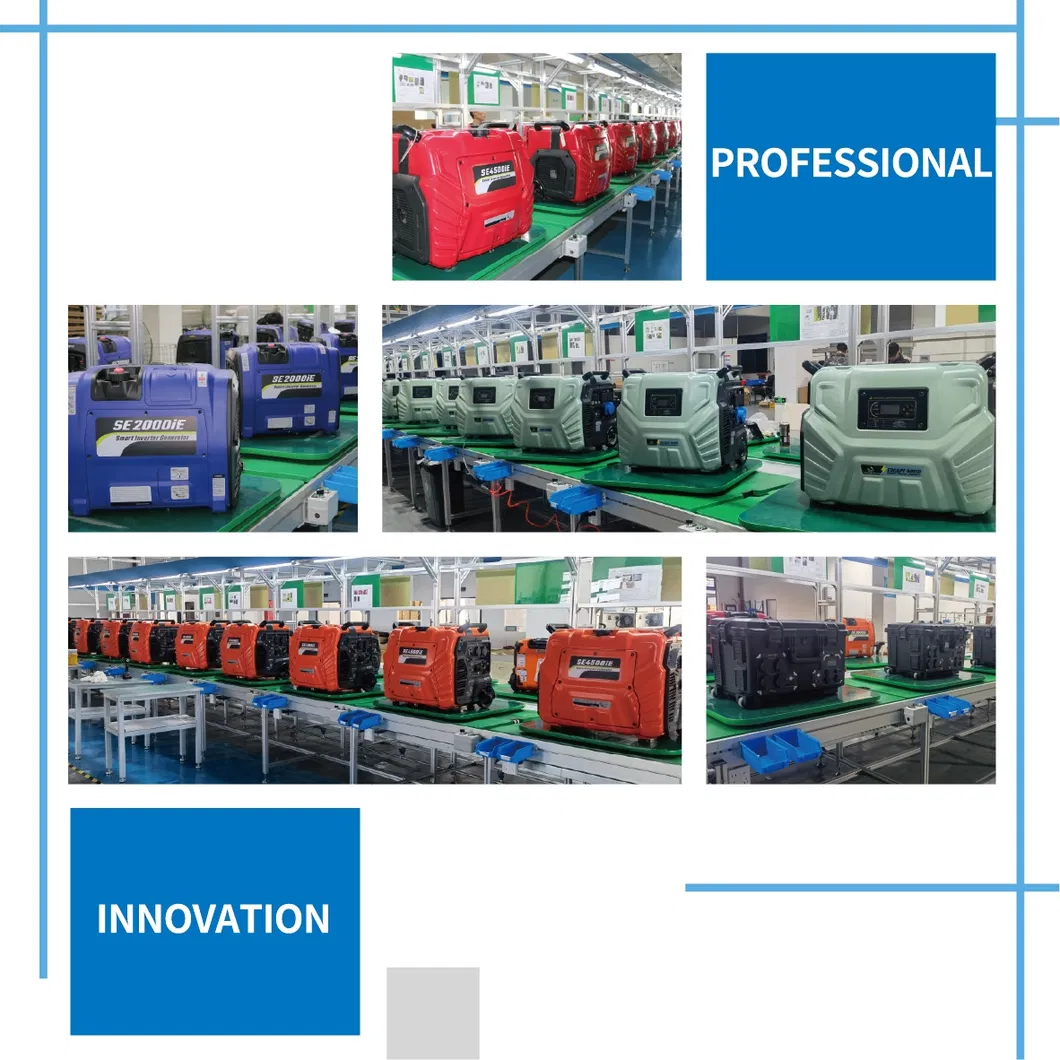

Factory View 2
?

Frequently Asked Questions

What is the total expandable capacity of this system?
The system supports connecting up to 31 extra battery units, reaching a maximum total capacity of 245kWh.
How long does it take to fully charge the battery?
Using fast-charging methods such as high-voltage solar or AC utility input, the system can be fully charged in approximately 70 minutes.
Does the system support three-phase power output?
Yes, the system supports 12kW continuous AC three-phase output, as well as single-phase and split-phase outputs.
Is the generator suitable for outdoor use?
The main unit is rated IP53 and the battery packs are rated IP66, making them highly resistant to dust and water for outdoor applications.
Can I charge my electric vehicle with this system?
Yes, it features a built-in electric vehicle charger capable of charging cars at up to 22kW.
What is the expected lifespan of the battery?
The LiFePO4 battery is rated for over 3000 cycles to 80%+ of its original capacity.
