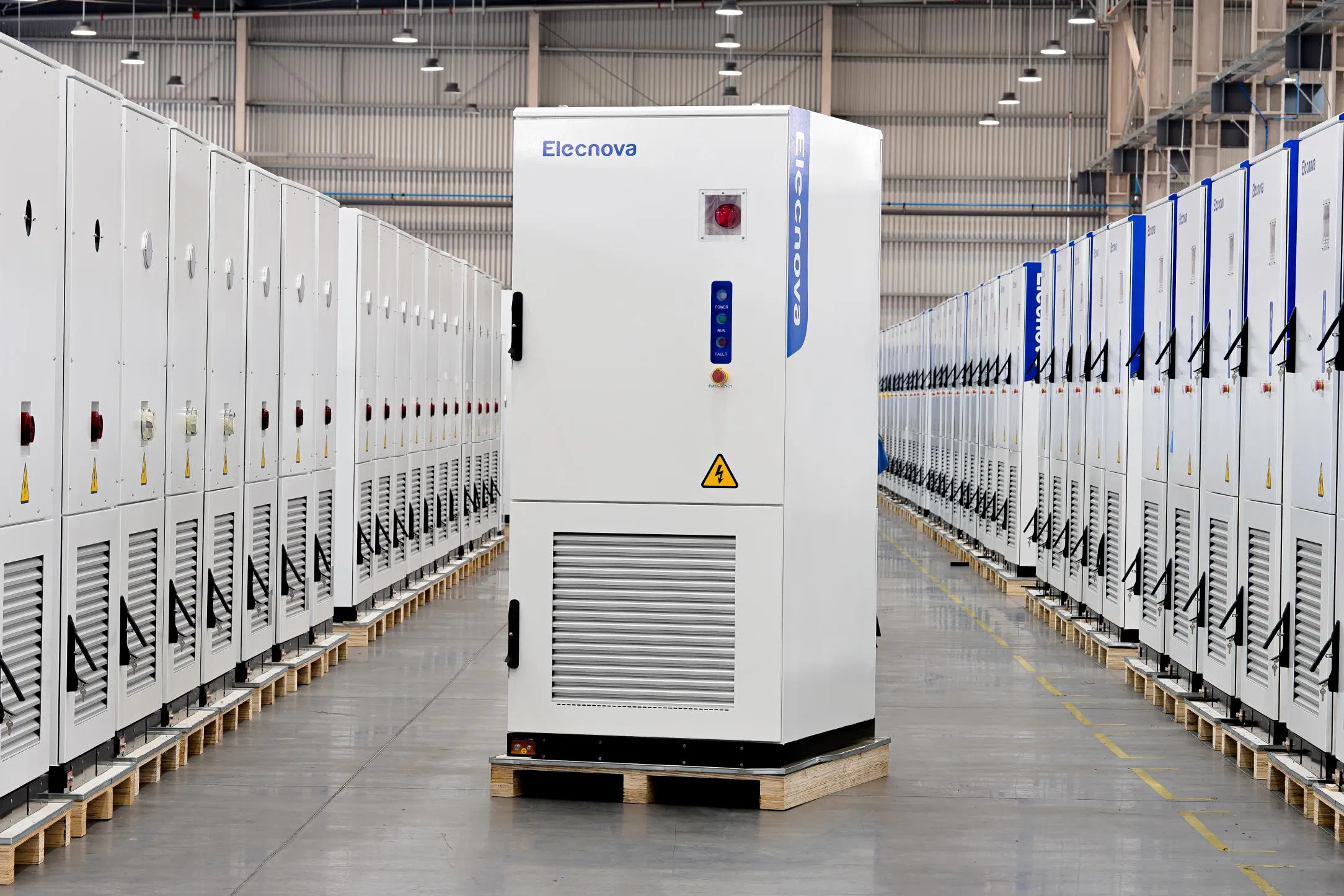

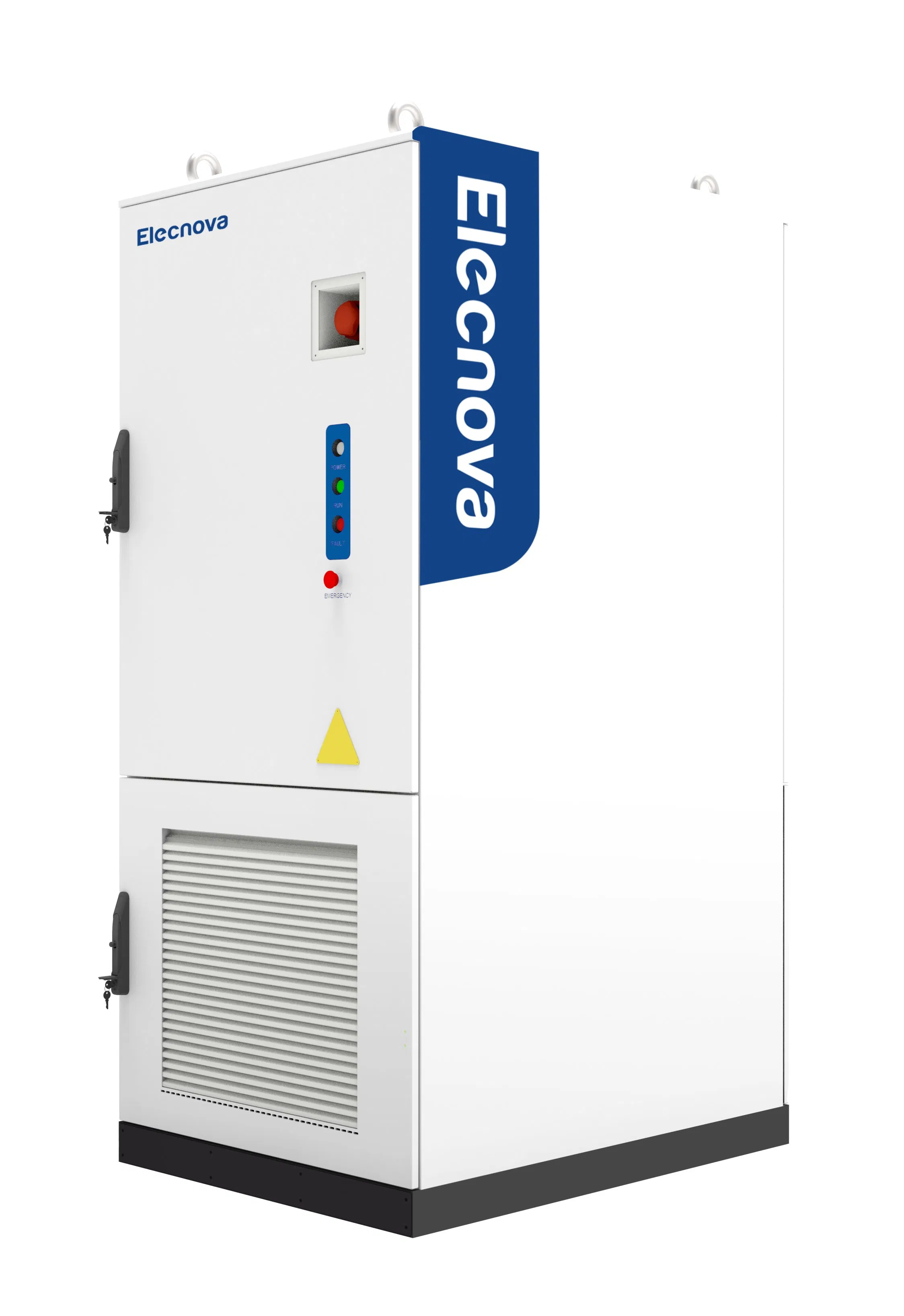

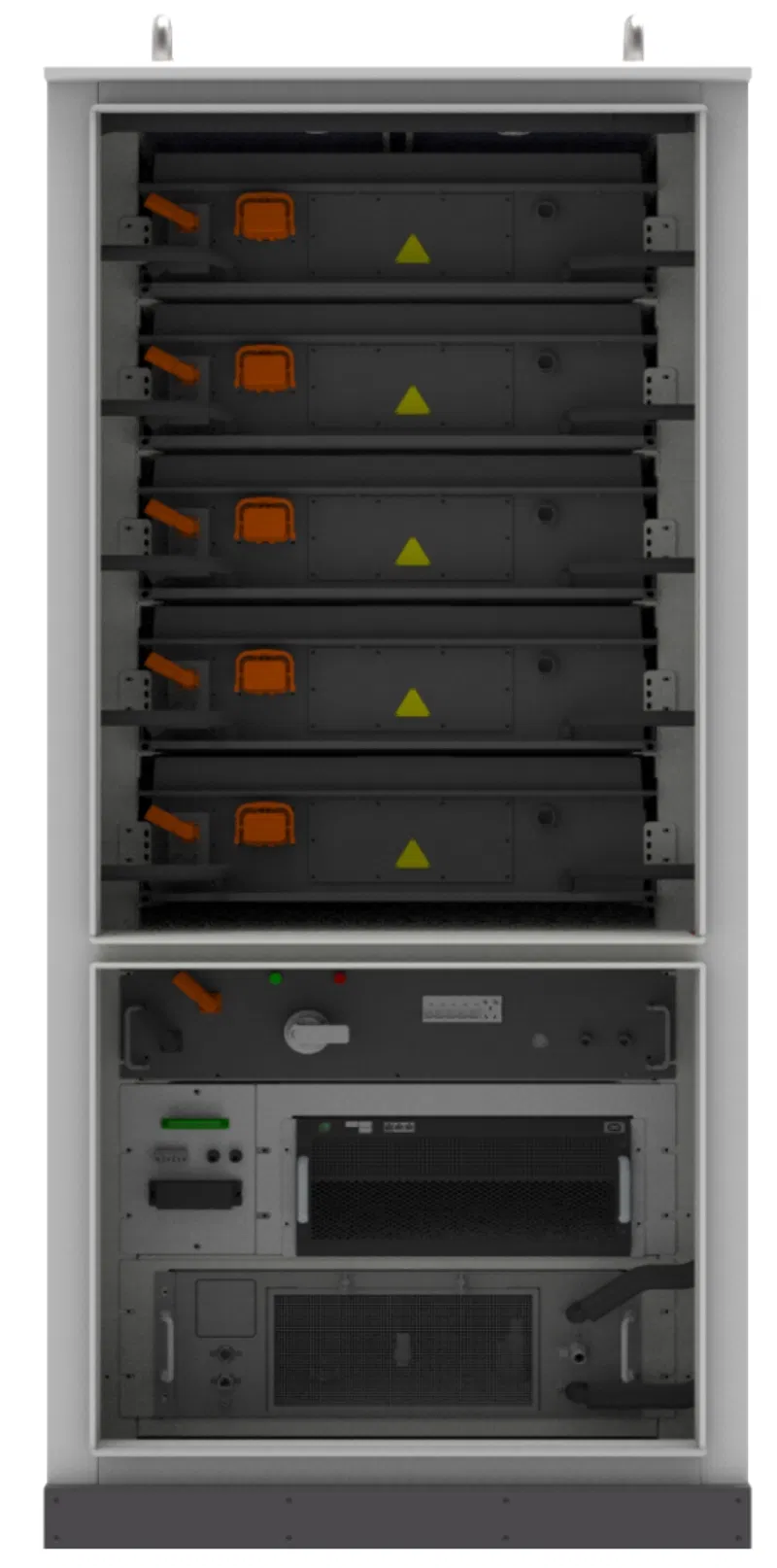

This outdoor complete battery cabinet energy storage system is designed for high-efficiency power management. Featuring advanced LFP cells and a robust liquid cooling system, it ensures stable performance across various environmental conditions.
| Parameter | Specification |
|---|---|
| DC Side | |
| Cell Type | LFP / 314 Ah |
| System Configuration | 261 kWh / 1P260S |
| Rated DC Voltage | 832 V |
| Max. Depth of Discharge | 100% (25 ± 2 ℃) |
| AC Side | |
| Rated Output Power | 125 kW |
| Rated AC Voltage | 400 V |
| Power Factor | 0.99/ -1 ~ +1 |
| THDi | ≤3% |
| General Data | |
| Max. Round Trip Efficiency | 89% |
| Cycle Life | ≥ 8,000 cycles |
| Cooling Method | Liquid cooling + Forced air cooling |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Dimensions (W*D*H) | 1,050*1,350*2,400 mm |
| Weight | 2,600 kg |
We deliver smart and reliable energy storage solutions that empower businesses and communities to achieve energy independence and sustainability. Leveraging advanced R&D and integrated manufacturing capabilities, we offer complete ESS solution packages, including PACK, PCS, BMS, and EMS, ensuring high performance, flexibility, and long-term reliability.
