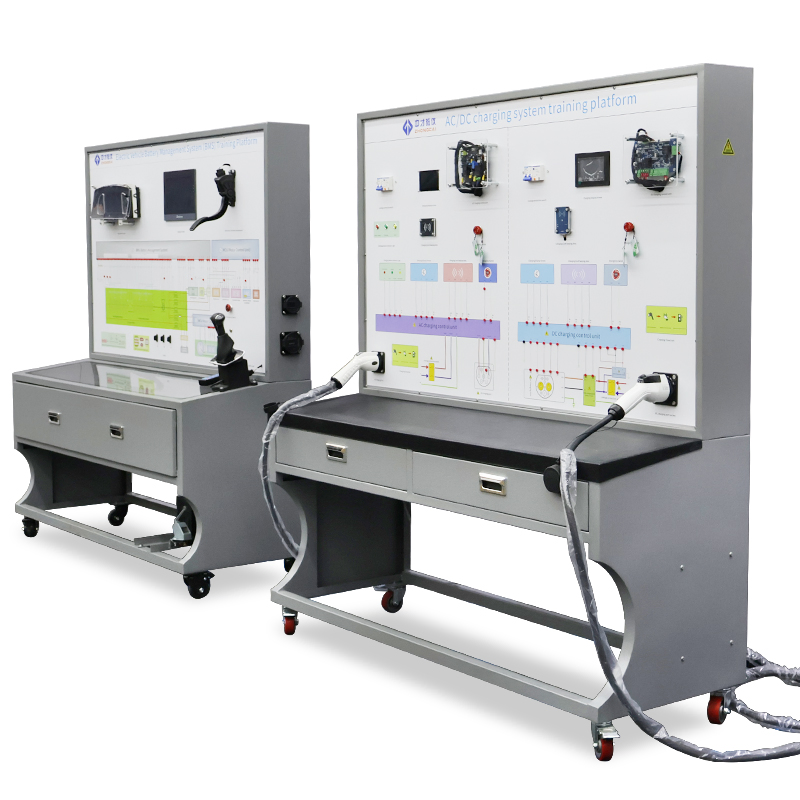

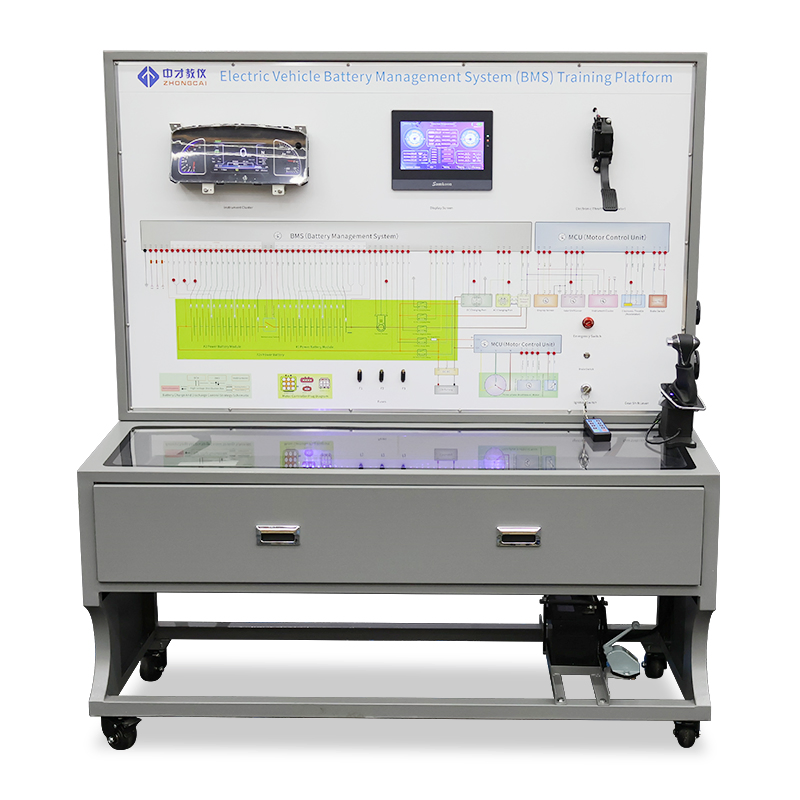

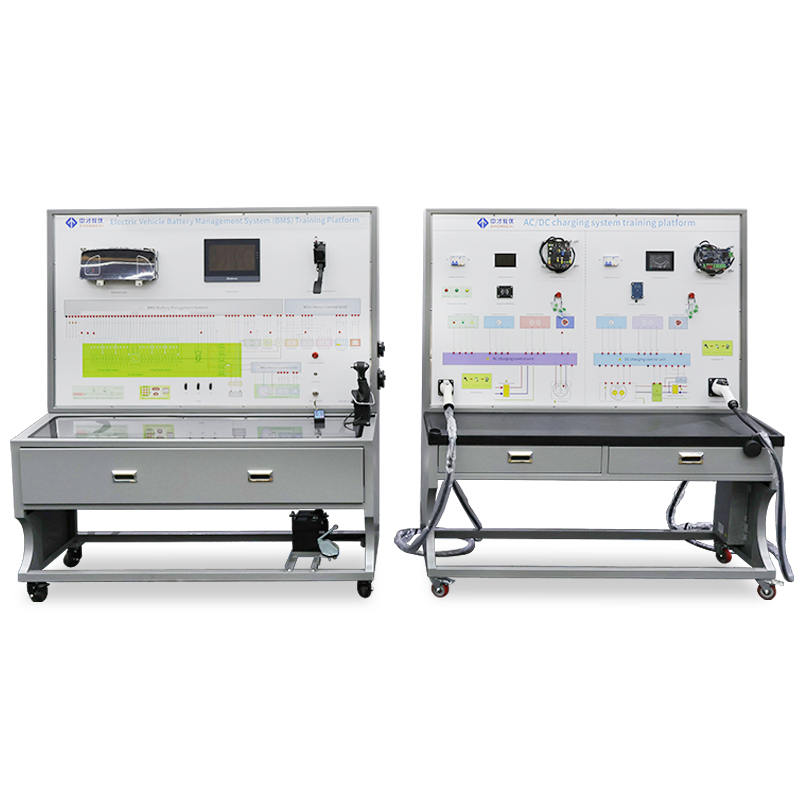

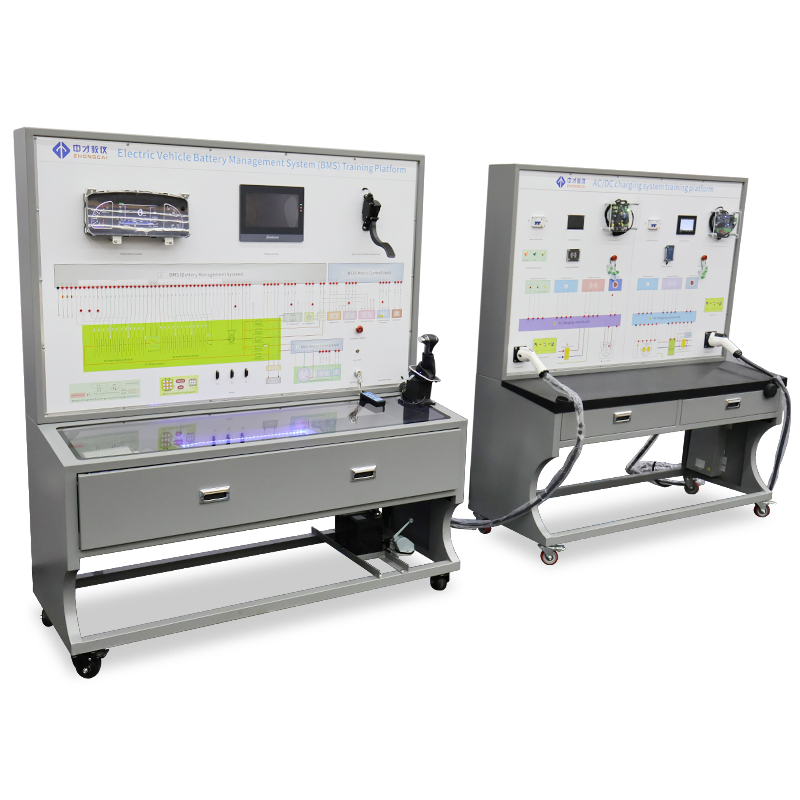

Electric Vehicle Motor Control System Training Platform
Product Requirements:
The power battery pack testing training platform is based on new energy vehicle components and can perform core component testing of the power management system, single-cell capacity testing, sorting, battery module assembly, system testing, and functional verification. It meets the daily teaching needs for cognitive testing and diagnostic training of new energy vehicle power management systems.
Product Functional Requirements
1
Equipped with a dedicated assembly and adjustment insulated workbench, on which power management system components can be assembled.
2
Uses lithium iron phosphate power batteries with dedicated modules. A testing panel is installed for BMS master/slave module analysis and fault diagnosis.
3
Employs automotive-grade repair switches for assembly and circuit wiring training.
4
National standard communication protocol. Real-time data collection (voltage, SOC, current, temperature) via touchscreen and digital software.
5
Includes internal resistance tester for cell sorting and battery equalizer for balancing training.
6

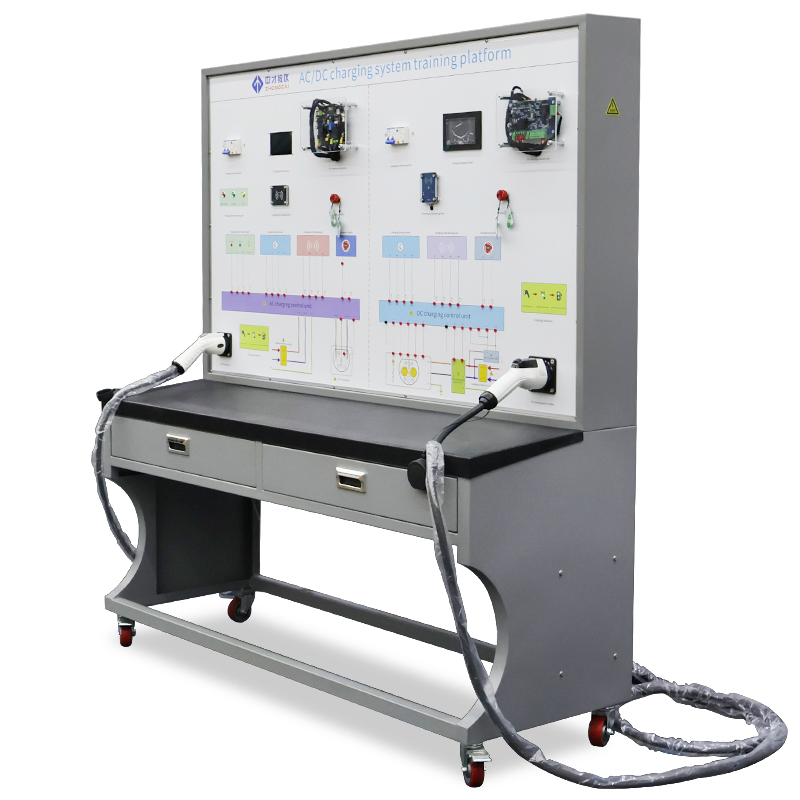

Equipped with national standard AC/DC charging interface and on-board charger module for charging pile integration training.
7
High-voltage contactor included for installation and wiring training.
8
DC/DC module integration for professional installation and wiring practice.
9
Pre-charging resistor and contactor setup for specialized circuit wiring training.
Frequently Asked Questions
What is the primary purpose of this training platform?
It is designed for educational institutions to provide hands-on training in new energy vehicle battery management systems (BMS), including assembly, testing, and diagnostic skills.
What type of batteries are used in the system?
The platform utilizes lithium iron phosphate (LiFePO4) power batteries, which are standard in many modern electric vehicles.
Does the system support real-time data monitoring?
Yes, it uses a national standard communication protocol to display real-time data such as SOC, cell voltage, current, and temperature on a touchscreen interface.
Can students practice high-voltage circuit wiring?
Absolutely. The platform includes high-voltage contactors, pre-charging resistors, and DC/DC modules specifically for wiring and installation training.
Is the software interface customizable?
Yes, the system supports OEM customization for different languages and specific teaching requirements.
What certifications does this equipment hold?
The product is manufactured under ISO9001, CE, and ISO14001 quality and safety standards.
