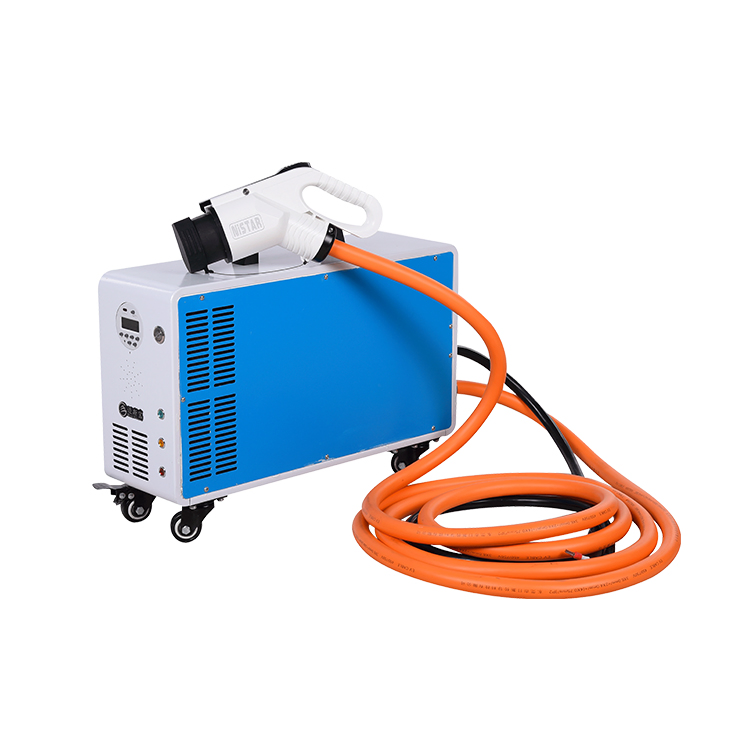

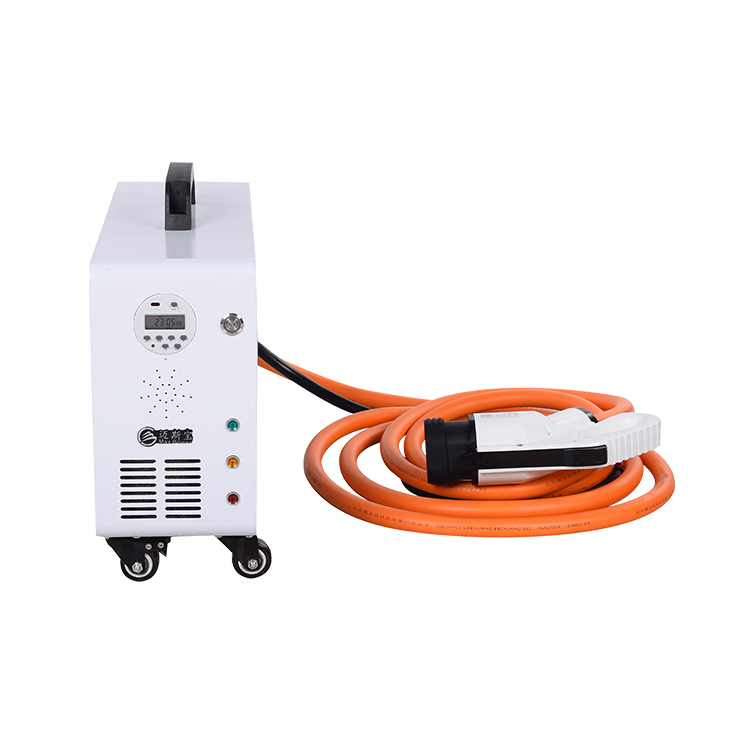

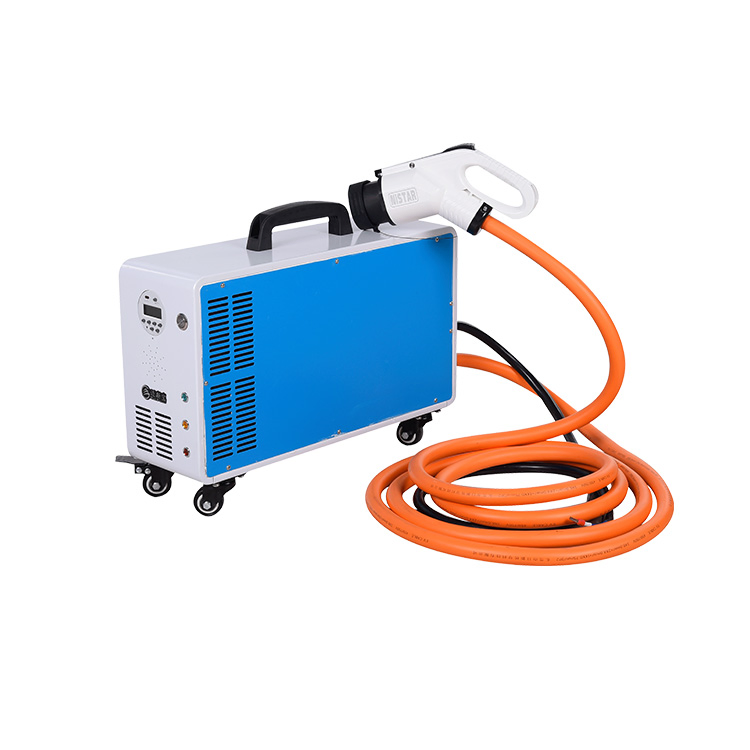

Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
1 / 5
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station
Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station

Max Power Portable DC Fast EV Charger 20kw CCS2 EV Charging Station

Customization: Available
Charge Method: Quick Charge
Installation: Movable
Send Inquiry

Product Description

Basic Information

Model NO.
MC20750HE
Location
Private Use
Charging Interfaces
One Pile with One Charge
Start Mode
RFID Card
Input Voltage
380VAC
Output Voltage
200-750VDC
Output Power
20kw
Output Current
60A
Connectors
Gbt
Standard
GB, En 61851;En61000;Jevs;UL2202
Usage
Charge EV
IP Level
IP43

Product Description

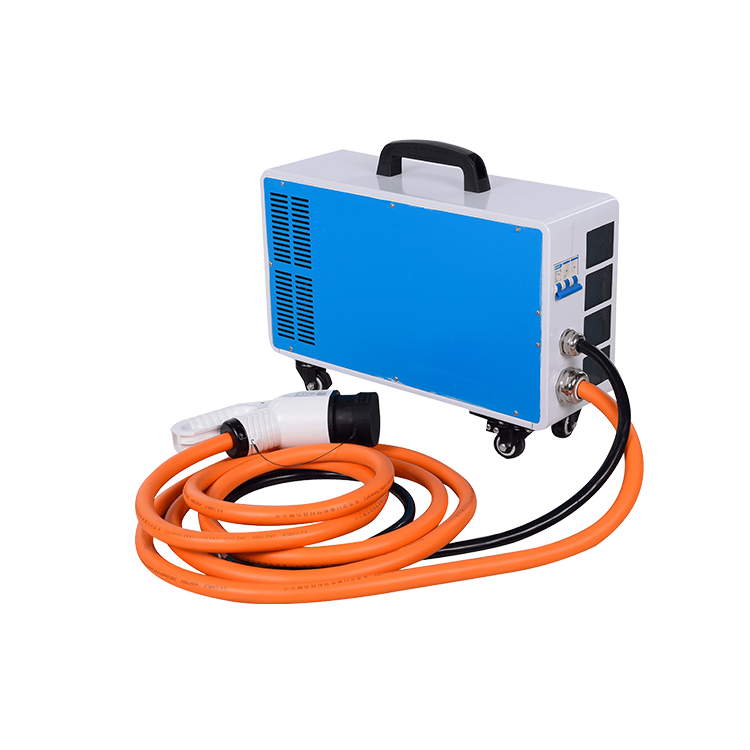

Portable DC Fast EV Charger 20kw
20kw Portable Charger Features:
  • Easy to carry, 380V input voltage from home plug grid.
  • Charge the EV at any time, anywhere freely.
  • Equipped with center control module, power module, and lightning protection.
  • Intelligent and friendly user interface.
  • High-performance charging modules with wide voltage output (200-750Vdc).
  • High efficiency: ≥95%.
  • Multiple design styles: Standard, touch screen, mobile, or wall-mounted.

Production Parameters

Model 20KW
AC Input Input Rating 380Vac±10%
Connection 3P + N +PE, Wye connection
Max. Current 40A
Efficiency 95%
DC Output Voltage Range 200-750Vdc
Max. Power 20KW
Max. Current 60A

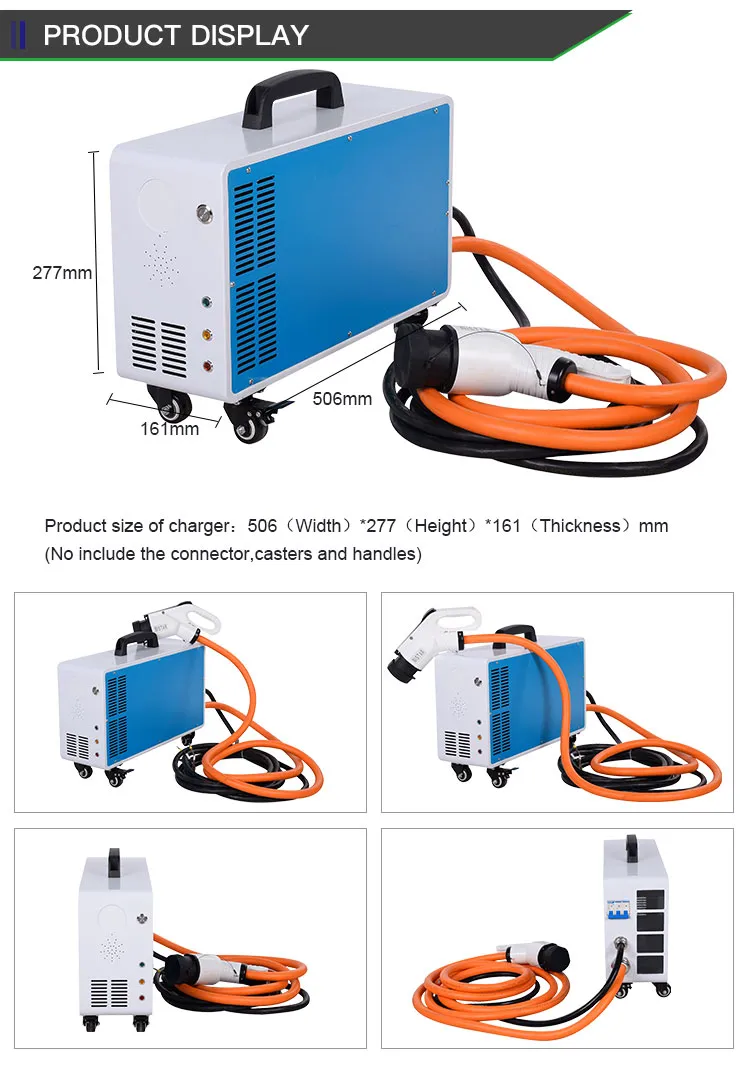

Packing Dimension 506×161×277mm
Weight 40KG
Environmental Operating Temp -40~85ºC
Humidity 5%-90% RH

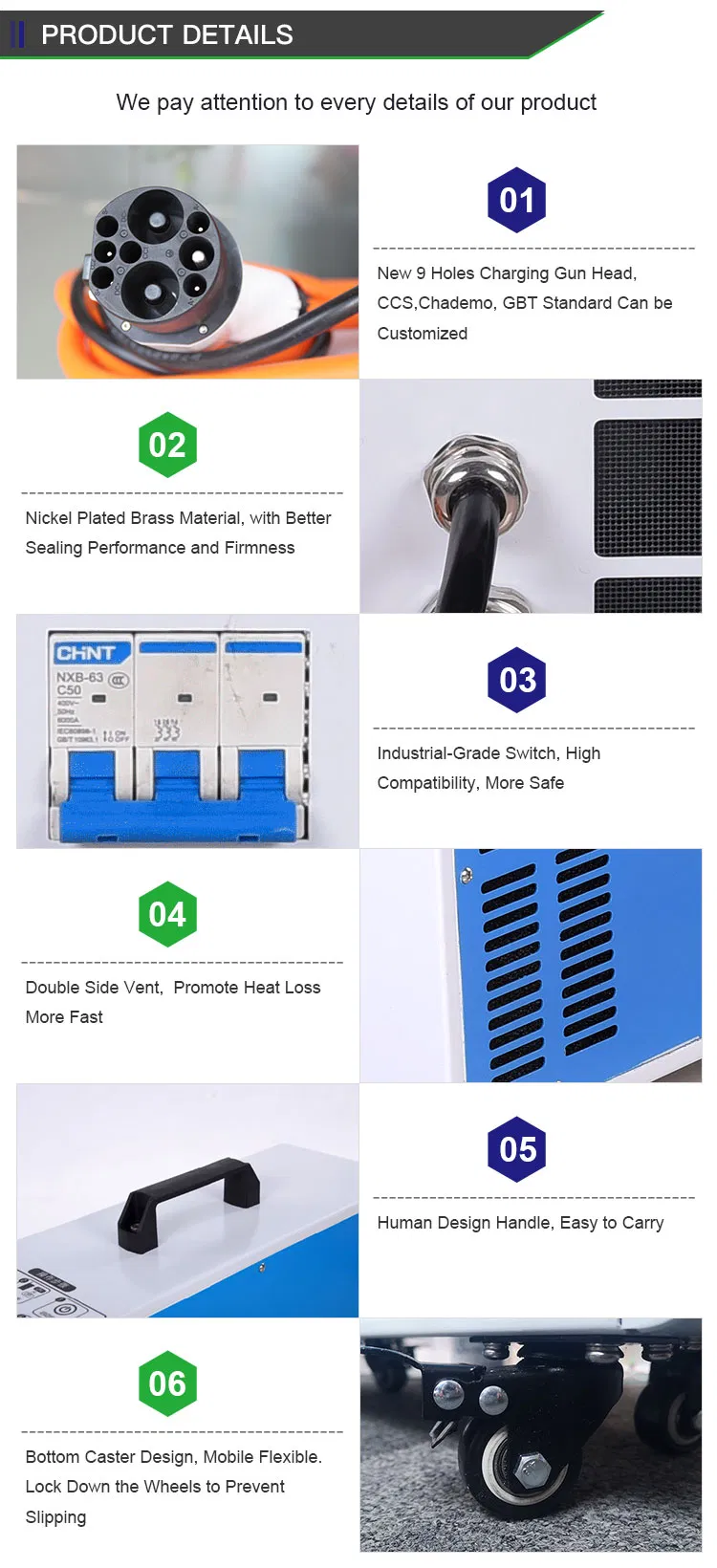

EV Charger Detail 1
EV Charger Detail 2
EV Charger Detail 3
EV Charger Detail 4
EV Charger Detail 5
EV Charger Detail 6

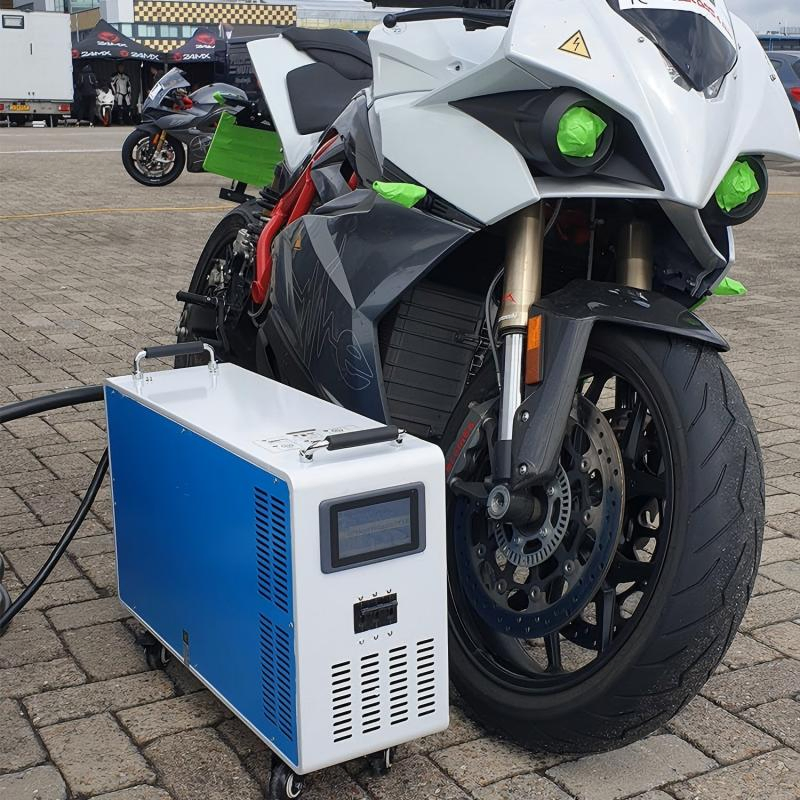

EV Charger Application

Frequently Asked Questions

Are you a factory or trading company?
We are a professional manufacturer of new and sustainable energy applications for over 18 years.
What is the warranty period for the charger?
The warranty is 12 months. During this period, we provide technical support and replace parts free of charge.
What is your typical delivery time?
Generally, it takes 3 to 7 working days after receiving advance payment, depending on the items and order quantity.
Do you test the goods before delivery?
Yes, we conduct 100% testing on all products before they are dispatched.
What is the difference between a Movable Charger and a Wallbox Charger?
Mainly the protection level: Wallbox chargers are typically IP54 (outdoor use), while Movable Chargers are IP43, which are not suitable for outdoor use during rainy weather.
What are your terms of payment?
T/T 50% as deposit, and 50% before delivery. We provide photos of products and packages before final payment.
