Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
1 / 5
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System
Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System

Liquid Cooling 100kwh 200kwh 500kwh 1mwh Battery Containerized Energy Storage System

Customization: Available
After-sales Service: After- Sales Service
Warranty: 3 Years, 5 Years
Send Inquiry

Product Description

📋 Basic Info.
Condition
New
Certification
ISO, CE
Application
Home, Industrial, Commercial, School, Factory
Specification
100kwh, 233kwh
Type of Cell
Lithium Iron Phosphate(LFP)
Cell Parameter
3.2V/314ah
Cooling
Liquid Cooling
Protection Class
IP55
Max. Charge Power
0.5c
Configuration
1p416sx12
Rated Capacity
5.01 Mwh
Rated Voltage
1331.2V
Voltage Range
1164.8~1497.6V
Origin
China
HS Code
8501310000
Capacity
1000set/Month
📦 Packaging & Delivery
Package Size
110.00cm * 140.00cm * 238.00cm
Gross Weight
2000.000kg
Transport Package
Carton and Pallet
🔋 Product Description

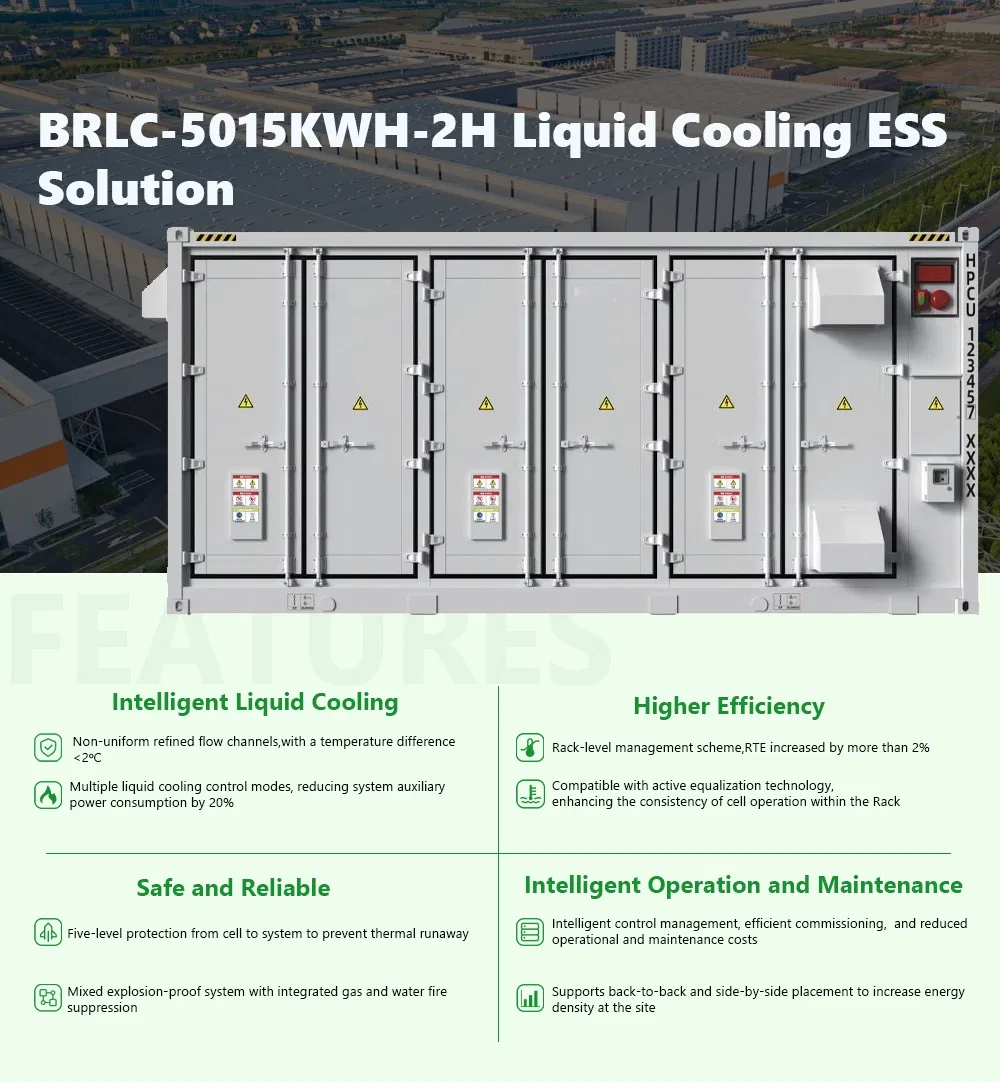

Liquid Cooling Energy Storage System
Items Parameters
Type of cellLithium Iron Phosphate(LFP)
Cell parameter3.2V/314Ah
Max. charge/discharge power0.5C
Configuration of system1P416S×12
Rated capacity5.01 MWh
Rated voltage1331.2V
Voltage range1164.8~1497.6V
Cooling methodLiquid Cooling
Operating temperature−30~50ºC
Humidity≤95%RH, no condensation
Altitude≤3000m
Noise level≤80dB(A), @1m / 75dB(optional)
IP gradeIP55
Fire protectionTemperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
Communication interfaceEthernet/CAN/RS485
Dimension(L×W×H)6058×2438×2896mm
Weight≈42000 kg

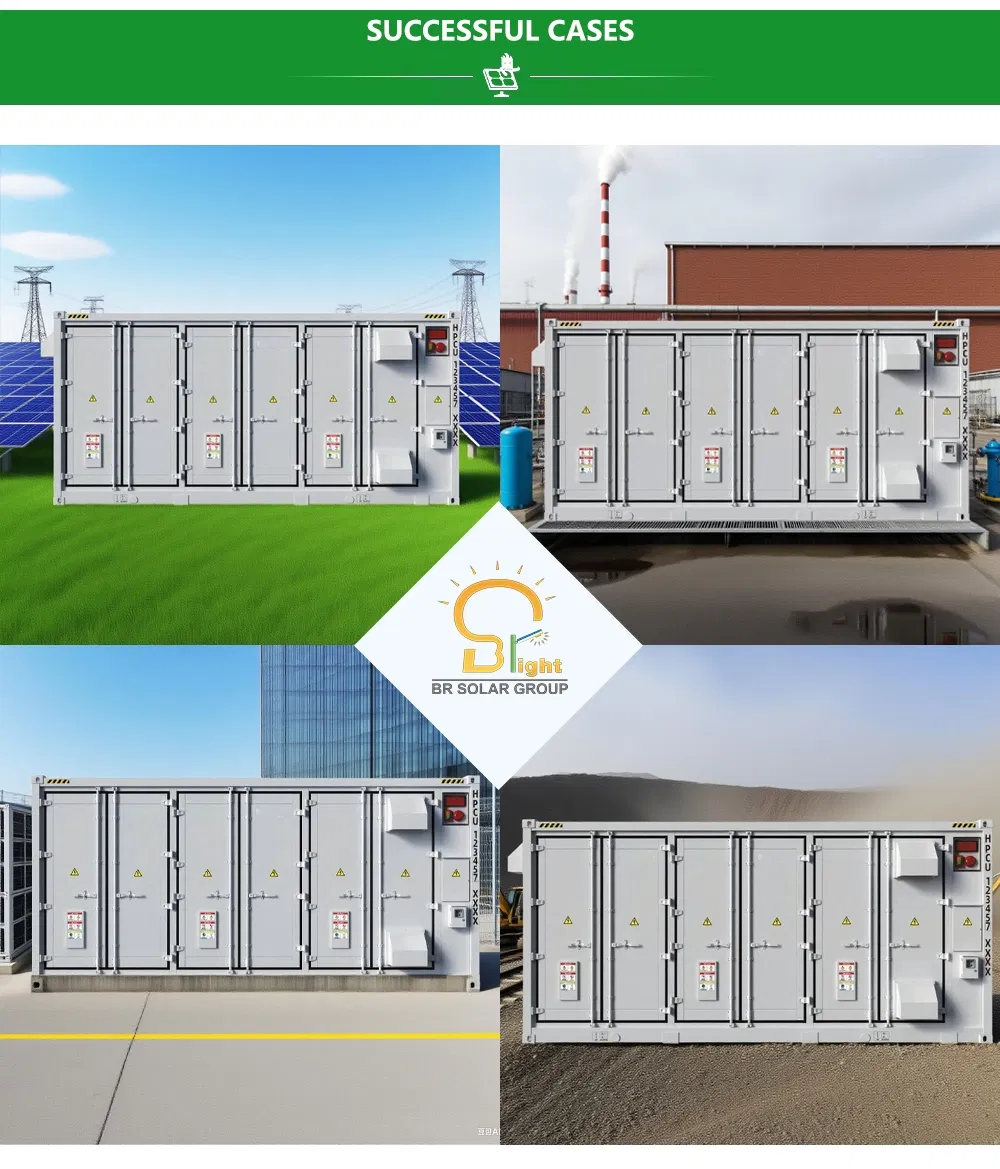

Storage Detail 1

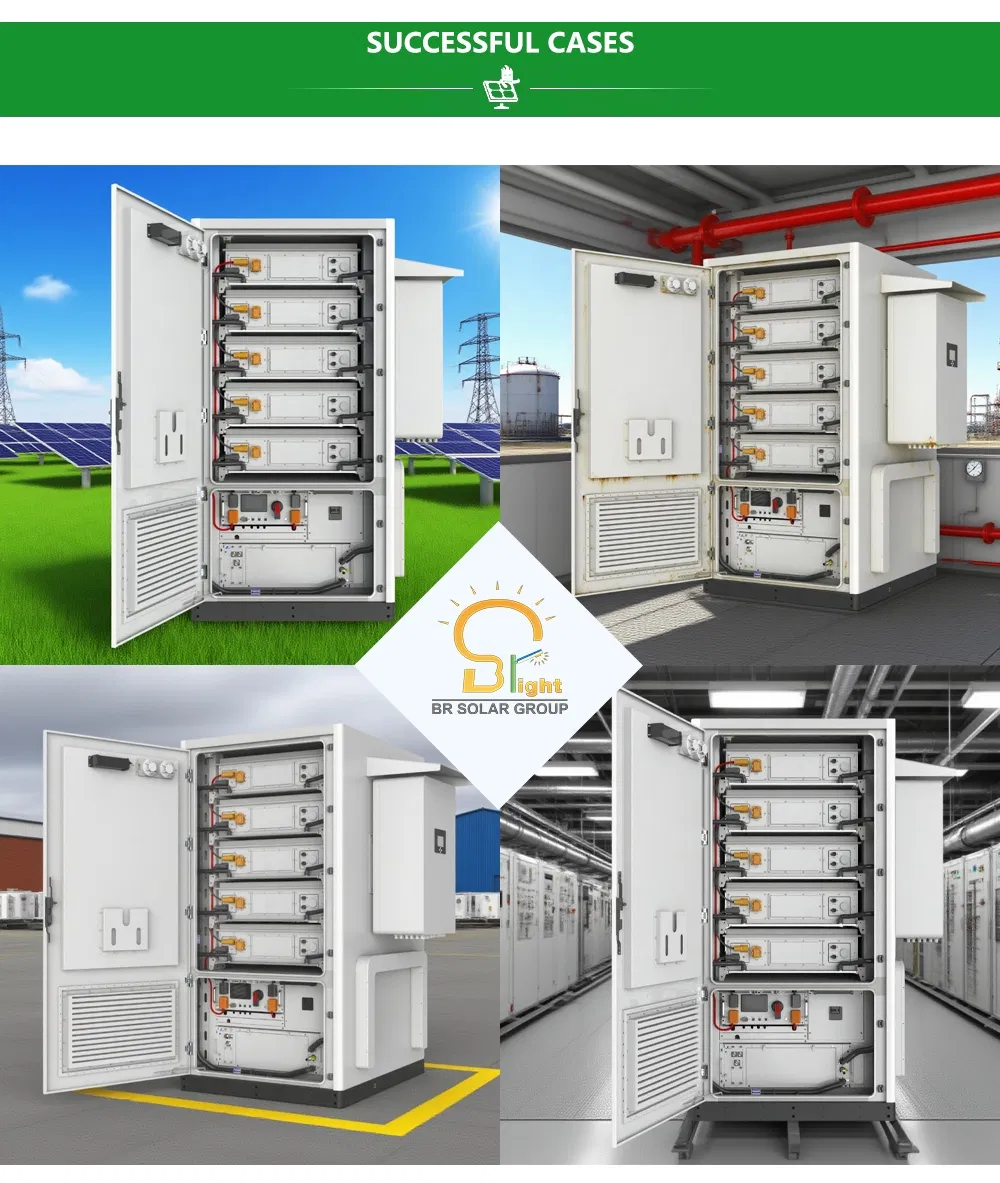

Storage Detail 2
Storage Detail 3
Storage Detail 4

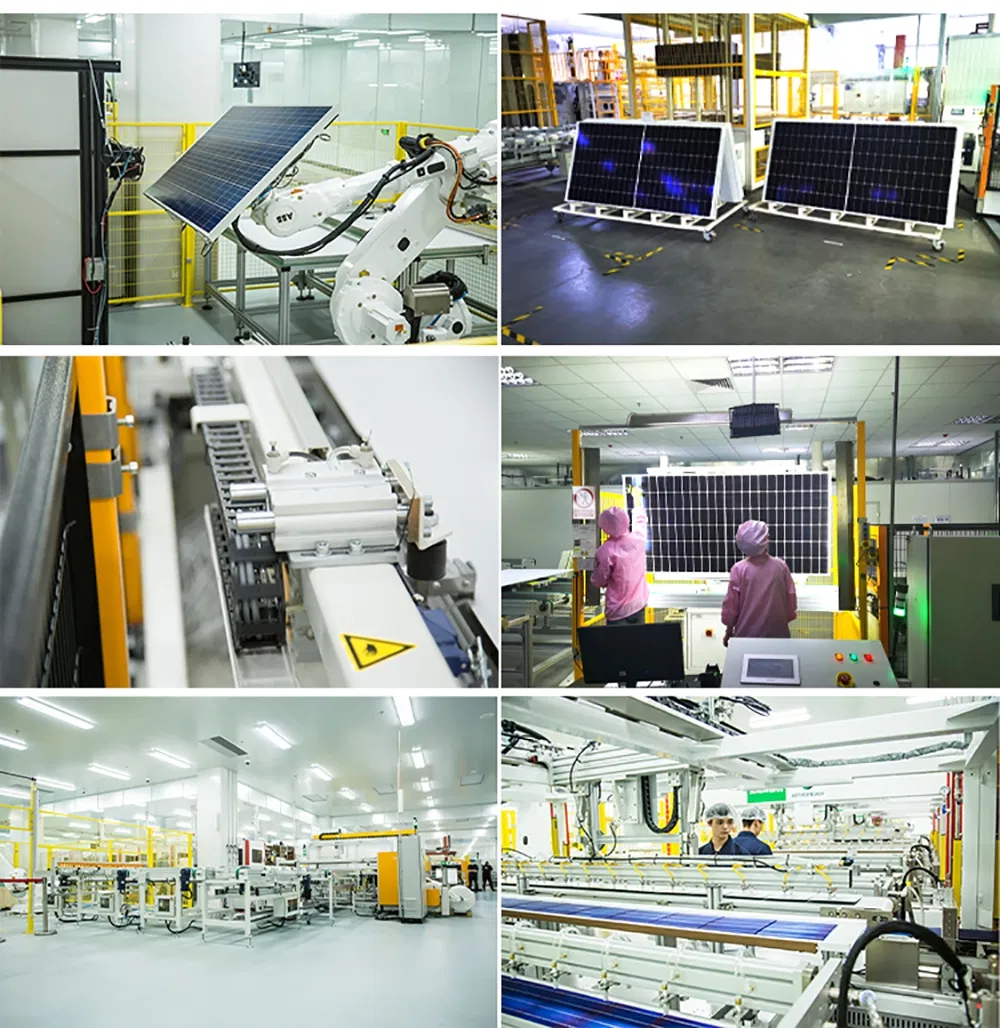

Storage Detail 5
Storage Detail 6
Storage Detail 7

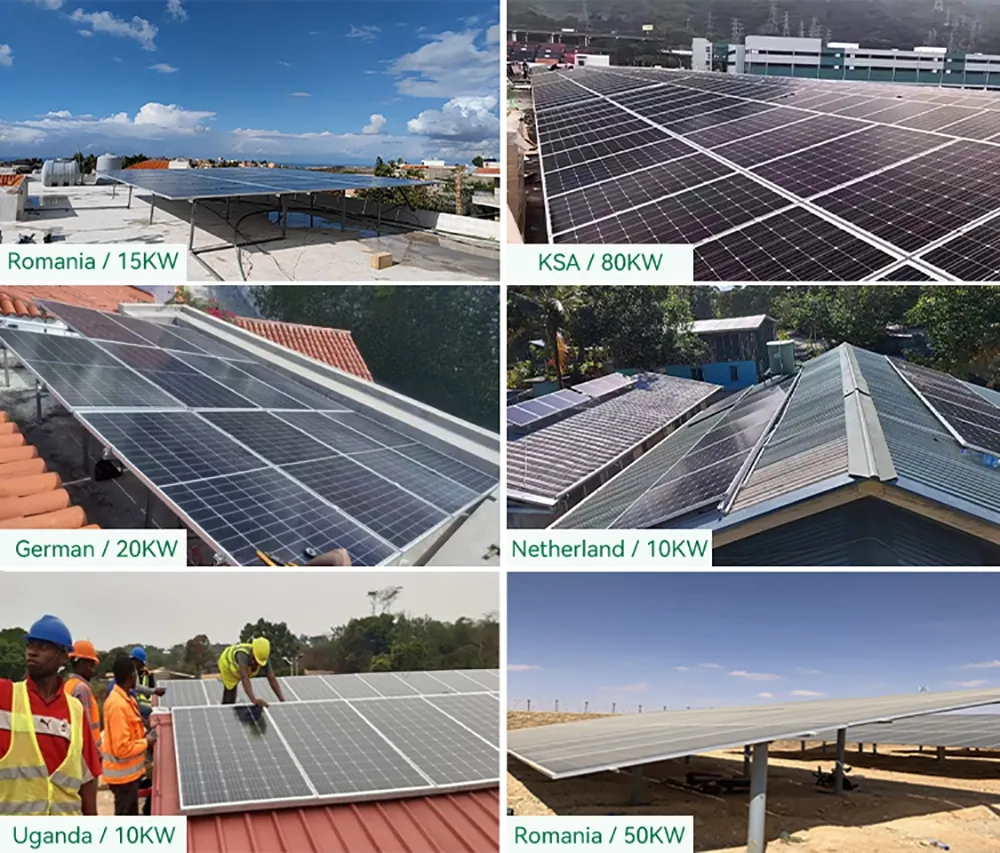

Storage Detail 8
Storage Detail 9
❓ Frequently Asked Questions
1. What type of battery cells are used in this system?
The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, known for their safety, long cycle life, and thermal stability.
2. How does the liquid cooling system benefit the energy storage?
Liquid cooling provides more efficient thermal management compared to air cooling, ensuring uniform temperature distribution and extending the battery's operational lifespan.
3. What is the protection rating for outdoor installation?
The system is rated at IP55, making it highly resistant to dust and water, suitable for various outdoor industrial and commercial environments.
4. What safety features are included for fire protection?
The system includes a multi-layered safety approach: temperature sensors, smoke detectors, combustible gas detectors, deflagration venting, fire extinguishing gas, and a water sprinkler system.
5. Can this system be used at high altitudes?
Yes, the system is designed to operate efficiently at altitudes up to 3000 meters above sea level.
6. What communication interfaces are supported?
The energy storage system supports Ethernet, CAN, and RS485 interfaces for seamless integration with external management systems.
