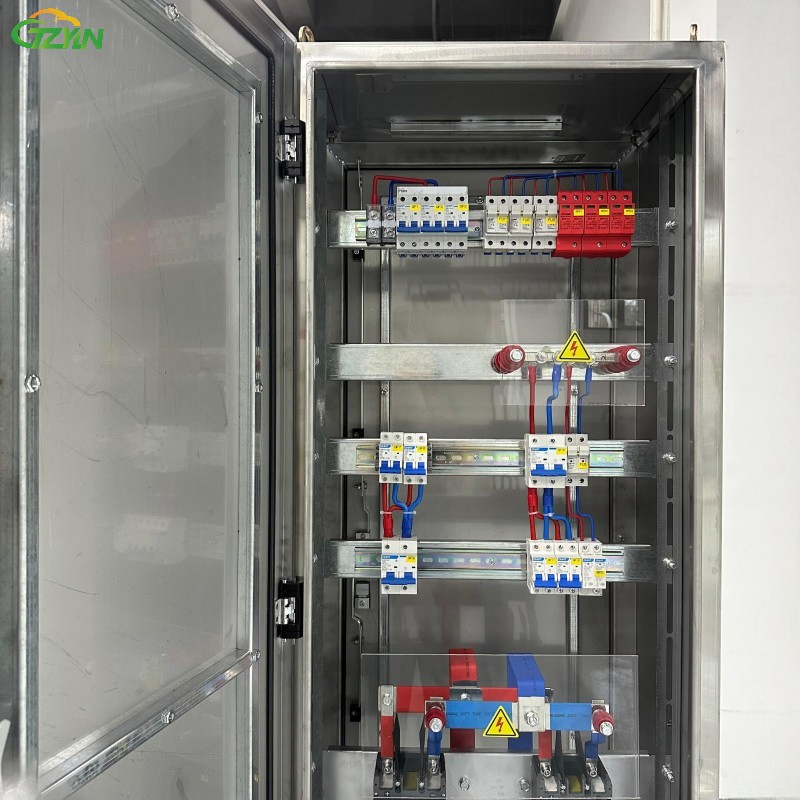

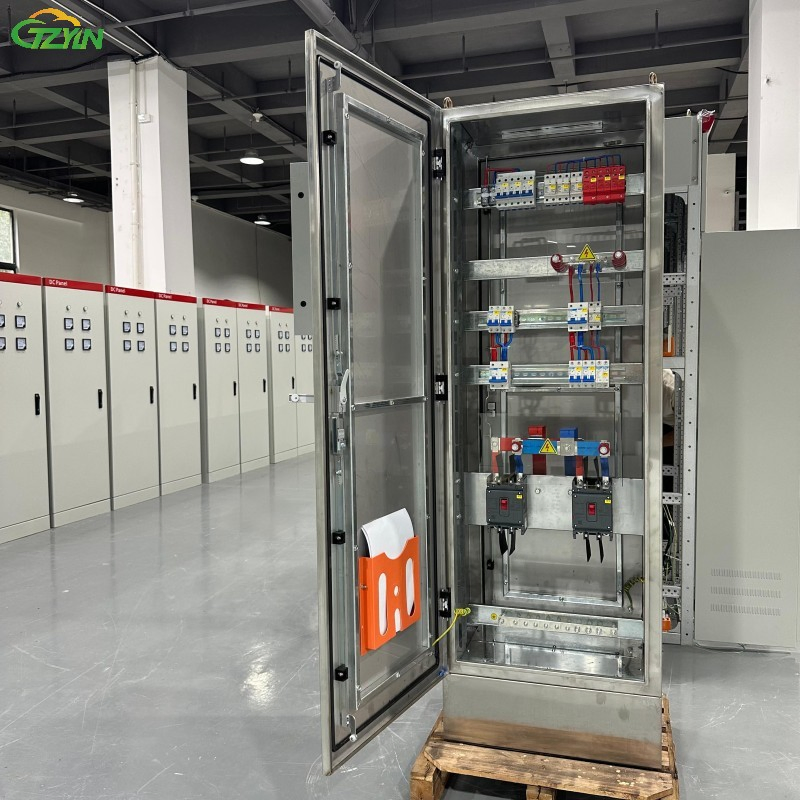

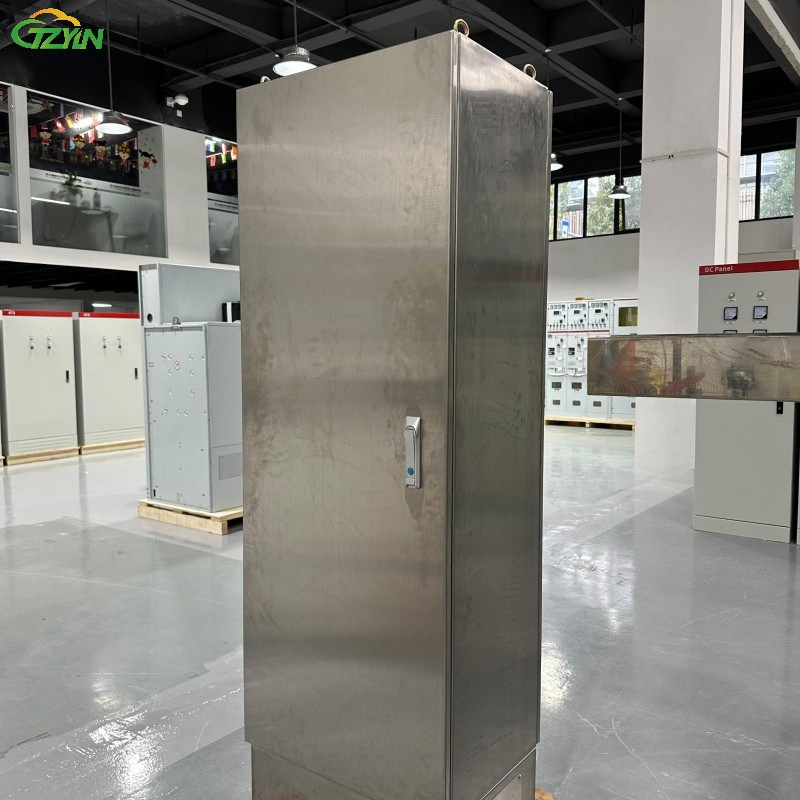

IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
1 / 5
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles
IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles

IP55 Protection Electrical Cabinet Complete Set Power Switchgear for Charging Piles

Customization: Available
Type: Distribution Metering Box
Structure: Protection
Send Inquiry

Product Description

Basic Specifications
Model NO.
CN-SSDP
Certification
ISO9001:2000, VDE, CCC, CE
Form
All- packaged Type
Operation Voltage
Low Voltage
Shell Protection
IP55
Protection Class
IP54~66
Shell Material
Steel Plate / Stainless Steel
Warranty
12 Month
Voltage
220/380/415/440/460/480V
Package Size
65.00cm * 30.00cm * 220.00cm
Power Distribution Projects
⚡VFD Cabinet
⚡PLC Control Cabinets
⚡Energy-saving Transformation Projects
⚡Capacitance Compensation Cabinet
⚡Industrial Control Cabinet
⚡Explosion-proof Cabinet
⚡Generator Synchronization Panel
⚡ATS Cabinet
⚡Distribution Cabinet
⚡Electrical Cabinet
Electrical Cabinet
Control System

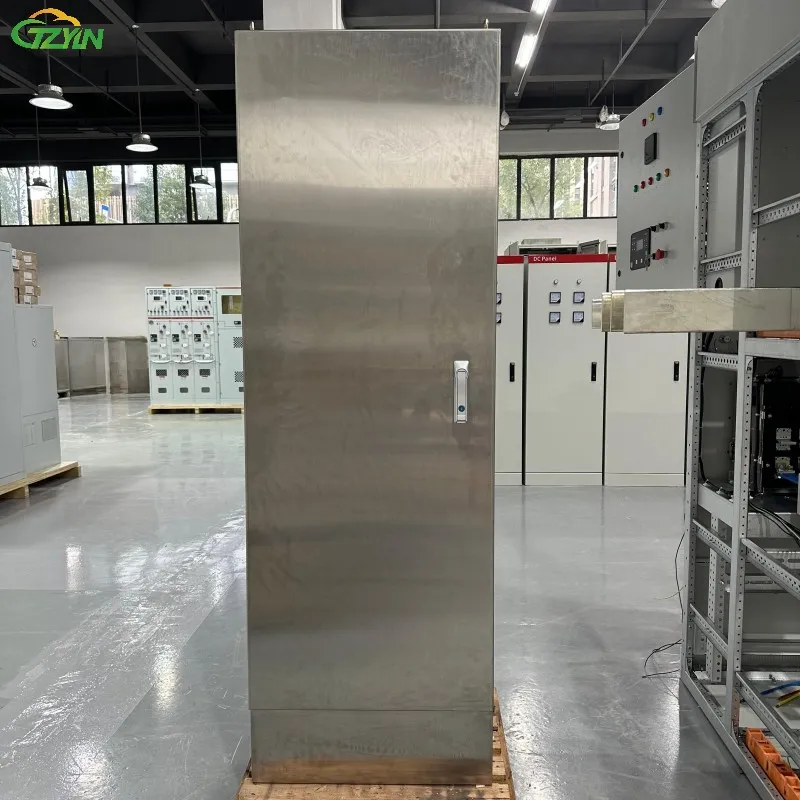

Unit 1

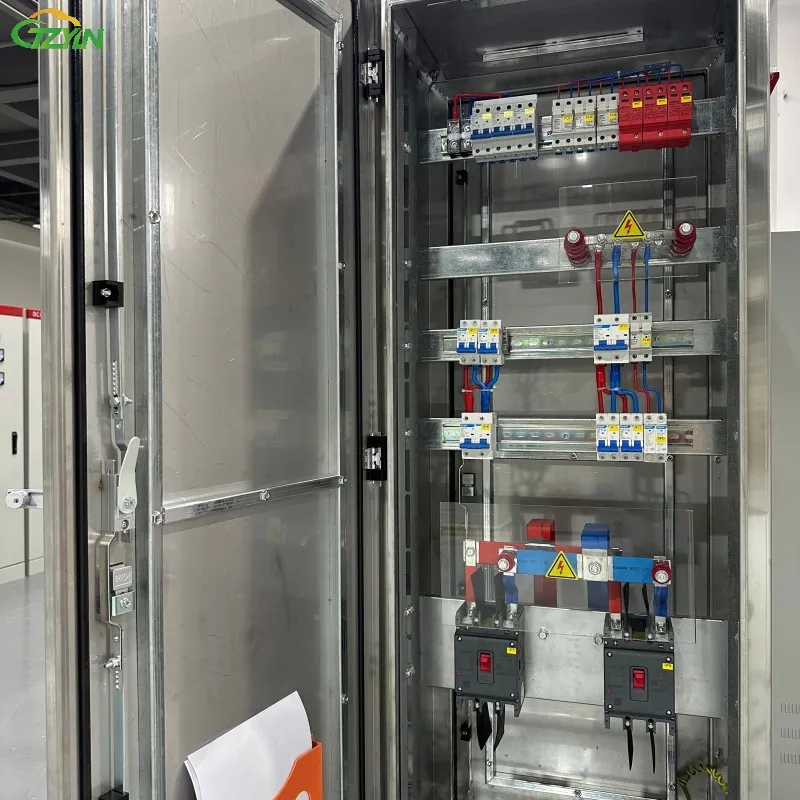

Unit 2

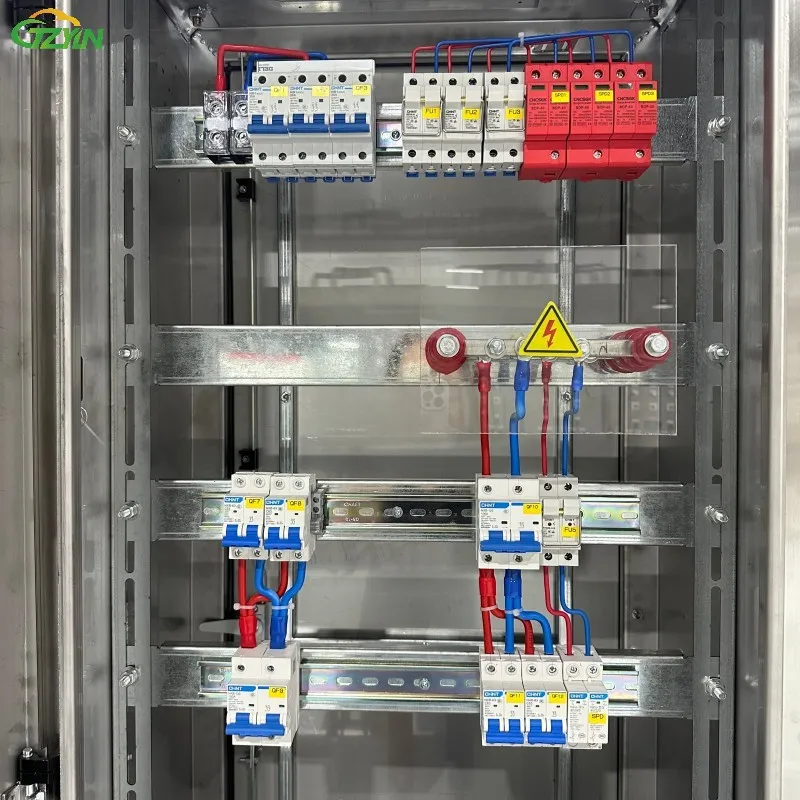

Unit 3
Product Advantages

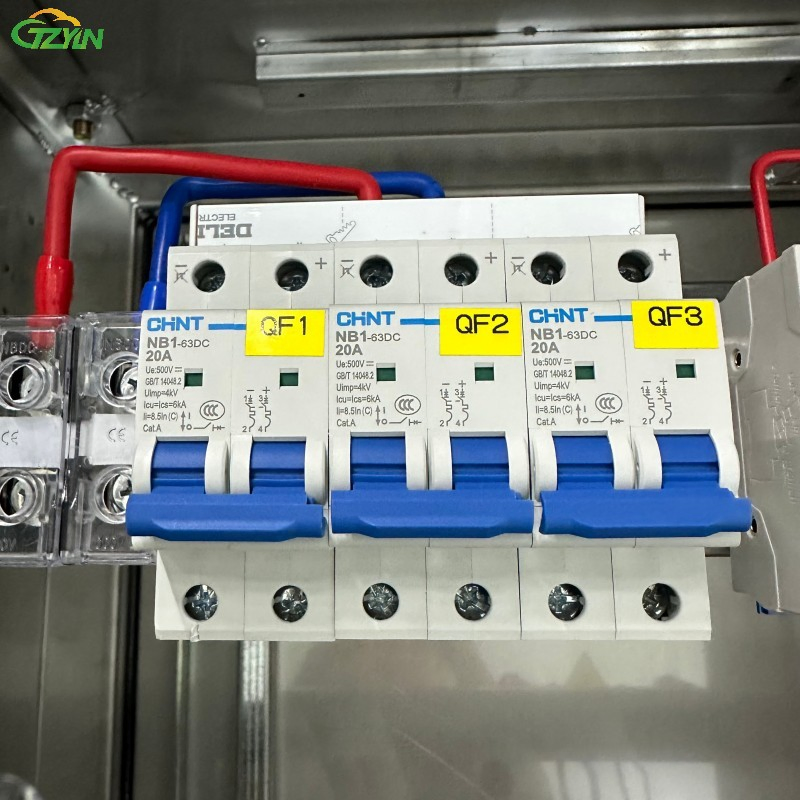

Core Configuration: Equipped with CHINT NB1-63DC series and NM8NDC series molded case circuit breakers. Surge protection utilizes CNCSGK BDP-40 series (1000VDC, 20kA-40kA). Includes insulation-protected copper busbars.

Key Benefits: Utilizes first-tier brands (Schneider, ABB, Omron, DELIXI, Eaton, Siemens). Standardized wiring for easy maintenance. Fully customizable circuit quantity and current ratings.

Scenarios: Ideal for photovoltaic grid-connected systems, energy storage power stations, and new energy charging piles.

Technical Parameters
NameDistribution cabinet
Product typePower distribution
Instal typeWall mounting / Console mode
Major componentShell, circuit breaker, input interface, distribution unit, protective device
Shell materialCarbon steel, stainless steel, explosion-proof
AC Power SupplySingle phase and three-phase
Box Thickness0.8 / 1.2 / 1.5mm
Layout
Detailed View
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer specializing in electrical automation with 15 years of industry experience.
What products can I purchase from you?
We offer complete sets of distribution boxes, panels, control systems, power supply cabinets, and integrated automation solutions including PLC programming.
How can I place an order?
Please provide technical specifications, a single line diagram (SLD), or related drawings. Our sales team will then provide a quotation and coordinate further details.
What is the typical lead time?
Quotations are typically provided within 2 days. Samples take approximately 15 days, while mass production takes around 26 days depending on order volume.
Do you provide overseas technical support?
Yes, our technical team is available to go on-site to guide installation, testing, debugging, and maintenance if required.
What are the accepted payment terms?
We support flexible methods including T/T, L/C, Paypal, and major digital wallets. Generally, a 30% deposit is required with the 70% balance due upon goods readiness.
