| Model NO. | Smart Surveillance Enclosures | Certification | ISO9001:2000, CCC |
|---|---|---|---|
| Operation Voltage | 120/240 VAC | Main Output Voltage | 12 VDC, 120 /240 VAC |
| Kw Rating | 2.5 Kw | Output Current | 5 a (12 V), 5 a (120 / 240 V) |
| Input Current | 10 a | Switch Power Supply | 12 VDC, 8.33 a, 100 W |
| Surge Protection | T2, 40 Ka (8/20 μS) | Earth Leakage Protection | 30 Ma |
| Monitoring | Voltage, Current, Power, Temperature, Humidity, Door Status | ||

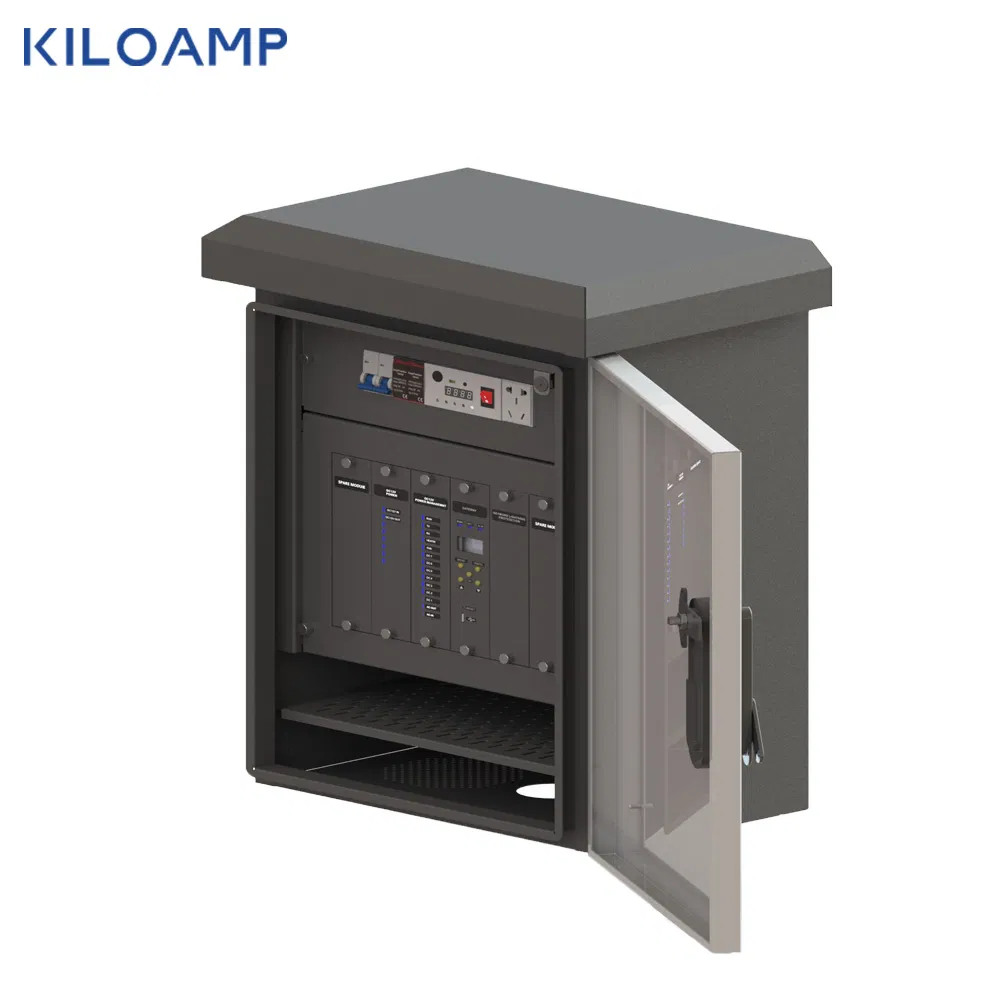

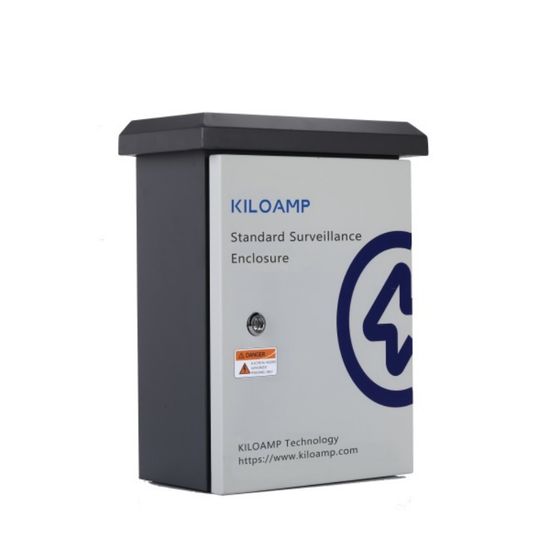

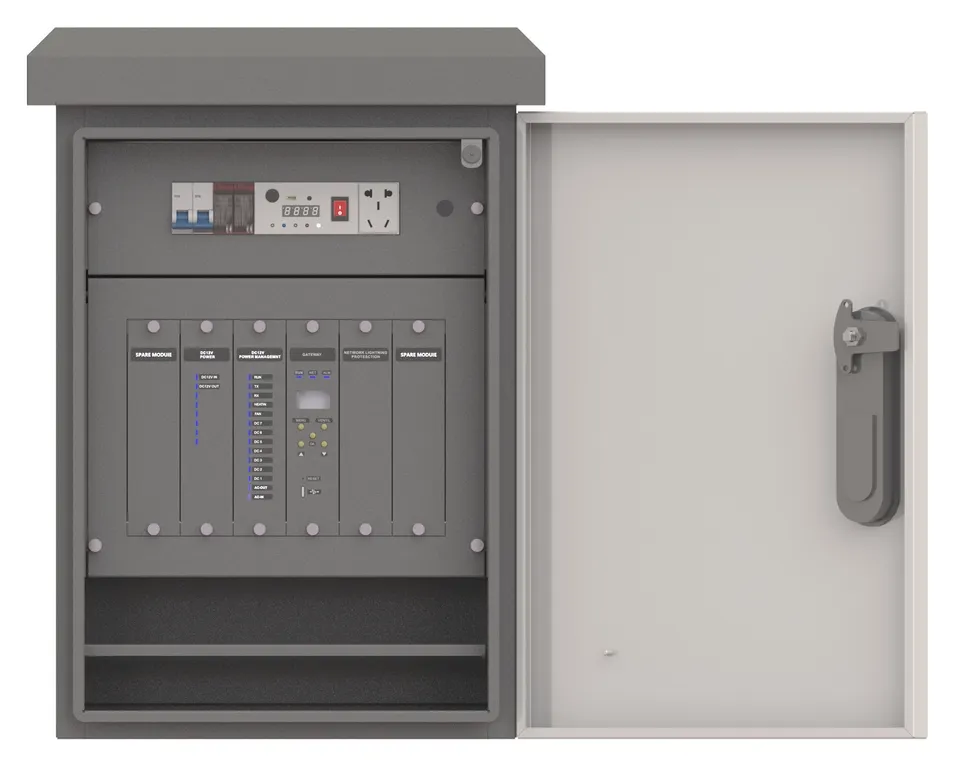

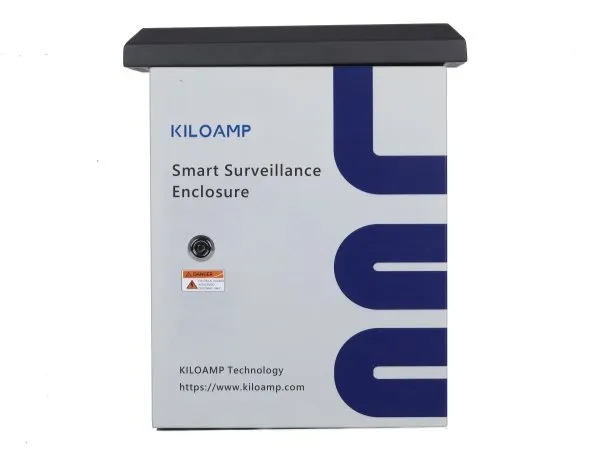

The Smart Surveillance Enclosure is a high-performance solution engineered for intelligent video surveillance systems, integrating advanced IoT communication technology. Designed with a robust modular architecture, this cabinet supports plug-and-play deployment, offering exceptional flexibility for outdoor installations.
Powered by a 2.5KW system, it delivers stable power distribution with precise monitoring of voltage and consumption. Includes T2-rated surge protection (40kA) and 30mA earth leakage protection to safeguard connected equipment from electrical faults.
Environmental monitoring tracks temperature, humidity, and door status in real time, with remote control functions for power and fan management via mobile app or web interface.
| Parameter | Details |
|---|---|
| Main Input Voltage | 120/240VAC |
| KW Rating | 2.5KW |
| Output Current | 5A(12V), 5A(120/240V) |
| Surge Protection | T2, 40kA(8/20μs) |
| Communication Protocol | TCP/IP, 4G |
| Transmission Rate | 10/100/1000Mbps |
| Switch Capacity | 12 Gbit/s |
| Ports | 4x1000Mbps Ethernet, 2x1000Mbps SFP |
| Material | Cold-Rolled Steel (1.2mm Body, 1.5mm Door) |
| Protection Rating | IP55 |
| Operating Temp | -20...60°C |
| Dimensions | 236.2(H)x 157.5(W)x 110(D) mm |
Specializing in industrial digitalization solutions, we focus on intelligent power distribution, electrical protection, and smart energy management. We tailor efficient and secure solutions for industries including electric power, telecommunications, transportation, and security.
With over a decade of R&D experience, our IoT products leverage Ethernet, 4G, and NB-IoT to enhance the reliability and safety of industrial systems worldwide.
