Product Description

Basic Specifications

Model NO.

60-180KW EV car charger

Charging Interfaces

Multiple Charges Supported

Location

Public Use

Installation

Floor Type

Charge Method

Quick Charge

Input Voltage

1000V

Max Output Current

500A

Ocpp

Ocpp1.6j Supported

Certification

CE, ISO, TUV

Warranty

24 Months

IP Class

IP54

Dimensions

900*900*1800mm

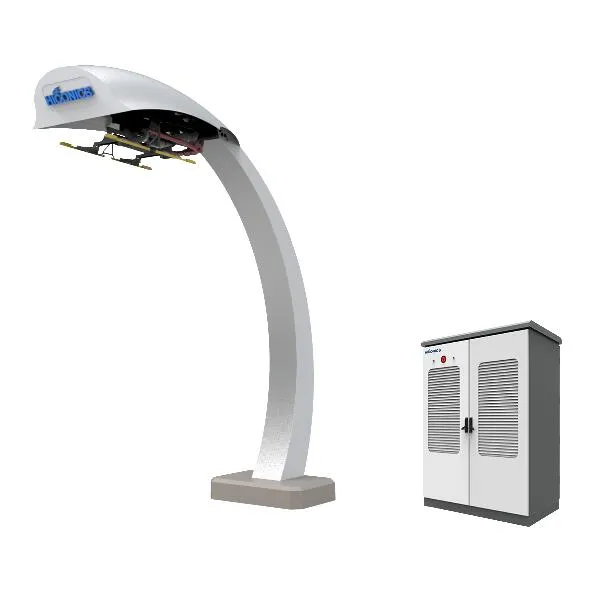

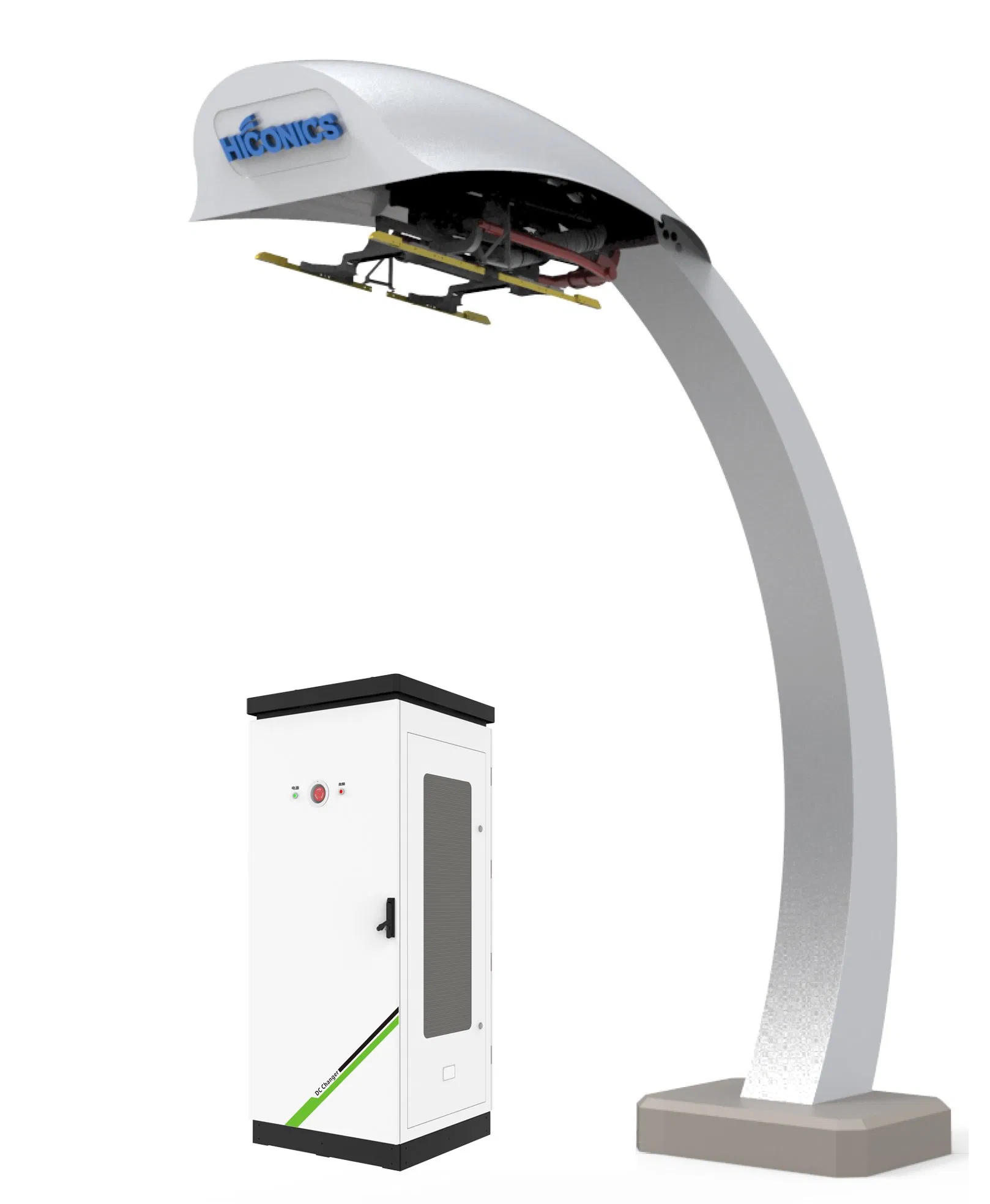

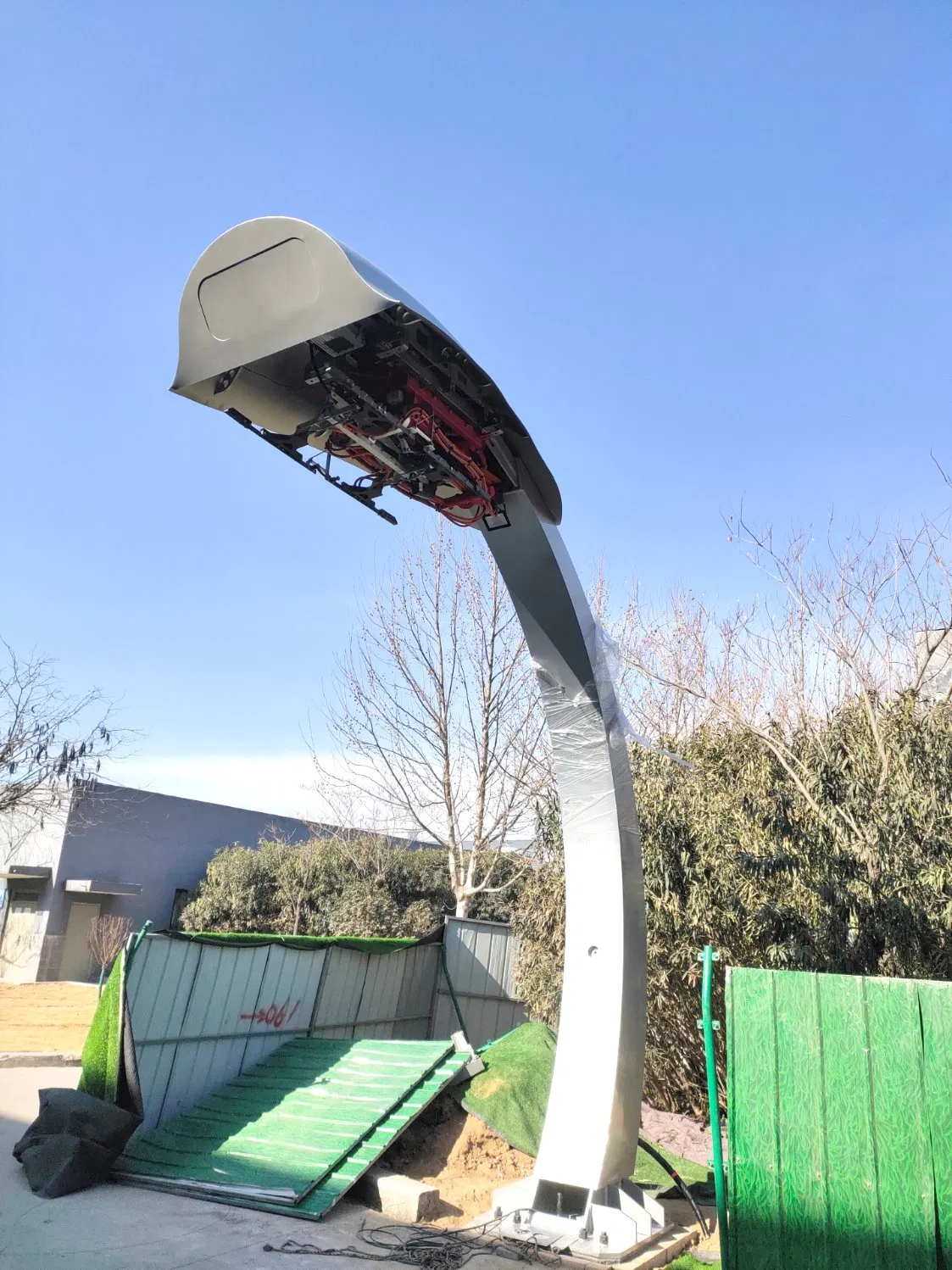

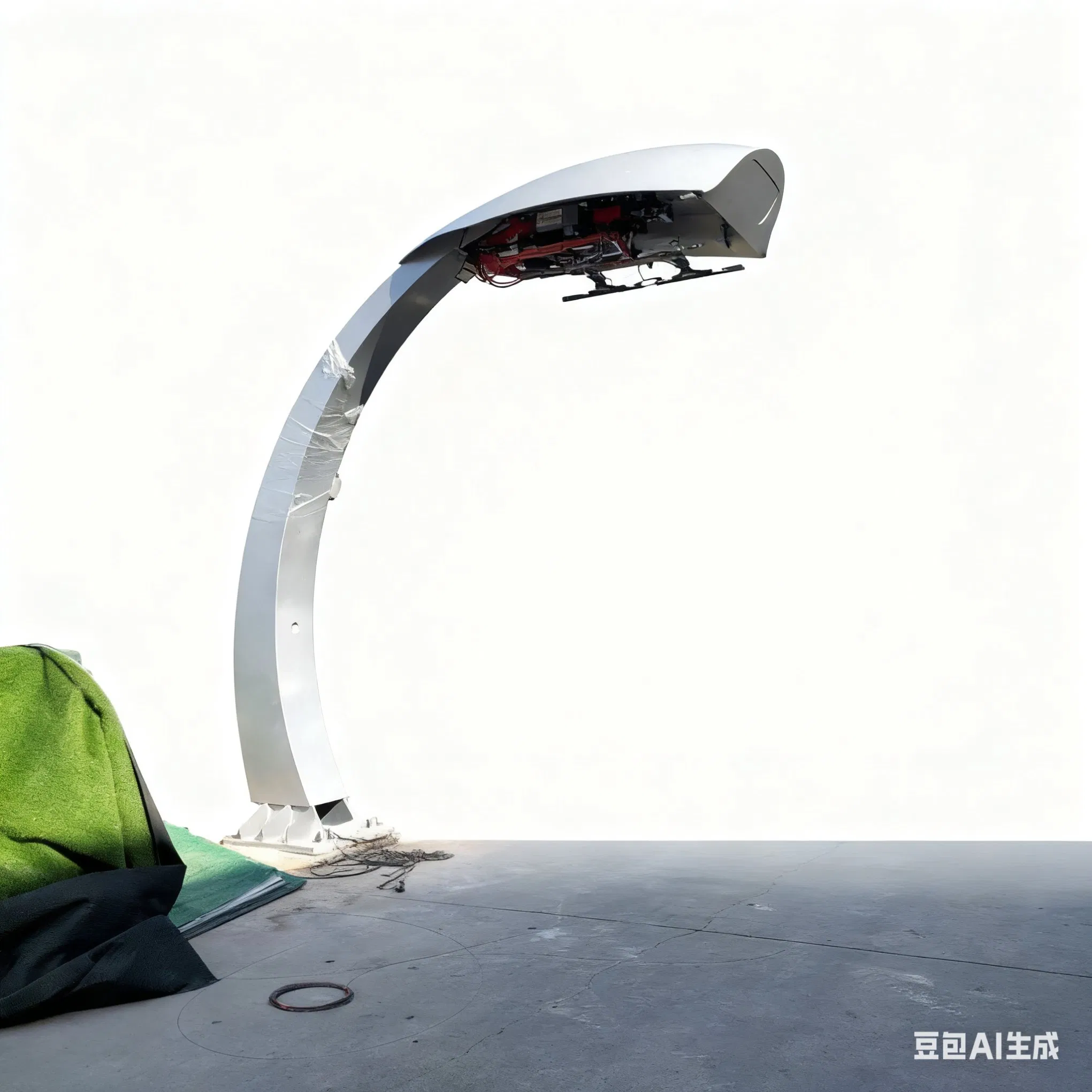

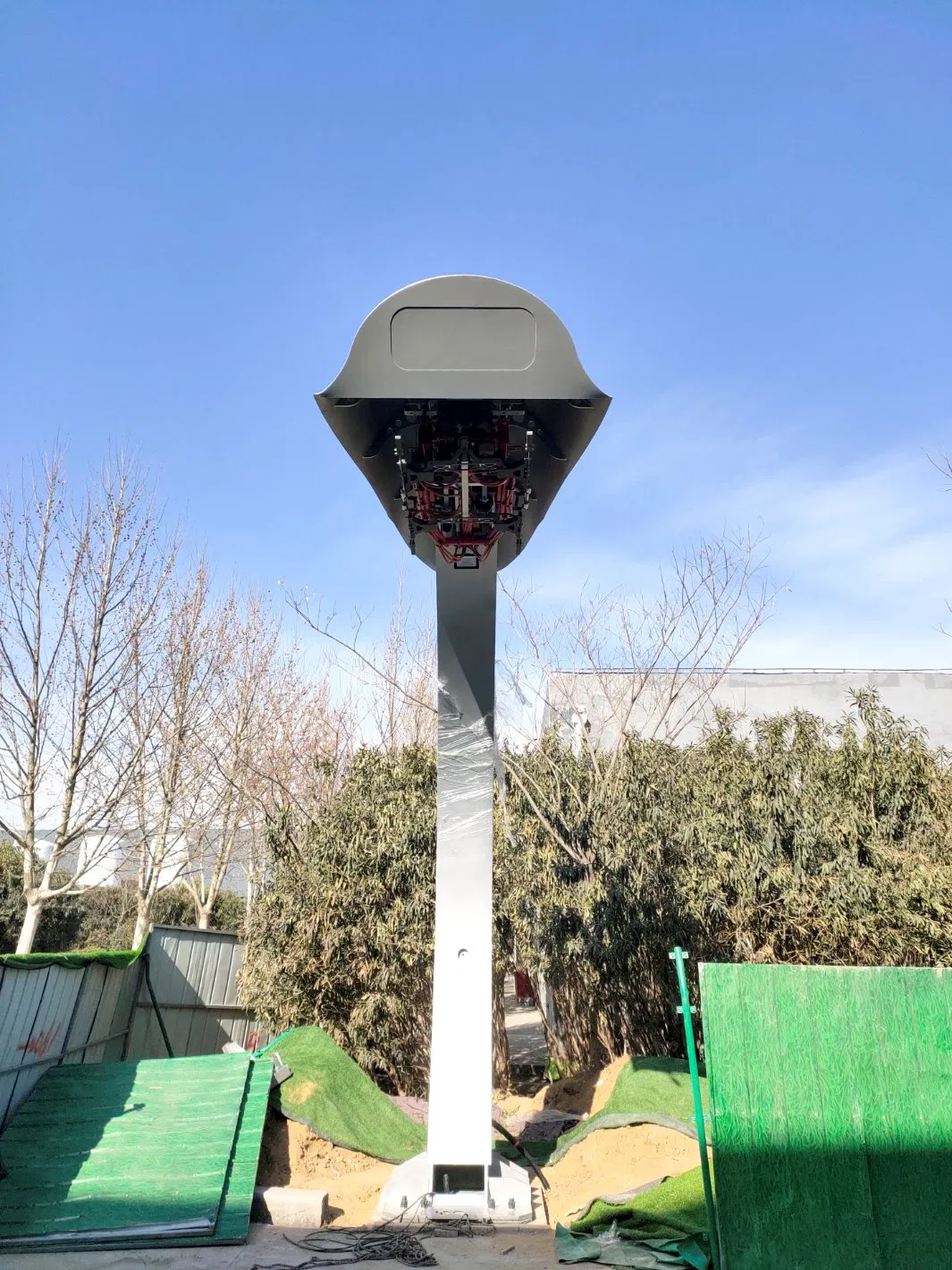

300kW/600kW Split Type Pantograph Charging System

The split type pantograph system is a high-power quick charging equipment developed for pure electric buses. The system is composed of a "charging module cabinet + charging interface," providing convenient maintenance and an enhanced user experience. The pantograph features a streamline design, fashionable appearance, and mechanical characteristics exceeding IK10. With IP54 protection, it is waterproof, dustproof, and anti-corrosion, meeting demanding environmental requirements.

⭐ Unique Features

Large Current Output Mode: Utilizes PLC carrier communication for accurate positioning and data interaction (ISO15118 standard). Maximum output current reaches 800A for ultra-fast charging.
Split Structure Design: Separates the power unit from the charging interface for easier installation and maintenance. Uses high-quality German-brand electrical components.
Safe Control Mode: Comprehensive protection against overvoltage, undervoltage, short circuits, leakage current, and lightning surges. Supports emergency stop and access control.
Comprehensive Solutions: Available in both falling and rising types, supporting both AC and DC input modes.

Major Standards and Approvals

• IEC61851-1 / IEC 61851-23 / IEC 61851-24

• IEC 62196-1 / IEC 62196-3

• IEC 60364-4-41 / IEC 60990

• IEC 61439-1 / IEC 60664-1

• ISO15118-2018

Technical Data Sheet (600kW System)

Item	Technical Requirements
Nominal Voltage	400VAC±15%
Input Current (MAX)	1100A
Rated Output Voltage	150~1000VDC
Rated Output Current	0~800A
Efficiency	≥0.95 (50% load or above)
Cooling Method	Force Air Cooling
Communication Protocol	OCPP 1.6 (JSON)
Network Support	4G, Ethernet, LAN, WIFI
Operation Temperature	-30ºC ~ +55ºC
Noise Level	≤65dB

Global Application

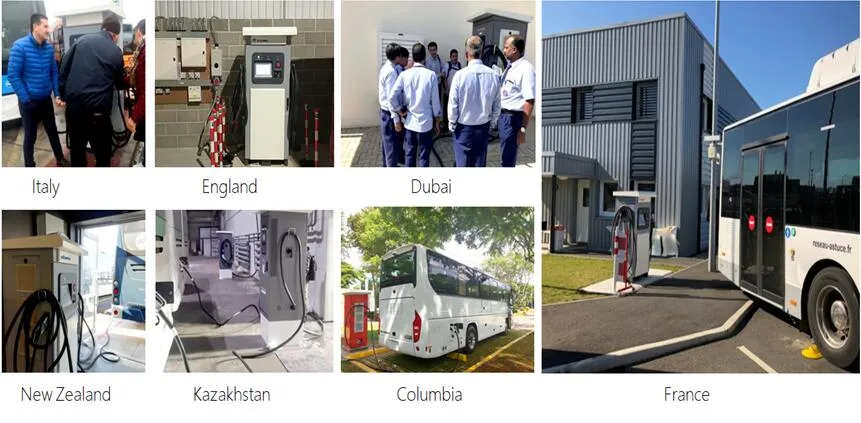

The EV charger solutions have been widely applied in over 200 cities across China and approximately 27 countries overseas, including England, France, Australia, and the Middle East. Our systems are optimized for bus stations, large parking lots, and commercial fleet hubs.

After-Sales Service

English version user manuals and construction/maintenance guides provided.
24-hour online remote guidance for installation and troubleshooting.
Free operation and maintenance training for customers.
Spare parts delivered within 5 working days during the warranty period.
Onsite engineering support for large-scale or severe issues.

Advanced Production Capacity

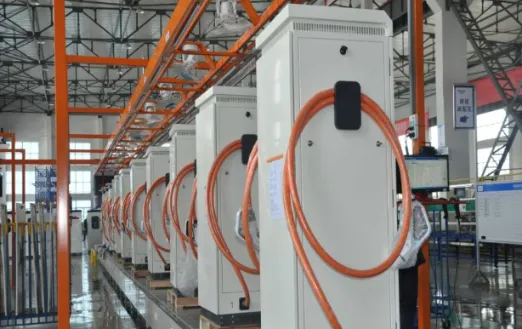

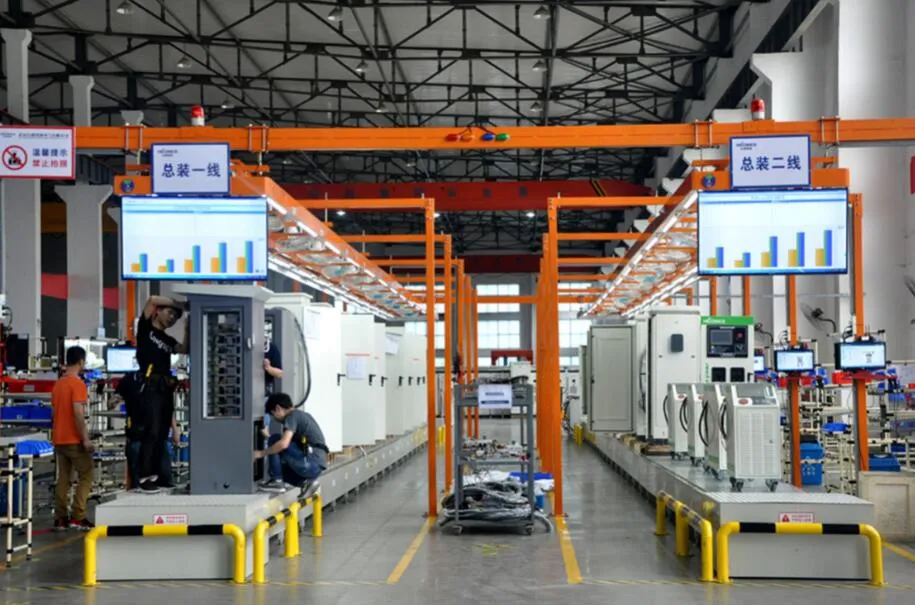

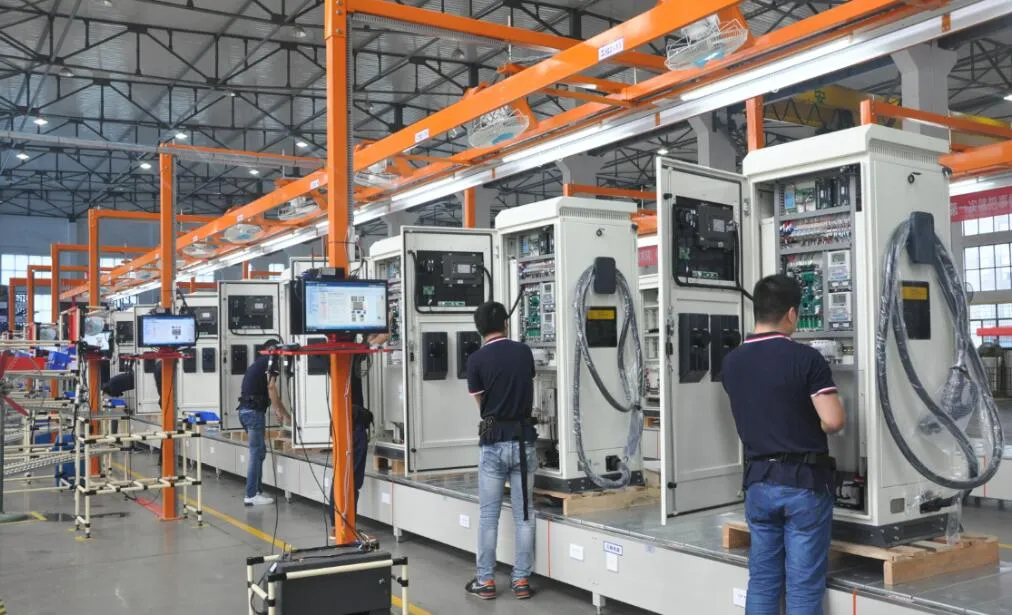

Our facility utilizes advanced automatic assembly lines. Every step is monitored via display screens, with automated debugging and aging processes. A single charging pile can be completed within 35 minutes, ensuring a robust monthly production capacity.

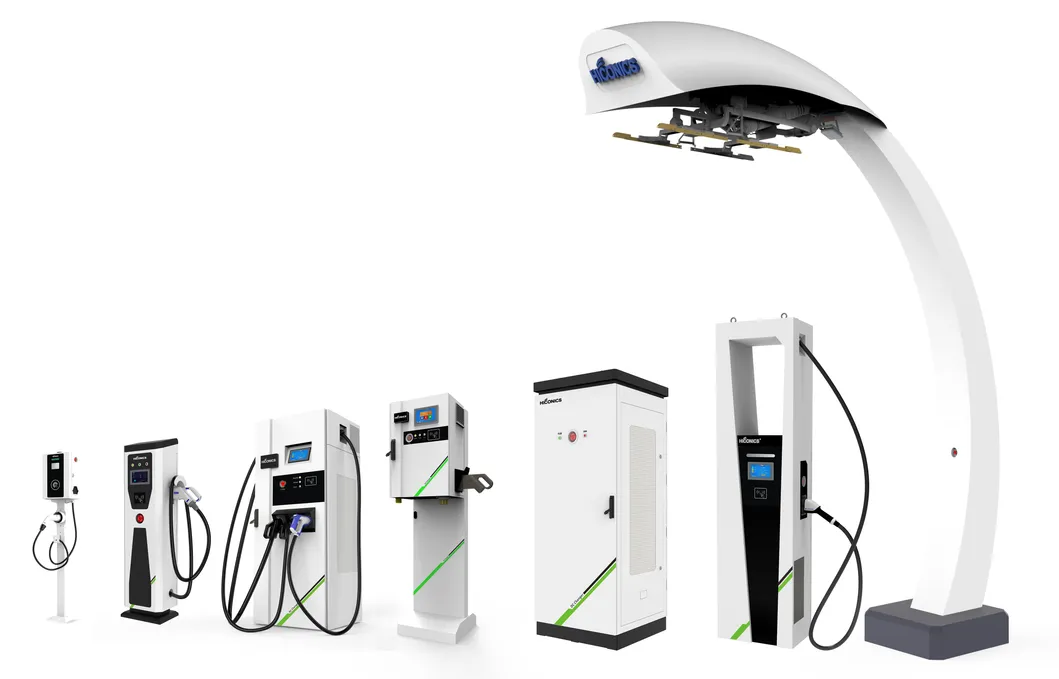

Product Family

Frequently Asked Questions

What is the maximum charging current for the split type pantograph?

The system supports a large current output mode where the maximum current can reach up to 800A, specifically designed for fast charging of electric bus systems.

Does the system support remote monitoring and management?

Yes, the system supports OCPP 1.6j (JSON) protocol and can connect via 4G, WiFi, or Ethernet for remote monitoring, billing, and management.

What kind of protection does the charger offer for outdoor environments?

The equipment is rated IP54 for dust and water resistance. It also features anti-corrosion treatment and IK10 mechanical protection to ensure durability in harsh conditions.

What is the standard warranty period for your EV chargers?

We offer a 24-month warranty on our charging systems, which includes technical support and spare parts delivery.

Are your charging systems compliant with international standards?

Absolutely. Our products meet various international standards including IEC 61851 series, IEC 62196, and ISO 15118, and are certified by CE, ISO, and TUV.

Can the charging interface be customized?

Yes, we provide flexible solutions including falling type and rising type interfaces to match the specific requirements of various electric vehicle roof-charging systems.
