5kw 10kw 15 Kw 10kwh 20kwh 30kwh Photovoltaic Kit Complete Hybrid Solar Energy Storage System with Lithium Battery

1 / 5

5kw 10kw 15 Kw 10kwh 20kwh 30kwh Photovoltaic Kit Complete Hybrid Solar Energy Storage System with Lithium Battery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview Product Parameters Projects

📋 Basic Information

Model NO.

Hybrid solar system 5-20kw

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

off Grid Inverter

System Type

Home Solar Power System

Solar Panel

Monocrystalline Solar Panel

HS Code

8501802000

Production Capacity

4500sets Per Month

📦 Packaging & Delivery

Package Size

238.00cm * 118.00cm * 135.00cm

Gross Weight

1300.000kg

Transport Package

Carton/Wooden Box

🌟 Product Description

⚡ Technical Specifications

Parts	Specification	SP5KW	SP6KW	SP8KW	SP10KW	SP12KW
Solar Panel	600W Mono Panel	6 Pieces	10 Pieces	12 Pieces	16 Pieces	20 Pieces
Hybrid Inverter	Single/Three Phase	1 pcs 5KW	1 pcs 6KW	1 pcs 8KW	1 pcs 10KW	1 pcs 12KW
LiFePO4 Battery	48V 5/10KWH	1 Pieces	2 Pieces	2 Pieces	2 Pieces	2 Pieces
Bracket	Ground or Roof	1 set	1 set	1 set	1 set	1 set
PV Cables	4mm²	100m	200m	200m	200m	200m

Note: Product dimensions and physical appearance are nominal. Specifications are subject to change for product improvement.

🛠️ Key Features

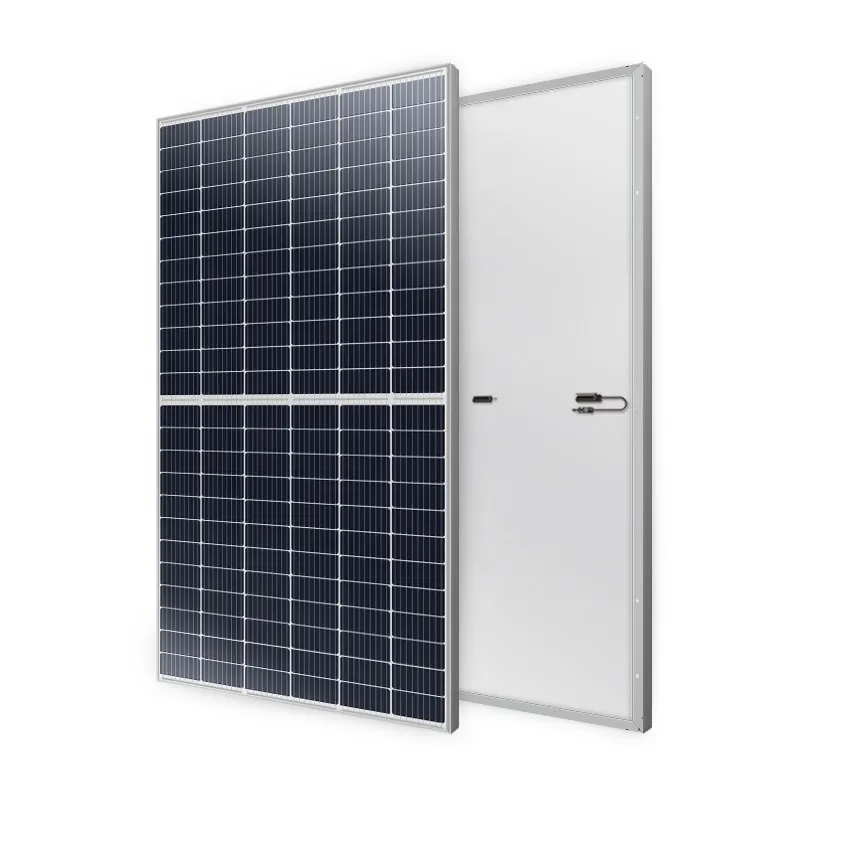

Mono Solar Panels

Peak Power Watts: 460W
Max Power Voltage: 41.5V
Max Power Current: 11.3A
Open Circuit Voltage: 48.5V
Short Circuit Current: 11.96A
Dimensions: 2094*1038*35 mm

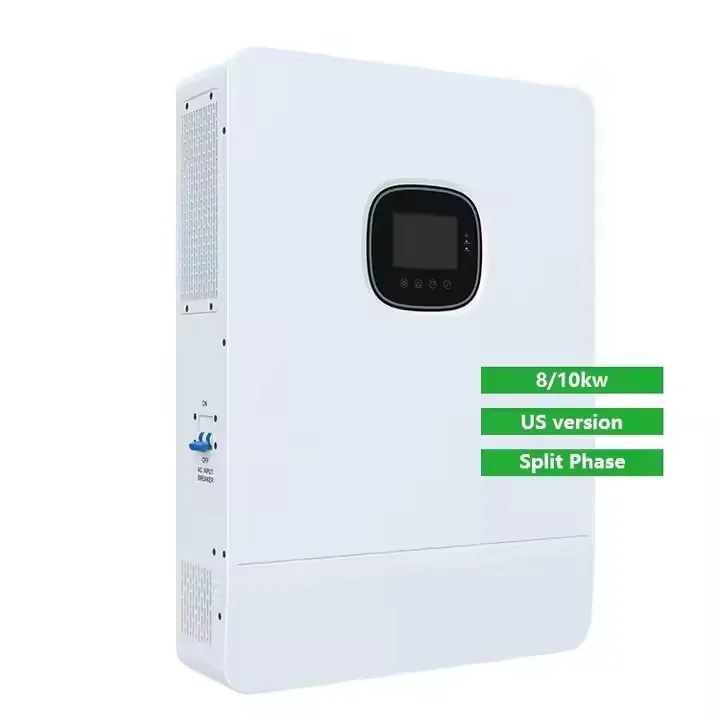

Inverter with MPPT Controller

Max.DC Input Power: 15KW
Max. DC Input Voltage: 600V
MPPT Voltage Range: 90-520V
Rated Grid Voltage: 208/240V(US); 230V(EU)
Wifi Stick For STD, Lan & GPRS Optional.

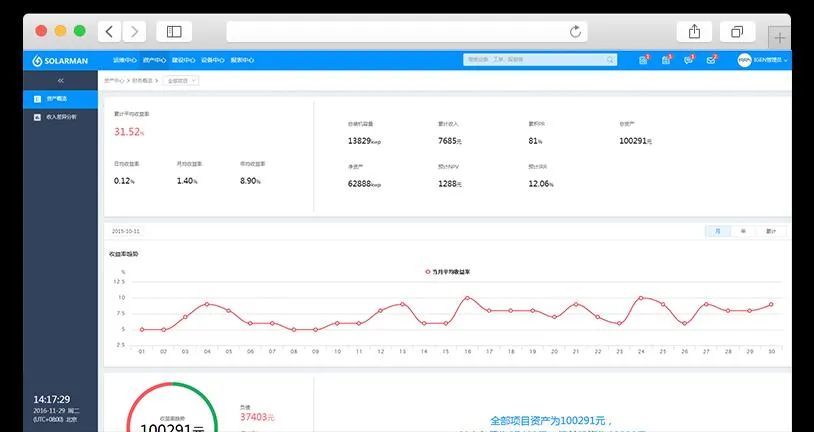

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar system to keep you informed about PV status and atmospheric conditions via web server (Wi-Fi, Lan or GPRS). App Available for PC, IOS & Android.

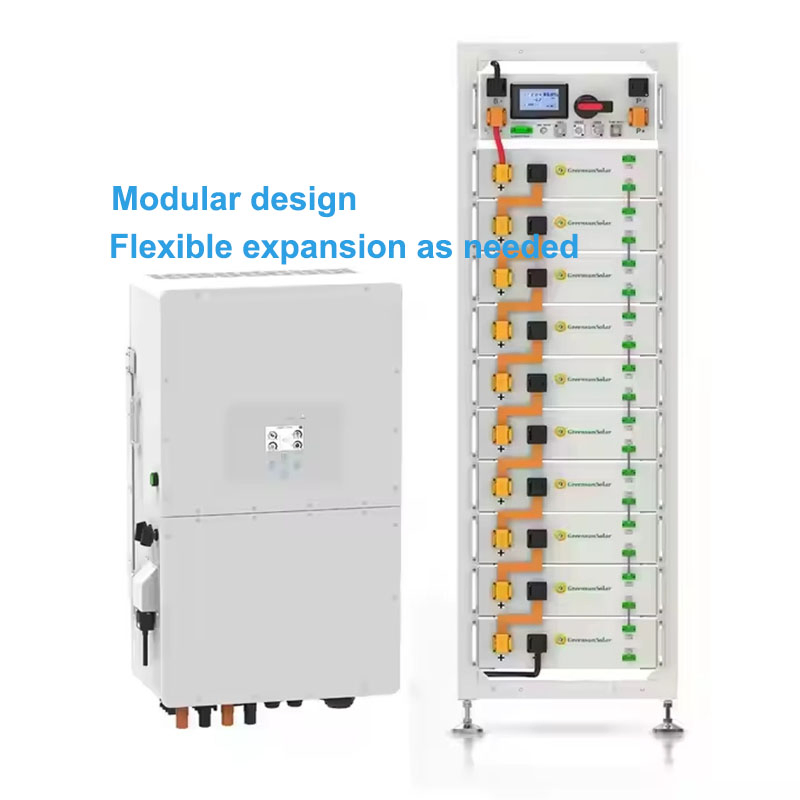

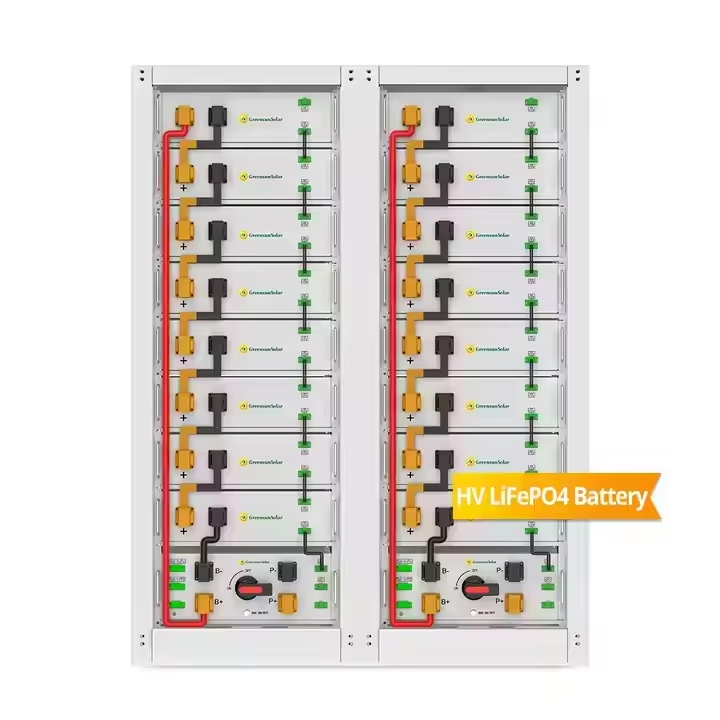

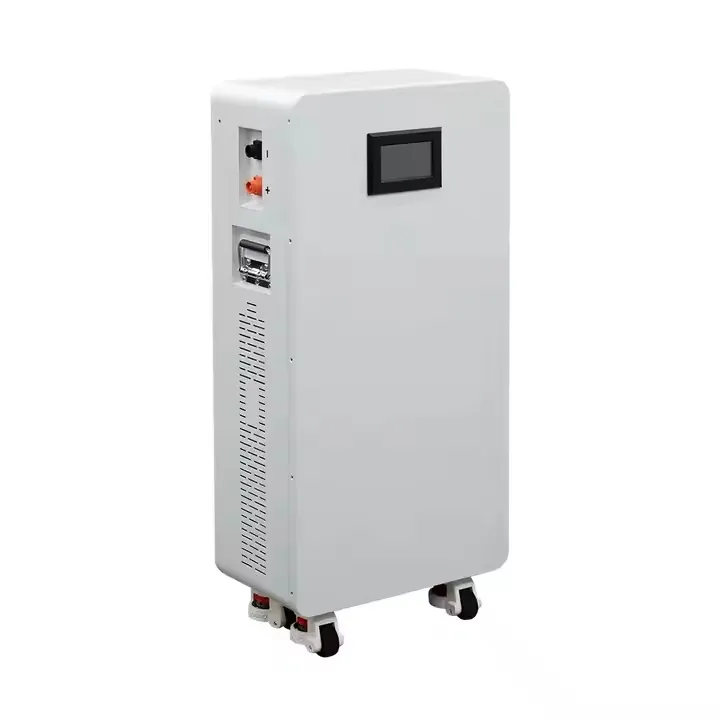

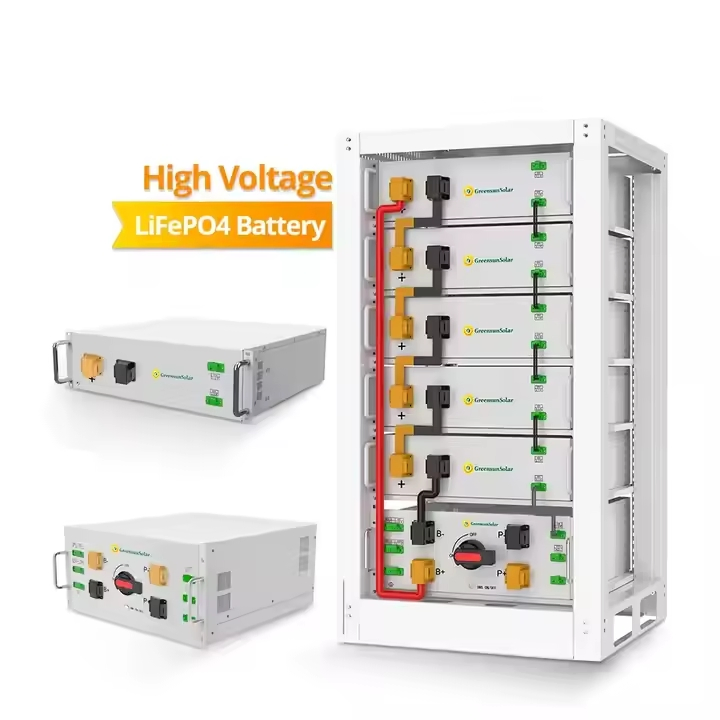

Lithium Battery Storage

High efficiency energy storage solution:
1. DOD 95% with 6000 cycles life
2. Capacity: 5-15KWH options available.

🏗️ Projects Shown

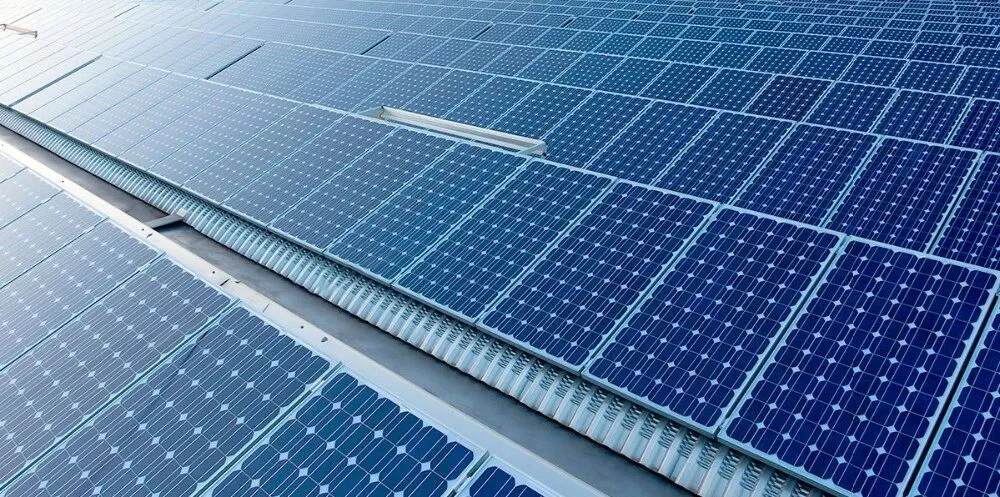

12MW Commercial Metal Roof Solar Plant

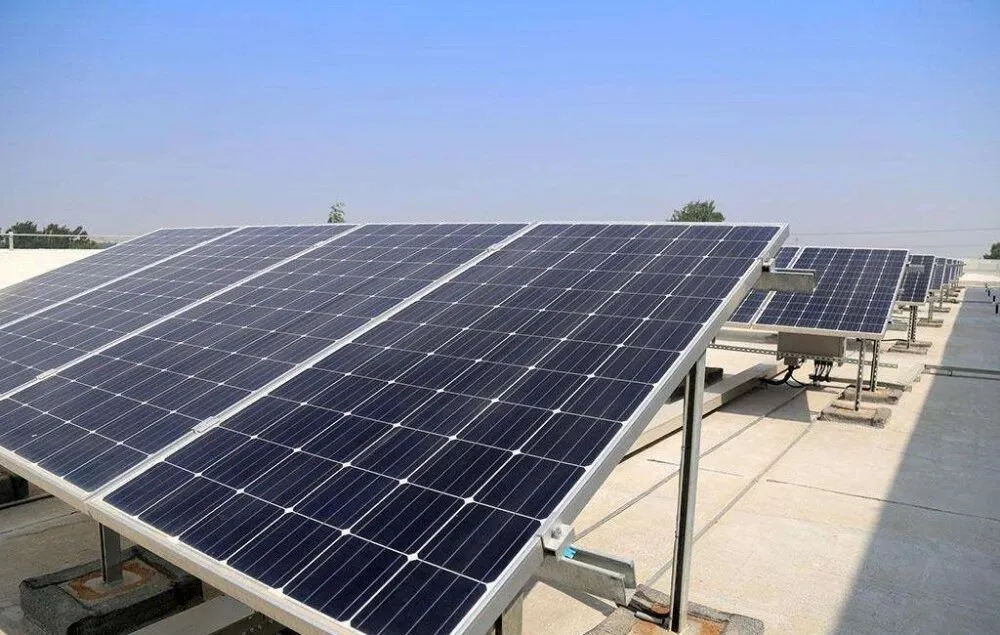

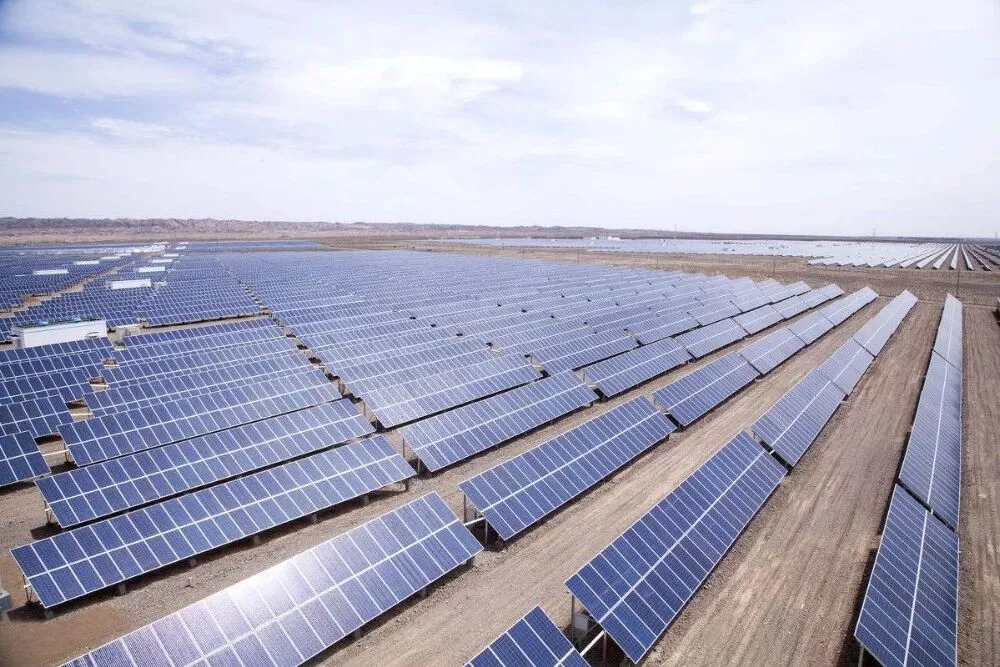

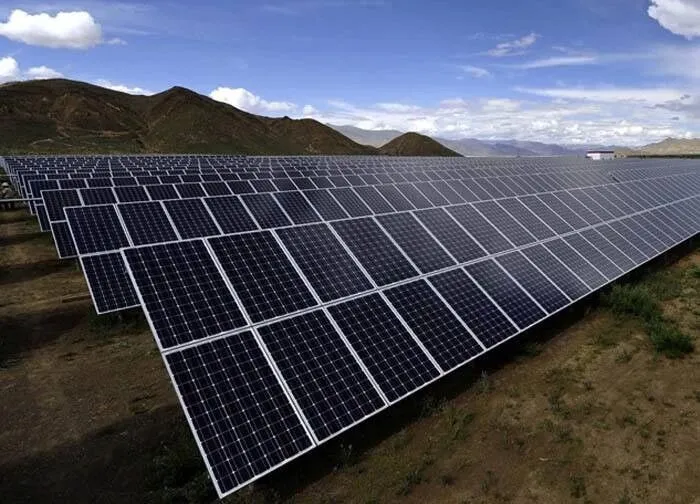

20MW Ground Solar Plant in USA 50MW Solar Plant in Brazil 20KW Solar Plant in Mexico

Frequently Asked Questions

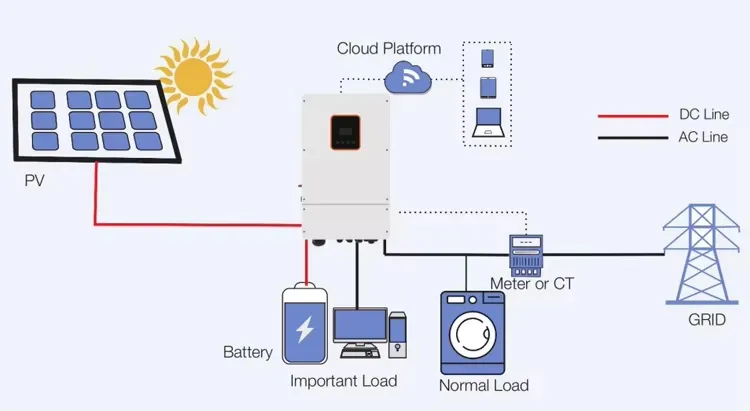

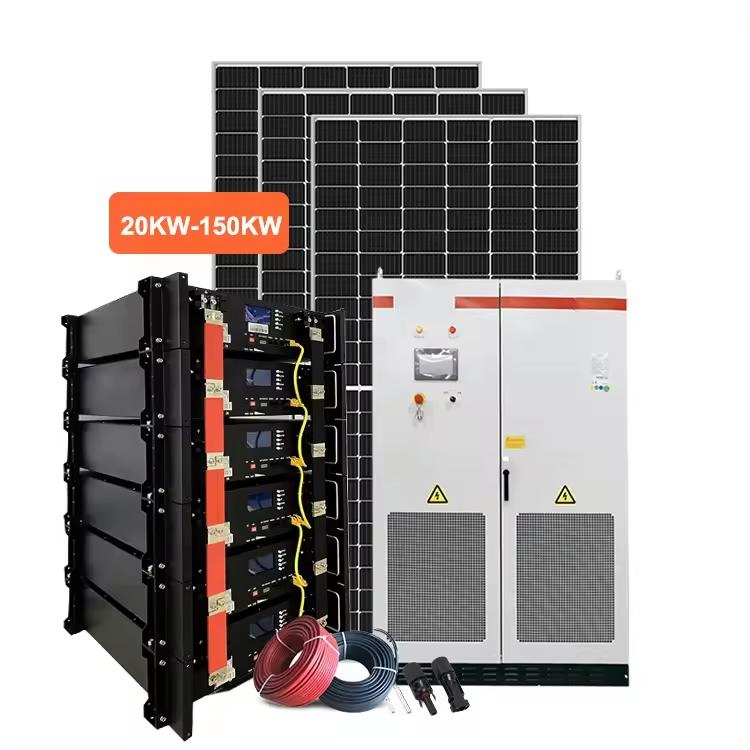

What is included in this hybrid solar energy kit?

The kit typically includes high-efficiency monocrystalline solar panels, a hybrid inverter with MPPT controller, LiFePO4 lithium battery storage, mounting brackets, PV cables, and MC4 connectors.

Can I monitor the system performance remotely?

Yes, the system comes with a data logging stick (Wi-Fi/Lan/GPRS) that allows you to monitor energy production and system status via a web server or mobile app for iOS and Android.

What is the lifespan of the lithium batteries?

The included LiFePO4 batteries are designed for long-term use, featuring up to 6000 cycles at 95% Depth of Discharge (DOD).

Is the system suitable for both residential and commercial use?

Absolutely. With power options ranging from 5KW up to 20KW and both single-phase and three-phase support, it is ideal for homes, industrial sites, and commercial buildings.

What kind of maintenance does the solar system require?

Solar systems generally require very low maintenance. Periodic cleaning of the panels and checking connections is recommended to ensure maximum efficiency.

Are the mounting brackets customizable?

Yes, the mounting support can be customized for either roof or ground installation depending on your specific site requirements.
