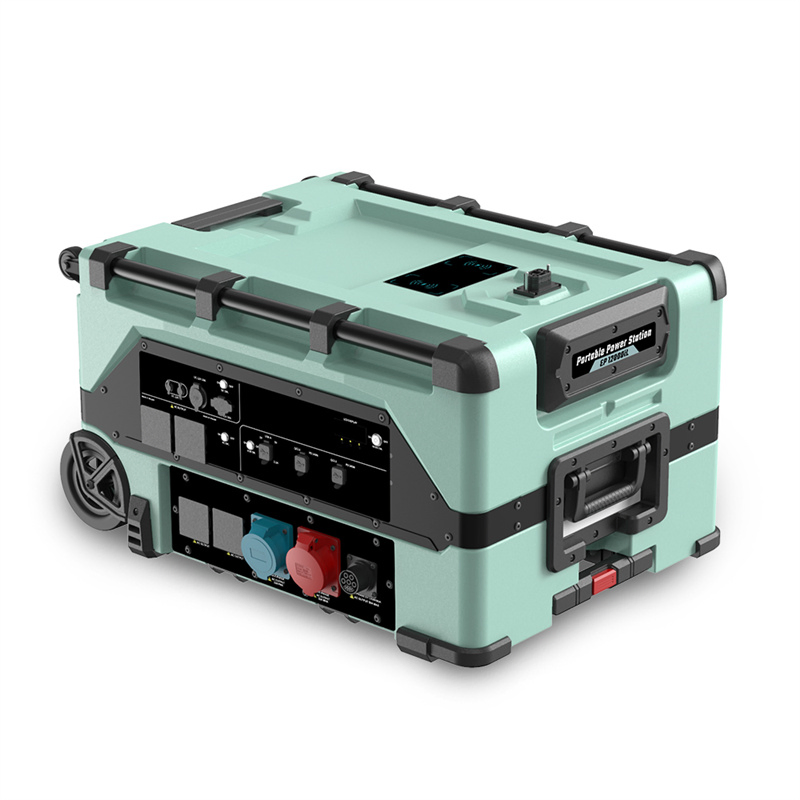

All in One Home Energy Storage System LiFePO Battery Energy Storage System

Customization:	Available
Weight:	100kg
Warranty:	5 Years

Overview & Basic Info

Model NO.

EP12000iL

Cycle Life

3000

Nominal Capacity

7680wh

Charging

AC, Solar, EV, Driving, DC, Wind

Battery Expansion

Yes, Max 245kwh

Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Output

Three-Phase Supported

APP Function

Yes

Portability

Drawbar & Wheels

Origin

China

Product Advantages

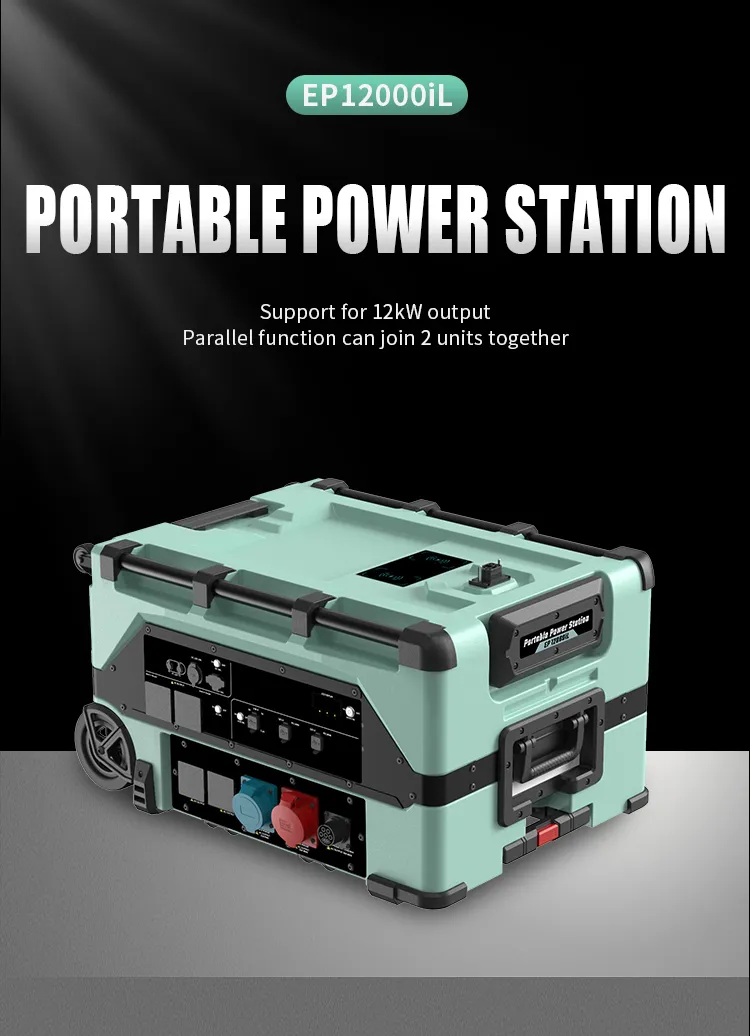

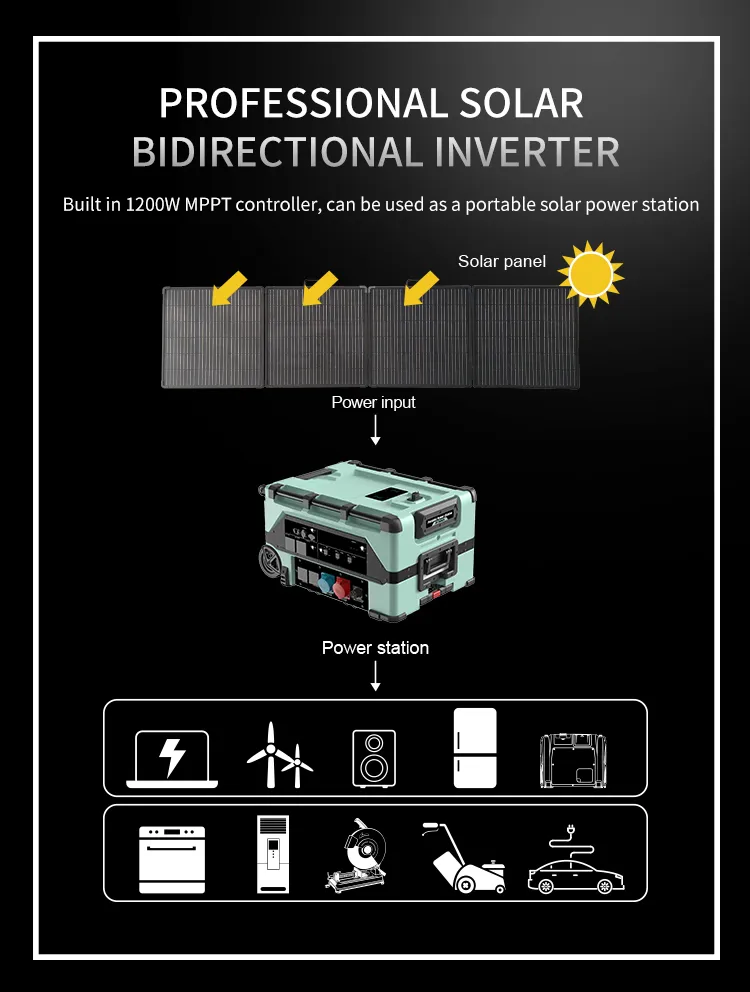

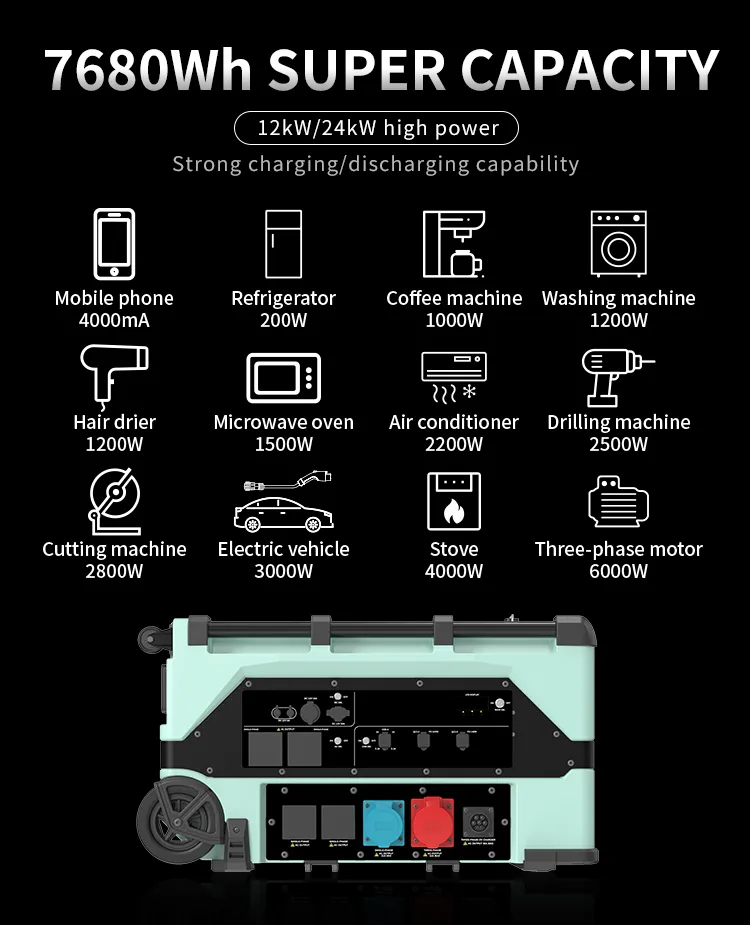

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter.
Support 12kW output and 8.5kW charging.
Support continuous output of 12kW AC three-phase and 11kW single-phase.

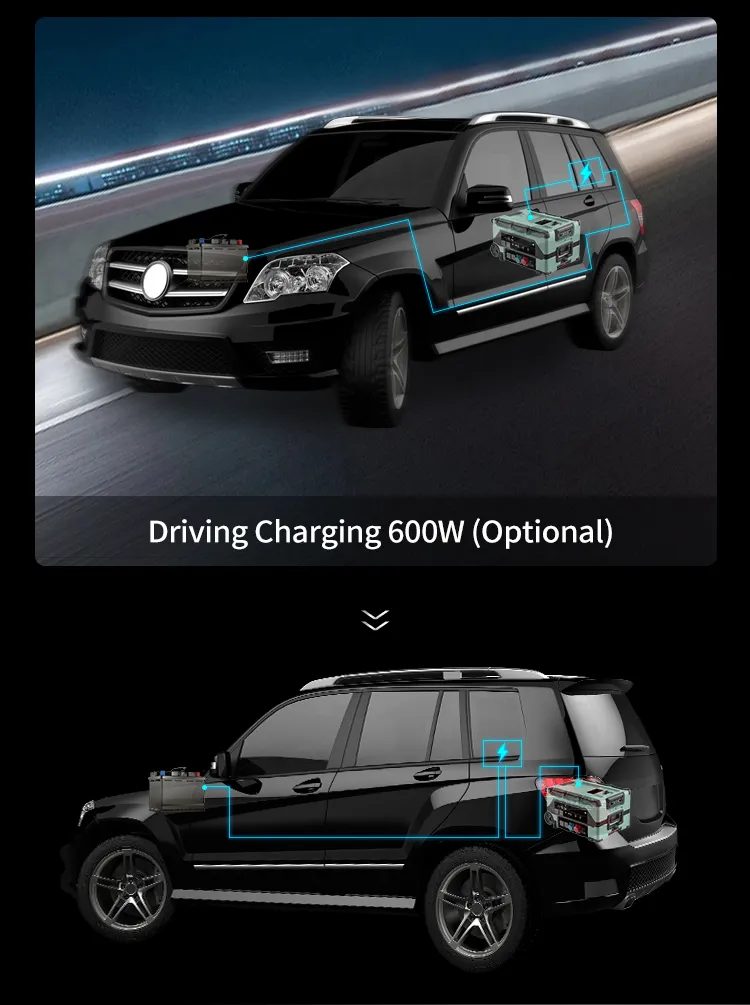

Various fast charging: utility, solar, EV charger, driving, wind turbine.

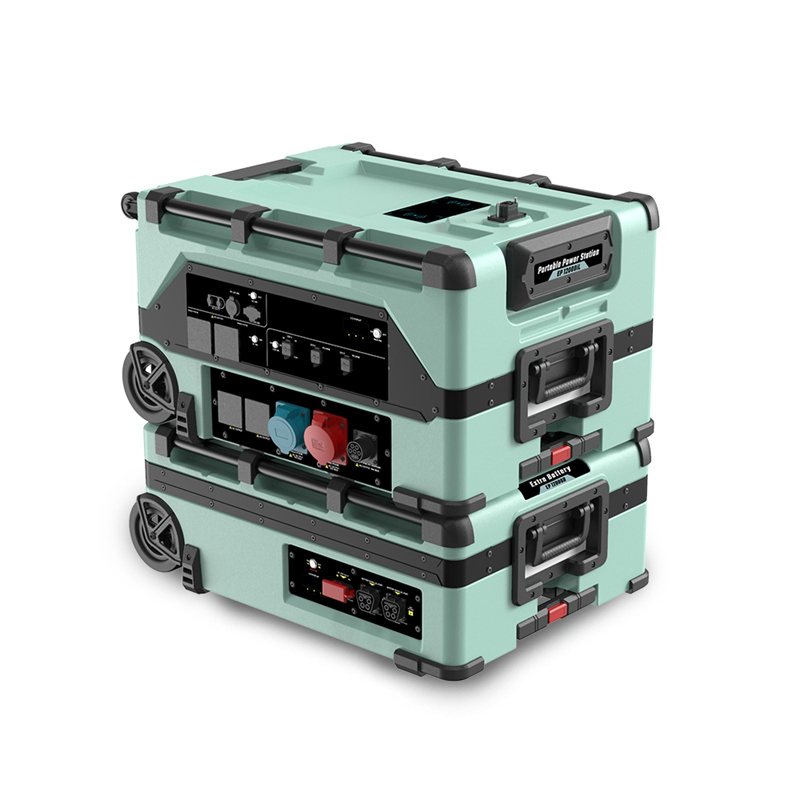

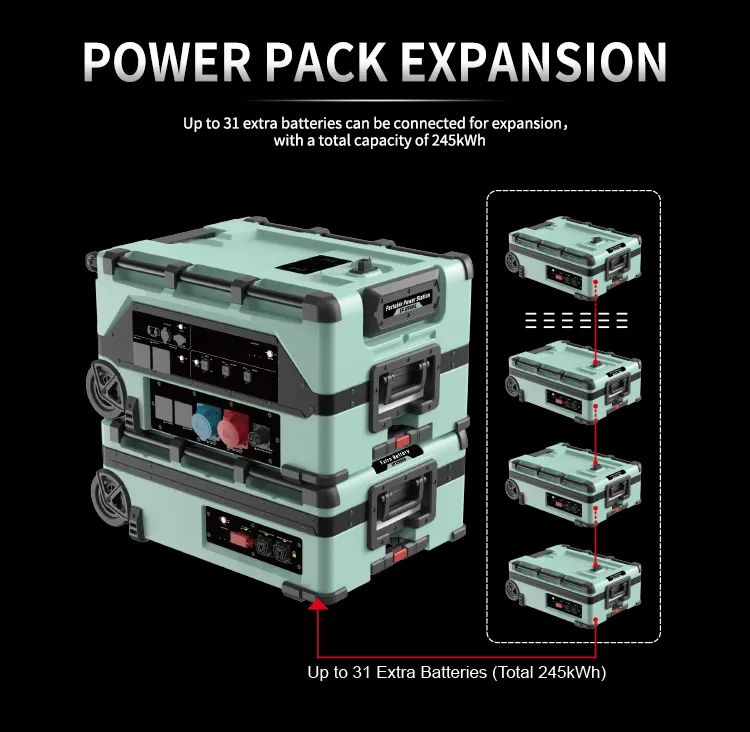

Expandable up to 31 extra batteries (Total 245kWh).

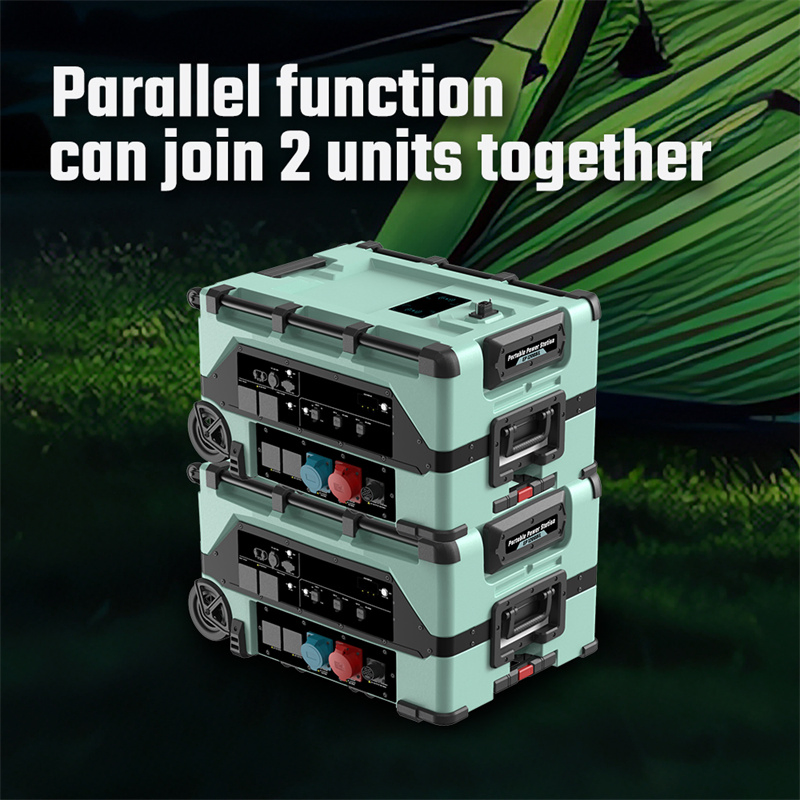

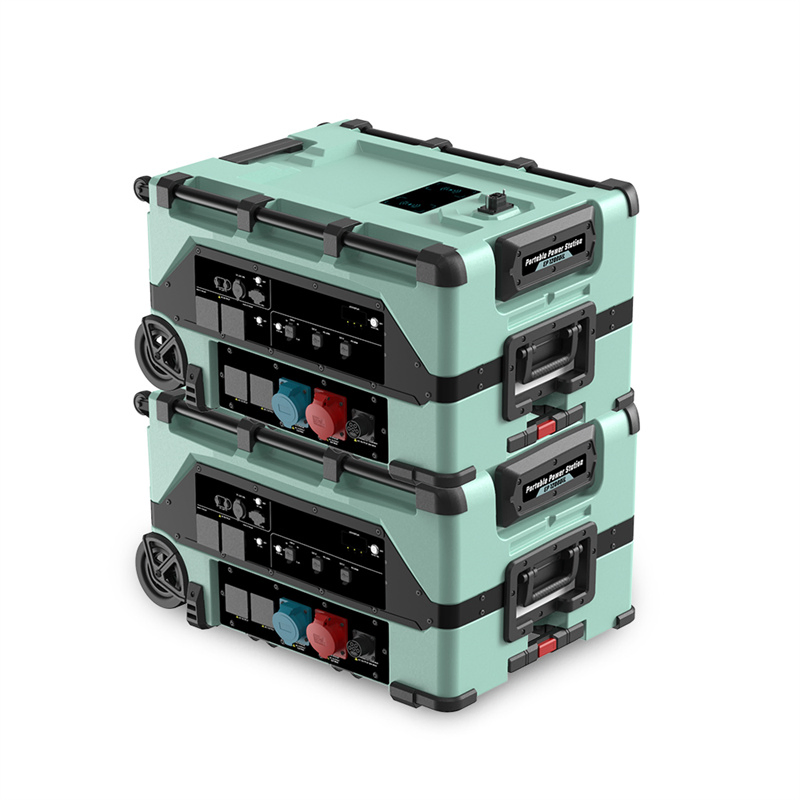

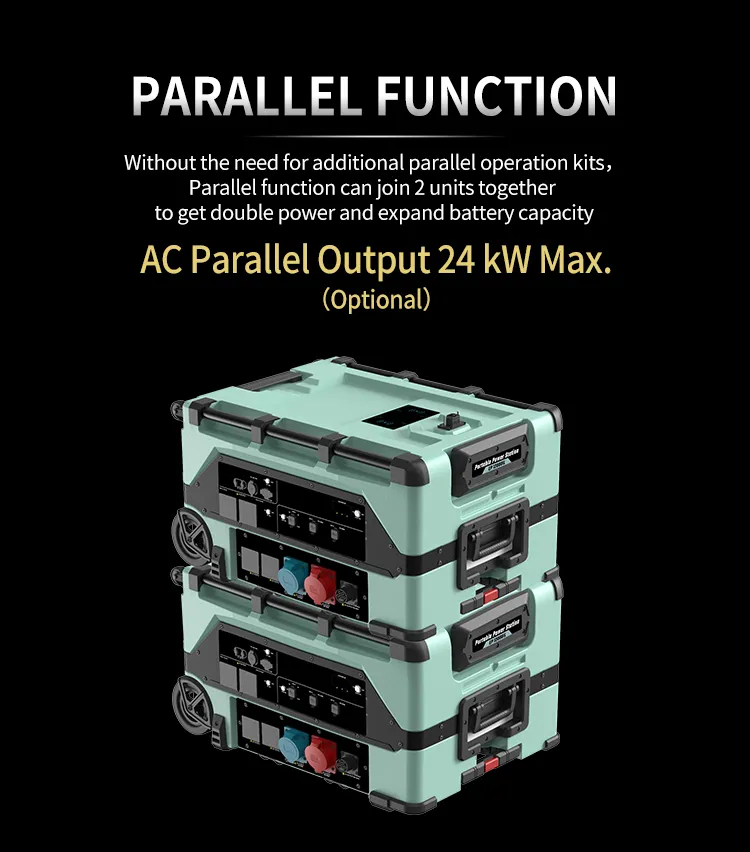

Join 2 units for 24kW output via stacked parallel technology.
Built-in EV charger, up to 22kW charging.
Four-wheel chassis and large-diameter wheels for easy transport.
Unit IP53 and Battery Pack IP66 protection grade.

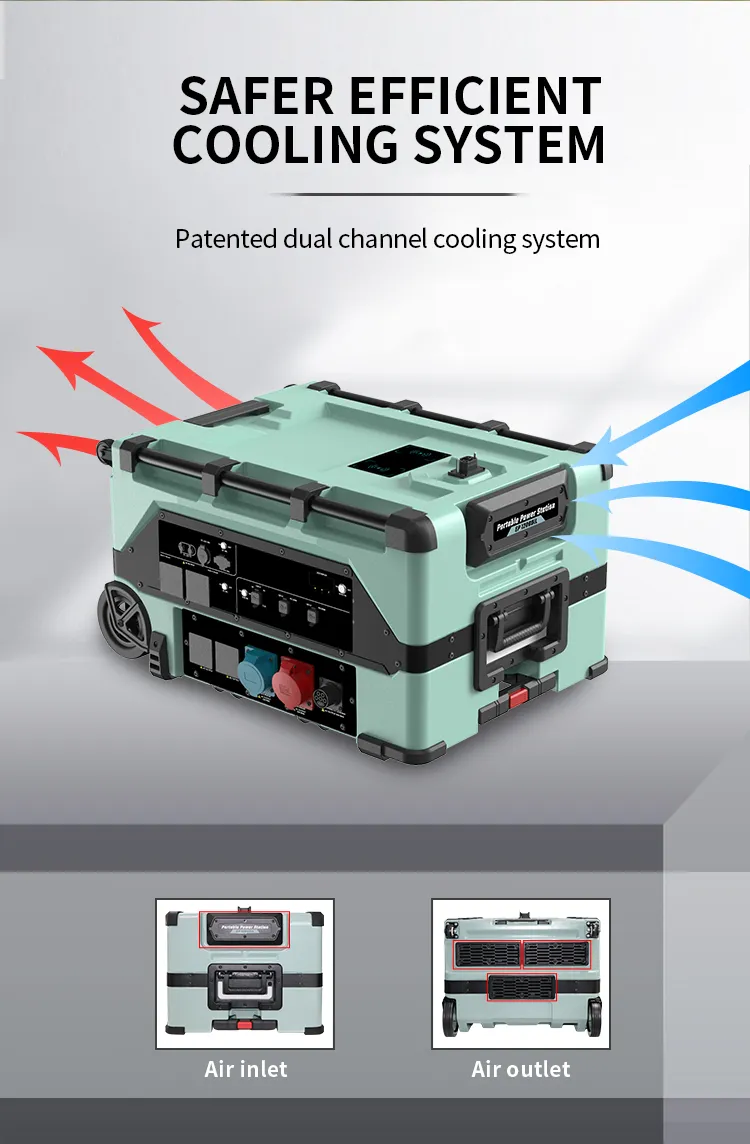

Patented dual channel cooling system.
V-0 level flame-retardant and fire-resistant casing.
Intelligent control and monitor by smartphone APP.
5 years warranty for better quality assurance.

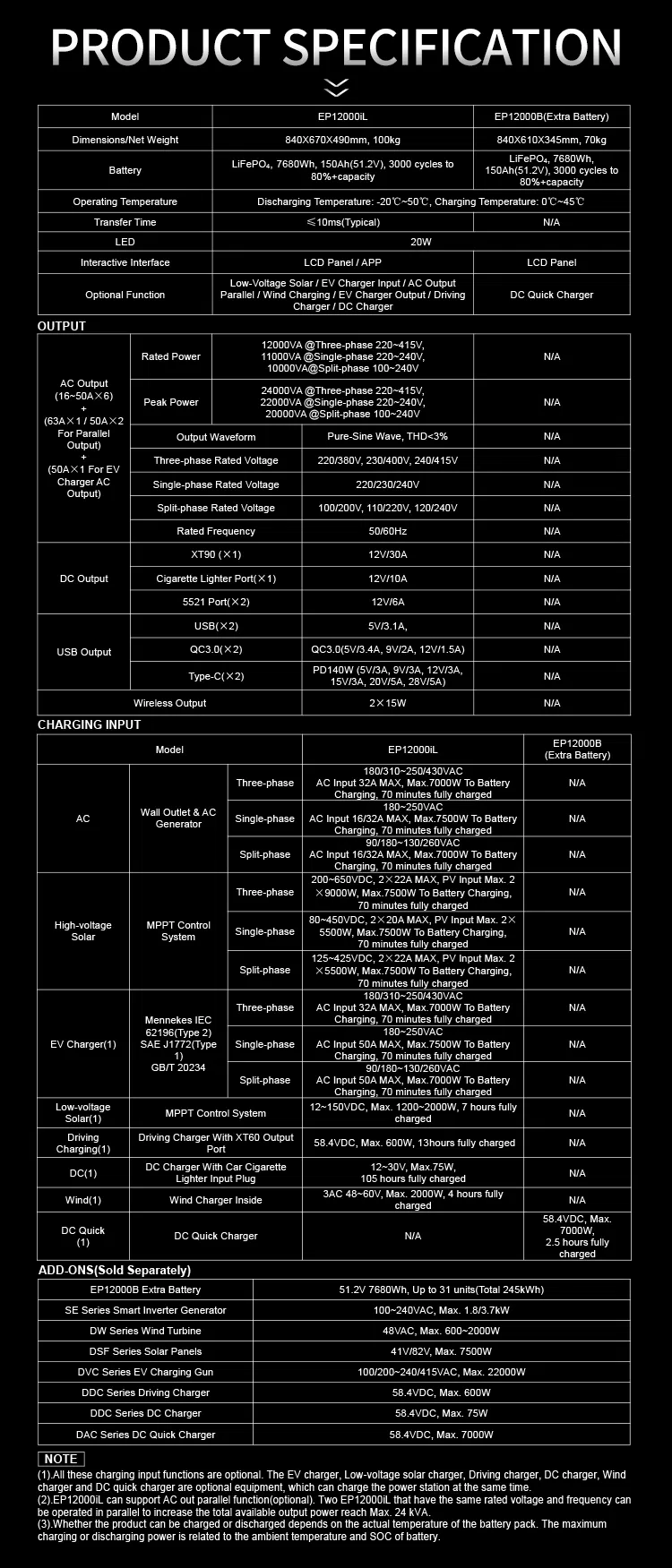

Specifications

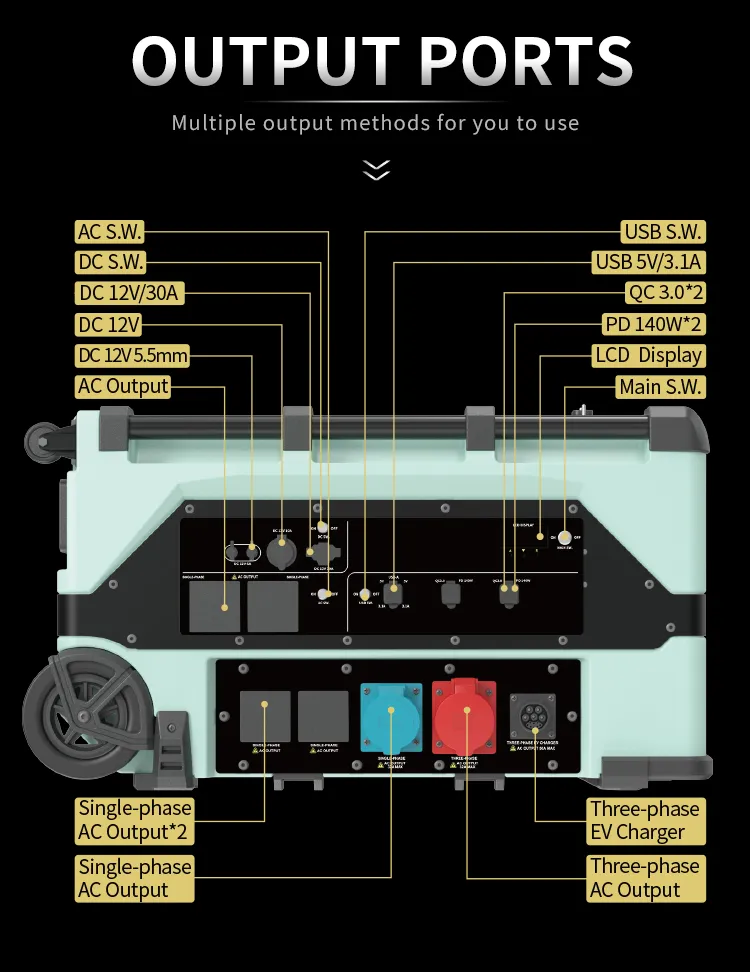

AC/DC Output Details

Output Type	Parameter	Value
AC Output	Rated Power	12000VA (Three-phase) / 11000VA (Single)
AC Output	Peak Power	24000VA (Three-phase) / 22000VA (Single)

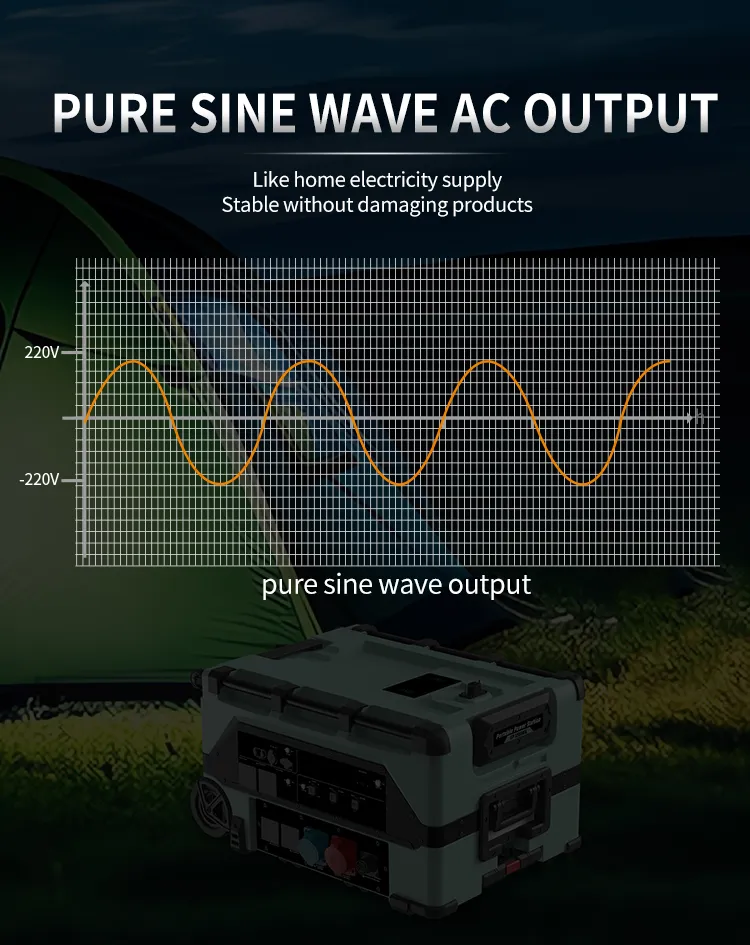

Waveform	Output Wave	Pure-Sine Wave, THD < 3%
DC Output	Ports	XT90 (12V/30A), Cigarette (12V/10A), 5521 (12V/6A)
USB Output	Ports	USB 3.1A, QC3.0, Type-C PD 140W

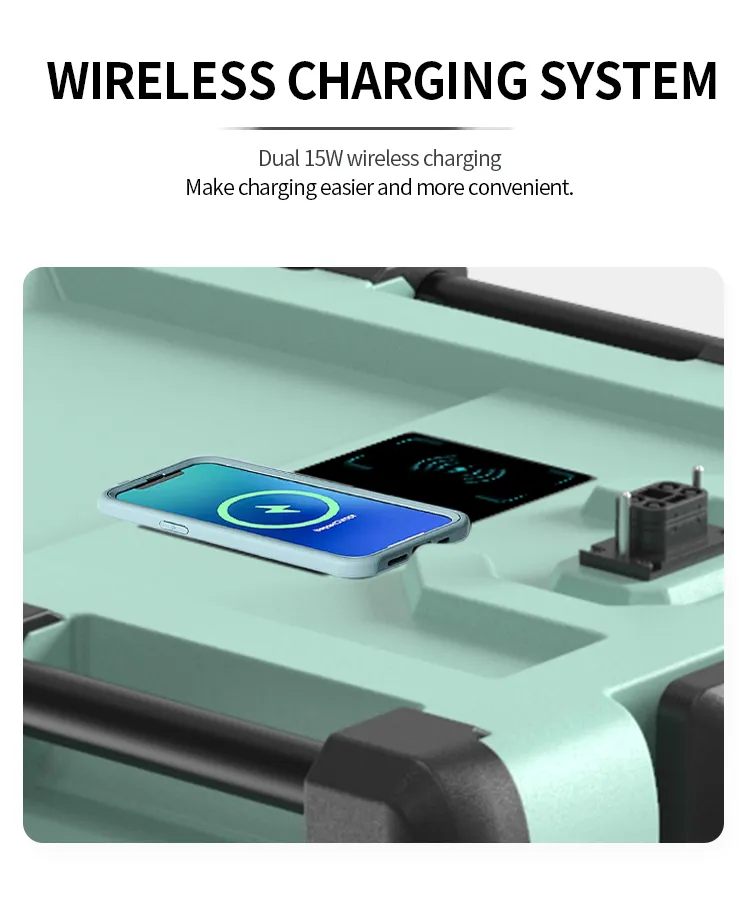

Wireless	Charging	2 × 15W

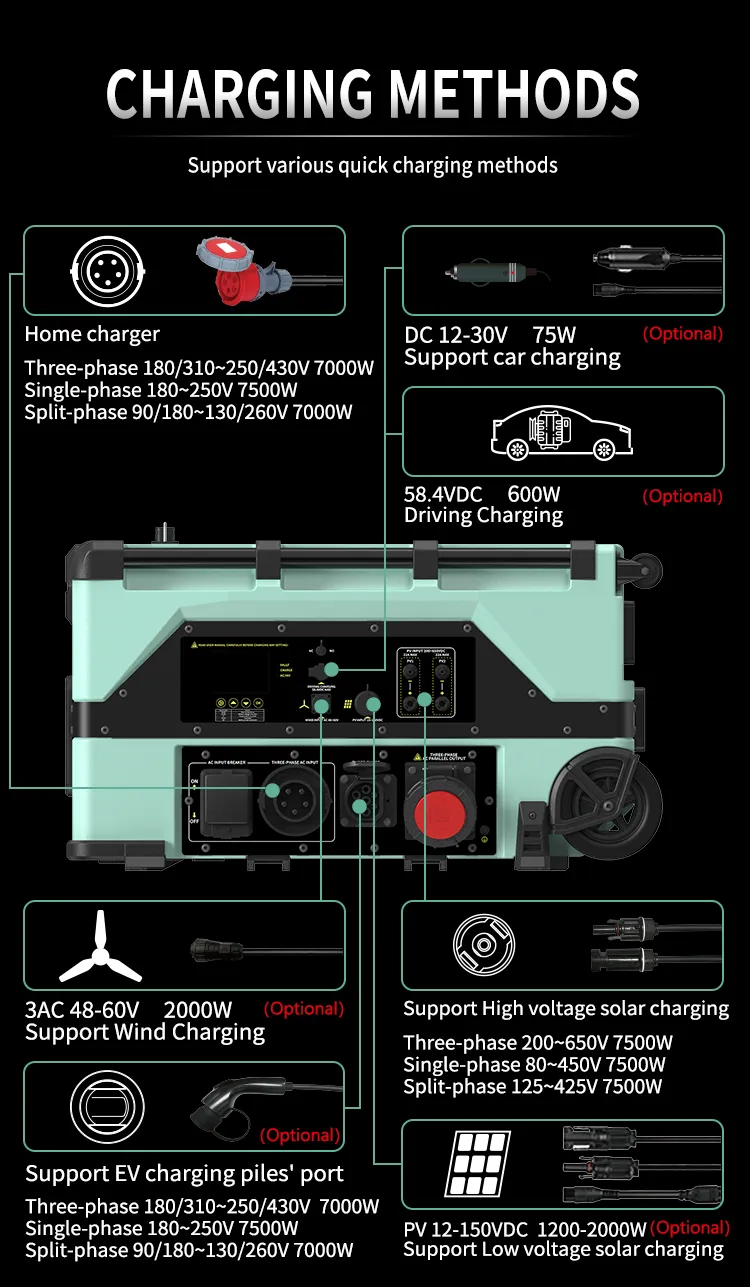

Charging Input

Method	System	Max Input / Time

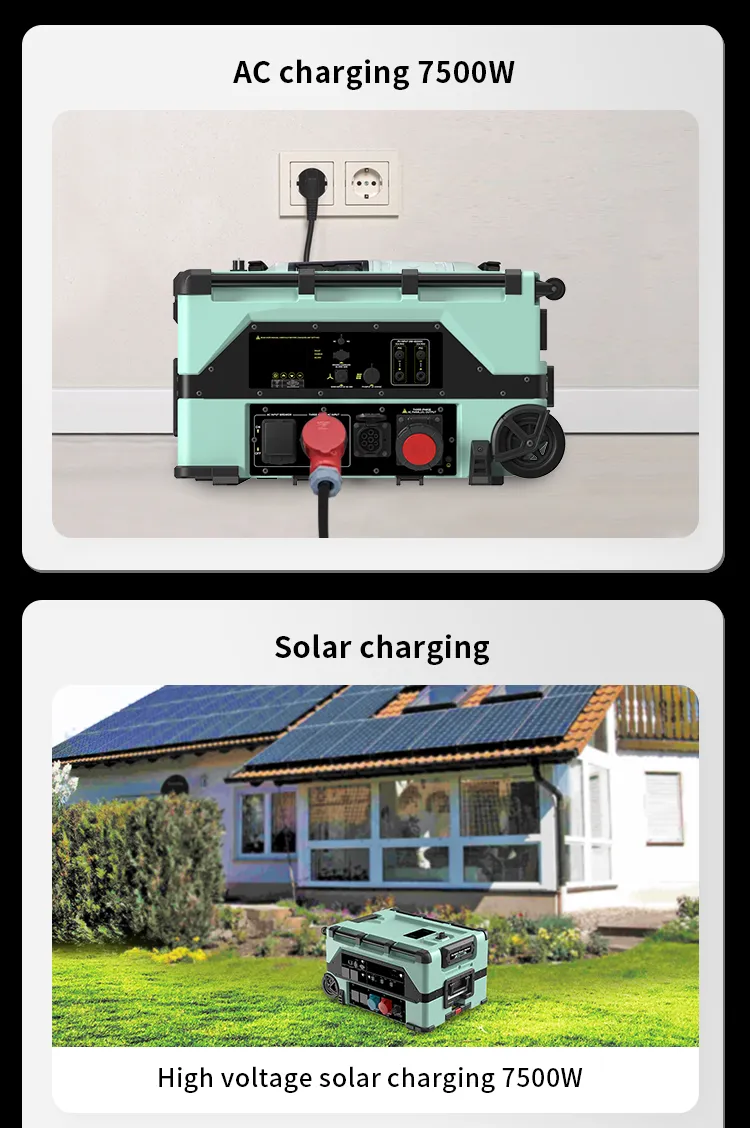

AC Wall/Generator	Three-phase/Single	Max 7500W / 70 mins full charge

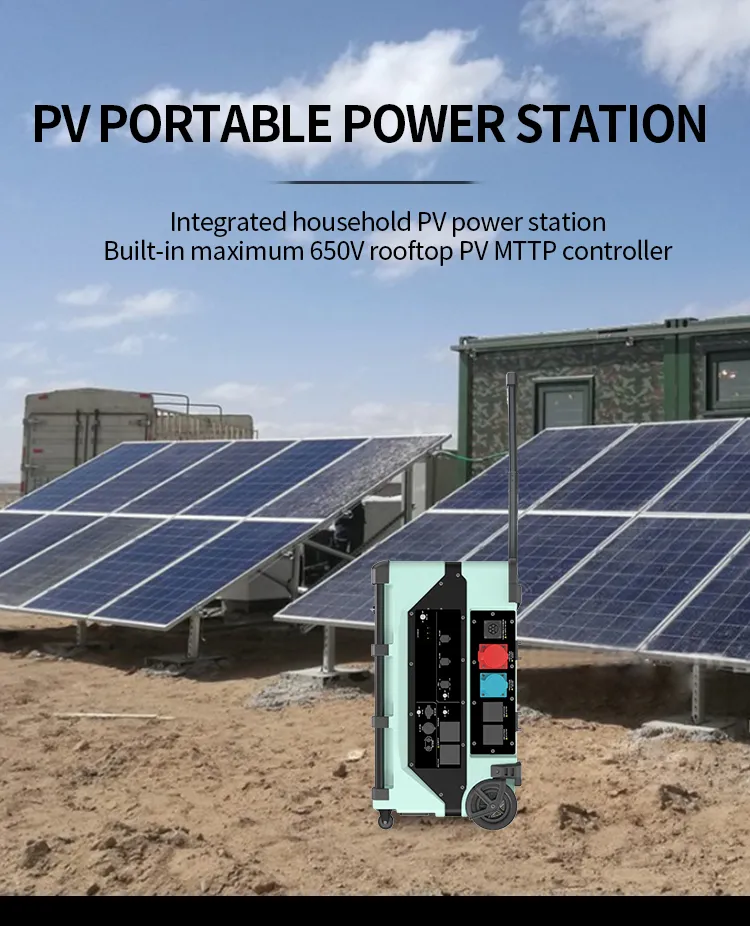

High-Voltage Solar	MPPT Control	Max 7500W / 70 mins full charge

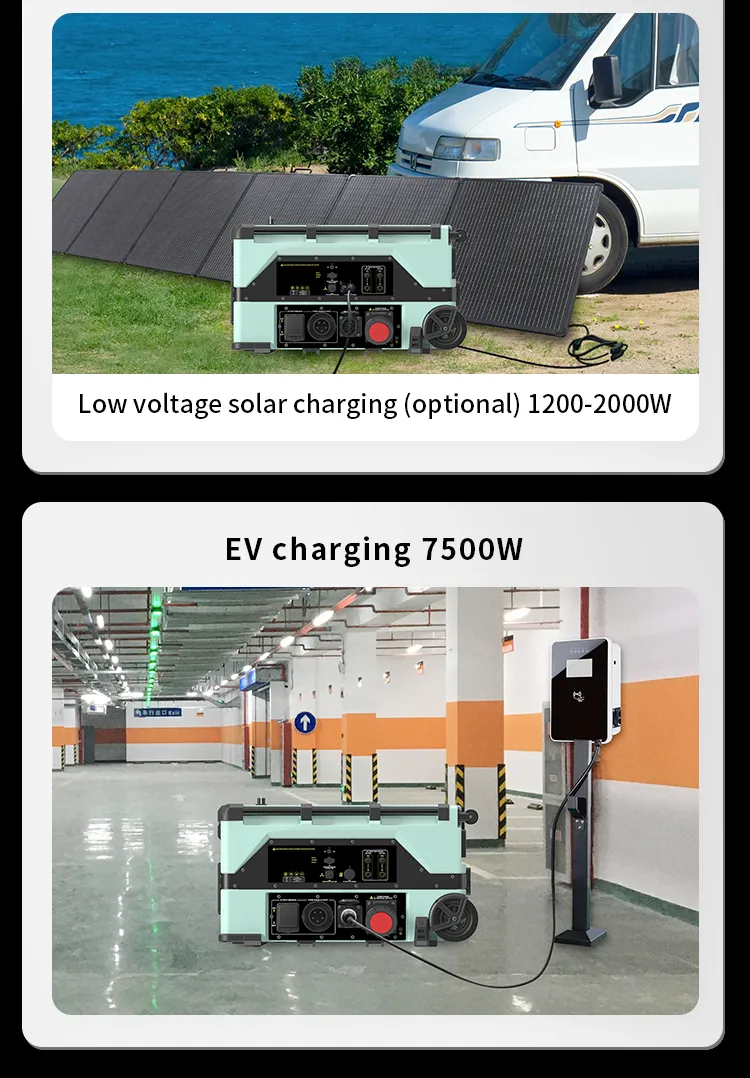

Low-Voltage Solar	MPPT Control	1200-2000W / 7 hours full charge
Wind Charging	Wind Charger	2000W / 4 hours full charge

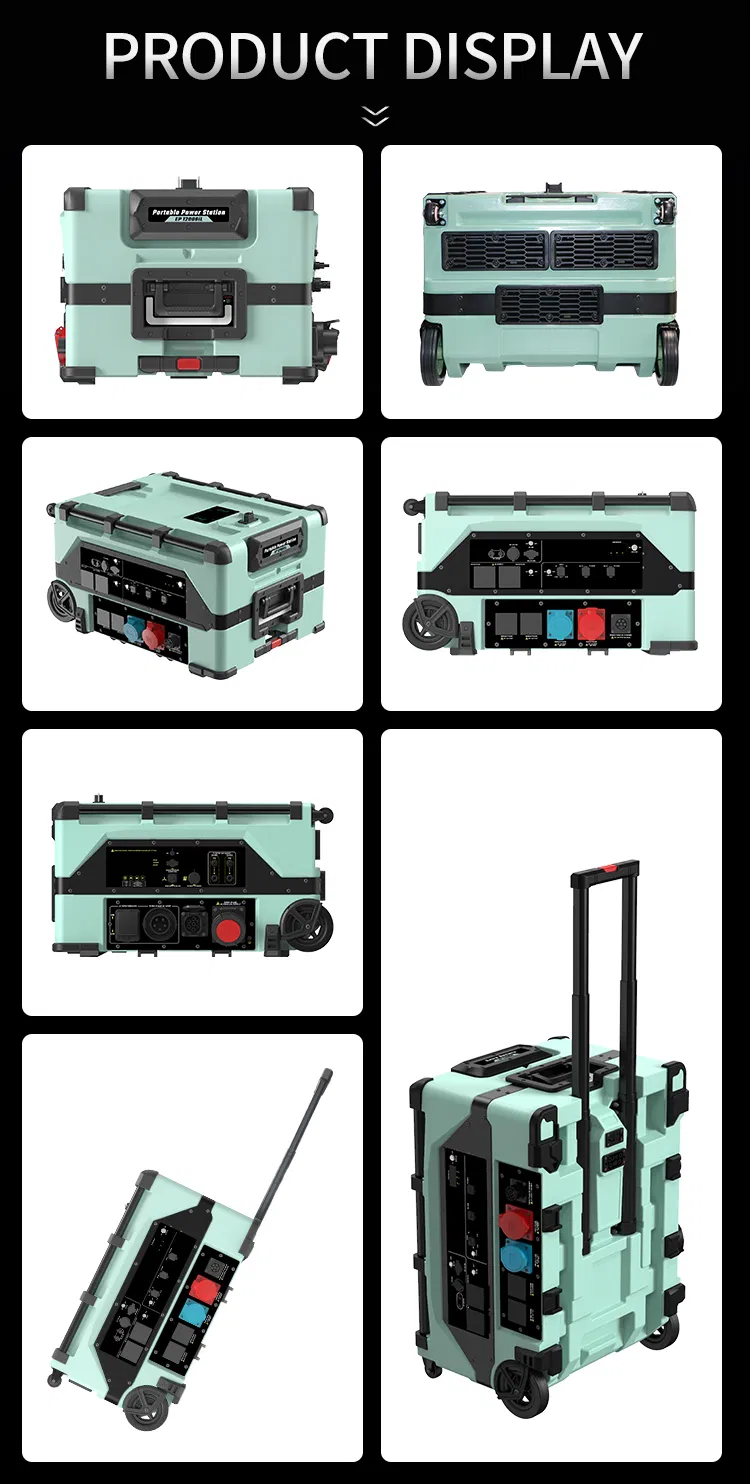

Detailed Photos

Frequently Asked Questions

1. What is the battery capacity and expansion capability?

The system features a built-in 7680Wh LiFePO4 battery. It is highly expandable, allowing up to 31 extra battery units to be connected for a total capacity of 245kWh.

2. How fast can the system be fully charged?

With high-power AC or solar input, the system supports super-fast charging, achieving a full charge in as little as 70 minutes.

3. Does it support three-phase power output?

Yes, the system supports continuous output of 12kW AC three-phase power, as well as single-phase (11kW) and split-phase (10kW) configurations.

4. What are the environmental protection ratings?

The main unit has an IP53 protection grade, while the battery packs are rated at IP66, ensuring durability in various environments.

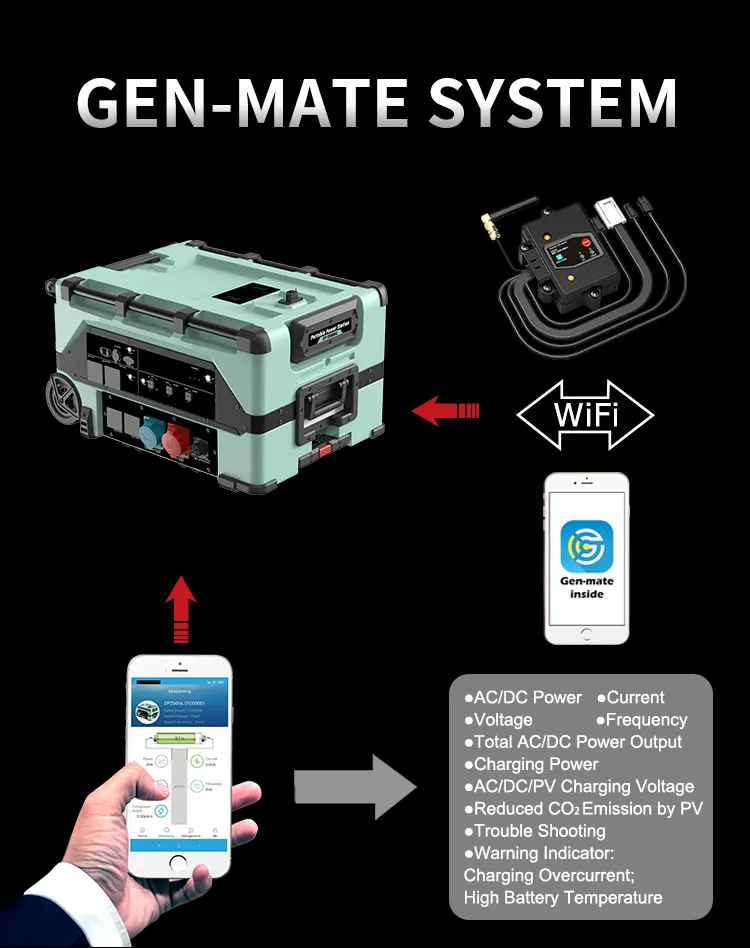

5. Can I monitor the system remotely?

Yes, the system includes an intelligent control and monitoring system accessible via a dedicated smartphone APP.

6. What is the warranty period for this system?

This energy storage system comes with a 5-year warranty, reflecting its high quality and reliability.
