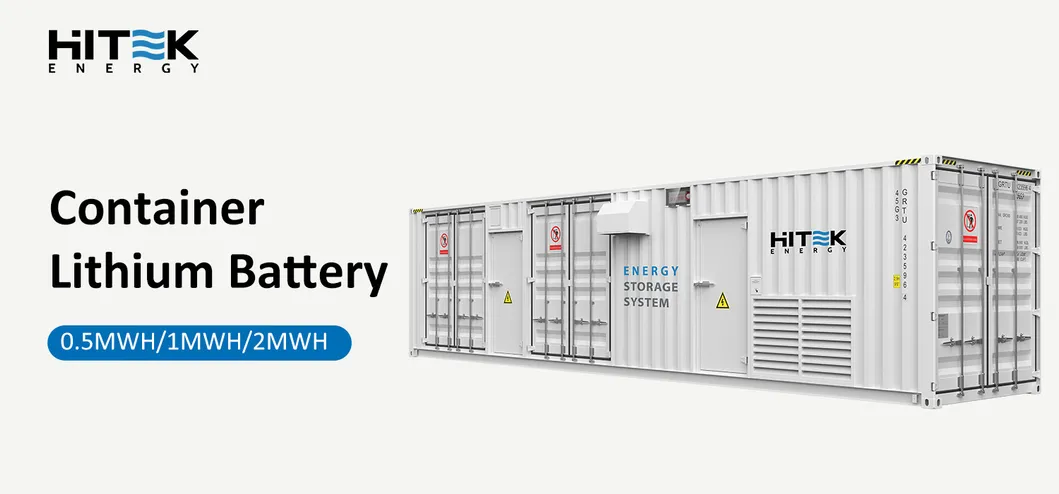

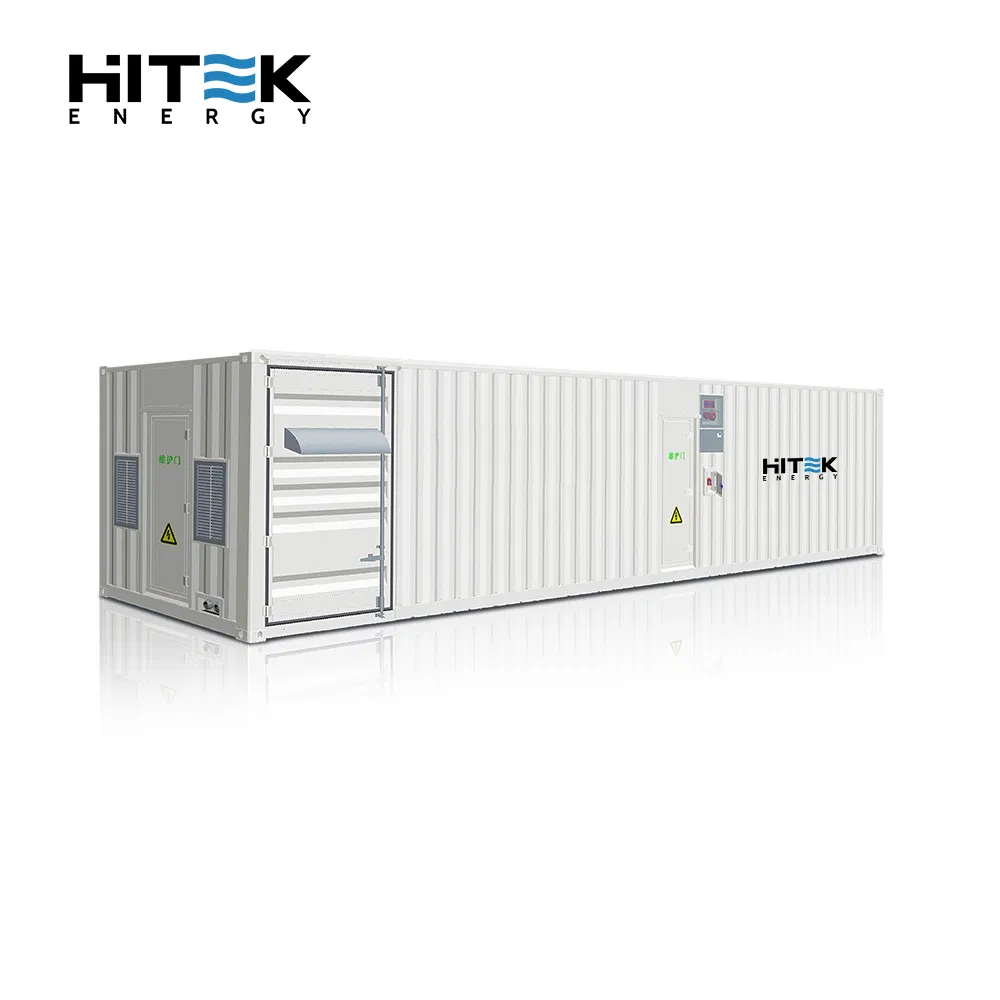

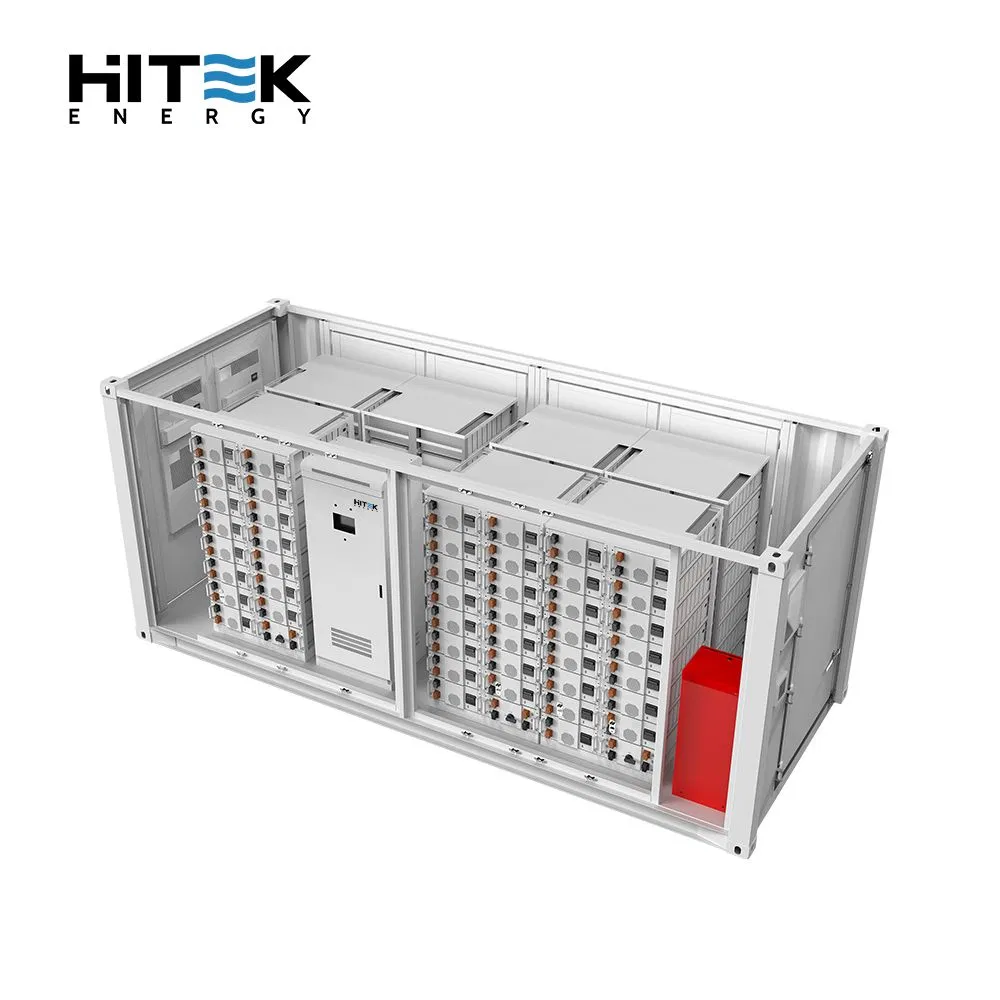

Hitek Energy 15years Lifespan 40FT Ess Battery Container 3mwh 2mwh 1mwh for EV Charging with 500kw 1MW Solar Distributed Energy Storage Container System

Customization:	Available
Container Size:	12192mm(L)2438mm( W)2591mm(H)
Weight:	22 Ton

Send Inquiry

Product Description

📊 Basic Information

Model NO.

HT-500/2000-EC

Nominal Voltage

380/400/415/480V 3 Phase

Warranty

5 Years

Nominal Capacity

250kwh, 500kwh, 1mwh, 2mwh

Cycle Life

6000+ Cycles

System Application

ESS Solar Storage Container

Battery Type

LiFePO4 / Lithium Battery

BMS

Integrated Battery Management System

Output Frequency

50/60Hz

Container Type

20FT/40FT Outdoor Installation, IP54

📝 Product Description

Key Features of Energy Storage System

1. Working Mode: On-grid mode (Zero Export, Load First, Battery First, Economy Mode, Peak Shaving); Off-grid Mode; Generator Connection (Optional).

2. BMS Features: Battery status monitoring (Record & Storage, Operation Control, Insulation Detection, Dynamic Balancing Management, Protection Alarms, Communication).

3. PCS Features: Wide Range of DC Input Voltage, Indoor/Outdoor Installation, Short Conversion Time of full Power from Charge to Discharge etc.

4. Safety: Integrated Fire Protection System and Air Conditioning System for thermal management.

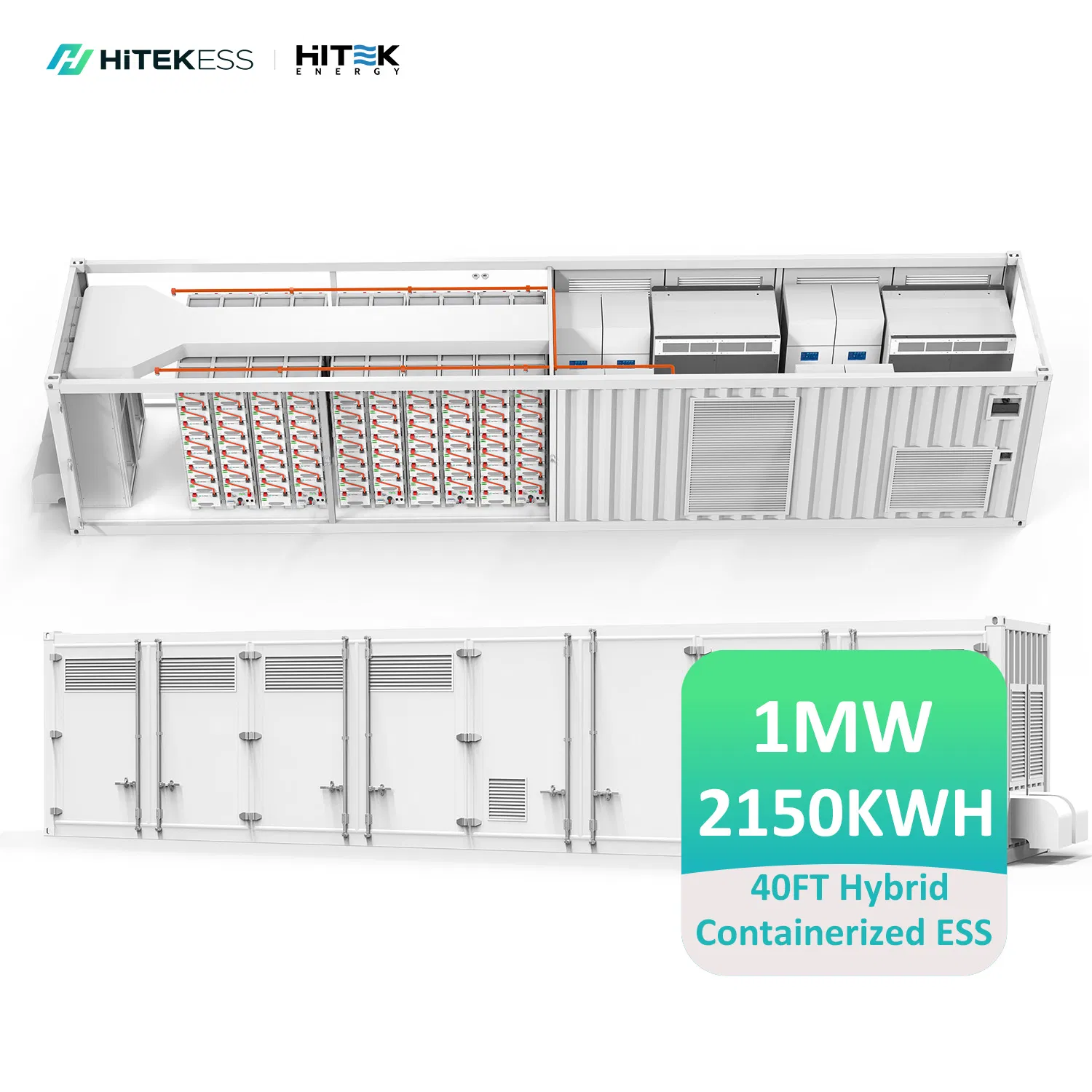

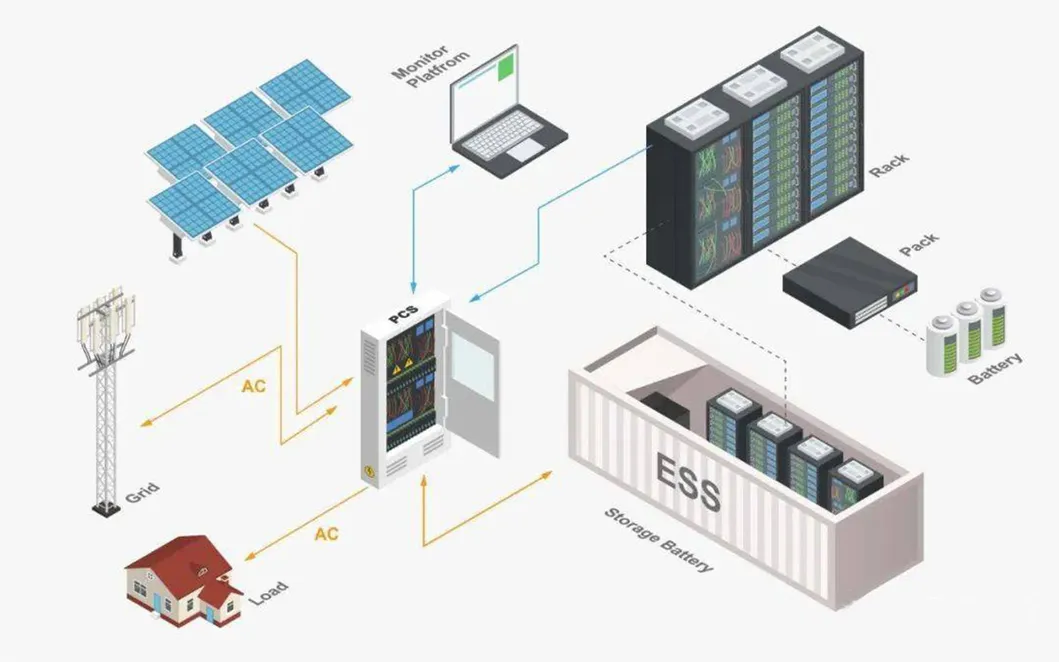

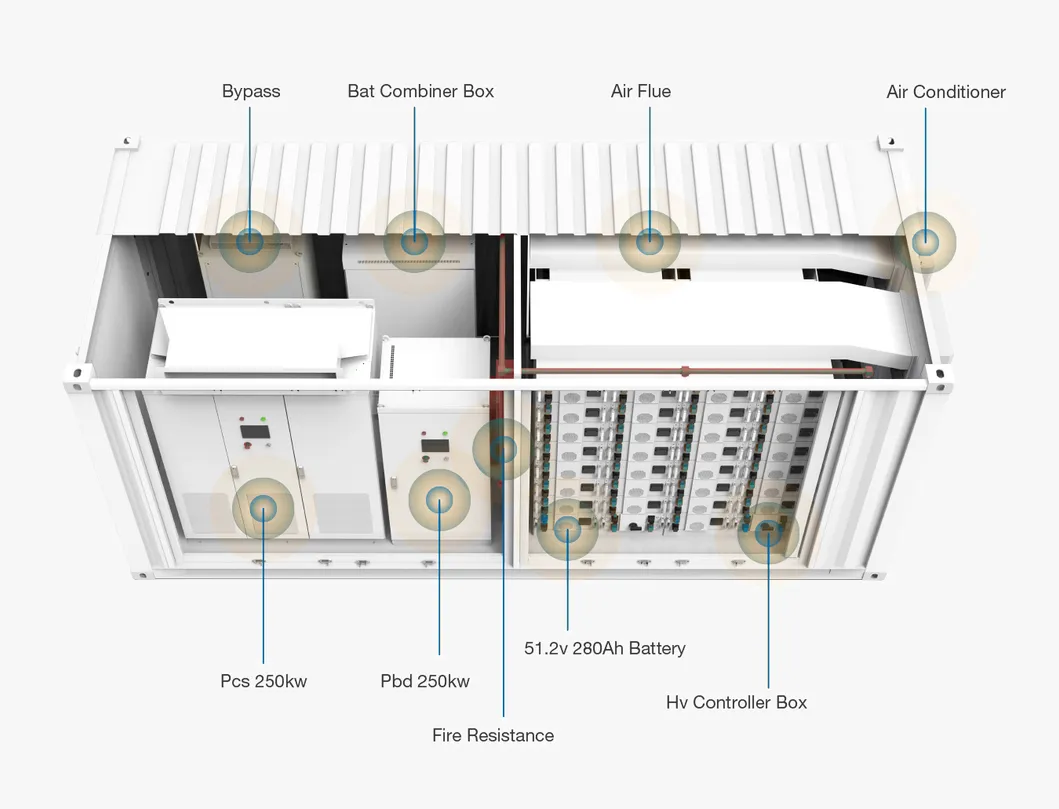

⚙️ System Configuration

Item	Description	Quantity	Remarks
PV Solar Panel	HT560M-72H	960	Total of 537.6KW
Combiner Box	1500V-1500A	1	For combination of multiple battery racks

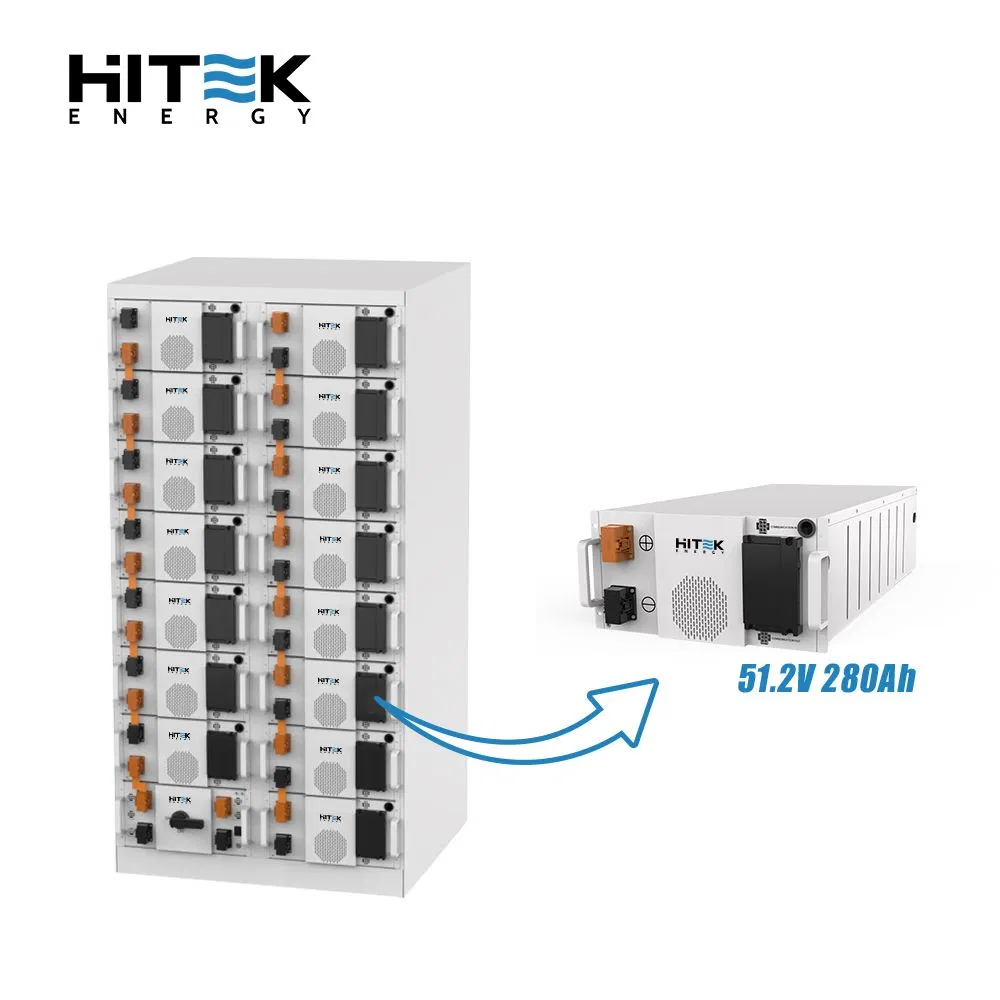

Lithium Battery Module	280Ah Module	150	51.2V 280AH Capacity 14.3kWh
PCS500	Battery Inverter	1	250kW battery inverter
Container	20FT/40FT	1	IP54, including lighting, fire-resistance, AC

Note: This system is customizable. Solutions can be configured according to specific energy requirements and site conditions.

📋 Product Parameters

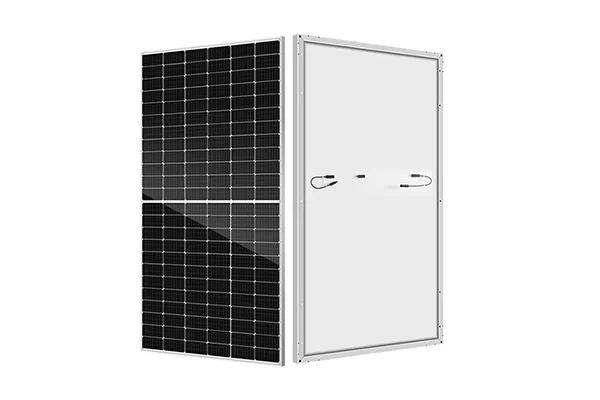

PERC Mono Solar Panel

Model: HT560M-72
Peak Power: 560Wp
Voc: 49.84V | Isc: 14.14A
Vmp: 41.08V | Imp: 13.64A
Dimensions: 2279*1134*35mm

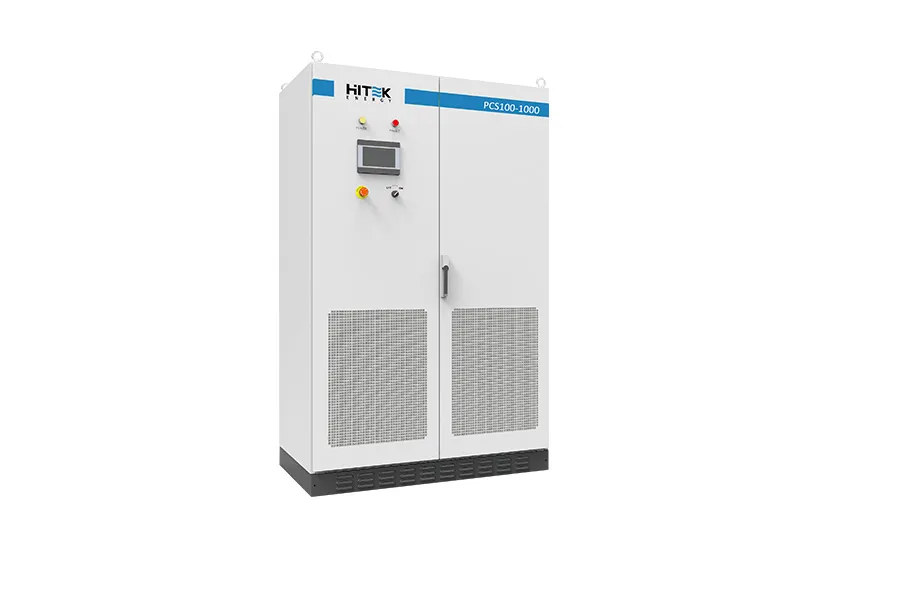

Bidirectional PCS (100-1000KW)

Bidirectional battery inverter, can be used alone or with solar chargers. Features include parallel capability, flexible configuration, programmable modes, and touchscreen LCD.

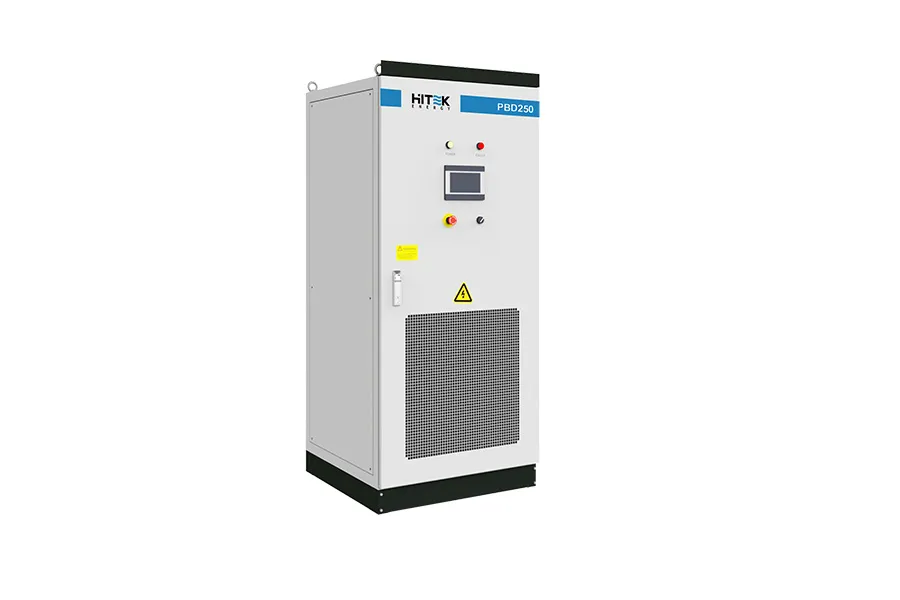

PBD 250KW Solar Controller

1000V DC to DC solar charge controller. Modular design with up to 5 MPPTs and transformerless architecture for large scale projects.

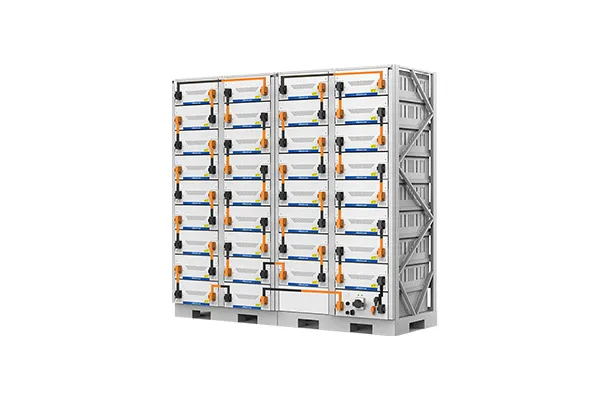

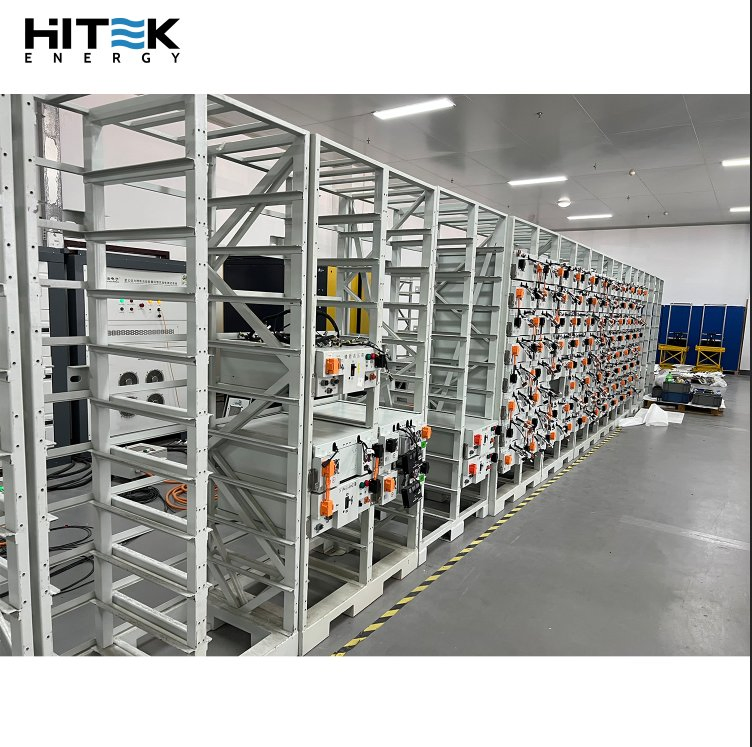

Storage Battery Bank

Consists of 150 single cells per standard module. Each unit provides 14.3kWh at 51.2V, reaching up to 1720kWh @ 80% DOD for the full system.

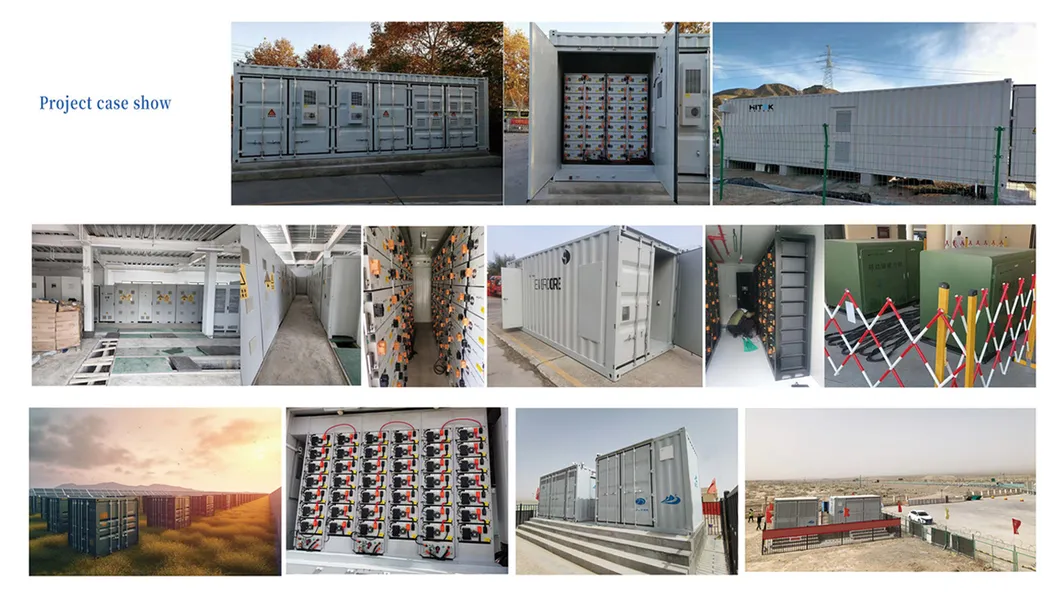

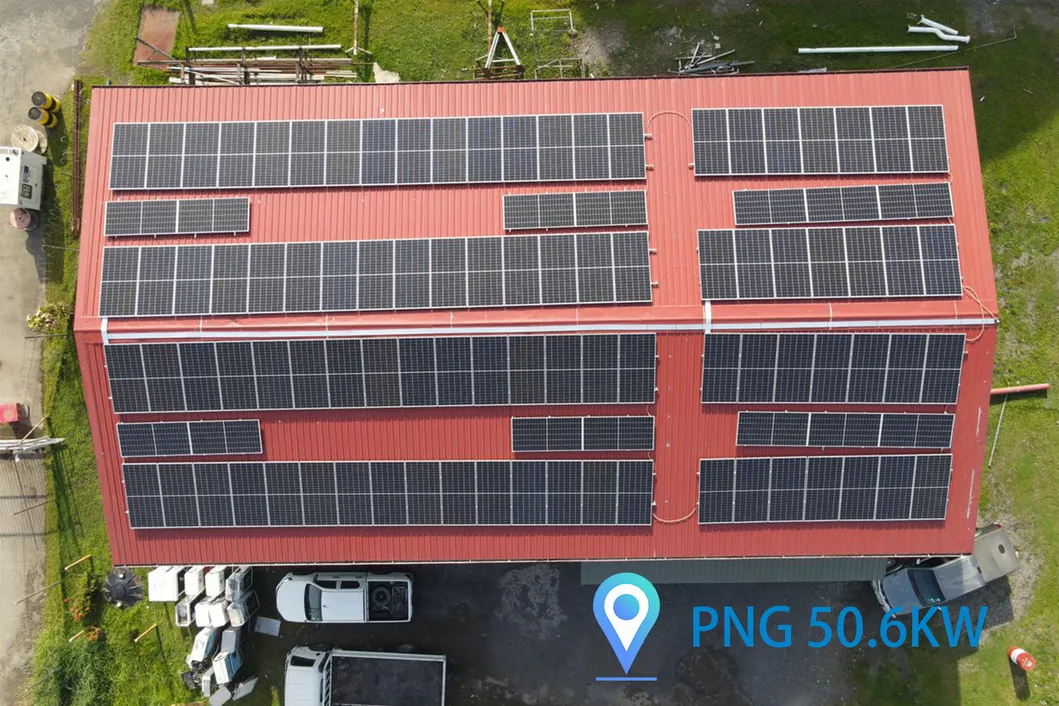

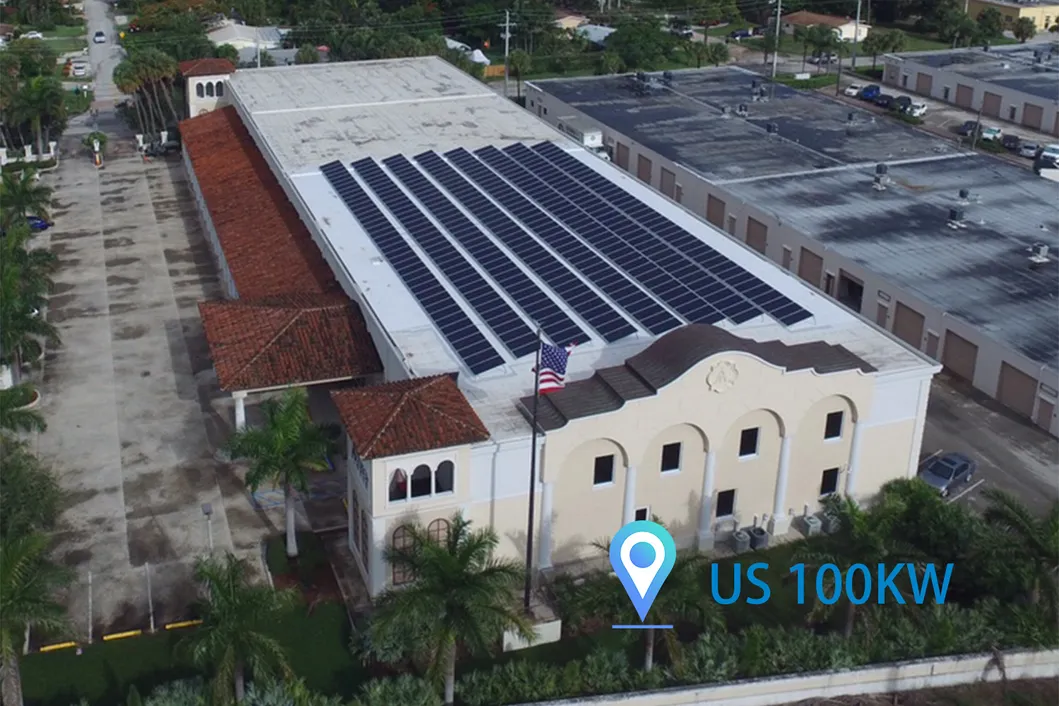

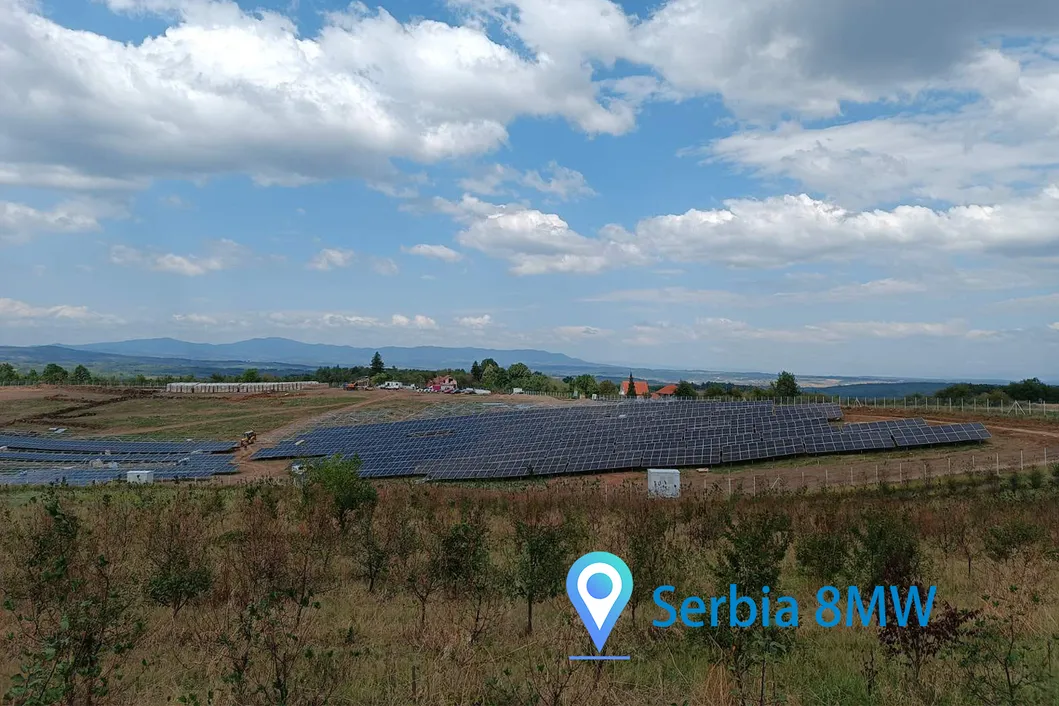

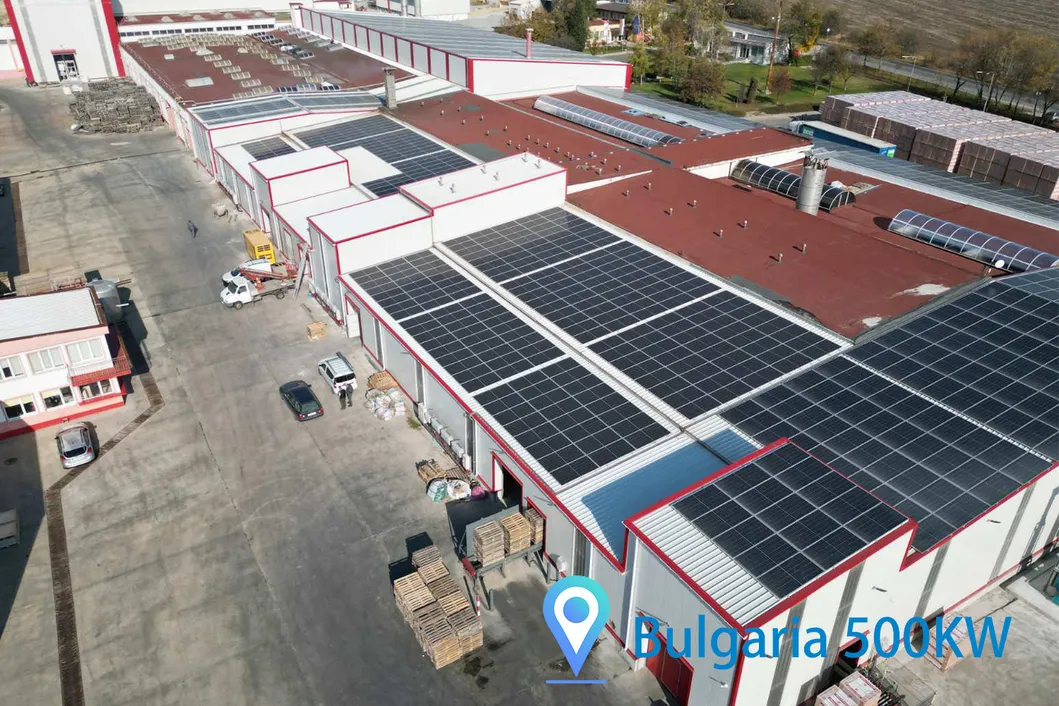

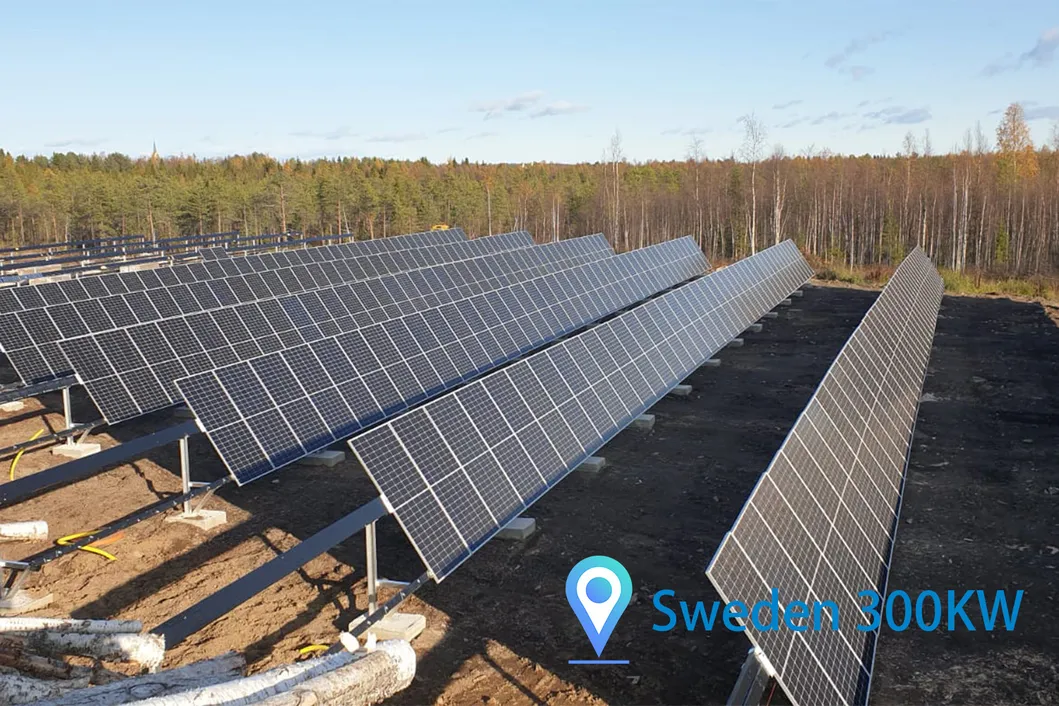

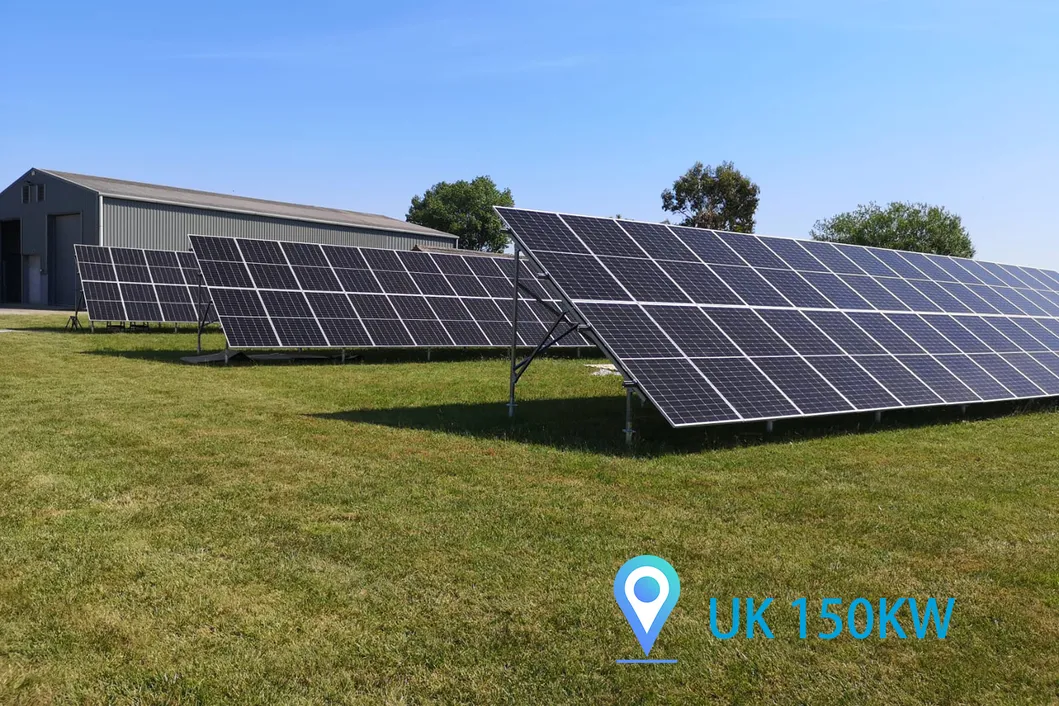

🌍 Global Projects

🏢 Profile & Advantages

Founded in 2018, we are a superior photovoltaic manufacturer dedicated to providing sustainable and renewable energy solutions for homes, businesses, and factories.

We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to unique power requirements with reliable approved equipment.

Let's work together for a better, brighter and greener future.

❓ Frequently Asked Questions

What is the expected lifespan of the battery system?

The system utilizes high-quality LiFePO4 cells with a cycle life of over 6000 cycles, typically providing a service life of 15 years or more depending on usage patterns.

Can the system operate in complete off-grid mode?

Yes, the system supports both On-grid and Off-grid modes. It can automatically switch to off-grid mode during power outages to ensure continuous power supply.

What safety features are integrated into the container?

Each container is equipped with an integrated Battery Management System (BMS), an automated fire protection system, and an industrial air conditioning system for optimal temperature control.

Is the system suitable for outdoor installation?

Absolutely. The system is housed in a 20FT or 40FT container with an IP54 protection rating, specifically designed for durable outdoor industrial and commercial applications.

What is the warranty period for this energy storage system?

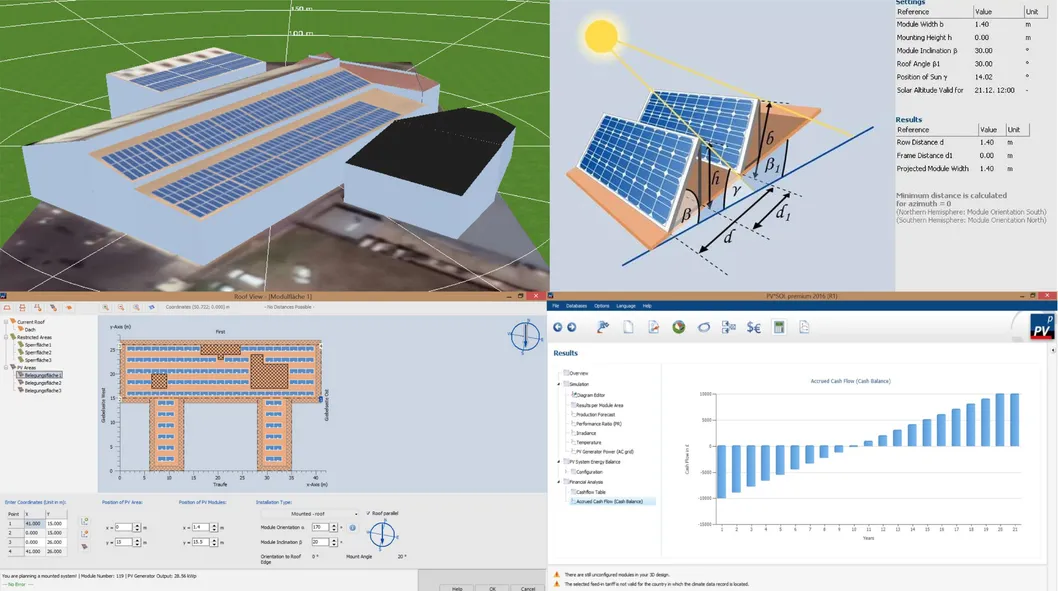

We provide a comprehensive 5-year warranty for the system, along with full technical support including pre-sales project design and installation guidance.

Can multiple units be connected in parallel?

Yes, the PCS and solar charge controllers are designed with modularity in mind, allowing multiple units to be paralleled to meet larger energy storage and power output requirements.
