High-Power 7680wh LiFePO4 Home Energy Storage System with Bidirectional Inverter

Customization:	Available
Weight:	100kg
Warranty:	5 Years

i

Basic Information

Model NO.

EP12000il

Cycle Life

3000

Nominal Capacity

7680wh

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kwh

Super Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

APP Function

Yes

Portability

Drawbar & Wheels

Specification

840X670X490mm, 110kg

★

Product Advantages

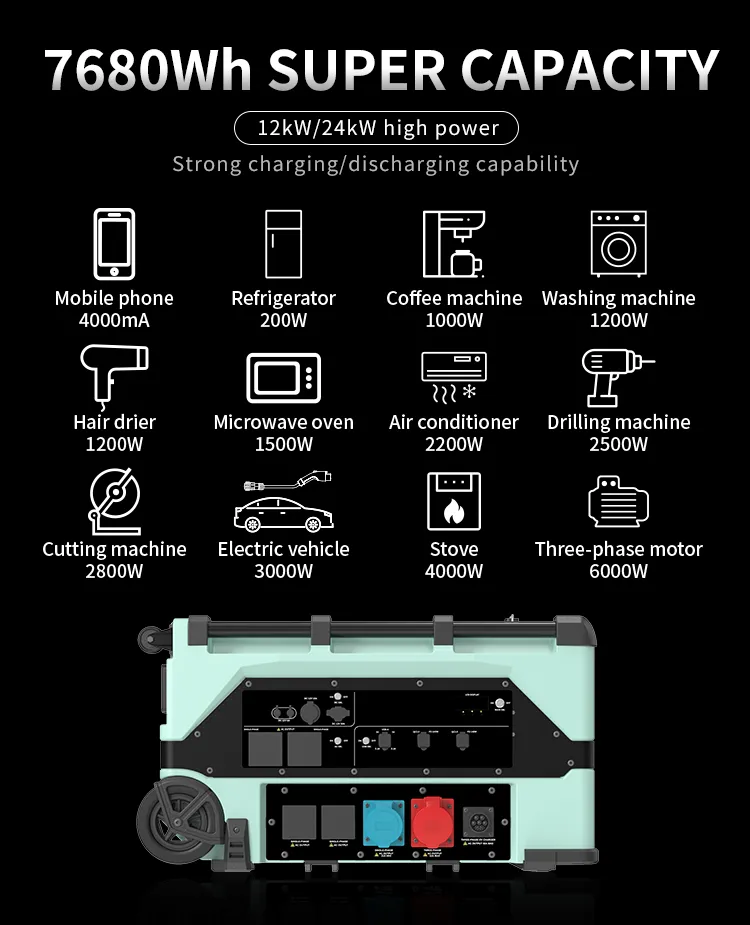

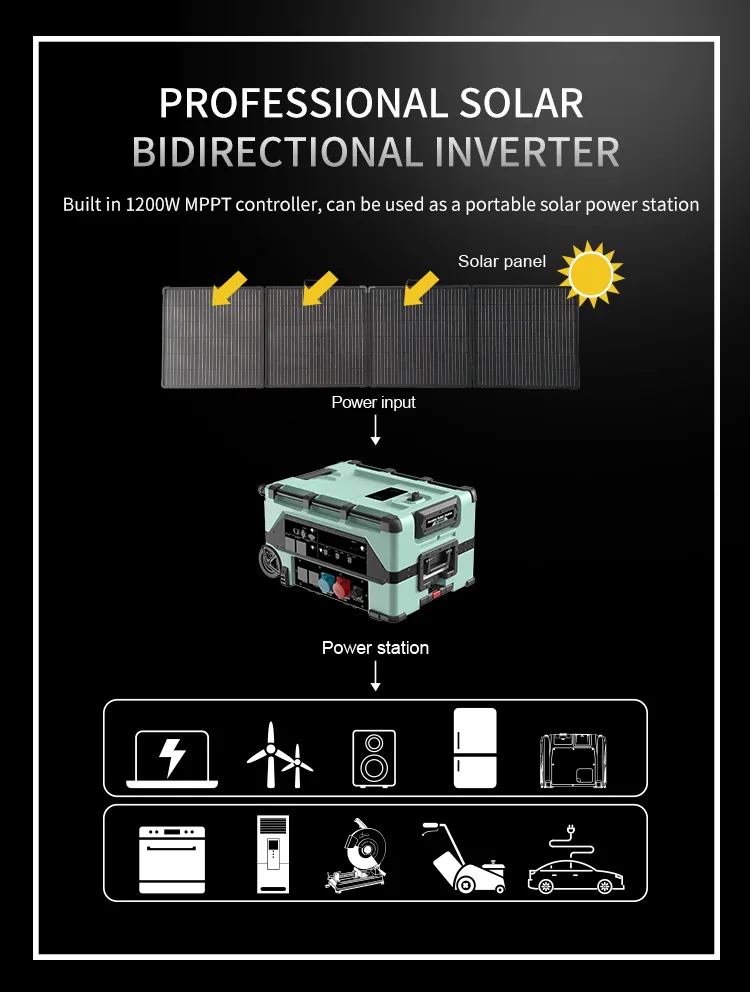

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.
Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

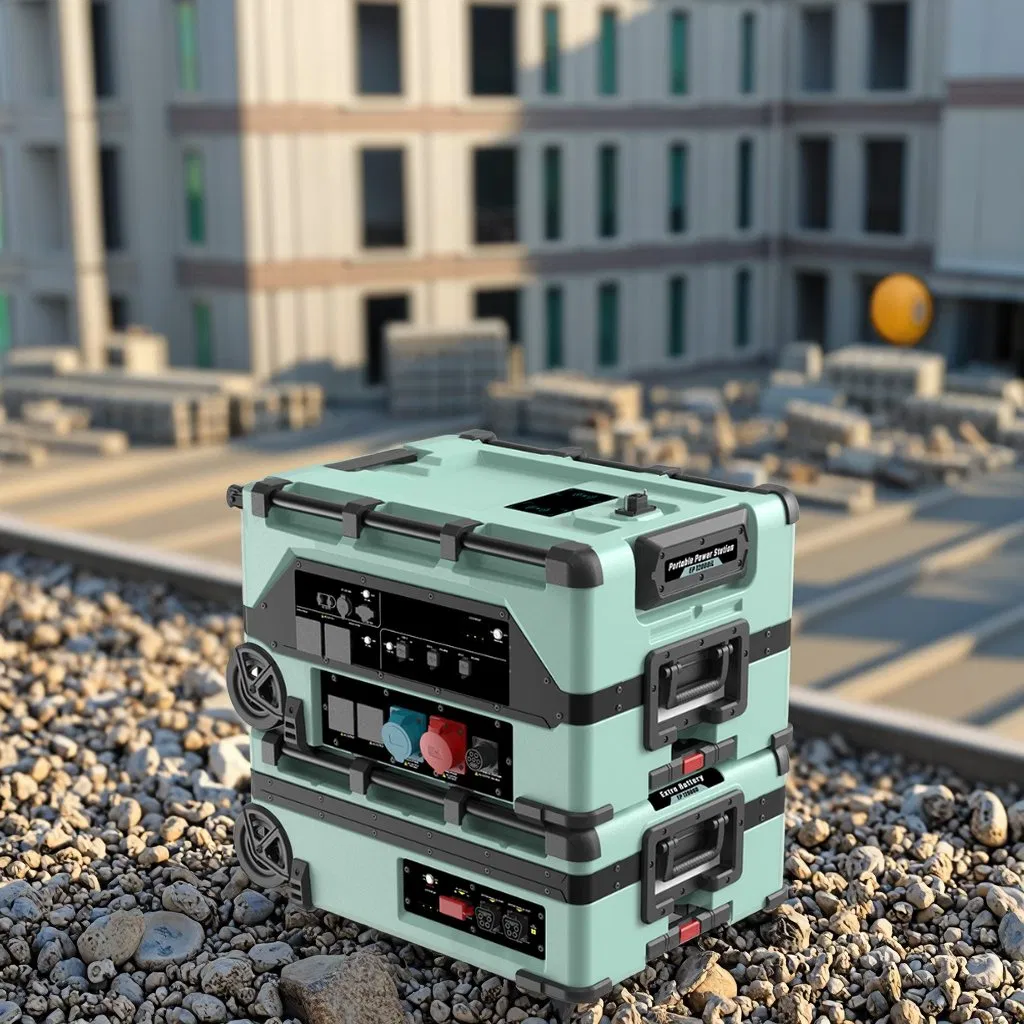

Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

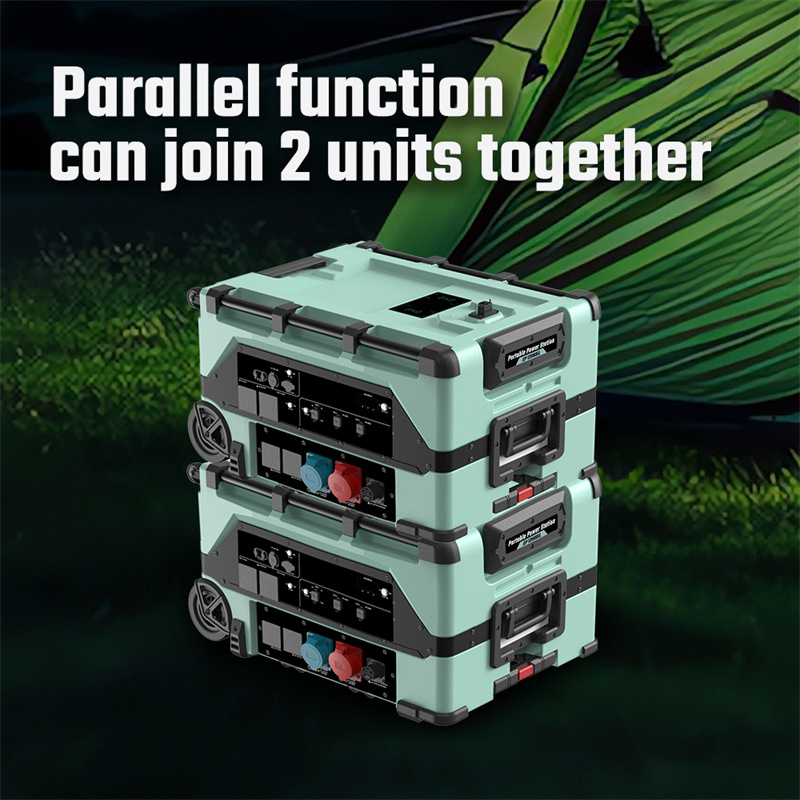

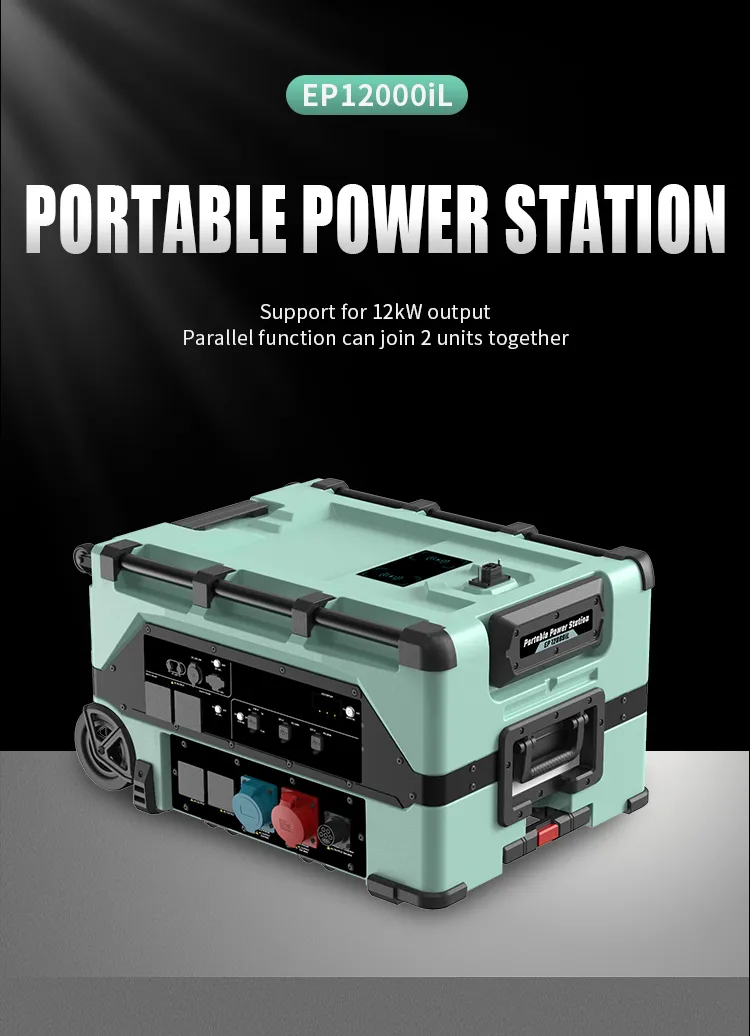

Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.
Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.
The four-wheel chassis and large-diameter wheel can be switched at any time, carrying without any burden.
Unit IP53 and Battery Pack IP66 protection grade.
Patented dual channel cooling system.
Integrated handles and anti-collision rubber pad in all directions.
V-0 level flame-retardant and fire-resistant casing.

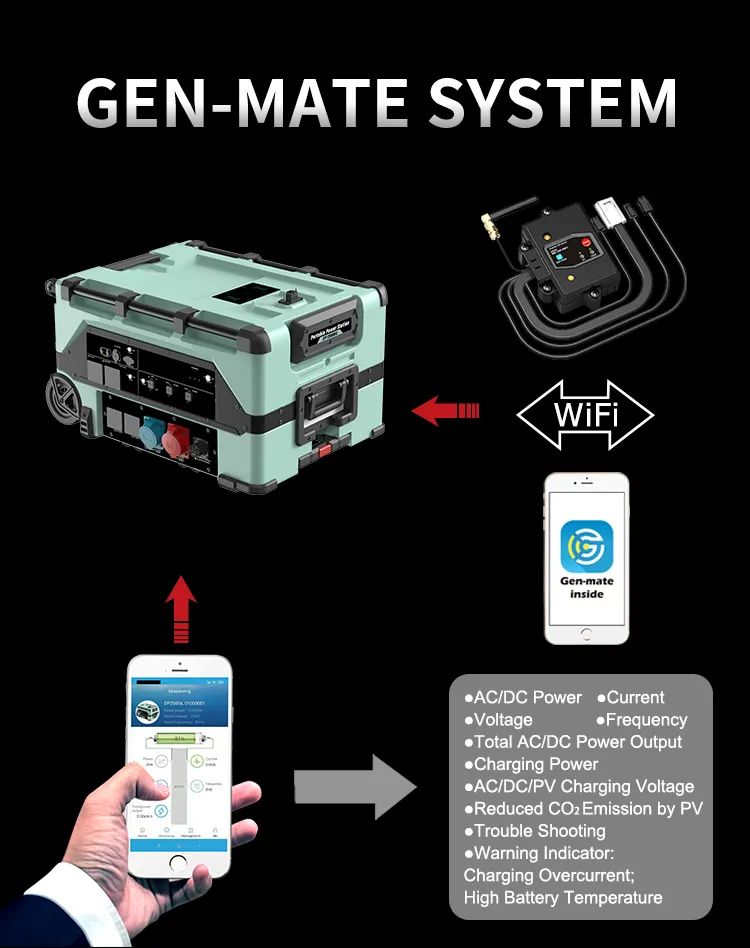

Intelligent control and monitor by smartphone APP.
Conformed to EU and US security certification.
Better quality with 5 years warranty.

⚙

Product Parameters

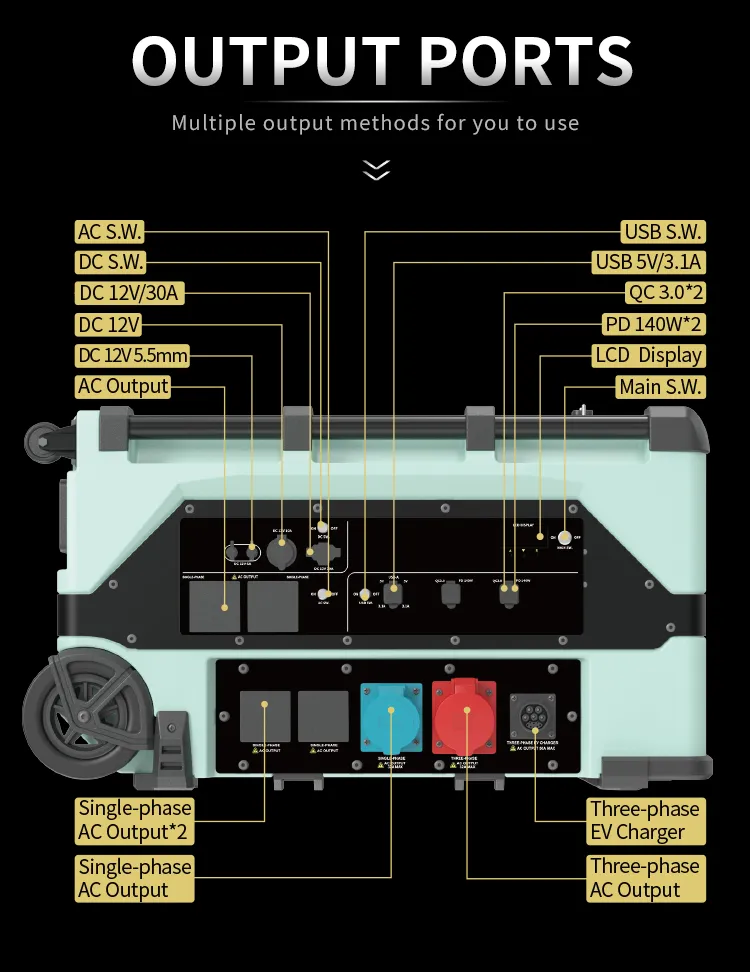

OUTPUT SPECIFICATIONS

Category	Parameter	Details
AC Output	Rated Power	12000VA (3-Phase) / 11000VA (1-Phase) / 10000VA (Split-Phase)
	Peak Power	24000VA (3-Phase) / 22000VA (1-Phase) / 20000VA (Split-Phase)

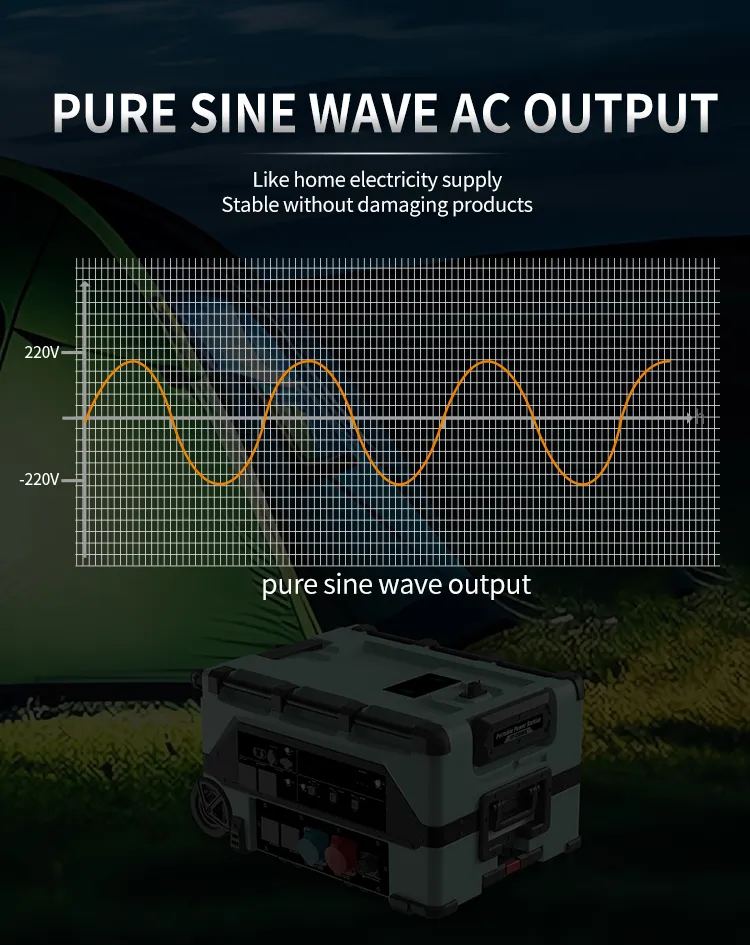

	Waveform	Pure-Sine Wave, THD < 3%
DC Output	XT90	12V / 30A
	Cigarette Lighter	12V / 10A
	USB Ports	USB 5V/3.1A, QC3.0, Type-C PD 140W

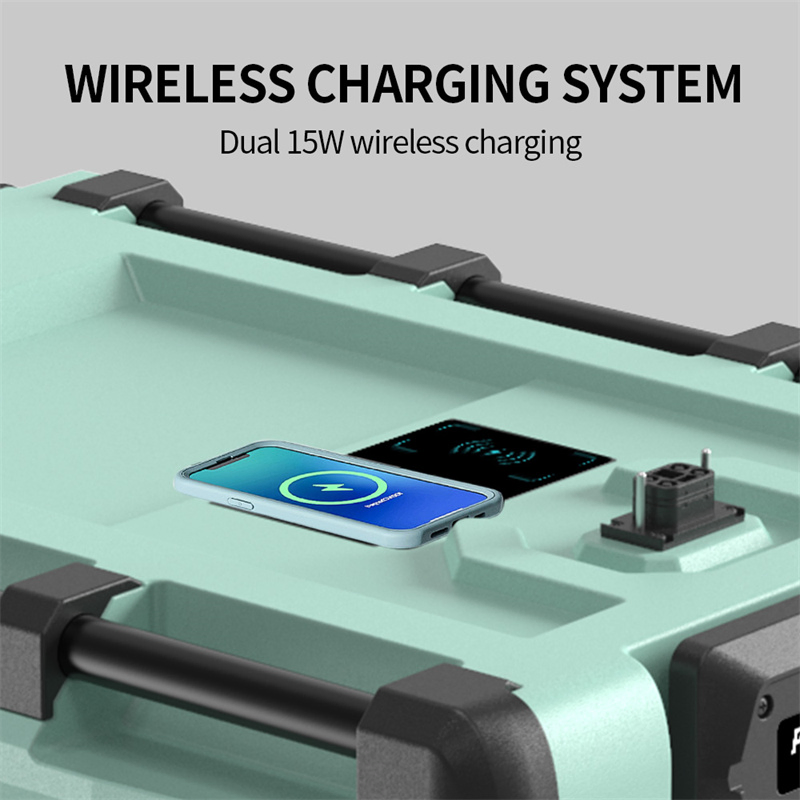

Wireless	Wireless Output	2 × 15W

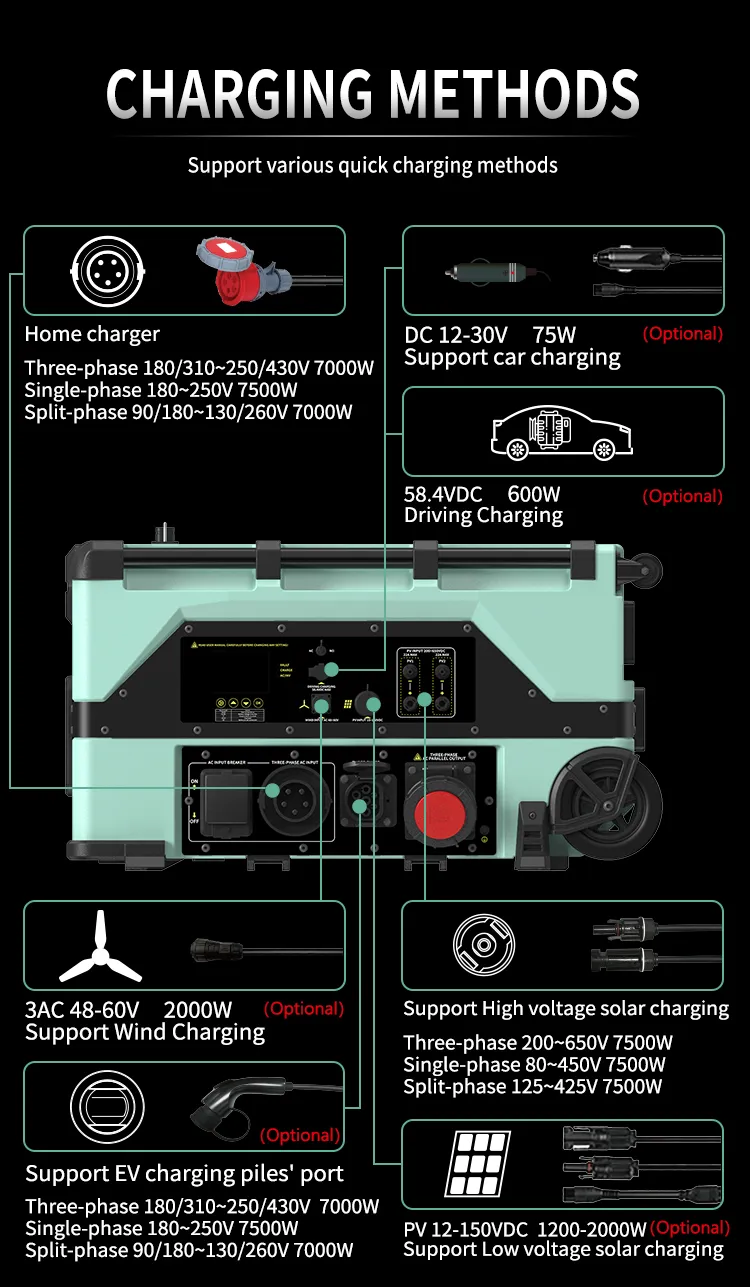

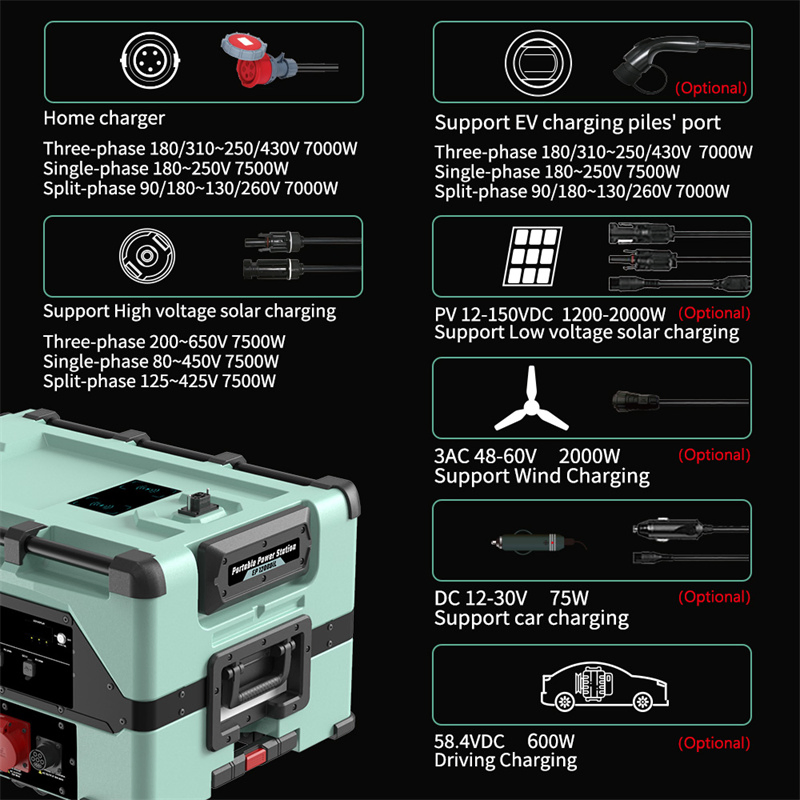

CHARGING INPUT

Method	Input Range	Charging Time

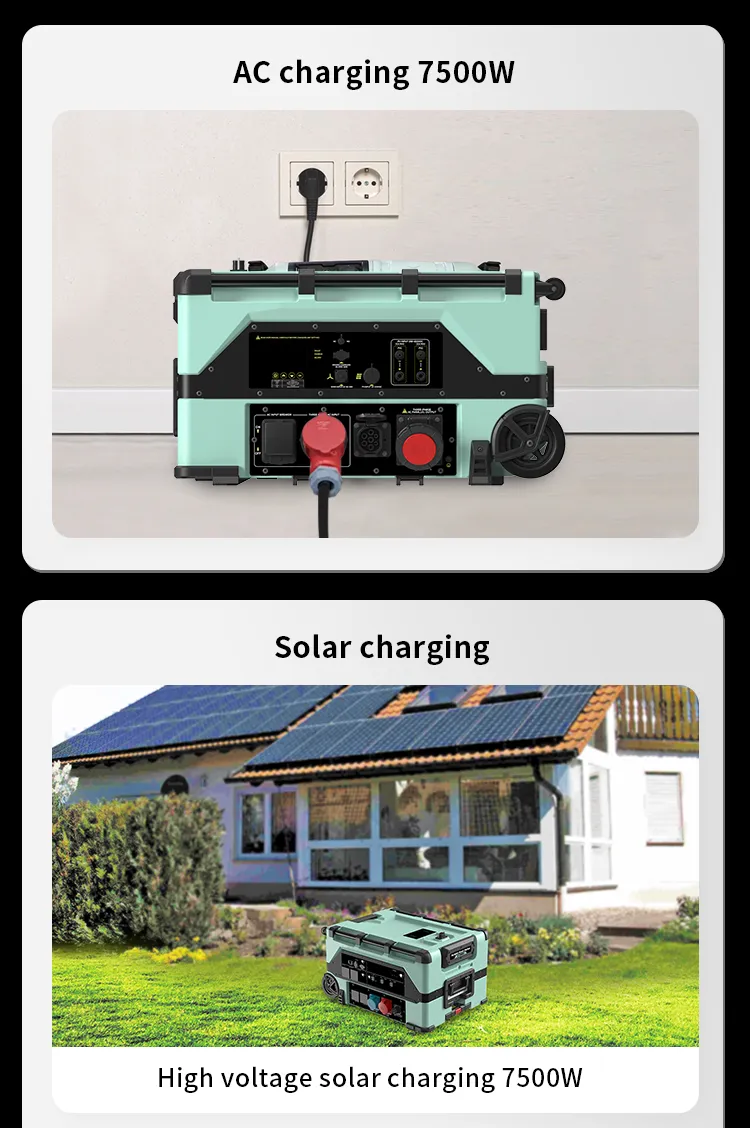

AC Wall/Generator	180~250VAC (Max 7500W)	70 Minutes
High-Voltage Solar	200~650VDC (Max 7500W)	70 Minutes

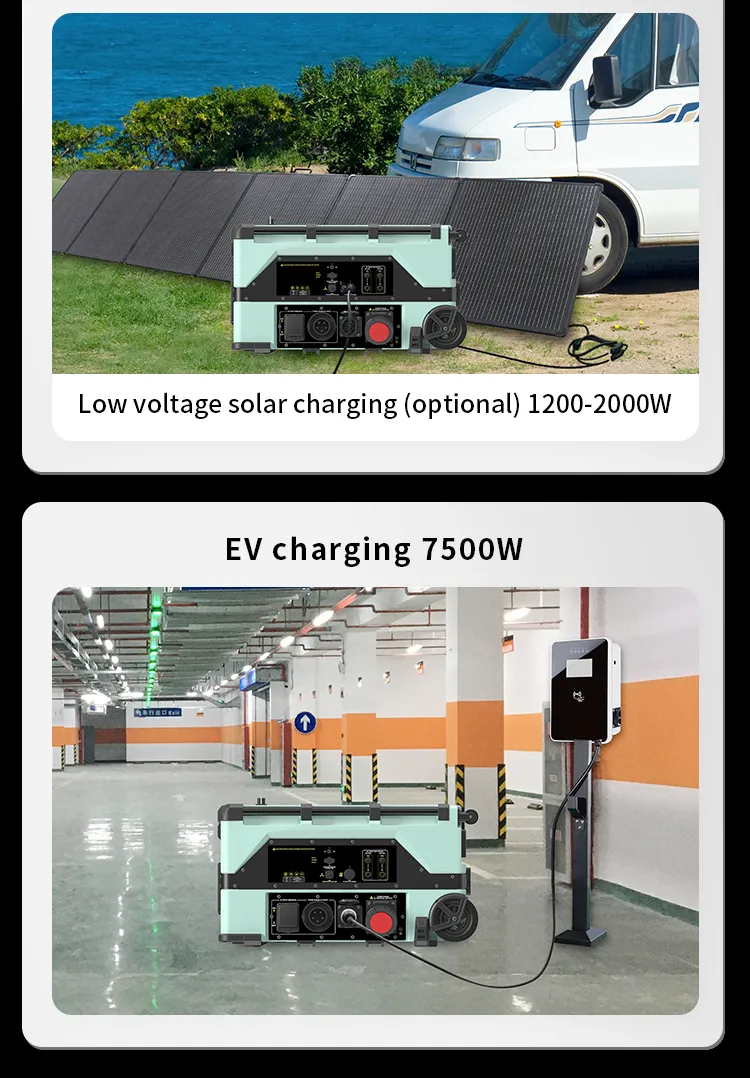

EV Charger	Type 1 / Type 2 / GB/T	70 Minutes
Wind Charging	3AC 48~60V (Max 2000W)	4 Hours

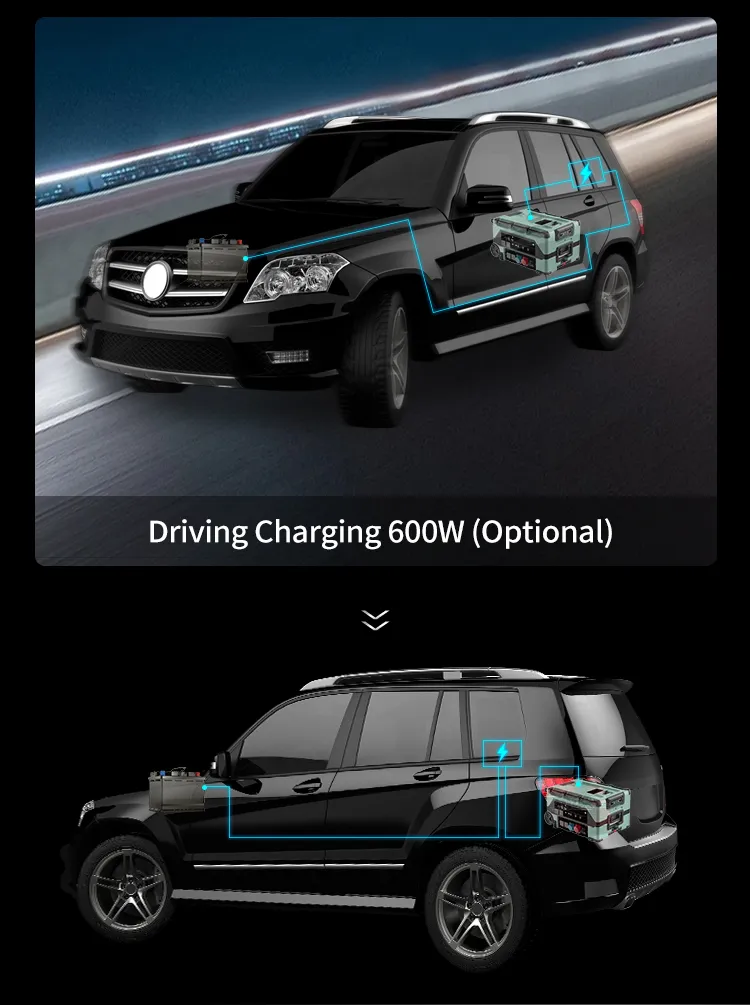

Driving Charging	58.4VDC (Max 600W)	13 Hours

📷

Detailed Photos

🏢

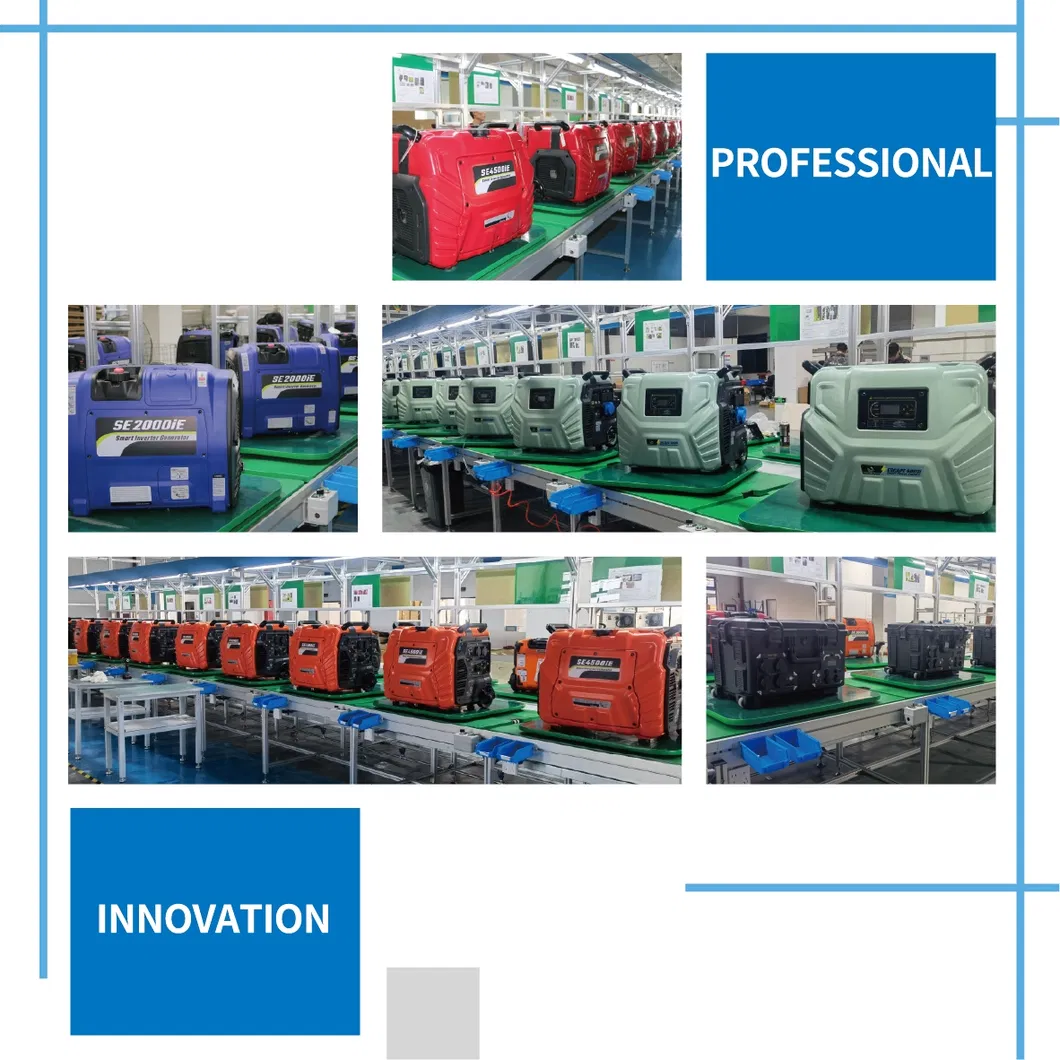

Company Profile

Our company was founded in March 2015. We are a high-tech company integrated with research, manufacture and sales. We provide products and service on inverter generators, Internet of things, power equipment, automation equipment, electrical products etc.

We are devoted to research and development of intelligent electromechanical products. We insist on independent research and development. Possessing more patents in power equipment, Internet of things and intelligent controller fields is our strategy; So far we possess more than 70 critical patents which enable us to maintain the leading position to our rivals. Our products win very good reputation in Europe and North America market.

We are committed to bringing more and better innovative products to you. We will win the trust and respect from more customers by providing excellent products and better service, to do our best to promote high-quality manufacturing.
