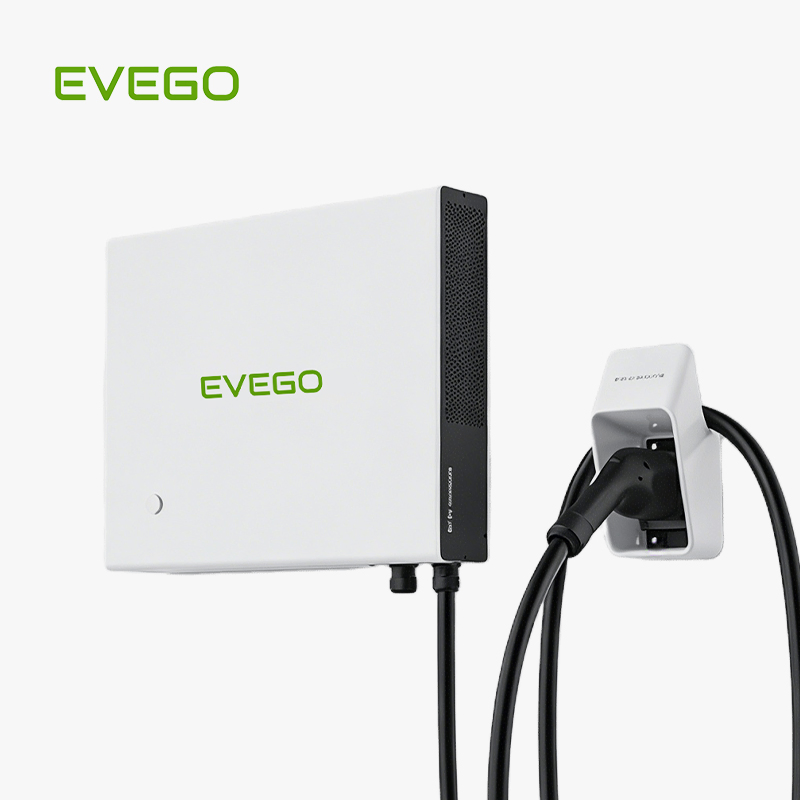

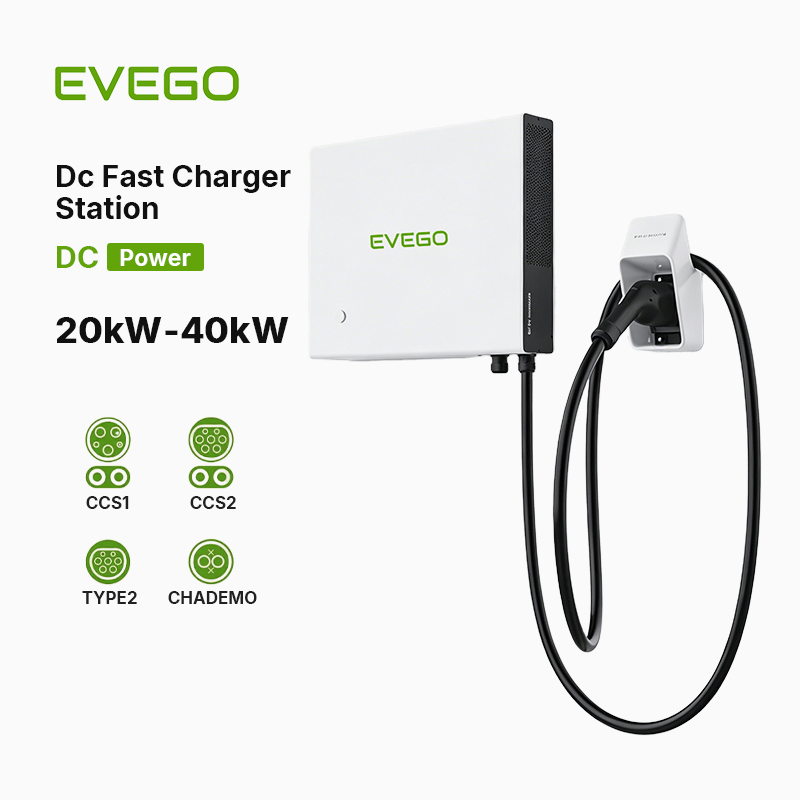

Evego Wallbox Charging Station Evse CCS1 CCS2 Condition DC TUV Certified 20kw 30kw 40kw Wall-Mounted Home Outdoor EV Charger

Customization: Available
Connector Type: CCS1, CCS2, CHAdeMO, GB/T, Nacs
Installation: Wall Mounted

Product Description

📋 Basic Information
Model NO.
EVE-DC-WY02A-30kW
Location
Outdoor
Start Mode
APP / Card Swipe POS Machine
Power
20kw/30kw/40kw
Output Voltage
200 - 1000VDC
Ingress Protection
IP30
Input Voltage
400VAC(3p+N+PE)
Operating Temp
-30 °C to 75°C
🚀 Product Overview

The DC charging pile is a high-performance device designed to charge electric vehicles efficiently. It converts alternating current to direct current with higher power output, suitable for home and outdoor environments. Built with durable materials, the unit features waterproof, dustproof, and anti-corrosion properties. Its ergonomic charging gun and real-time display screen ensure a user-friendly experience, providing data on charging status, power, and costs.

Safety First: Equipped with overvoltage, overcurrent, leakage, and lightning protection, ensuring a safe and reliable charging process under harsh conditions.
DC Charger Detail
Charging Interface
⭐ Product Advantages
🔌

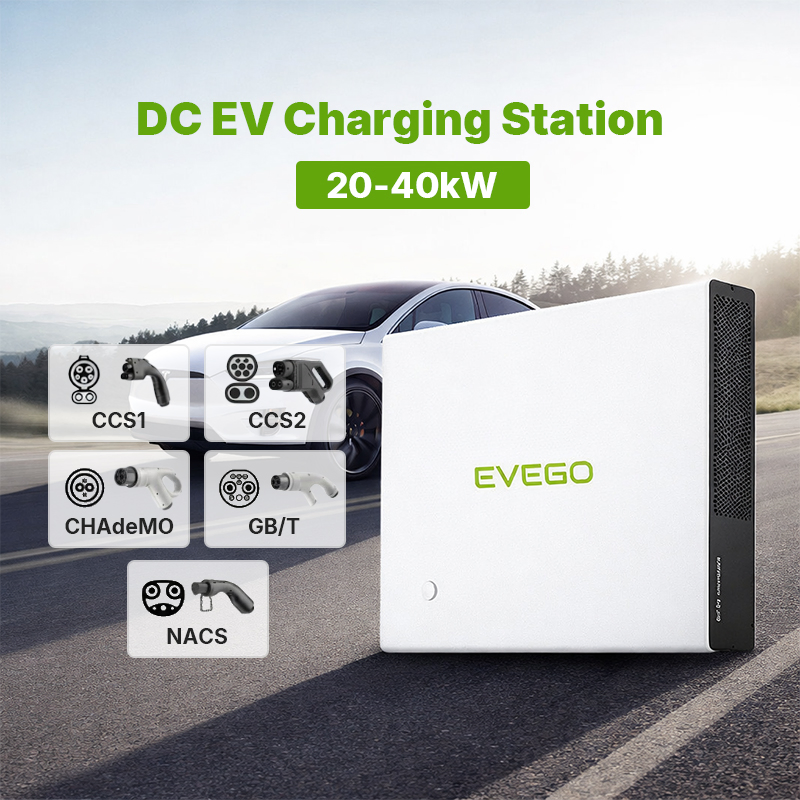

Multi-Standard

Supports GBT / CCS2 / CCS1 / CHAdeMO / NACS

High Efficiency

Peak efficiency >96%, power factor >0.99

🛠️
Easy Install

Wall-mounted design with minimal installation cost

🛡️
Reliability

IP30 protection and IK10 impact resistance

📊 Technical Specifications
Category Specifications Data Parameters
StructureDimensions600mm x 470mm x 100mm
Weight40kg
Cable Length3.5m
ElectricalConnectorsGBT, CCS2, CCS1, CHAdeMO, NACS
Input Voltage400VAC (3P+N+PE)
Output Voltage200 - 1000VDC
Rated Power20kw, 30kw, 40kw
EfficiencyPeak ≥ 96%
EnvironmentOperating Temp-30℃ to 75℃
Humidity≤ 95% RH (Non-condensing)
Charger Display

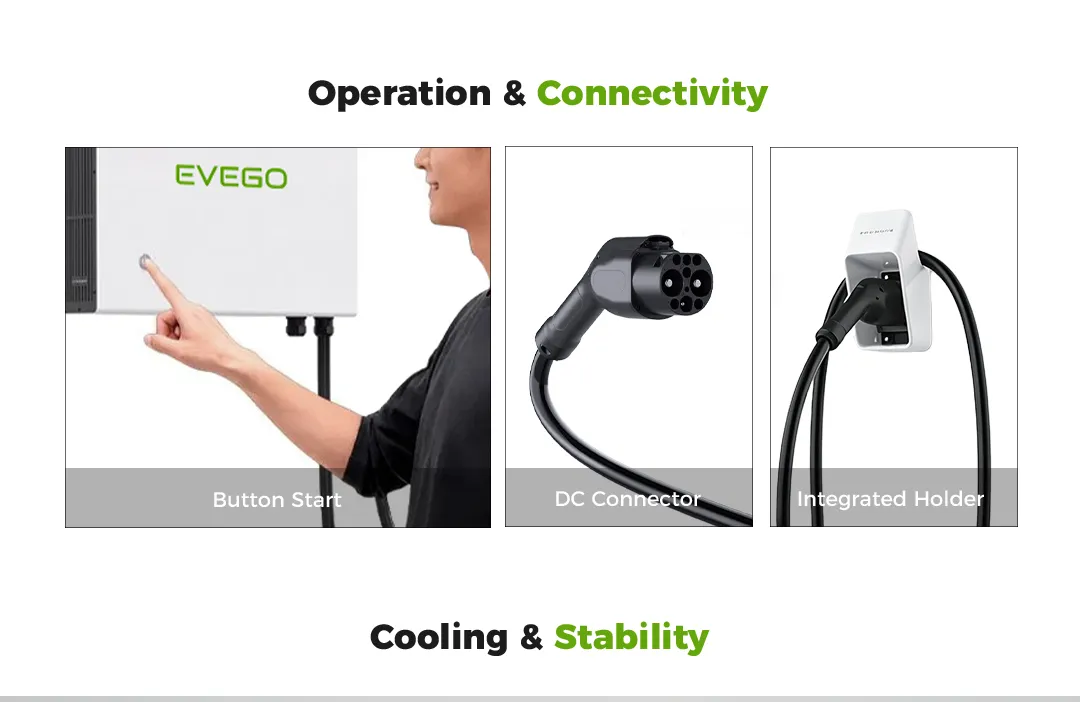

Installation View

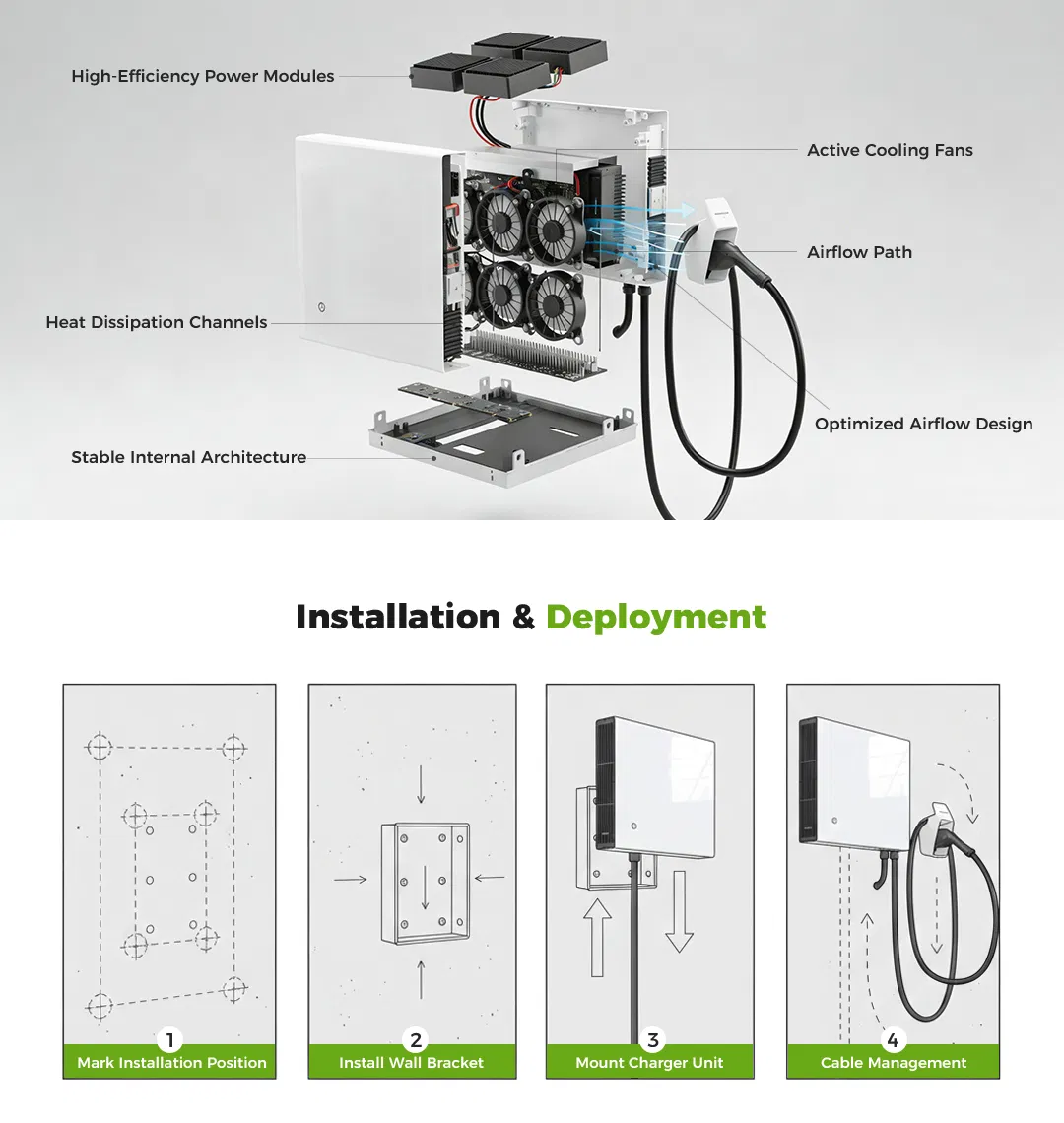

Component Details
🌐 Charging Solutions

We provide global customers with safe, efficient, and smart one-stop charging solutions across various sectors:

  • Public Operation: Equipment and support for charging station operators.
  • Commercial Property: Value-added services for malls, hotels, and offices.
  • Fleet Solutions: Exclusive networks for buses, logistics, and taxis.
  • Residential: Safe and convenient home charging for private owners.
Solution Flow
❓ Frequently Asked Questions
Are your chargers compatible with all electric vehicles?
Yes, our chargers are designed to support all major EV interfaces, making them compatible with the vast majority of electric vehicles on the market, including Tesla's NACS via seamless solutions.
Can chargers be customized to specific requirements?
Absolutely. Whether it is power output, unique connector types, or compatibility with solar systems, we deliver tailored and effective charging solutions based on your needs.
How do you ensure the quality and reliability?
Every charger undergoes strict quality control, including industry-leading aging tests and inspection procedures, ensuring the highest standards of safety and performance.
Can I monitor and control the charger remotely?
Yes, our chargers are mobile app compatible, allowing you to monitor status, set schedules, and track energy usage. They also support OCPP 1.6J protocols for real-time management.
What after-sales services do you offer?
We provide comprehensive manuals, 24/7 technical support, and a 2-year warranty. Our online customer service team is always ready to assist with any maintenance needs.
