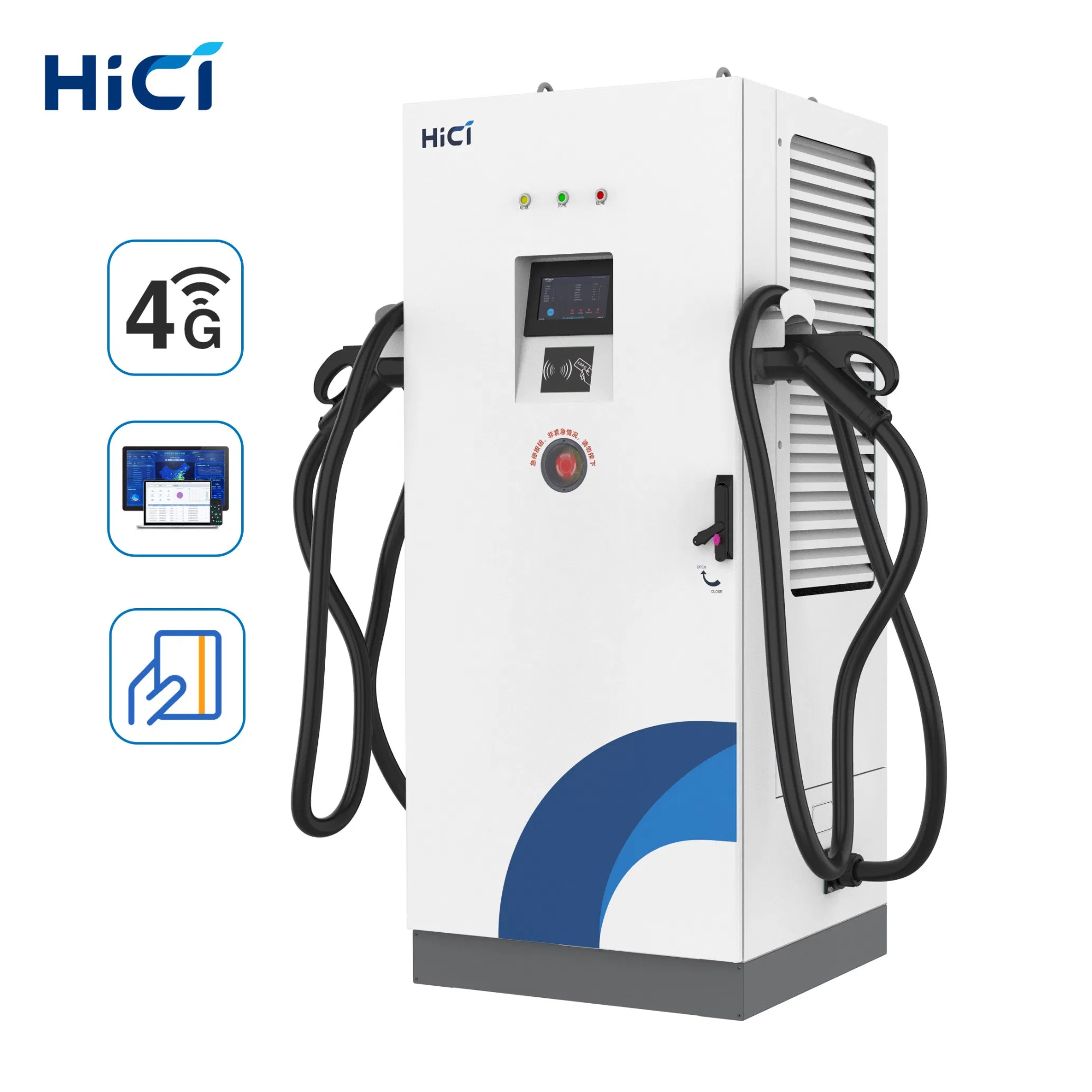

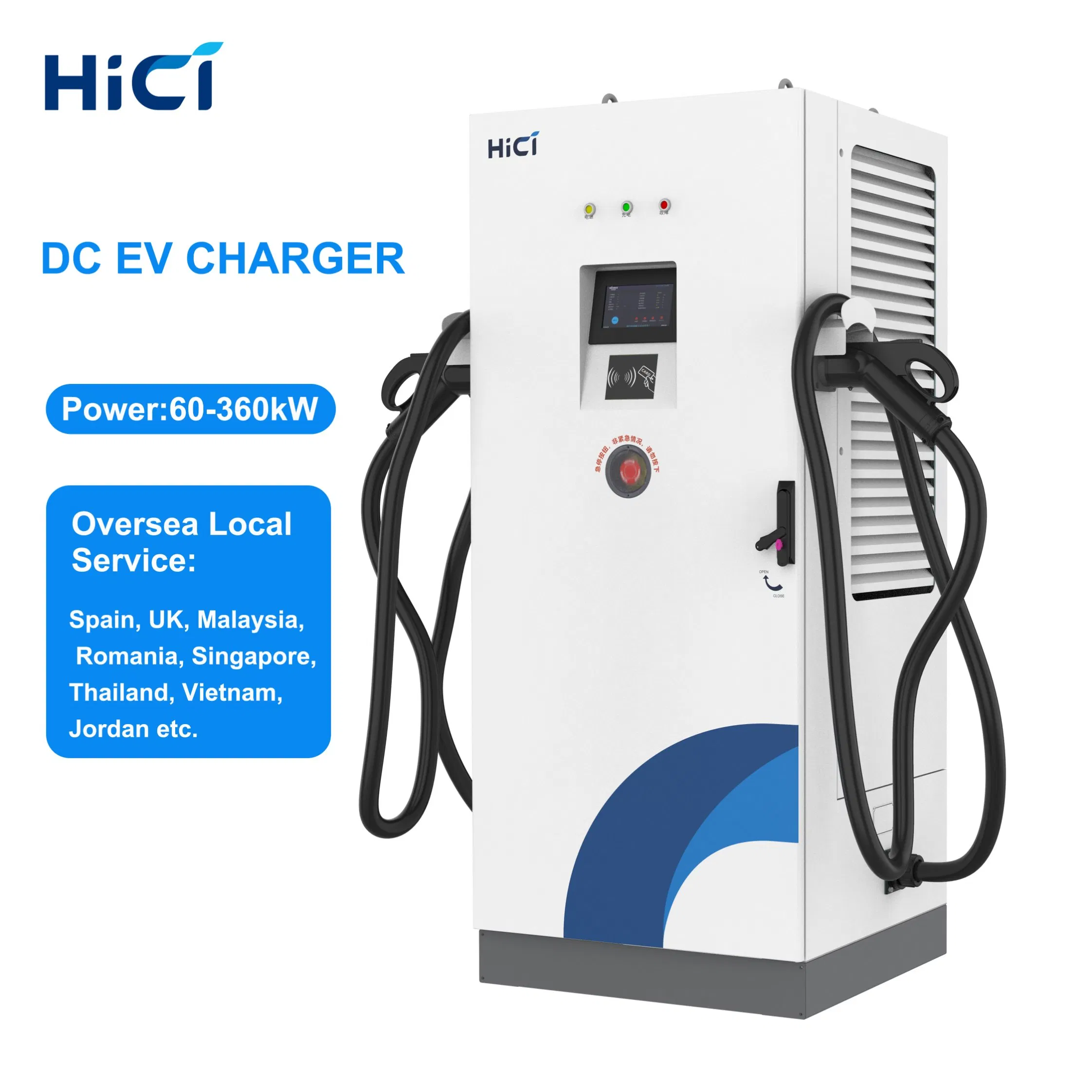

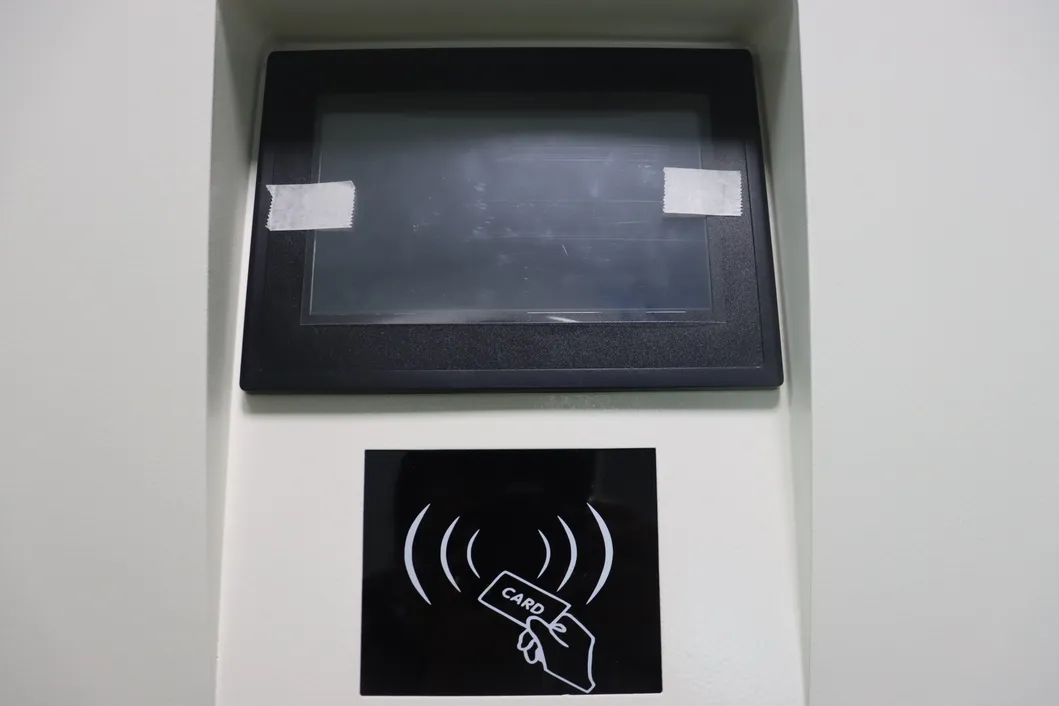

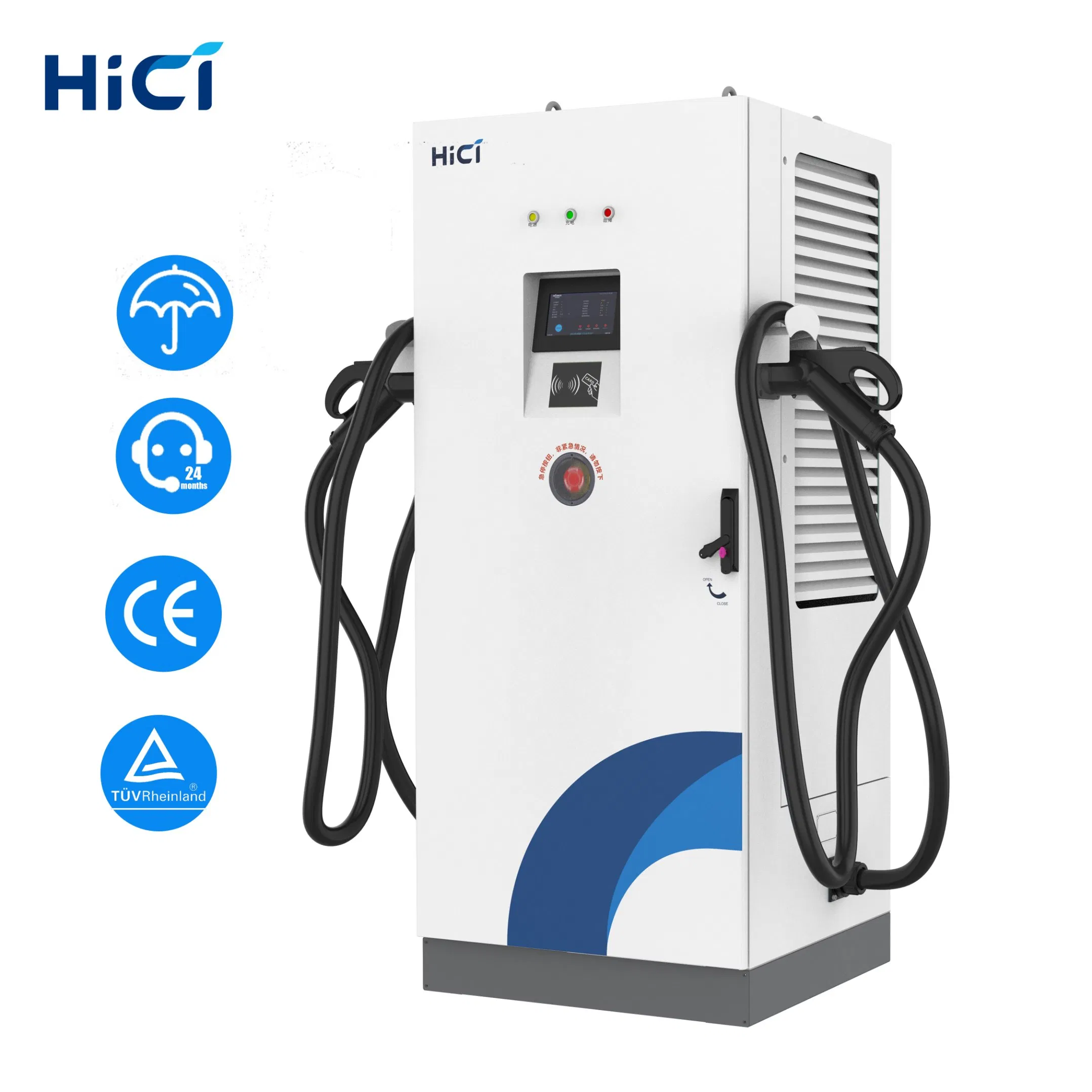

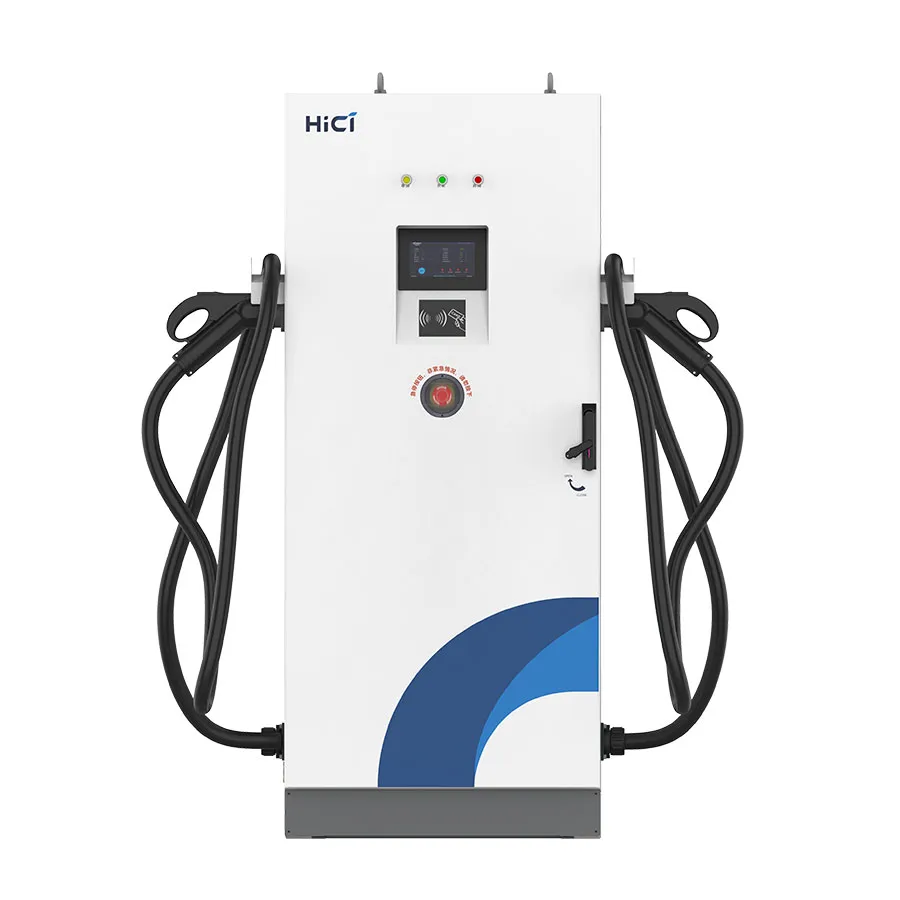

The new high-power integrated EV DC charging station excels in high-power and high-efficiency performance, reaching a maximum of 400kW while maintaining reasonable dimensions. The maximum output current of a single gun can reach 250A, and the maximum output power rate can reach 250kw. It features a 7-inch touch screen for easy interaction and a protection level of IP54.
| Charge Post Specifications | |
| Charging Type | DC Fast Charger |
| Max DC Output Power | 180kW, 240kW, 300kW, 360kW |
| Input Voltage Range | 400 VAC +/- 15% (50 Hz or 60 Hz) |
| DC Output Voltage | 200 - 1000 Vdc |

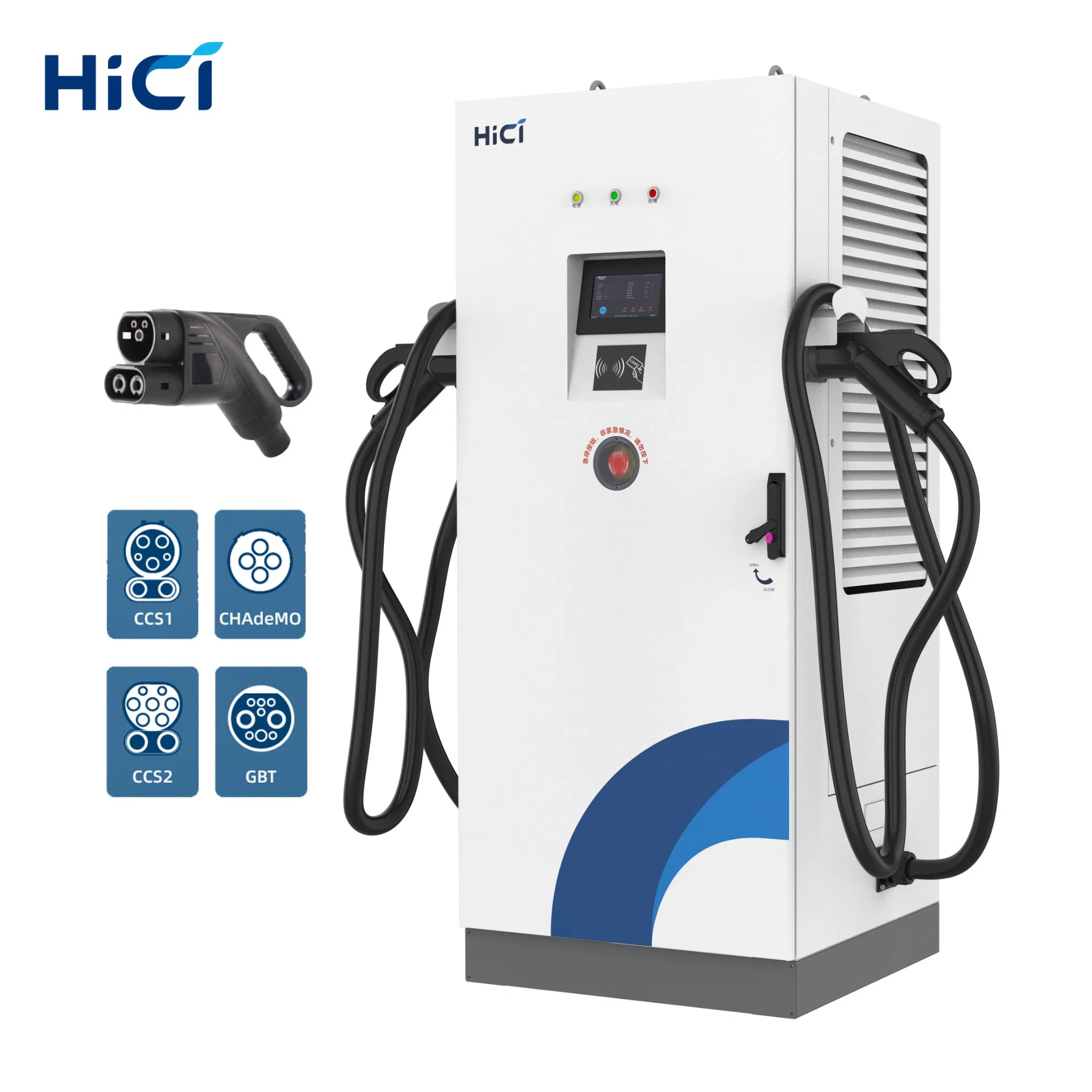

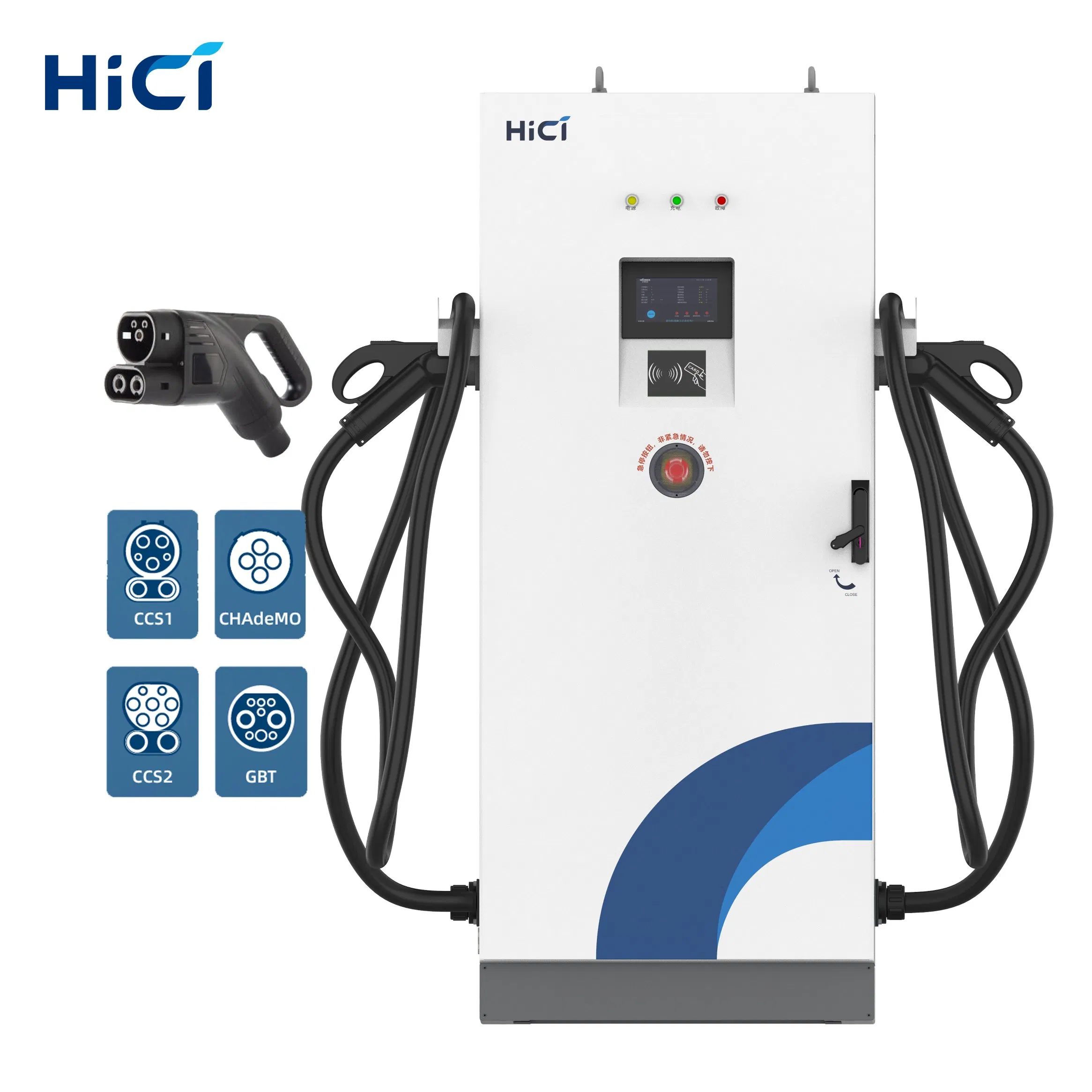

| Outlet Current | CCS 125A/200A; GB/T up to 250A; ChadeMO 125A |
| Efficiency | > 95% (peak) |
| Protection | Overcurrent, Overvoltage, Ground Fault, Surge Protection |
| User Interface & Configuration | |

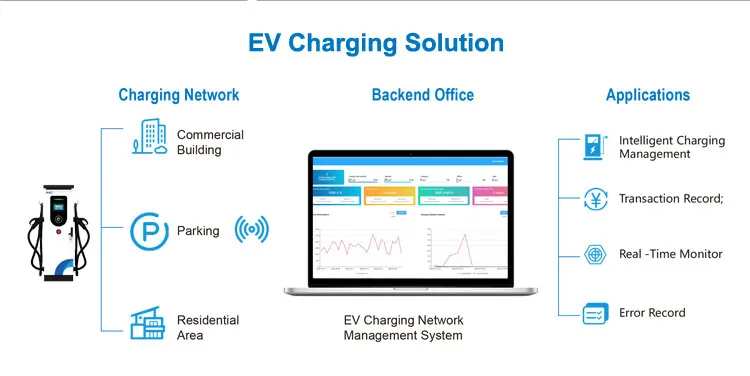

| Network | 4G, Ethernet |
| Authentication | App, RFID, MAC, Screen Button |
| Display | 7" LCD Touch Screen |
| Protocols | OCPP 1.6 JSON |
| General Characteristics | |
| Dimensions (H x W x D) | 1860mm * 750mm * 700mm |
| Operating Temperature | -30°C to + 55°C |
| Standards | IEC 61851-1/21/22/23/24, IEC 62196-1/2/3 |
