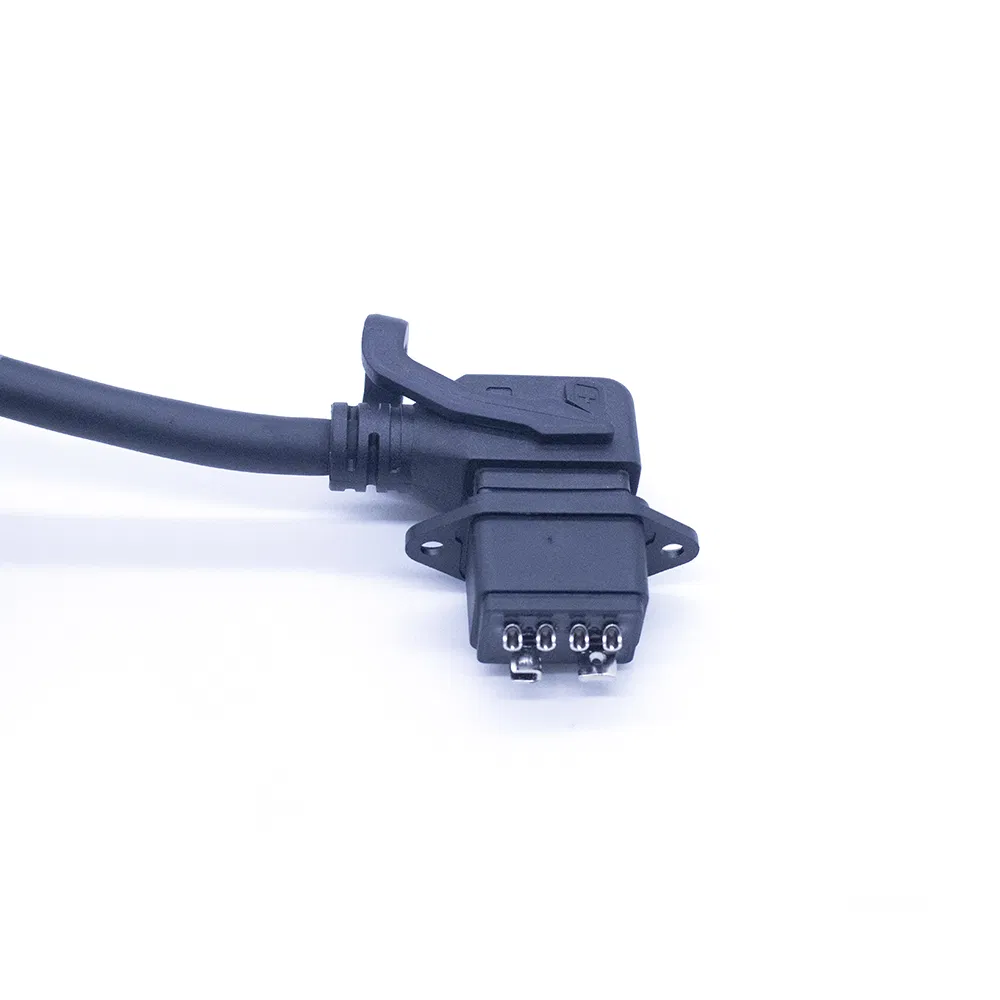

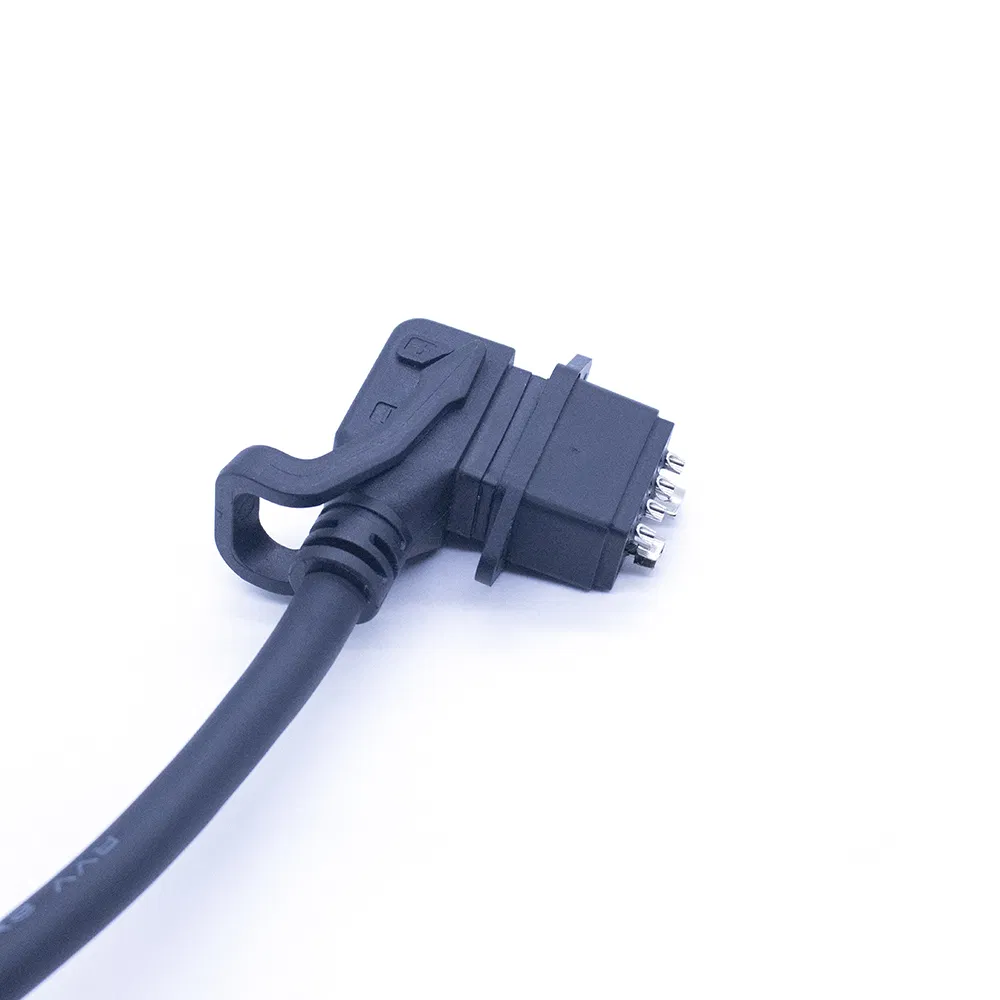

2+4 Electric Vehicle Charge Discharge Swap Cabinet Plug Energy Storage Lithium Battery Charging Motorcyclewaterproof Connector

1 / 5

2+4 Electric Vehicle Charge Discharge Swap Cabinet Plug Energy Storage Lithium Battery Charging Motorcyclewaterproof Connector

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

2+4

Application

New Energy

Contact Material

Copper

Housing

PVC / Nylon

Type

Power Connector

Assemble Style

Panel to Cable, Cable to Cable

Flammability

UL94-V0

Protection Level

IP67

Package Size

50.00cm * 50.00cm * 50.00cm

Gross Weight

50.000kg

Product Specifications

Type	Power connector
Application	Power, LED lighting
Gender	Female, Male
Model Number	2+4 connector
Contact Numbers	Multi-contacts
Mating Style	Push lock
Cable OD	13mm max
Protection Level	IP67
Certificate	TUV CE CQC ROHS UL
Rated Current	20A
Rated Voltage	300V

Key Features & Services

Pins available from 2 to 22 for power and signal transmission.

Certified by UL, CE, TUV, CQC, RoHS, IP67/IP68.

Optional push locking and screw locking mechanisms.

Versatile options: field assembly, molded with cable, USB, and RJ45.

Flexible combinations: male/female or panel mount.

Full OEM & ODM customization support.

Strong technical support and R&D team assistance.

Fast delivery from original factory production.

Product Display

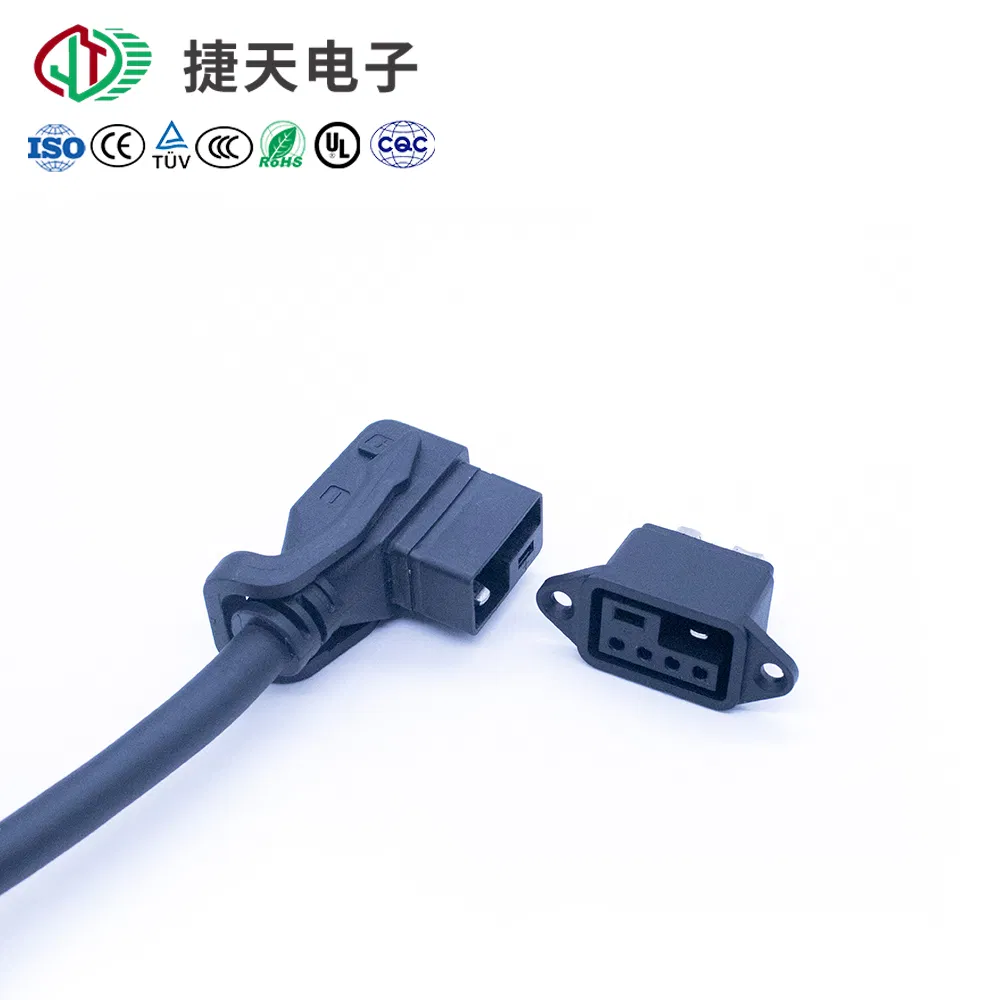

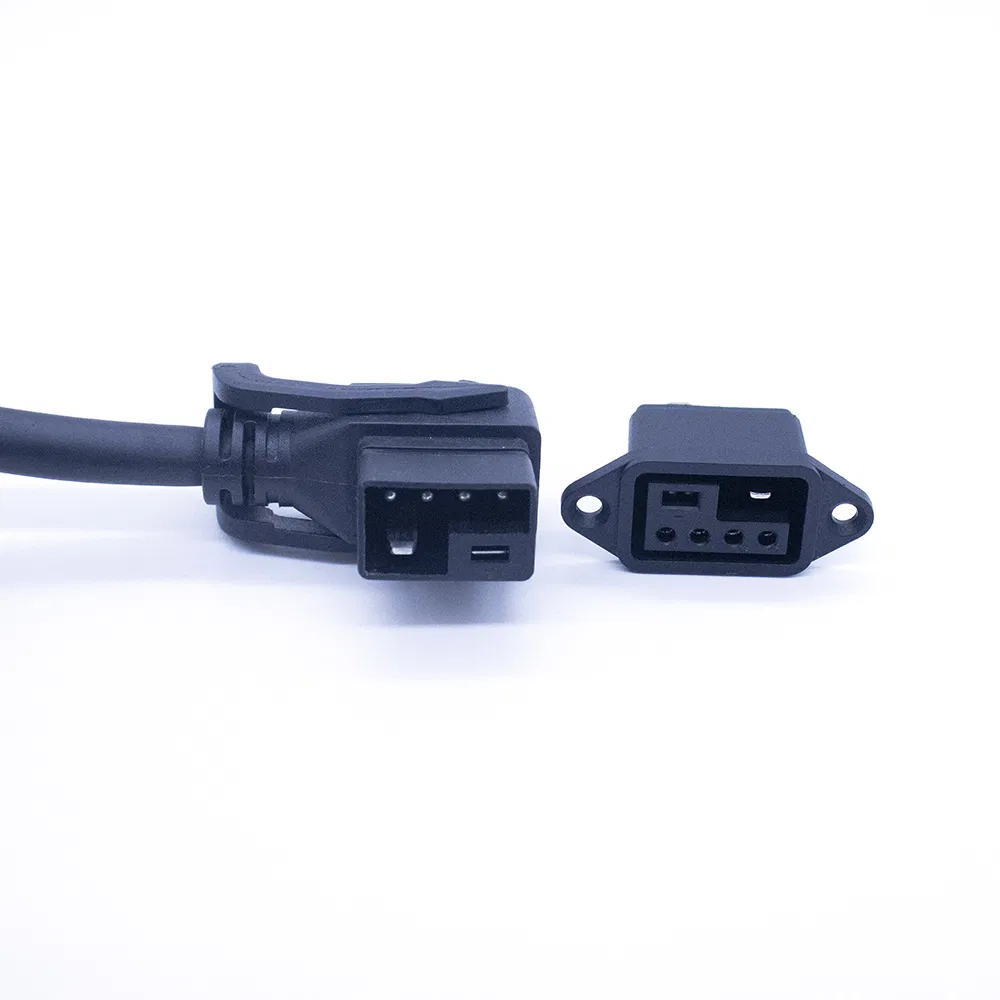

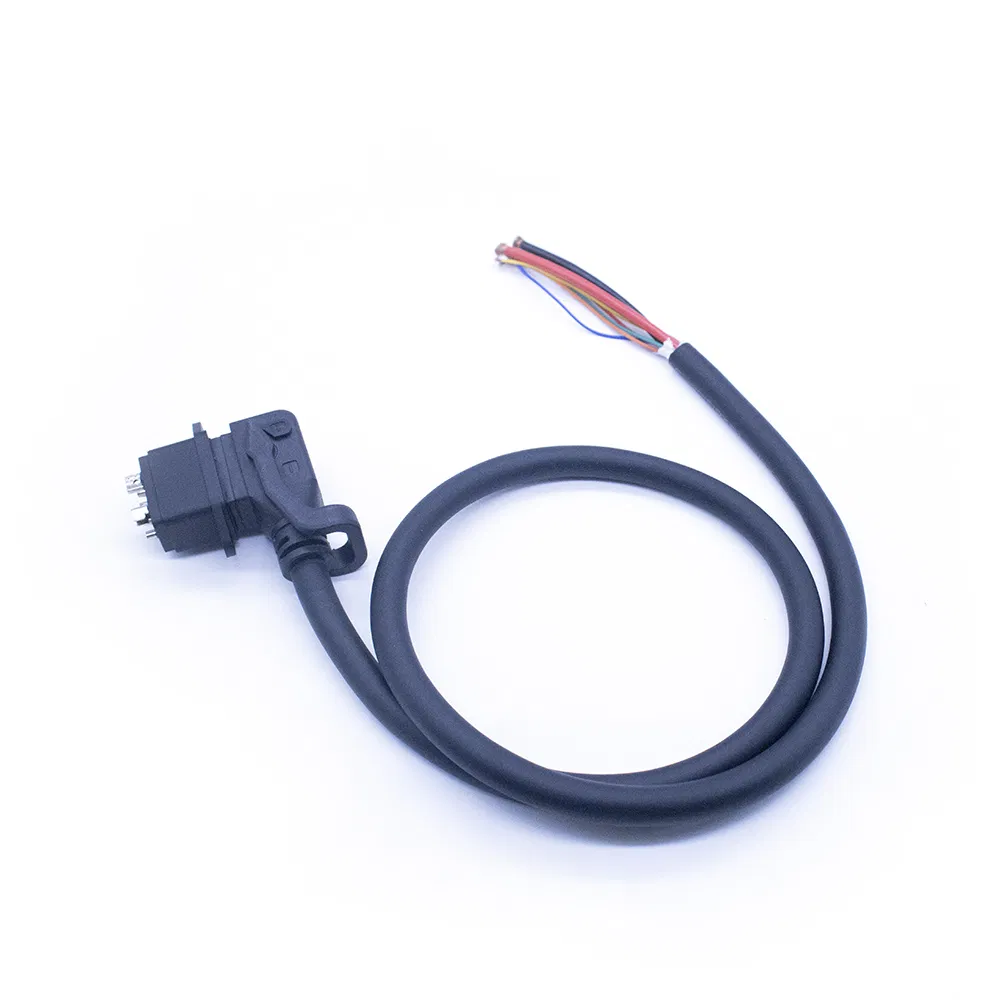

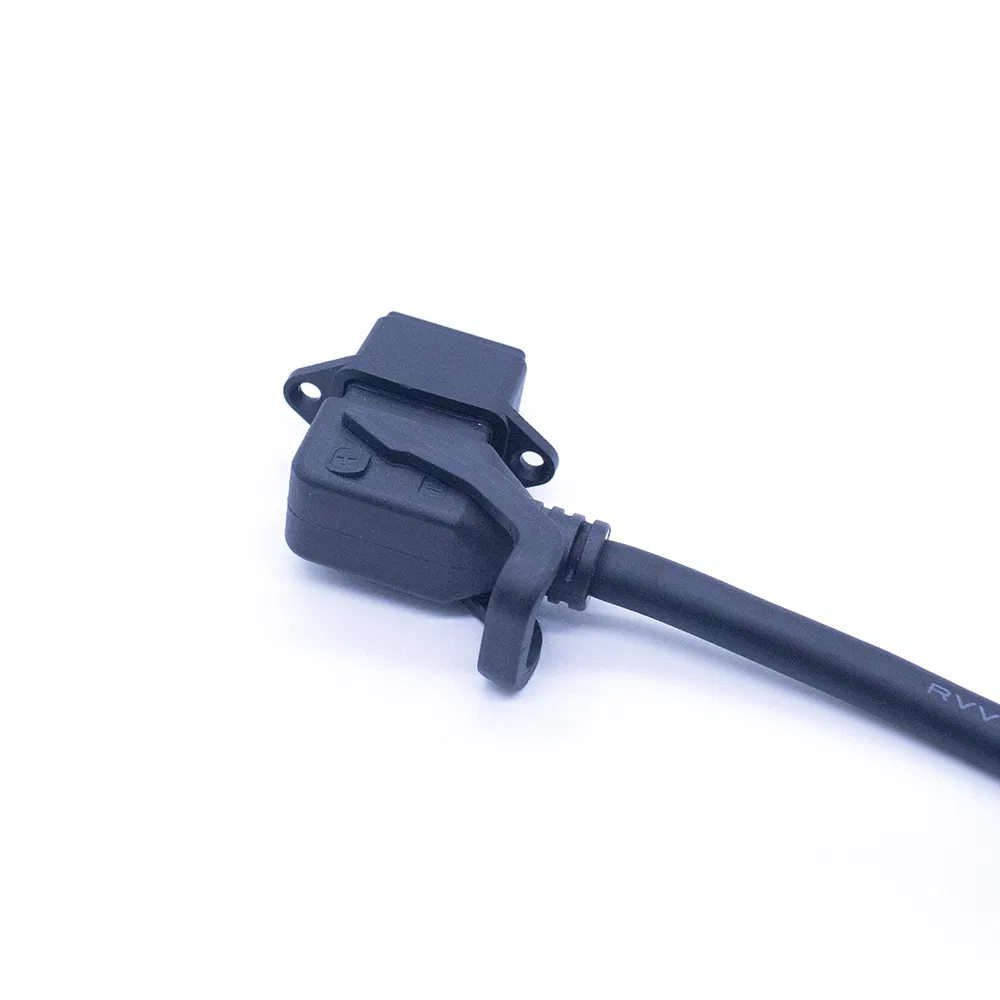

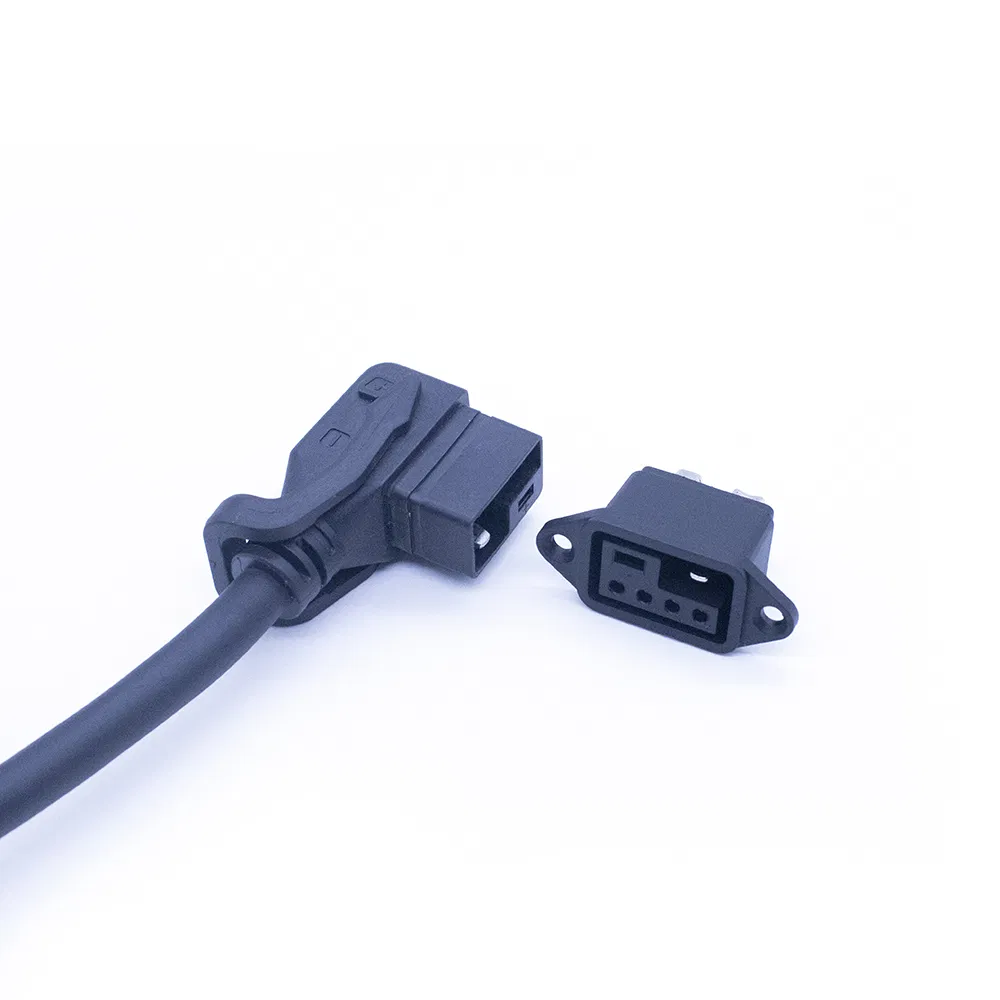

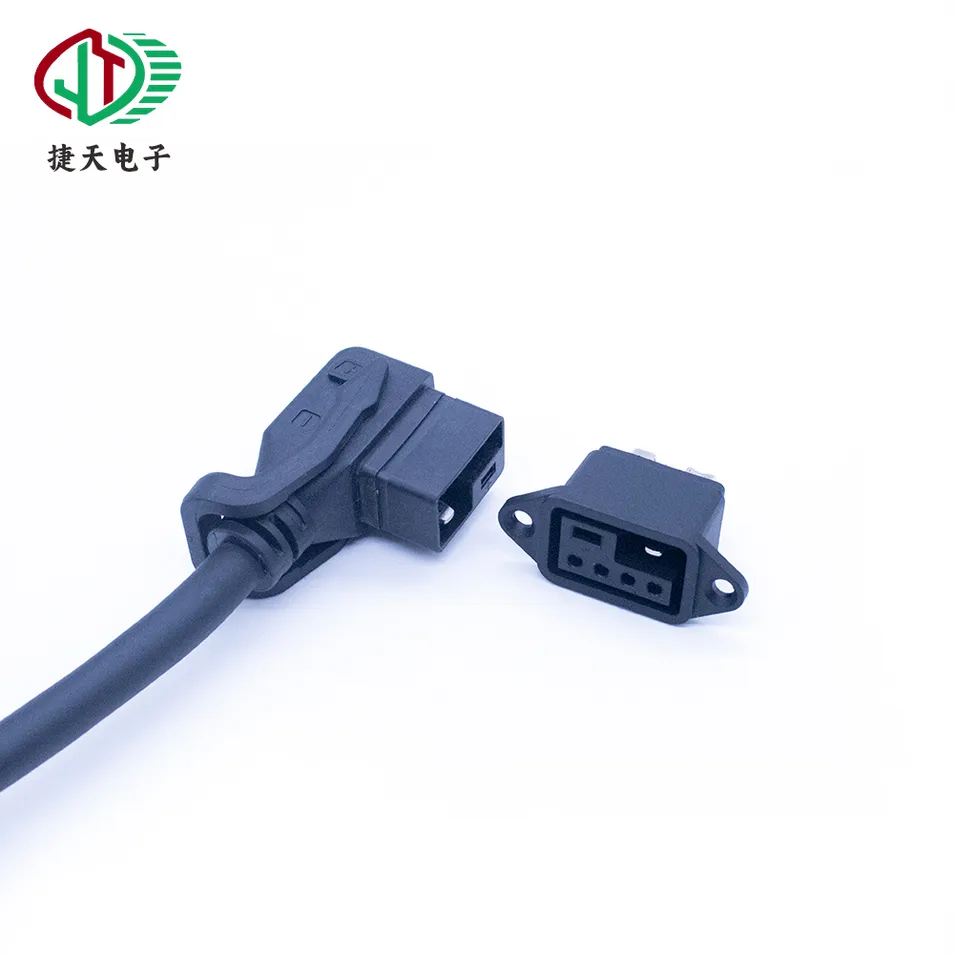

2+4 Electric Vehicle Connector: Designed for high-current power transmission and stable signal integration. Ideal for electric bicycles, scooters, energy storage batteries, and battery swapping systems.

Rated current: 10A / 20A

Operating temperature: -40°C to +105°C

Flame retardant: UL 94 V-0

Manufacturing Capabilities

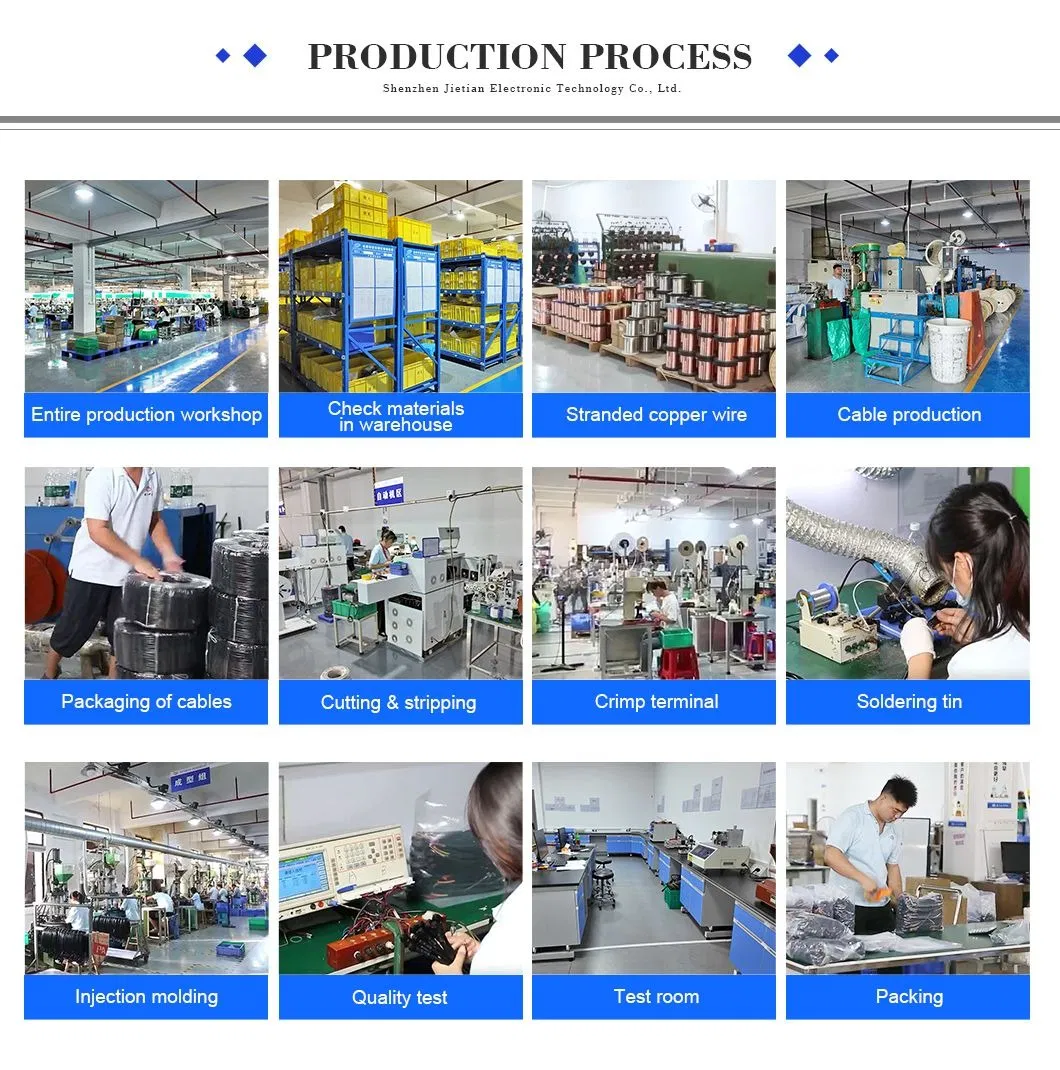

Specializing in the design and manufacturing of connectors and cable assemblies with over 13 years of experience. Solutions cover product design, engineering support, mold development, injection molding, and quality control.

Frequently Asked Questions

What is the protection level of this connector?

The connector features an IP67 protection level, making it waterproof and dustproof, suitable for demanding outdoor and industrial environments.

What are the main applications for the 2+4 connector?

It is widely used in electric bicycles, electric scooters, energy storage batteries, battery swapping cabinets, and various new energy charging equipment.

Does the connector support high-current transmission?

Yes, it is designed for high-current power transmission with a rated current of up to 20A and a rated voltage of 300V.

What materials are used for the housing and contacts?

The housing is made of high-quality Nylon/PVC with a UL94-V0 flame retardant rating, and the contacts are made of premium copper for stable conductivity.

Can I customize the cable length and pin configuration?

Yes, we support full OEM and ODM customization, including pin configurations (from 2 to 22 pins), cable lengths, colors, and overmolding requirements.

What is the operating temperature range?

The connector is designed to operate reliably in temperatures ranging from -40°C to +105°C.
