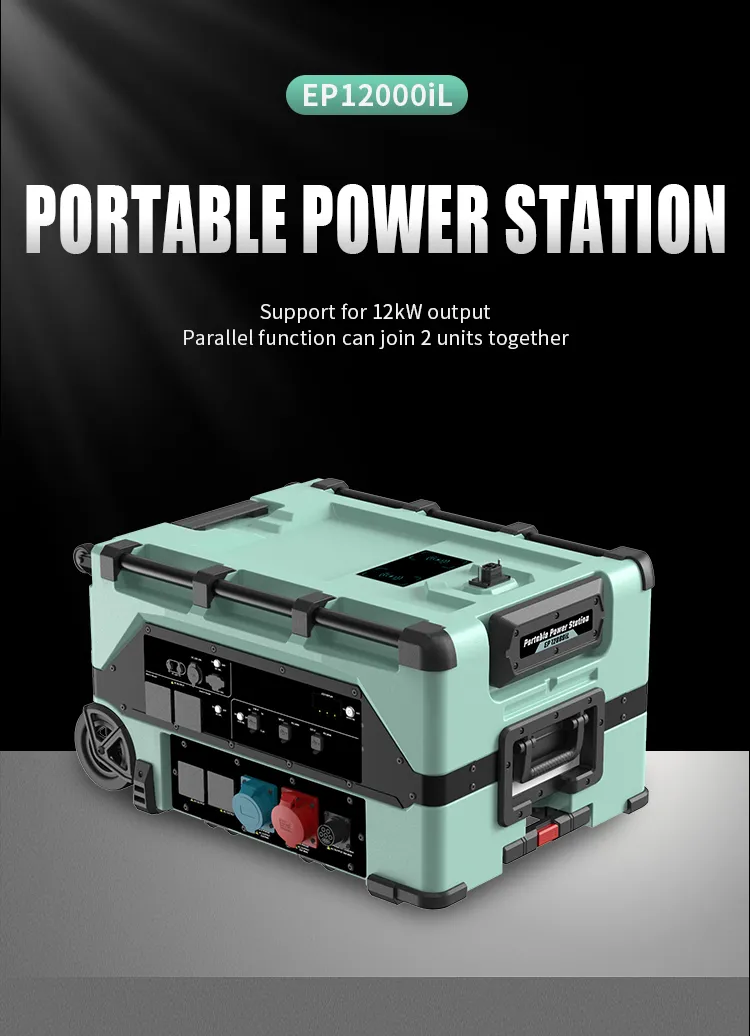

Complete Hybrid10kw 12kw off Grid Solar Energy Storage System for Home

Customization:	Available
Weight:	100kg
Warranty:	5 Years

i

Basic Info

Model NO.EP12000iL

Cycle Life3000

Nominal Capacity7680wh

ChargingAC, Solar, EV, DC, Wind

Battery ExpansionMax 245kwh

Fast Charging70mins Full

Inverter TypeBi-Directional

Three-PhaseYes

✔

Product Advantages

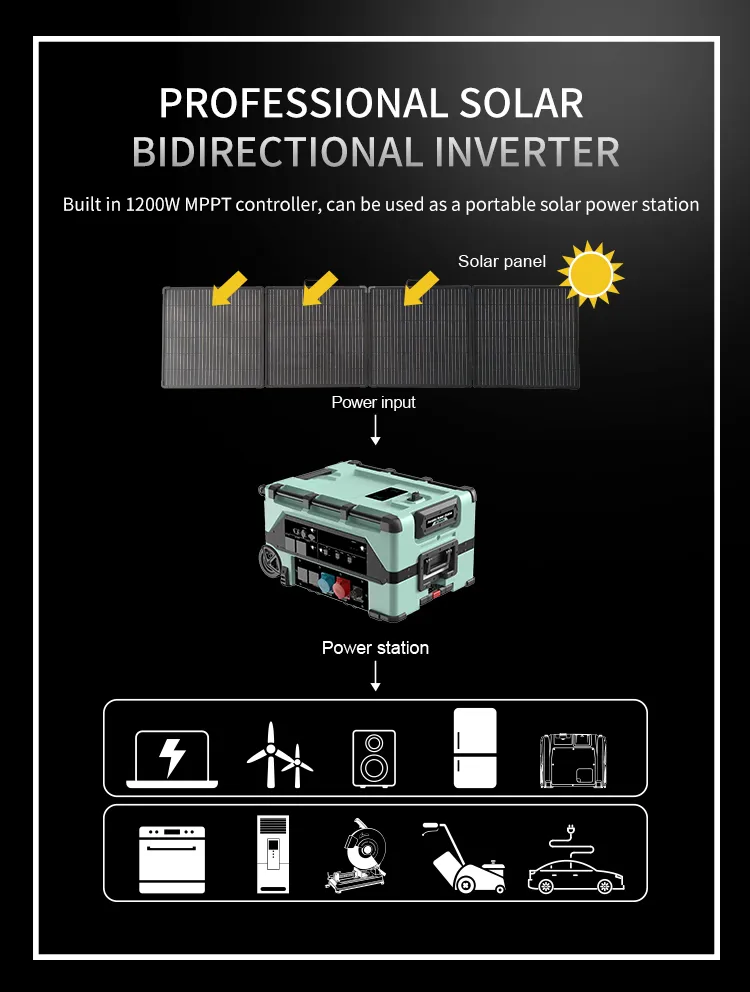

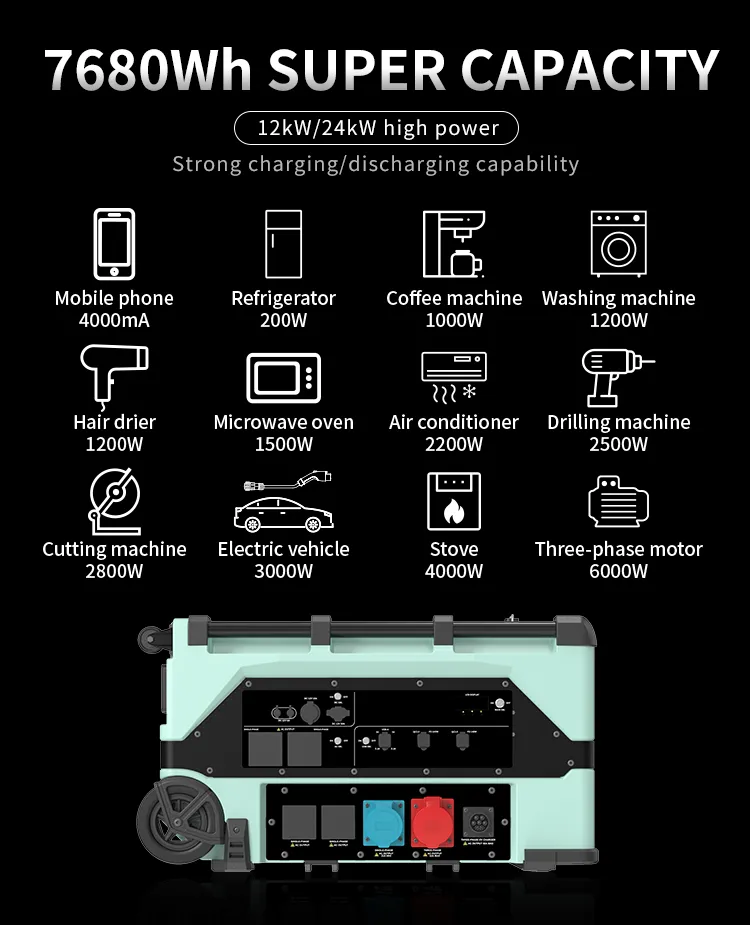

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.

Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

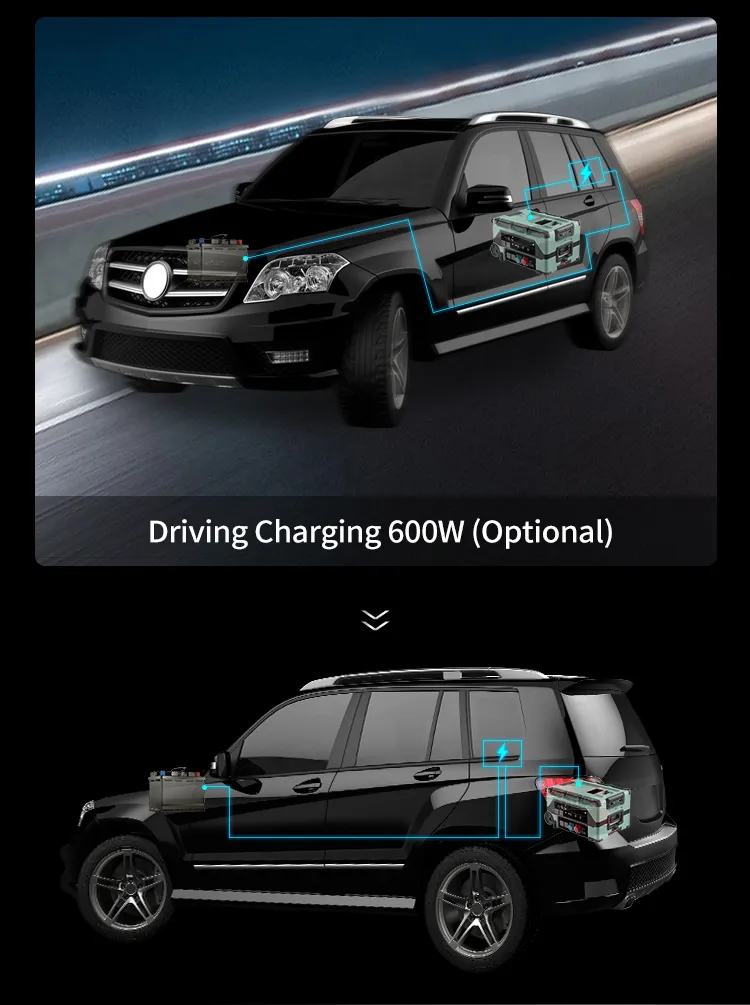

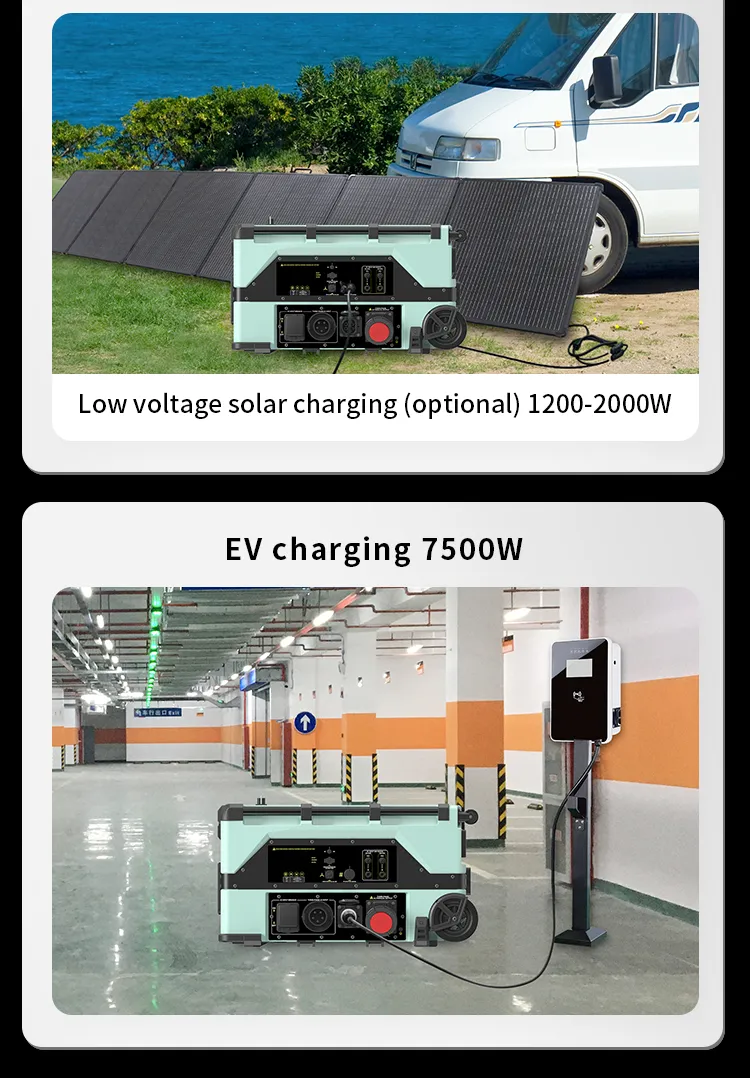

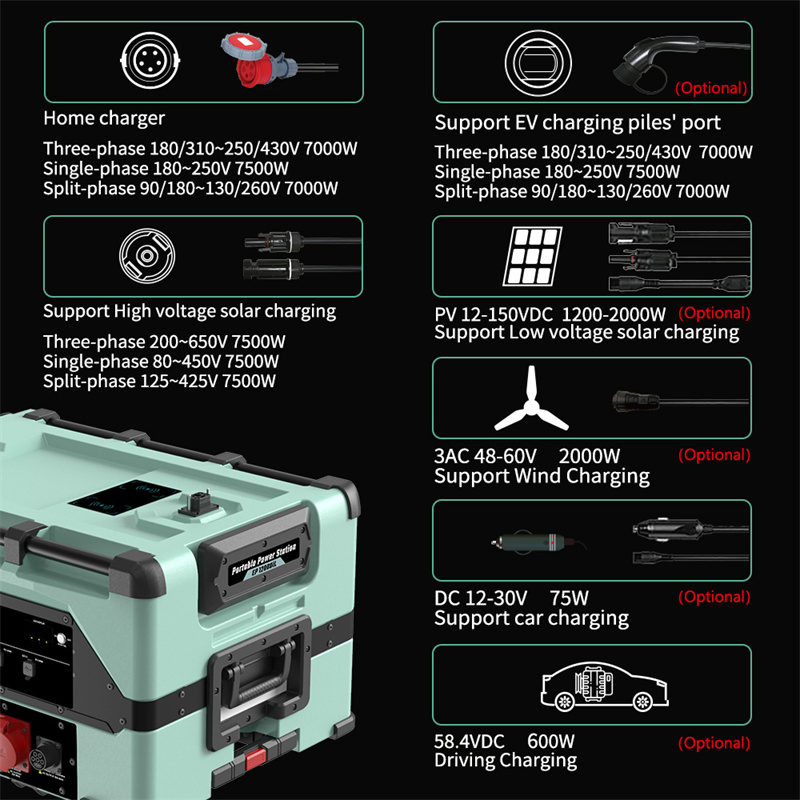

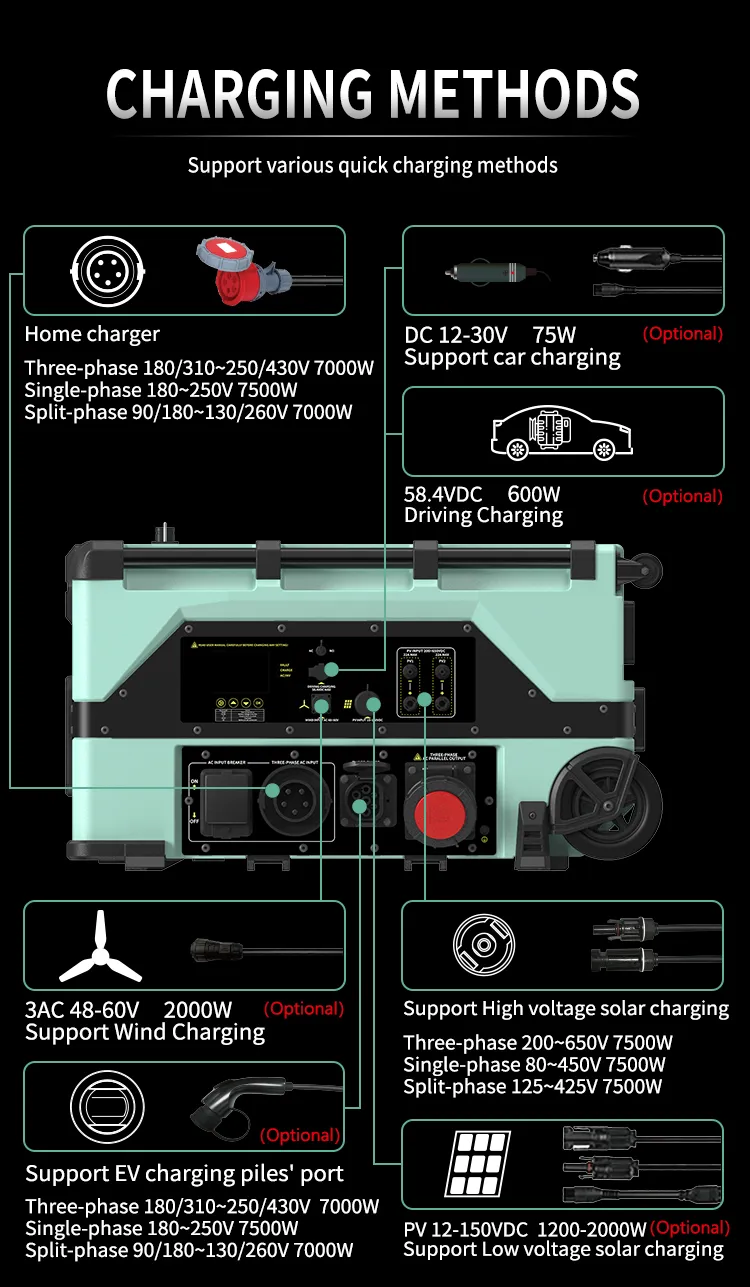

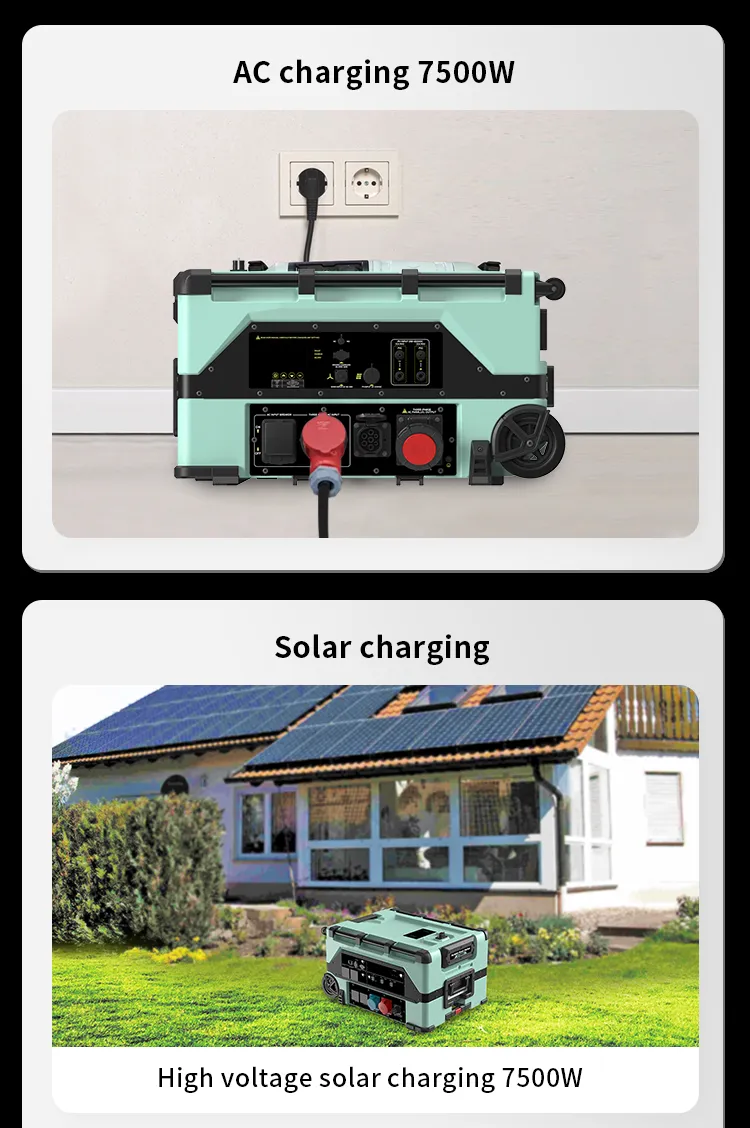

Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

Up to 31 extra batteries can be connected for expansion, with a total capacity of 245kWh.

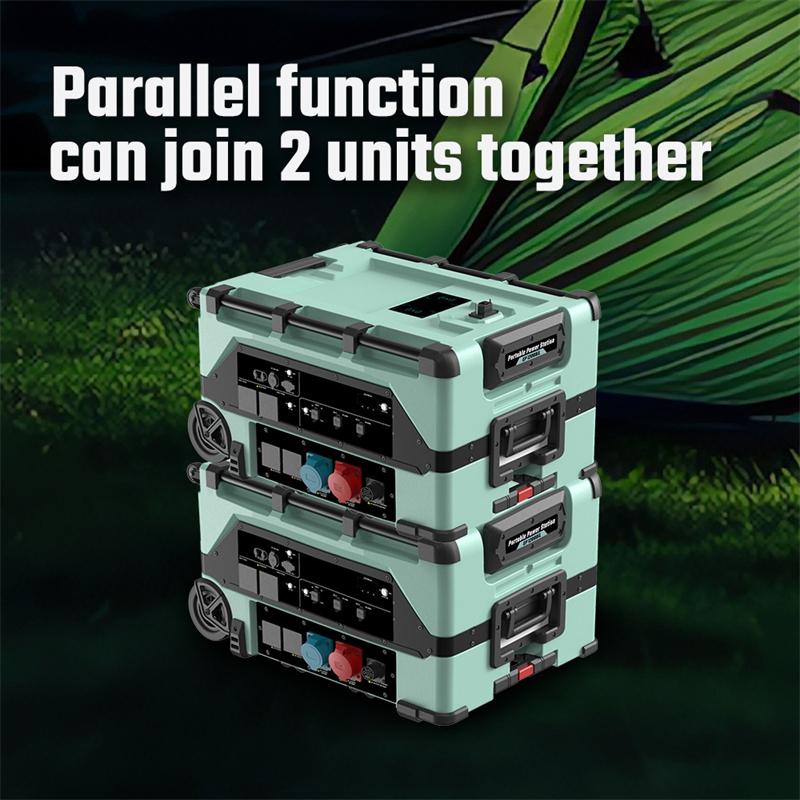

Stacked parallel patented technology, join 2 units for 24kW continuous output.

Built-in electric vehicle charger, can replace charging stations up to 22kW.

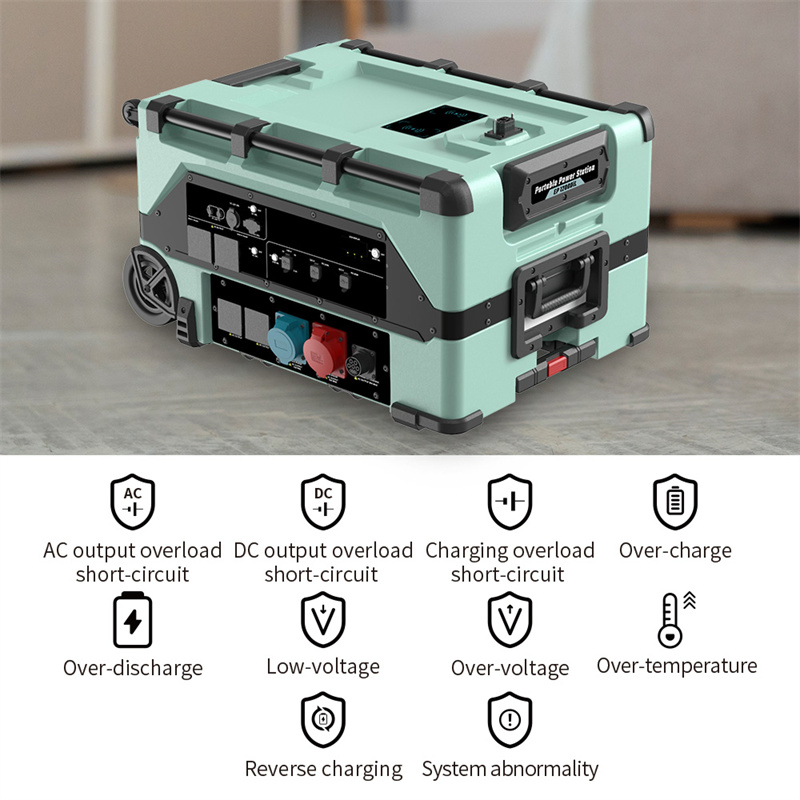

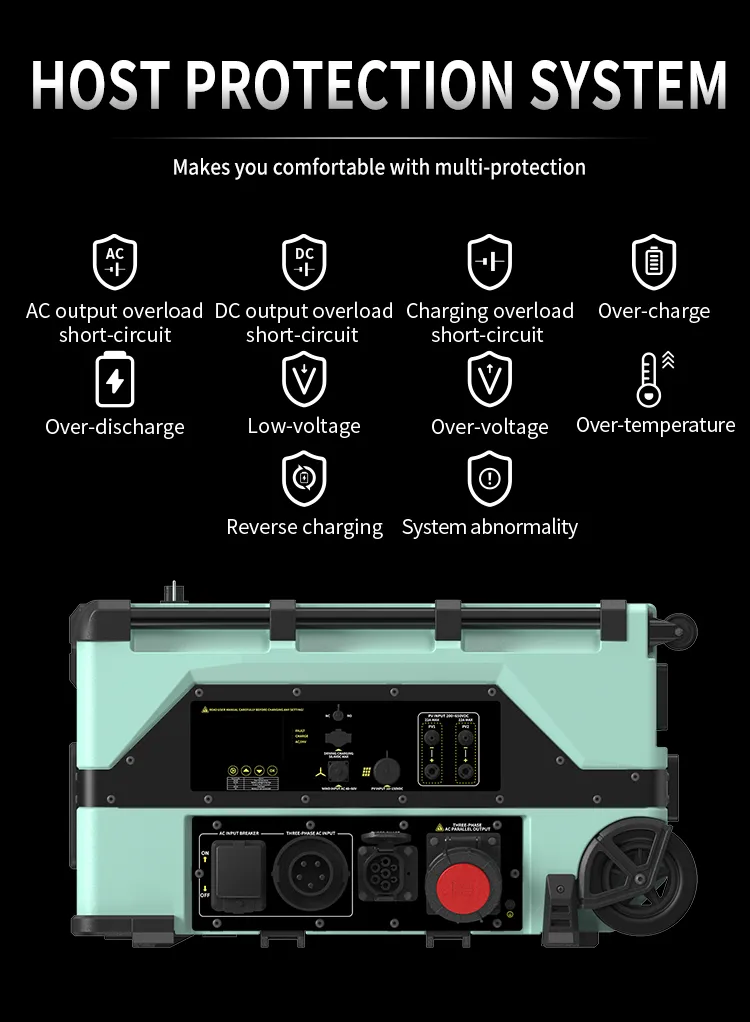

Unit IP53 and Battery Pack IP66 protection grade with patented dual channel cooling system.

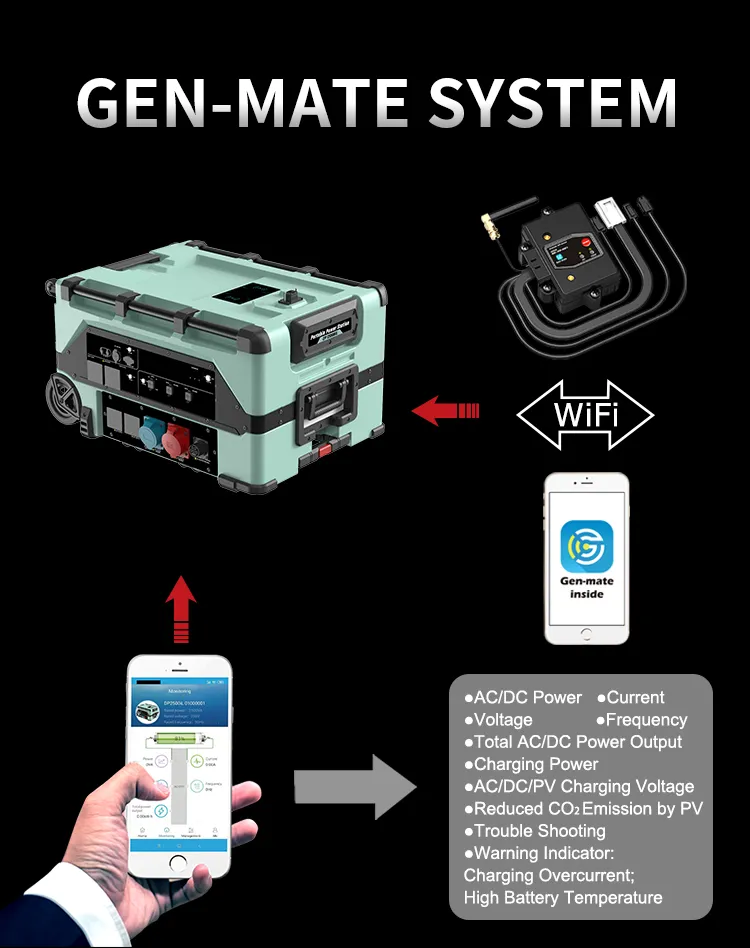

Intelligent control and monitor by smartphone APP with 5 years warranty.

⚙

Product Parameters

Output Specifications		Details
AC Output Rated Power	Three-phase / Single / Split	12000VA / 11000VA / 10000VA
Peak Power	Maximum Surge	24000VA / 22000VA / 20000VA
Waveform	Quality	Pure-Sine Wave, THD < 3%

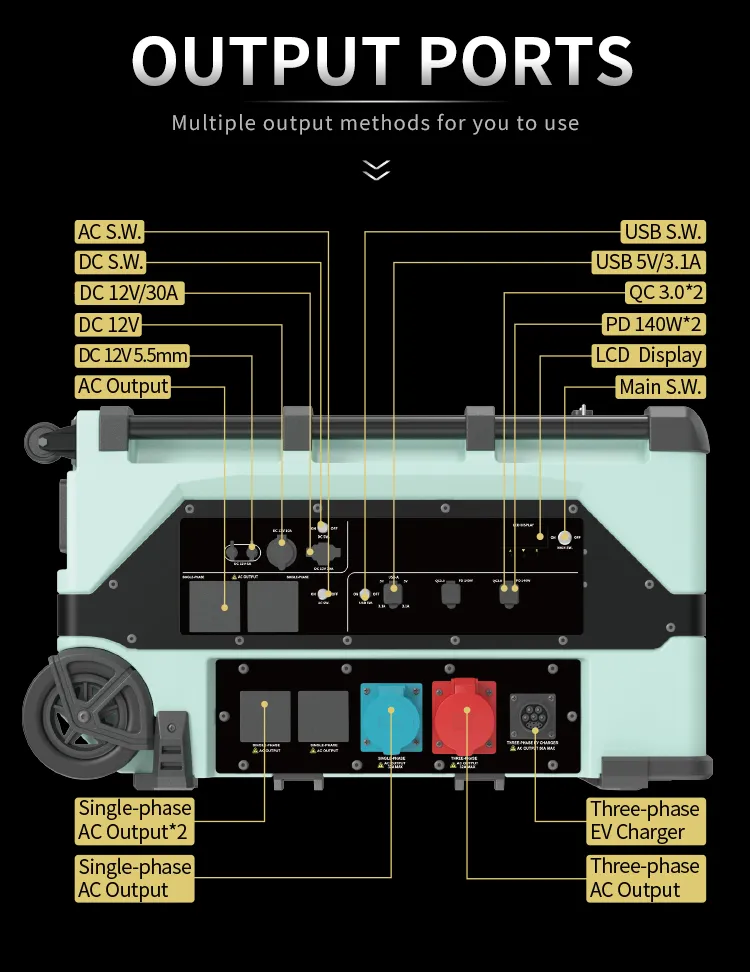

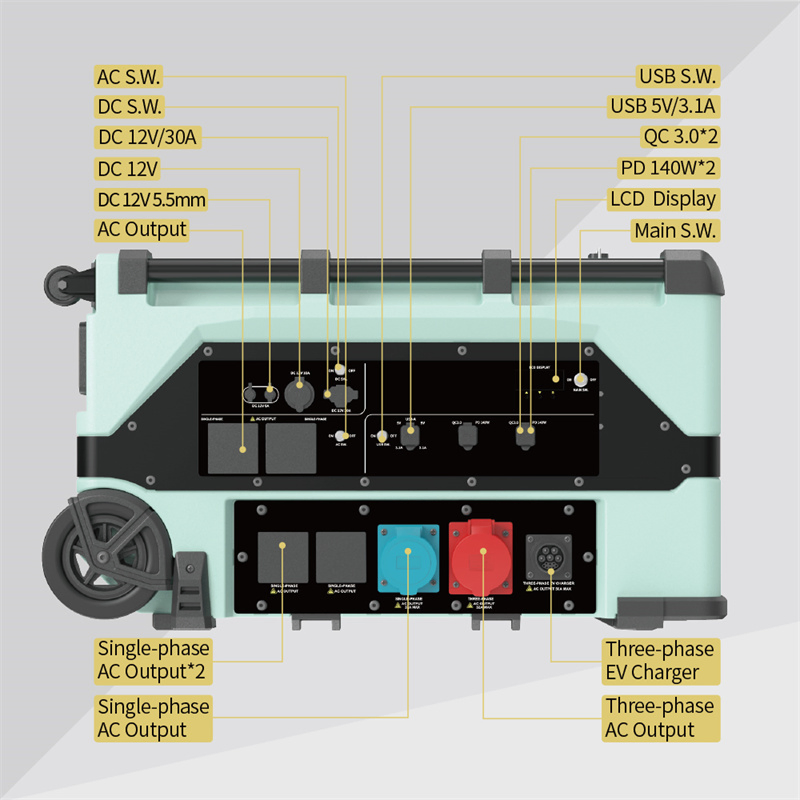

DC Output	Multiple Ports	XT90 (12V/30A), Cigarette Lighter, 5521 Port
USB Output	Fast Charge	USB 3.1A, QC3.0, Type-C PD 140W

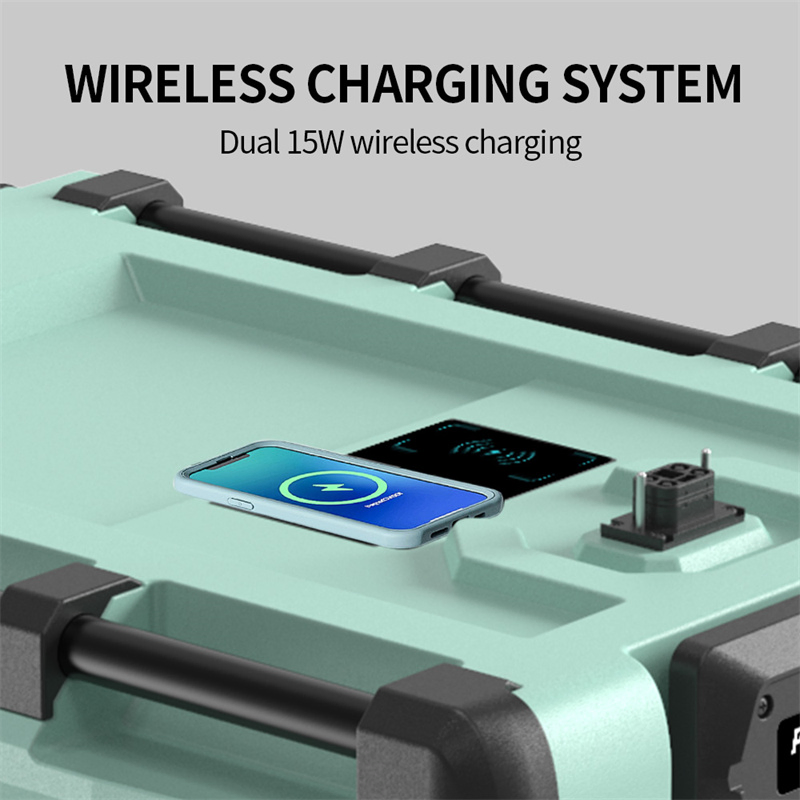

Wireless Output	Dual Pad	2 × 15W

P

Detailed Photos

★

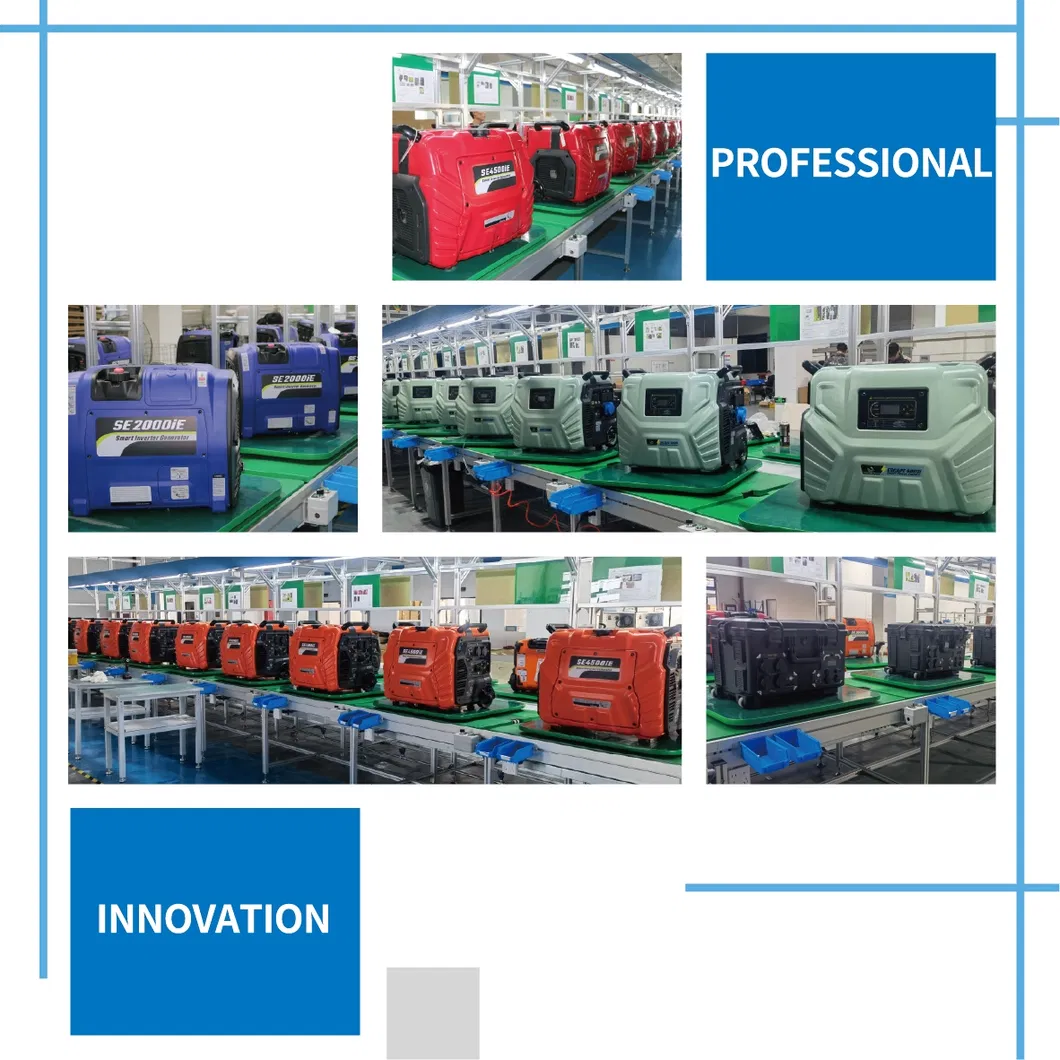

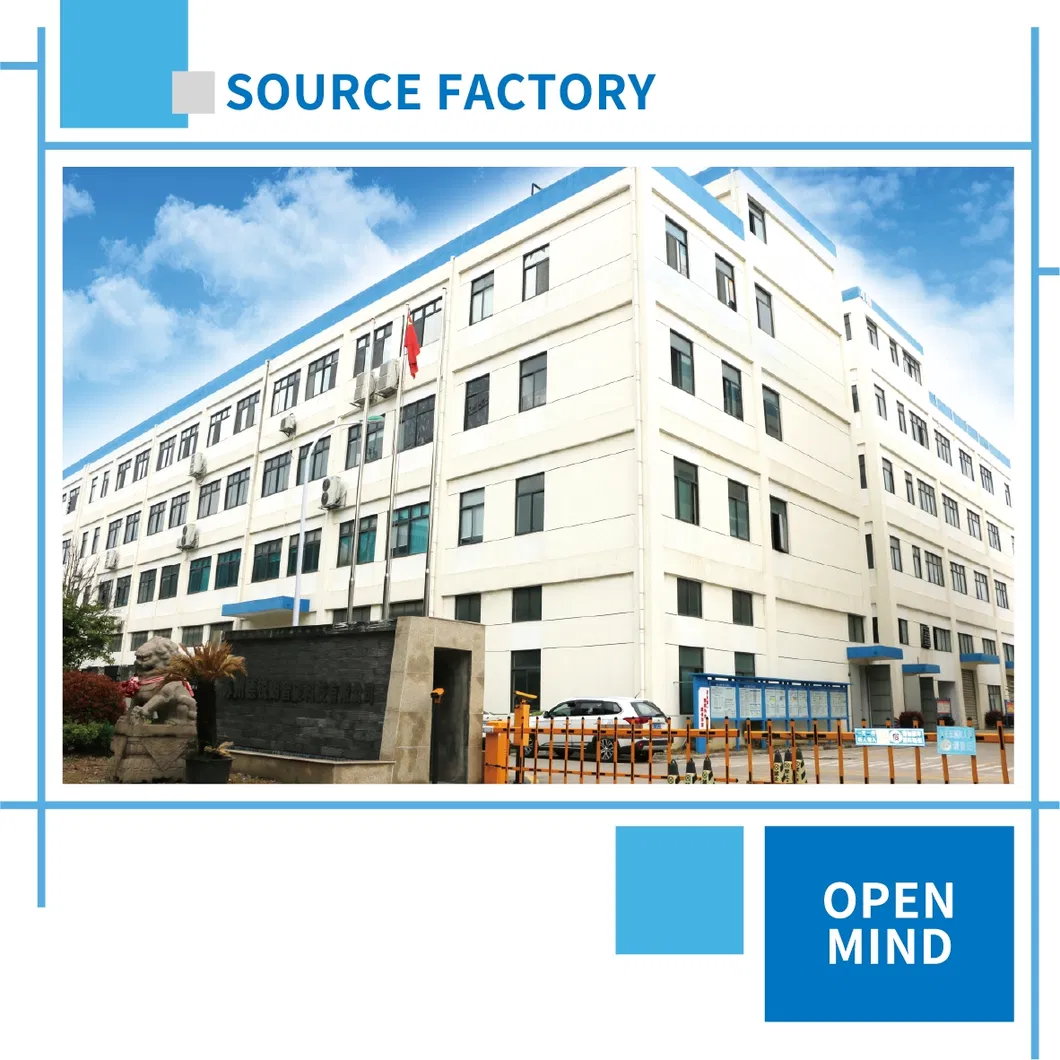

R&D and Manufacturing

Founded in March 2015, we are a high-tech company integrated with research, manufacture, and sales. With manufacturing plants in multiple provinces, we specialize in inverter generators, Internet of Things (IoT), and advanced power equipment. Our commitment to independent research is reflected in our possession of more than 70 critical patents, maintaining a leading position in the power equipment and intelligent controller fields.

Our products are recognized globally for their superior quality and performance, conforming to EU and US security certifications. We are dedicated to delivering innovative, high-quality electromechanical products that provide excellent service to users worldwide.
