Basic Specifications
Multiple Charging
AC, Solar, EV Charger, Driving Charging, DC, Wind
Battery Expansion
Yes, Max 245kwh
Fast Charging
70mins Fully Charged
Certificates
CE RoHS IEC62619 Un38.8 MSDS
Inverter Type
Bi-Directional Inverter
Output Phase
Three-Phase Supported
App Control
Yes, Smartphone Monitor

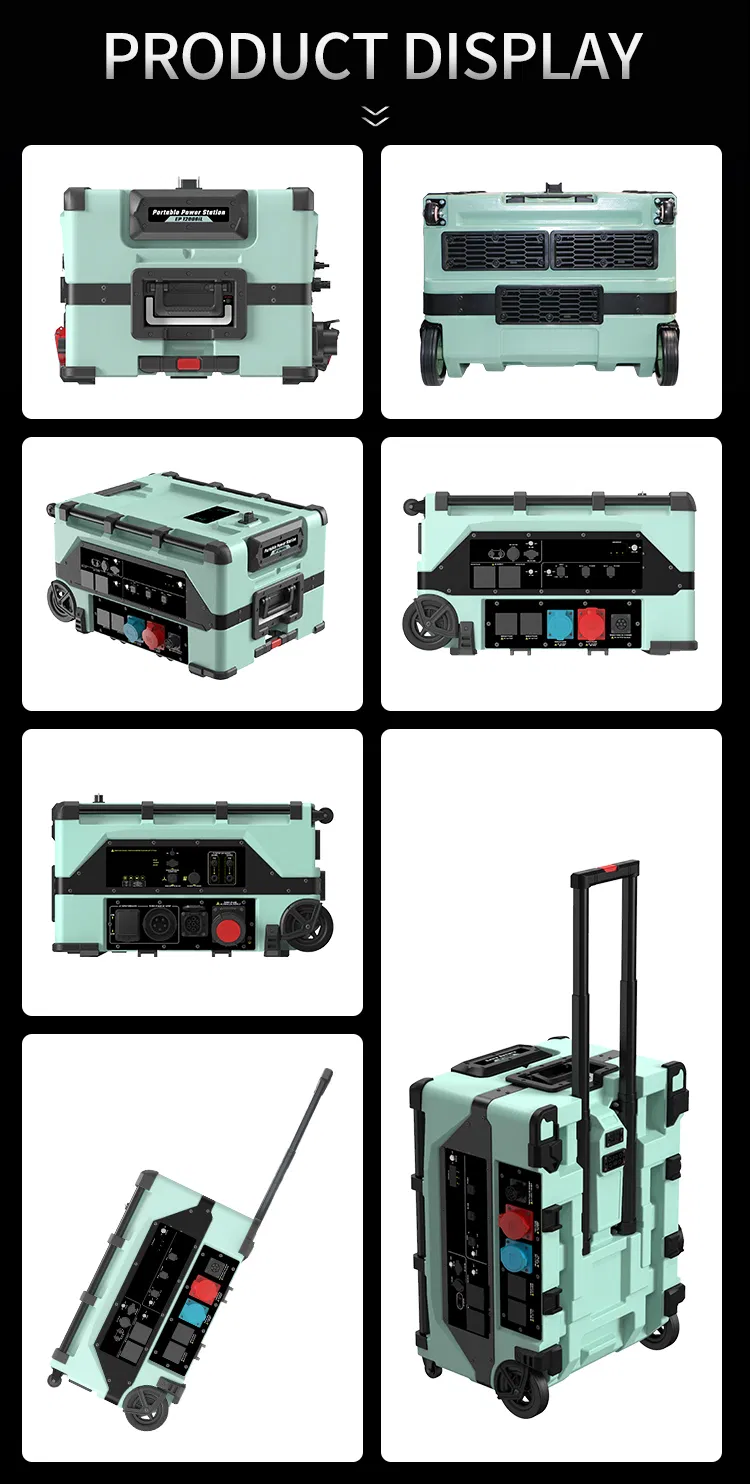

Portability
Drawbar & Wheels
Dimensions
840X670X490mm, 110kg
Product Advantages

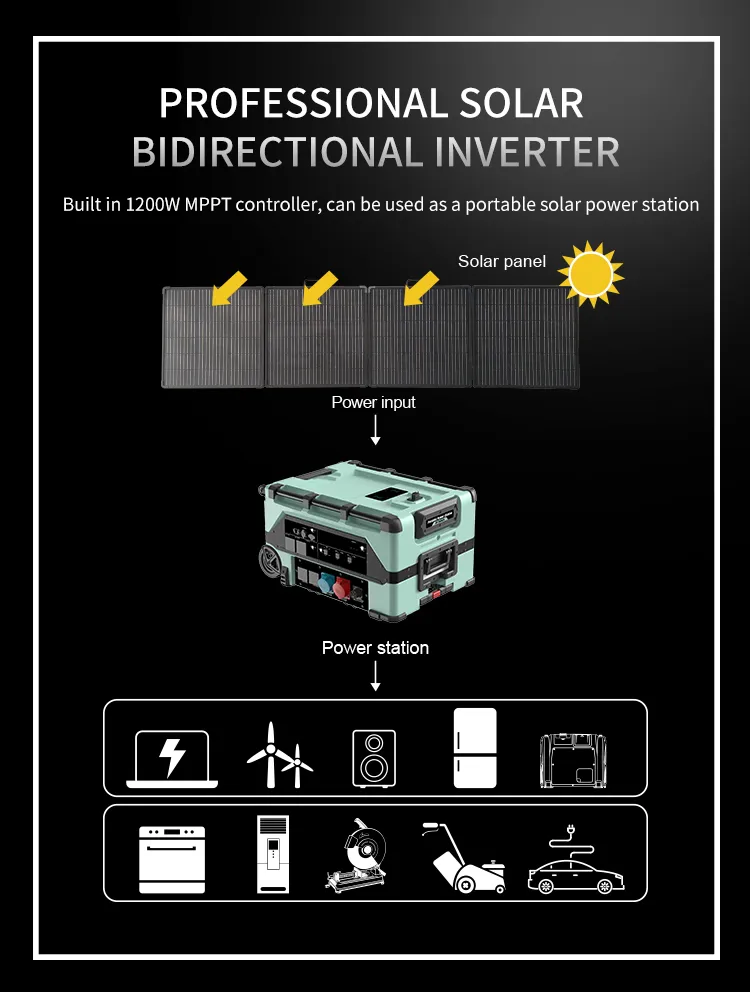

- Built-in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
- Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

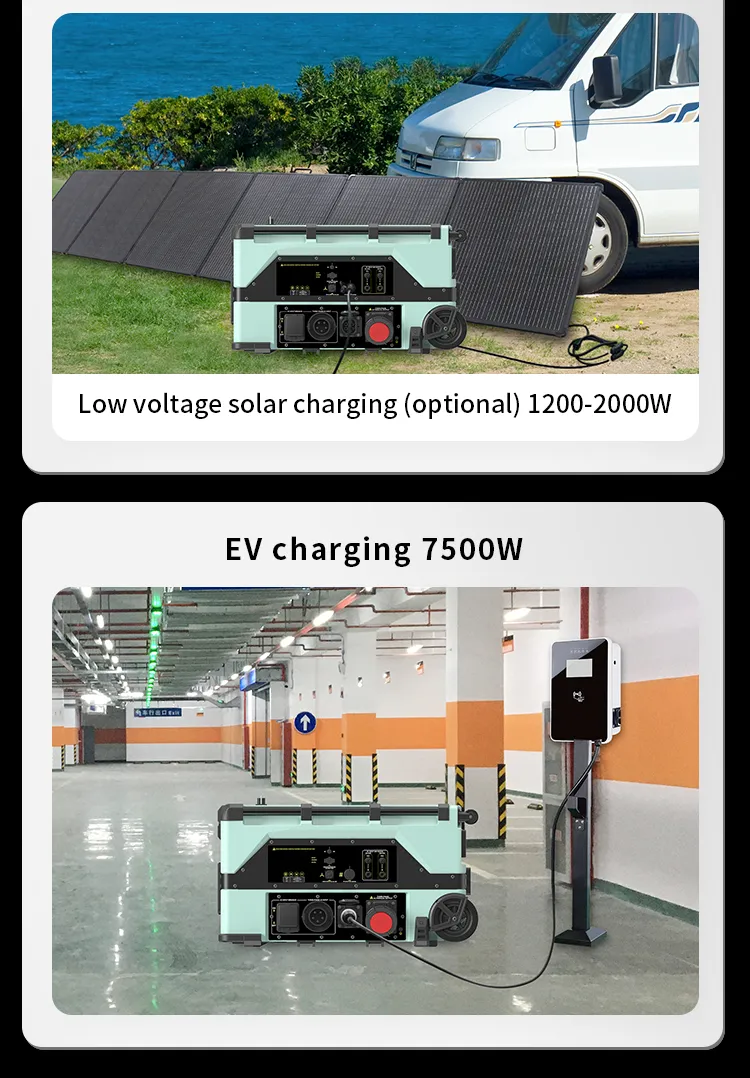

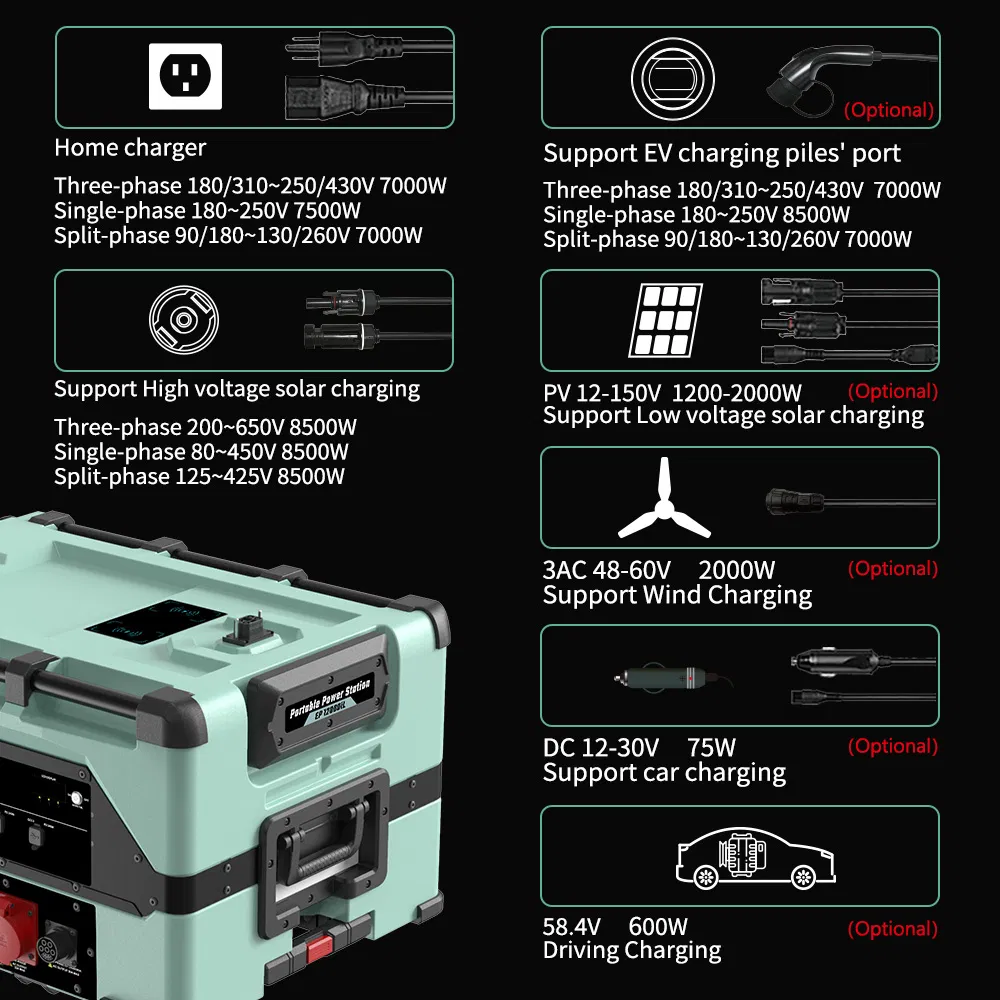

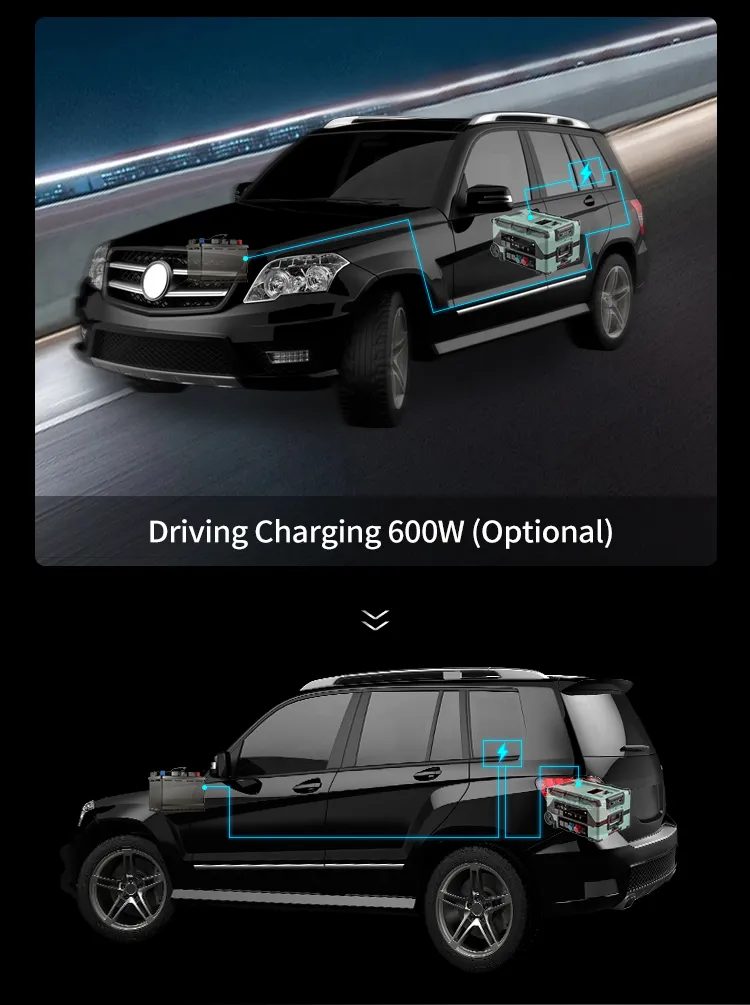

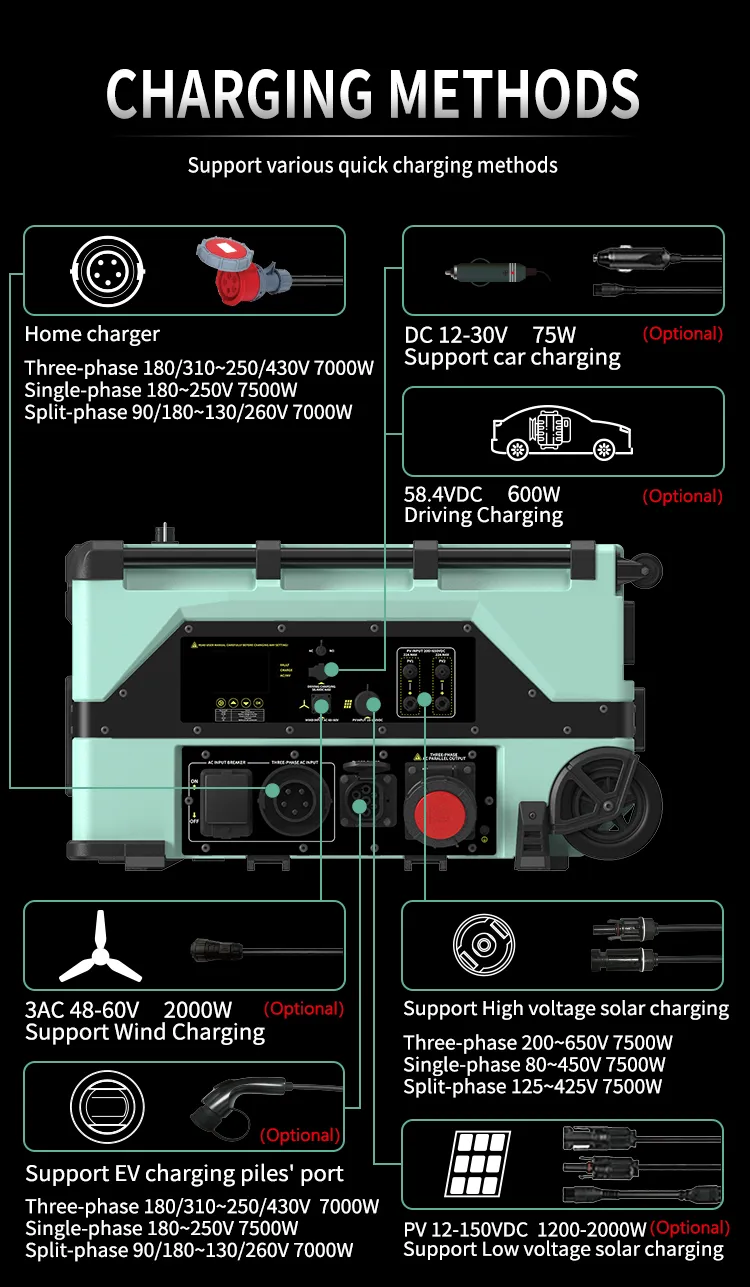

- Multiple fast charging: Utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

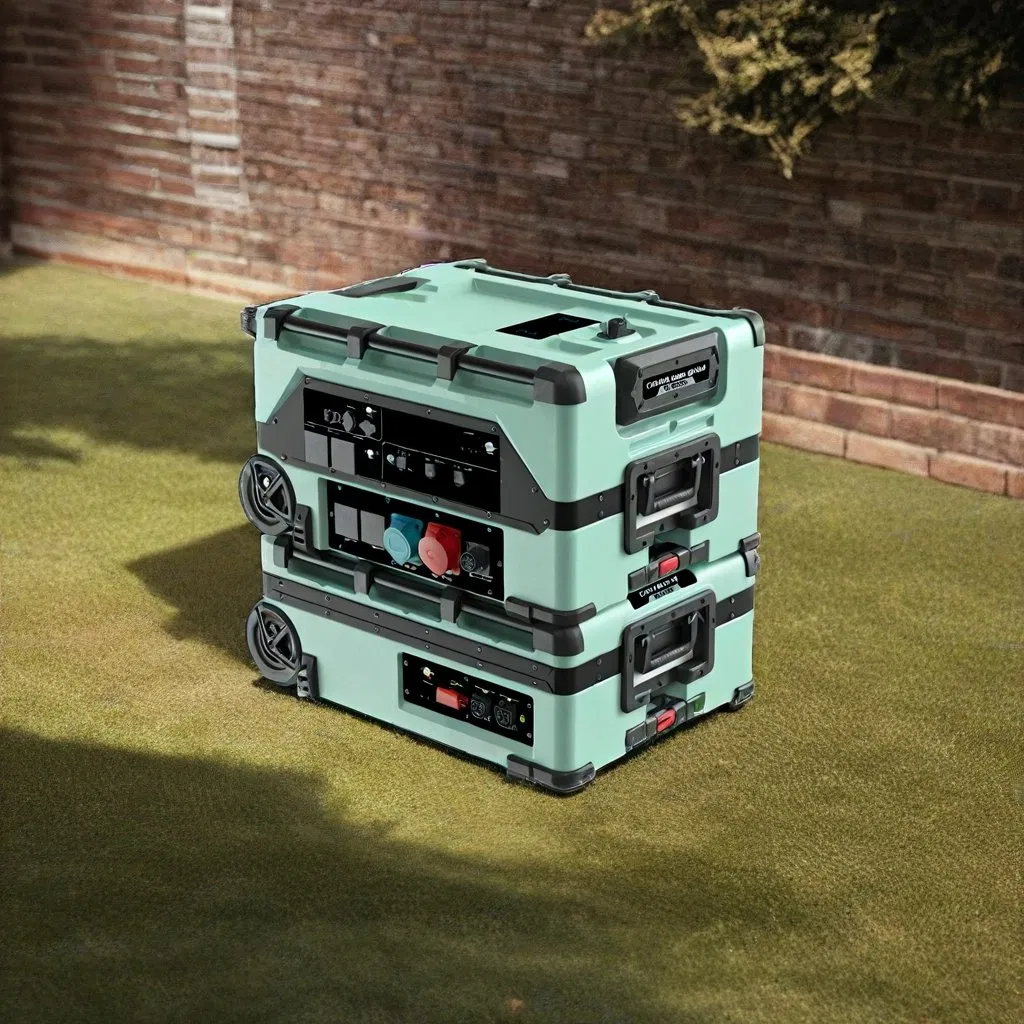

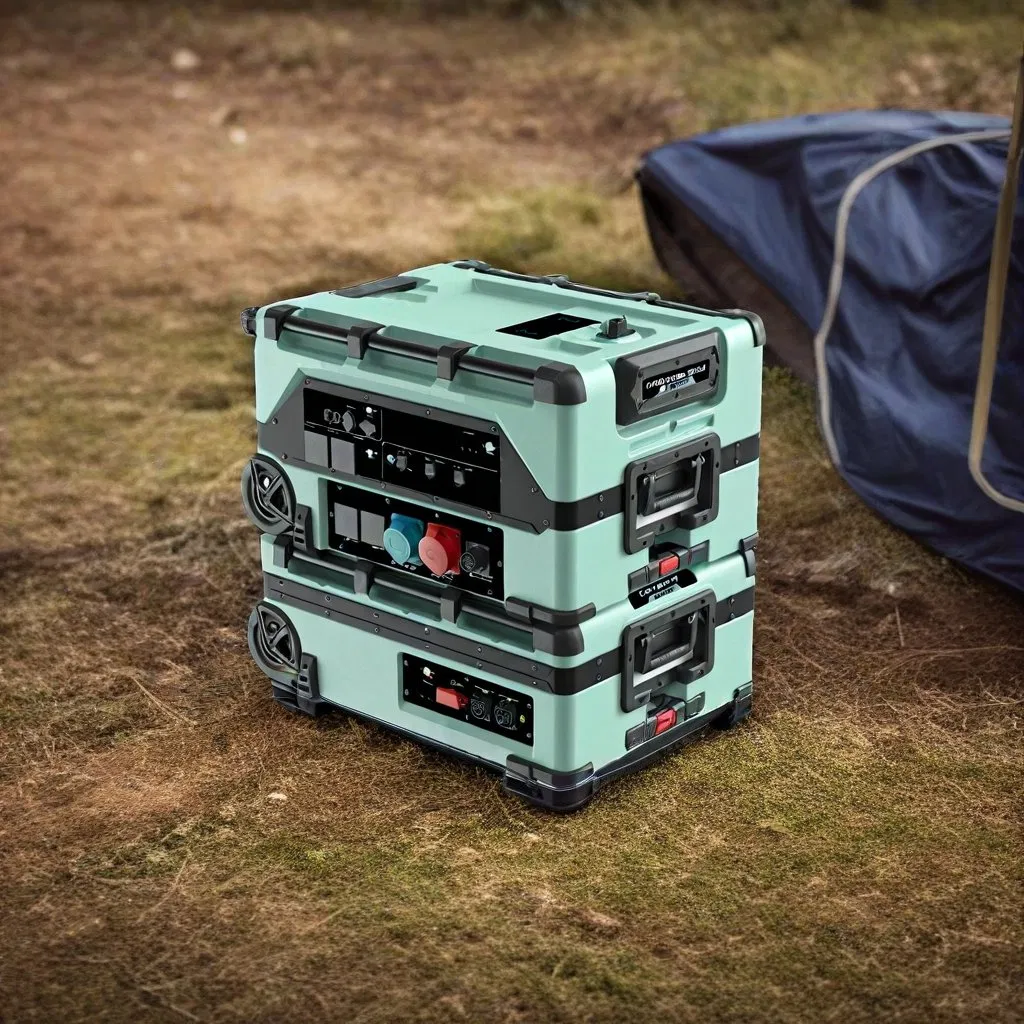

- Scalable capacity: Up to 31 extra batteries can be stacked for a total of 245kWh.

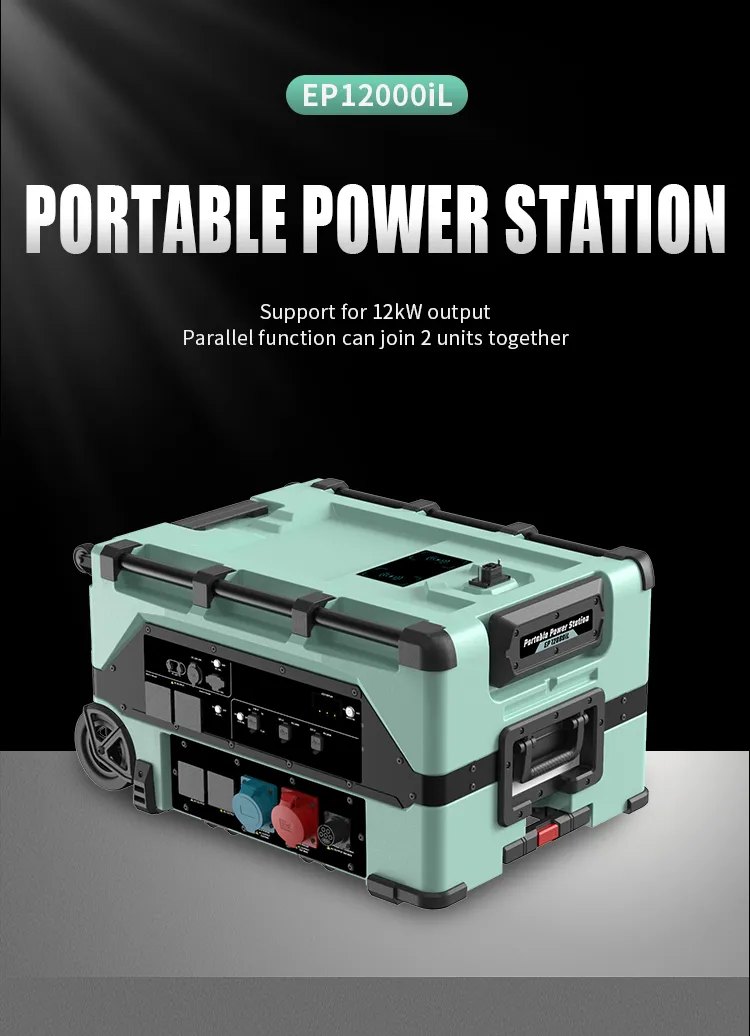

- Stacked parallel patented technology: Join 2 units for 24kW continuous output.
- Built-in electric vehicle charger: Replace charging stations to charge cars up to 22kW.

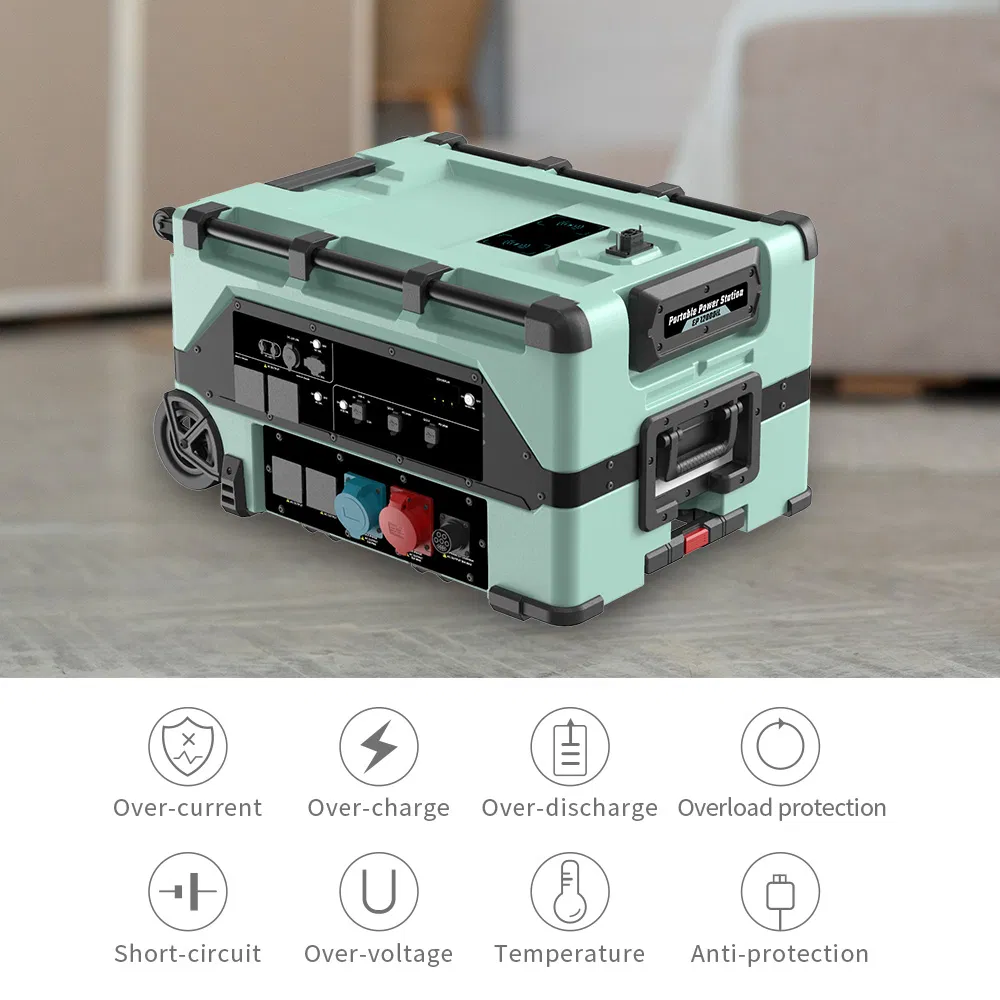

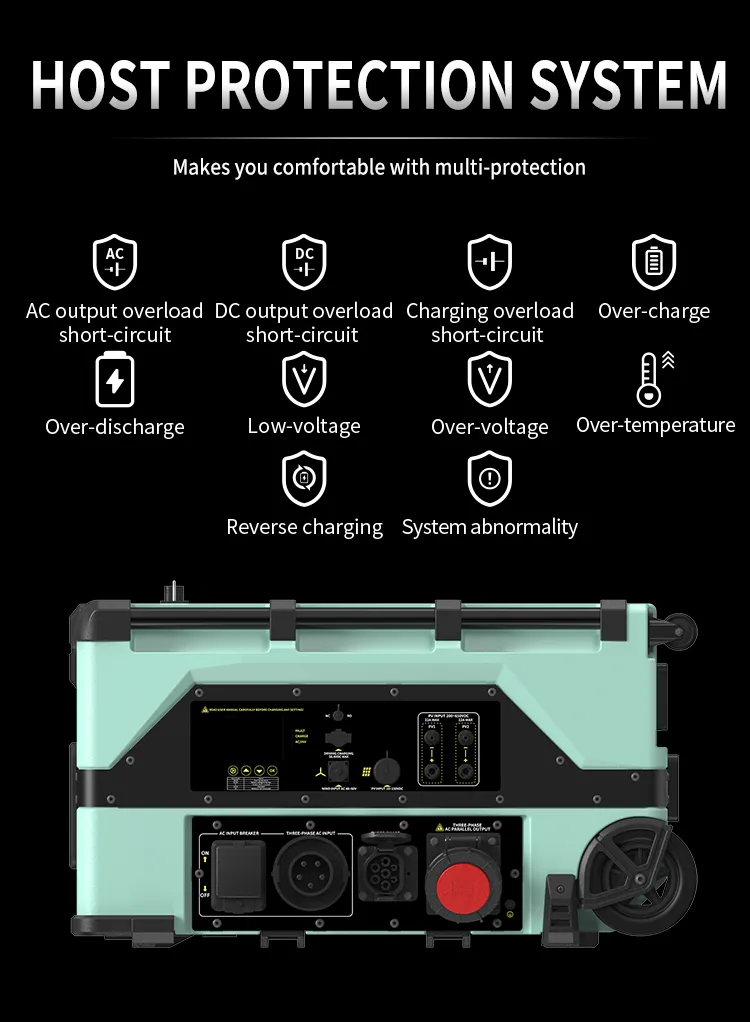

- Industrial Grade Protection: Unit IP53 and Battery Pack IP66 grade.
- Advanced Cooling: Patented dual channel cooling system.
- Safety: V-0 level flame-retardant and fire-resistant casing.
- Smart Control: Intelligent monitor by smartphone APP.

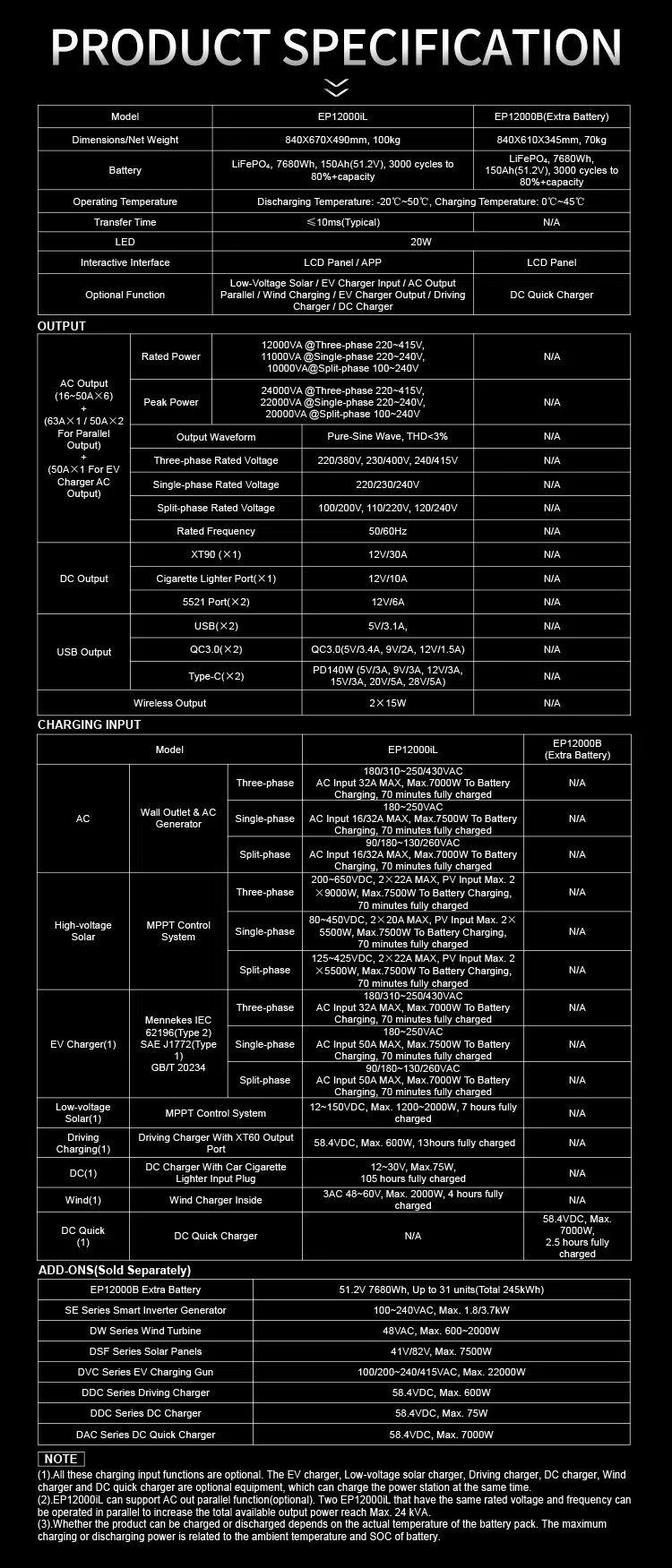

Output & Input Parameters
| Category |
Specifications |
| AC Output |
Rated Power |
12000VA (Three-phase) / 11000VA (Single-phase) / 10000VA (Split-phase) |
| Peak Power |
24000VA (Three-phase) / 22000VA (Single-phase) / 20000VA (Split-phase) |
| Waveform |
Pure Sine Wave, THD < 3% |

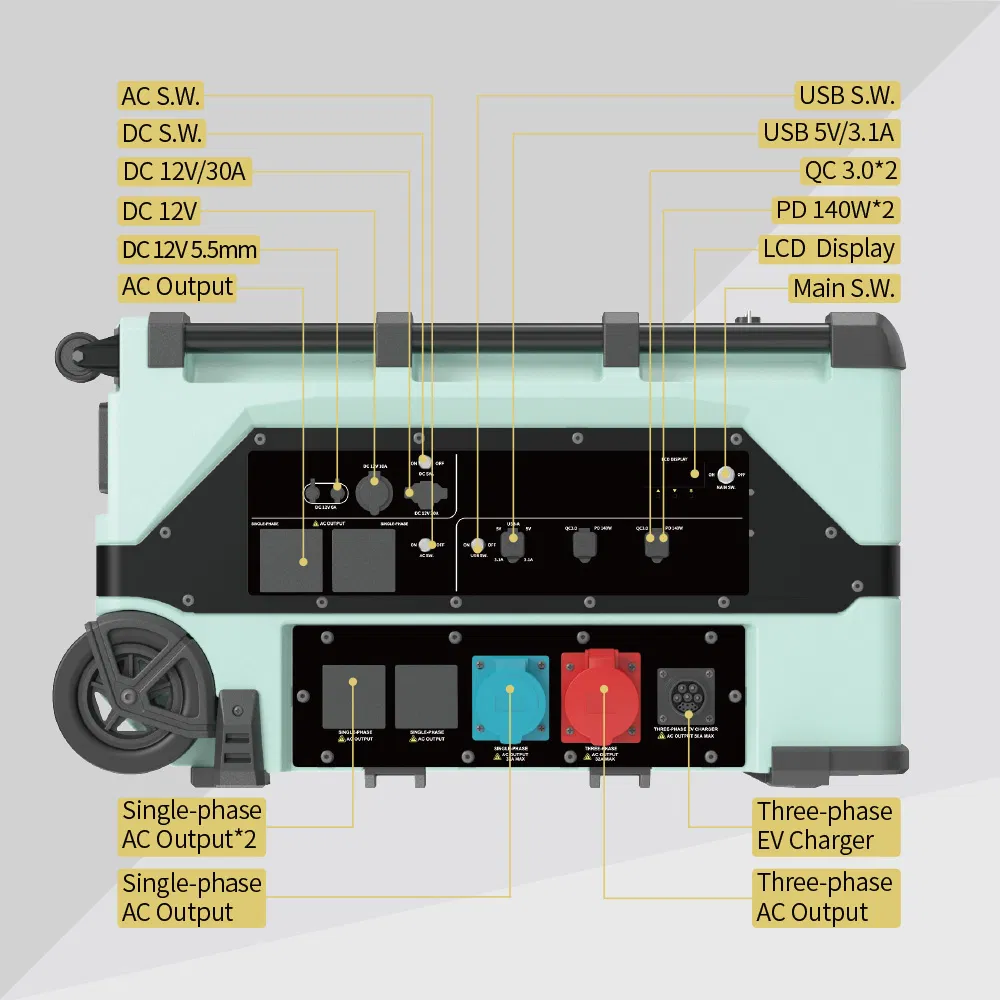

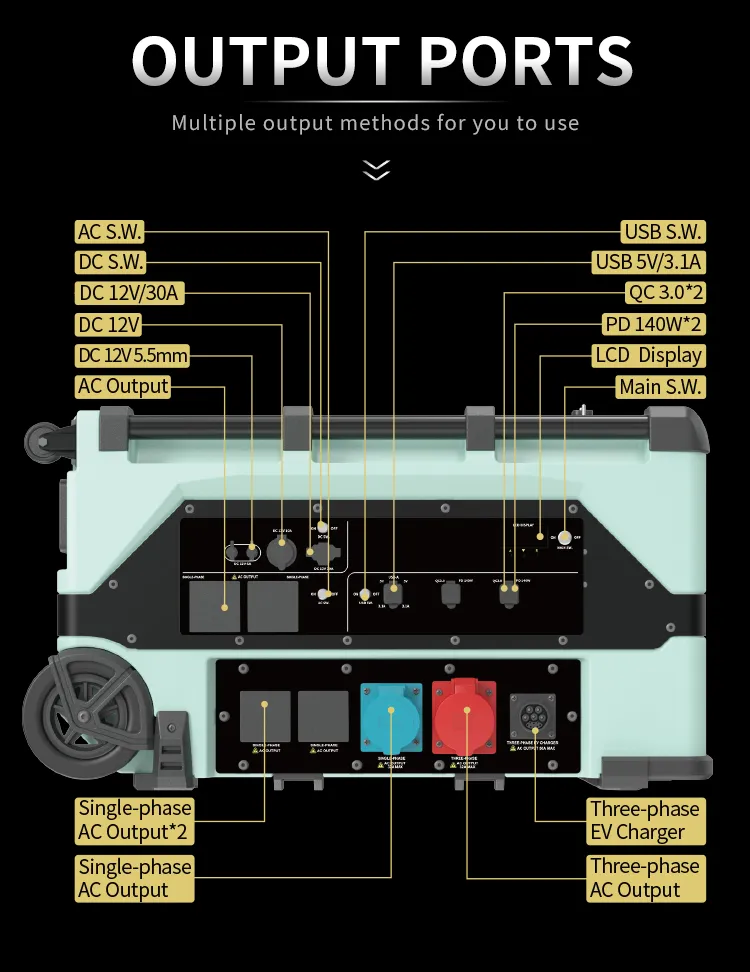

| DC Output |
XT90 Port |
12V/30A |
| USB Ports |
USB 3.1A, QC3.0 (18W), Type-C PD 140W |
| Wireless |
2 x 15W Wireless Charging |
| Charging Input |

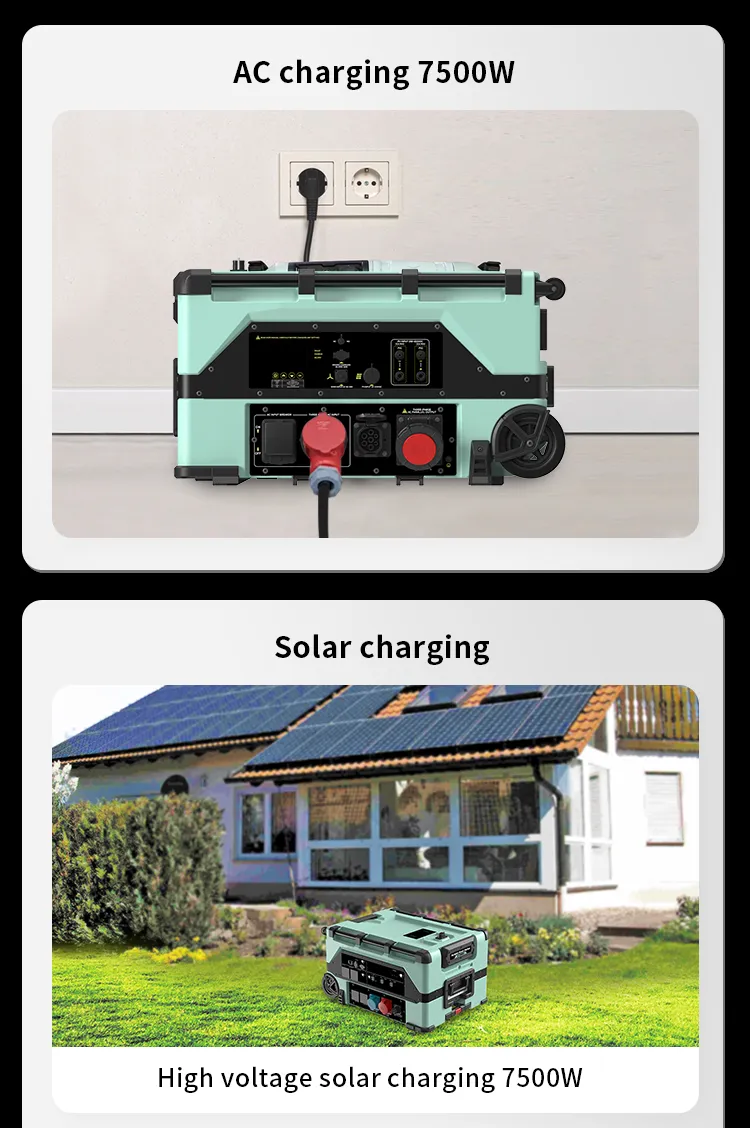

AC Fast Charge |
7000W-7500W Max, 70 mins fully charged |
| Solar (High V) |
200-650VDC, Max 2x9000W Input |
General Information
| Operating Temperature |
Discharging: -20ºC~50ºC | Charging: 0ºC~45ºC |
| Transfer Time |
≤ 10ms (Typical) |
| Interactive Interface |
LCD Panel / Smartphone APP Control |
| Battery Type |
LiFePO4, 7680Wh, 150Ah (51.2V), 3000+ Cycles |
Frequently Asked Questions
What is the battery capacity and type used in the EP12000iL?
The system utilizes a high-safety LiFePO4 battery with a capacity of 7680Wh (51.2V 150Ah), rated for over 3000 cycles to 80% capacity.
How fast can the unit be fully charged?
Using AC or high-voltage solar fast charging, the EP12000iL can be fully charged in approximately 70 minutes.
Can I expand the power capacity for larger needs?
Yes, the system supports battery expansion. You can stack up to 31 extra battery units to reach a maximum total capacity of 245kWh.
Does this system support three-phase power output?
Yes, it supports continuous 12kW AC three-phase output, as well as single-phase and split-phase configurations to suit various electrical needs.
Is the EP12000iL suitable for electric vehicle (EV) charging?
Absolutely. It features a built-in EV charger that can charge electric vehicles at up to 22kW, making it an excellent mobile charging station.
What are the weather resistance ratings?
The main unit has an IP53 protection grade, while the battery packs are rated IP66, ensuring durability in various outdoor environments.
