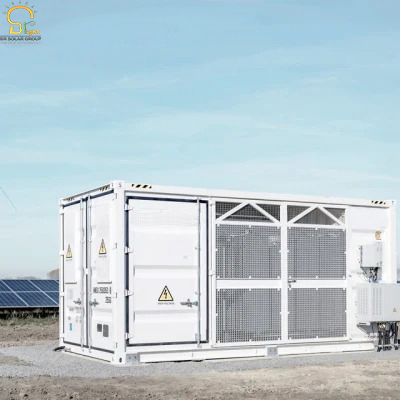

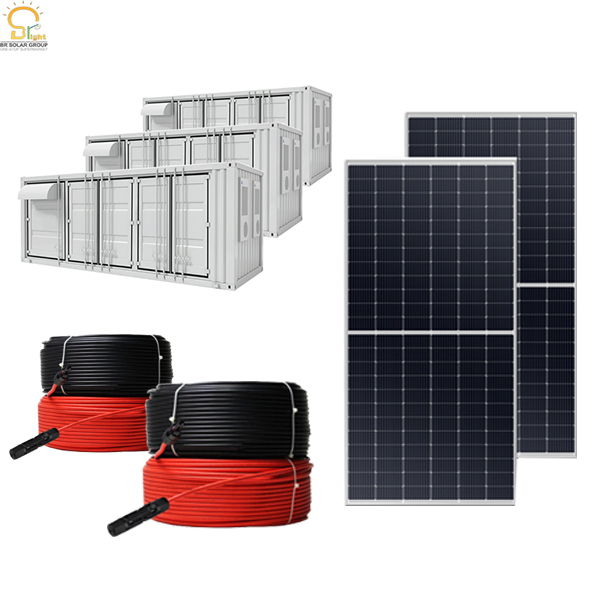

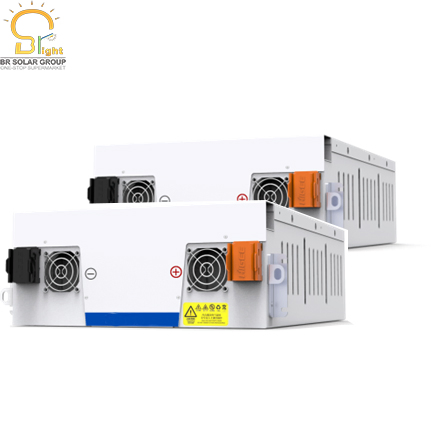

Commercial Industrial Container Solar Renewable off Grid Lithium Battery Energy Storage System Ess-1mwh

Customization: Available
After-sales Service: Yes
Warranty: 10 Years

Product Description

i

Basic Specifications

Model NO.
ESS-1MWH
Condition
New
Certification
ISO, CB, CE, TUV
Application
Industrial, Commercial
Specification
20FT / 40FT Containers

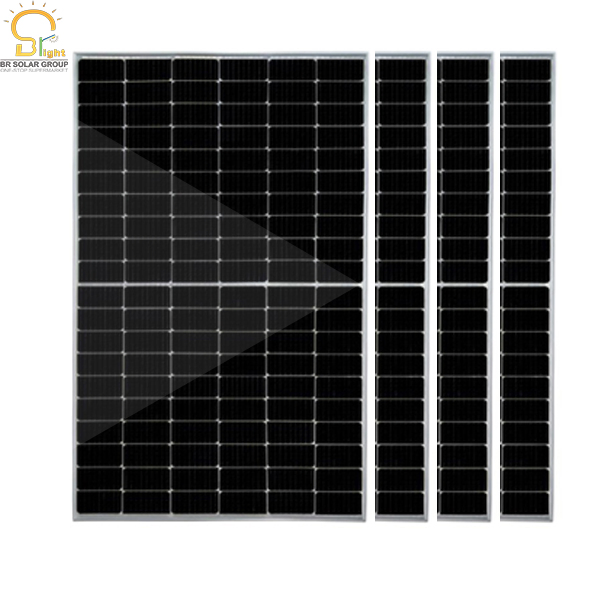

Solar Panel
Mono 550W-700W
Monitoring
WiFi/GPRS Device
Battery Type
Lithium Ion Battery Cell
Cycle Life
>6000 Cycles
Rated Output
315VAC/400VAC
IP Grade
IP54
Origin
China

Product Description

The battery energy storage system (BESS) containers are based on a modular design, configured to match specific power and capacity requirements.

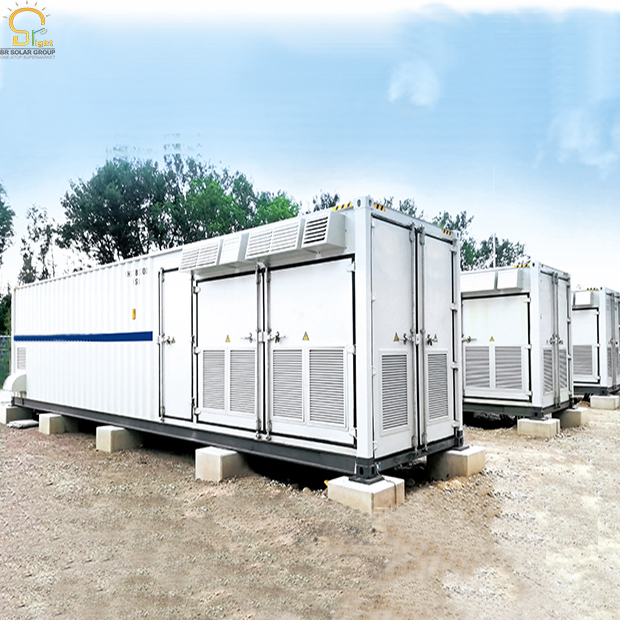

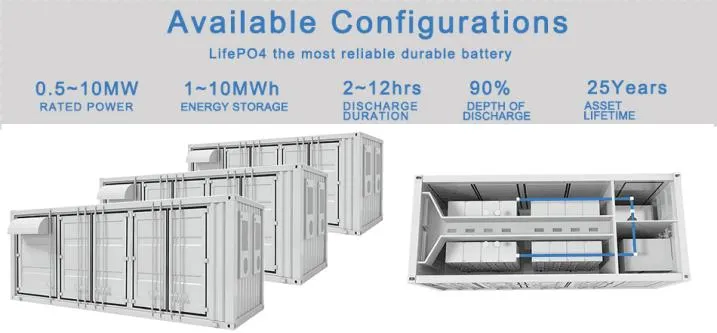

Container Energy Storage System

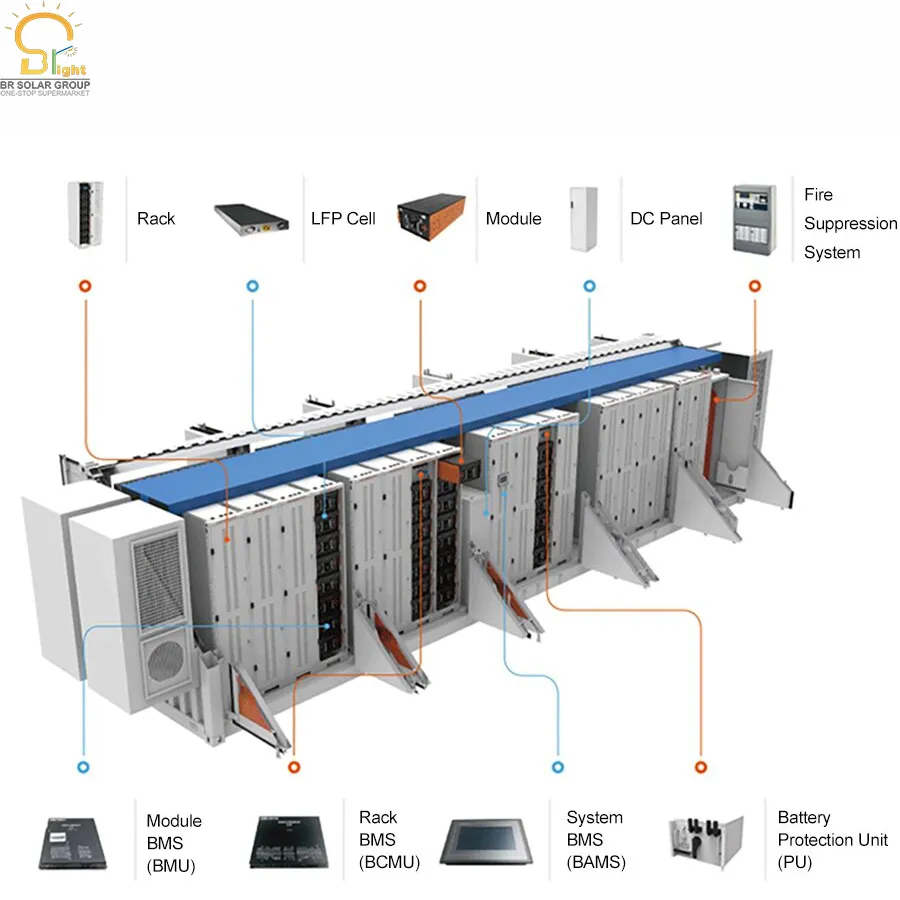

Energy Storage System Details

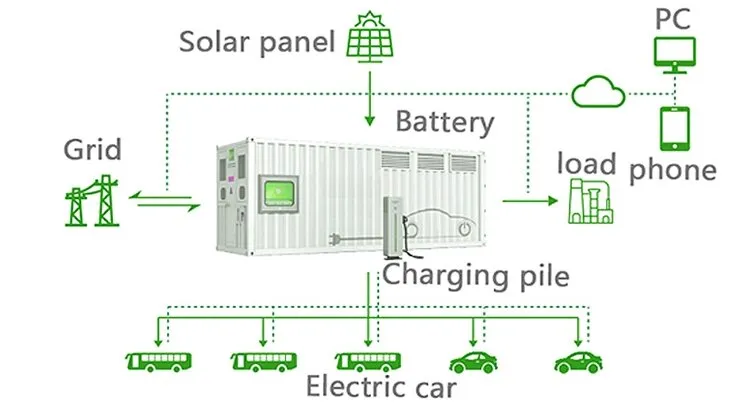

System Features

System Features
High Integration: Includes battery management (BMS), PCS, temperature control, fire control, and data monitoring systems.
Customizable Design: Flexible configurations to meet diverse industrial and commercial needs.
Safety First: Third-level BMS architecture ensures reliable and safe operation.
Advanced Charging: Supports pre-charging, constant-current, uniform, and floating charging modes.
Smart Monitoring: Perfect communication and early warning functions with abundant data analysis capability.

20ft Integrated Warehouse Specs

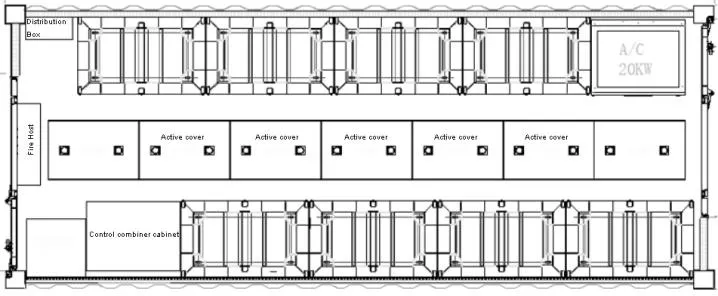

20ft Container
Name0.5C Rate1C Rate
Container Size6058mm(L)×2438mm(W)×2896mm(H)
Battery Cluster38240 Cluster*876120 Cluster*14
Nominal Voltage729.6V691.2V
Rated Power630kW*1500kW*2
Max Stored Power1400kWh1161kWh

40ft Integrated Warehouse Specs

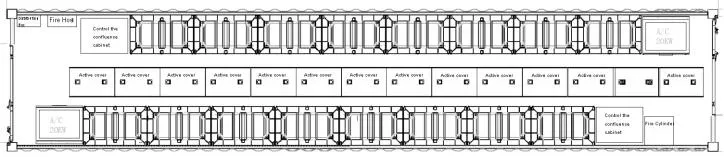

40ft Container
Name1000V (0.5C)1000V (1C)1500V (0.5C)1500V (1C)
Container Size12192mm(L)×2438mm(W)×2896mm(H)
Nominal Voltage729.6V691.2V1305.6V1305.6V
Max Stored Power2800kWh2322kWh2506kWH2506kWH
📋

1MW/2.5MWH System Parameters

Rated Output Power1000KW
Rated Capacity2500KWH
AC PhasesThree-phase Four-wire
Grid Rated Voltage380V (±15%)
Output Power Factor≥0.99
Noise Level<70dB
Weight22 Ton
📦

Packing & Shipping

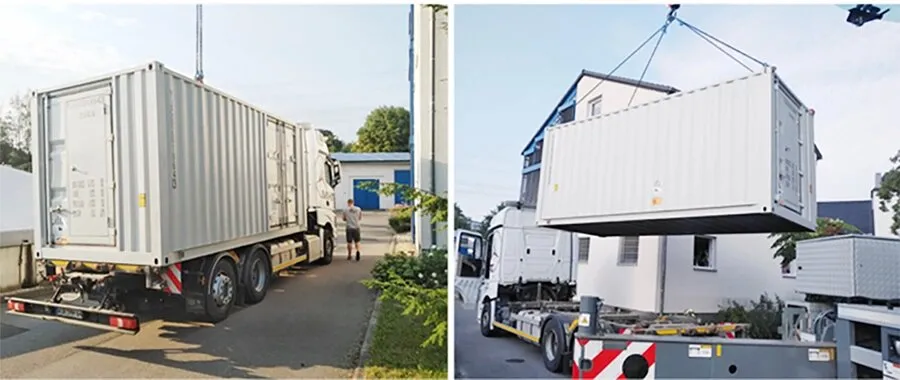

Packing and Shipping
🏗

Our Projects & Factory

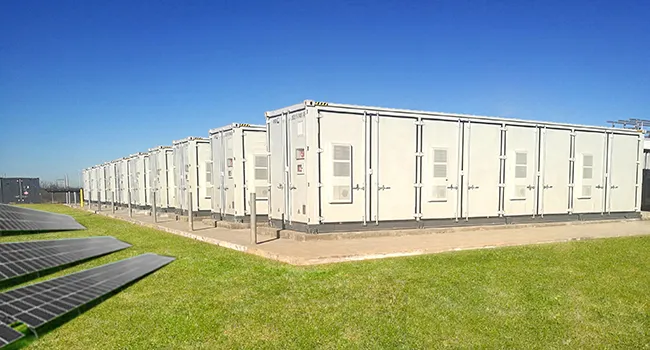

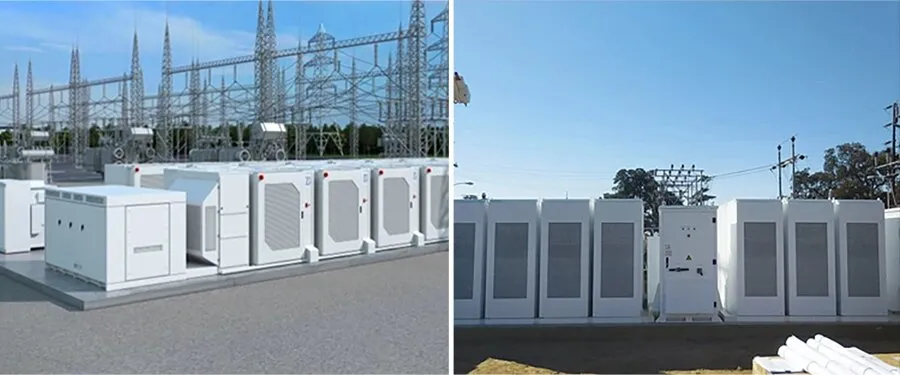

Project Cases

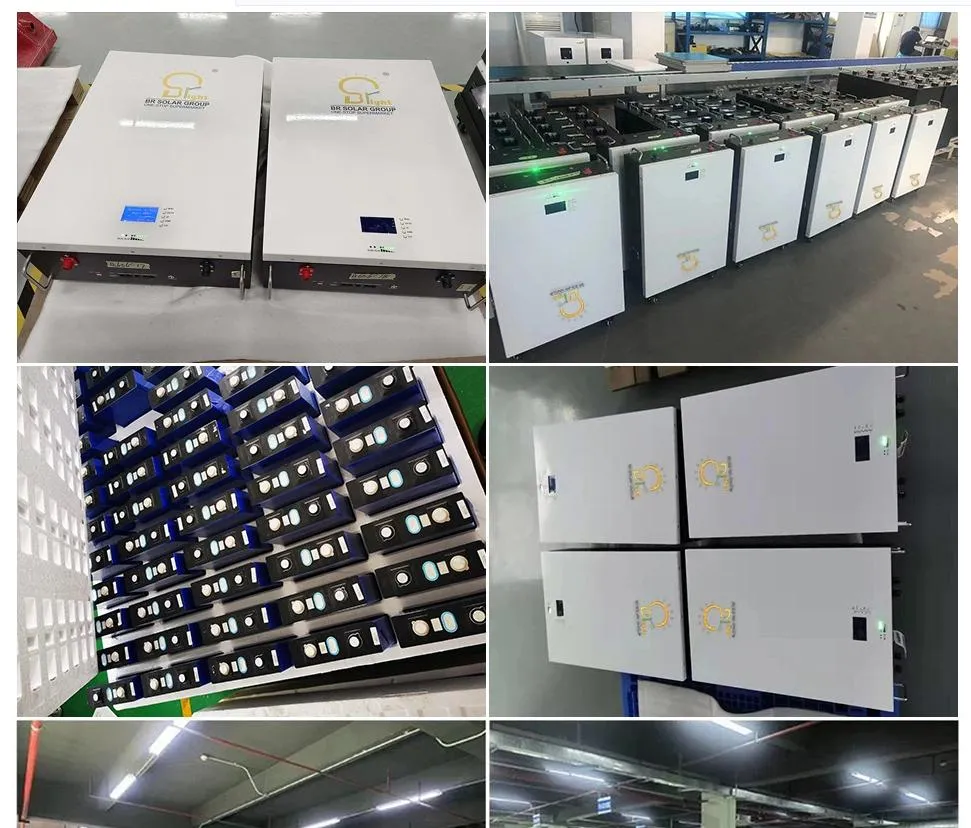

Factory Overview

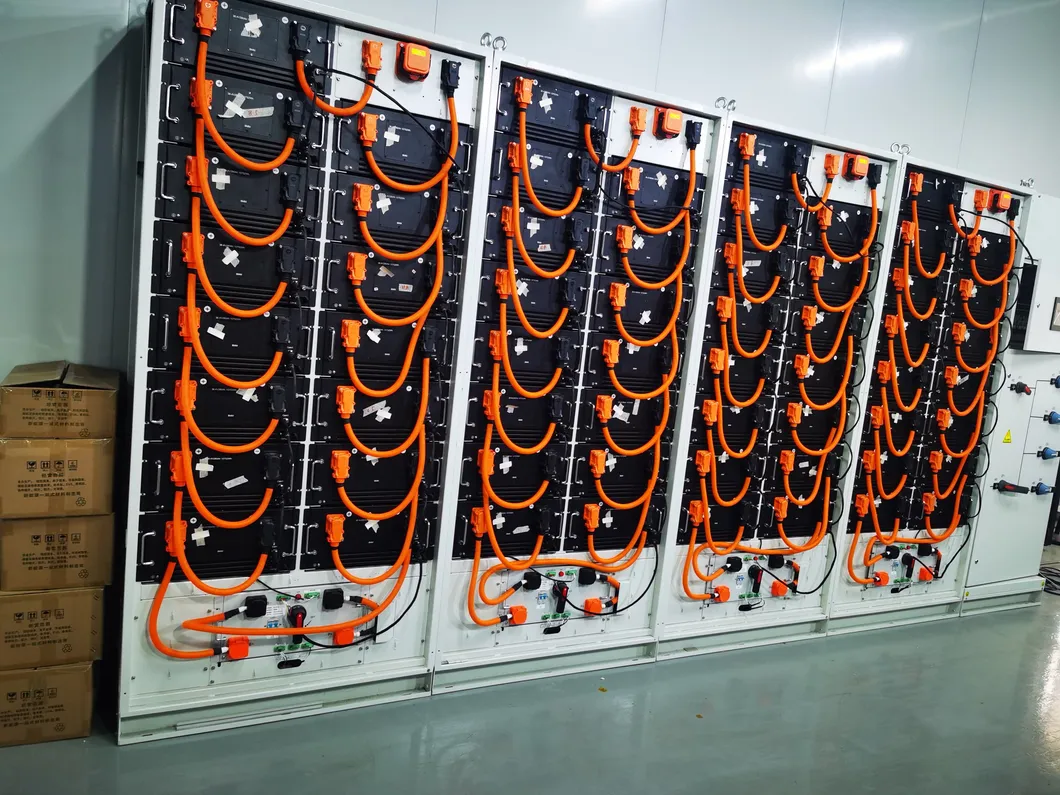

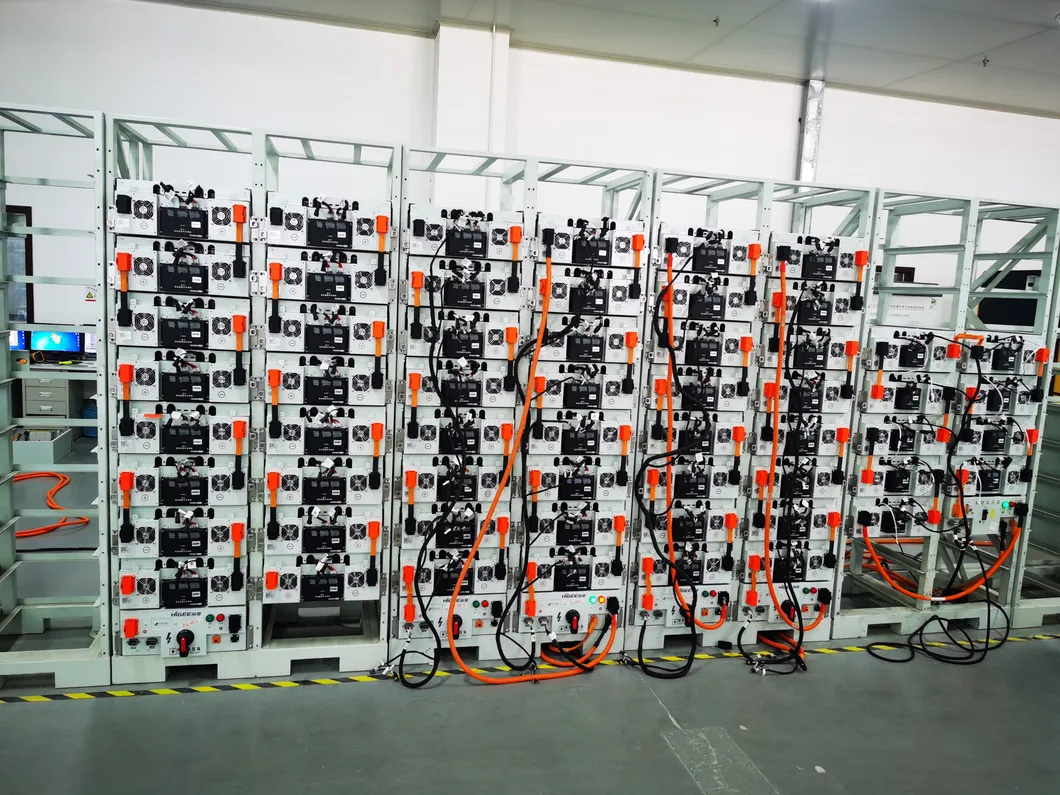

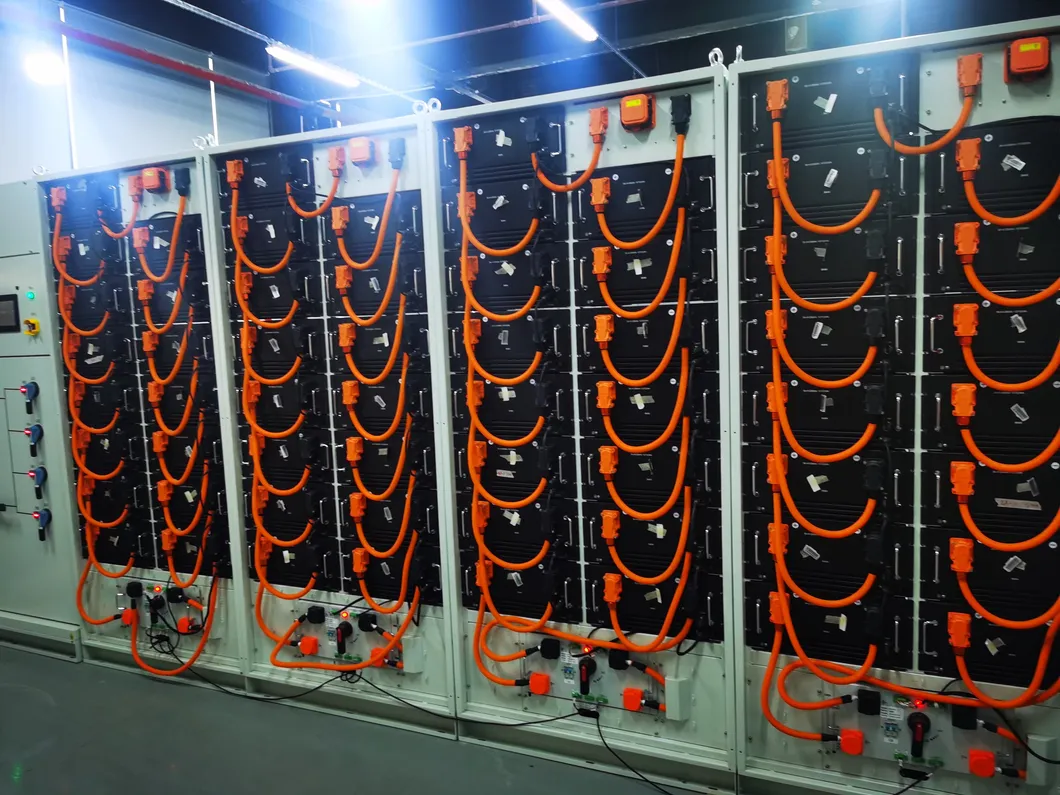

Production Line 1 Production Line 2 Production Line 3
📜

Certificates

Product Certificates
Contact Inquiry
?

Frequently Asked Questions

What is the typical lifespan of the battery cells?
The system utilizes high-quality Lithium Ion cells with a cycle life exceeding 6,000 cycles, ensuring long-term reliability for industrial use.
Can the container size be customized?
Yes, we offer standard 20ft and 40ft configurations, but the internal system and capacity can be customized to meet specific power requirements.
What safety systems are integrated into the BESS?
The system includes a 3-level BMS, integrated fire control systems, temperature control, and emergency power supply functions for maximum safety.
Is remote monitoring available?
Yes, the system supports remote monitoring via WiFi or GPRS devices, allowing you to track performance and system health in real-time.
What is the IP rating for outdoor installation?
The energy storage containers are rated IP54, making them suitable for various outdoor environmental conditions.
What certifications does the system hold?
Our energy storage systems are certified by ISO, CB, CE, and TUV, meeting international quality and safety standards.
