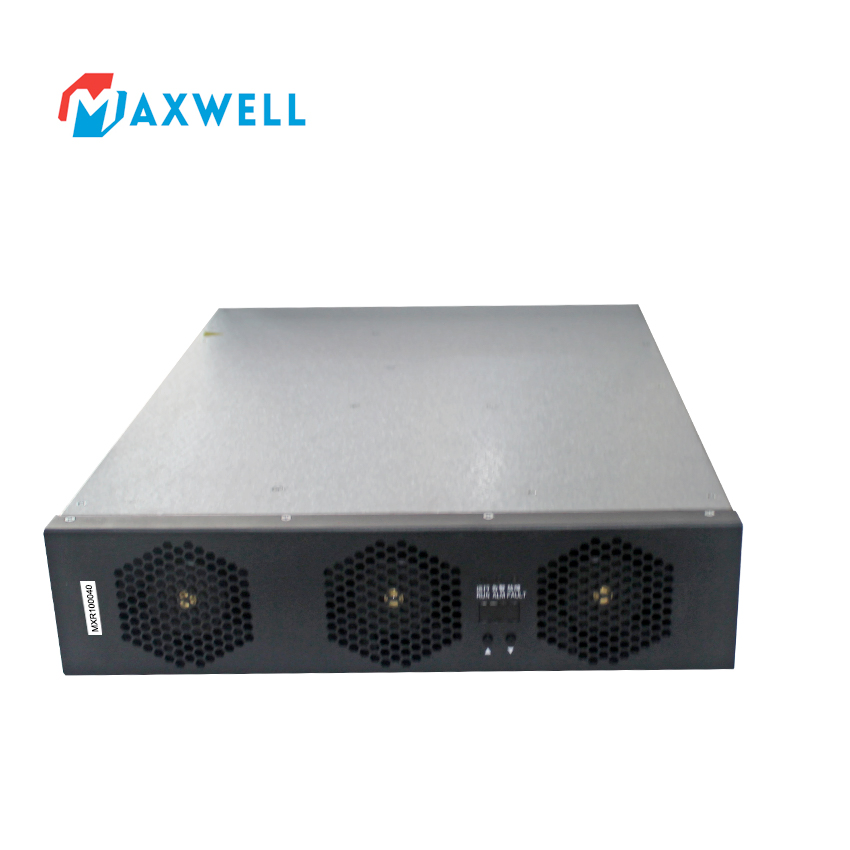

Commercial Charging Station Used 20kw 30kw 40kw EV DC Power Module

1 / 5

Commercial Charging Station Used 20kw 30kw 40kw EV DC Power Module

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.	MXR100040	Parallel Modules	60PCS
MTBF	500,000 Hours	Input Current	80A
Output Current	0~133.3A	Power Factor	0.99
Input Frequency	45Hz~65Hz	Warranty	1 Year
Certification	CE, ISO, TUV, RoHS	Origin	Hebei

⚙️

Technical Specifications

Model	MXR100040
Efficiency (Full Load)	≥95.5%
Communication Protocol	CAN bus
Dimensions	85mm(H)360mm(W)459mm(D)
Input Voltage	285 Vac~475 Vac, 3 phase+PE

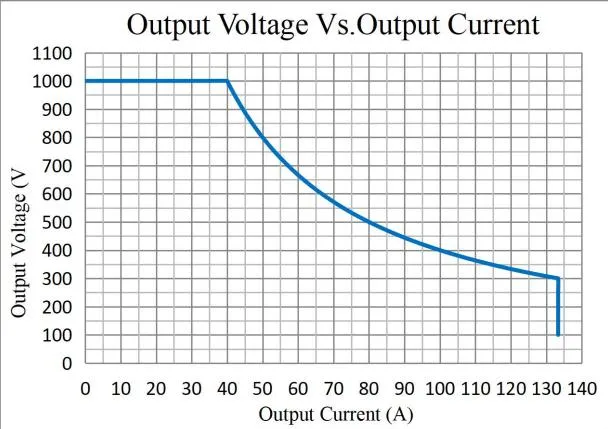

Output Voltage	100 Vdc~1000 Vdc
Output Derating	Above 60ºC

🖼️

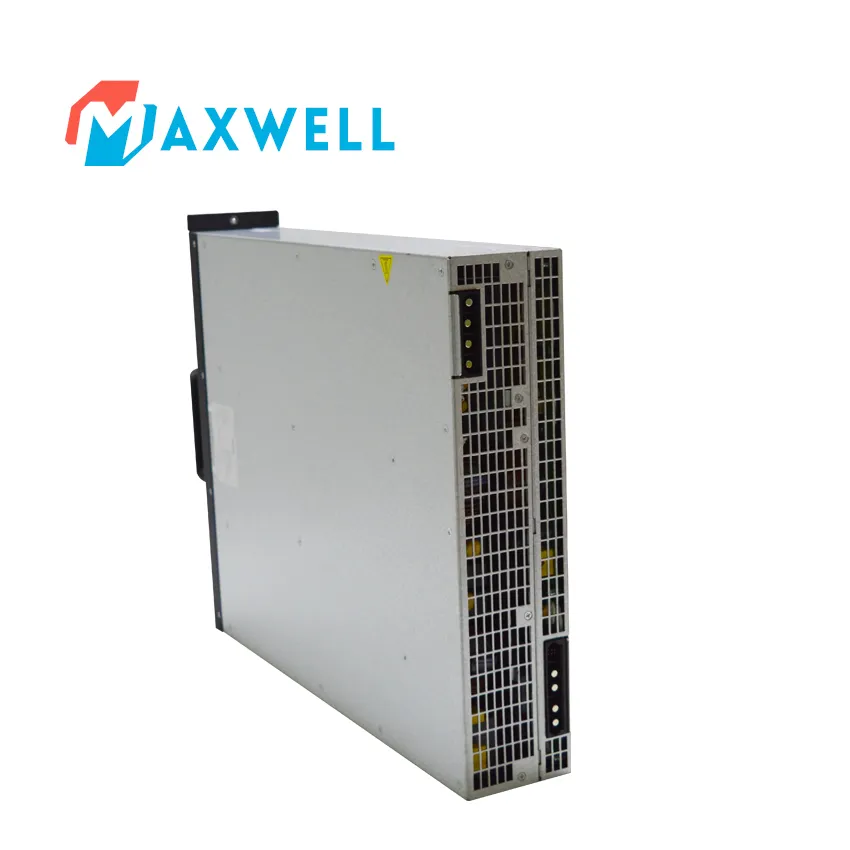

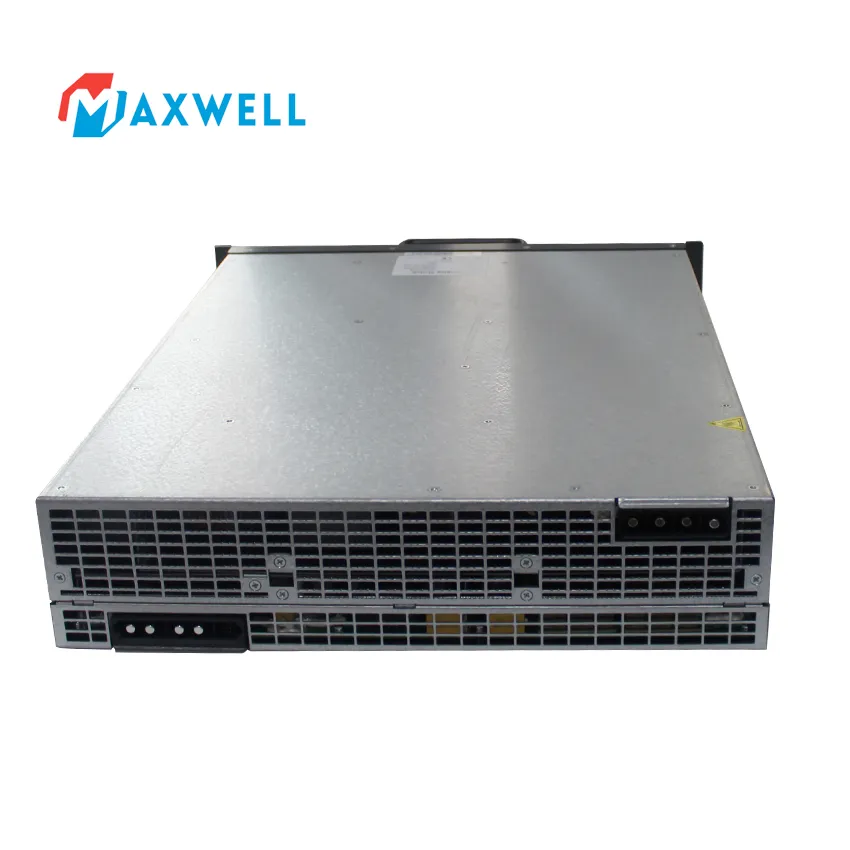

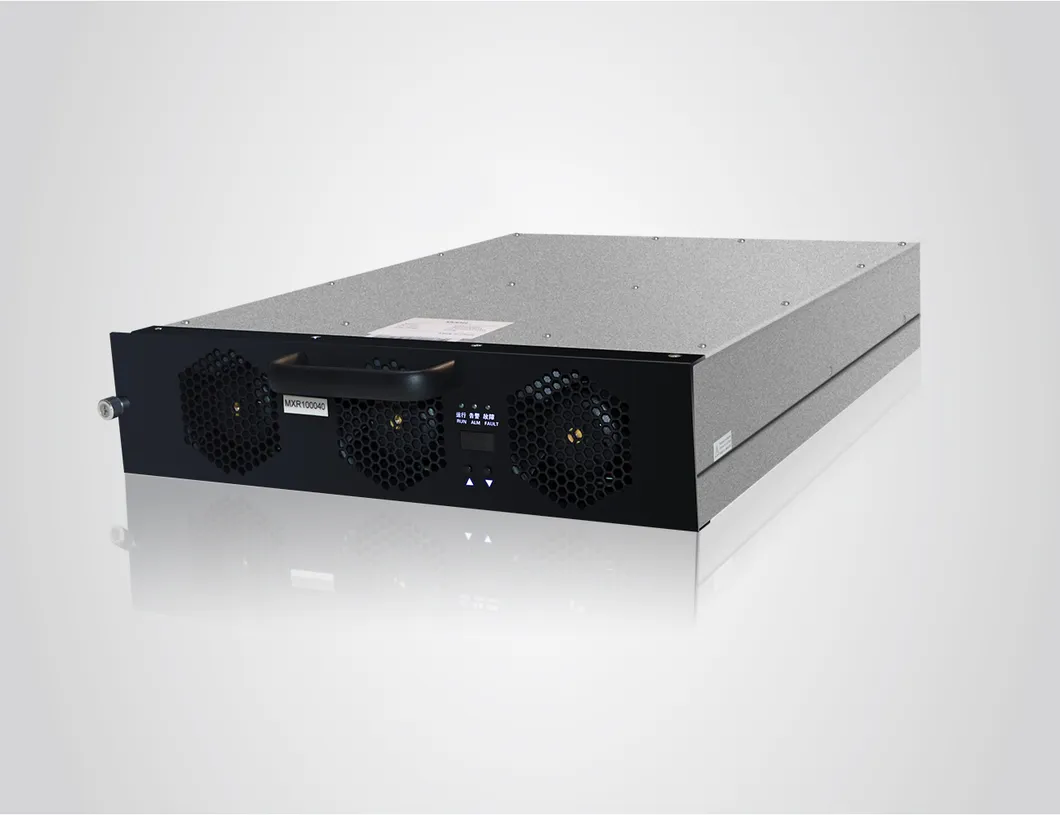

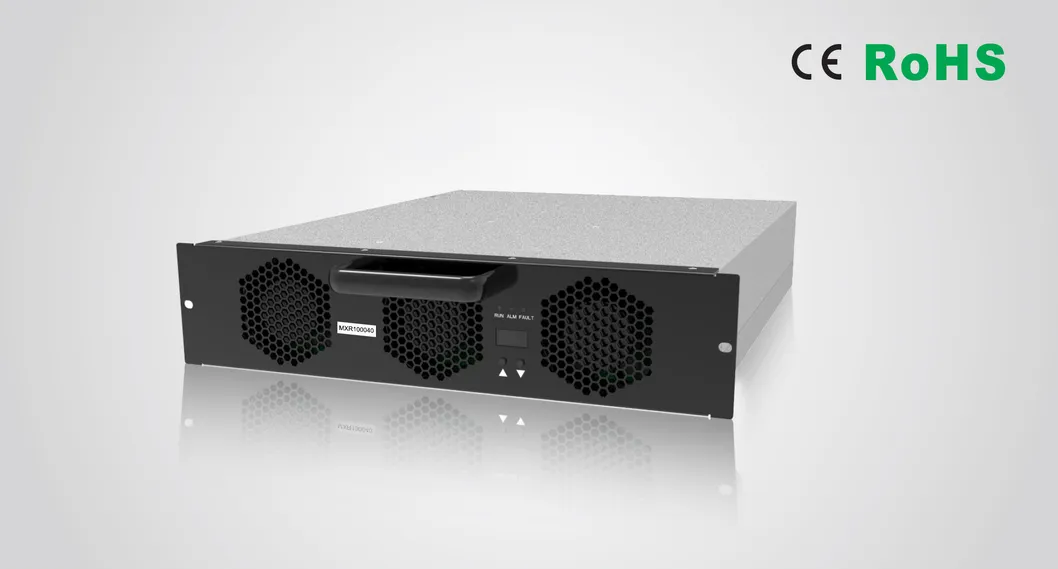

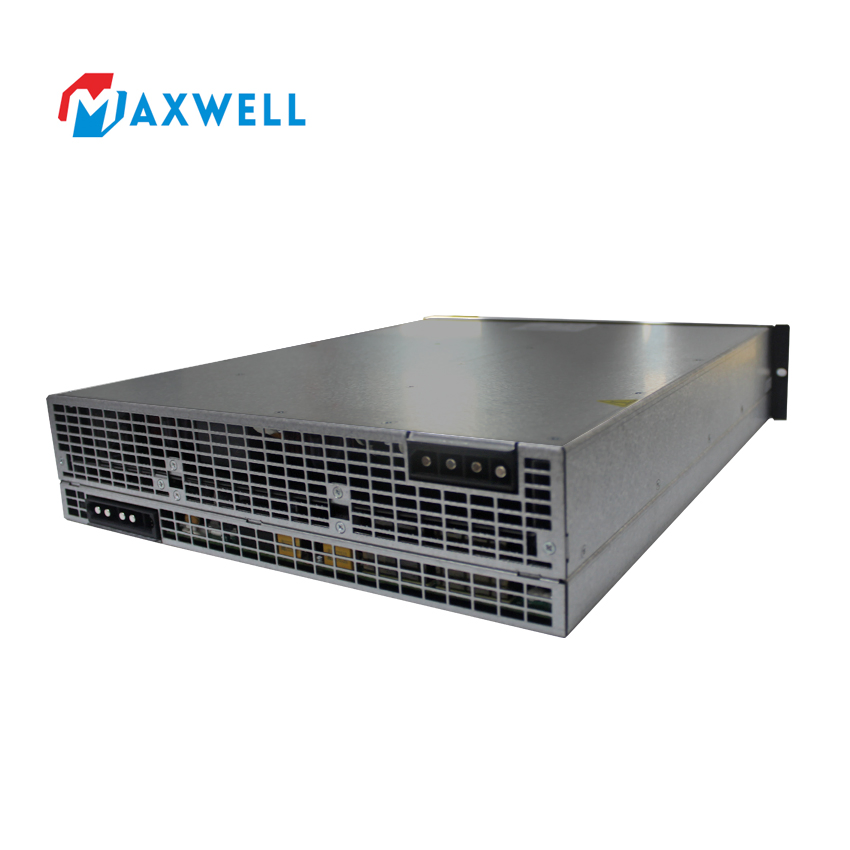

Product Display

💡

Core Functionalities

Hot Swap Capability: The charging module adopts plug-in technology, ensuring convenient installation and maintenance without system downtime.
Advanced Current Sharing: Modules automatically share the load with an unbalance degree of less than 3%.

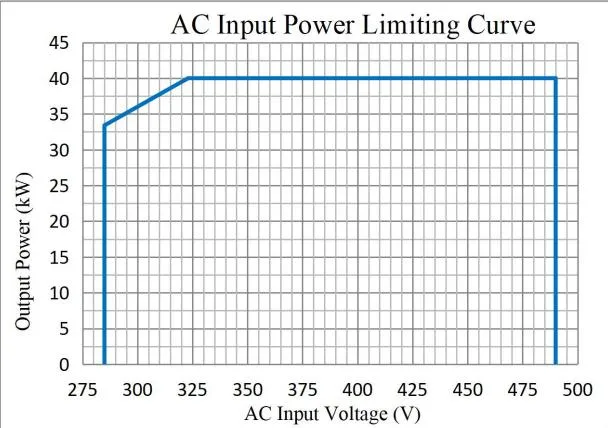

Input Limited Power Control: Maximum power output is maintained when input voltage is between 323Vac and 475Vac.
Constant Power Control: At rated input voltage, the allowable output power of the MXR100040 module is a robust 40kW.

🛡️

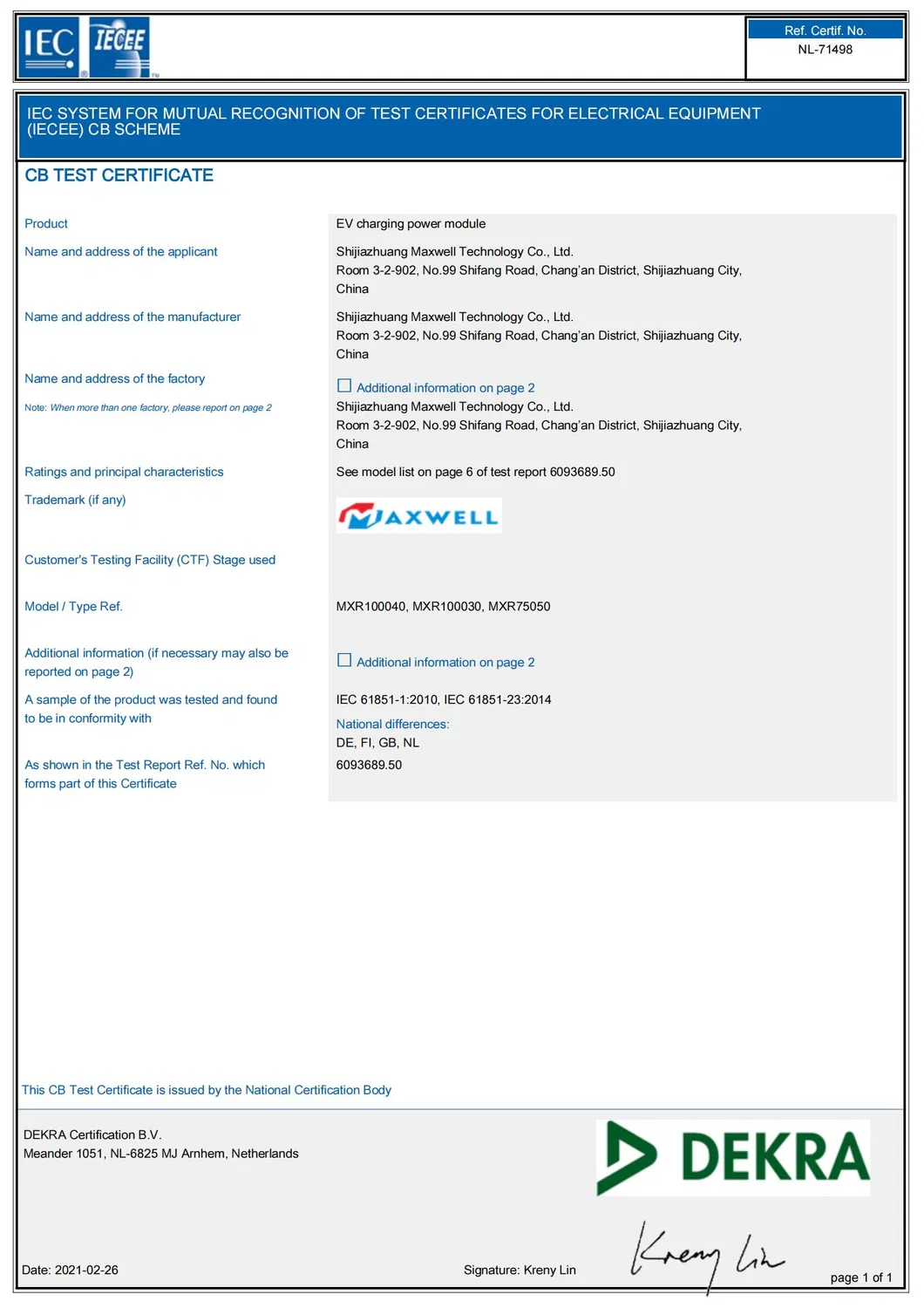

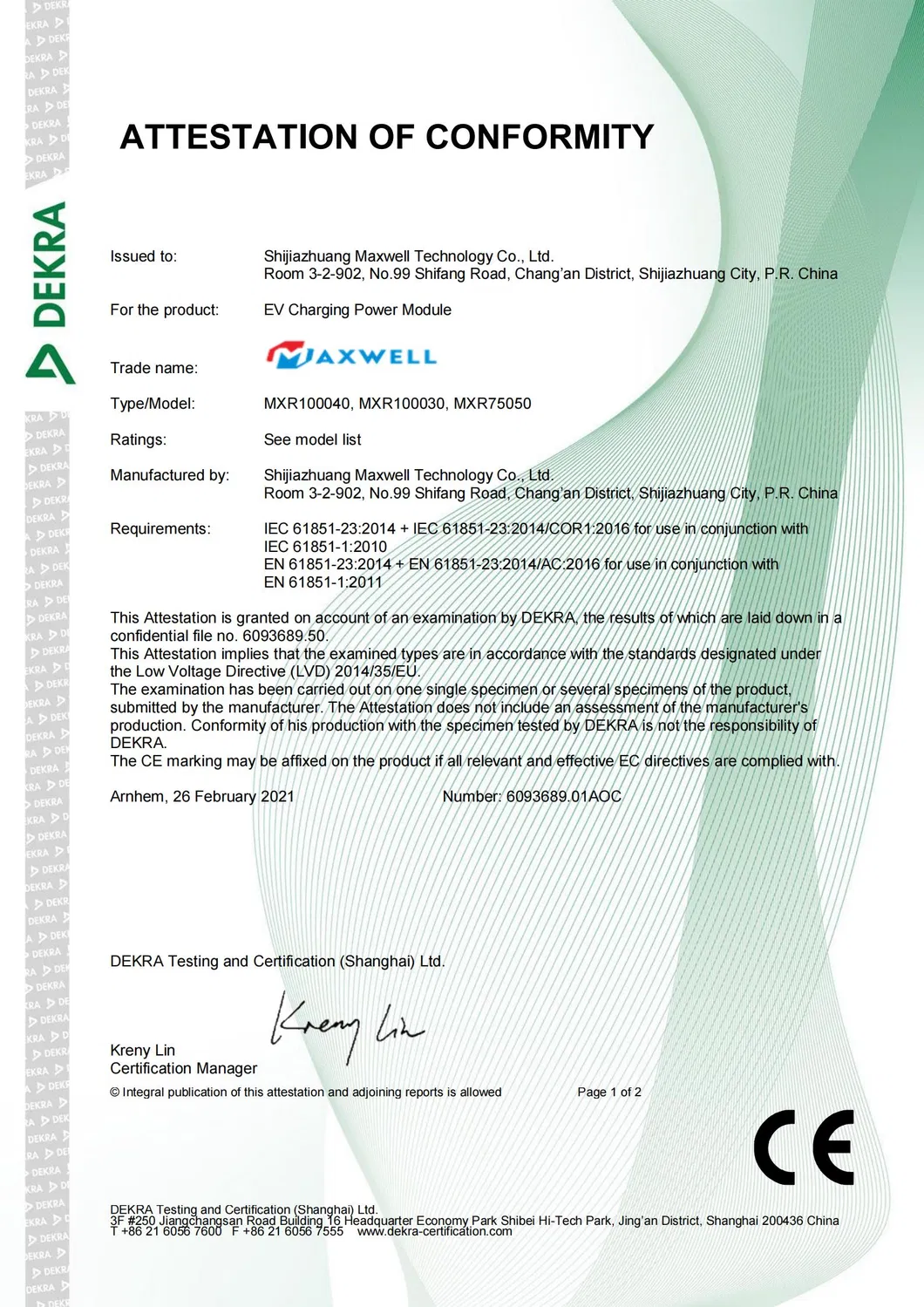

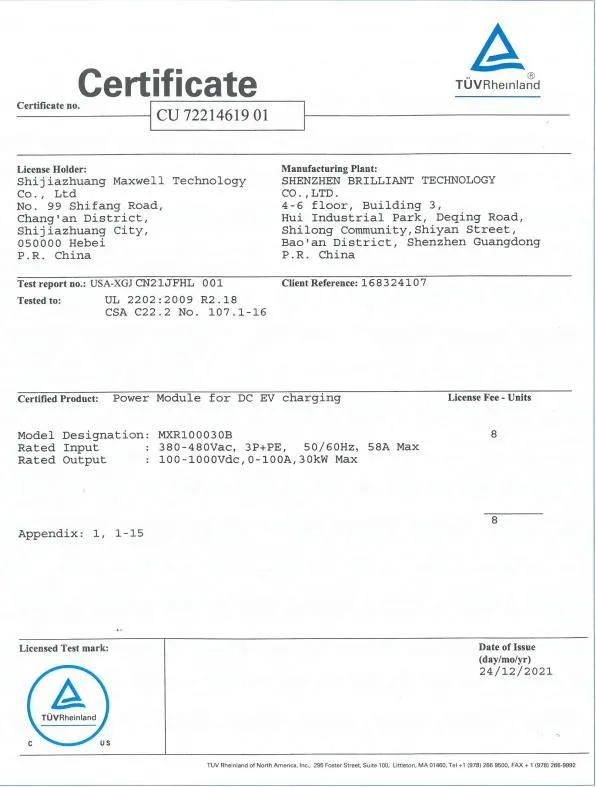

Certifications

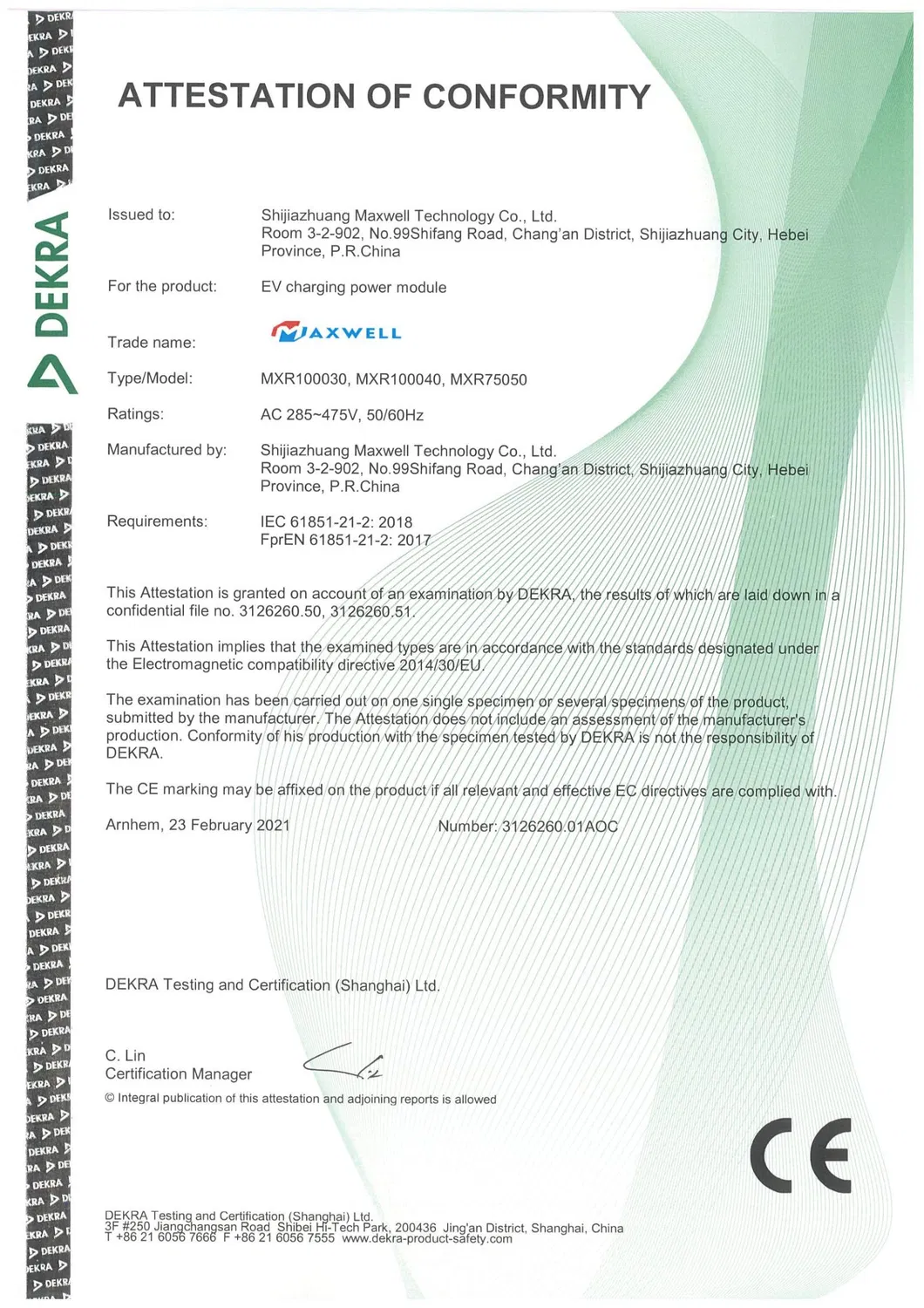

CE / TUV / EMC	EN IEC 61000-6-1:2019; EN IEC 61000-6-2:2019; EN IEC 61000-6-3:2021; EN IEC 61000-6-4:2019; EN IEC 61851-21-2:2021

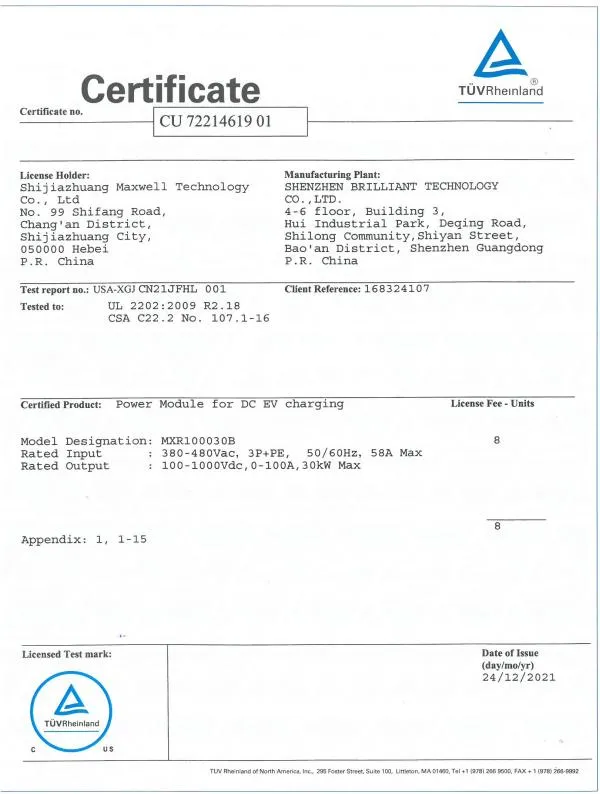

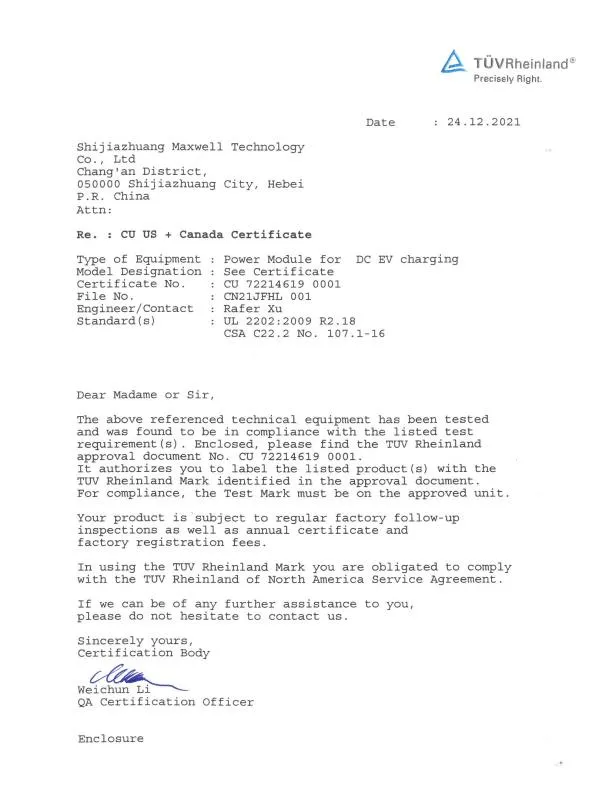

cTUVus	UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16

📦

Packaging & Shipping

🏢

About Us

Established in 2009, our journey began with developing power electronics for the stable power industry. Over years of development, we transitioned our strategic focus toward the burgeoning fields of photovoltaic energy, energy storage, and new energy.

Current Portfolio: Our new energy charging lineup includes 1000V 20KW, 30KW, 40KW, and 50KW modules. For energy storage (V2G), we provide advanced products like the MXR80025, MXR75027, and MXC75050B.

Vision: Our plan for the next 3-5 years involves deepening our presence in the new energy industry, keeping the charging module as our core product, and evolving to meet the latest market and customer demands.

🛠️

After-Sales Support

Warranty Period: 1 Year

During the first six months, for non-human induced damage, we offer a free replacement (freight cost shared by both parties). For the remaining six months, we provide free repair services for non-human damage. Our engineering team is always available to provide technical assistance throughout your testing processes.

Frequently Asked Questions

What is the efficiency of the MXR100040 module?

The module achieves a full-load efficiency of ≥95.5%, ensuring minimal energy loss and optimal performance.

Does this module support hot swapping?

Yes, it features plug-in technology that supports hot swapping, making installation and maintenance extremely efficient.

What communication protocol does it use?

The module uses the standard CAN bus protocol for reliable communication within the charging system.

How many modules can be connected in parallel?

The system is designed to support up to 60 modules in parallel, offering high scalability for large-scale charging stations.

What are the safety certifications for this product?

The product is fully certified with CE, TUV, EMC, and cTUVus (UL 2202), meeting stringent international safety standards.

What is the warranty and repair policy?

We provide a 1-year warranty. This includes a free replacement for non-human damage in the first 6 months and free repairs for the subsequent 6 months.
