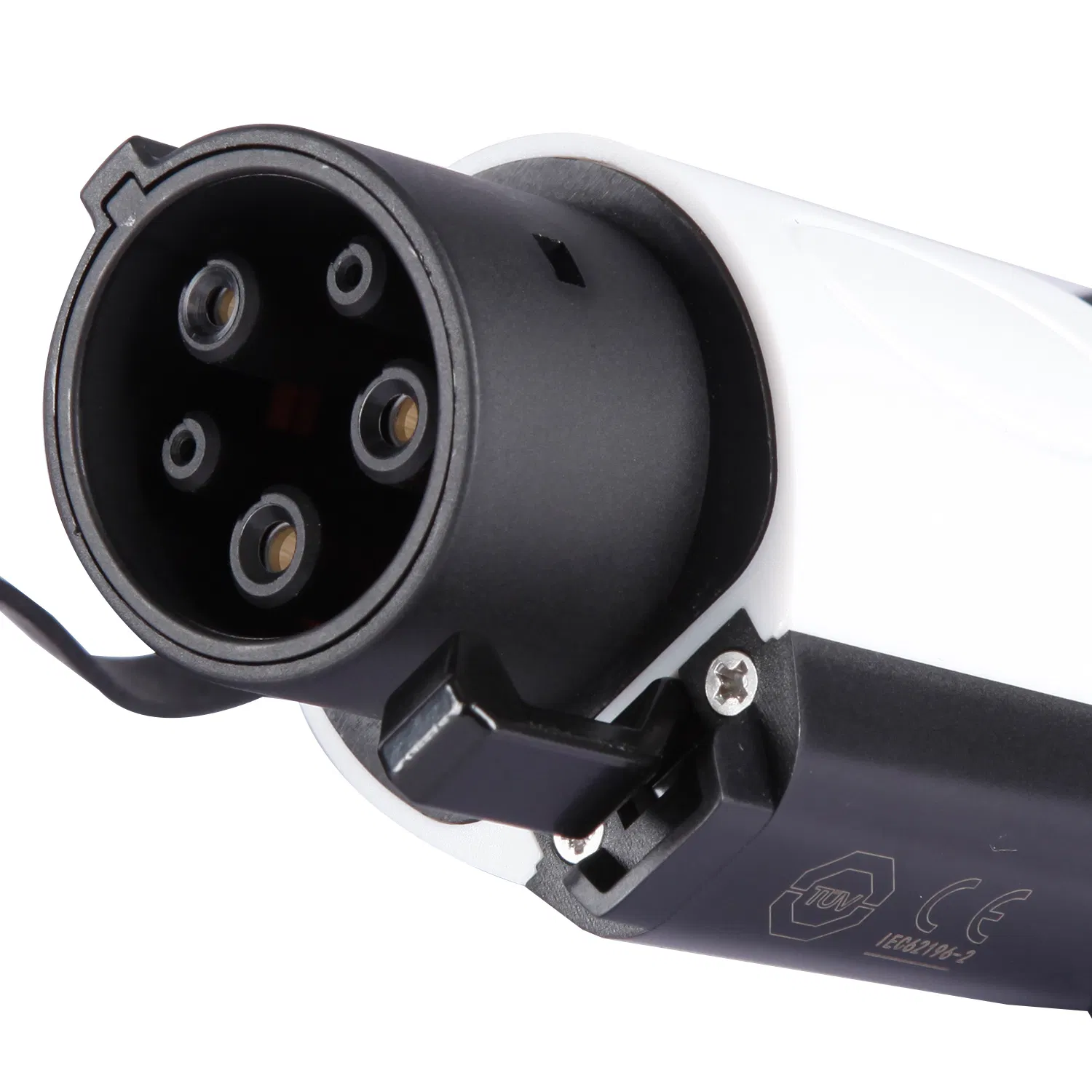

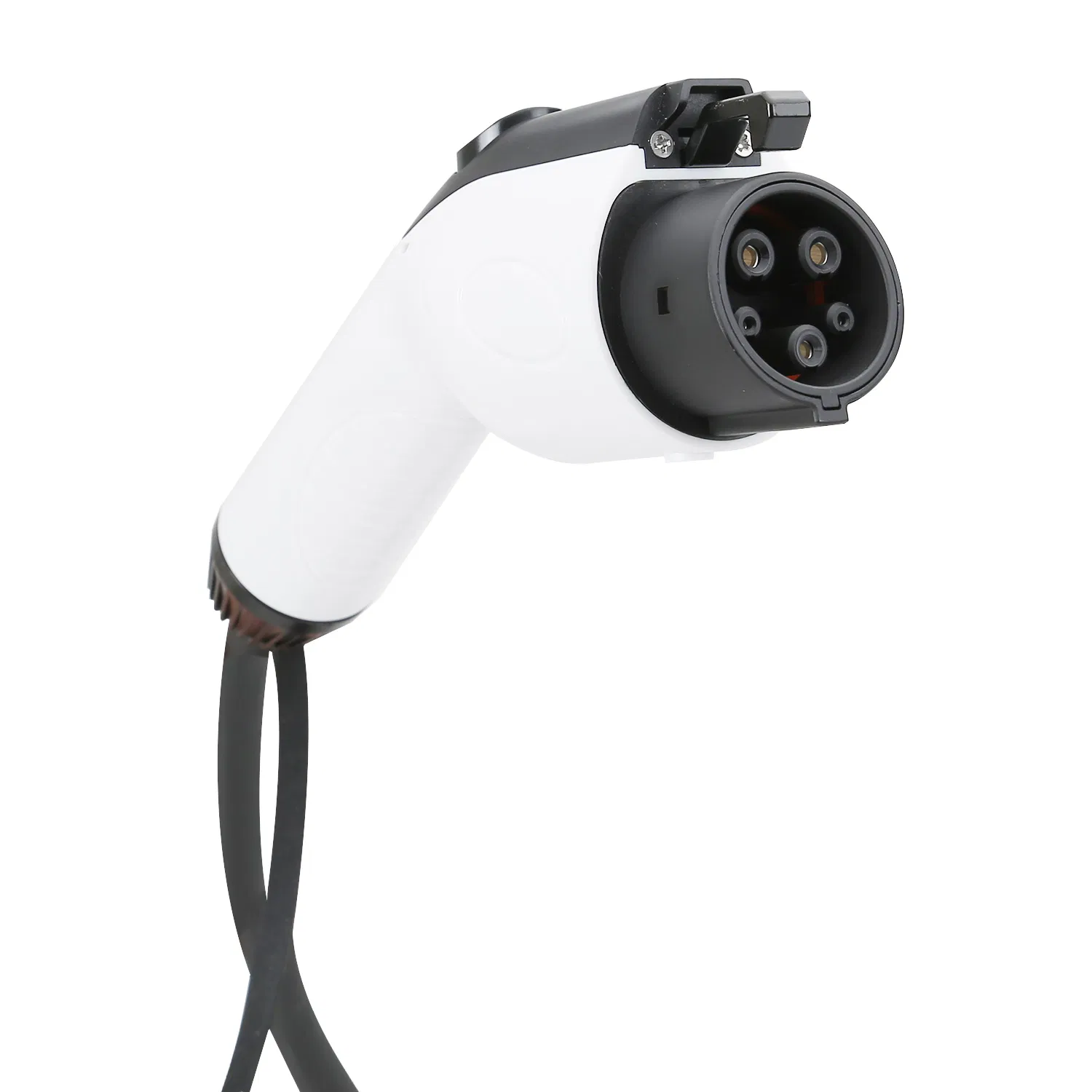

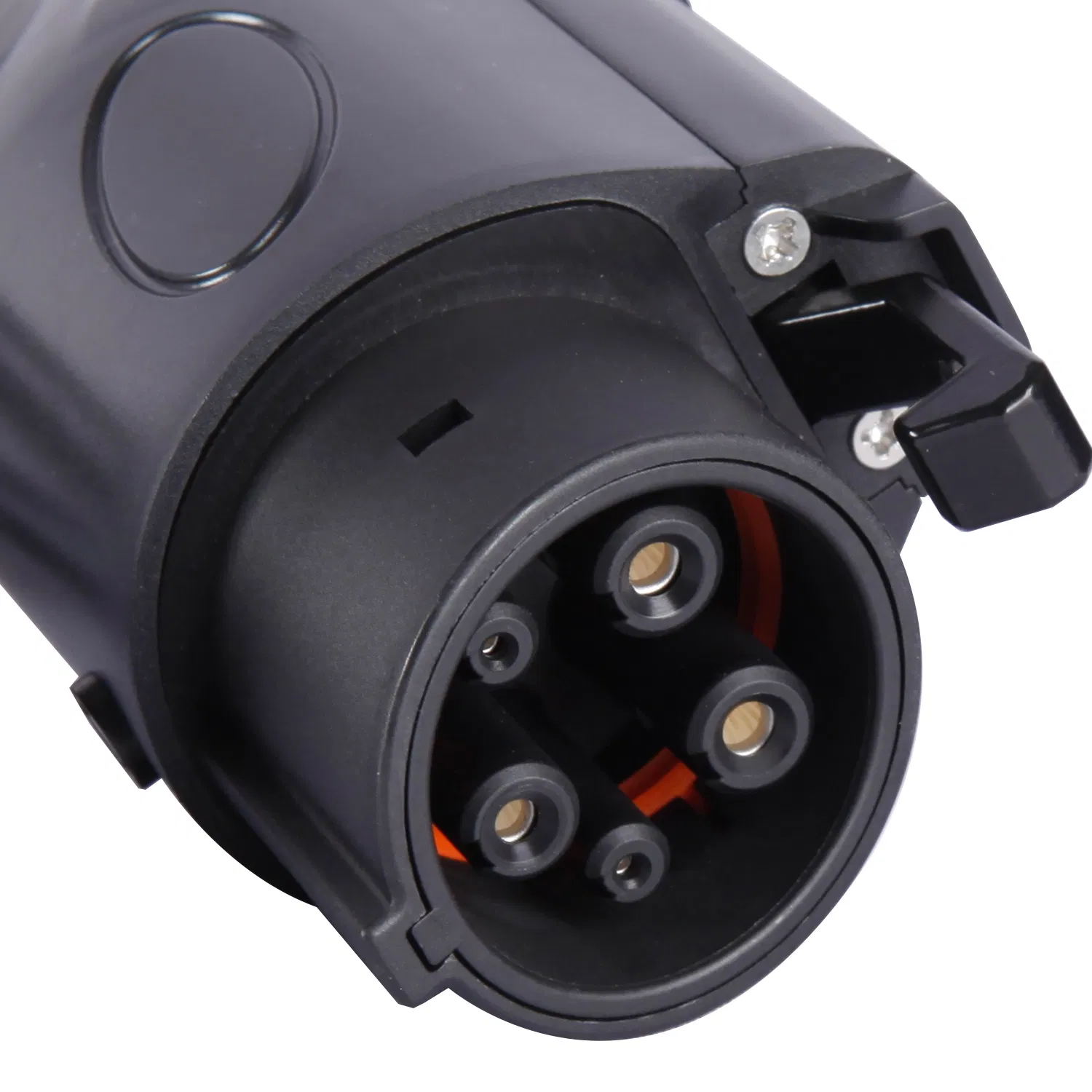

China (Mainland) 1 Year Warranty Electric Car Station Saej1772 EV Charging Connector

1 / 5

China (Mainland) 1 Year Warranty Electric Car Station Saej1772 EV Charging Connector

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

Type

Fast EV Charging Station

Certification

CE, TUV

Warranty

1 Year Warranty

Specification

16A/32A/40A

Origin

China (Mainland)

Capacity

10000PCS/Month

Package

Woven Bag/Case/Carton Box

⚡

Product Description

Product Name	SAE J1772 Charger plug
Length	5m or customized length
Electrical Performance
Rated current	16A/32A/40A
Operation Voltage	110V/220V
Insulation resistance	> 500M Ohm (DC500V)
Contact resistance	0.5m Ohm max
Terminal temperature rise	< 50K
Withstand voltage	2000V
Mechanical Properties
Mechanical life	No-load plug in/out > 10000 times
Coupled insertion force	45N~100N
Impact of external force	Afford 1M drop
Environmental Performance
Operating Temperature	-30°C ~ +50°C
Applied Materials
Case material	Thermoplastic, flame retardant grade UL94 V-0
Terminal	Copper alloy, silver plating

📊

Technical Specifications

Rated Current	Cable Specification	Remarks
16A	32.5MM²+10.75MM² TPU, Ф10.5 (TPE, Ф13)	Shell color: black/white optional; Cable color: Black/white/orange optional
32A/40A	36MM²+10.75MM² TPU, Ф13 (TPE, Ф16.3)

🖼️

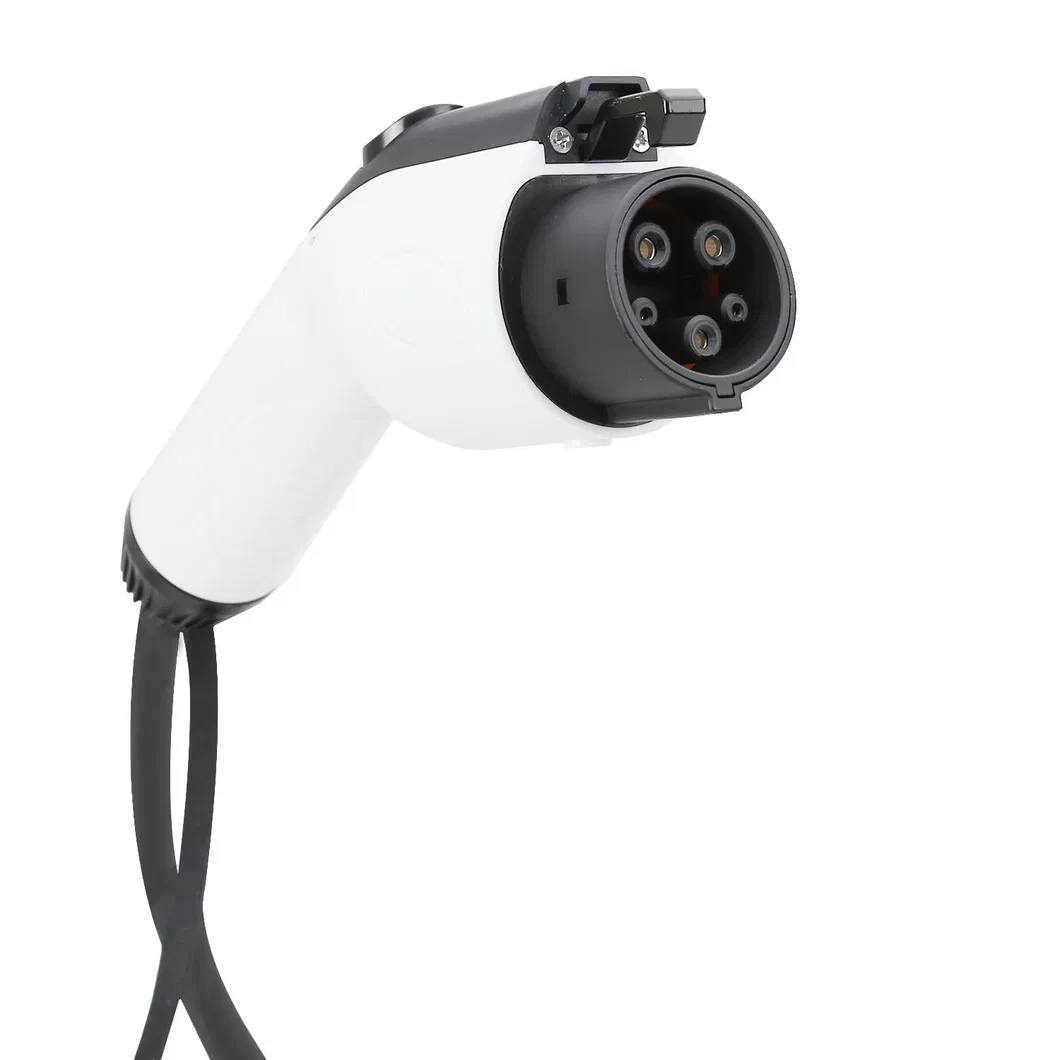

Product Showcase

❓

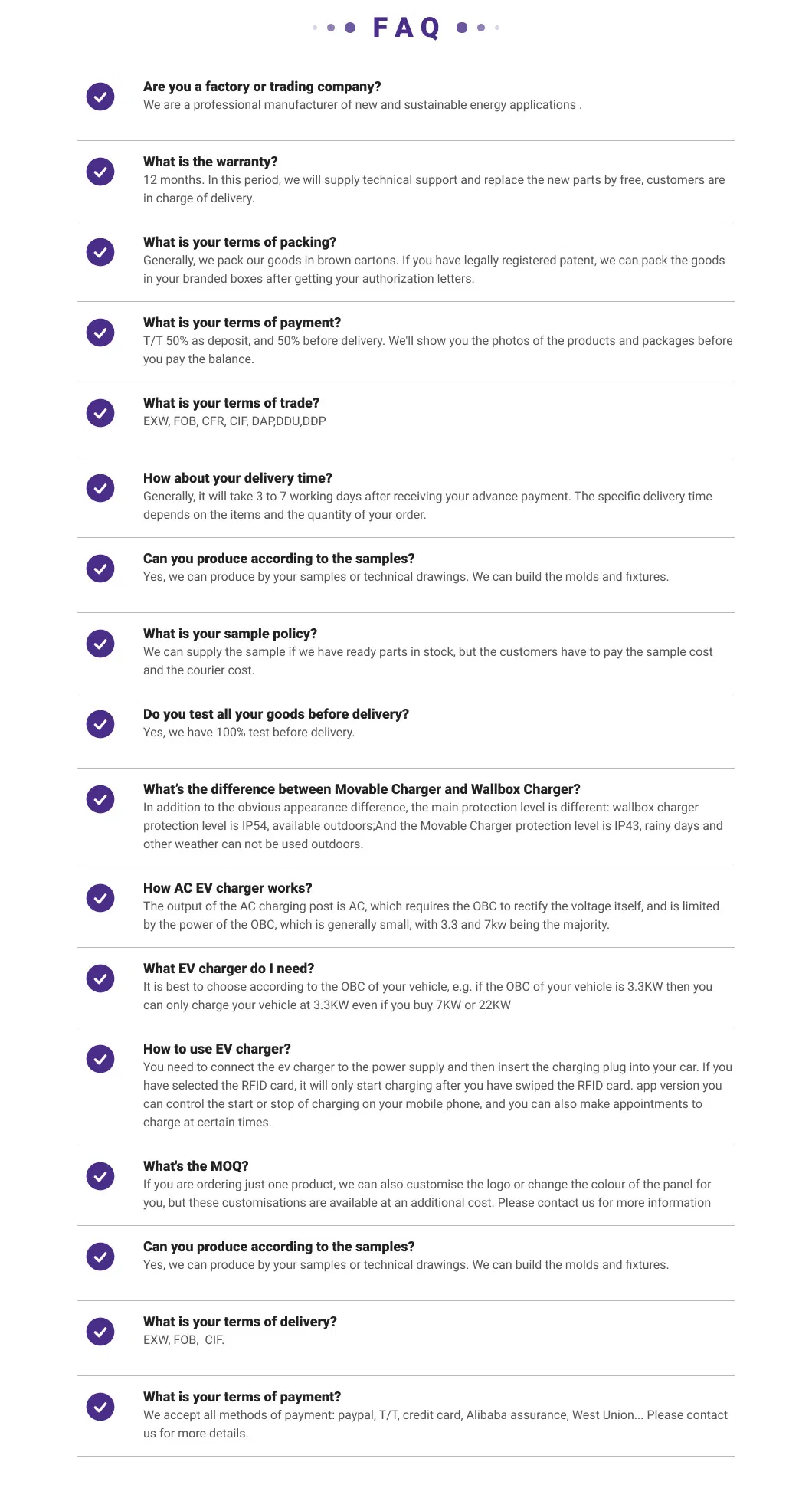

Frequently Asked Questions

What is the warranty period for the T1 EV charging station?

The product comes with a standard 1-year warranty covering manufacturing defects.

Which certifications does this charging connector hold?

Our SAE J1772 charger plugs are fully certified by CE and TUV, ensuring high safety and quality standards.

What is the expected mechanical lifespan of the plug?

The connector is designed for durability, supporting more than 10,000 no-load plug-in and plug-out cycles.

Can the cable length be customized for specific needs?

Yes, while the standard length is 5 meters, we offer customized cable lengths to meet your specific requirements.

What materials are used in the construction of the charger?

The case is made of UL94 V-0 grade flame-retardant thermoplastic, and the terminals are crafted from silver-plated copper alloy for optimal conductivity.

What is the operating temperature range for this device?

The charging station is built to perform in various environments, with an operating temperature range of -30°C to +50°C.
