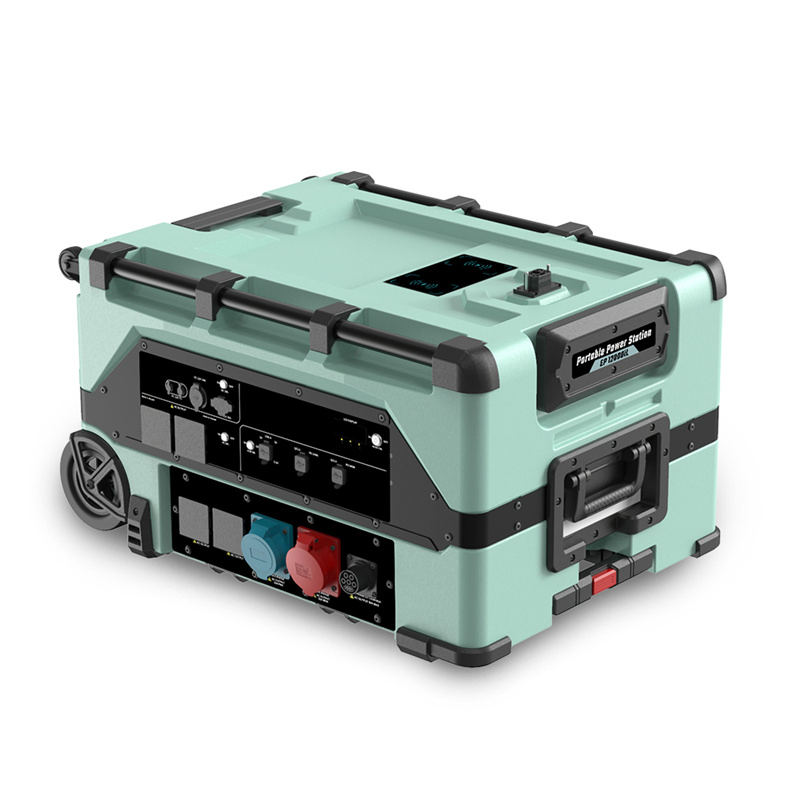

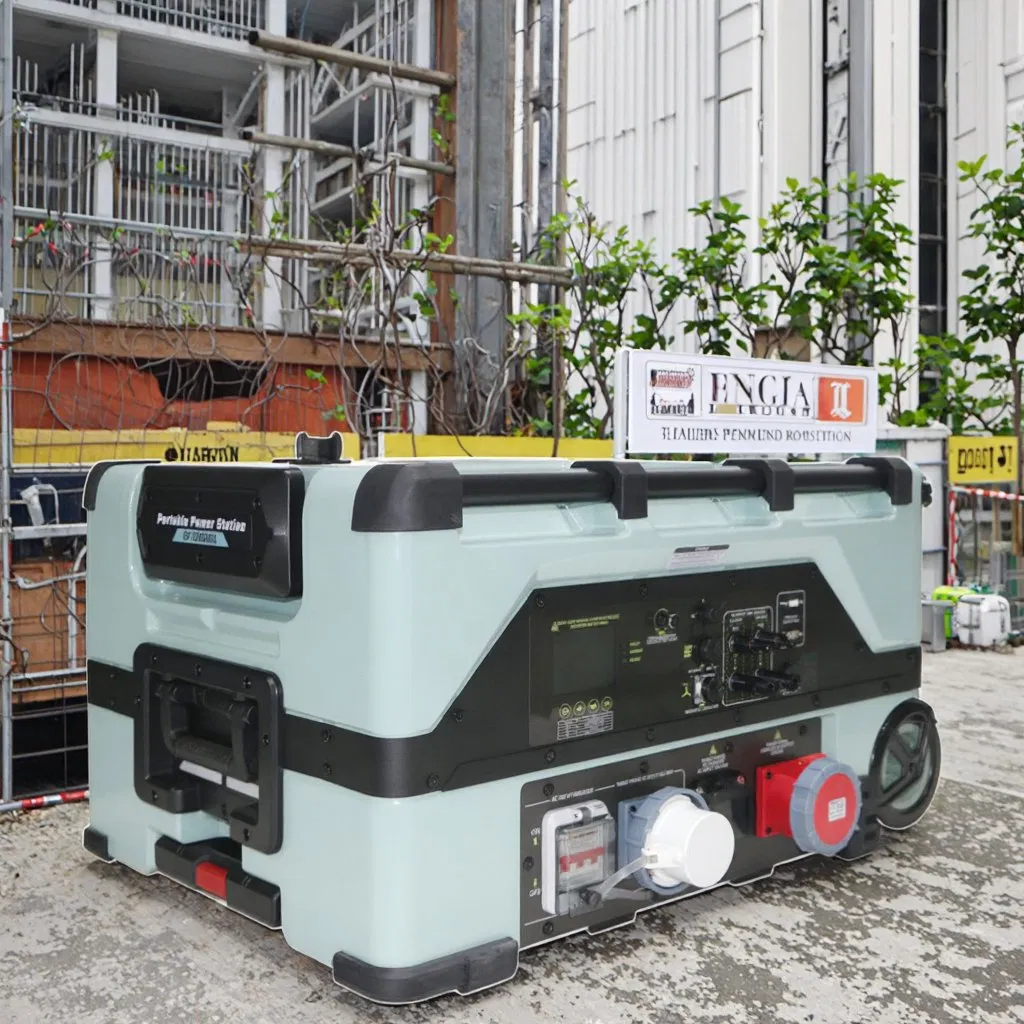

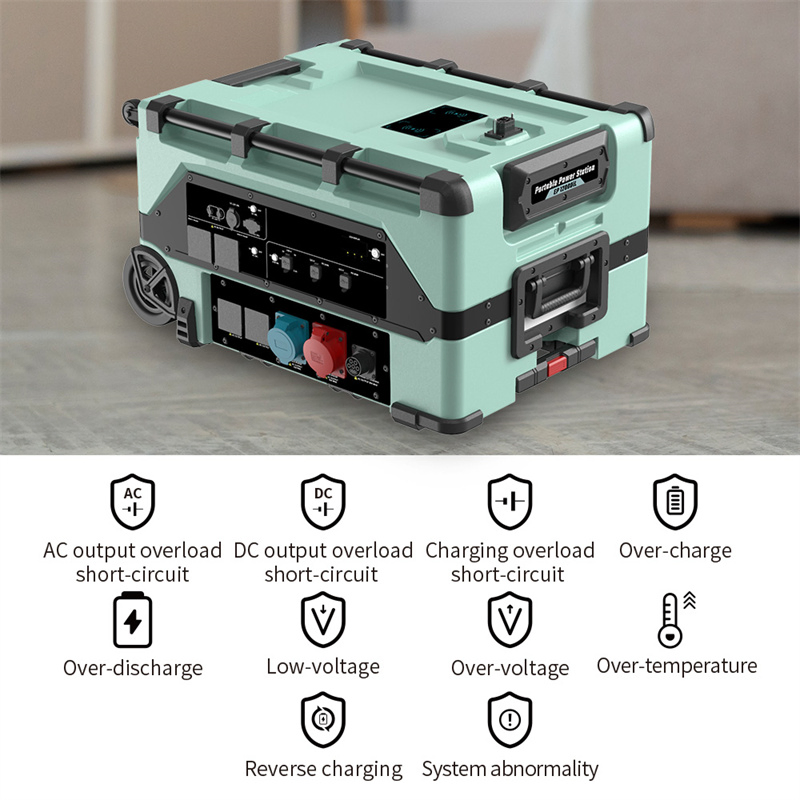

Advanced 20kw off-Grid Solar Power System for Remote Areas

📊

Overview & Basic Info

Model NO.

EP12000iL*2

Cycle Life

3000

Nominal Capacity

7680wh

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kwh

Super Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

APP Function

Yes

LCD Display

with Display

Portability

Drawbar & Wheels

Package Size

97.00cm * 75.00cm * 57.00cm

Gross Weight

110.000kg

💎

Product Advantages

01

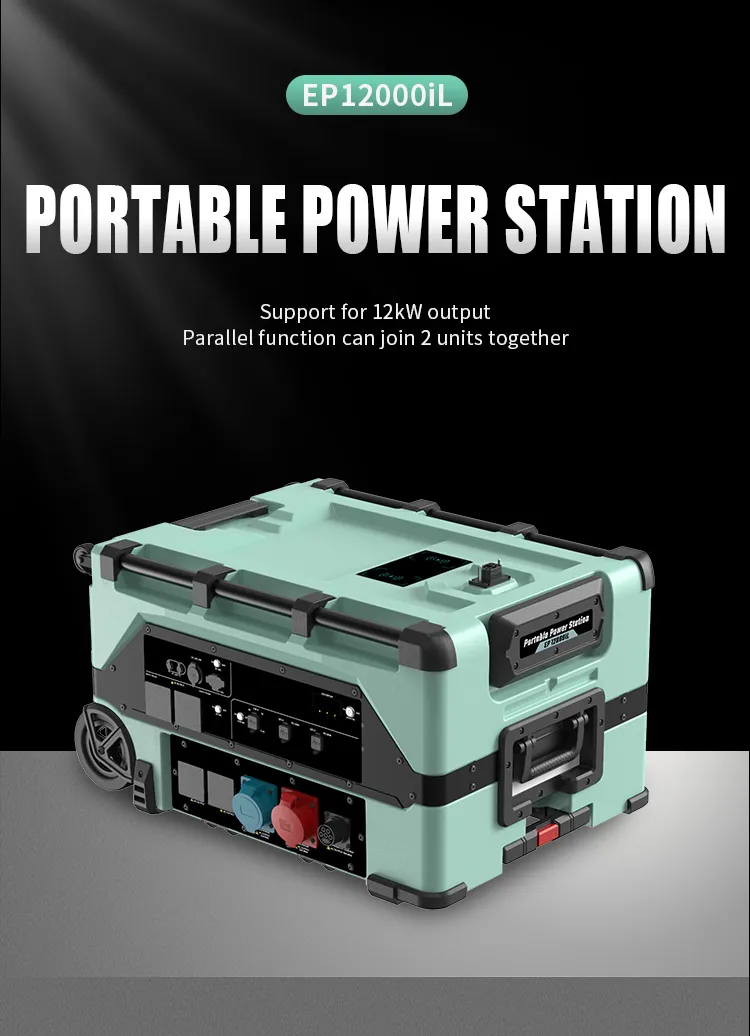

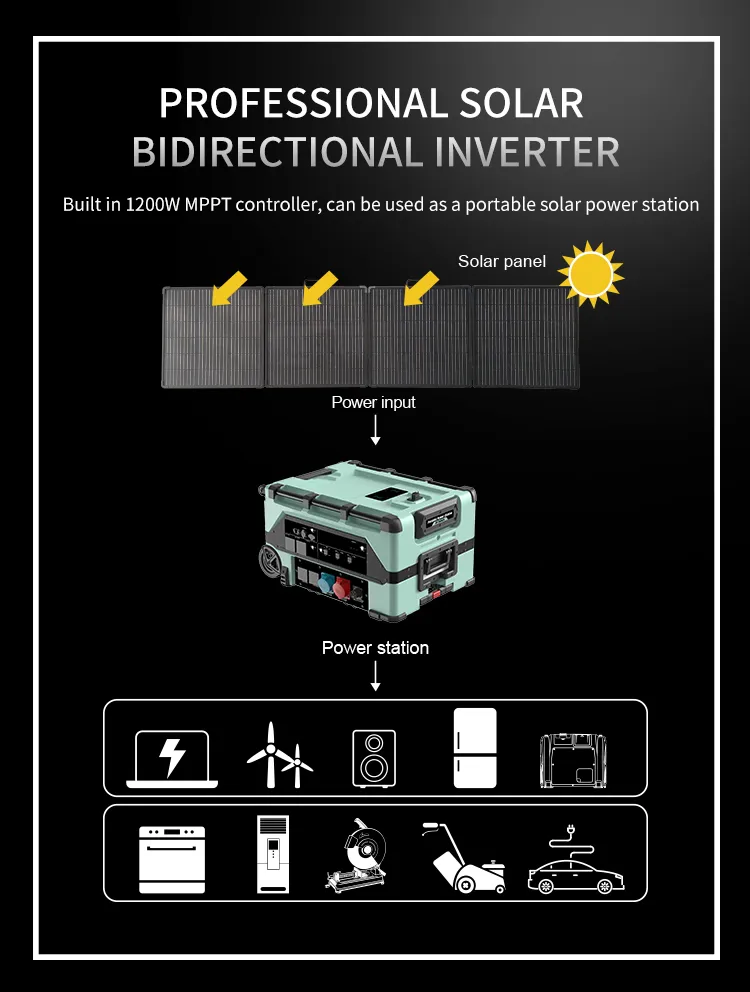

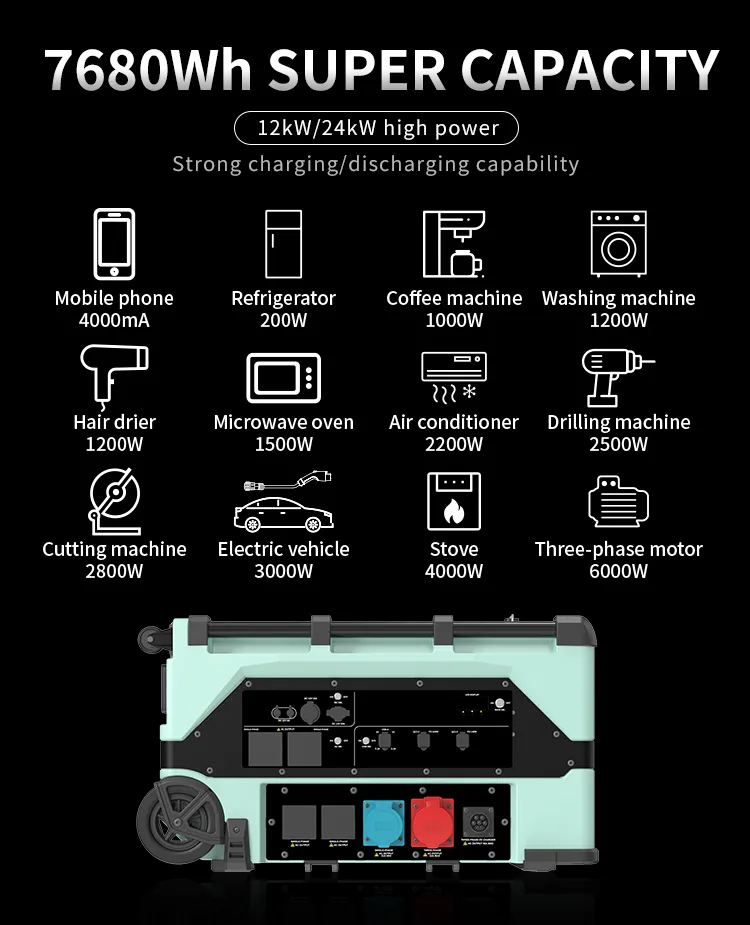

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.

02

Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

03

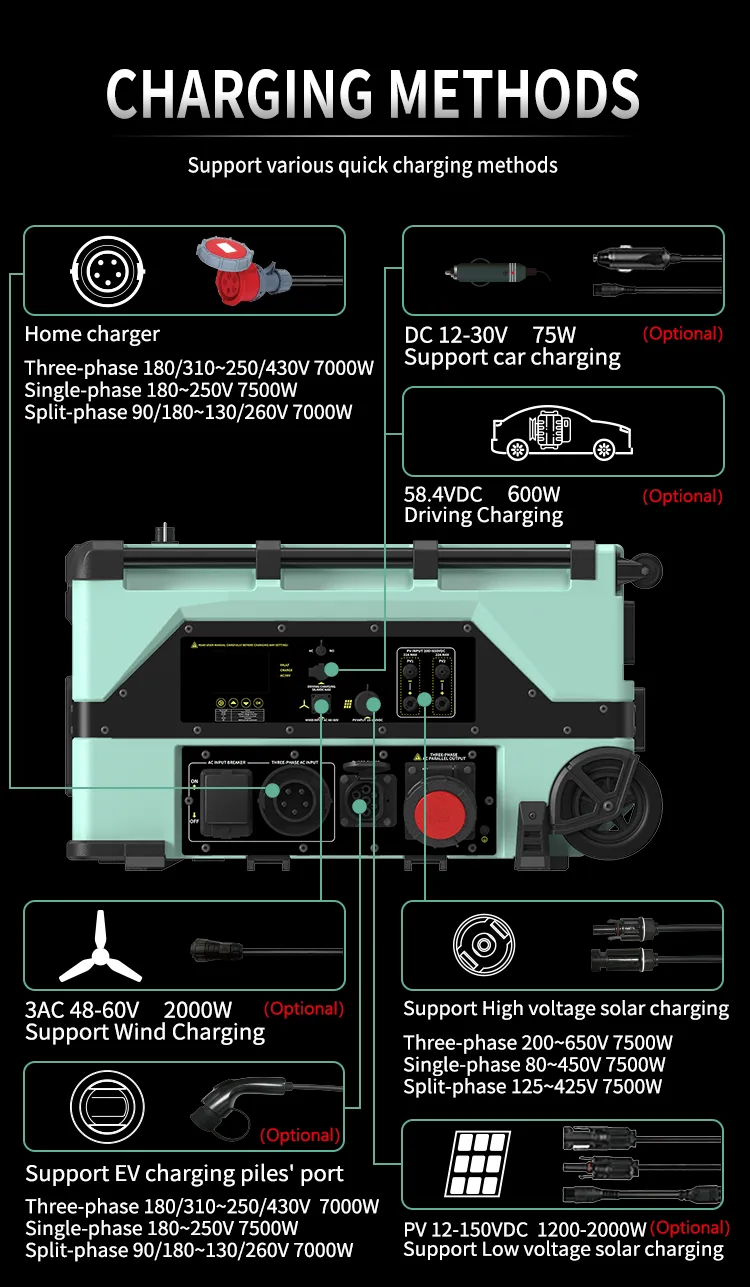

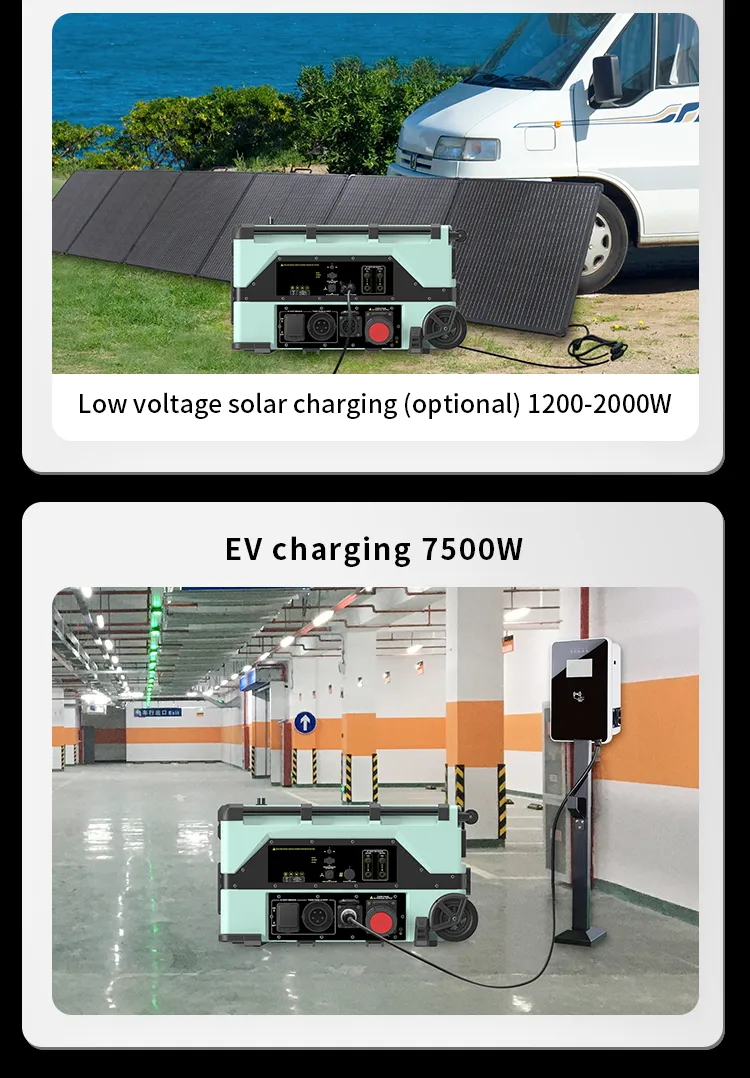

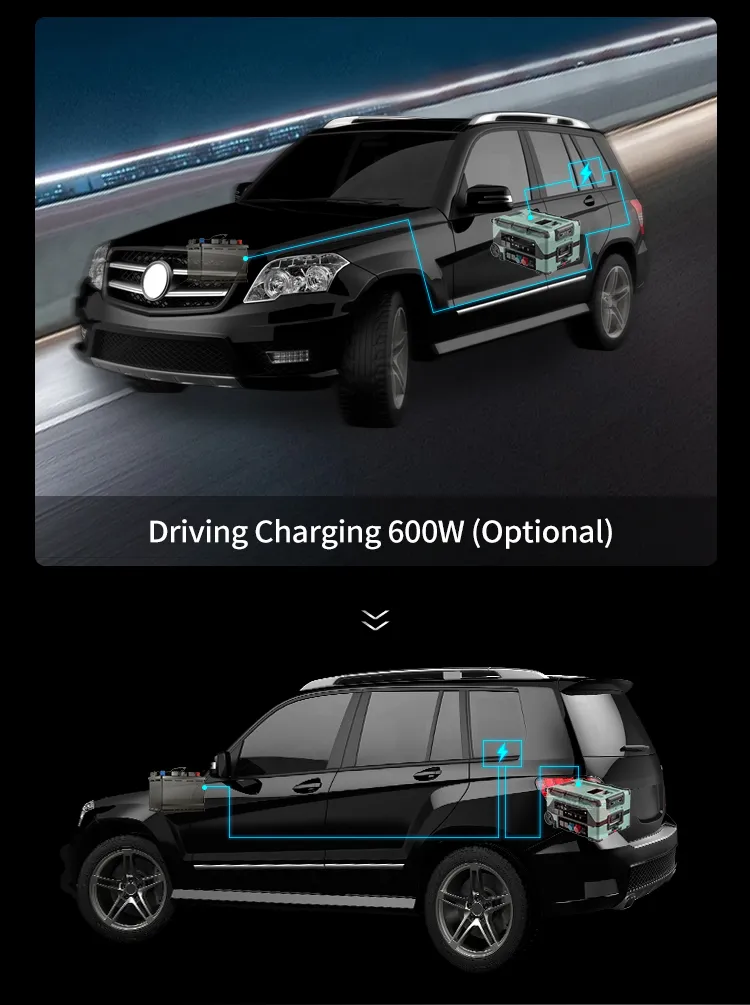

Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

04

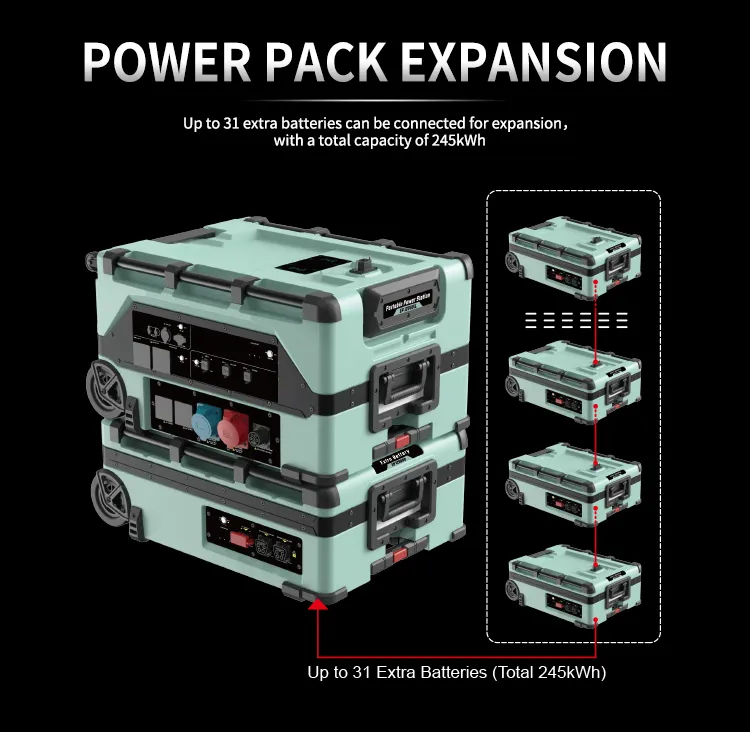

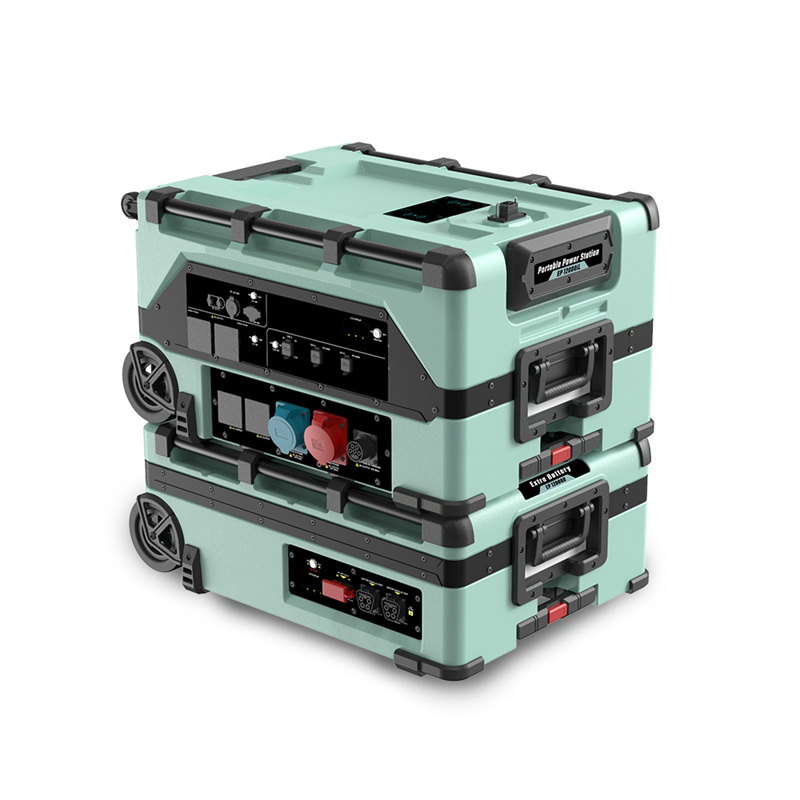

Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

05

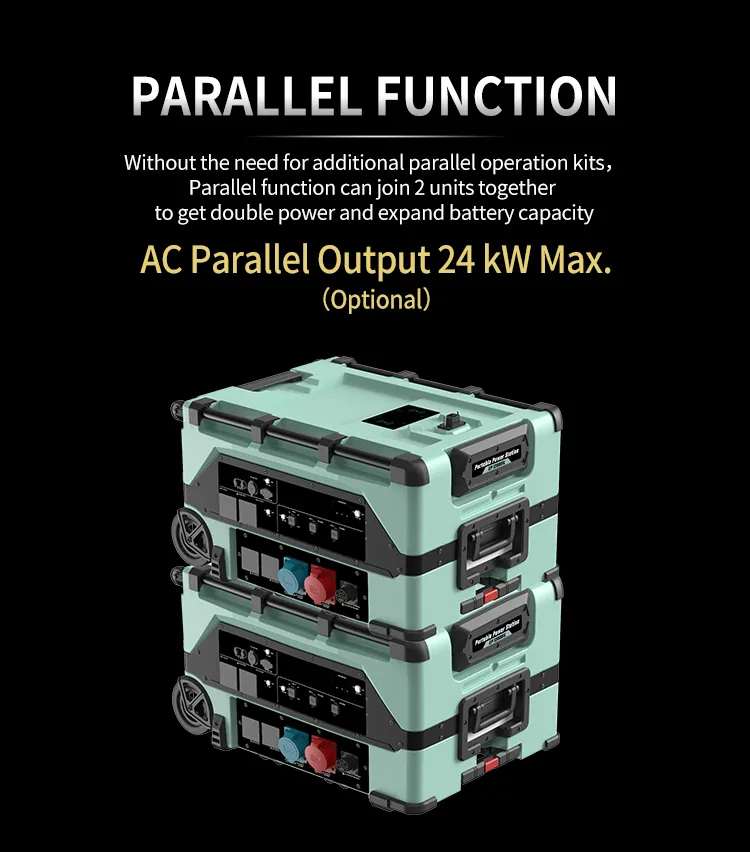

Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.

06

Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.

07

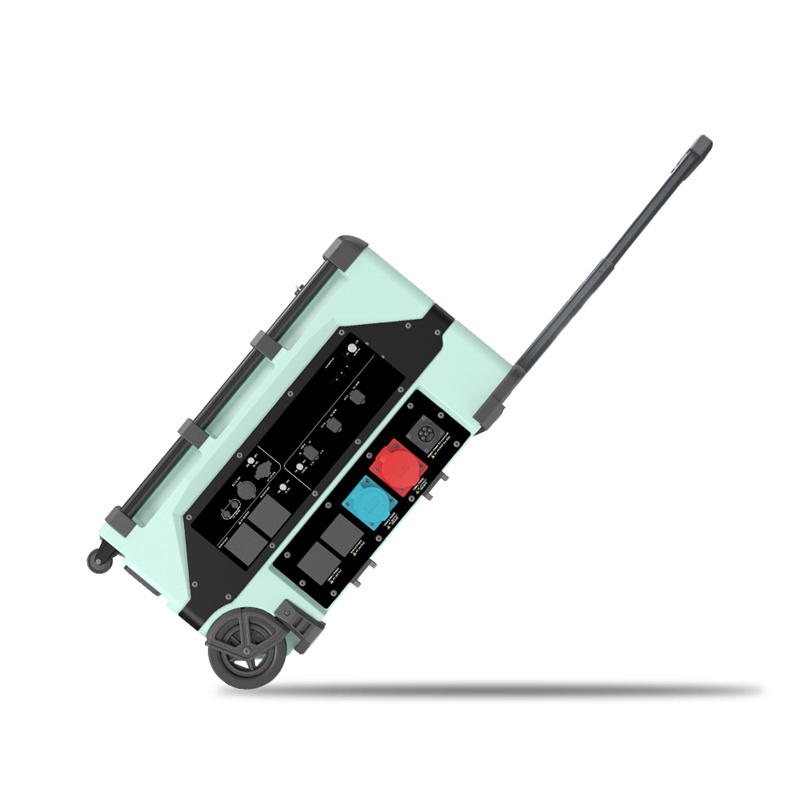

The four-wheel chassis and large-diameter wheel can be switched at any time, carrying without any burden.

08

Unit IP53 and Battery Pack IP66 protection grade.

09

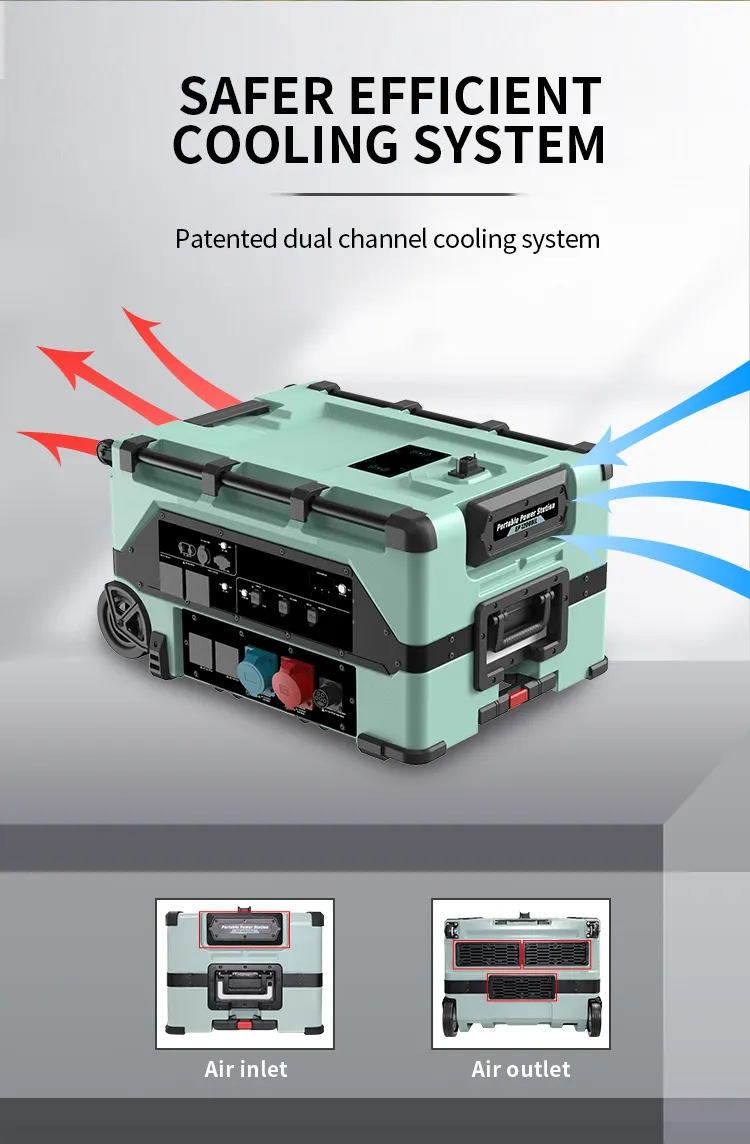

Patented dual channel cooling system with V-0 level flame-retardant casing.

10

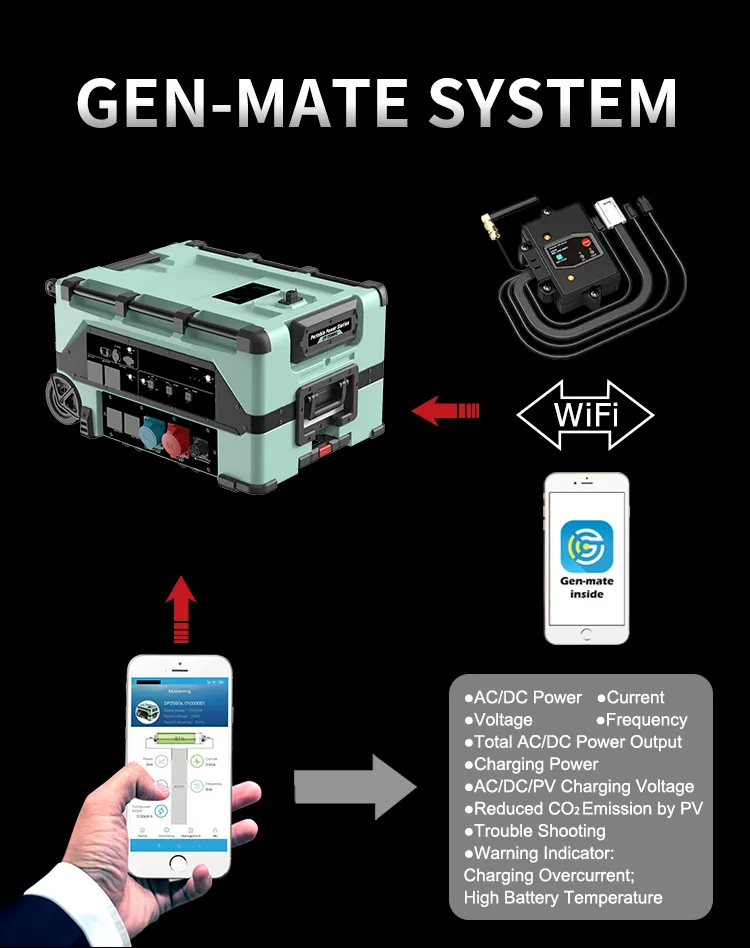

Intelligent control and monitor by smartphone APP.

⚙️

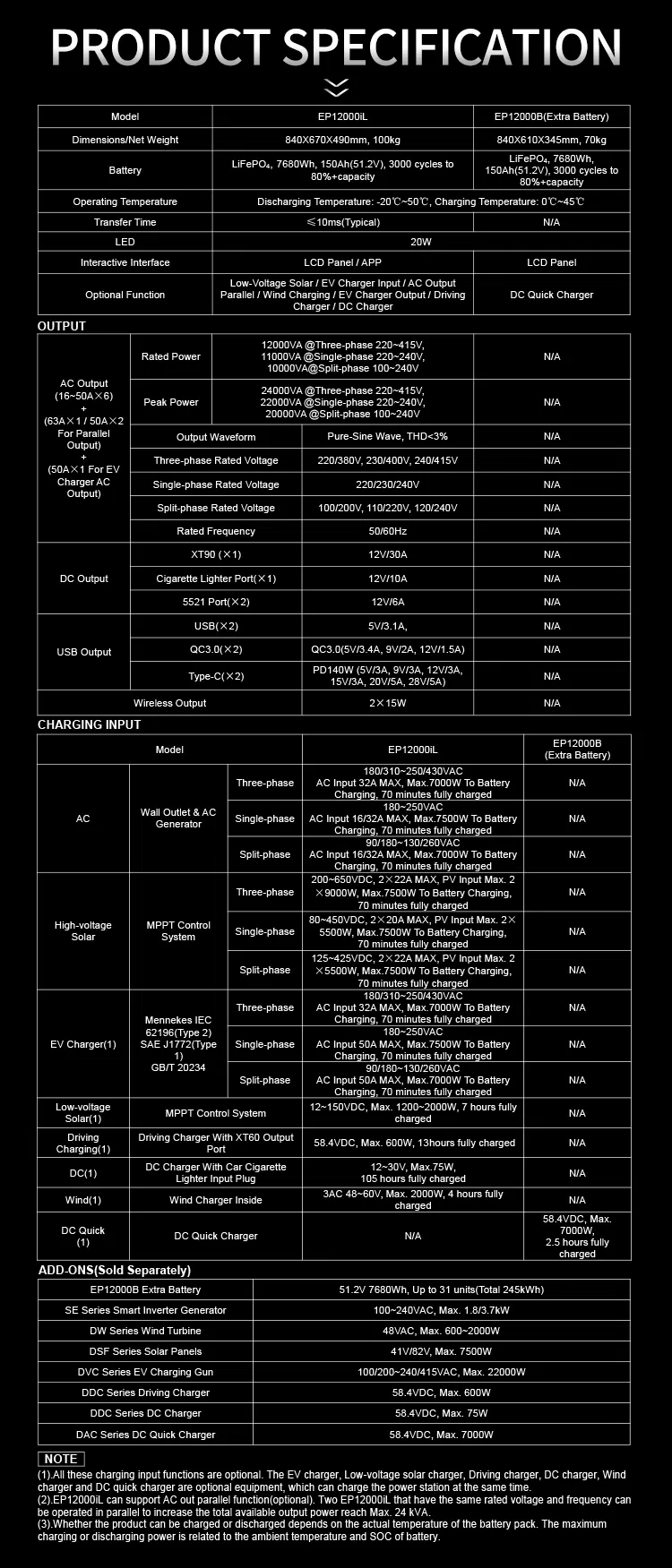

Technical Parameters

Category		Specifications
AC Output	Rated Power	12000VA (3-Phase) / 11000VA (1-Phase) / 10000VA (Split-Phase)
	Peak Power	24000VA (3-Phase) / 22000VA (1-Phase) / 20000VA (Split-Phase)

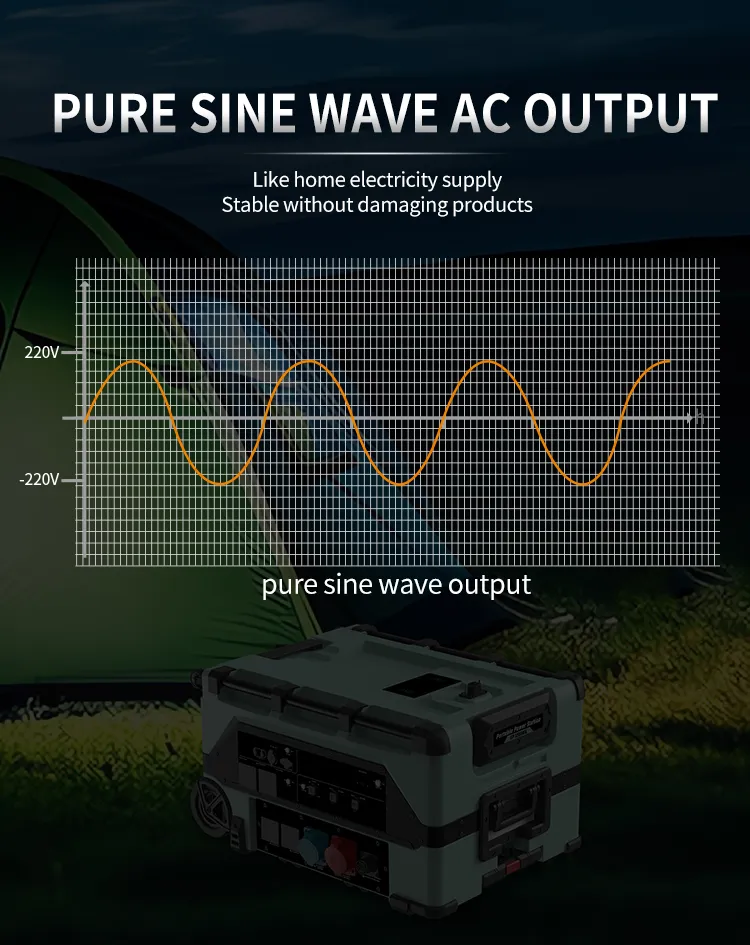

	Waveform	Pure-Sine Wave, THD < 3%

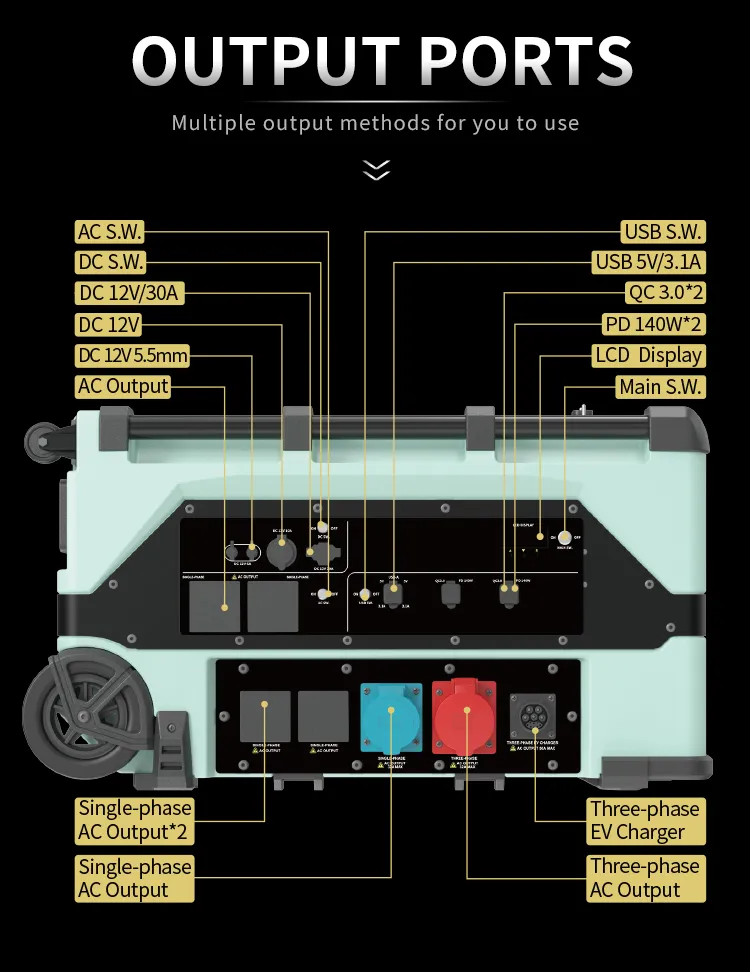

DC Output	USB Ports	USB 5V/3.1A, QC3.0 (18W), Type-C PD 140W
DC Output	DC Ports	XT90 (12V/30A), Cigarette Lighter (12V/10A), 5521 (12V/6A)

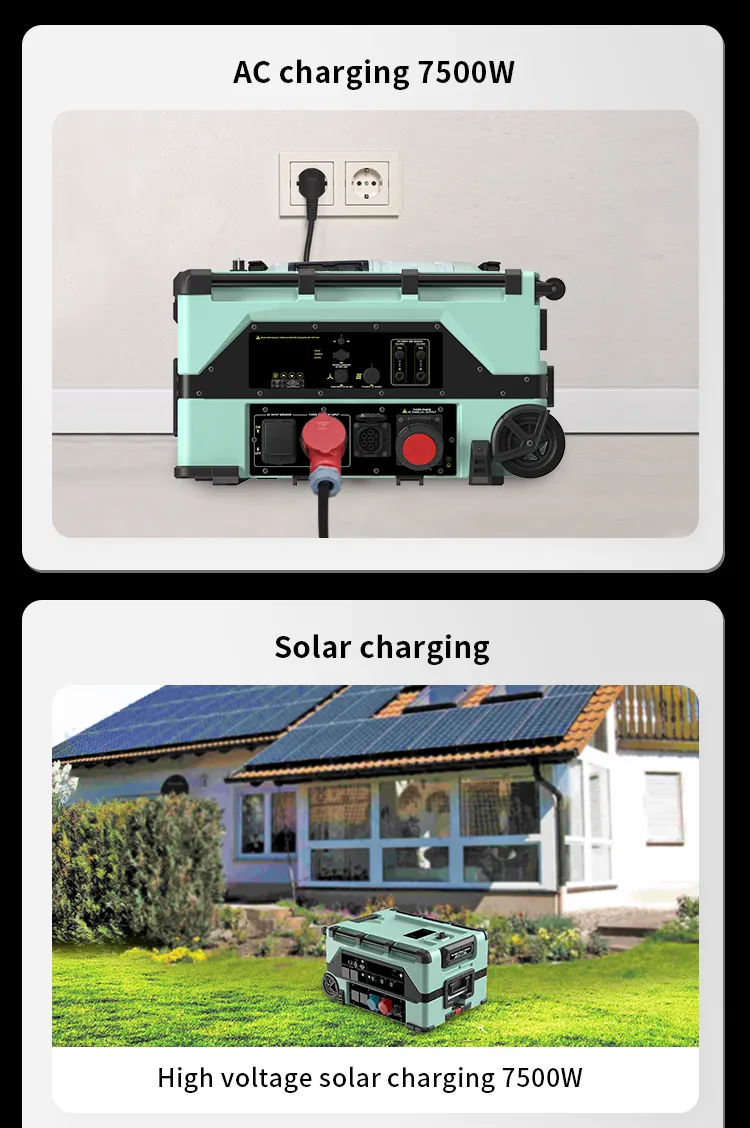

Charging Input	AC Wall/Generator	Max 7500W, 70 minutes fully charged

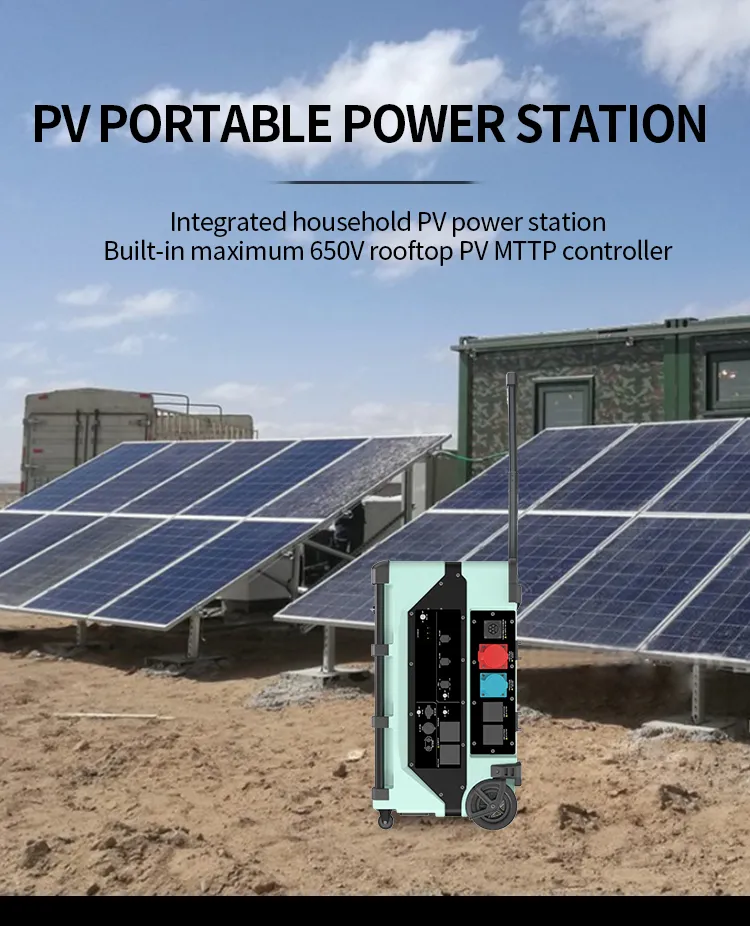

	Solar (High Voltage)	200~650VDC, Max 7500W to Battery
	Wind Turbine	3AC 48~60V, Max 2000W

📸

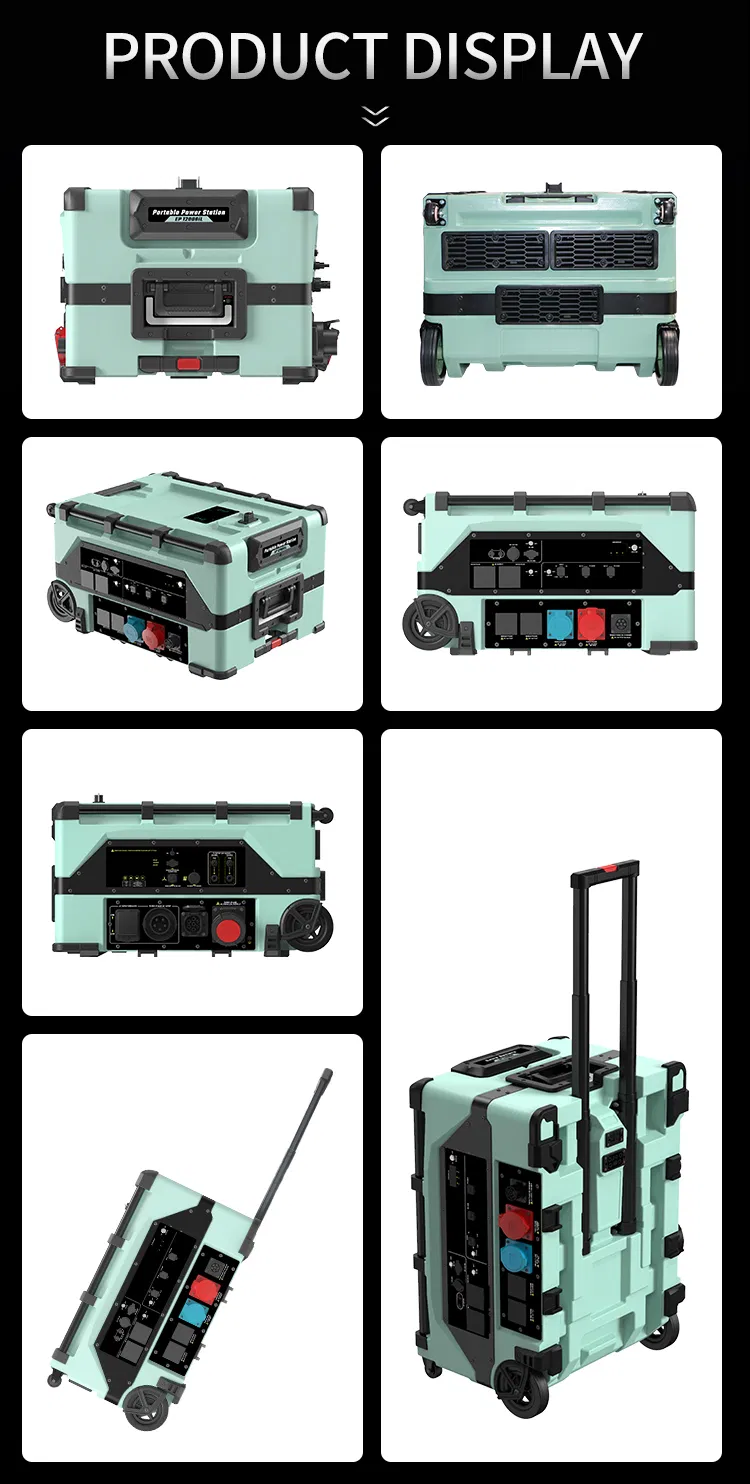

Detailed Photos

🏢

About the Manufacturer

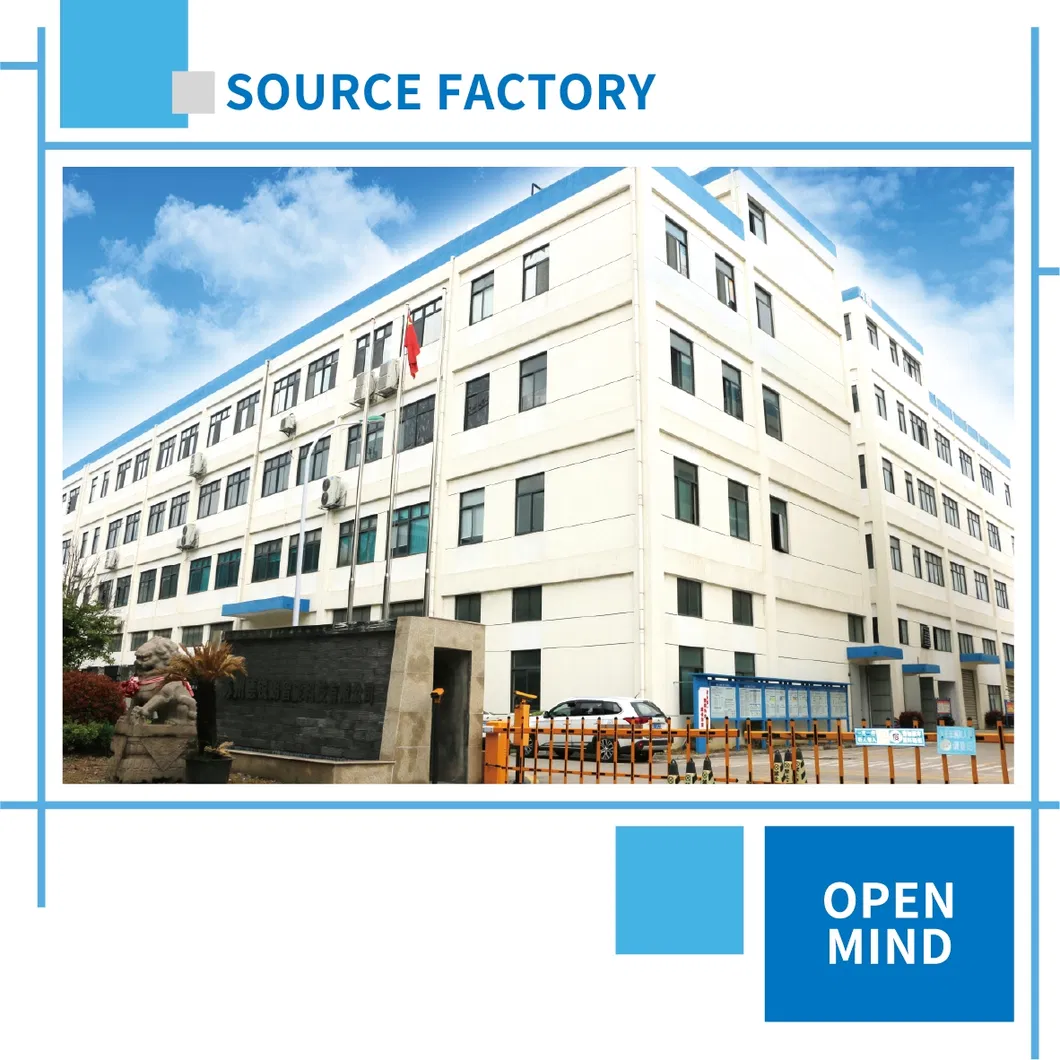

Founded in March 2015, the company is a high-tech enterprise integrated with research, manufacture, and sales. We specialize in inverter generators, Internet of Things (IoT) solutions, power equipment, and automation electrical products. With manufacturing plants in multiple provinces, we are devoted to the development of intelligent electromechanical products.
