Advanced 10kw 12kw Three Phase Solar Energy Storage System for off-Grid

1 / 5

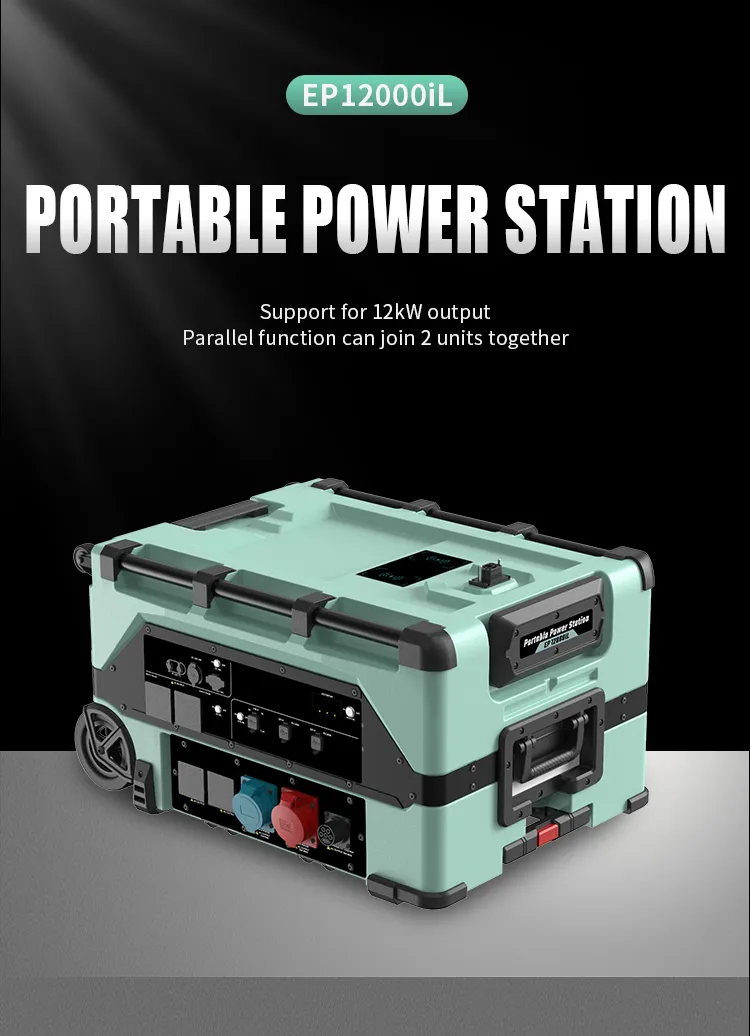

Advanced 10kw 12kw Three Phase Solar Energy Storage System for off-Grid

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

EP12000iL

Cycle Life

3000

Nominal Capacity

7680wh

Multiple Charging

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kwh

Super Fast Charging

70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Inverter Type

Bi-Directional Inverter

Three-Phase Output

Yes

APP Function

Yes

LCD Display

With Display

Portability

Drawbar & Wheels

Packaging & Delivery

Package Size

97.00cm * 75.00cm * 57.00cm

Gross Weight

220.000kg

Product Advantages

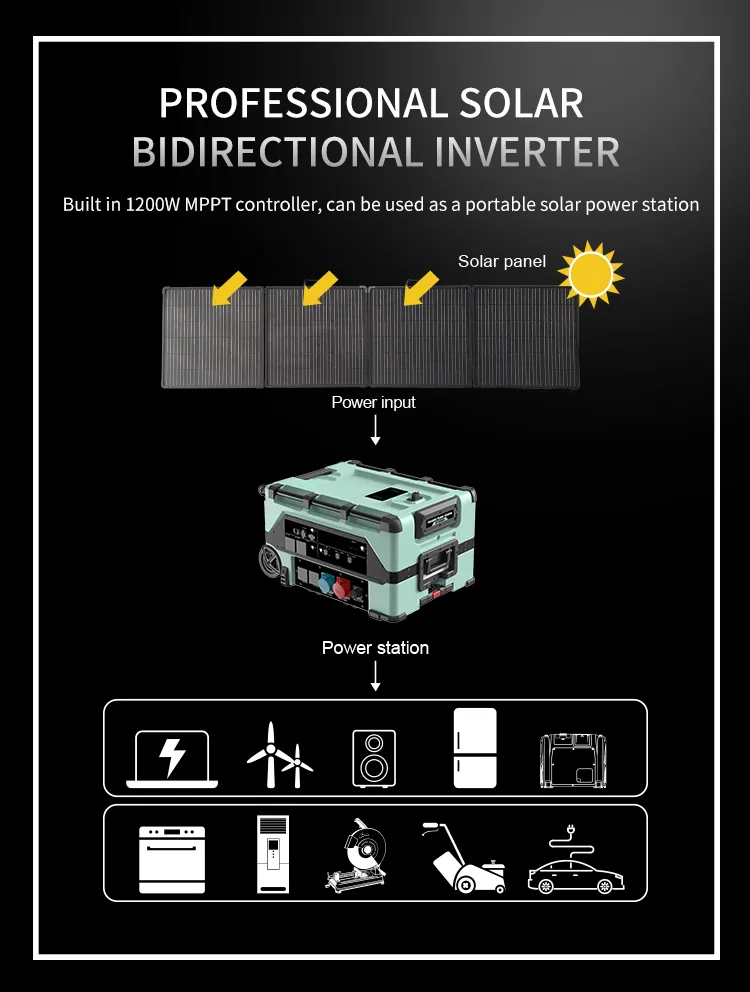

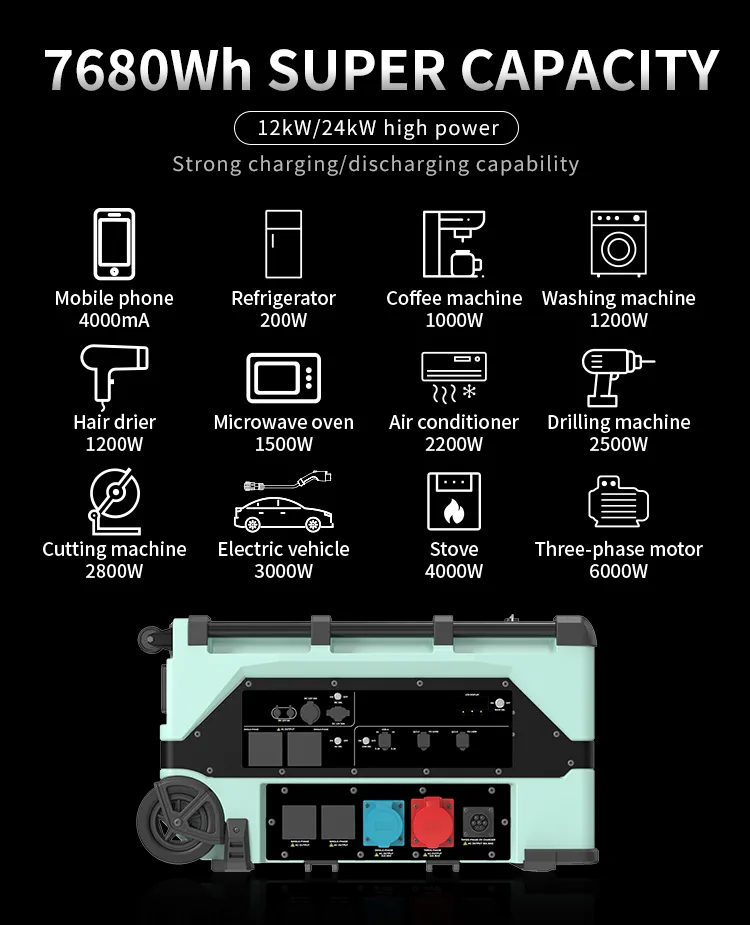

✓Built in 7680*2Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.

✓Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

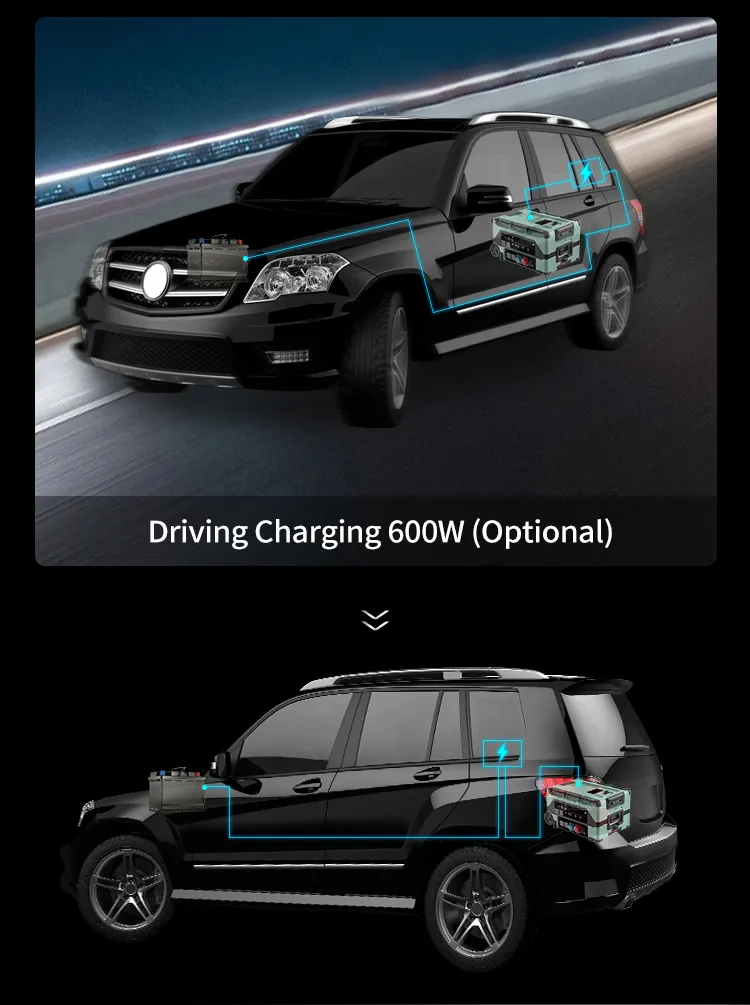

✓Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

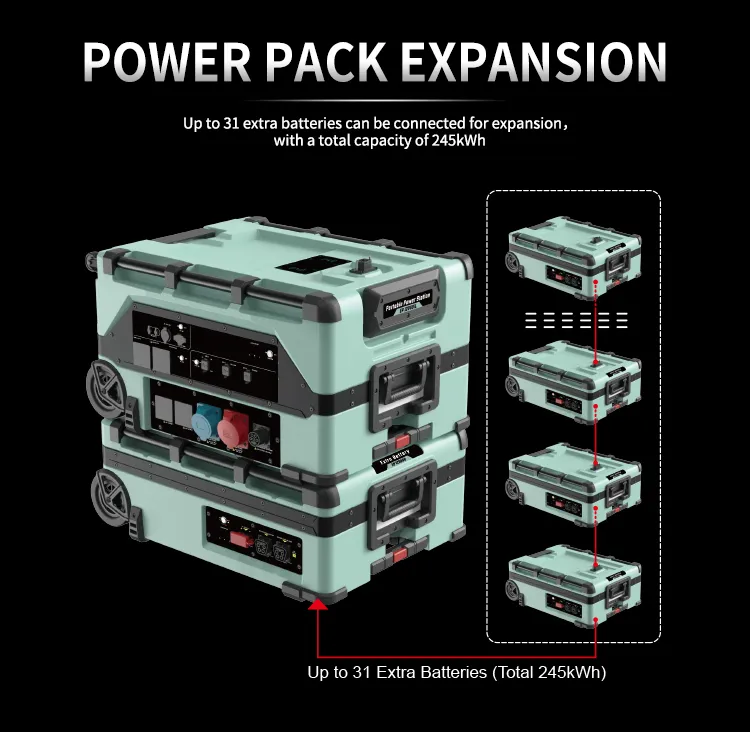

✓Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

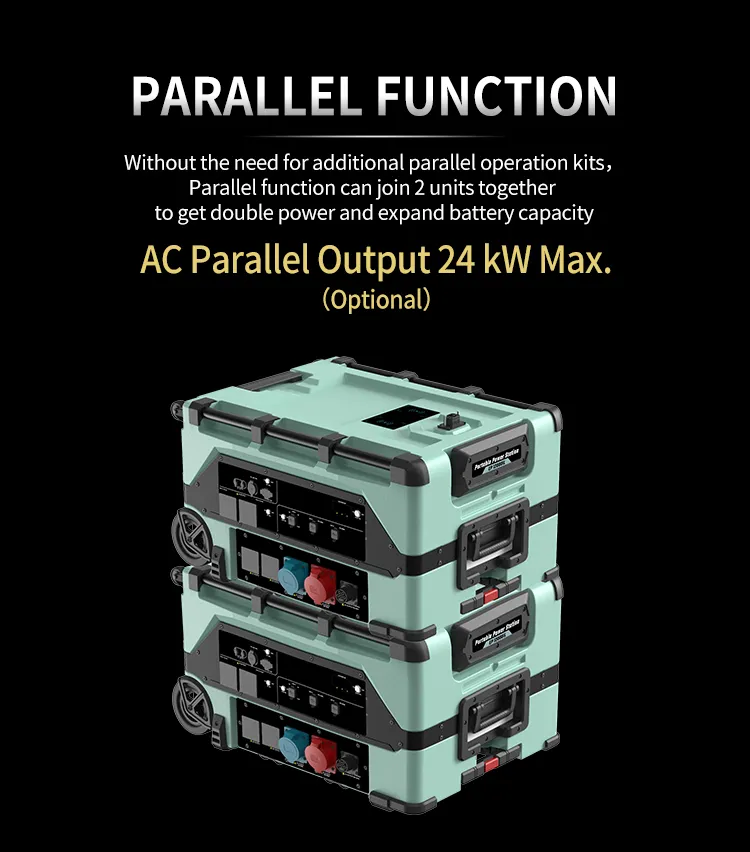

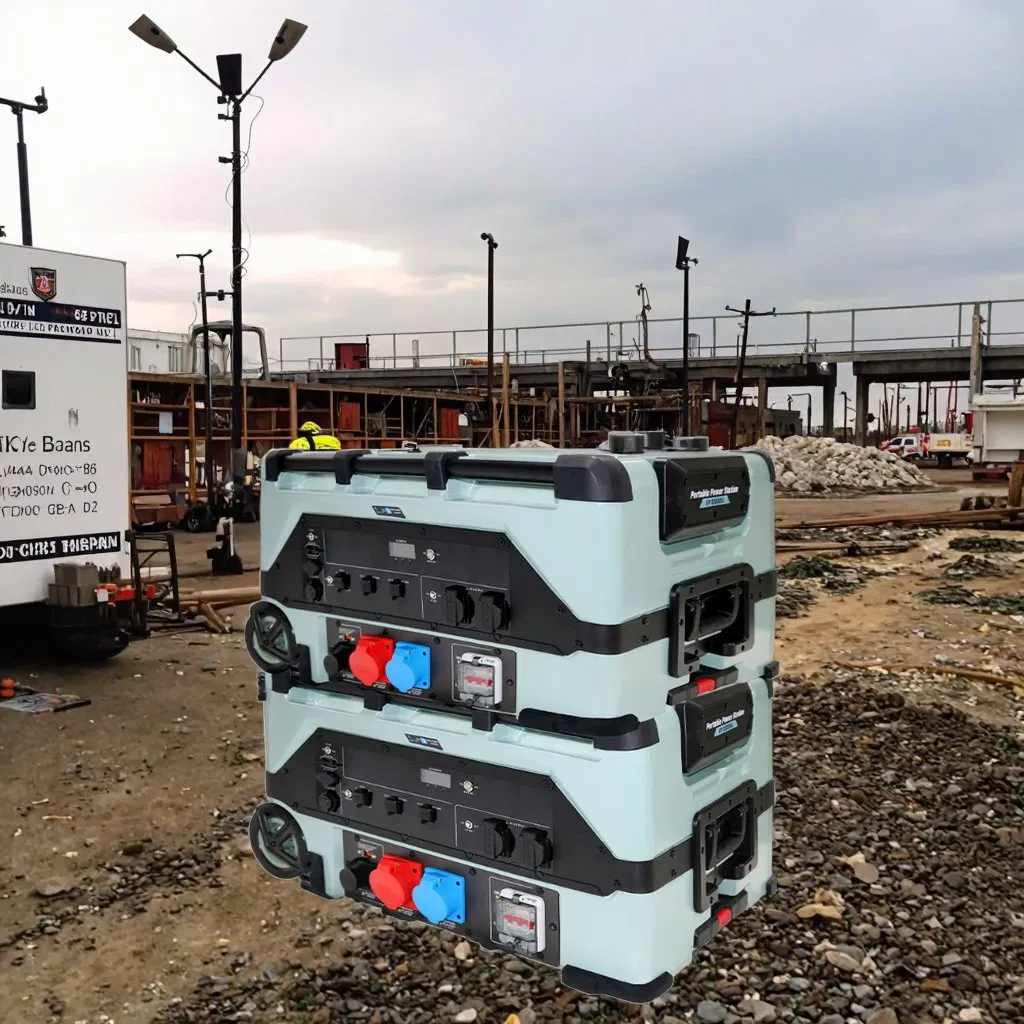

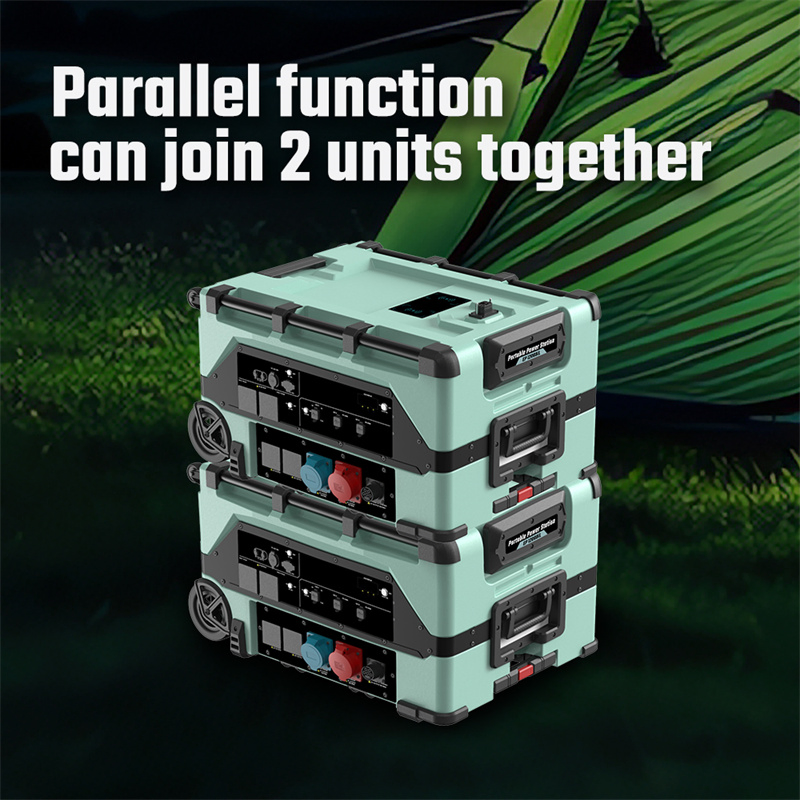

✓Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.

✓Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.

✓The four-wheel chassis and large-diameter wheel can be switched at any time, carrying without any burden.

✓Unit IP53 and Battery Pack IP66 protection grade.

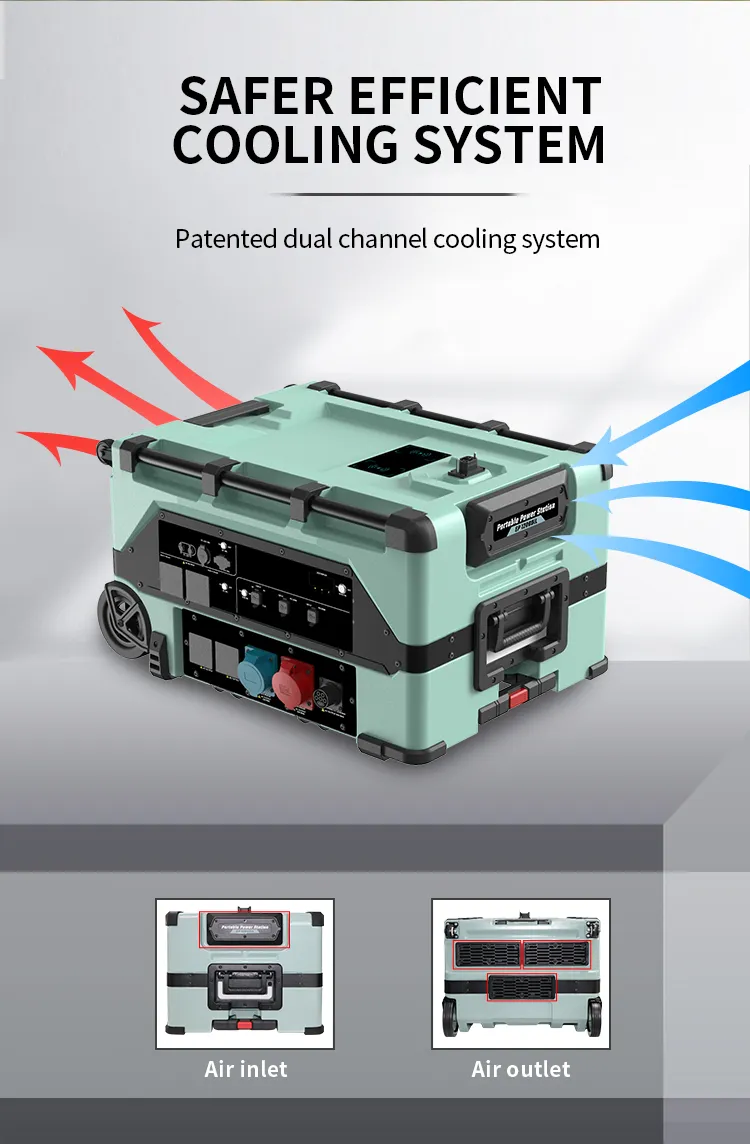

✓Patented dual channel cooling system with V-0 level flame-retardant casing.

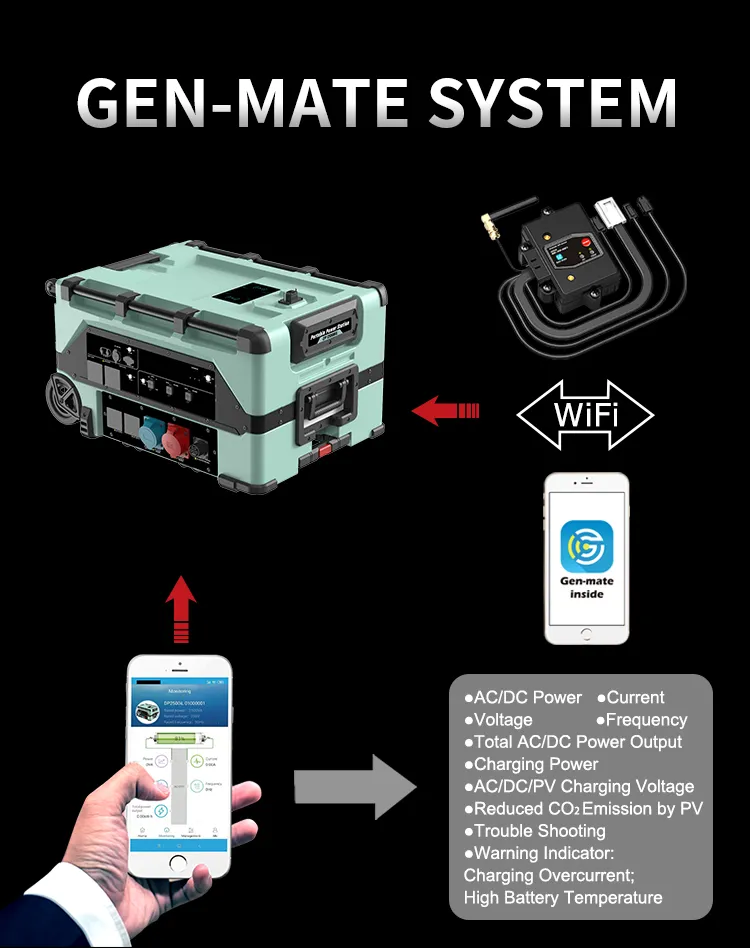

✓Intelligent control and monitor by smartphone APP.

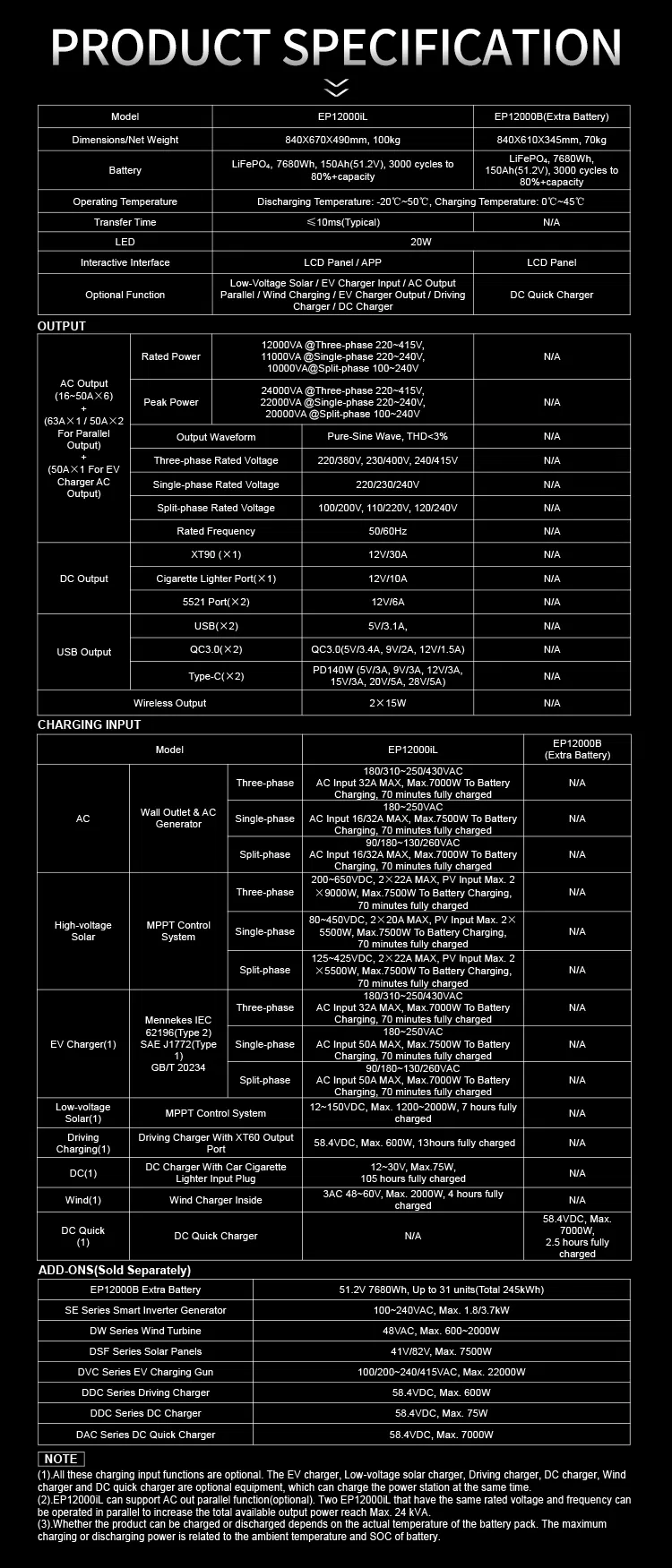

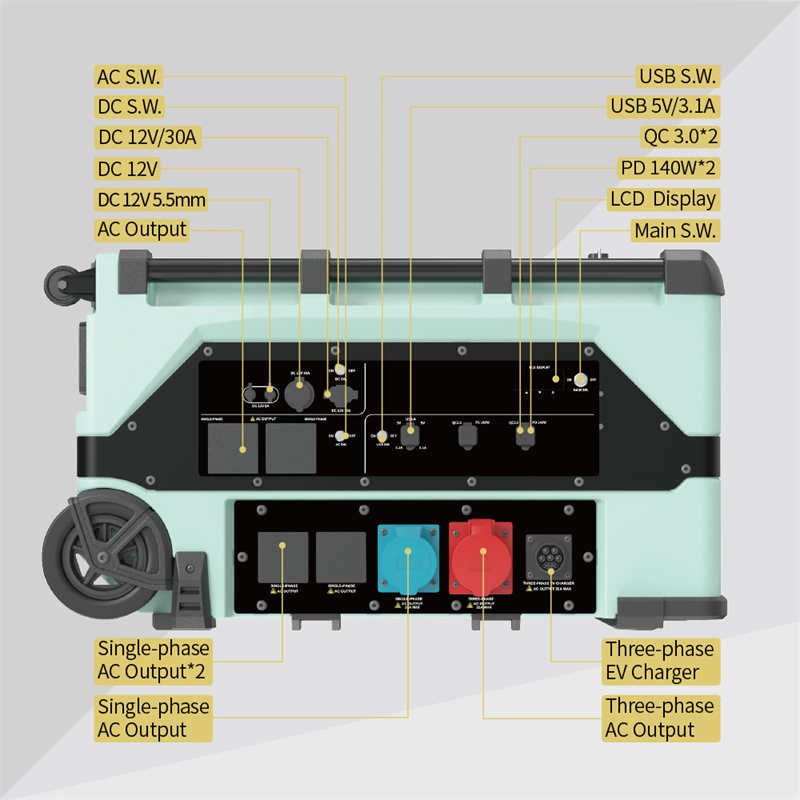

Technical Specifications - Output

Category	Parameter	Specification Details
AC Output	Rated Power	12000VA (3-Phase) / 11000VA (1-Phase) / 10000VA (Split-Phase)
	Peak Power	24000VA (3-Phase) / 22000VA (1-Phase) / 20000VA (Split-Phase)

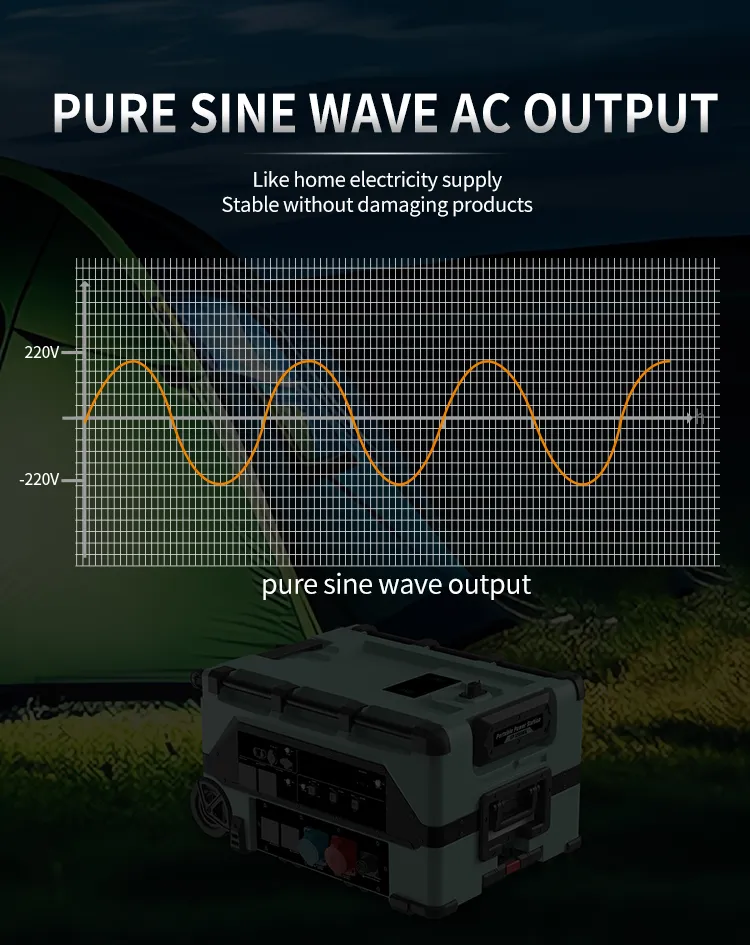

	Waveform	Pure-Sine Wave, THD < 3%
	Frequency	50/60Hz

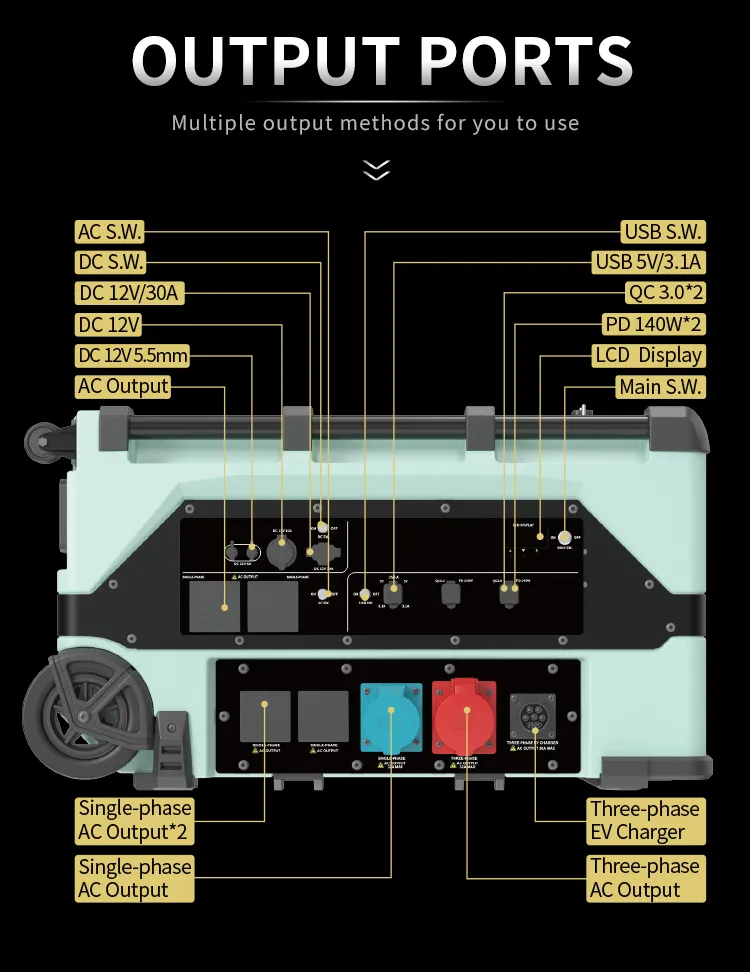

DC Output	XT90 Port	12V / 30A
	Cigarette Lighter	12V / 10A
	5521 Port	12V / 6A (x2)
USB Output	Standard USB	5V / 3.1A (x2)
	QC 3.0	Up to 12V / 1.5A (x2)
	Type-C PD	PD 140W (5V-28V / 5A) (x2)

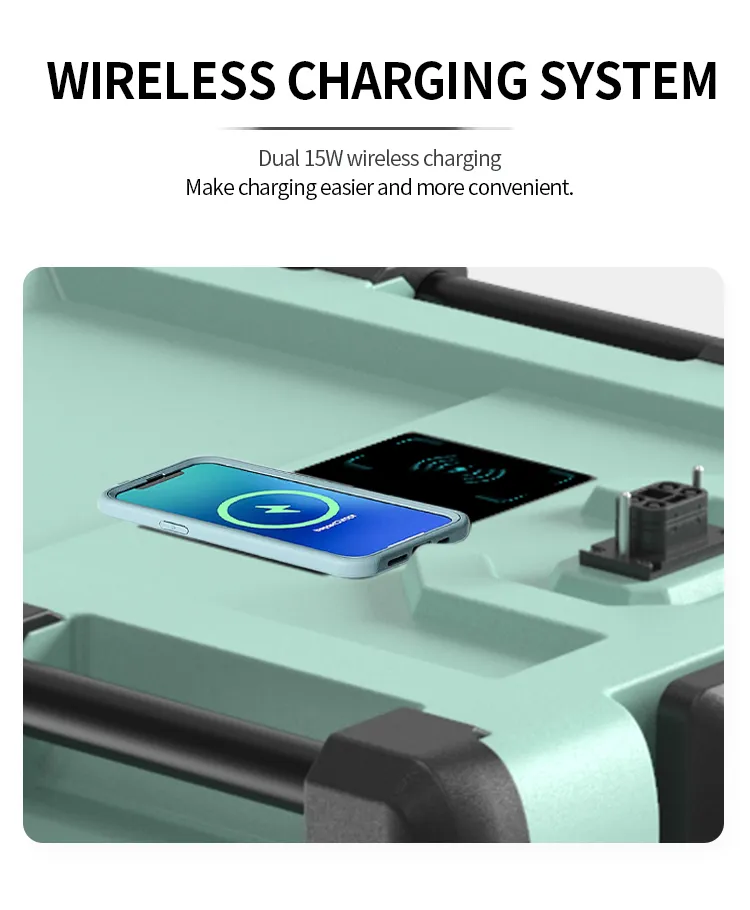

Wireless	Charging Pad	2 x 15W

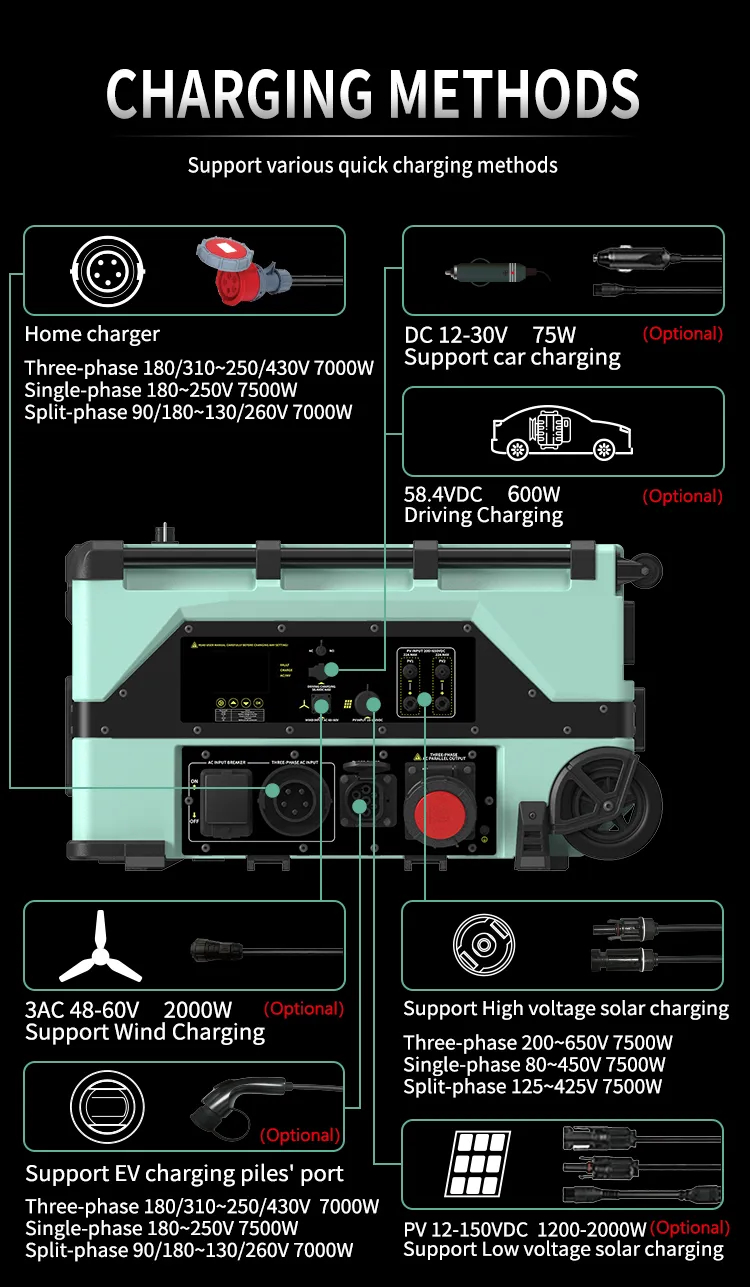

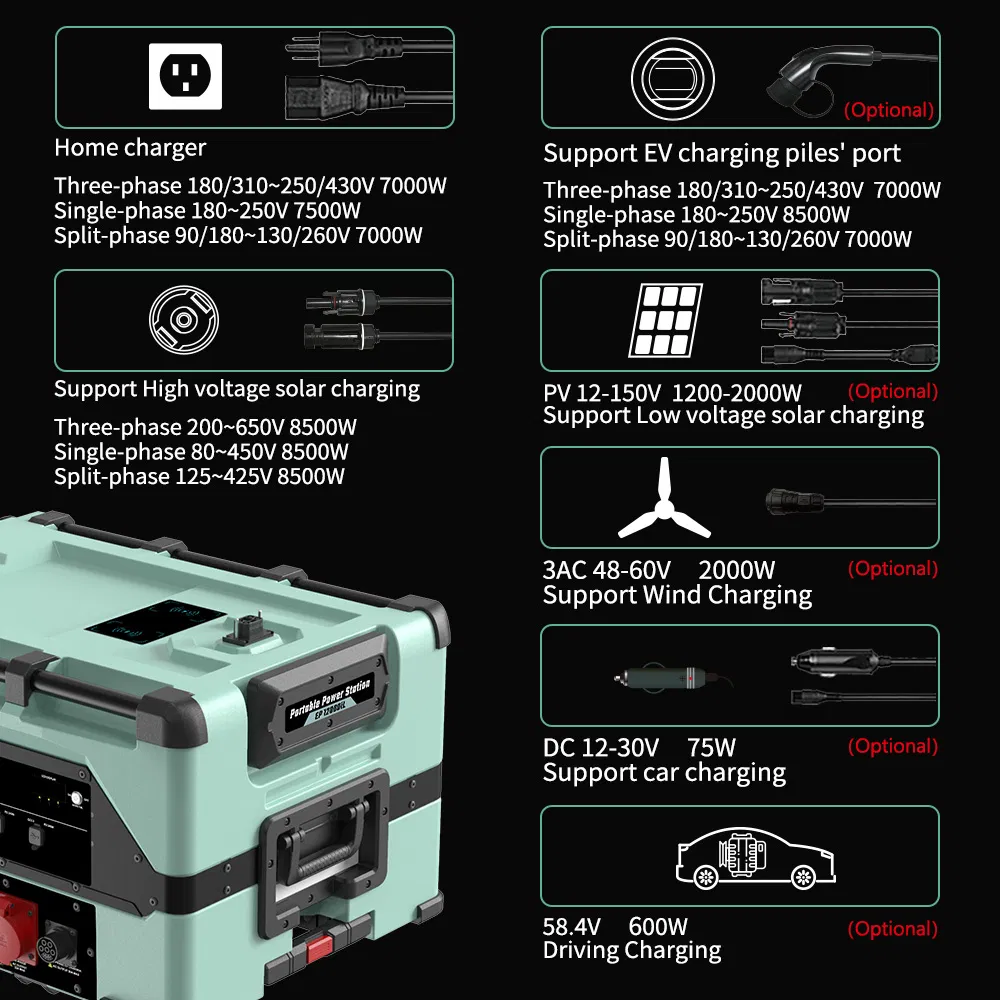

Charging Input Options

Method	Input Source	Charging Performance

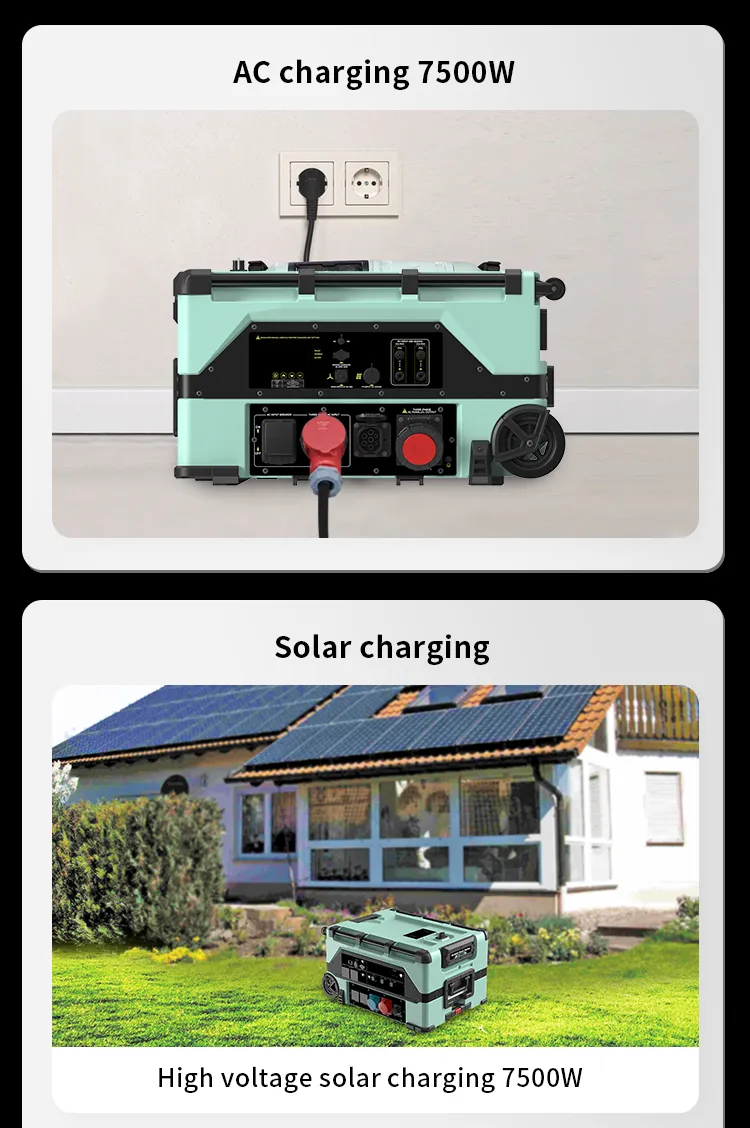

AC Wall/Generator	Three-phase / Single-phase	Max 7500W, 70 mins fully charged

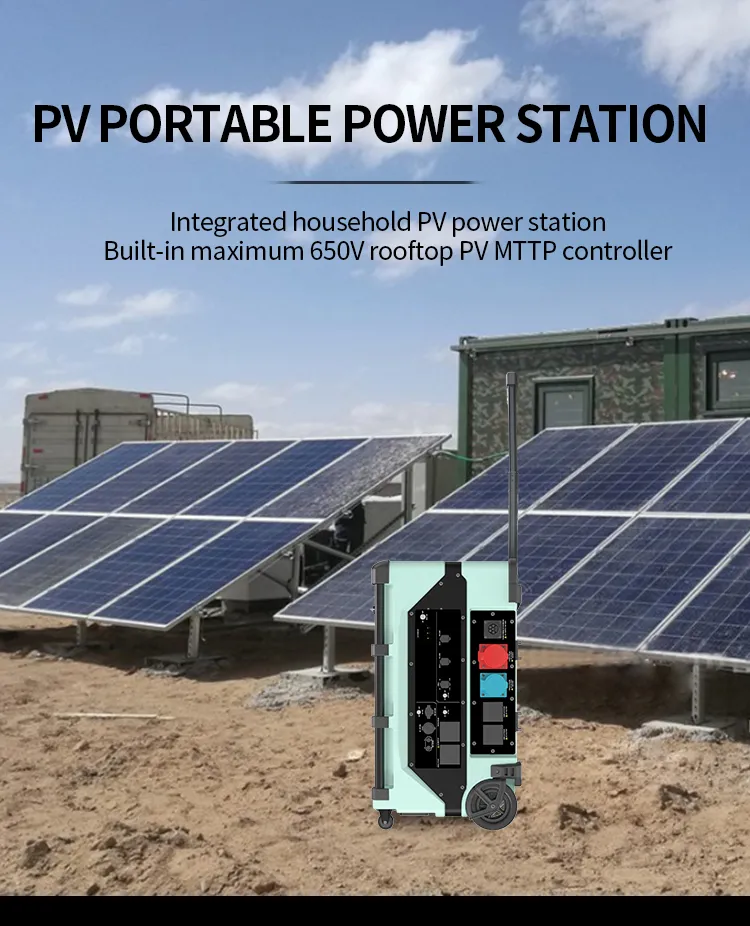

High-voltage Solar	MPPT System	Max 2x9000W Input, 70 mins fully charged

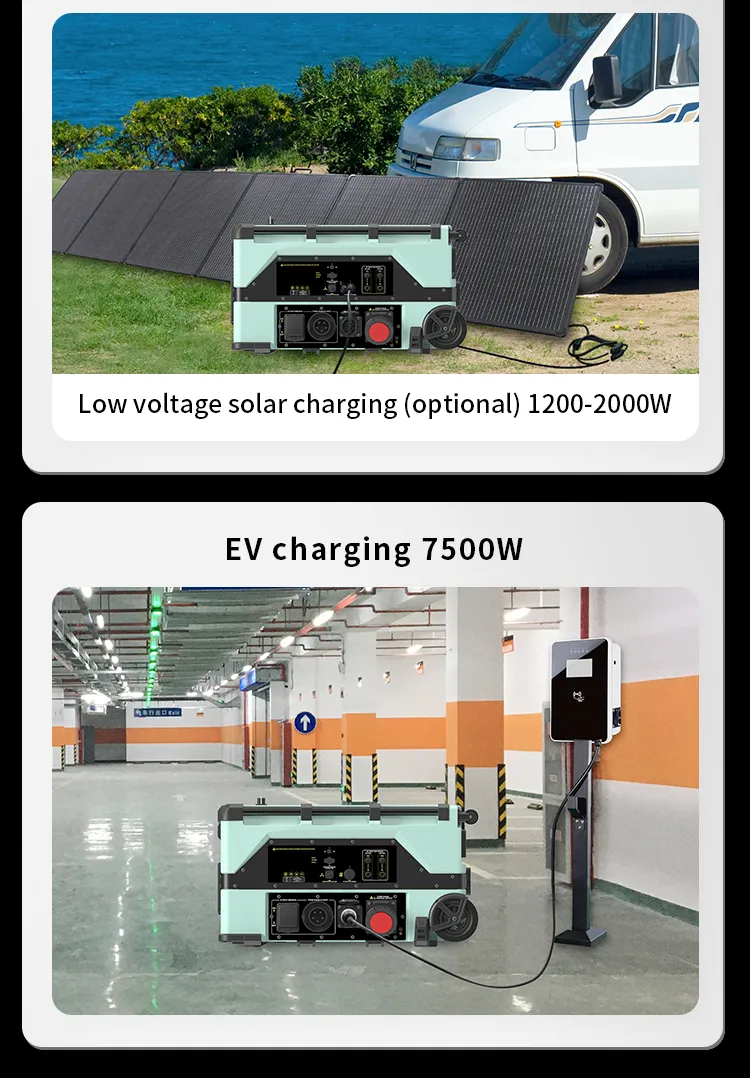

EV Charger	Type 1 / Type 2 / GB/T	Max 7500W, 70 mins fully charged
Wind Turbine	Wind Charger Inside	Max 2000W, 4 hours fully charged
Low-voltage Solar	12~150VDC	Max 2000W, 7 hours fully charged

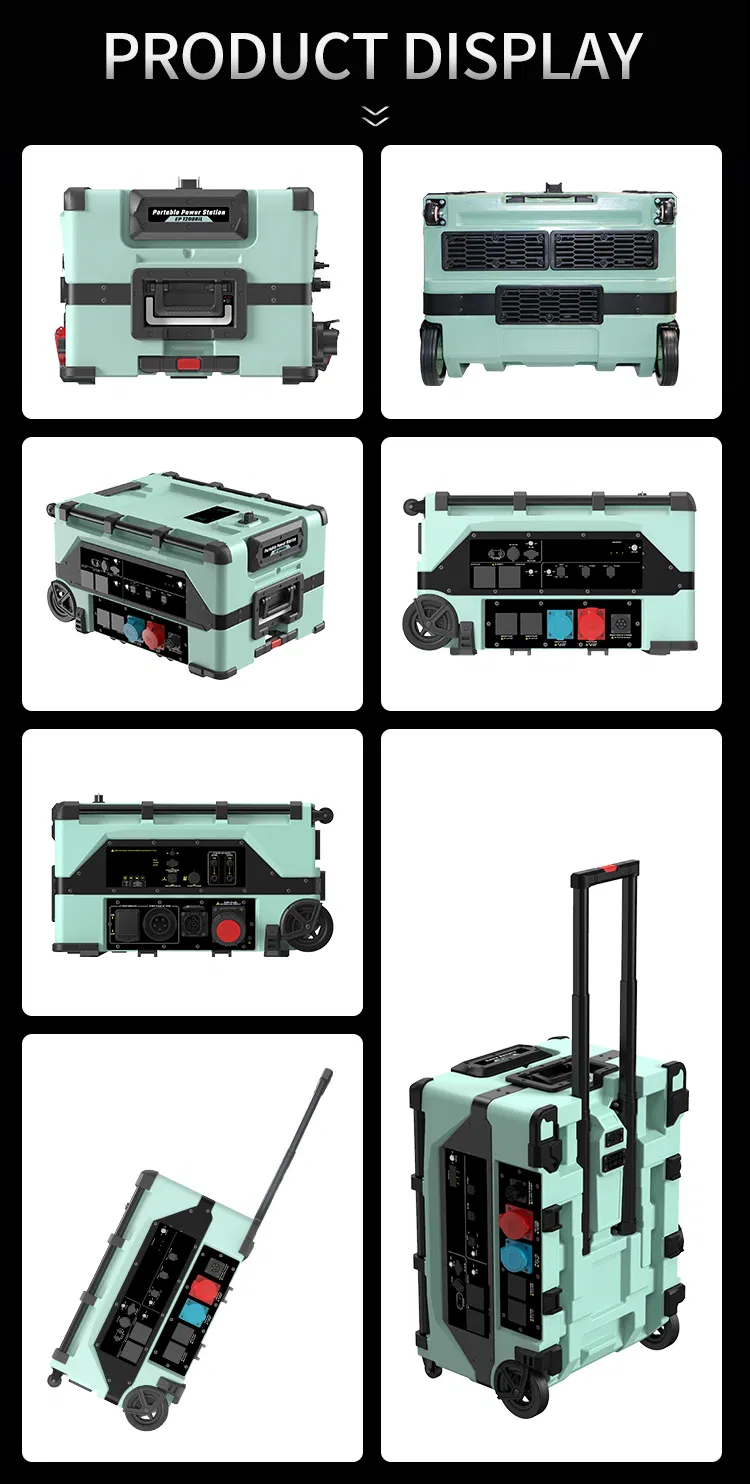

Detailed Photos

Frequently Asked Questions

What is the maximum output power of the EP12000iL?

The system supports a continuous rated power of 12000VA for three-phase output, 11000VA for single-phase, and 10000VA for split-phase configurations.

How fast can the system be fully charged?

Using AC fast charging or high-voltage solar input, the system can be fully charged in as little as 70 minutes.

Can I expand the battery capacity later?

Yes, the system is highly expandable. You can stack and connect up to 31 extra battery units for a maximum total capacity of 245kWh.

What types of charging methods are supported?

It supports multiple charging sources including AC Wall Outlets, Solar Panels (High and Low voltage), EV Chargers, Wind Turbines, and Driving/DC charging.

Is the system durable for outdoor environments?

Yes, the main unit has an IP53 protection grade, and the battery packs are rated at IP66, making them resistant to dust and water.

What is the expected lifespan of the battery?

The system uses high-quality LiFePO4 batteries with a cycle life of over 3000 cycles to 80%+ of their original capacity.
