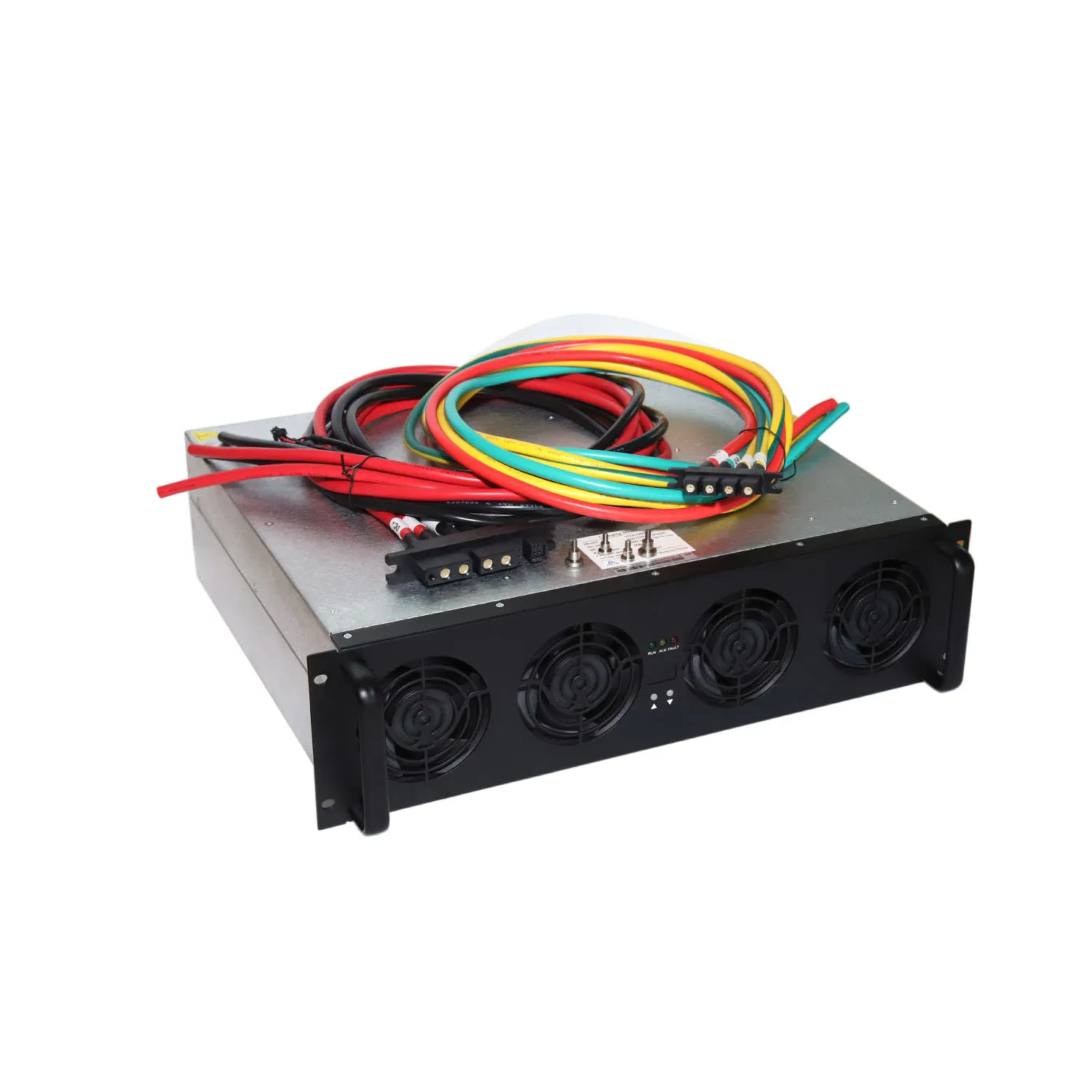

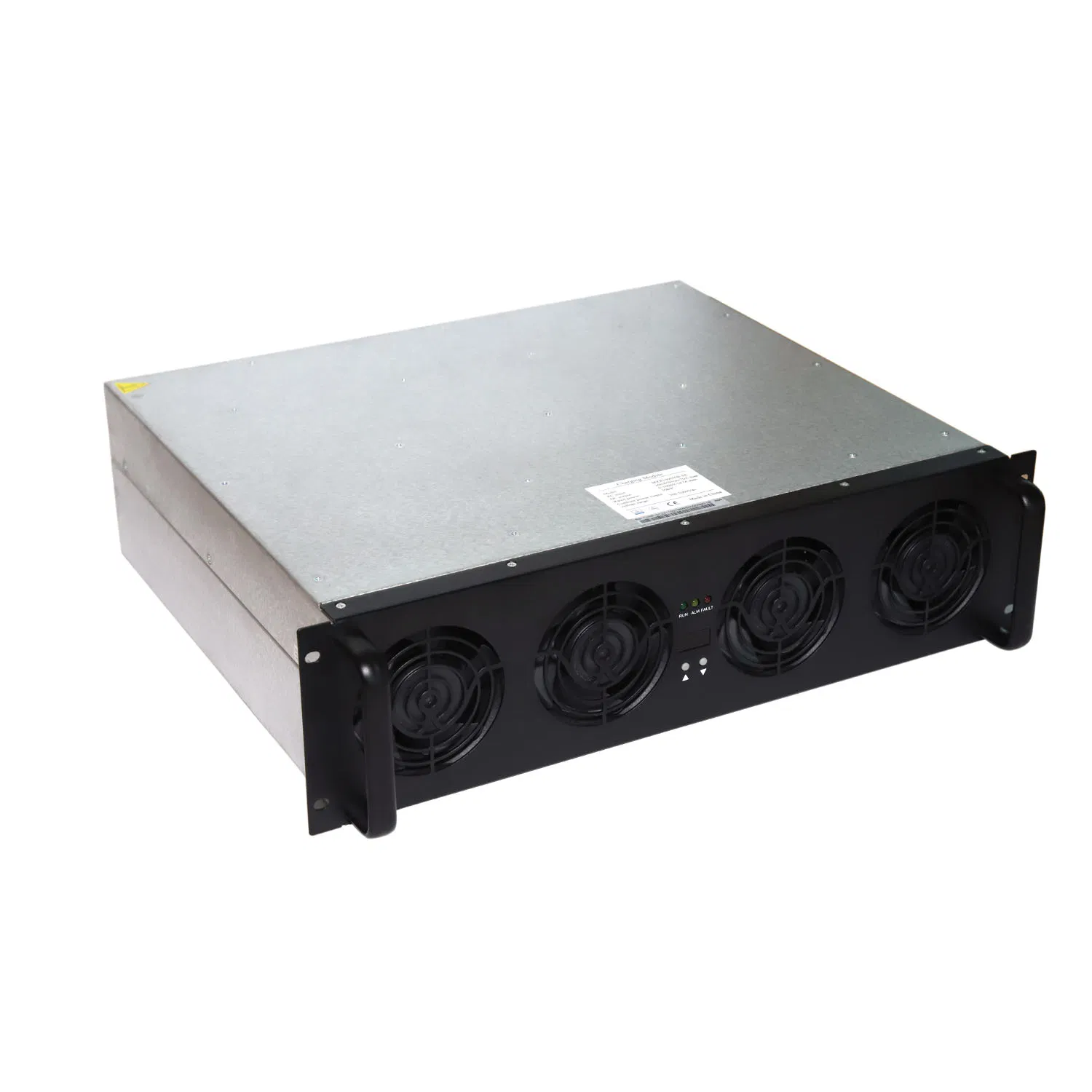

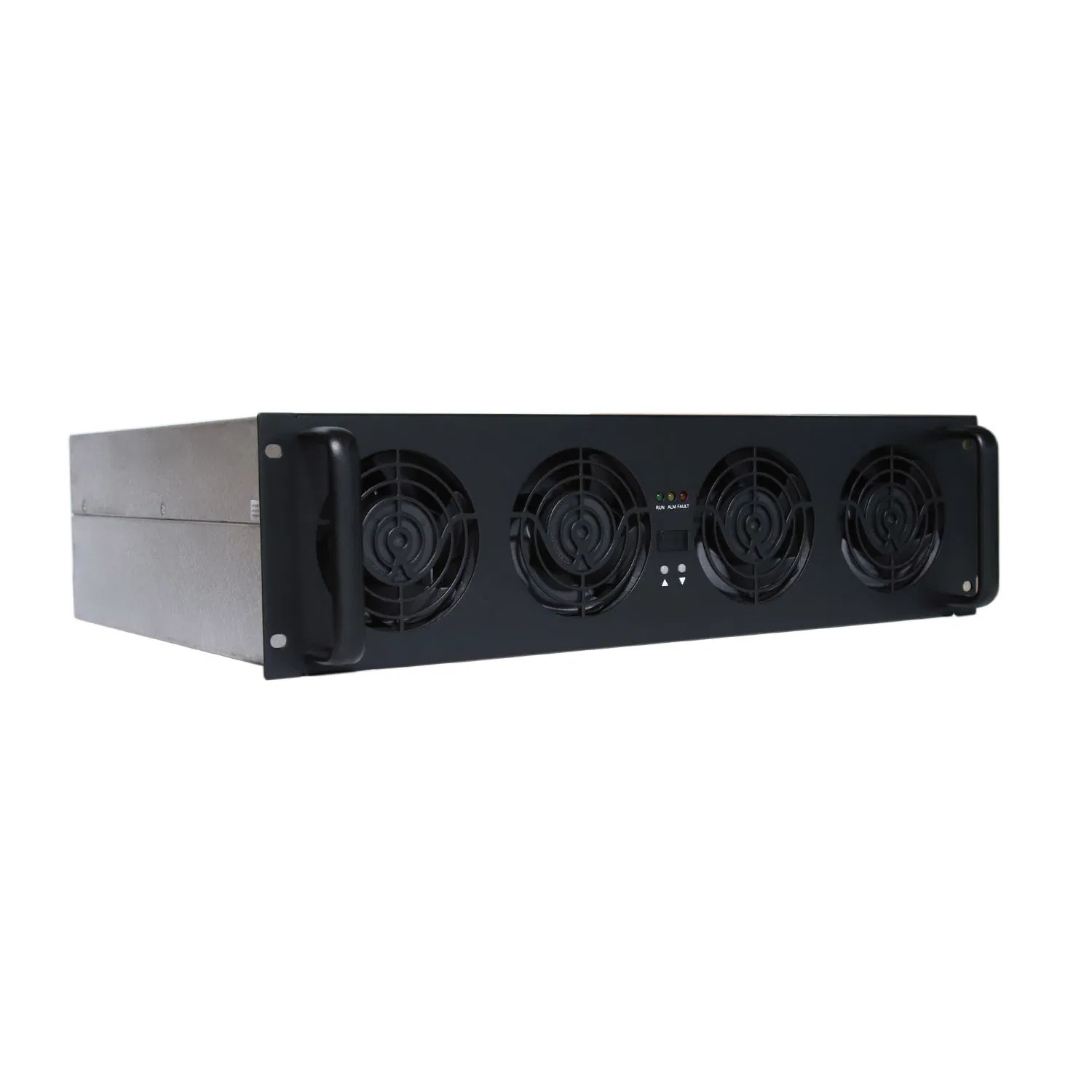

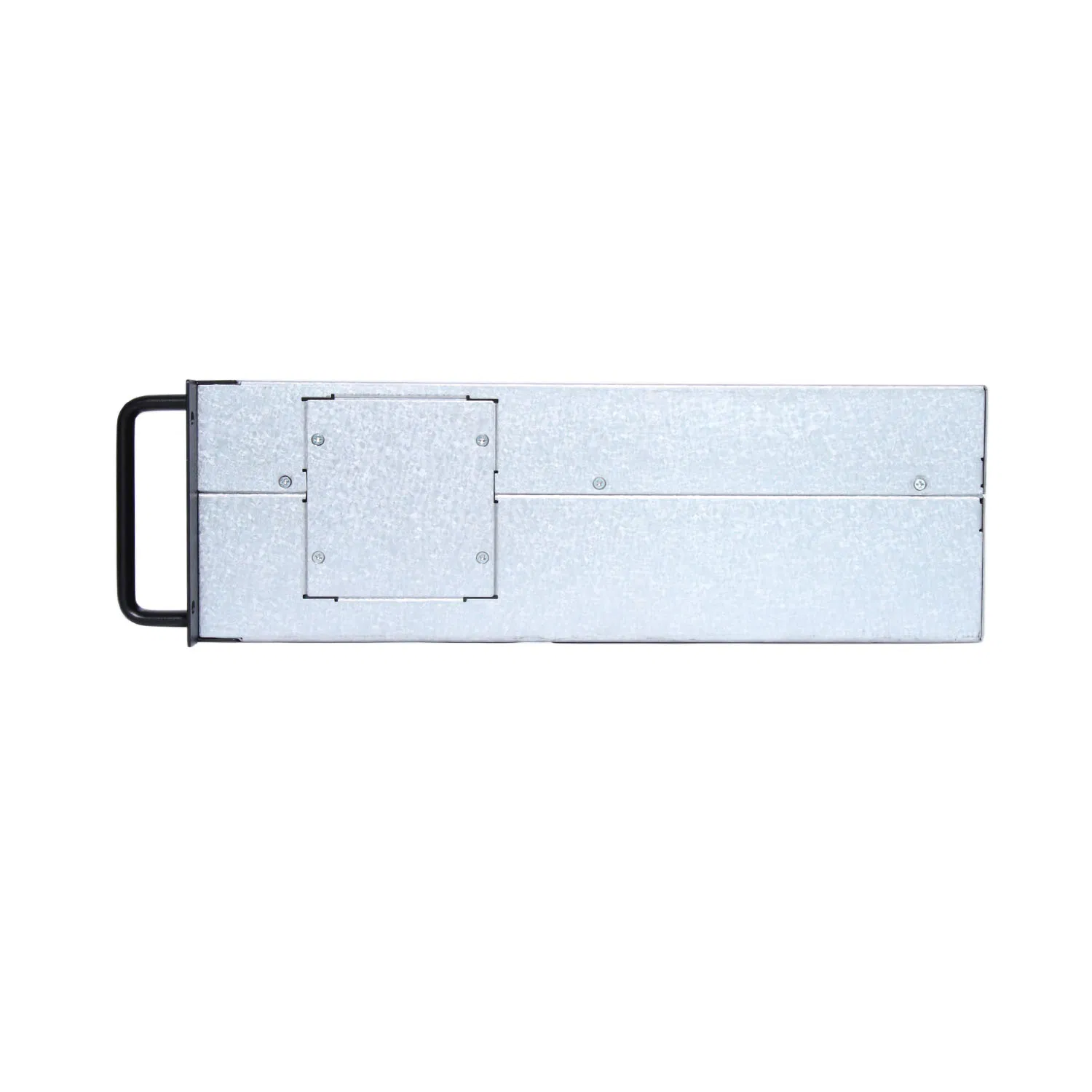

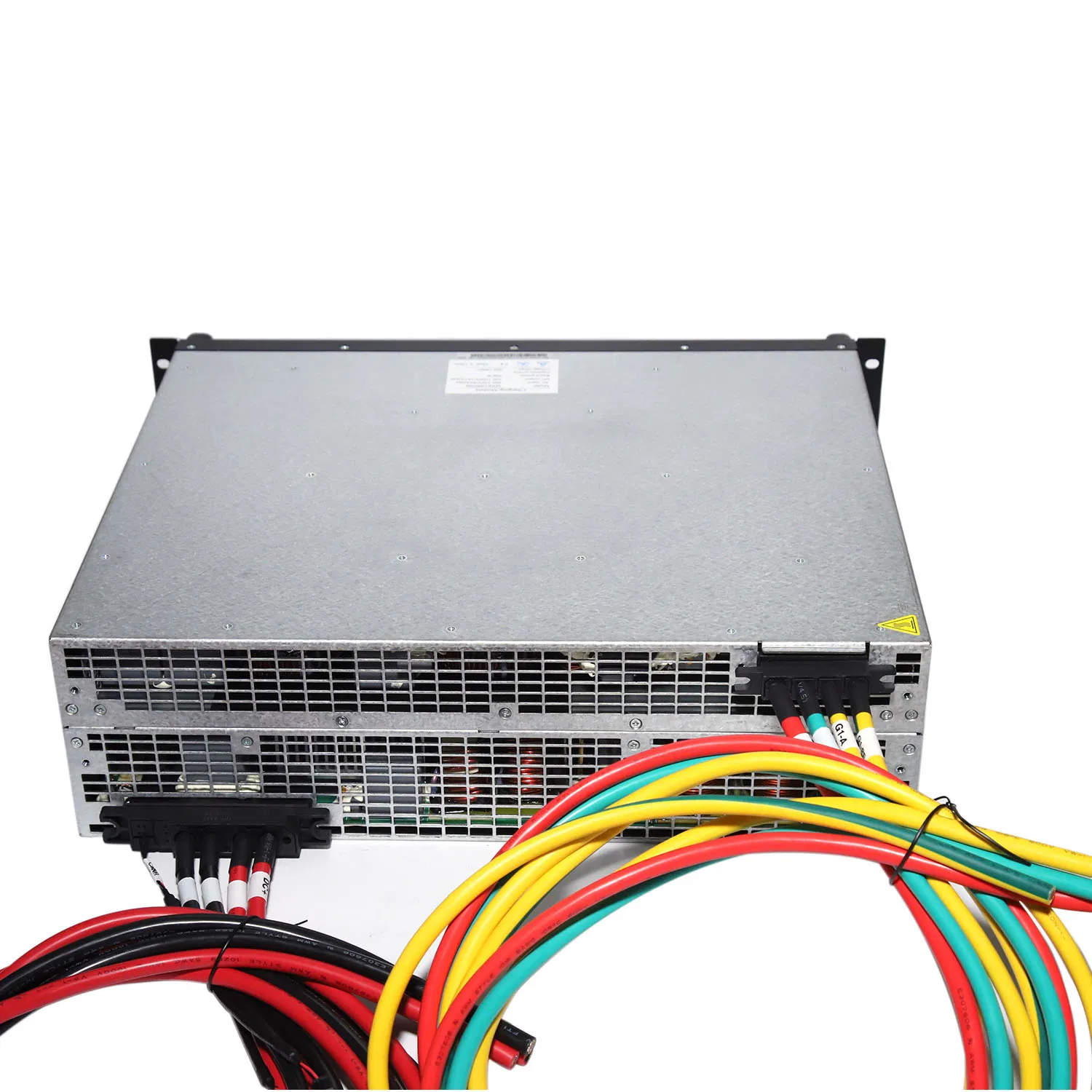

50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
1 / 5
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations
50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations

50kw@400VDC DC Charging Power Module for EV Fast Chargers and Charging Stations

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO. MXR40050B
Input Voltage 260-650VAC
Input Current <95A
Output Current 0-200A
Cooling Method Forced Air Cooling
Certification CE, ISO, TUV, RoHS
Warranty 12 Months
Communication Mode Can Bus
Transport Package Wooden Carton or Kraft Carton
Specification 125*440*380mm
D

Product Description

MXR40050B is a high-power AC/DC charging module specially designed for high-end charging scenarios of electric vehicles. Rated output power is 50 kw, and supports 260VAC~650VAC three-phase four-wire system (A/B/C +PE) input, the output voltage range is 0 ~ 400VDC, the maximum output current is 200 A, supports silent mode setting, in silent mode, the noise is less than 55dB.
Dimensions 125mm(H)*440mm(W)*380mm(D)
Power Factor ≥0.99
Output Power 50kw @ output voltage ≥300Vdc
Voltage Range 0Vdc-400Vdc (Default: 200Vdc)
Operating Temperature -40°C to +75°C
Test Specification IEC61851-21-2:2018; EN61851-21-2-2017
★

Key Features

✔ Low noise: support silent mode setting (55dB, 60dB)
✔ High protection: isolated sensitive components
✔ Ultra-high efficiency: >97%
✔ Ultra-high power density (40W/in³)
✔ Ultra-high reliability (MTBF > 1,000,000h)
✔ Support hot swap function
✔ Perfect intelligent protection function
✔ Compatible with AC and DC input
P

Product Showcase

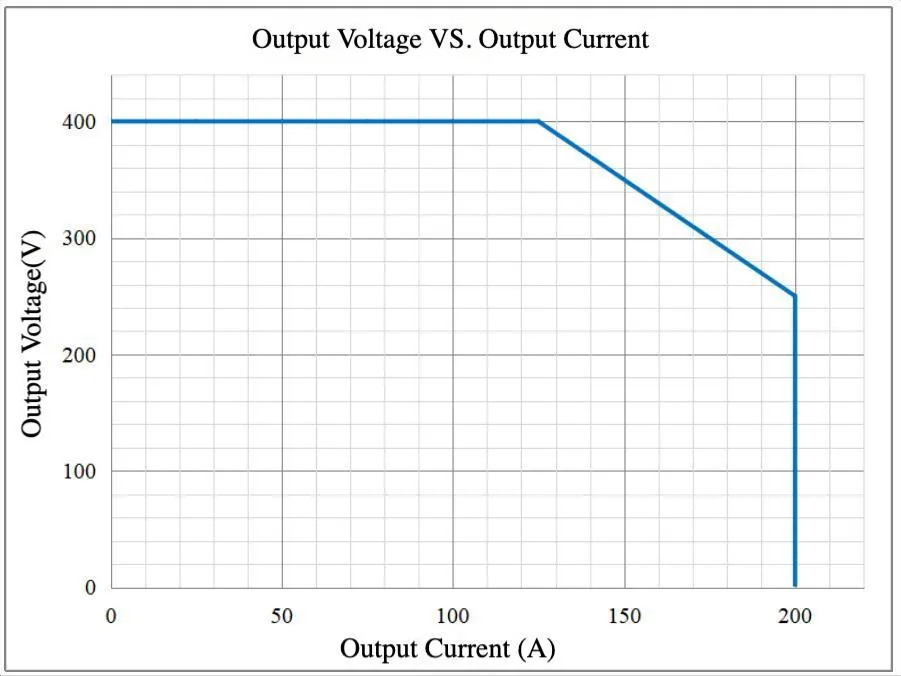

DC Charging Power Module

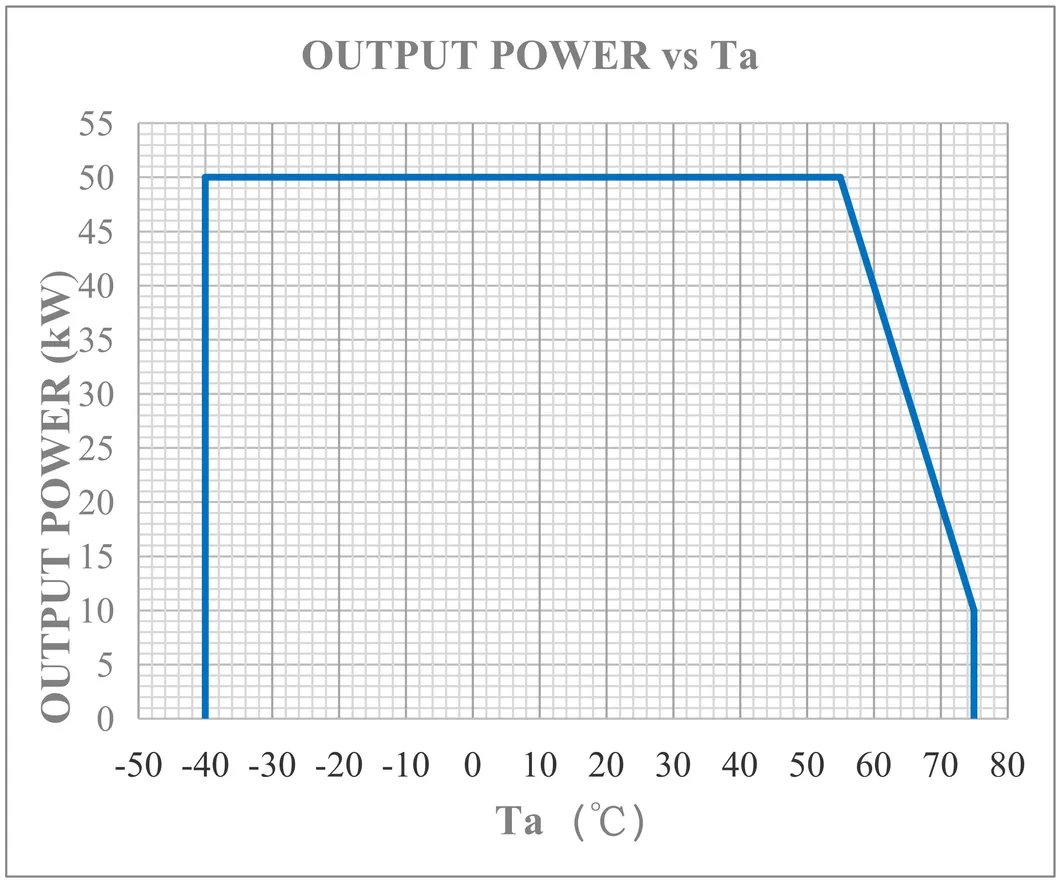

EV Fast Charger Module

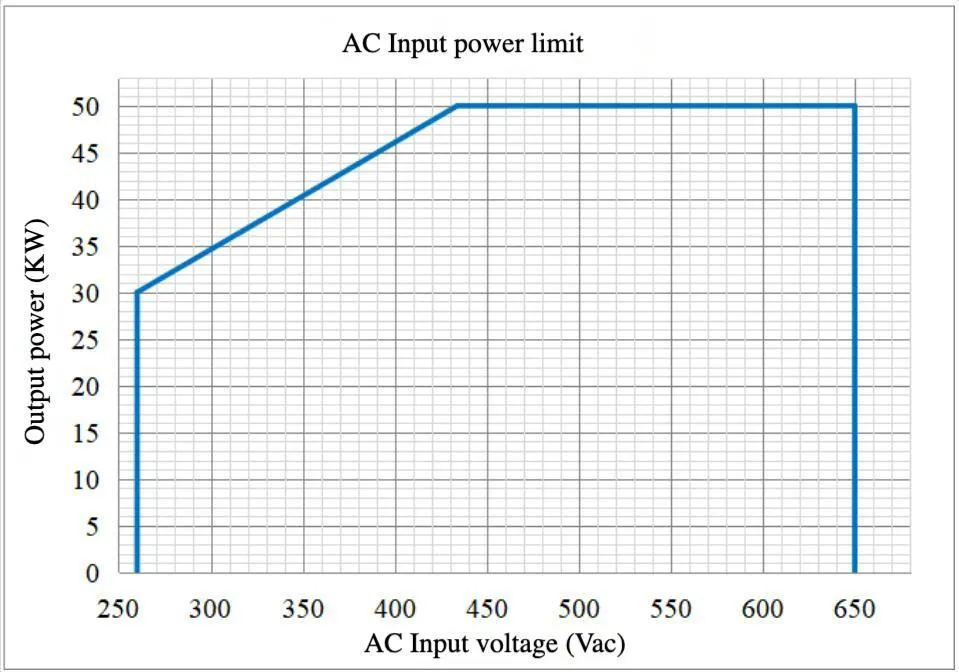

Power Module Internal View

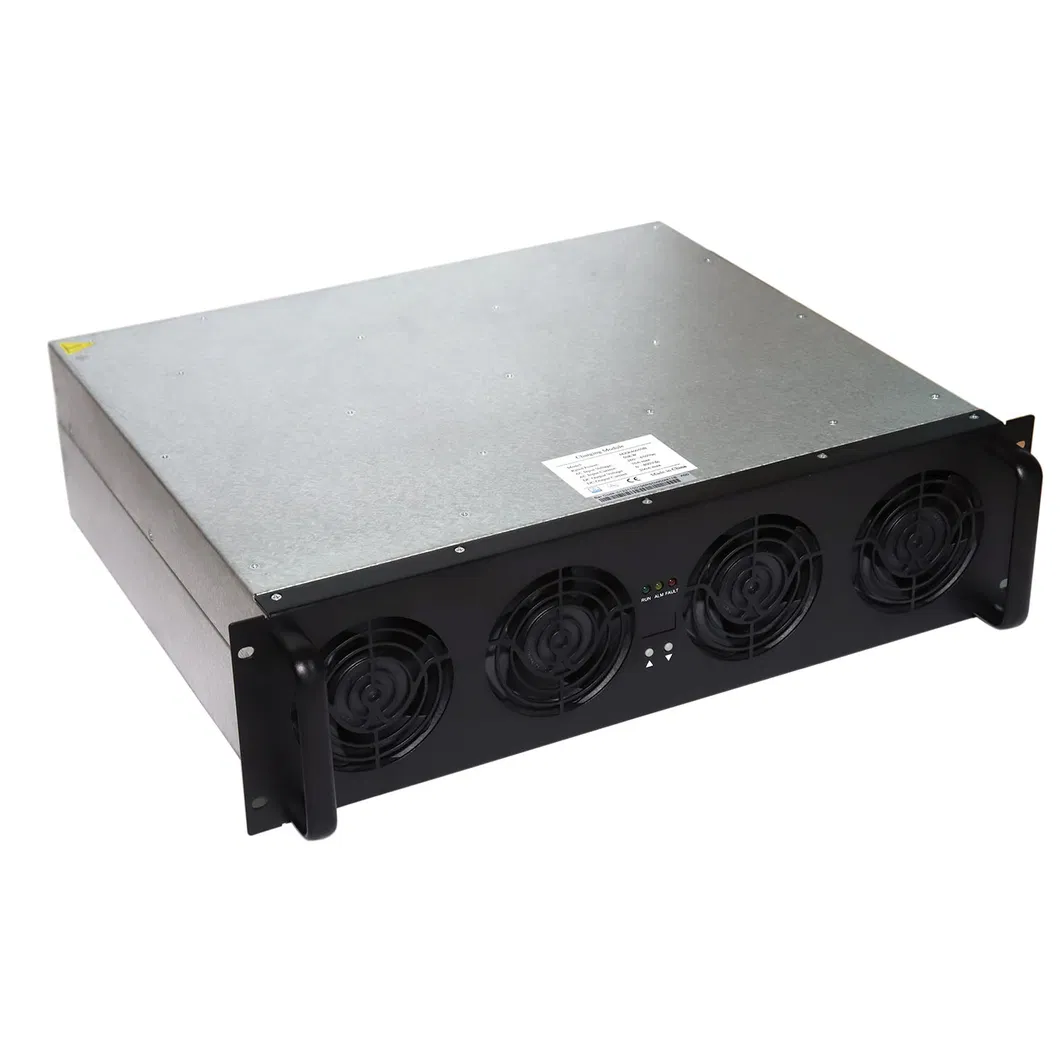

Production Detail

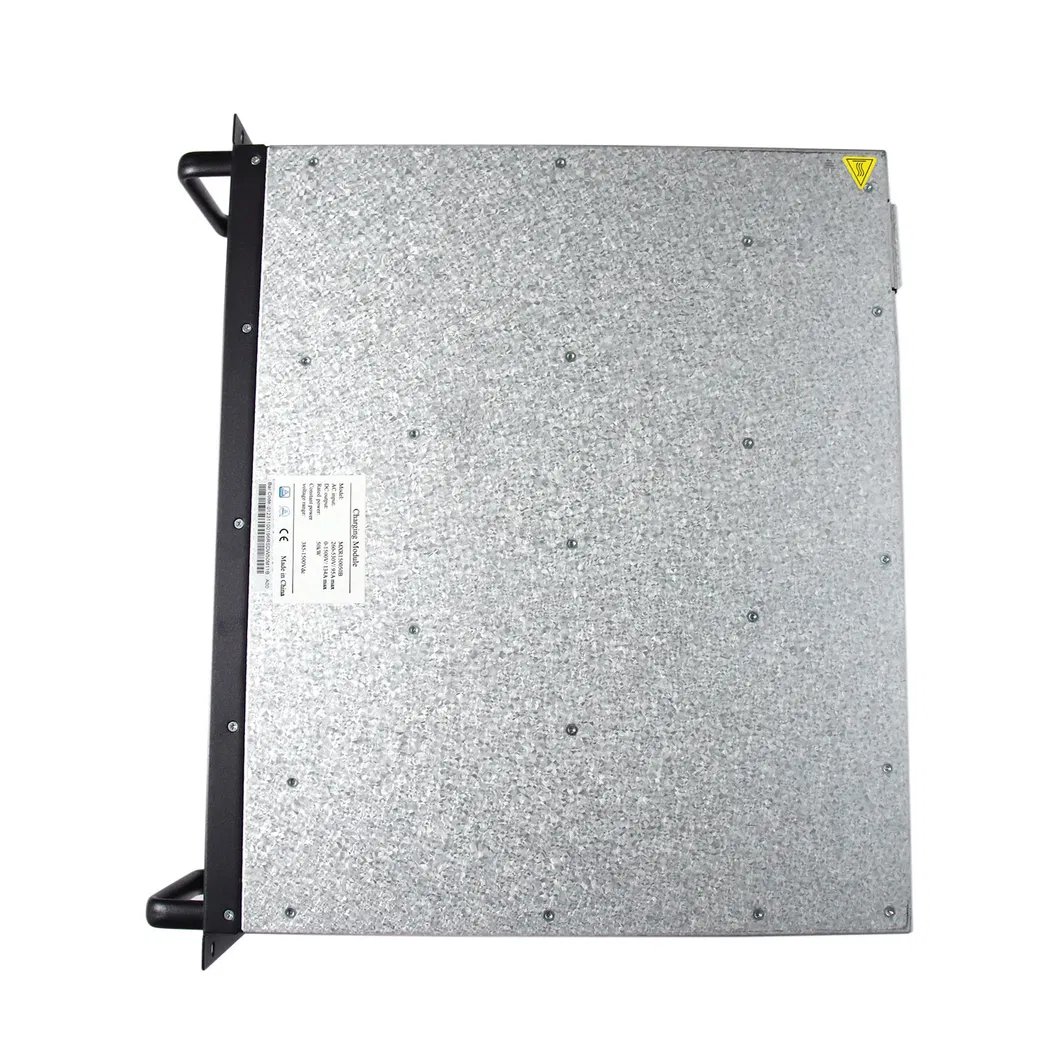

Module Interface
C

Certifications

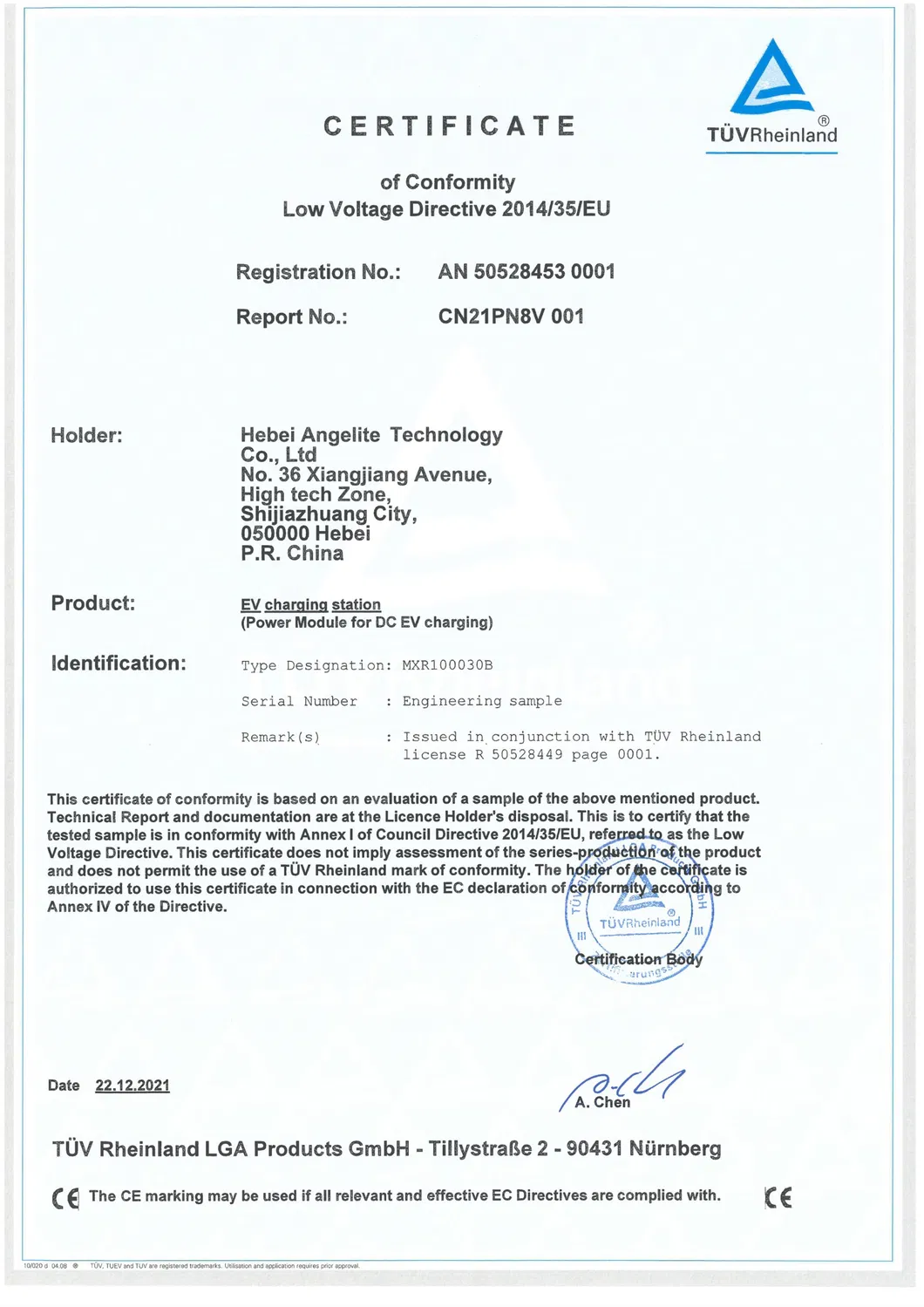

Certificate 1

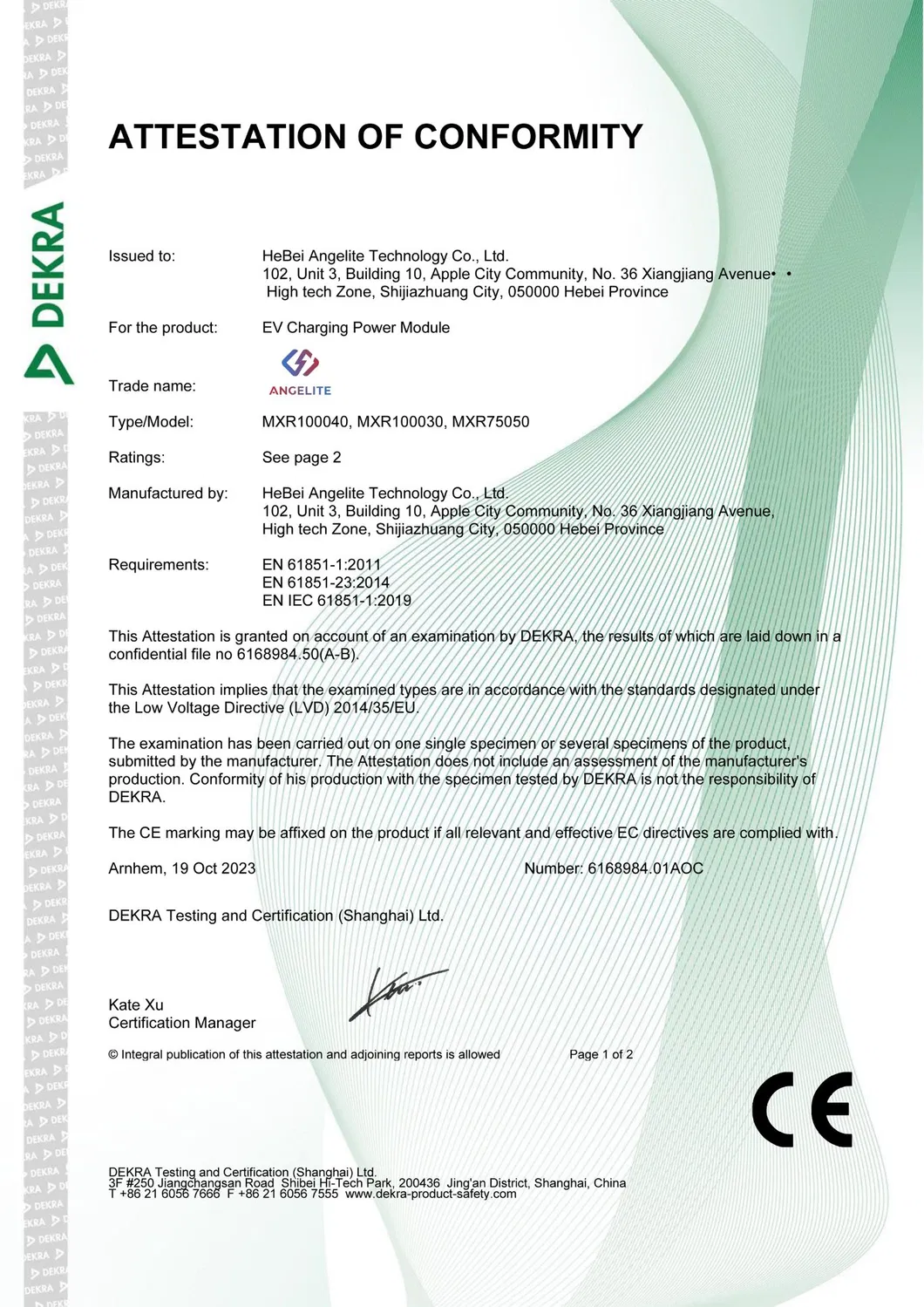

Certificate 2

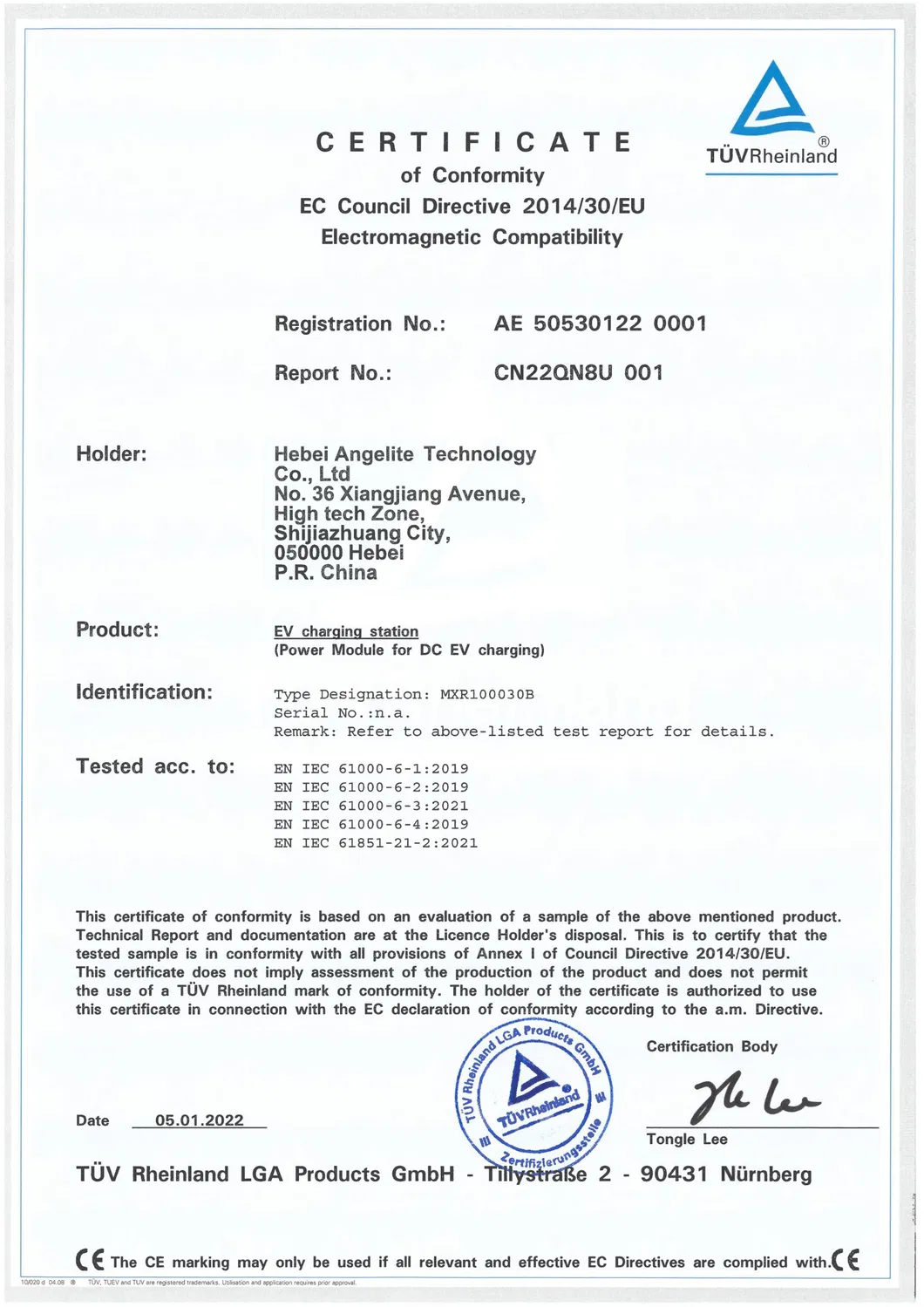

Certificate 3
S

Packaging & Shipping

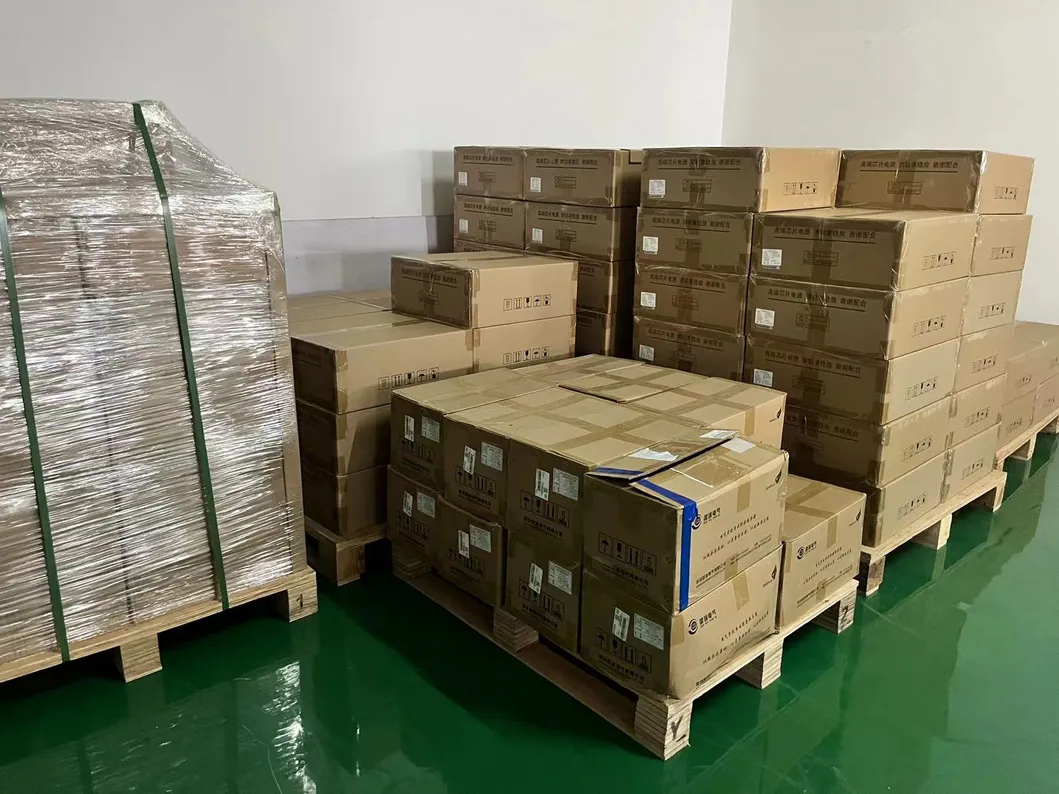

Packaging Box
Inner Packing

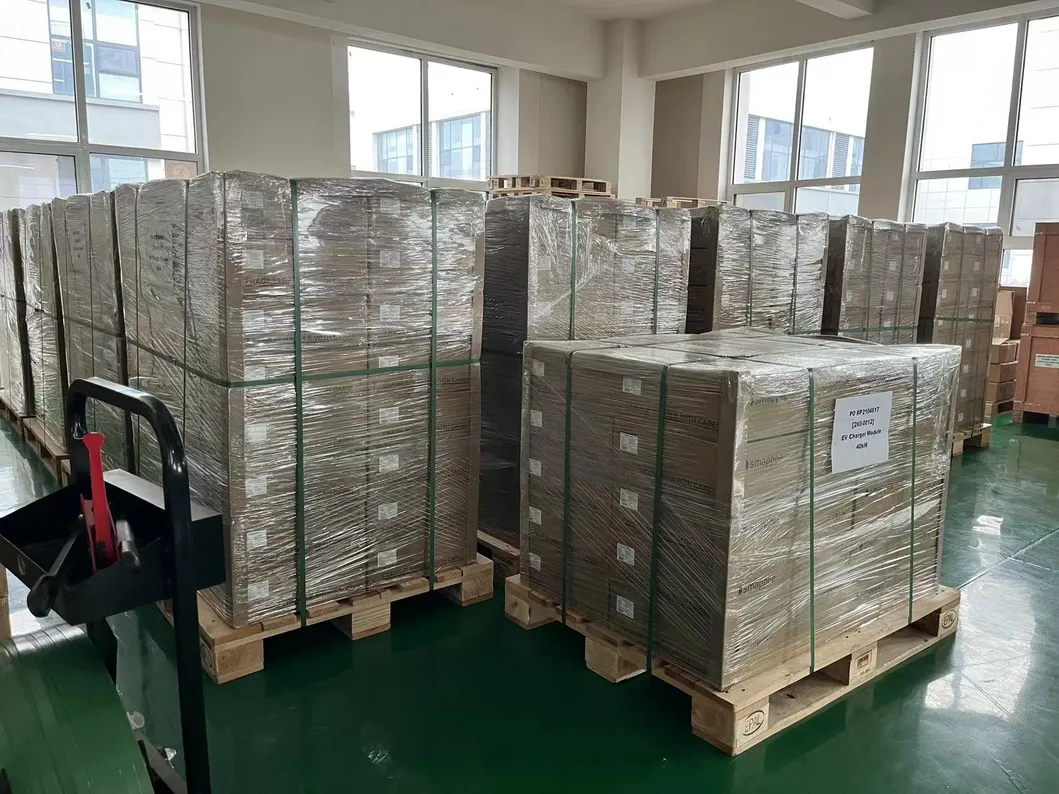

Storage
H

Production Excellence

Production Facility

Focusing on the research, development, and production of power electronic products, we position our services for mid-to-high-end DC power supply system requirements. Based on independent intellectual property rights and technological innovation, we provide high-quality equipment support and services to realize value for our global customers.

Our products are widely utilized in automotive, electric power, railway, metallurgy, and communications sectors, with performance cases spanning across the country and international markets.

?

Frequently Asked Questions

What is the maximum output power of the MXR40050B module?
The module provides a rated output power of 50kW when the output voltage is ≥300Vdc.
How does the silent mode function?
The module supports silent mode settings that can limit noise levels to less than 55dB or 60dB, making it ideal for noise-sensitive environments.
What is the peak efficiency of this charging module?
The MXR40050B features ultra-high efficiency of greater than 97%, reducing energy loss and heat generation.
Can the module be replaced without shutting down the system?
Yes, it fully supports hot swap functions, allowing for easy maintenance and expansion without interrupting the power system.
What are the input voltage requirements?
It supports a wide three-phase input range of 260VAC to 650VAC (A/B/C + PE).
How is the module cooled?
The module utilizes forced air cooling with an intelligent design that isolates sensitive components from the main air duct for higher protection.
