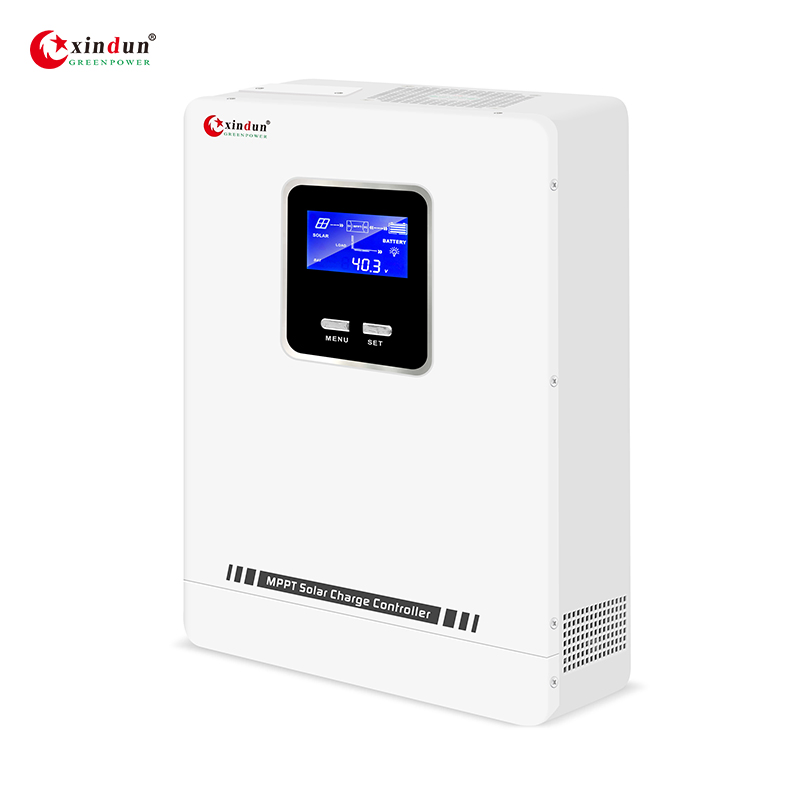

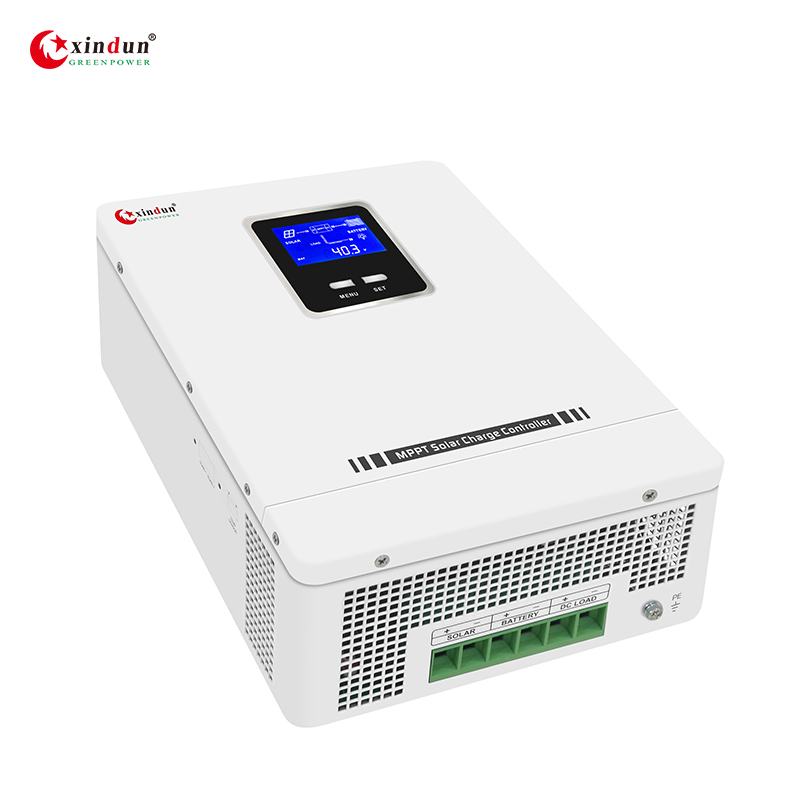

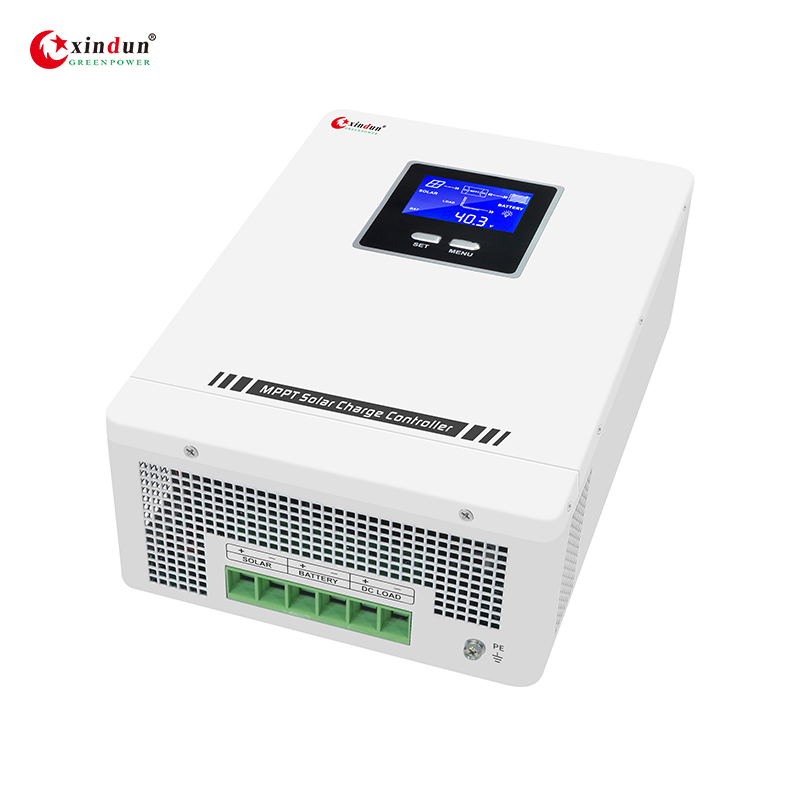

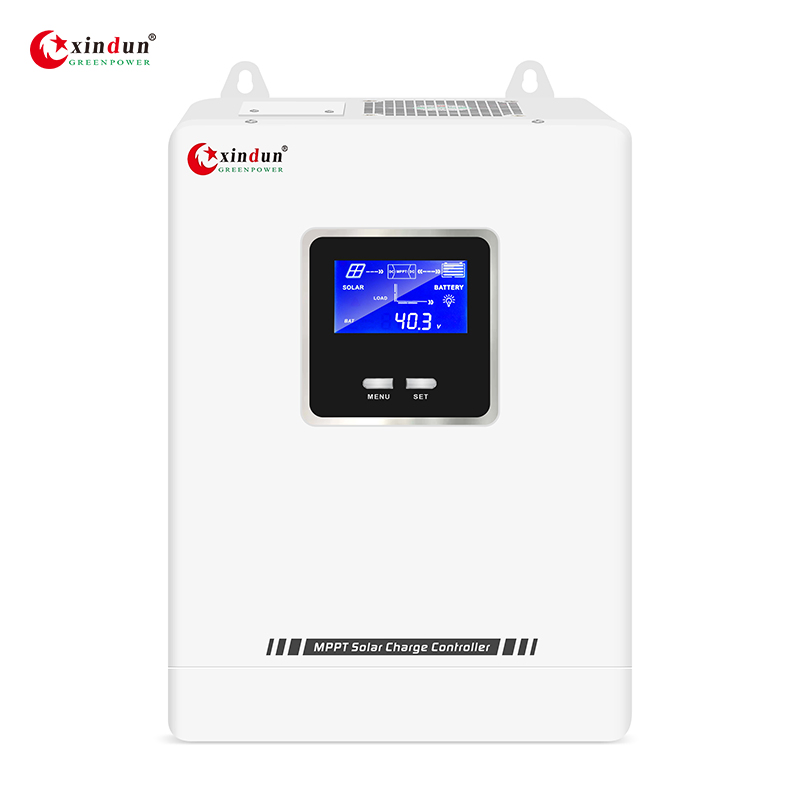

48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
1 / 5
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller
48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller

48V 20 40A 60A 100 AMP Smart MPPT Solar 180V PV LiFePO4 Charge Controller

Customization: Available
After-sales Service: Free Parts
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information
Model NO.
XD-Wonder2
Condition
New
Certification
ISO, CE
Application
Collector Controller, Charger Controller, Solar Working Station, Voltage Controller
Rated Voltage
48VDC
Rated Current
10A/20A/30A/40A/50A/60A/80A/100A
MPPT Efficiency
>99%
Conversion Efficiency
>98%
Max PV Input (Voc)
180V
Communication
RS485/APP (WiFi/GPRS Monitoring)
Inverter Features
  • 1

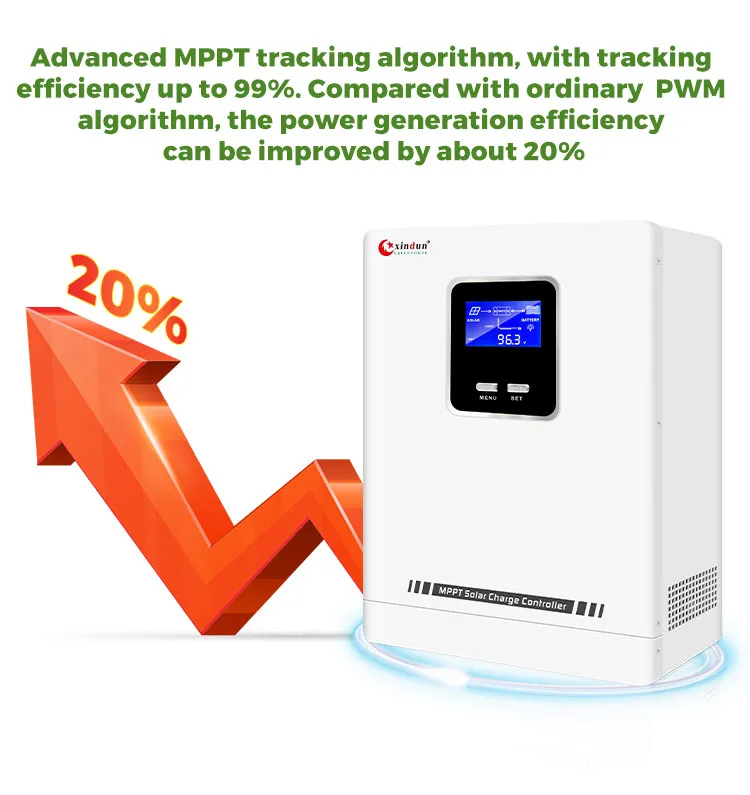

    Advanced MPPT tracking algorithm, with tracking efficiency up to 99%. Power generation efficiency improved by about 20% compared to PWM.
  • 2
    LCD graphic display of photovoltaic power generation data and simulation of power generation process.
  • 3
    Multiple load working modes can be set to adapt to different working occasions.
  • 4

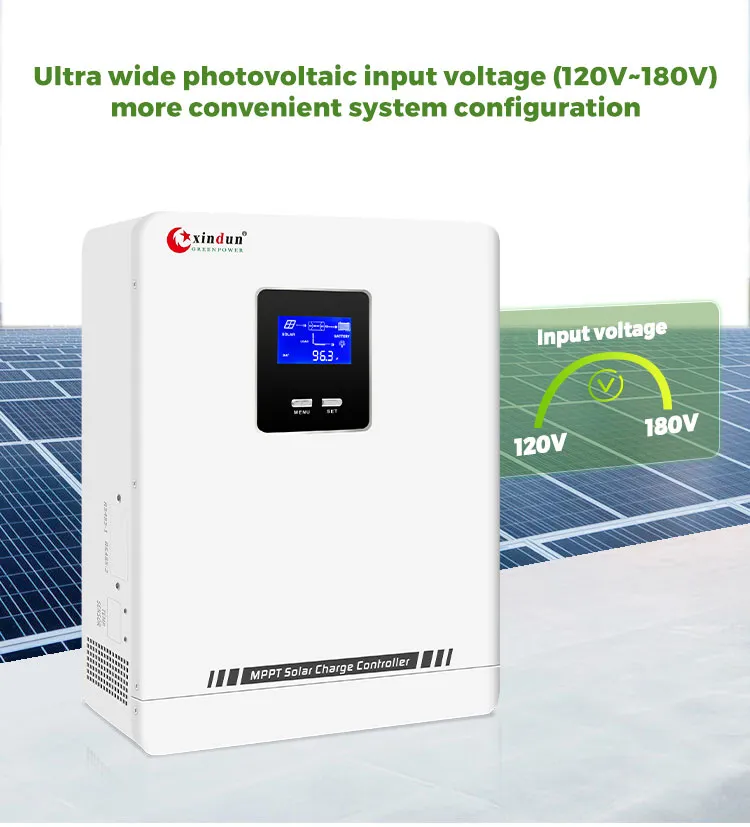

    Ultra wide photovoltaic input voltage range for more convenient system configuration.
  • 5

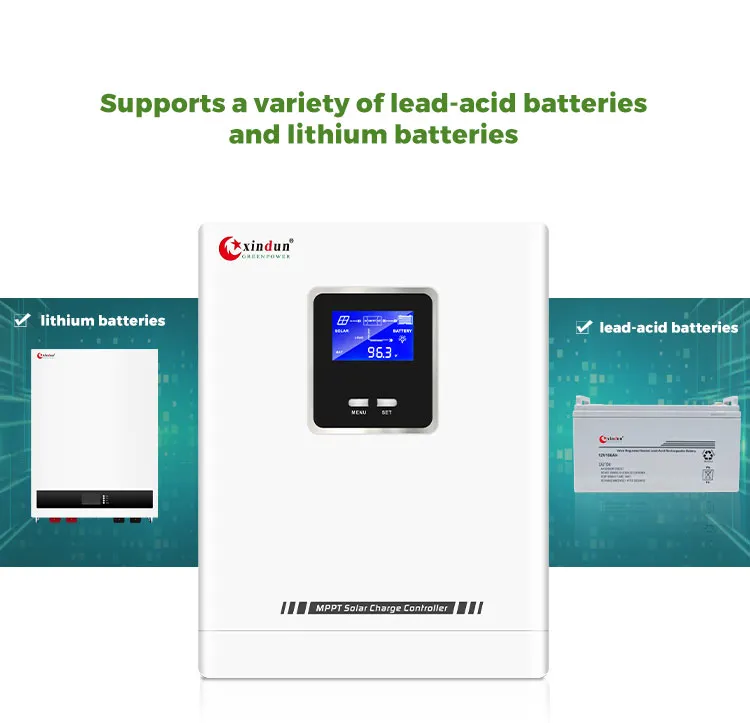

    Supports lead-acid and lithium batteries; users can customize charging and discharging parameters.
  • 6

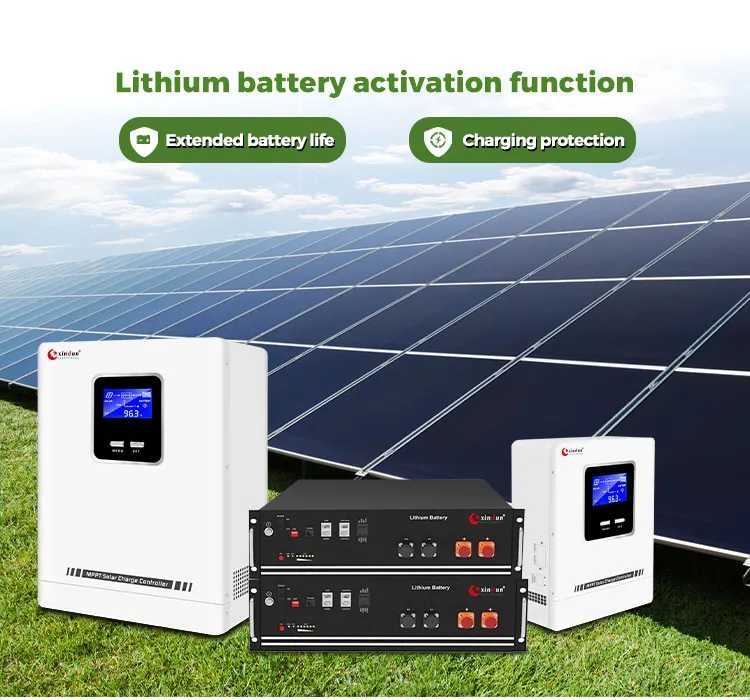

    Lithium battery activation function included.
  • 7
    Full electronic protection: anti-reverse connection (battery/PV), over-current, over-temperature, and voltage protection.
  • 8
    Intelligent battery management function to extend battery life.
  • 9

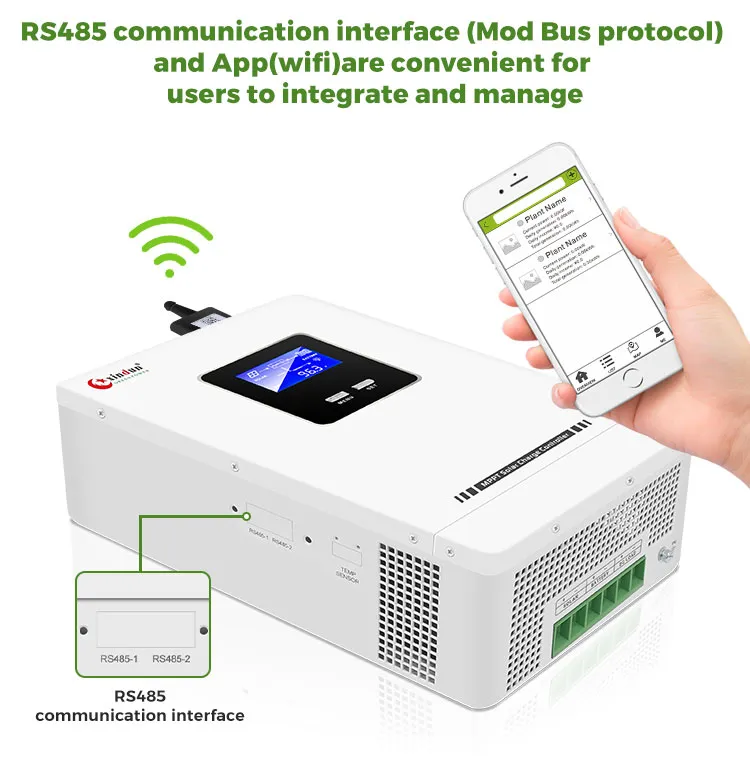

    RS485 communication interface (Mod Bus protocol) and mobile APP for easy integration.
Product Highlights
Highlight 1
Highlight 2
Highlight 3
Highlight 4
Highlight 5
Highlight 6
Technical Specifications
Model: Wonder2 10124 - 30124 1048 - 3048 40124 - 60124 4048 - 6048 80124 - 100124 8048 - 10048
Rated Current 10A/20A/30A 10A/20A/30A 40A/50A/60A 40A/50A/60A 80A/100A 80A/100A
Rated System Voltage 12V/24V 48V 12V/24V 48V 12V/24V 48V
Max PV Input Voltage (Voc) 120V 180V 120V 180V 120V 180V
Conversion Efficiency >98%
MPPT Tracking Efficiency >99%
Battery Type Lead acid / Lithium battery (Customizable)
Operating Temperature -15ºC ~ +50ºC
Product Detail & Wiring Diagram

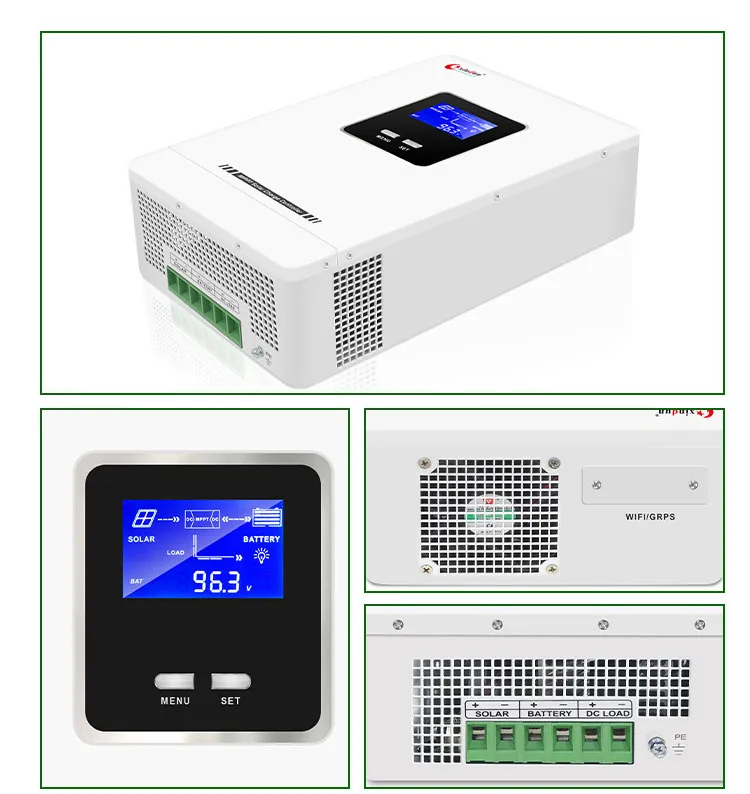

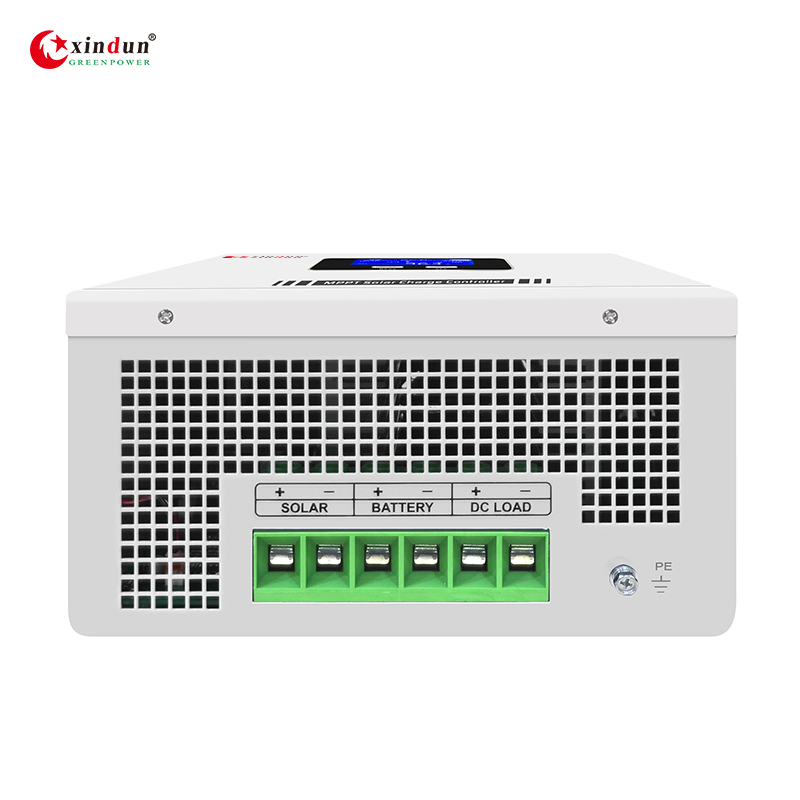

Product Detail

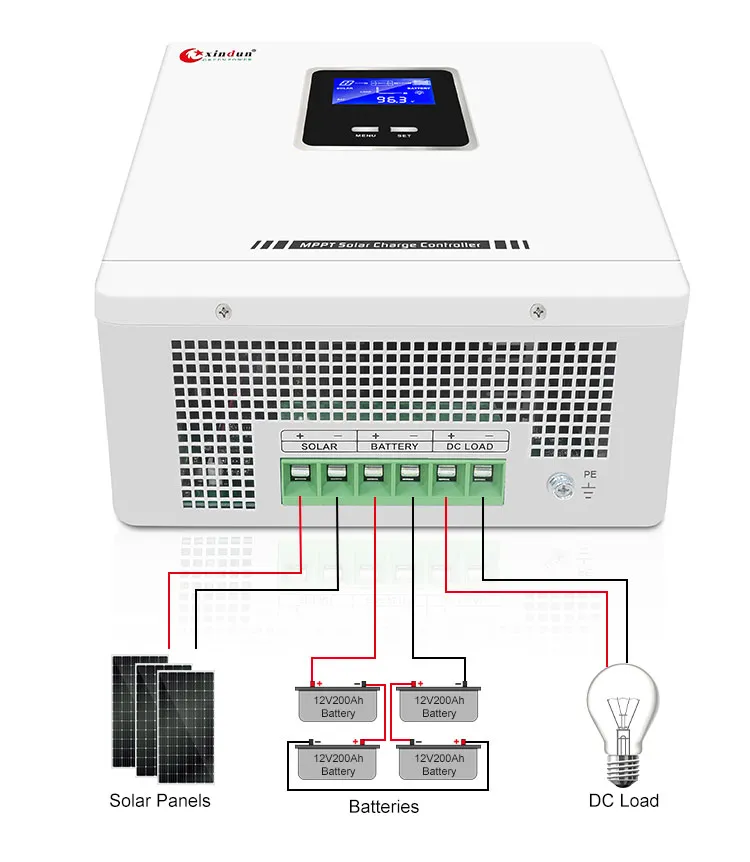

Wiring Diagram
Packing & Delivery
Packing
Package

Carton Box for packaging, or Wooden Box advised for Samples to protect in transportations.

Shipping
  • 1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
  • 2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
  • 3. Customers specifying freight forwarders or negotiable shipping methods.
  • 4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.

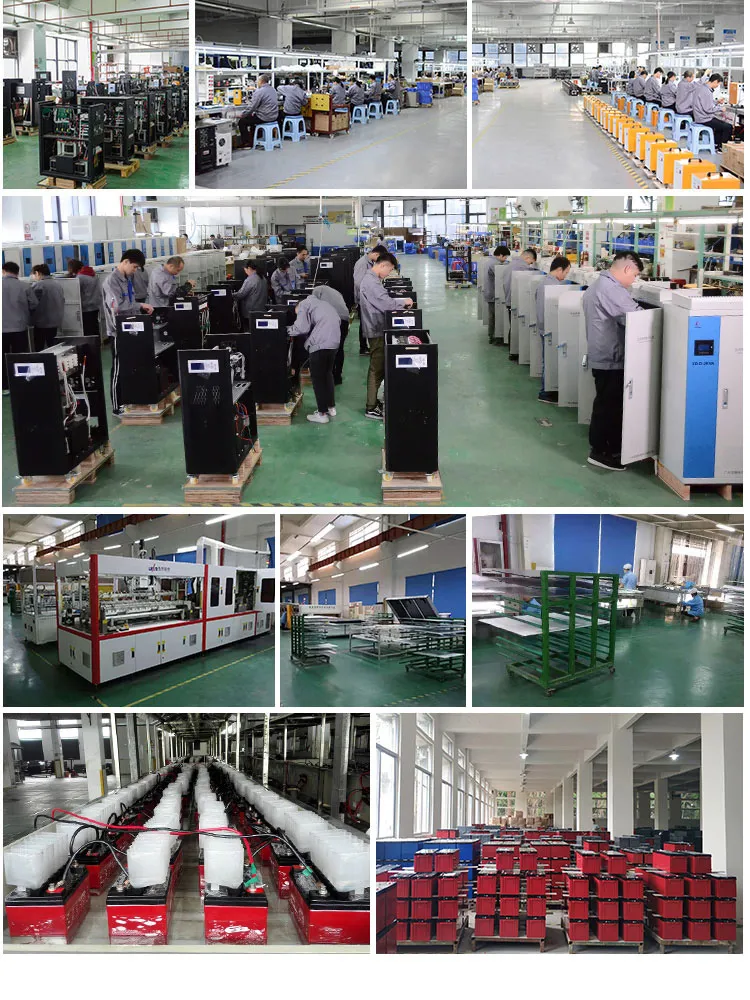

Workshop Display
Workshop 1
Workshop 2
Workshop 3
Workshop 4
Frequently Asked Questions
What is the tracking efficiency of this MPPT controller?
The controller utilizes an advanced MPPT tracking algorithm, achieving a tracking efficiency of up to 99%, which significantly improves power generation compared to standard PWM controllers.
Which battery types are compatible with the XD-Wonder2?
It supports a wide variety of batteries, including lead-acid and lithium batteries. Users can also customize charging and discharging parameters for other specific battery types.
Does the controller support remote monitoring?
Yes, it features an RS485 communication interface and supports mobile phone APP monitoring via WiFi or GPRS modules for easy system management.
What protection features are built into the device?
The controller includes a full range of electronic protections: battery and PV anti-reverse connection, charging over-current, DC output over-current, over-temperature, and over/under-voltage protection.
Can it activate lithium batteries?
Yes, the controller includes a dedicated lithium battery activation function to ensure proper charging and maintenance of lithium-based energy storage.
How is the cooling managed in this controller?
The device uses an intelligent fan control system for thermal management, ensuring efficient cooling based on the internal temperature and load conditions.
