VoltEdge Charging
1 / 5
| Model NO. | WD-40KW |
| Location | Private / Commercial Use |
| Charging Interfaces | Single Plug |
| Start Mode | RFID, Mobile App, Plug & Play |
| AC Input Voltage | AC380/400V±15% |
| Output Power | 40kW |
| DC Output Voltage | 200-1000V (Chademo 200-750V) |
| Protection Grade | IP55 |
| Package Size | 87.00cm * 85.00cm * 57.00cm |
| Gross Weight | 120.000kg |
| Transport Package | Wooden Case |

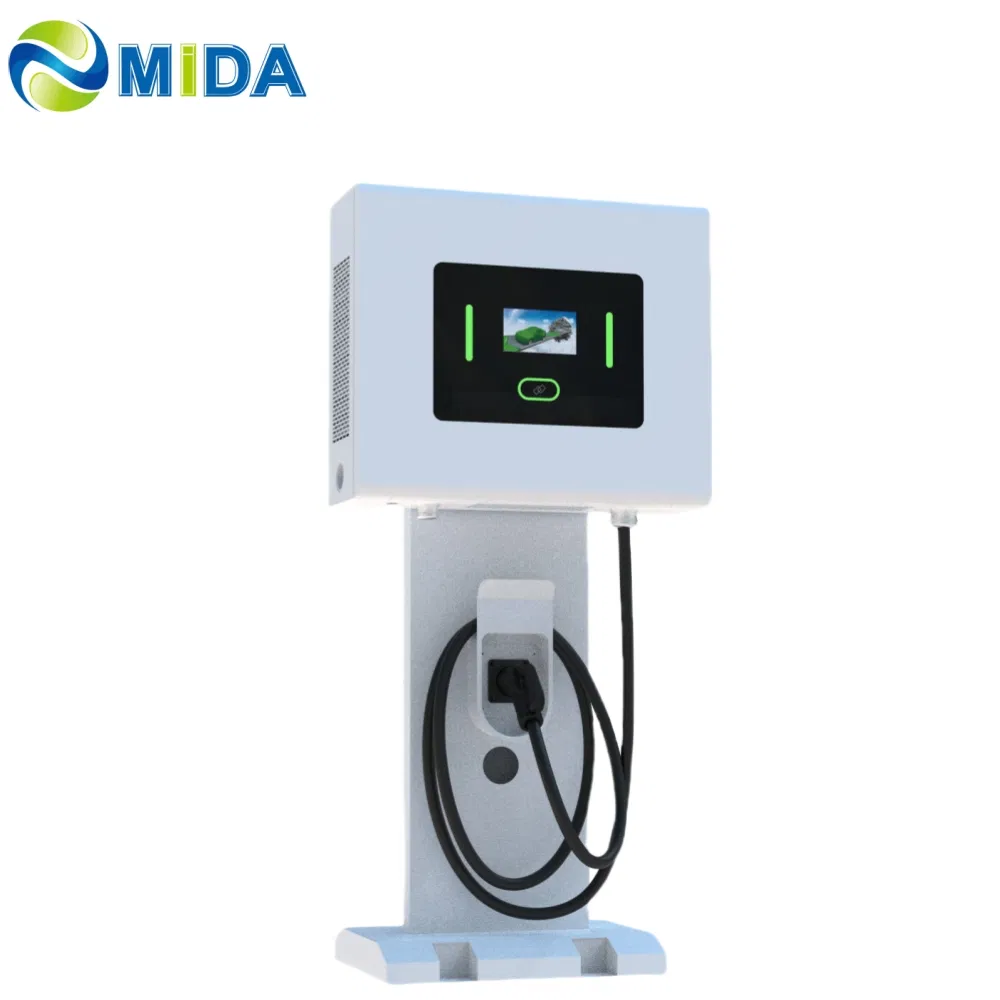

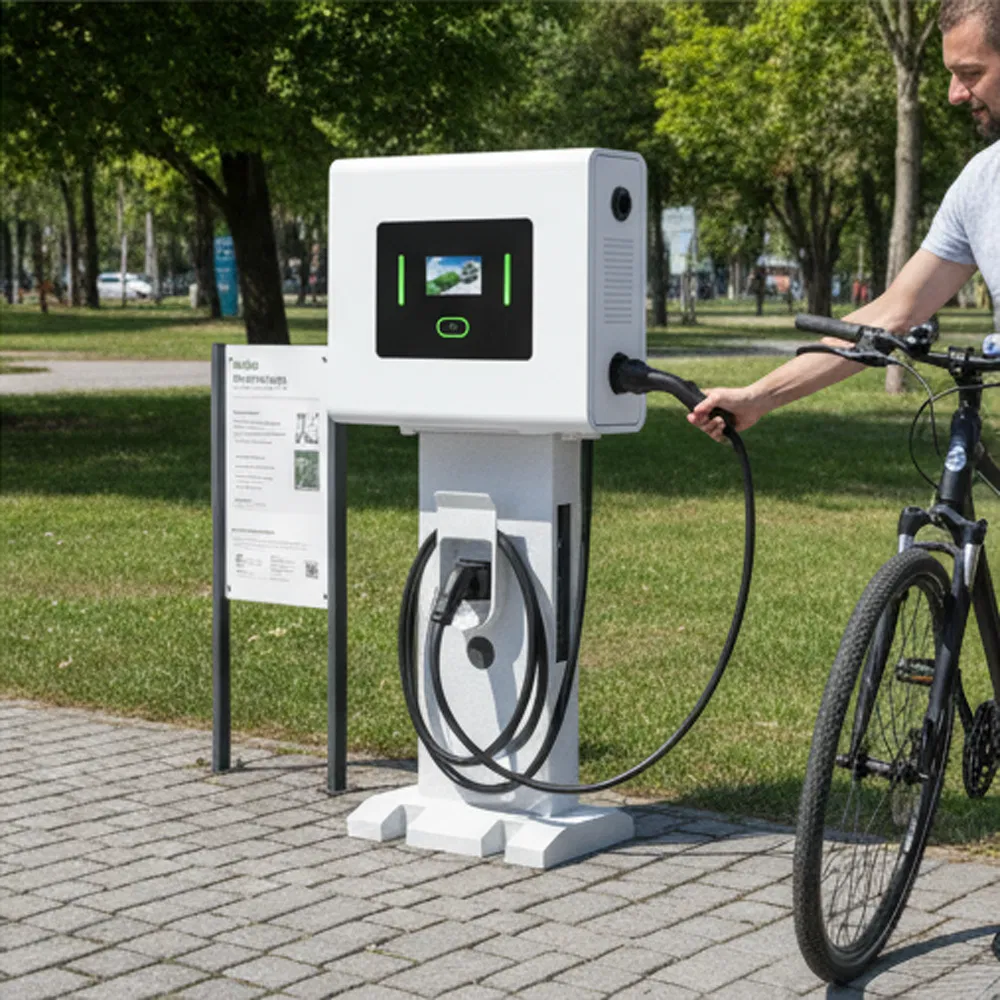

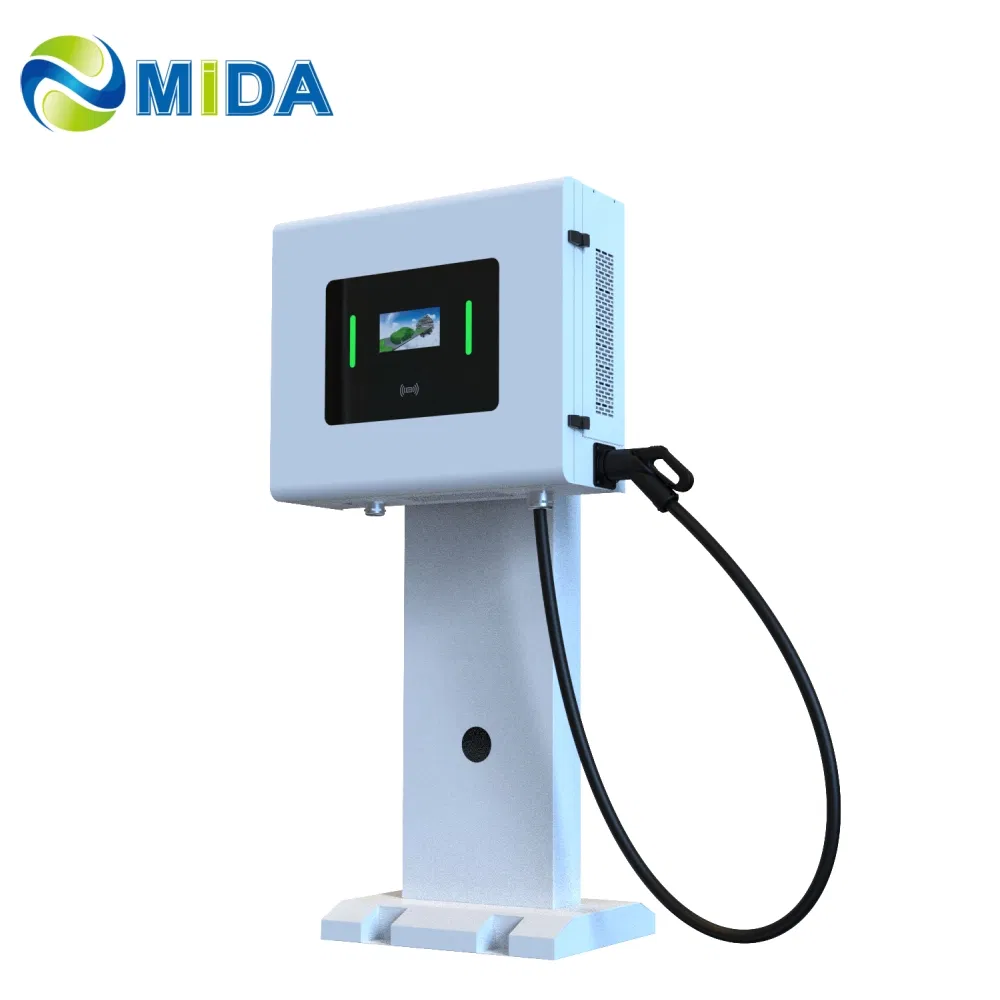

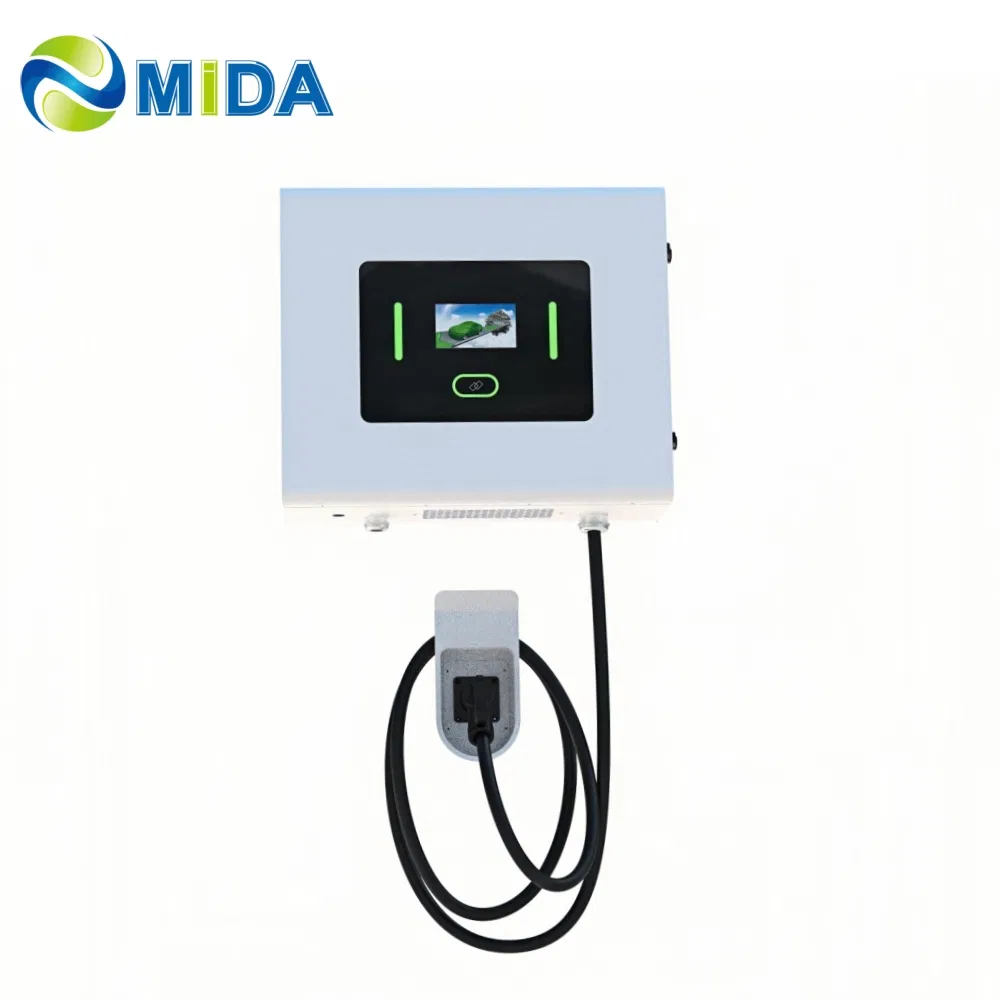

The 40KW Wall-mounted Fast Charger is a high-speed charging station designed to support all compatible electric vehicles. Featuring advanced CCS Combo and CHAdeMO dual connectors output, it is ideal for vehicles like the Leaf and i3. The CHR-40S quick charger is developed for vehicles with CHAdeMO or CCS Combo DC charging sockets and is optimized for semi-mobile or fixed use.
Its modular design allows for flexible configuration of power modules and electrical components. Integrated with OCPP 1.6, it supports Ethernet, WiFi, and 4G communication, as well as RFID card authentication. This series operates stably across various environments, including extreme low or high-temperature conditions.
| Category | Item | Parameters |
|---|---|---|
| AC Input | Input Type | 3P+N+PE (Wye connection) |
| Input Voltage Range | 380 Vac±15% | |
| Max Input Current | 60A | |
| Efficiency | 96% | |
| DC Output | Output Voltage Range | 150V-750V |
| Max Output Power | 40kW | |
| Max Output Current | 120A@350V, 53A@750V | |
| User Interface | TFT-LCD Panel | 4.3' Touch Display |
| Push Buttons | Emergency Stop | |
| Communication | WiFi, RJ45, 3/4G, Modbus TCP, PLC | |
| Packaging | Dimensions | 645*220*450 mm |
| Weight | 240 KG (Full Setup) | |
| Environment | Working Temp | -25ºC to +50ºC |
| IP Level | IP54 / IP55 |
As a leading supplier of electric vehicle components, the company provides a comprehensive range of EV plugs, sockets, cables, and charging stations. All products are certified by CE, PSE, TUV, and UL, ensuring international safety and quality standards. With a strong reputation in European and American markets, we are committed to being an industry innovator through high-quality products and excellent after-sales service.
