40kw DC Bus Input 1000V DC DC EV Charging Module Liquid Cooled Power Module

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

Send Inquiry

Product Description

Product Overview

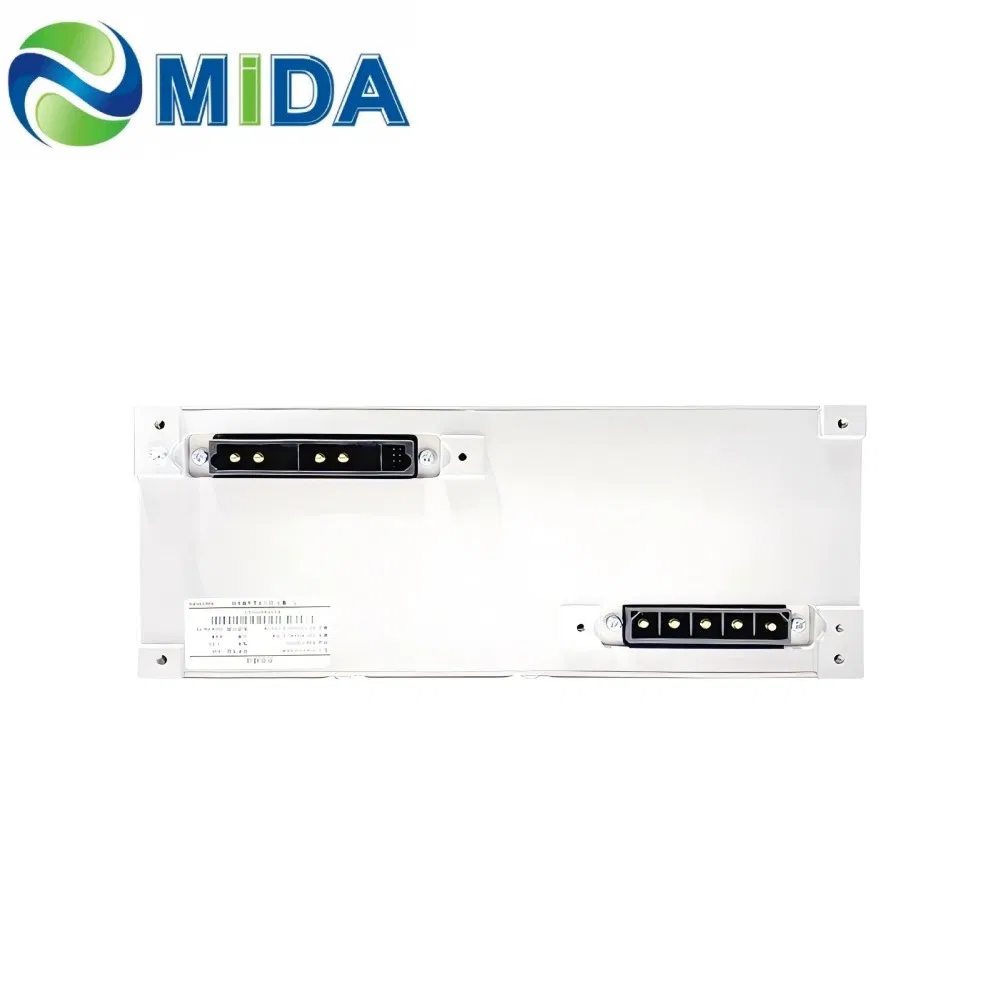

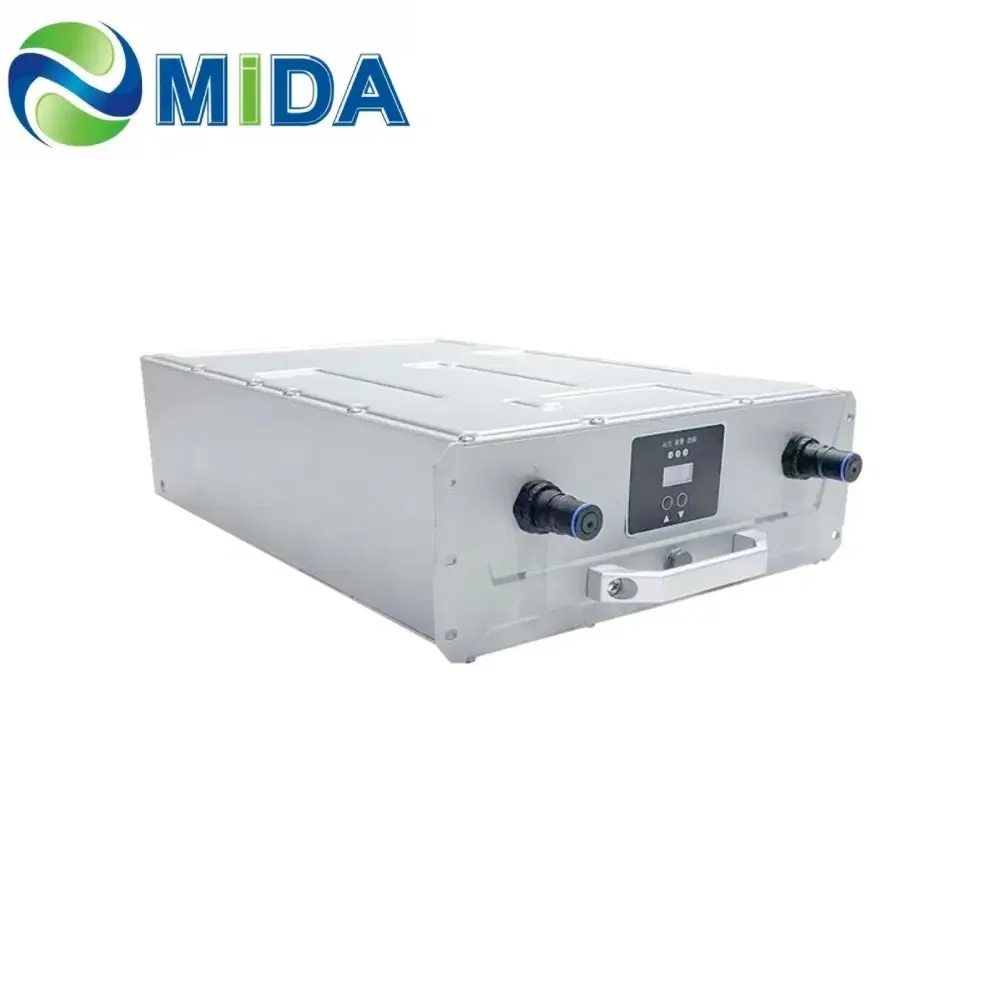

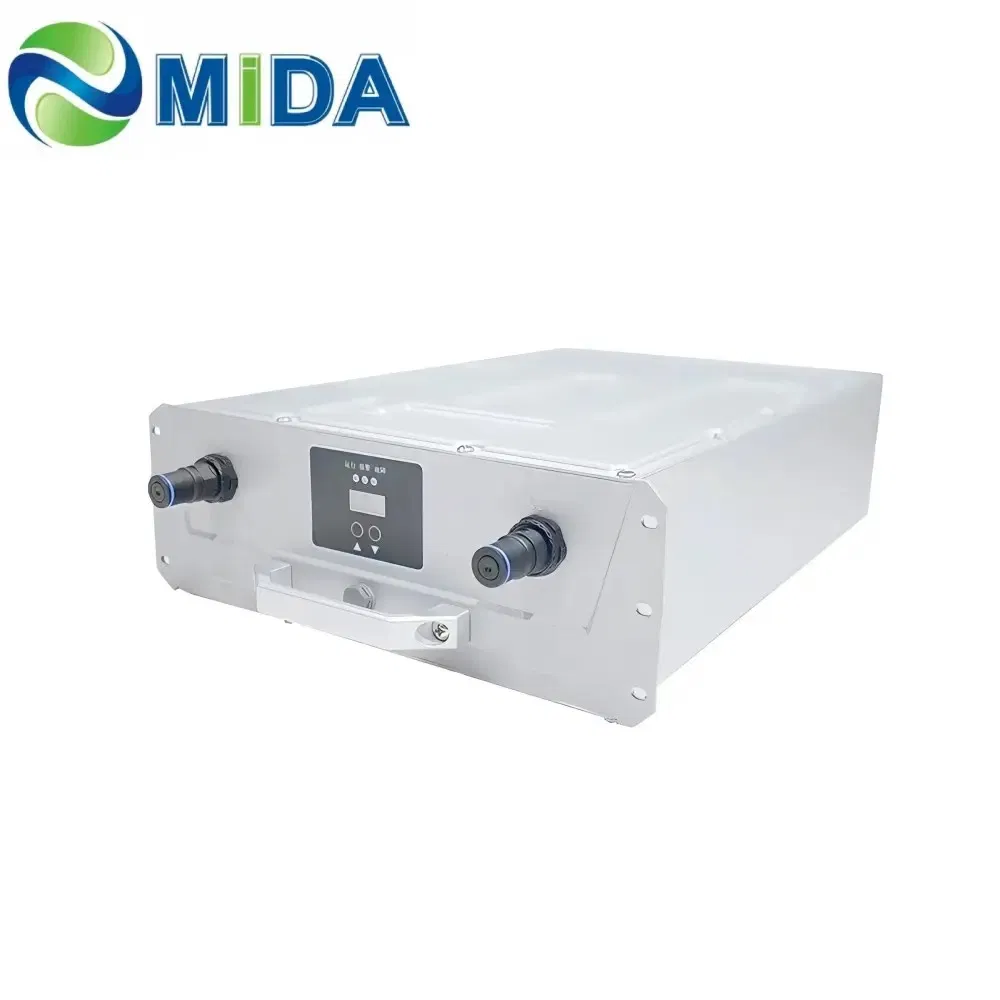

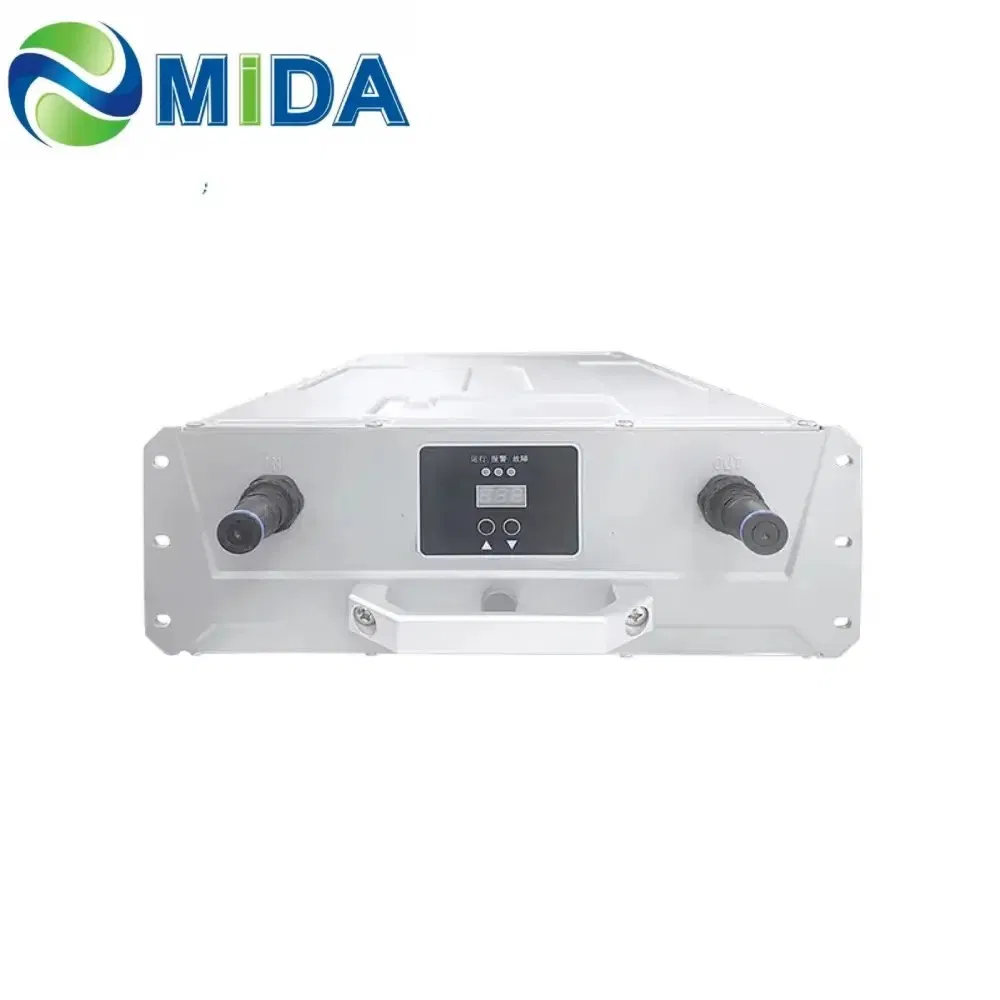

40kW Liquid Cooling Power Module

The LRG1K0135G 40kW Power Module is specially designed for EV DC chargers with liquid cooling requirements. This module offers high efficiency, zero noise, and high power density, making it ideal for high-performance charging environments.

💡 Key Parameters:

✅ Input: 260VAC~530VAC
✅ Output Power: 40kW
✅ Voltage Range: 150V~1000V
✅ Peak Efficiency: ≥ 96%

Basic Specifications

Model

LRGIK0135G 40kW

Location

Public Use

Input Rating

260VAC~530VAC, 3-Phase

Output Voltage

150-1000VDC

Output Current

0.5-67A

Peak Efficiency

≥ 96%

Cooling Method

Fan/Liquid Cooling

Dimensions

460*218*84mm

Weight

≤ 13kg

Altitude

≤2000m

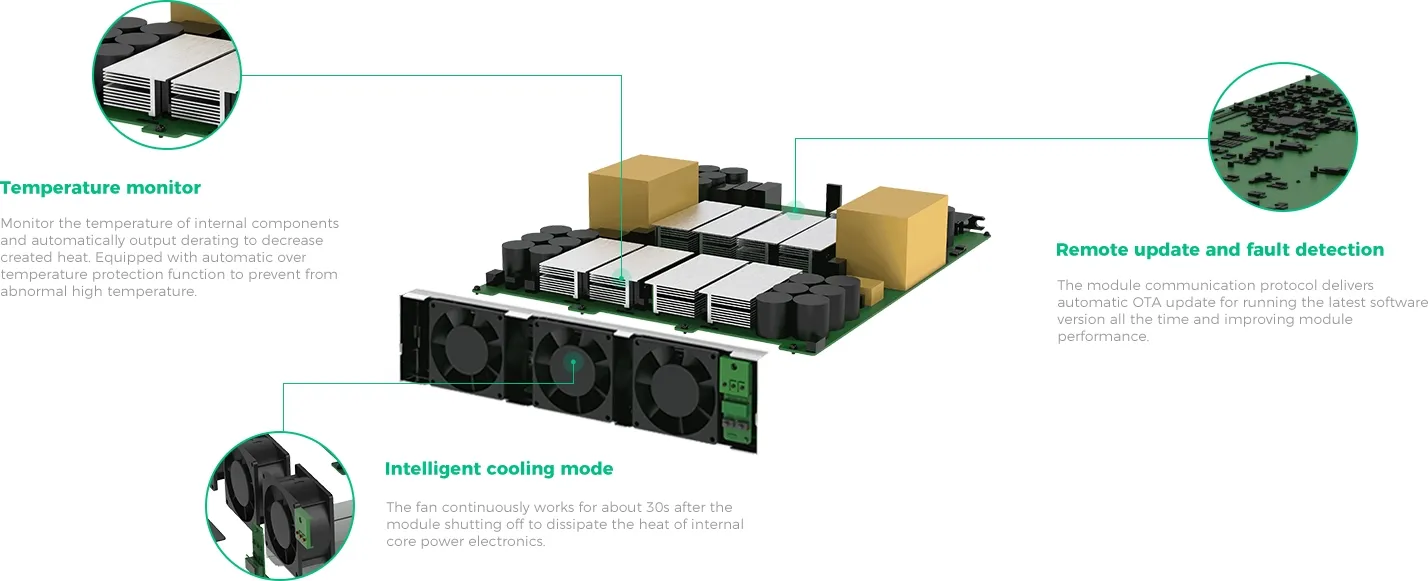

Advanced Technology & Advantages

🛡️ High Reliability

Equipped with overall temperature monitoring and defenses against moisture, salt spray, and fungus. MTBF > 100,000 hours.

⚡ Low Consumption

Unique sleep mode with less than 2W power usage. Intelligent parallel mode for optimized efficiency.

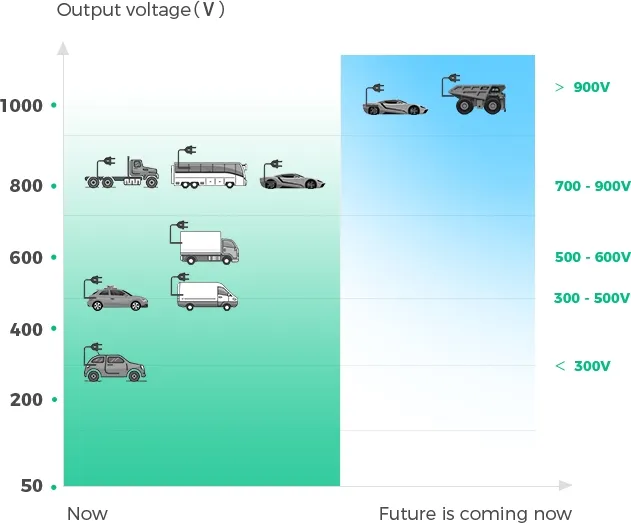

🔋 Ultra Wide Output

150V-1000V range compatible with current and future EV battery platform requirements.

Technical Specification Table

Category		Details (UR100040SW-SiC 40kW)
AC Input	Input Rating	260Vac ~ 530Vac, three phase
	Frequency	50/60±5Hz
	Power Factor	≥ 0.99
	Protection	OVP, OCP, OPP, OTP, UVP, Surge
DC Output	Rated Power	30kW / 40kW
	Voltage Range	150Vdc ~ 1000Vdc
	Current Range	0.5-67A
	Regulation Accuracy	≤±0.5% (Voltage) / ≤±1% (Current)
Environment	Temperature	-40℃~+75℃ (Derating from 55℃)
Environment	Humidity	≤95% RH, non-condensing

Applications

1. DC Fast Charging Stations: Ideal for high-speed EV and E-bus charging infrastructure.

2. Parallel Systems: Modules support hot-swapping and parallel connection for scalable power cabinets.

3. Future-Proofing: Compatible with CCS1, CCS2, CHAdeMO, and GB/T standards.

Visual Gallery

Frequently Asked Questions

❓ What is the output voltage range of this module?

The module supports an ultra-wide output range from 150VDC to 1000VDC, making it compatible with almost all current and future electric vehicle battery requirements.

❓ Does this module support parallel connection?

Yes, multiple charger modules can be connected in parallel within a single power supply cabinet to increase total output power for fast-charging stations.

❓ What cooling technologies are used?

This specific series offers both high-efficiency fan cooling and advanced liquid cooling modules to suit different environmental and noise requirements.

❓ What are the protection features?

It includes input over/under voltage protection, output over-voltage protection, short-circuit protection, over-temperature protection, and surge protection.

❓ Is it energy efficient?

Yes, the module achieves a peak efficiency of ≥ 96% and features a unique sleep mode that consumes less than 2W of power.

❓ Which charging standards is it compatible with?

The module supports all major international standards, including CCS1, CCS2, CHAdeMO, and GB/T protocols.
