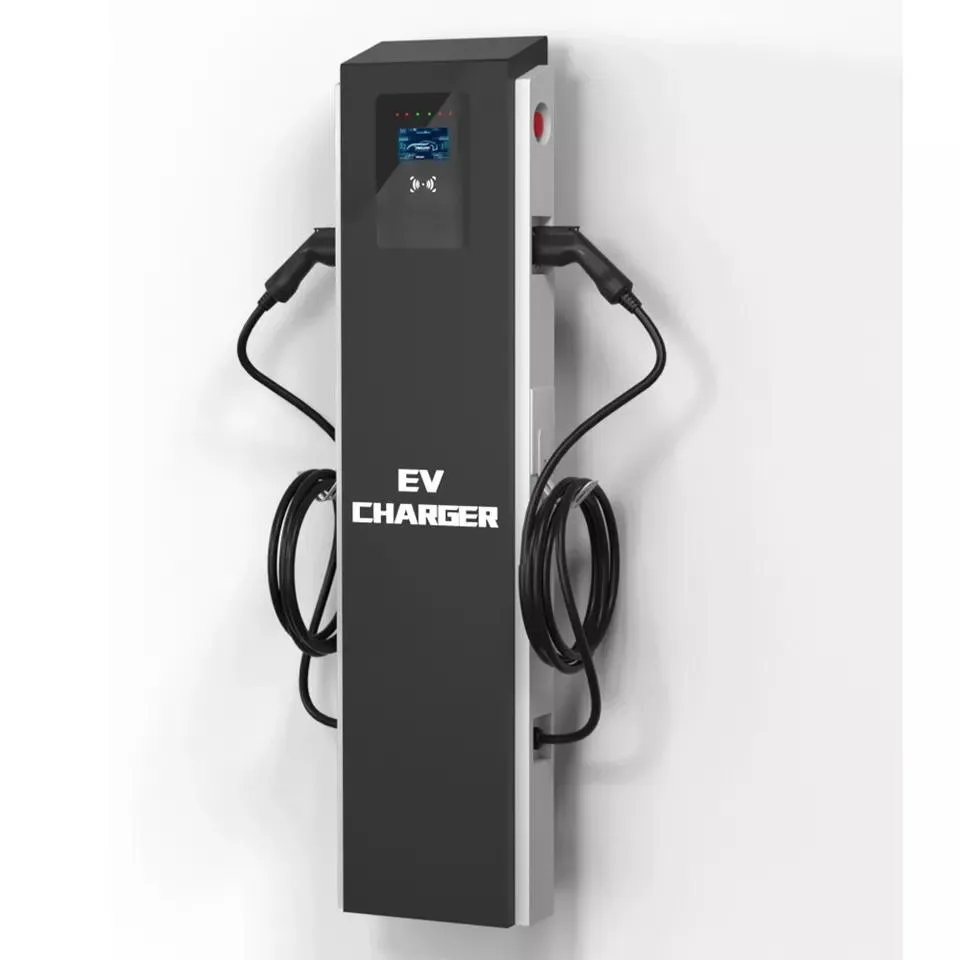

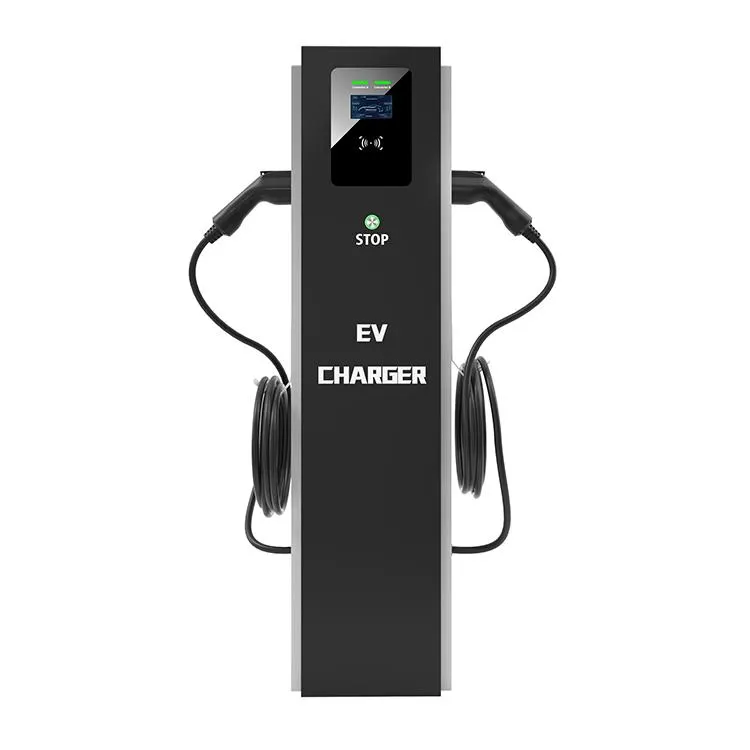

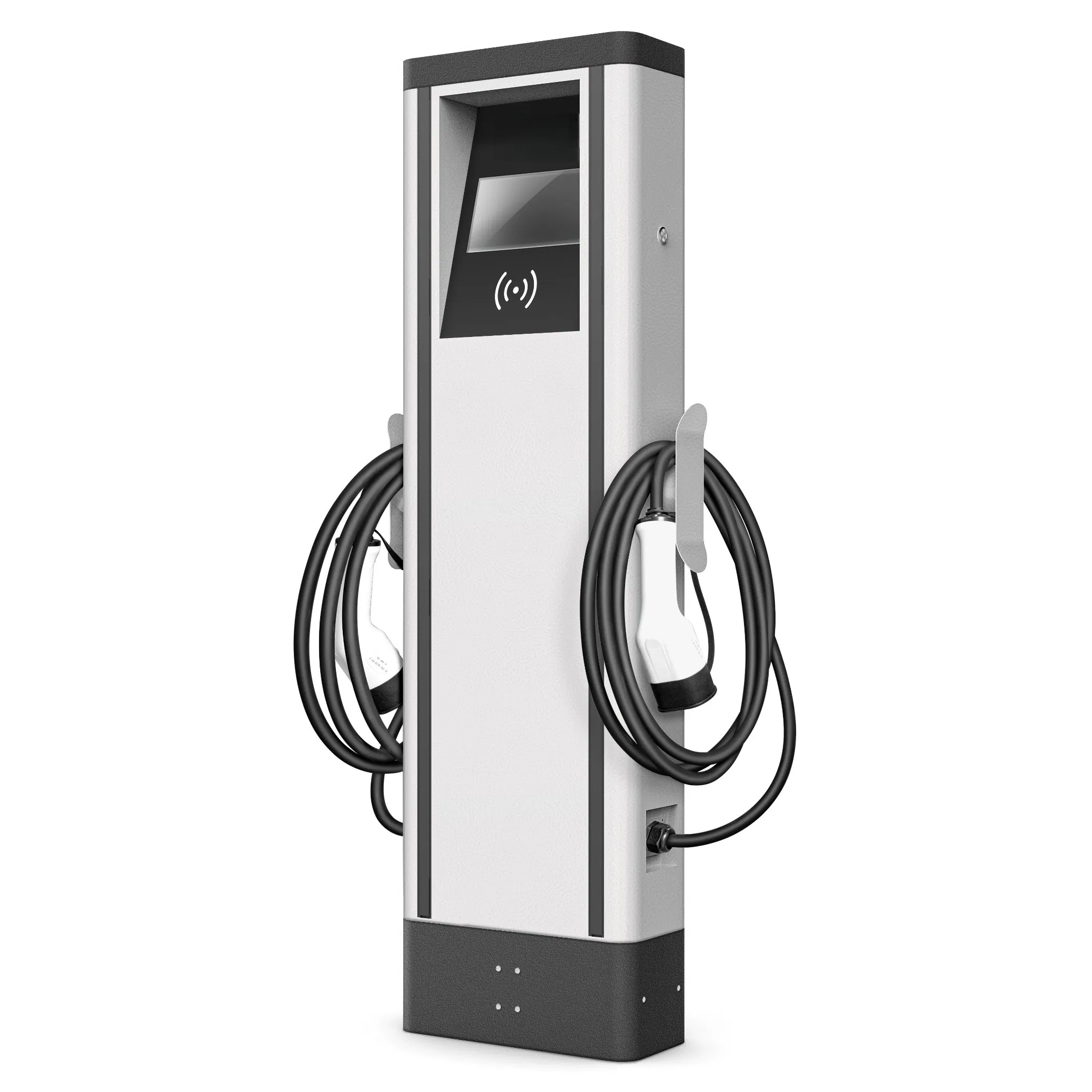

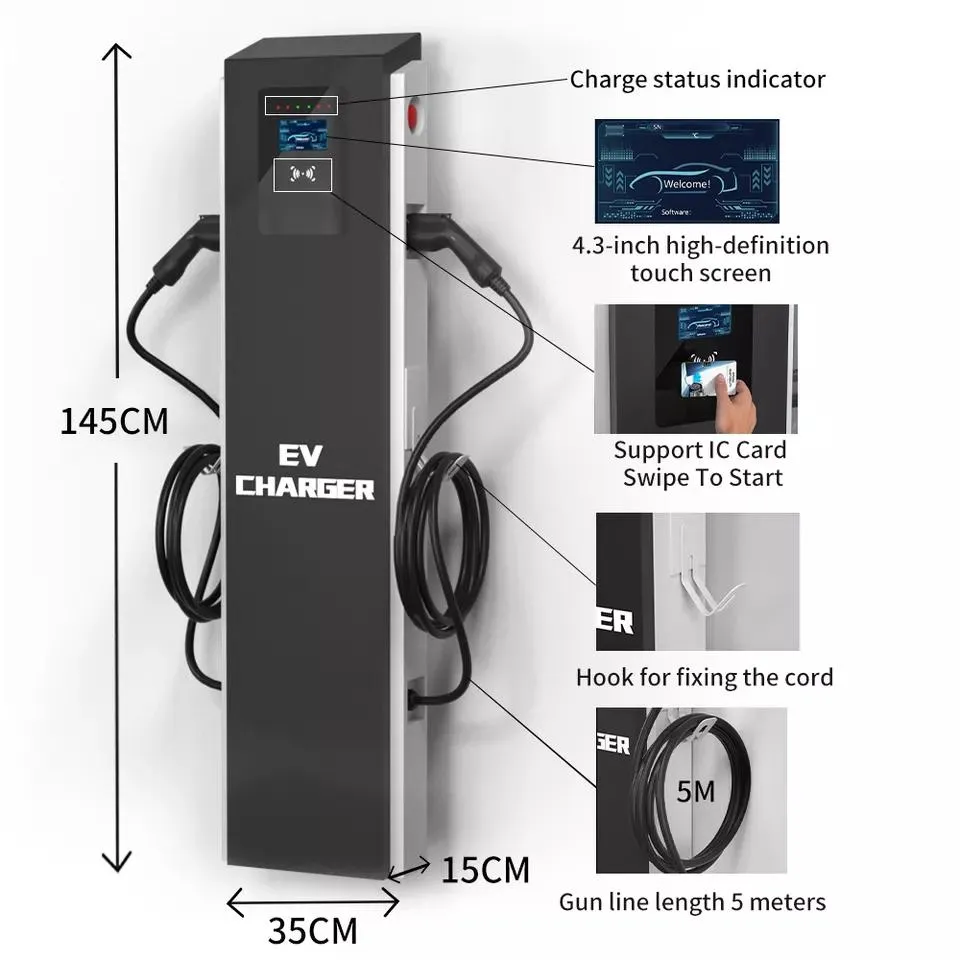

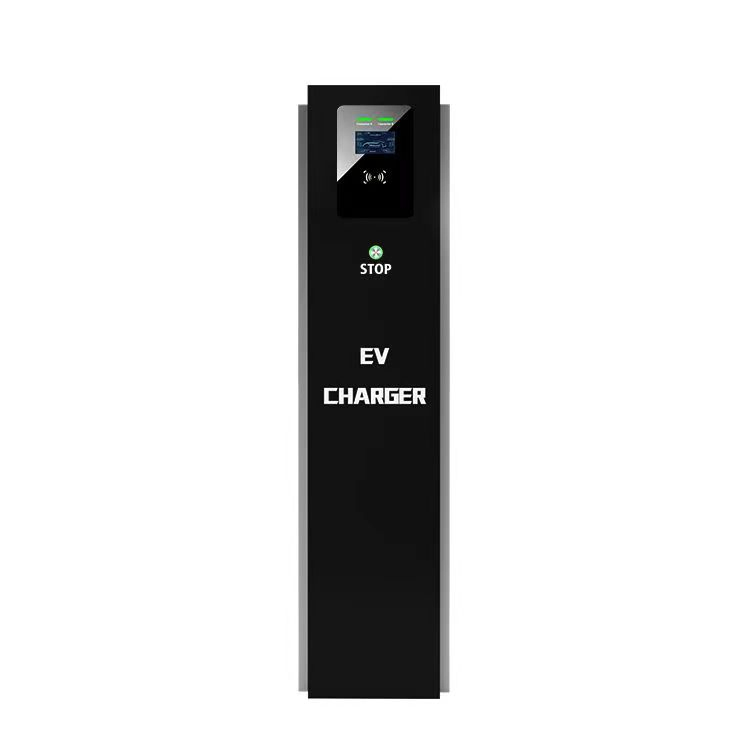

This AC charging station is designed primarily for AC slow charging of electric vehicles. The product features a robust charging casing, wall-hanging backboard, and optional floor-to-ground column. It integrates advanced functions including charging protection, RFID card swiping, QR code scanning, mobile payment, and networking monitoring. Adopting industrial design principles, it is engineered for easy installation and intuitive operation.

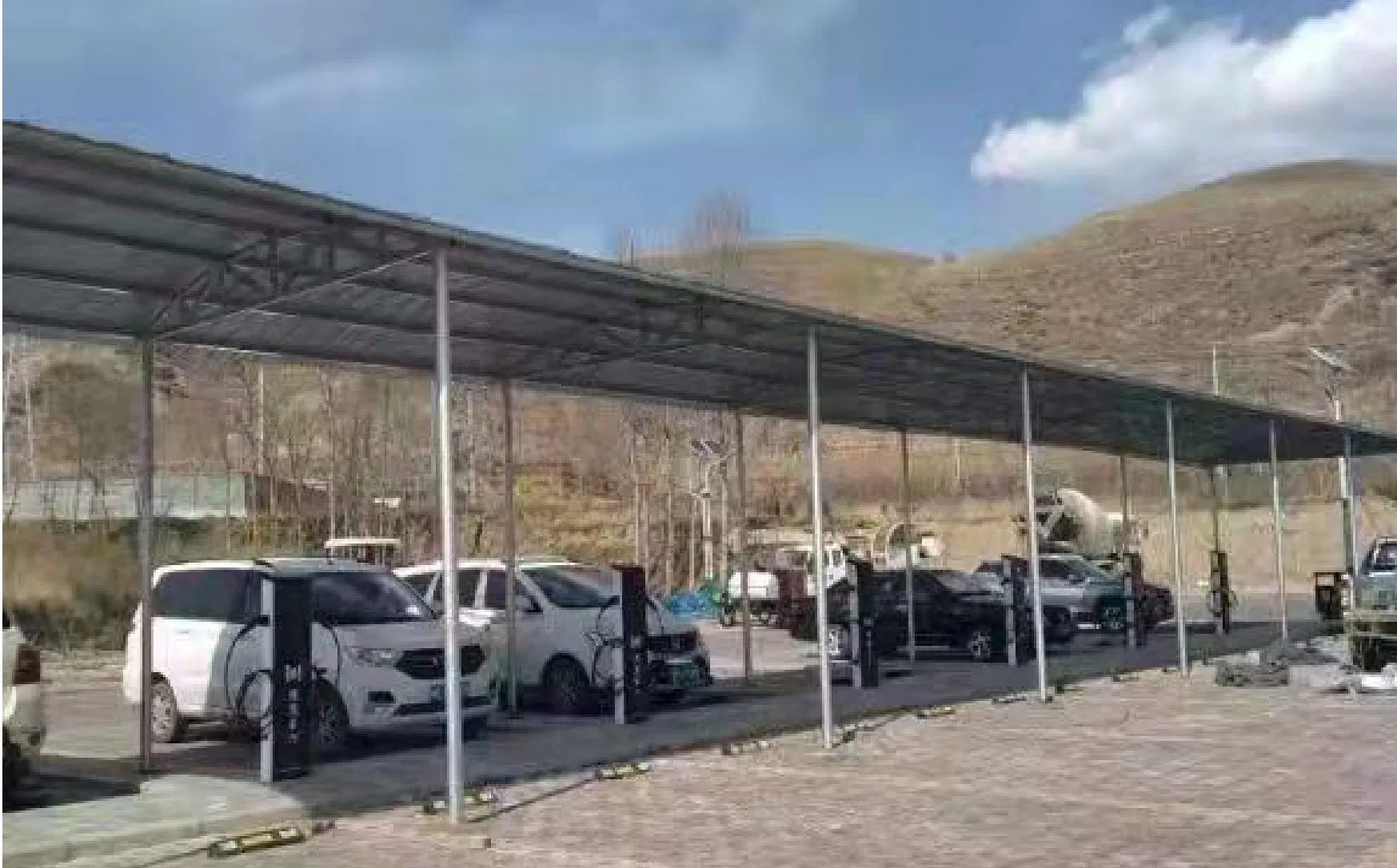

Compatible with a wide range of electric vehicles including e-buses and e-trucks. These intelligent units can be managed remotely via Ethernet or OCPP services, making them ideal for commercial locations such as car parks, retail parks, hotels, and fleet depots.
| Category | Specification | Details |
| Input | Power Supply | 3P+N+PE |
| Rated Voltage | 400V AC | |
| Frequency | 50/60Hz | |
| Output | Maximum Current | 2x32A |
| Rated Power | 2x22KW | |
| User Interface | Charge Connector | Type 2 socket |
| RFID Reader | Mifare ISO/IEC 14443 A | |
| Start Mode | Plug&Play / RFID card / App | |
| Environment | Ingress Protection | IP54 / IK08 |
| Temperature | -30ºC to +50ºC |

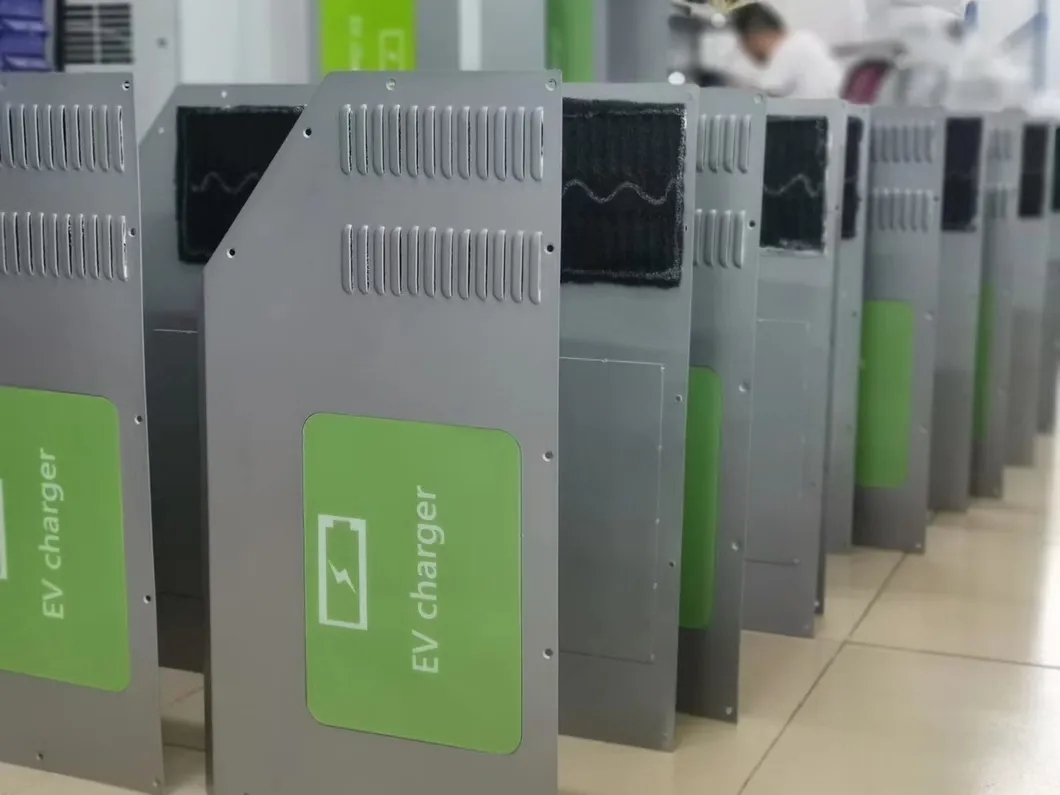

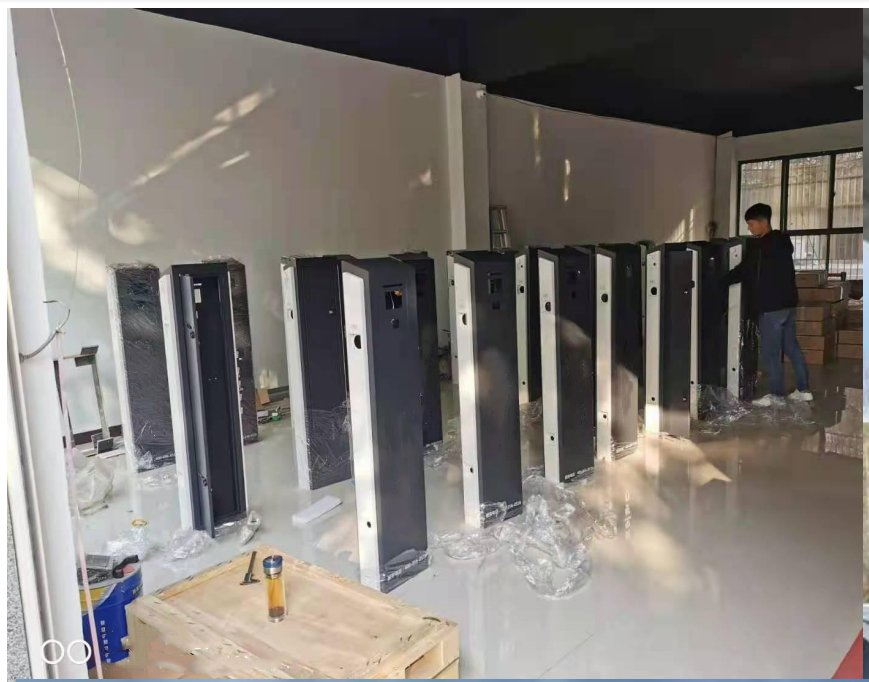

As a professional manufacturer, we dedicate our resources to producing high-efficiency AC and DC EV chargers, power supplies, and battery storage products. Our mission is providing customers with professional charging equipment that is safer, more efficient, and more stable.
Our comprehensive portfolio covers household and commercial markets, including EV connectors, charging cables, emergency rescue systems, Solar EV solutions, and high-power public commercial stations.
