| Model NO. | Mxr100020 |
|---|---|
| Output Current | 0-67A Continuously Regulated |
| Output Voltage | 50-1000VDC |
| Input Voltage | 285-475VAC |
| Input Current | <40A |
| Power Supply | 3phase+PE |
| Communication Mode | Can Bus |
| Cooling Mode | Forced Air Cooling |
| Warranty | 12 Months |

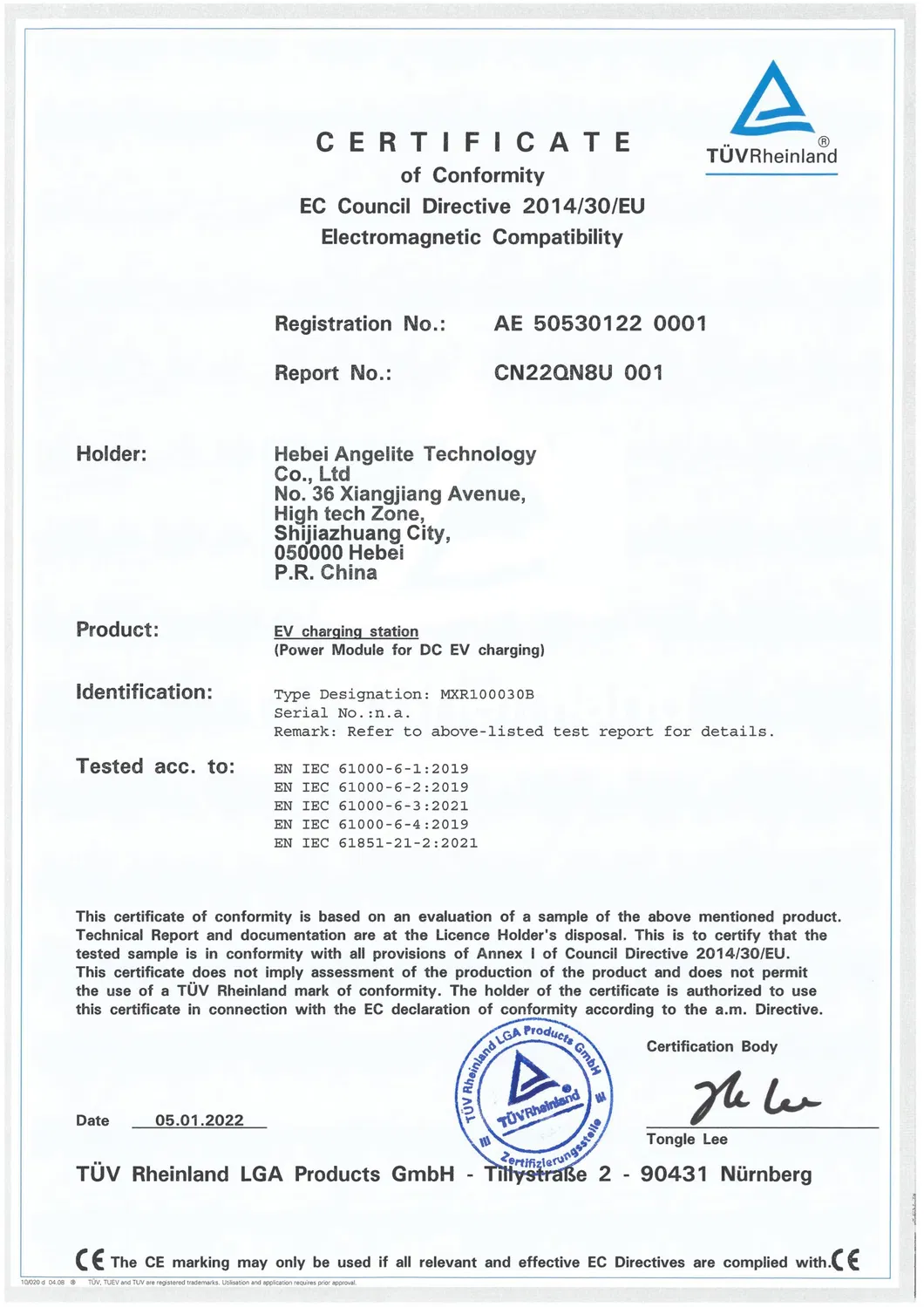

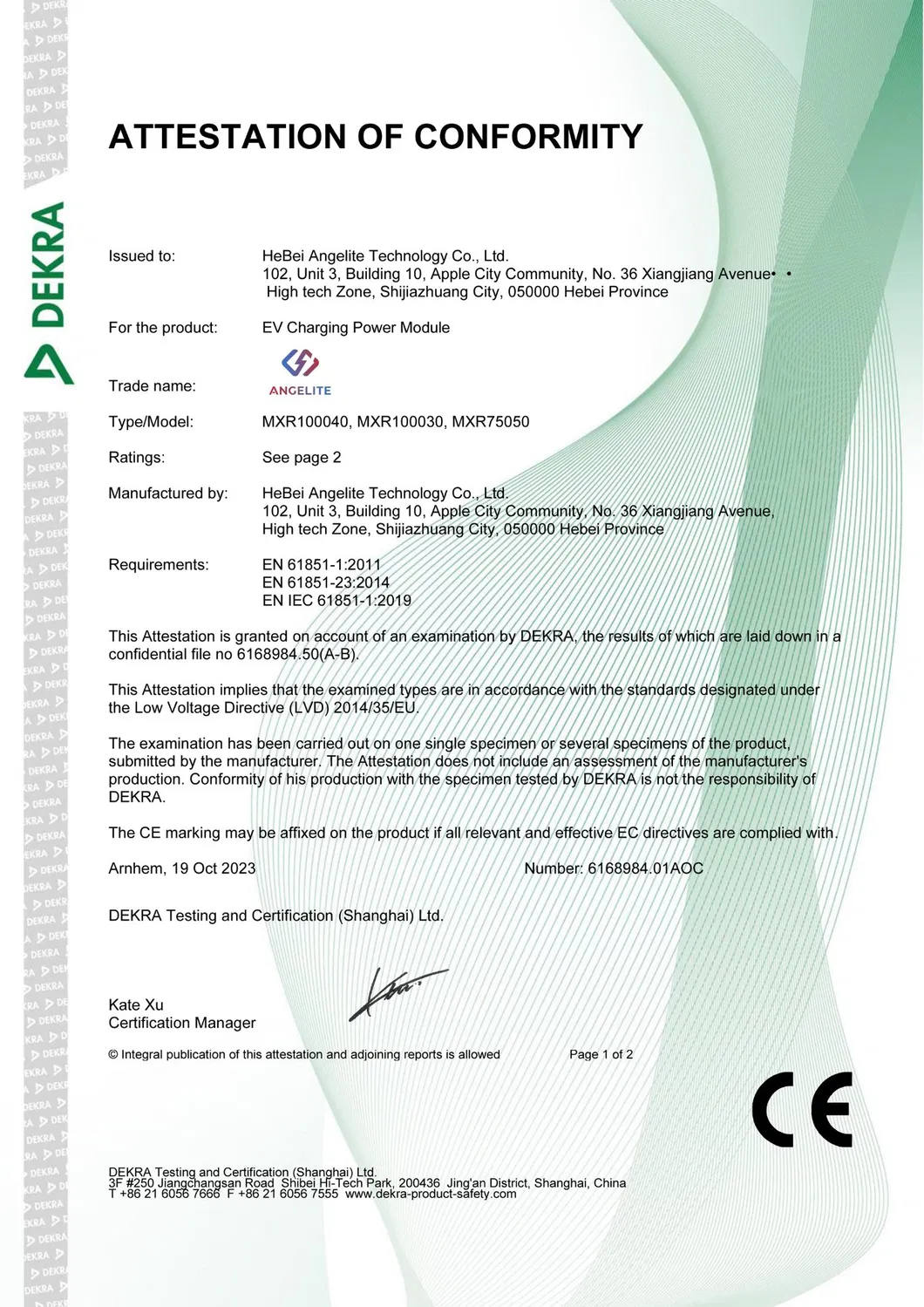

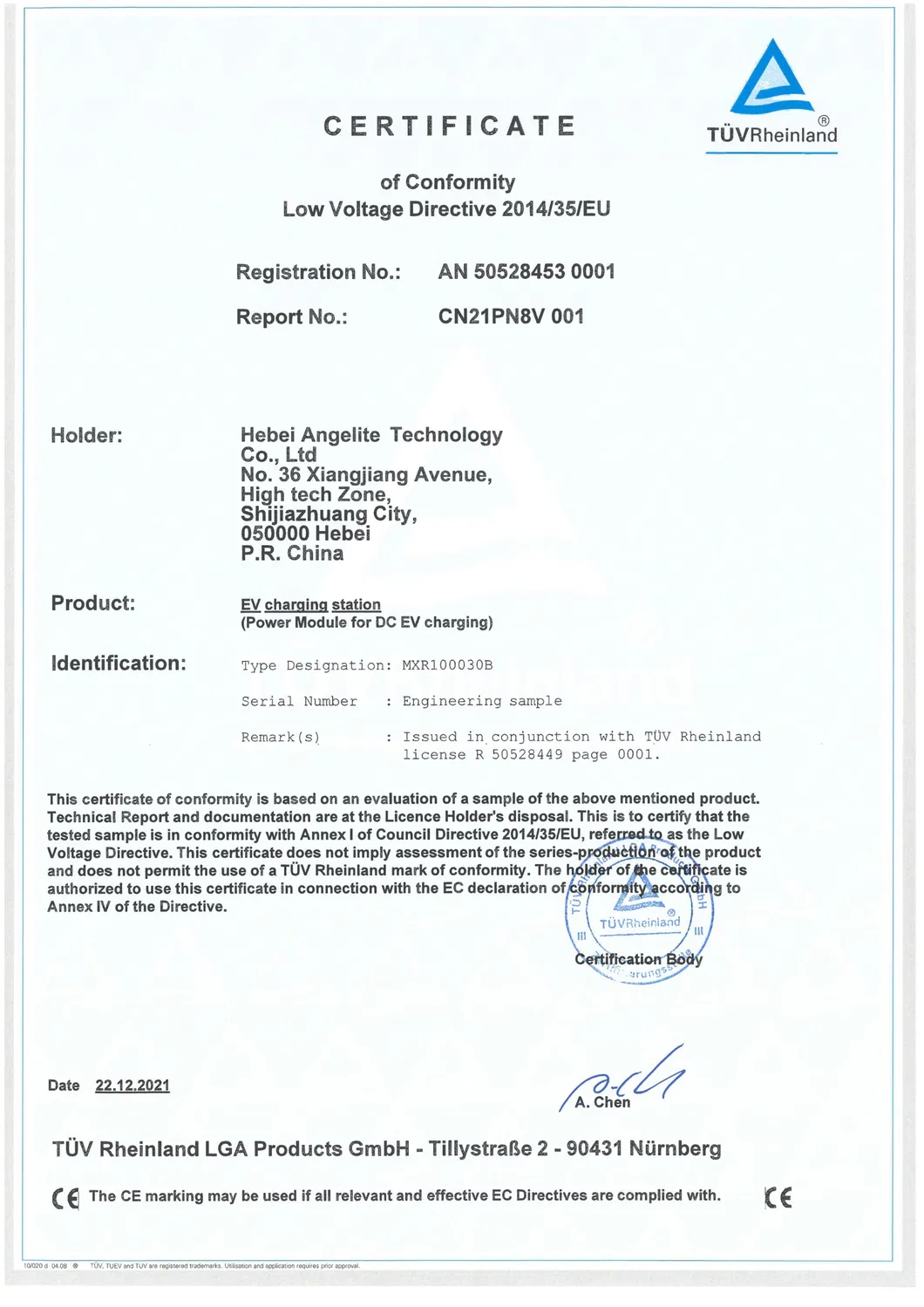

| Certification | ISO, RoHS |
| Efficiency(Full Load) | >95.5% |
| Weight | <12kg |
| Parallel Module Quantity | <60 Pieces |
| Specification | 84*218*459mm |
| HS Code | 8504409999 |

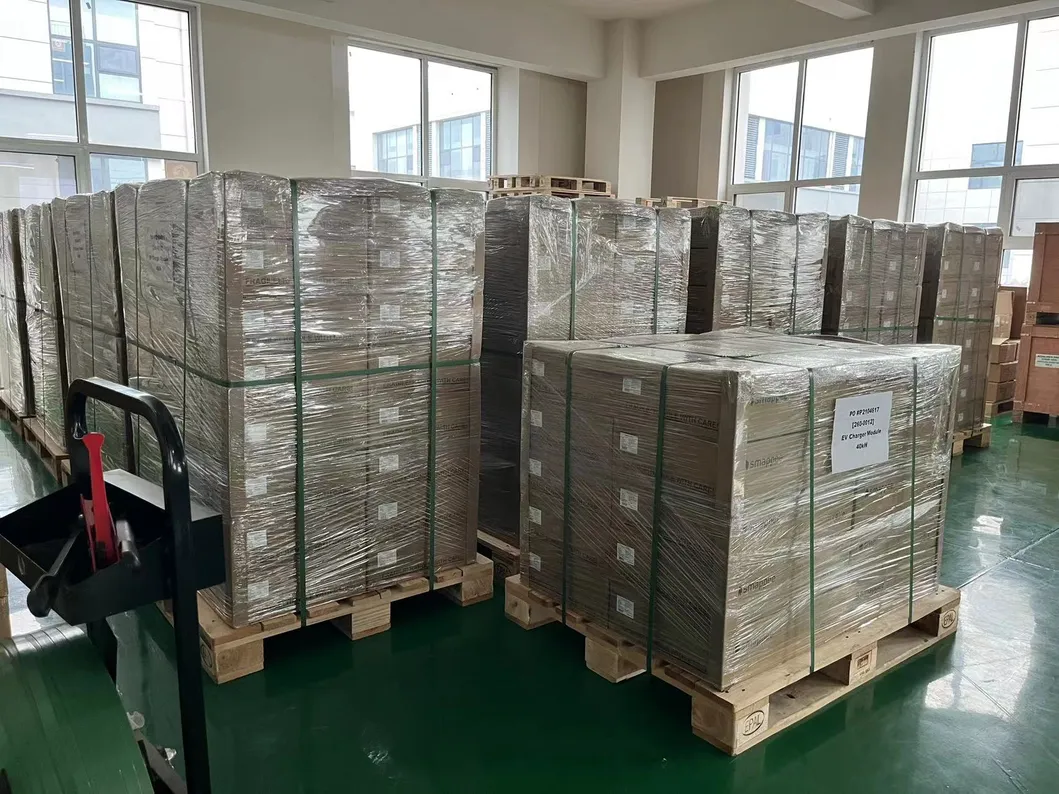

| Production Capacity | 100000pieces/Year |

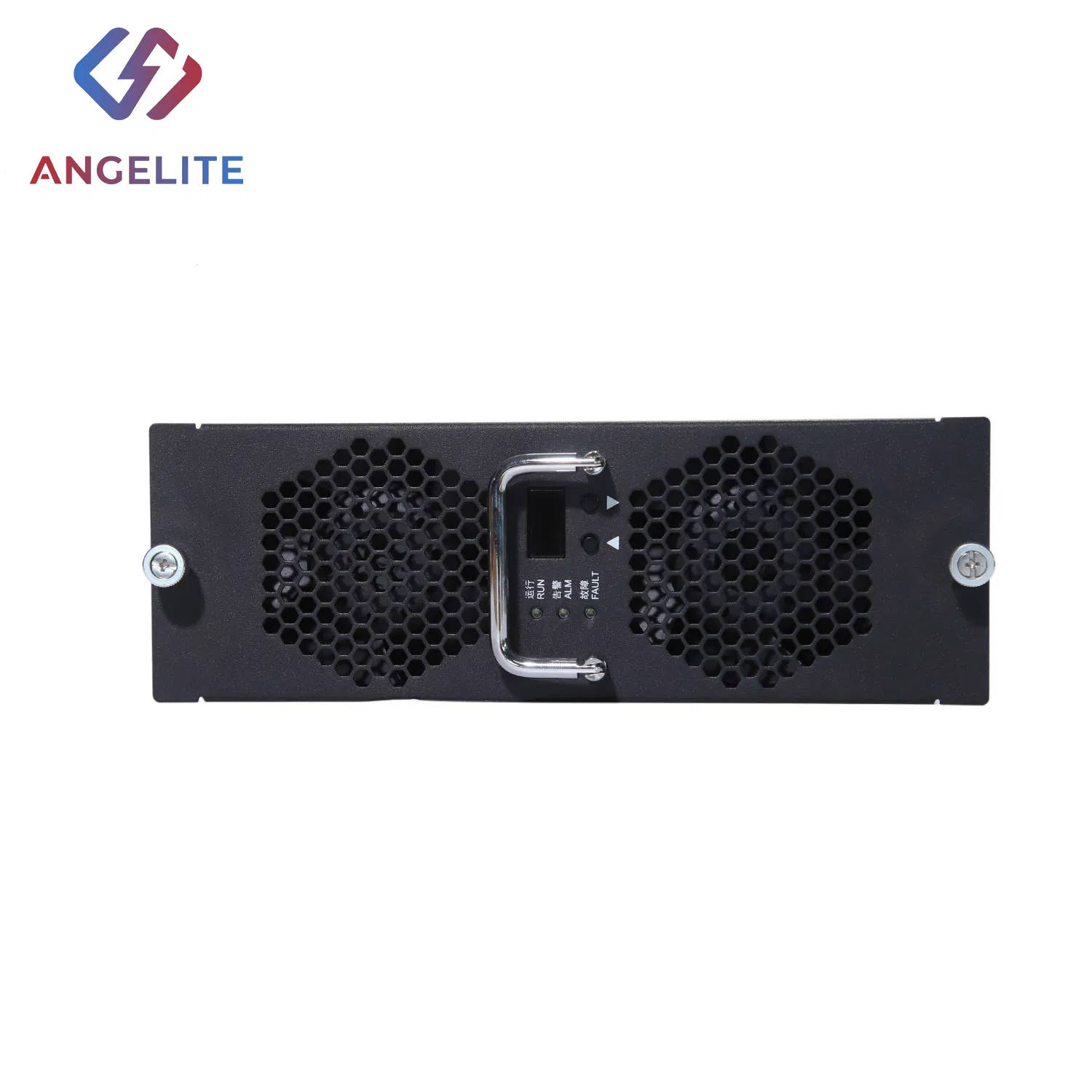

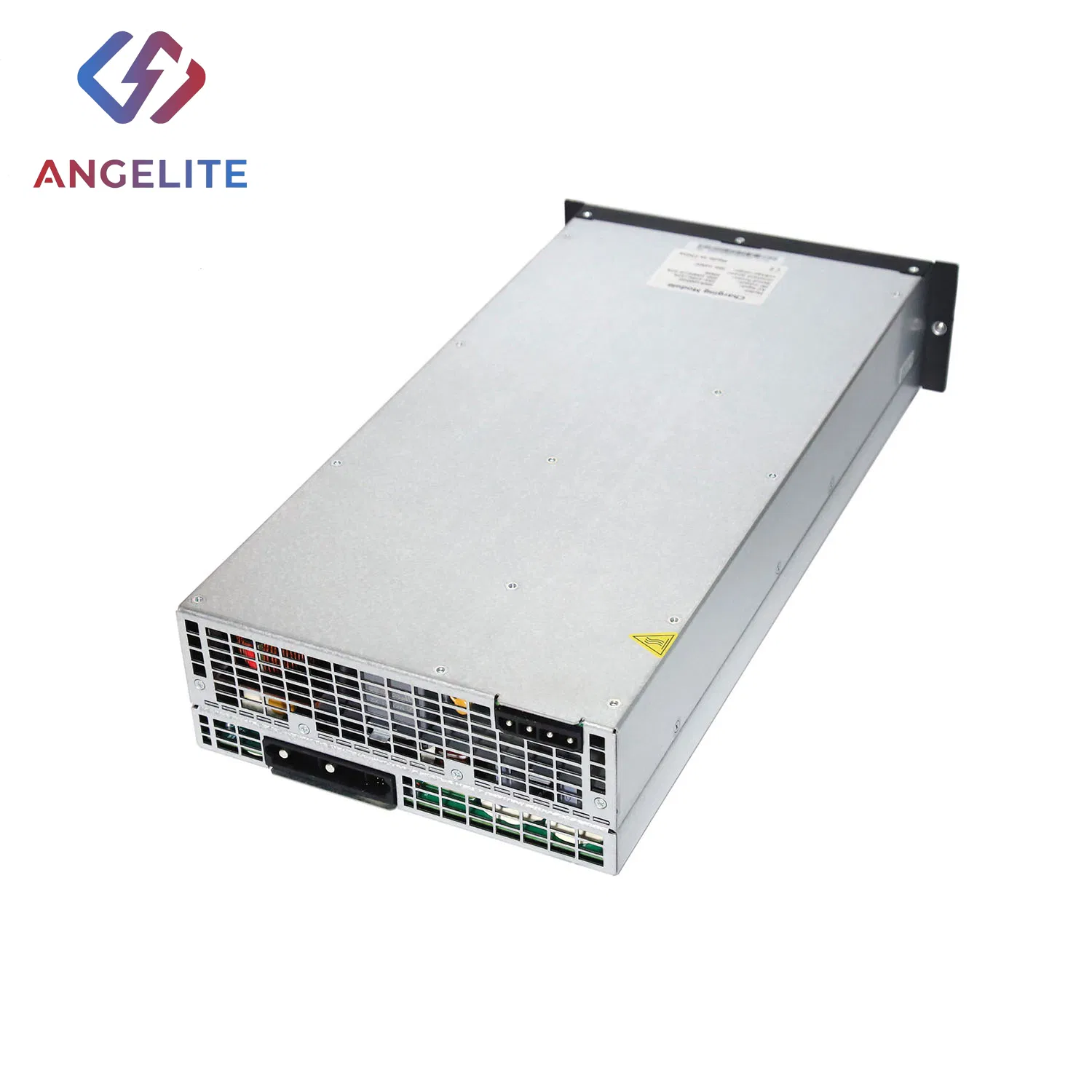

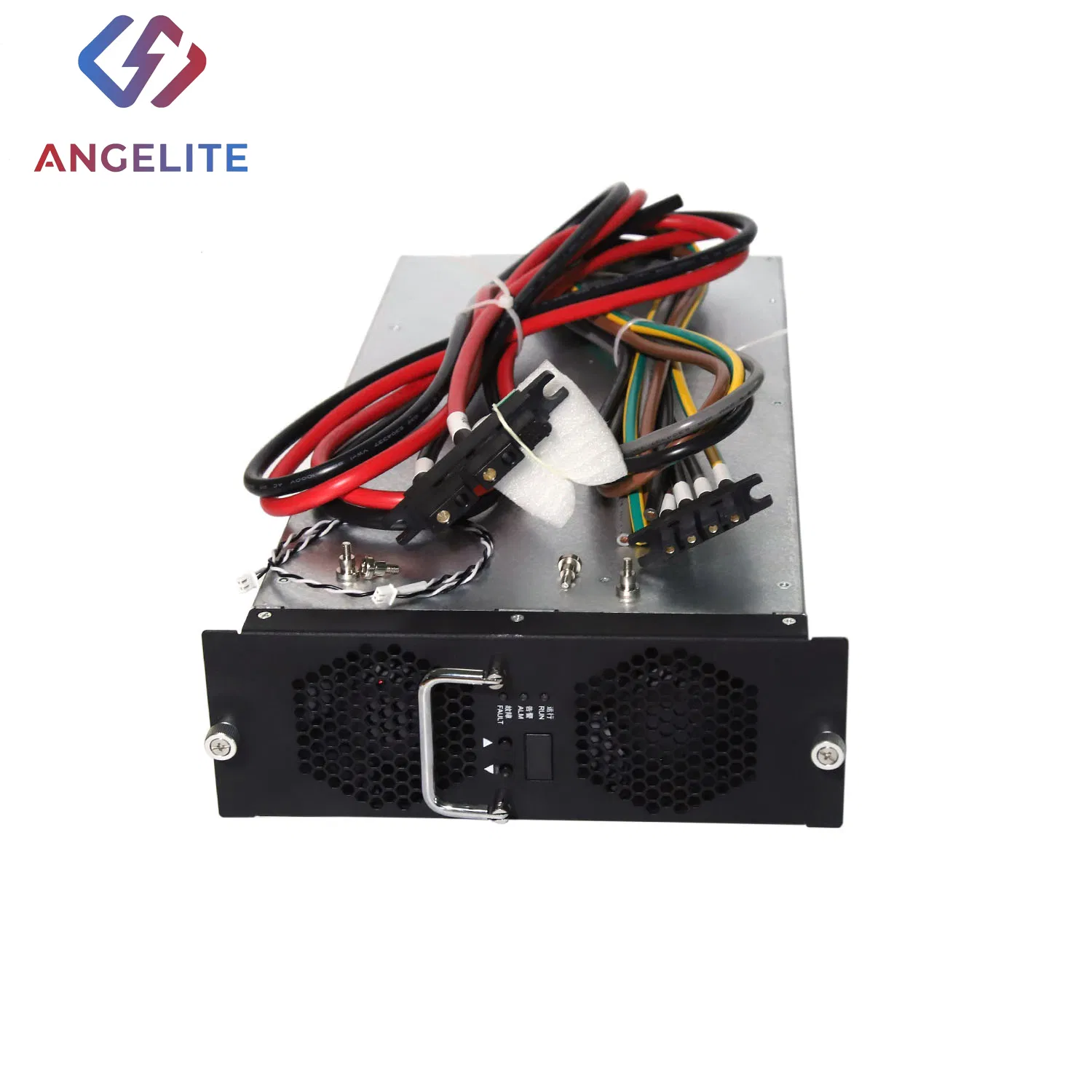

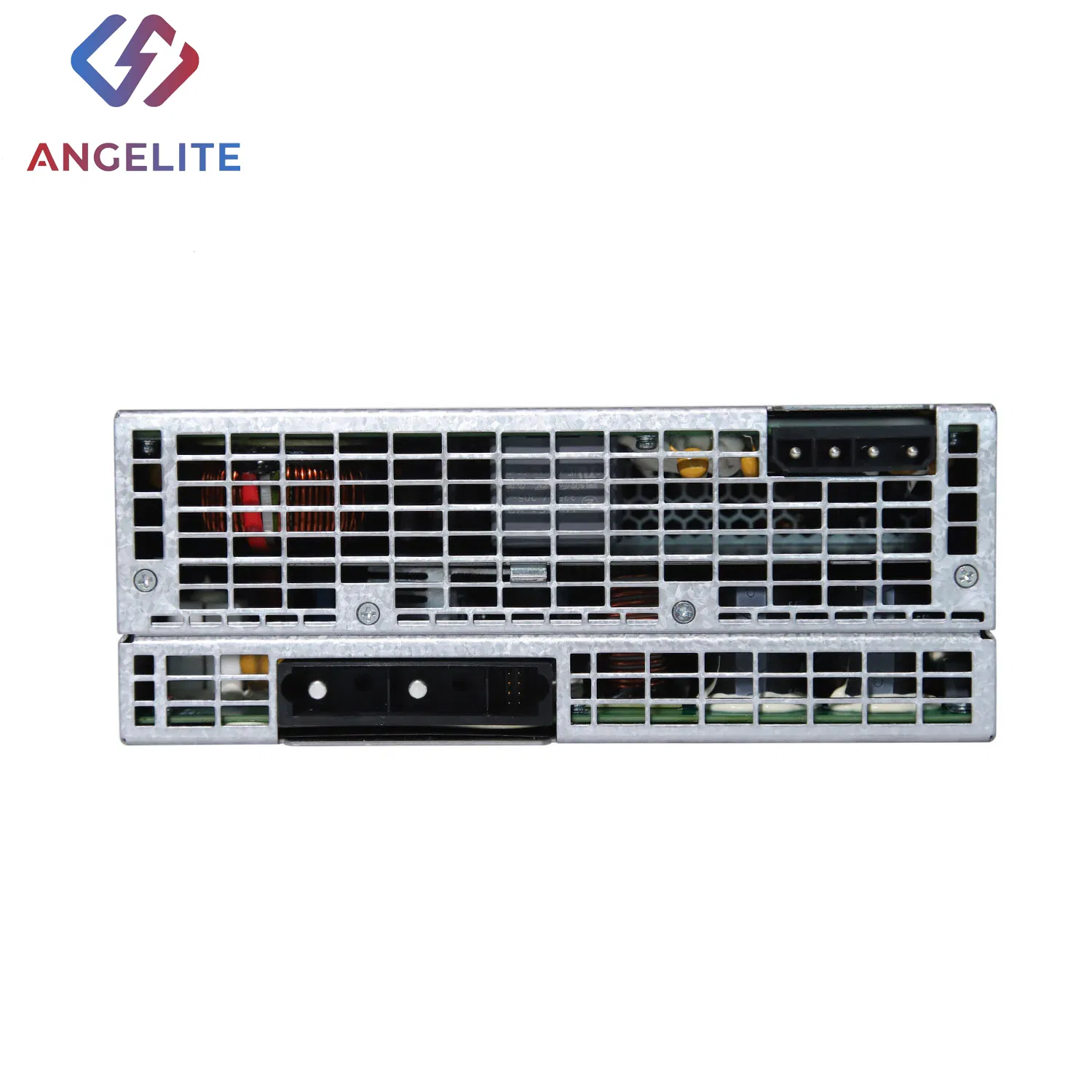

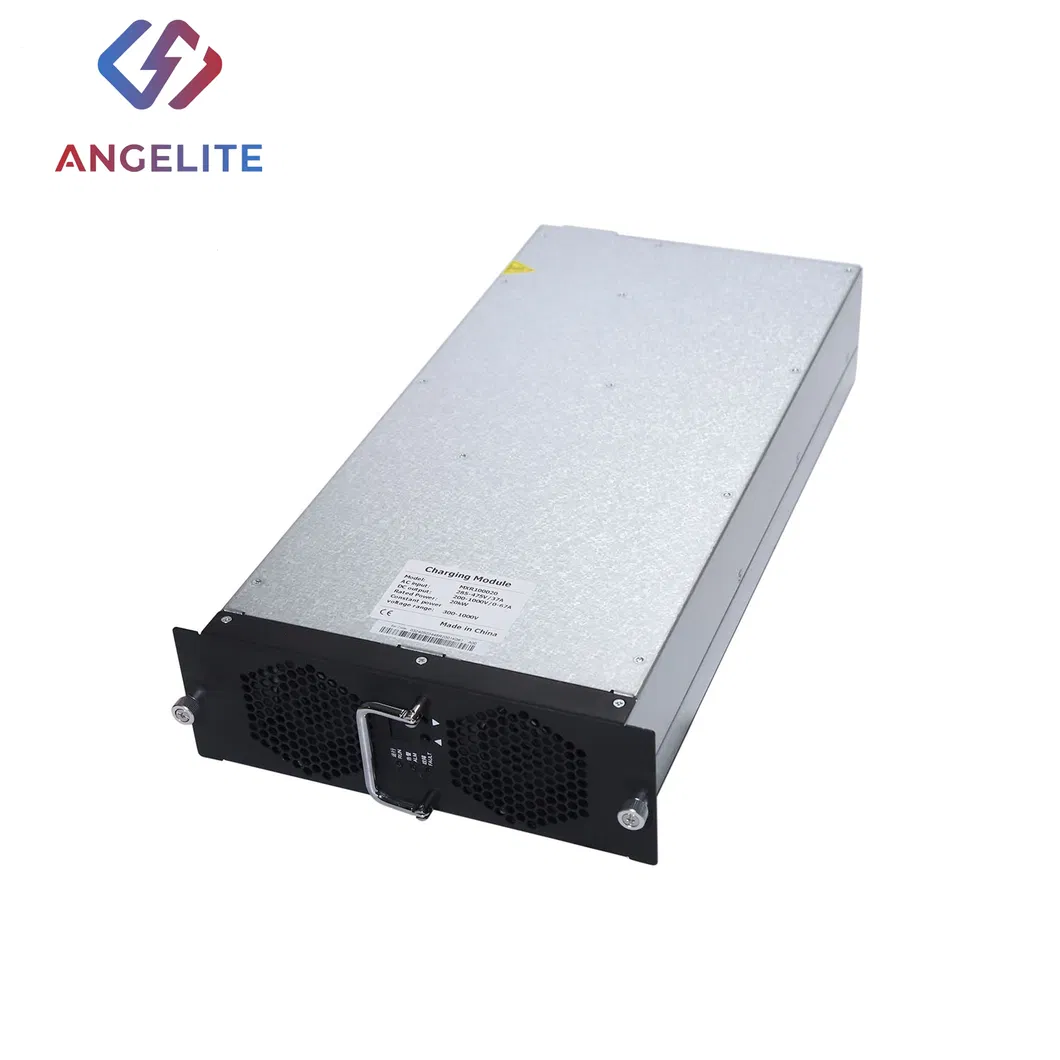

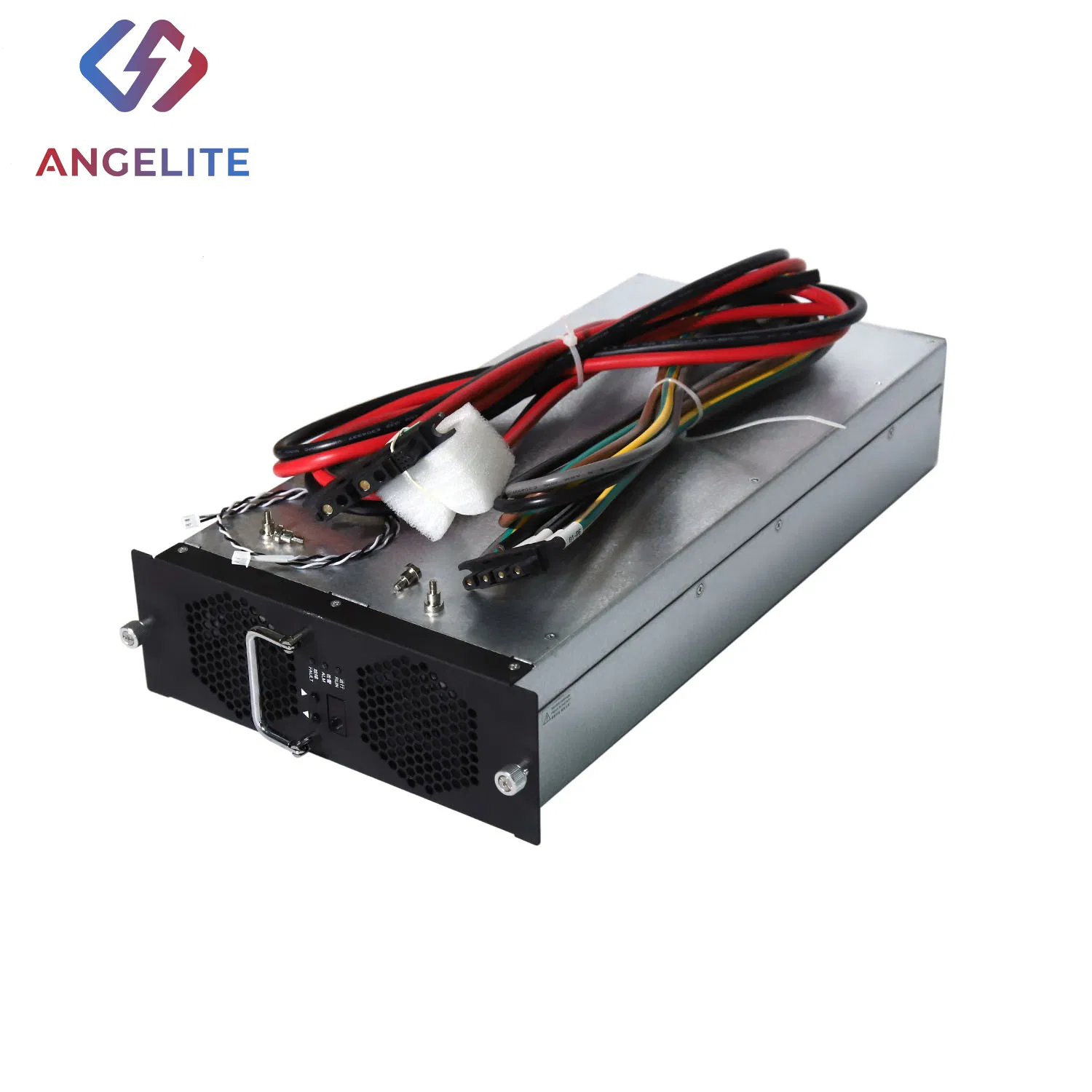

MXR 100020 offers a faster charging speed and shorter charging time for electric vehicles. It achieves an impressive 95.5% charging efficiency, effectively converting electric energy into the energy storage system of the electric vehicle, reducing energy loss and improving charging speed. We also provide professional and high-quality after-sales service and technical support, as well as customized service to meet your needs.

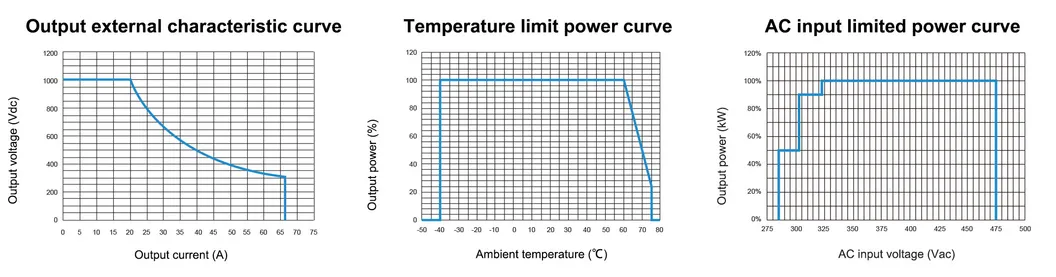

Ultra-high Temperature Friendly: Full-load operating temperature up to 60ºC. MXR100020 can output full power at 60ºC, effectively ensuring the charging speed in high temperature environments.
Ultra-wide Constant Power: Constant power range 300V-1000V. MXR100020 is a 20kw charging module that fully meets the wide-range constant power requirements.
| Input Voltage | 285Vac-475Vac, three-phase+PE |
|---|---|
| Input Current | <40A |
| Grid frequency | 45Hz-65Hz |
| Power Factor | ≥0.98 (10kw≤output power≤20kw) |
| ITHD | ≤5% (10kw≤output power≤20kw) |
| Output Power | 20kw |
|---|---|
| Voltage Range | 50-1000Vdc |
| Current Range | 0-67A |
| Voltage Accuracy | ≤±5% |
| Current Accuracy | ≤±1% |
| Ripple Peak-to-Peak | ≤1% |
We focus on the research and development, production and sales of power electronic products, positioning services for mid-to-high-end DC power supply system manufacturers. Based on owning independent intellectual property rights, we insist on independent research and development and technological innovation, providing customers with equipment supporting and services to realize growth in corporate and customer value together.
Currently, our products are widely used in automotive, electric power, railway, metallurgy, communications and other fields, with performance cases spread all over the world.
