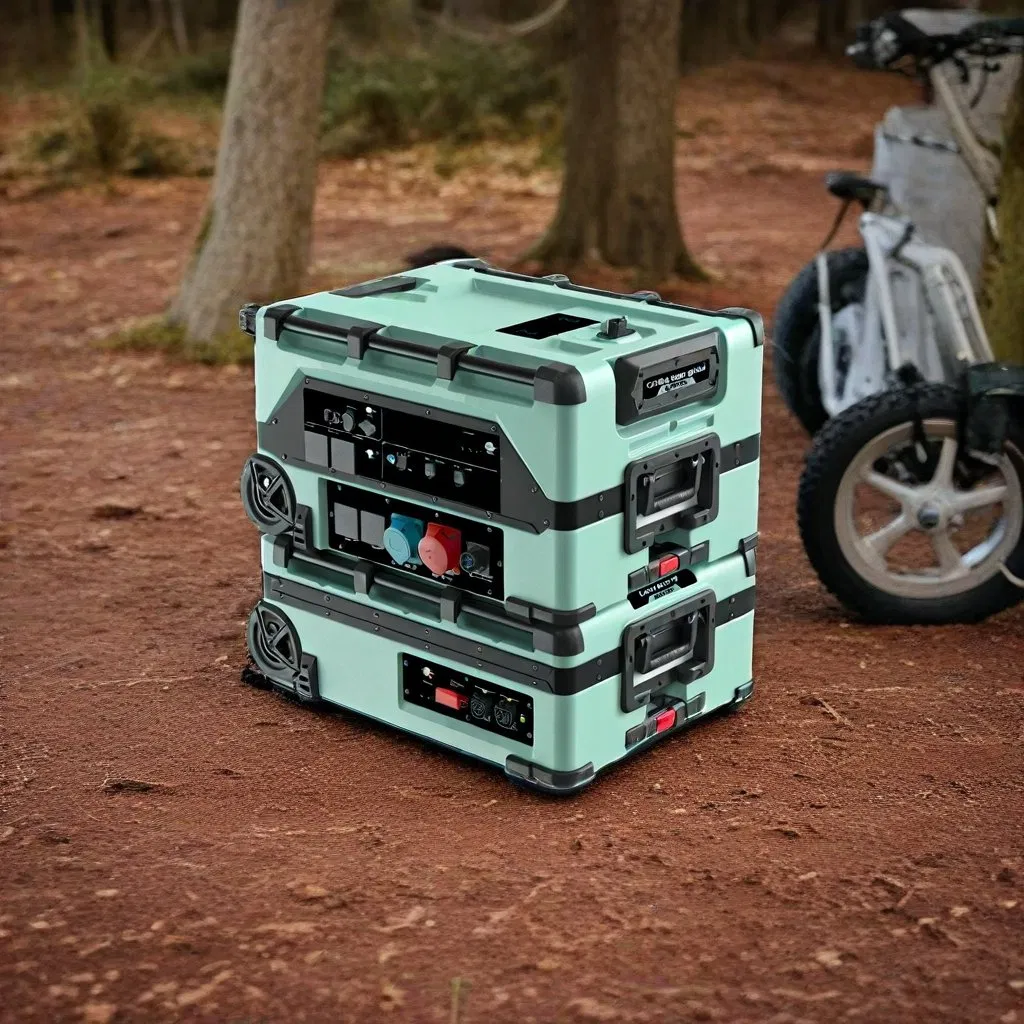

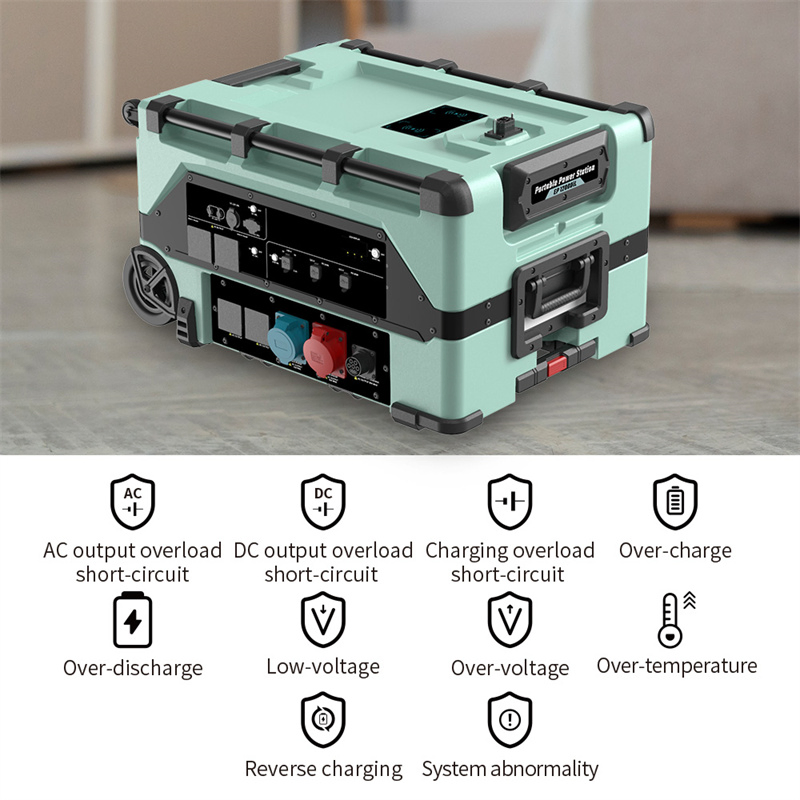

Inventor Support UPS Unit 12kw Emergency Home Energy Storage Solar Power System

Customization: Available
Weight: 100kg
Warranty: 5 Years

Product Description

i

Basic Information

Model NO.
EP12000iL
Cycle Life
3000
Nominal Capacity
7680wh
Charging
AC, Solar, EV, DC, Wind
Battery Expansion
Yes, Max 245kwh
Fast Charging
70mins Fully Charged
Inverter Type
Bi-Directional Inverter
Three-Phase
Yes
Protection
IP53 / IP66
Specification
840X670X490mm, 110kg

Product Advantages

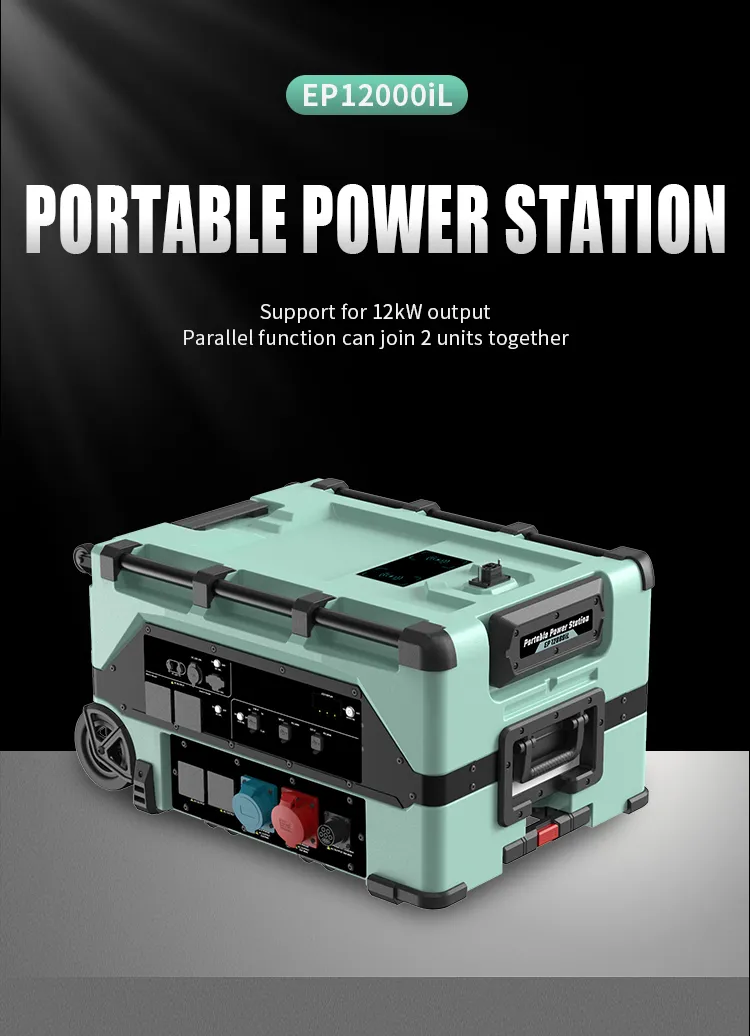

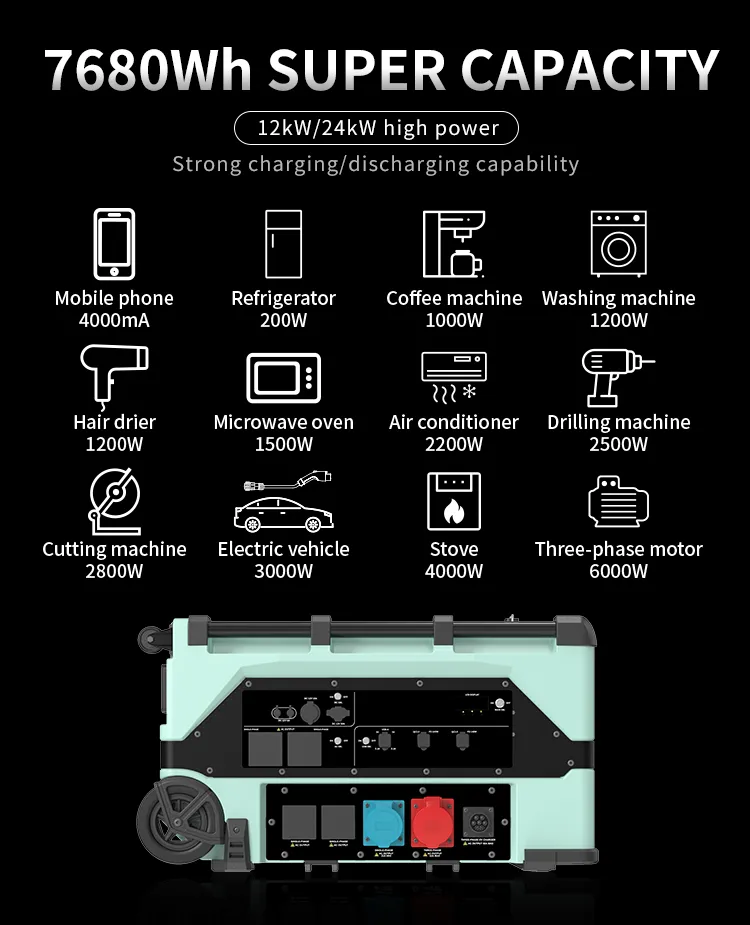

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.
Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

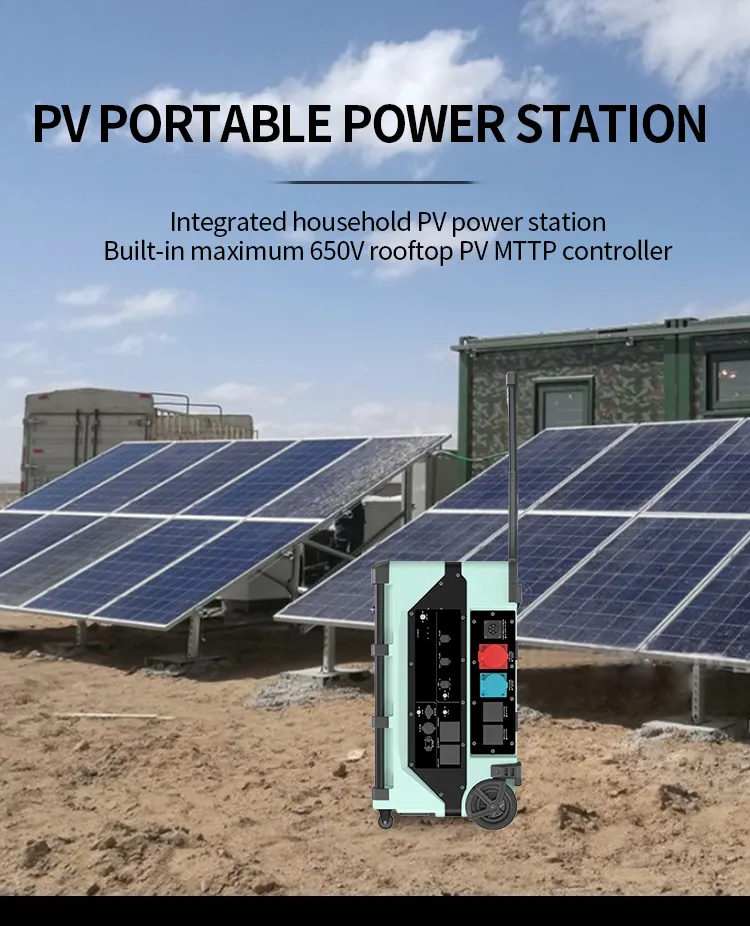

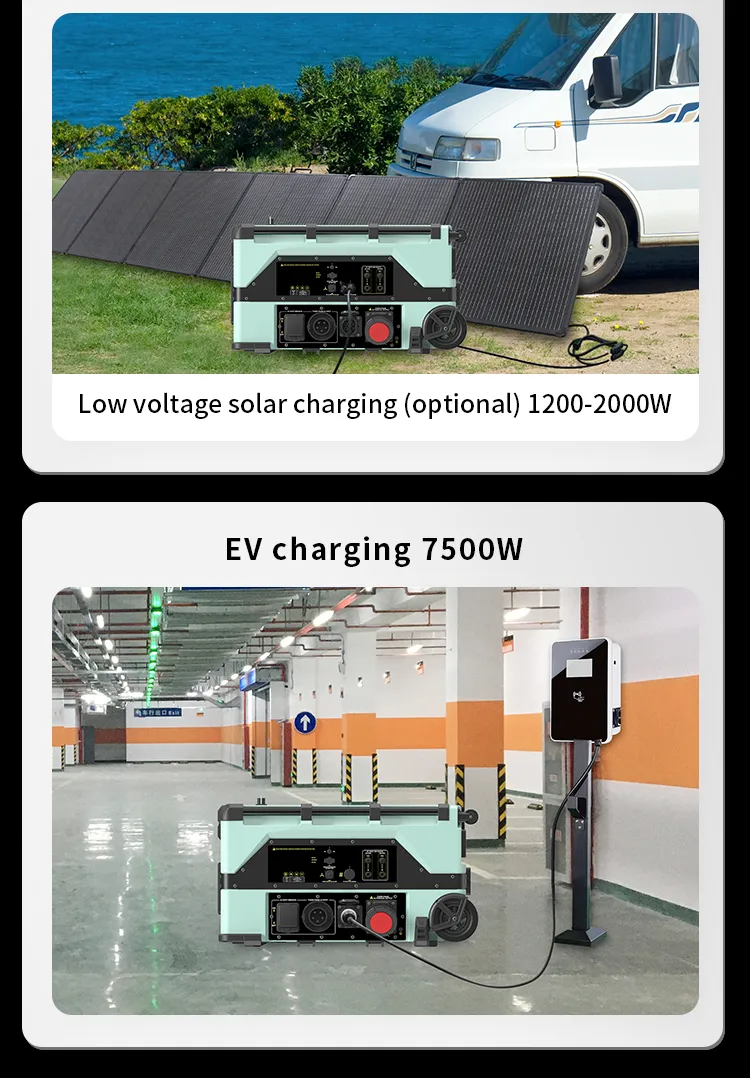

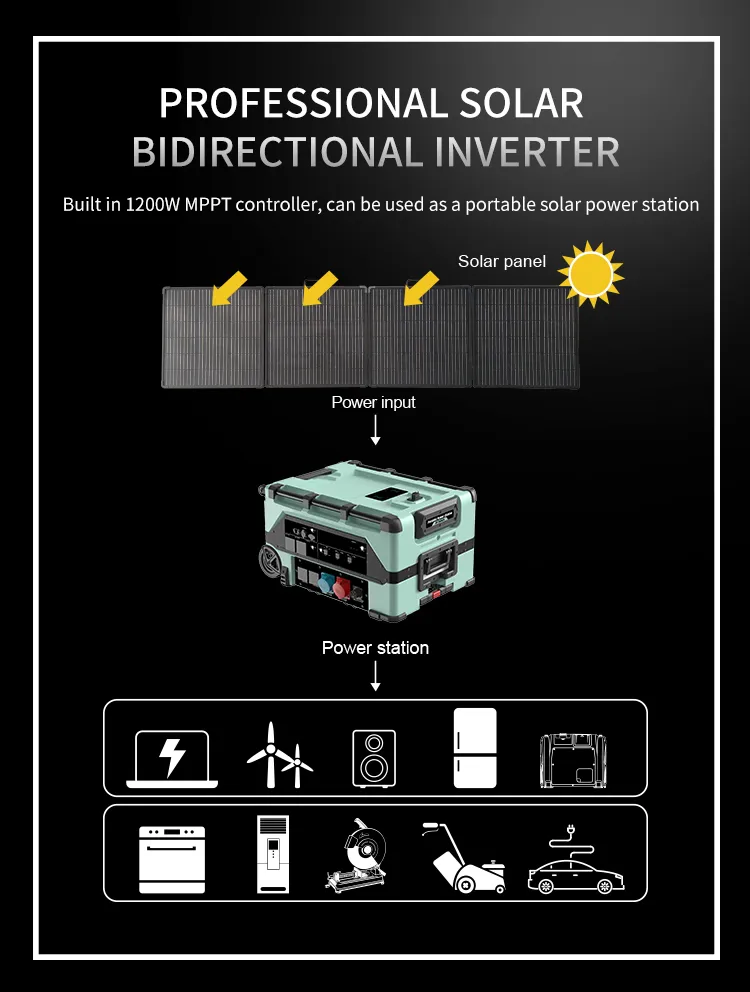

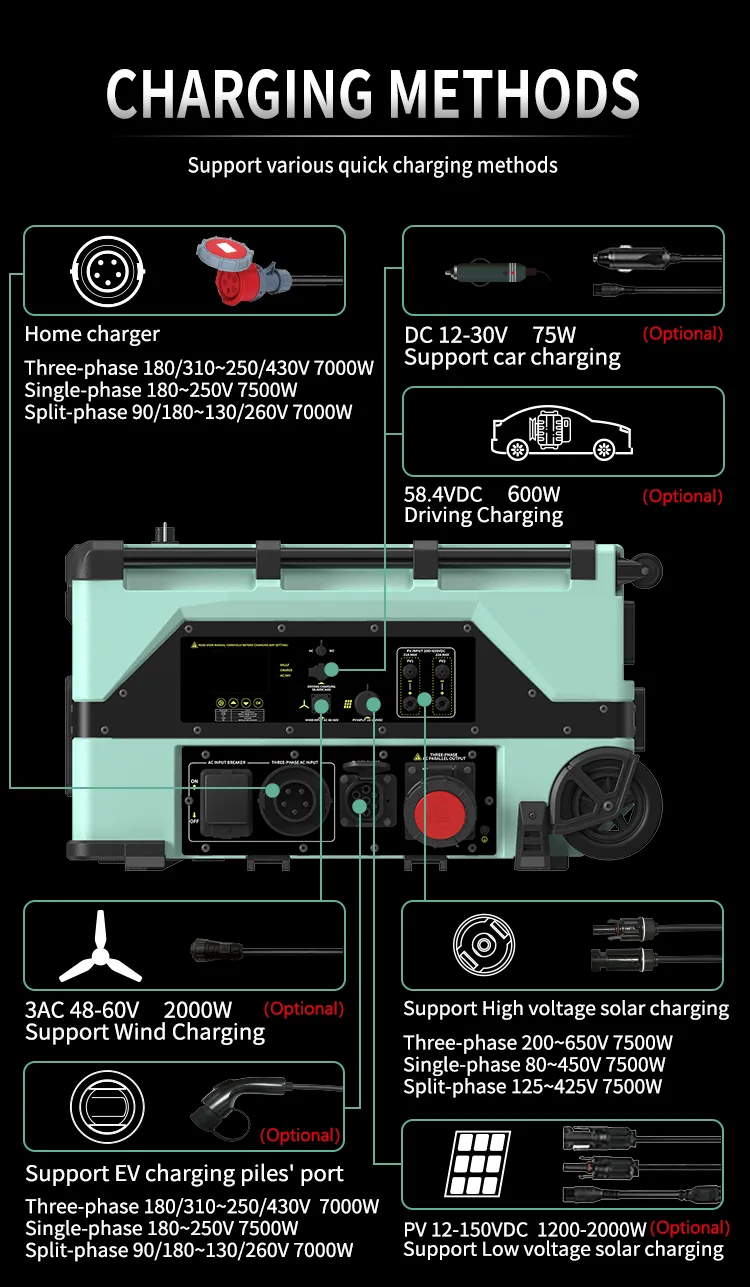

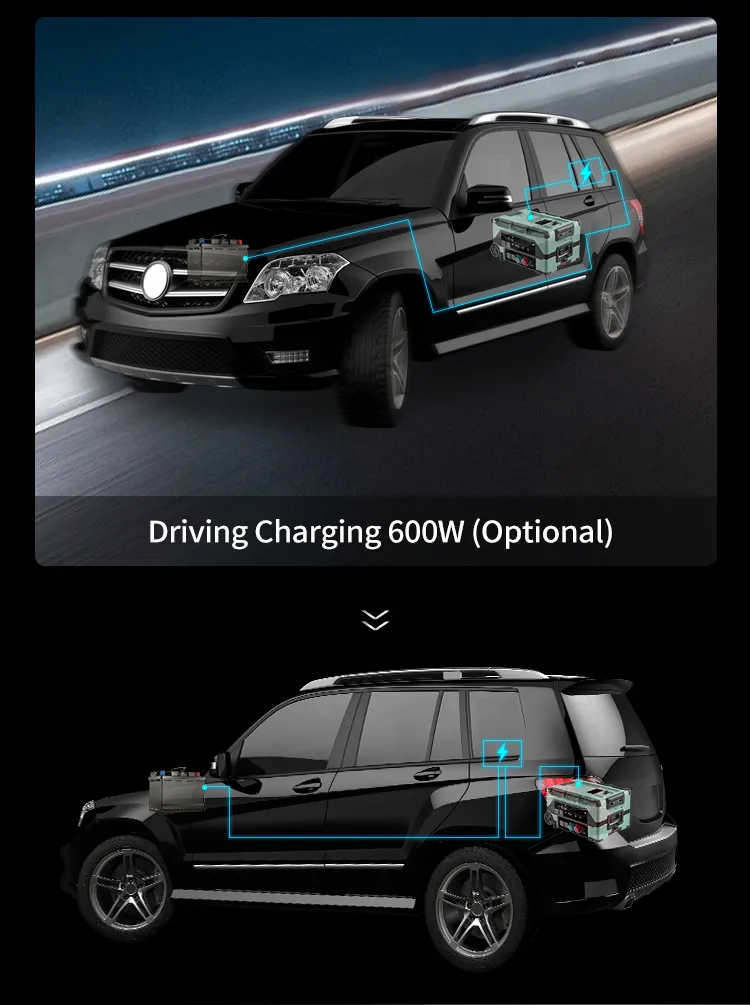

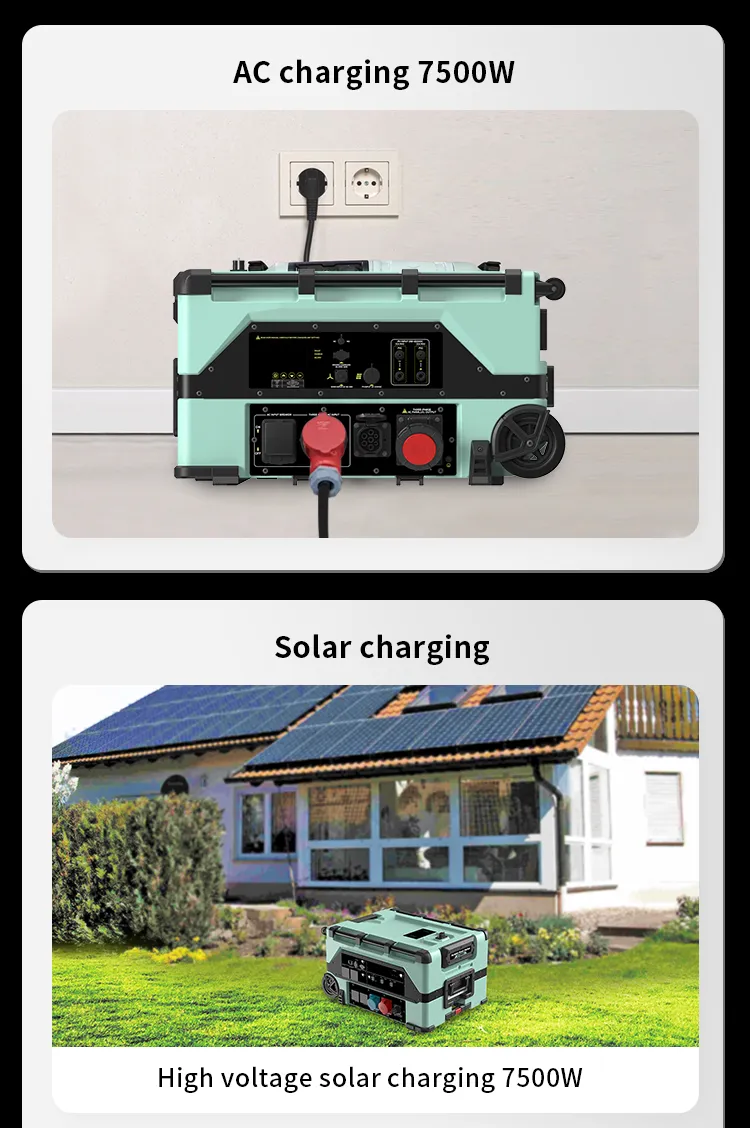

Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

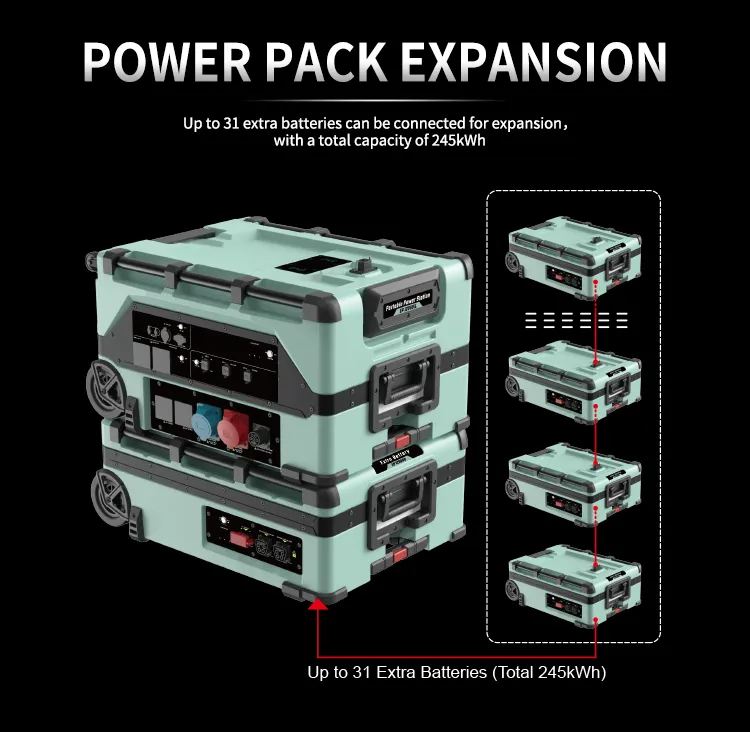

Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

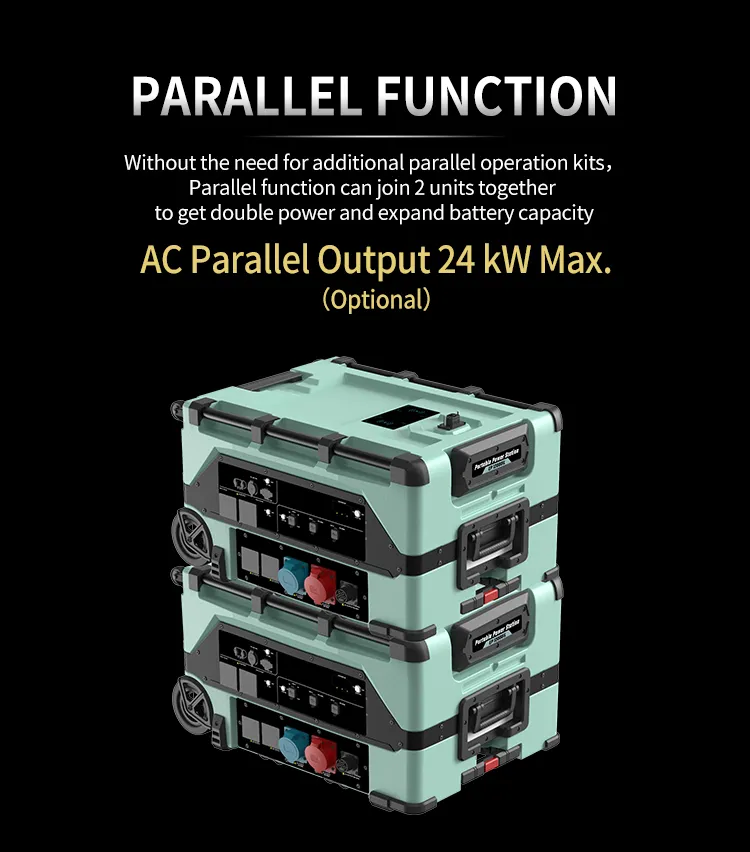

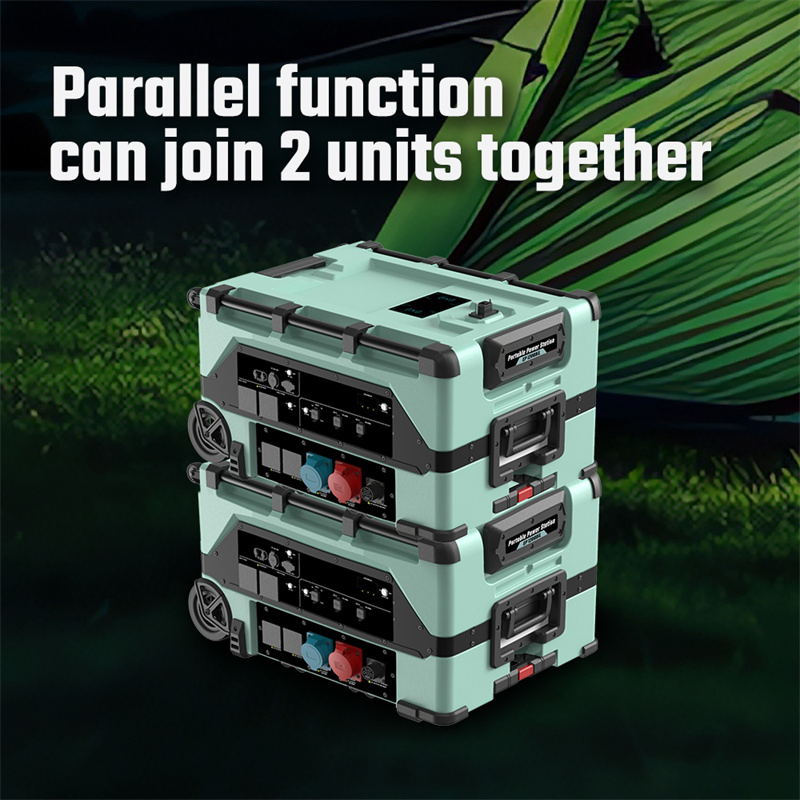

Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.
Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.

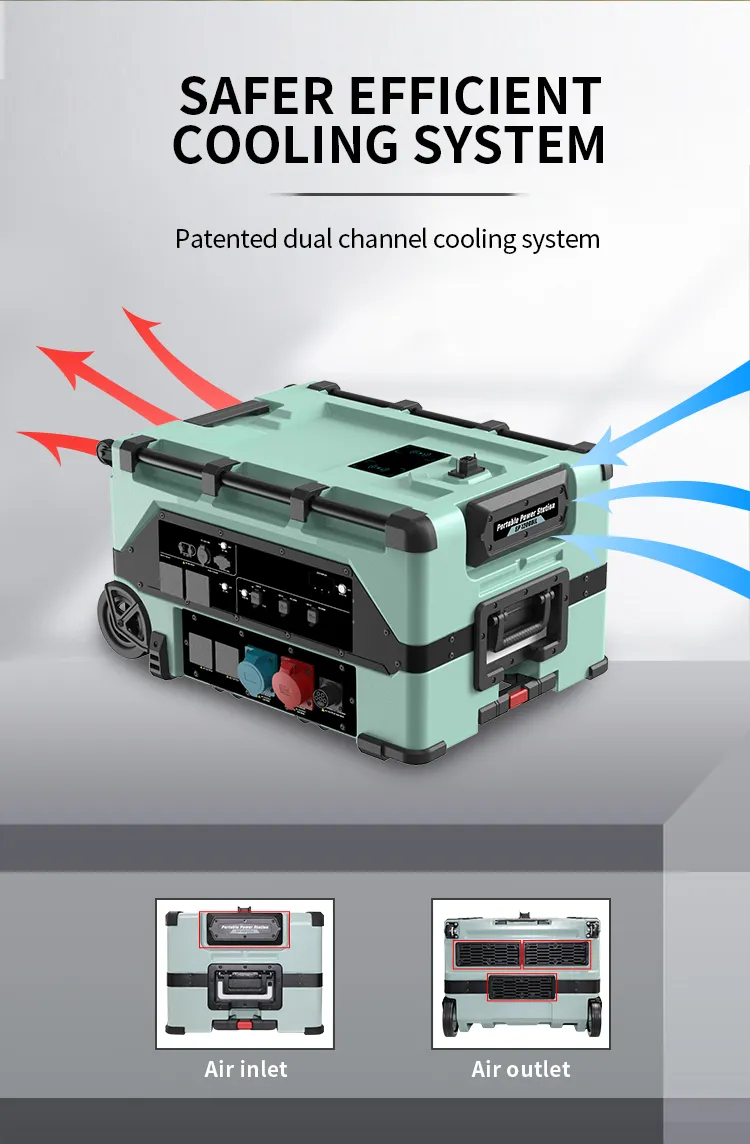

Unit IP53 and Battery Pack IP66 protection grade with patented dual channel cooling system.

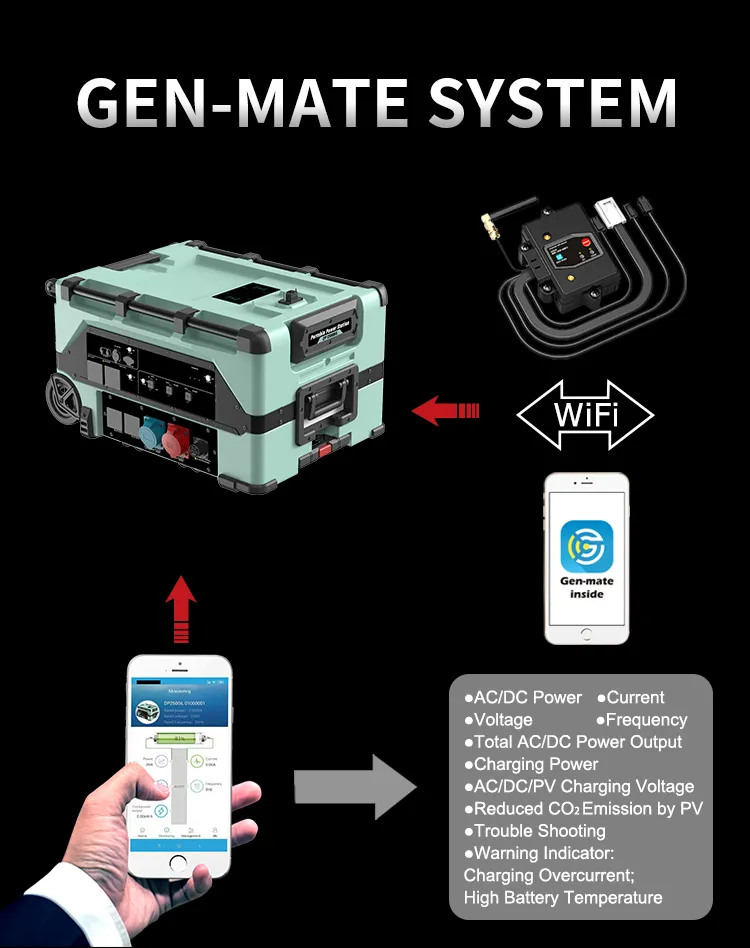

V-0 level flame-retardant casing and intelligent control via smartphone APP.

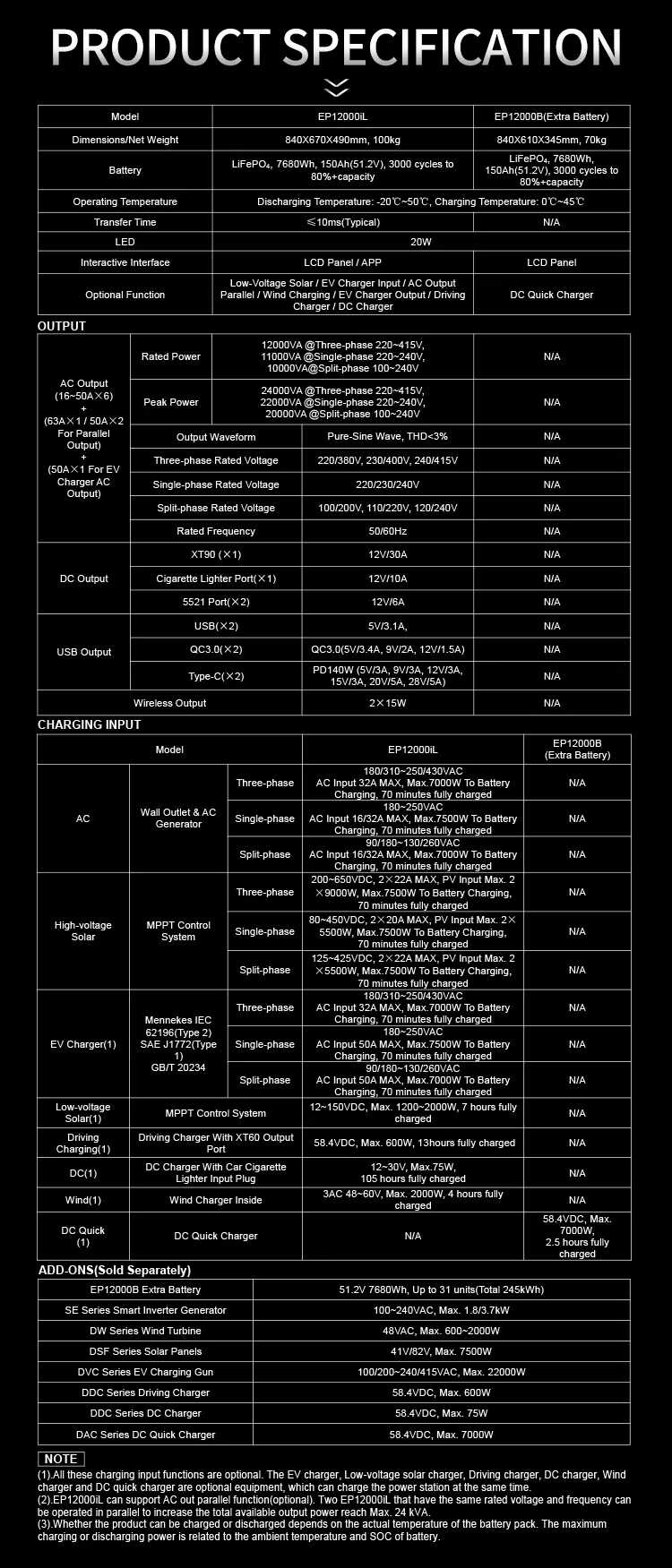

Product Parameters

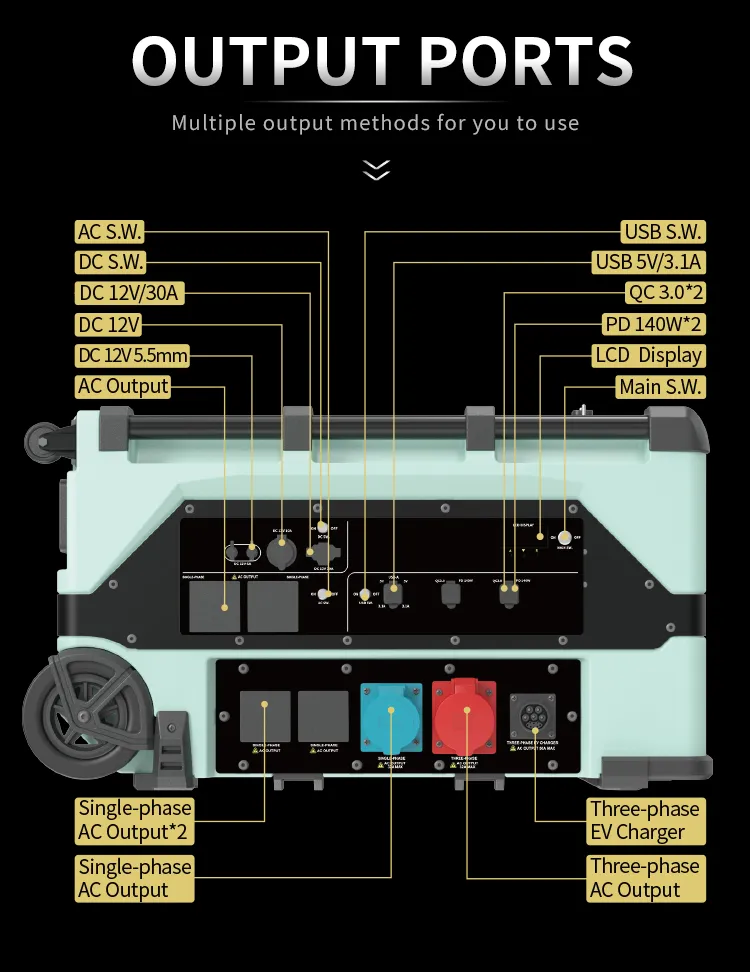

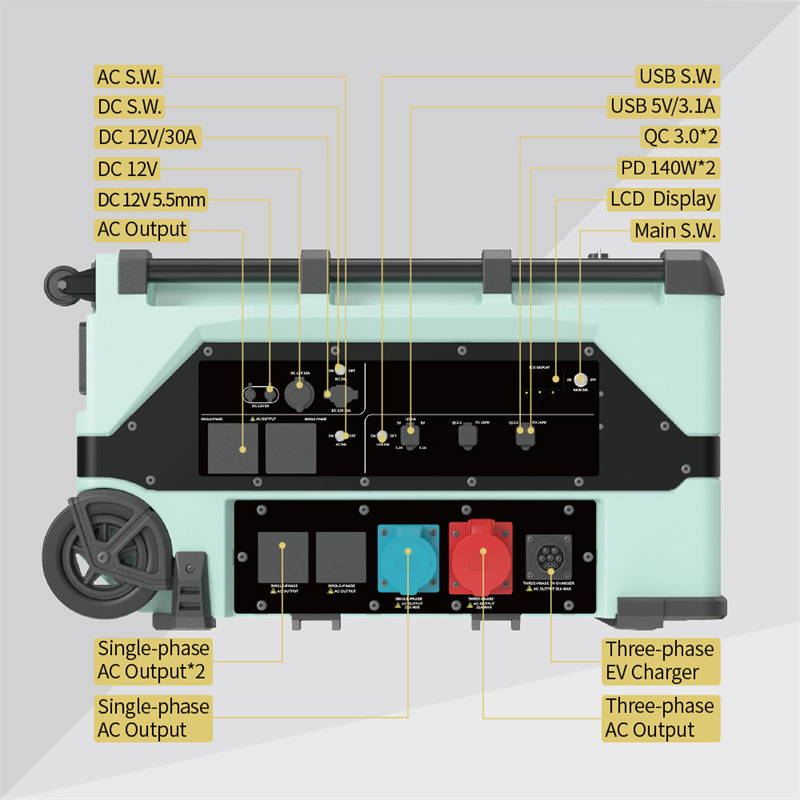

Output Category Specifications
AC Output Three-phase 12000VA (220~415V)
Single-phase 11000VA (220~240V)
Split-phase 10000VA (100~240V)
DC Output XT90 12V / 30A
Cigarette Lighter 12V / 10A
5521 Port 12V / 6A
USB Output USB 2.0 5V / 3.1A
QC3.0 Up to 12V / 1.5A
Type-C (PD) PD 140W (Up to 28V/5A)

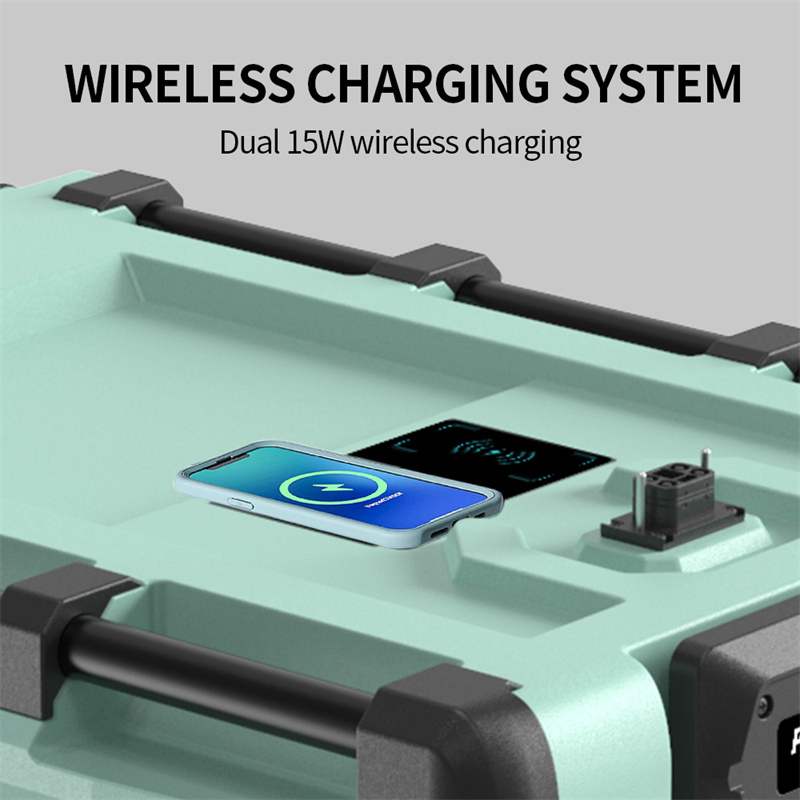

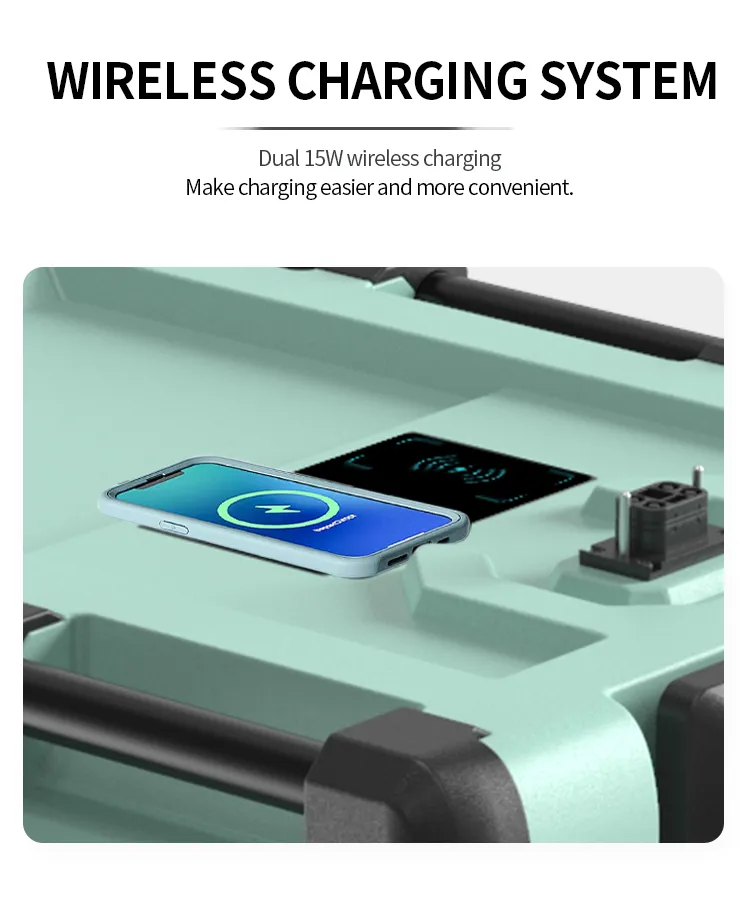

Wireless Output 2 × 15W
📷

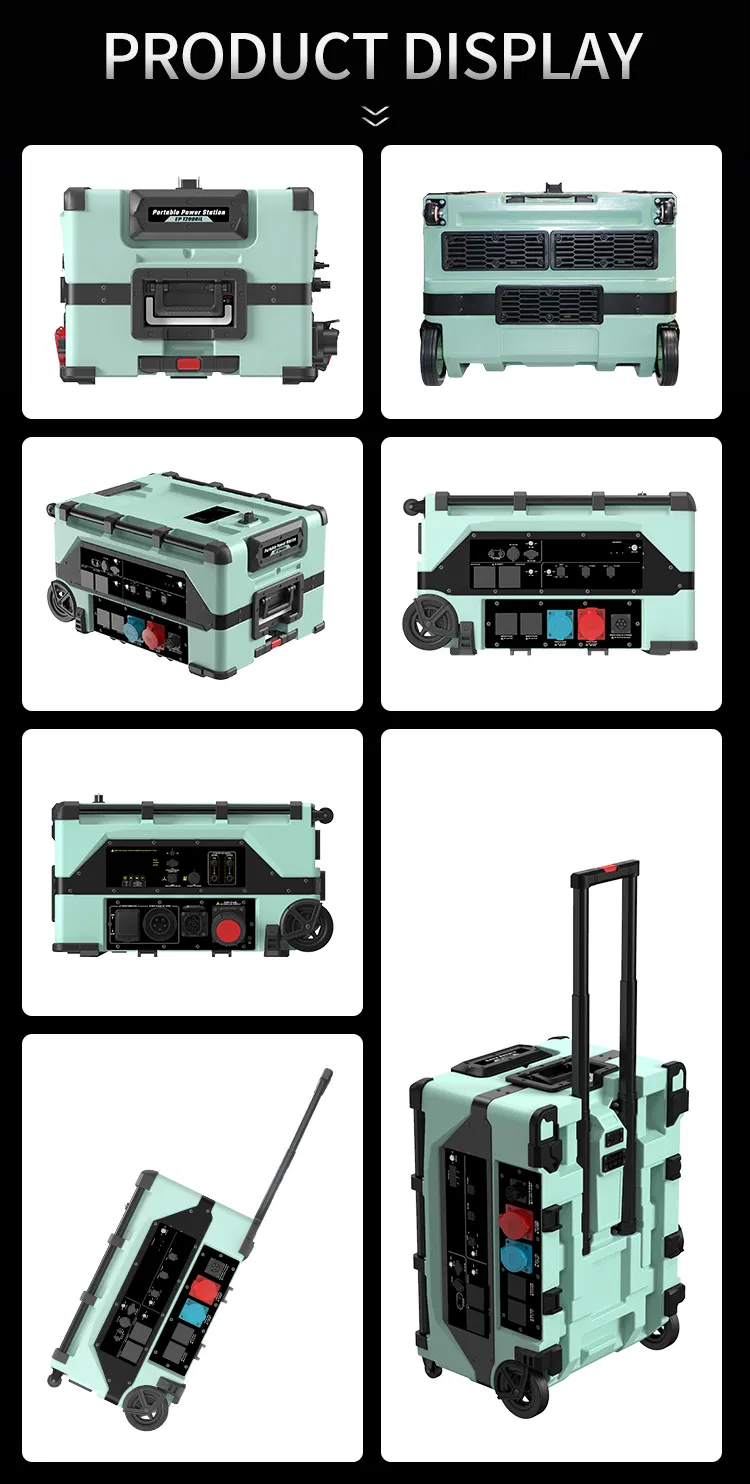

Detailed Photos

🏢

Professional Profile

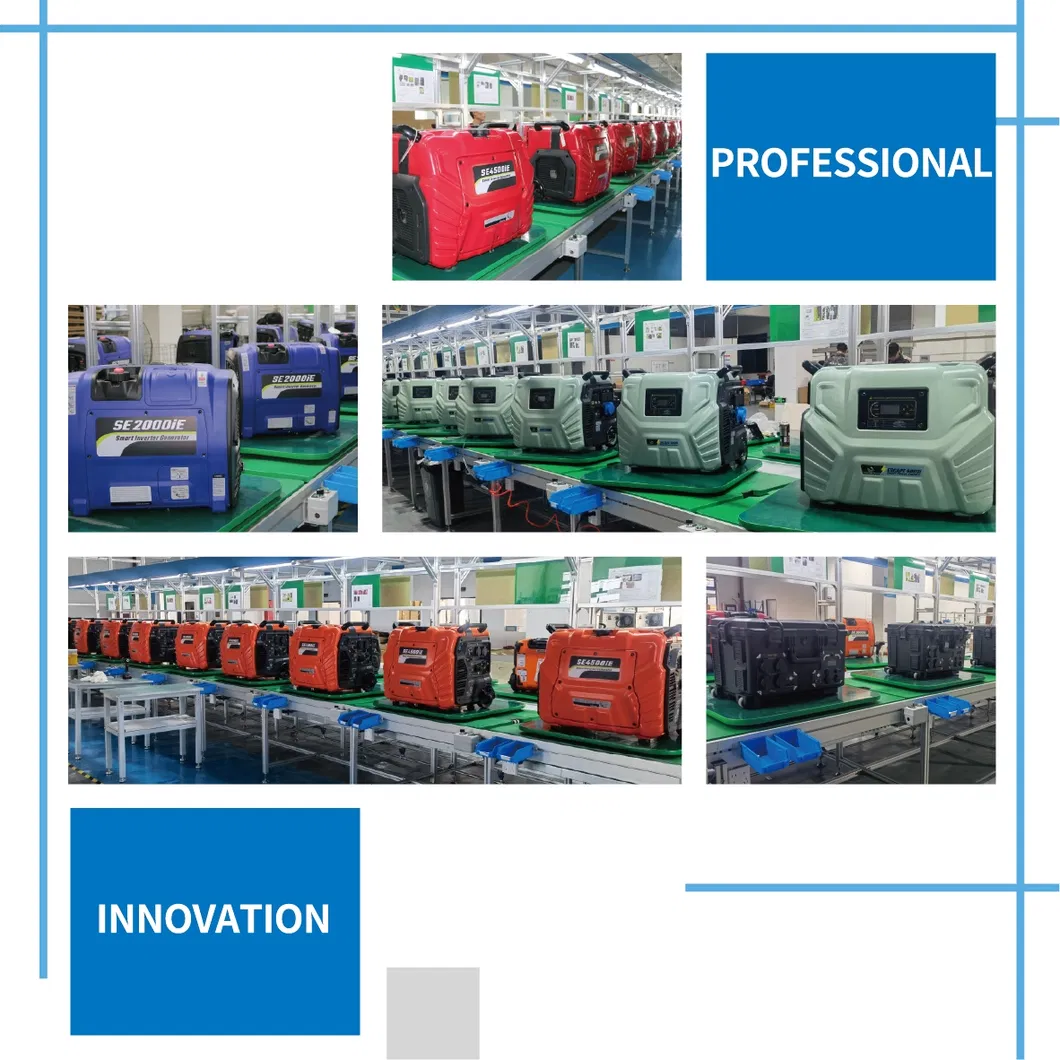

Founded in March 2015, we are a high-tech company integrated with research, manufacture, and sales. We provide products and services on inverter generators, Internet of things, power equipment, automation equipment, and electrical products. We are devoted to the research and development of intelligent electromechanical products, insisting on independent innovation.

Possessing more than 70 critical patents in power equipment and intelligent controller fields, we maintain a leading position in the industry. Our products have earned an excellent reputation in Europe and North America markets for their superior quality and performance. We are committed to bringing innovative products to the global market and promoting excellence in manufacturing.

?

Frequently Asked Questions

What is the total capacity and output power of the EP12000iL?
The unit features a built-in 7680Wh LiFePO4 battery and supports a continuous AC output of up to 12kW for three-phase systems.
Can I expand the battery capacity if needed?
Yes, the system supports expansion by stacking up to 31 extra batteries, reaching a maximum total capacity of 245kWh.
How fast can the system be charged?
Using super-fast charging methods, the system can be fully charged in approximately 70 minutes.
What are the protection ratings for the unit and battery?
The main unit has an IP53 protection grade, while the battery pack is rated at IP66, ensuring durability in various environments.
Does it support electric vehicle (EV) charging?
Yes, it includes a built-in EV charger that can charge vehicles at up to 22kW, effectively replacing traditional charging stations.
What is the warranty period for this product?
The product comes with a 5-year warranty, reflecting its high-quality construction and reliability.
