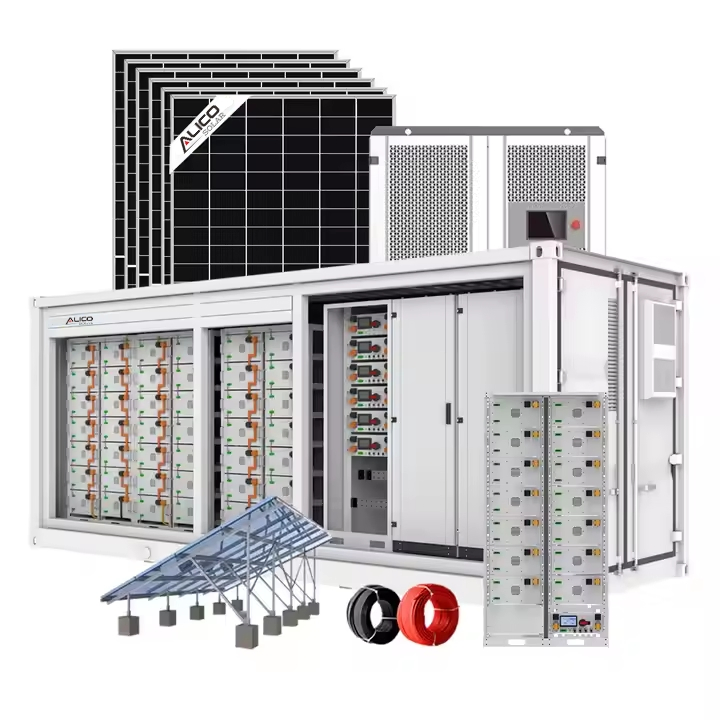

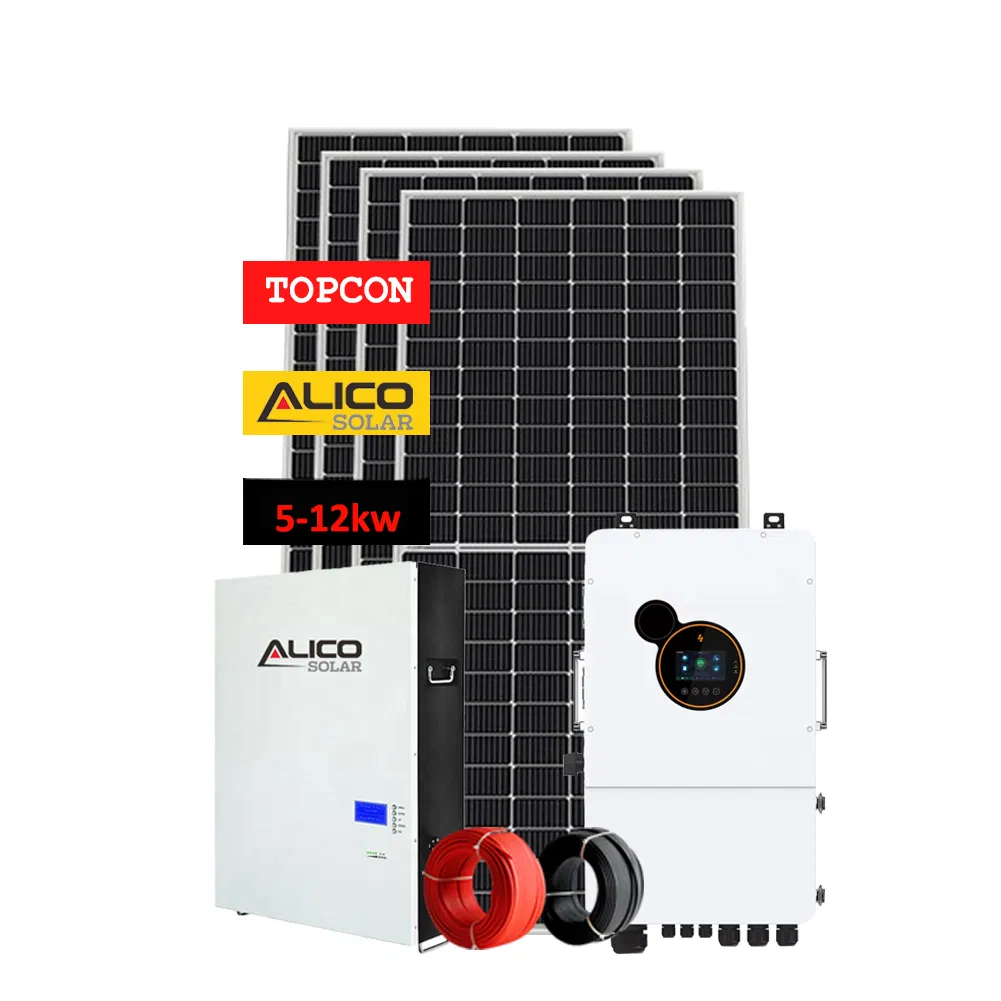

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

1 / 5

10kw Hybrid on Grid Home Potovoltaic Solar System 10kVA with PV Solar Panel Module LiFePO4 Lithium-Ion Battery Energy Storage Solar Grid Til Inverter

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.

AS-ON-10K

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial

Specification

Normal, OEM

Mounting Support

Roof or Ground Solar Mount Bracket

Solar Inverter

Grid-Tied Inverter

System Type

Home Energy Storage System

Solar Panel

Mono N-Type Hjt

Battery

Gel or Lithium Battery or No

Transport Package

Carton/Wooden Box

Production Capacity

2 Gw/Year

HS Code

8507600090

📦 Packaging & Delivery

Package Size

4100.00cm * 3200.00cm * 1800.00cm

Gross Weight

2000.000kg

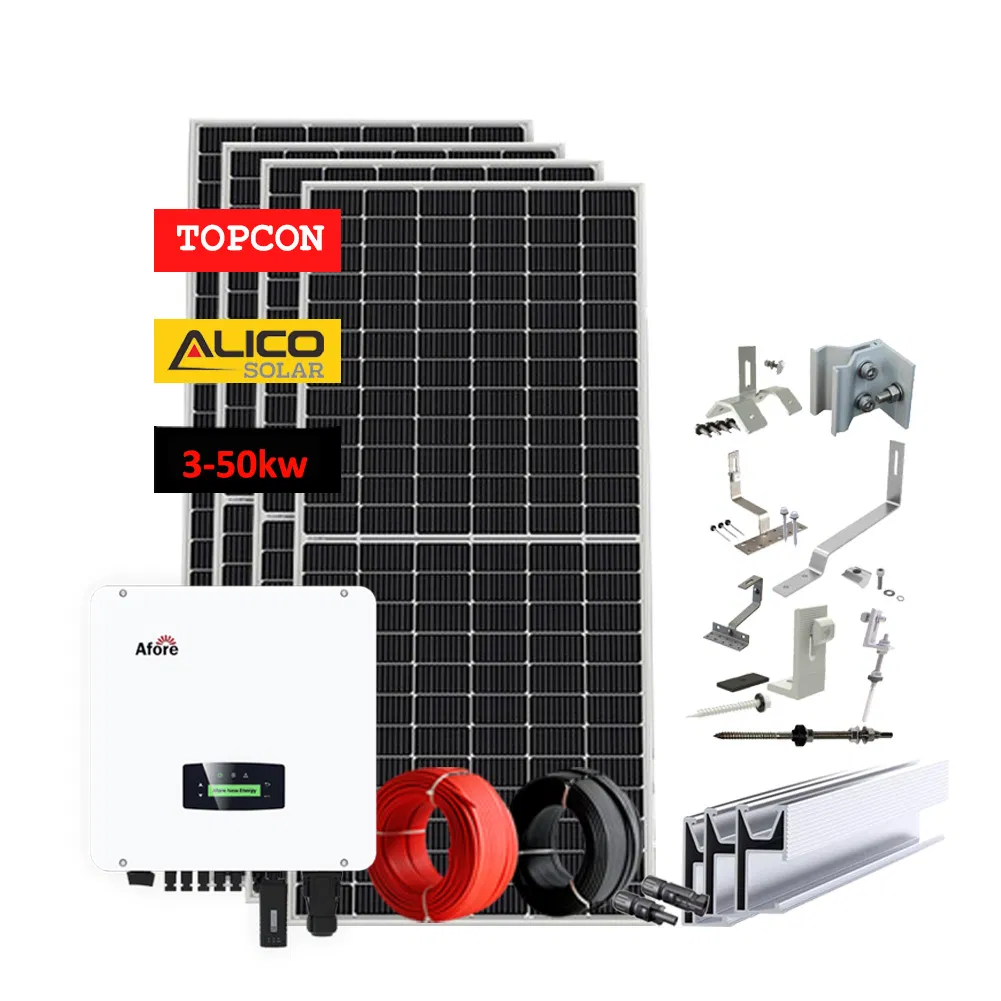

⚡ On Grid System Configuration

Name	Description	Quantity
Solar Panel	Mono 550W 72HF Cells PV Module	24-1250 Pieces
DC Disconnect Switch	IP66 1000VDC 16A	2 Set
On Grid Inverter	10KW to 500kw	1 Set
AC Disconnect Switch	IP 66 1000VDC 32A	1 Set
DC Cable	4mm2	200 - 2000Meters
MC4 Connector	4mm2 1000VDC	10-1000 Pairs
Mounting System	Standards Pitched Roof (Customized Optional)	1 Set
PV Tools	Wire Cable Cutter & Stripper, Disassembly Tool	1 Set

🔍 Product Components Detail

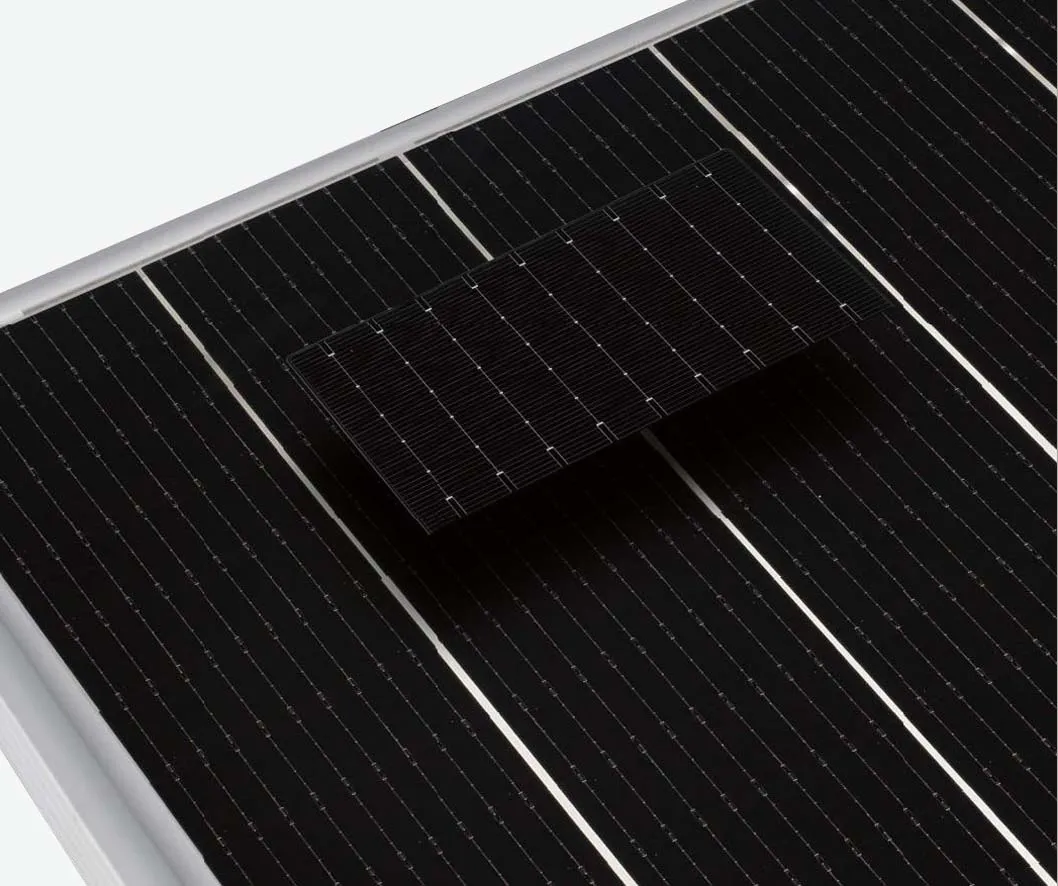

☀️ Mono Solar Panels

Peak Power Watts: 480W
Maximum Power Voltage: 49.2V
Maximum Power Current: 9.02A
Open Circuit Voltage: 42.8V
Short Circuit Current: 11.2A

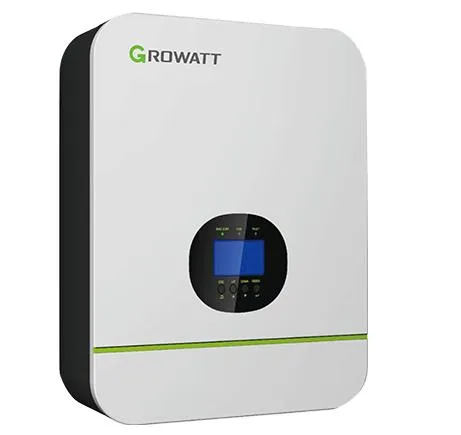

🔌 5-125KW On-Grid Inverter

Rated Grid Voltage: 208/240V(US); 230V(EU)
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

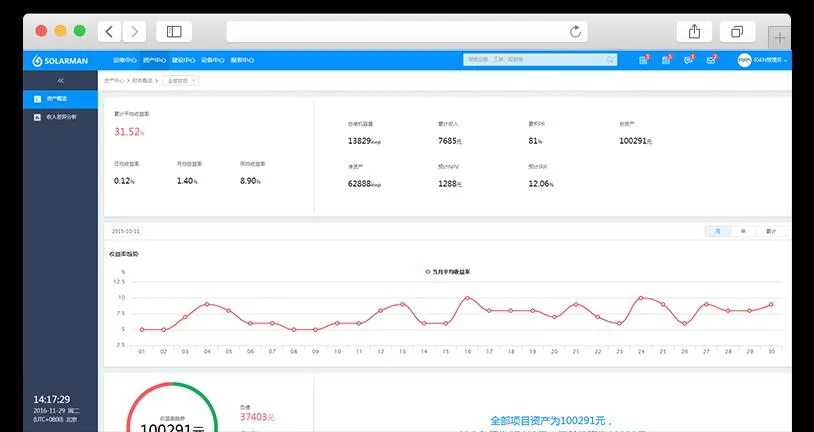

📱 Remote Monitoring System

Data Logging Stick allows you to receive information from solar power system via Wi-Fi, Lan or GPRS. App Available for PC, IOS & Android.

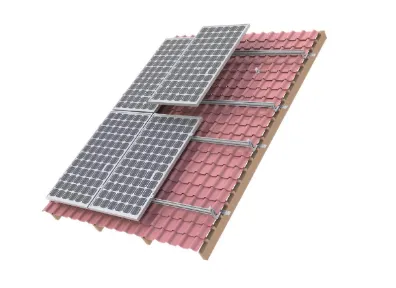

🏗️ PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional

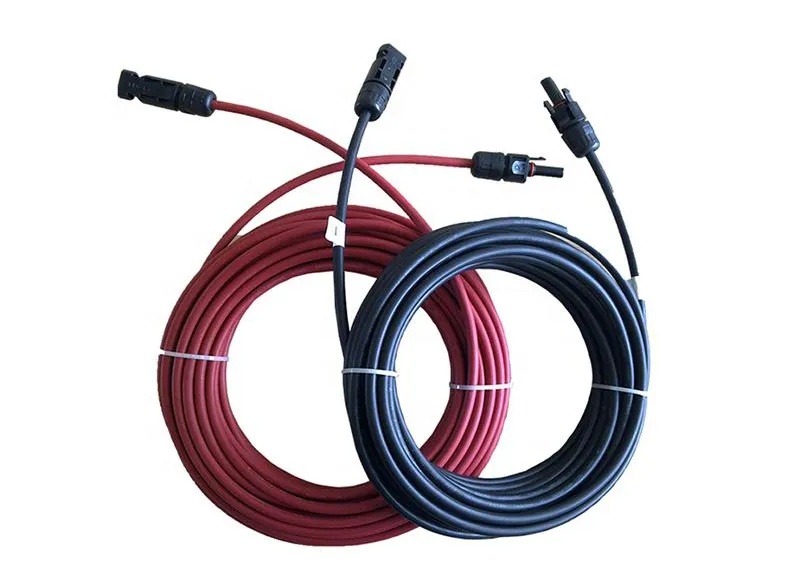

⛓️ DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC/1000VDC(TUV)
Rated Current: 55A, 70A
Lifetime: ≤25 Years

🚢 Packaging & Shipping

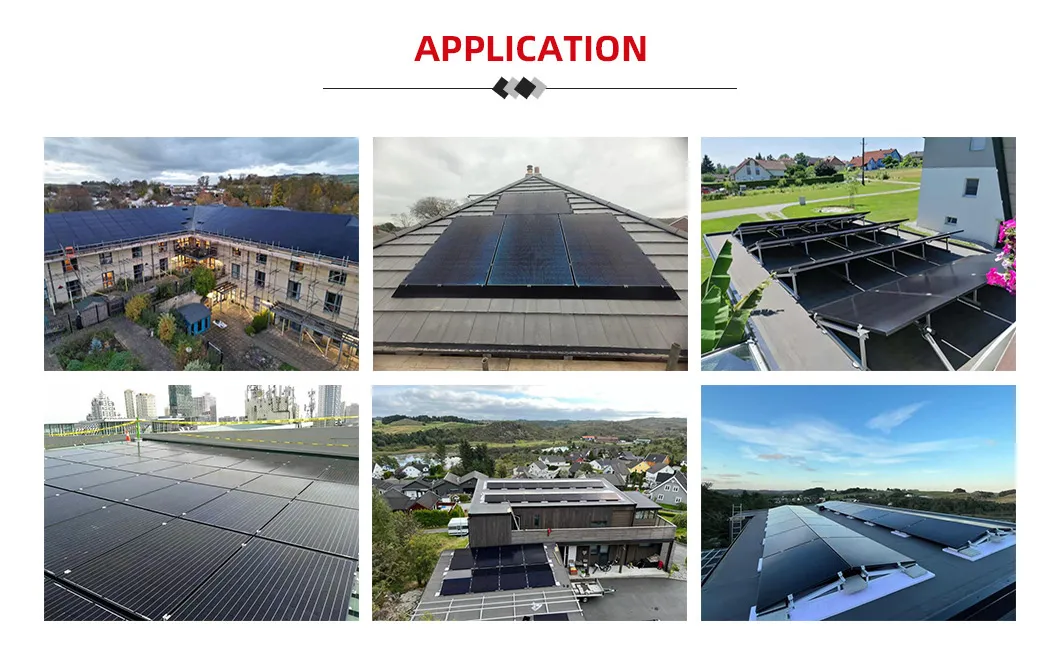

🌍 Global Projects

12MW Commercial Metal Roof Solar Plant, Finished in Nov, 2015

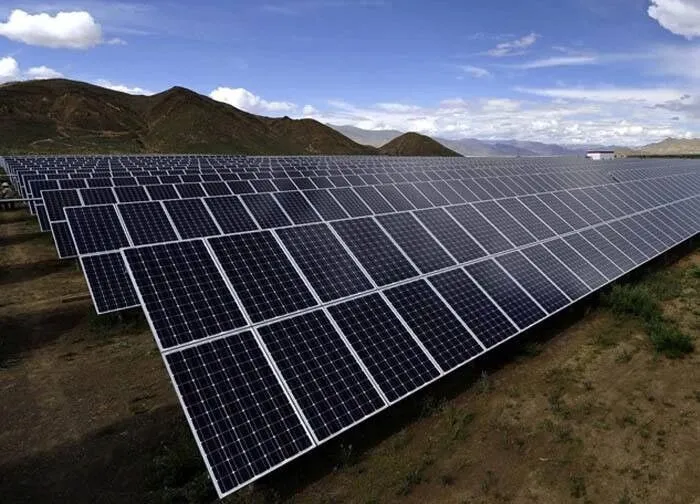

20MW Ground Solar Plant in USA

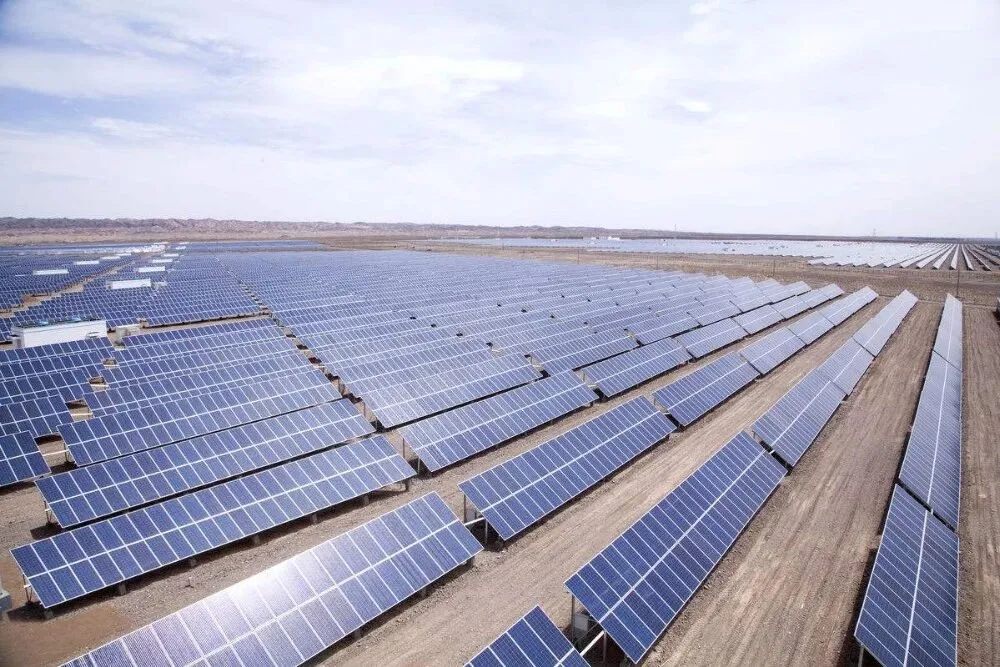

50MW Solar Plant in Brazil

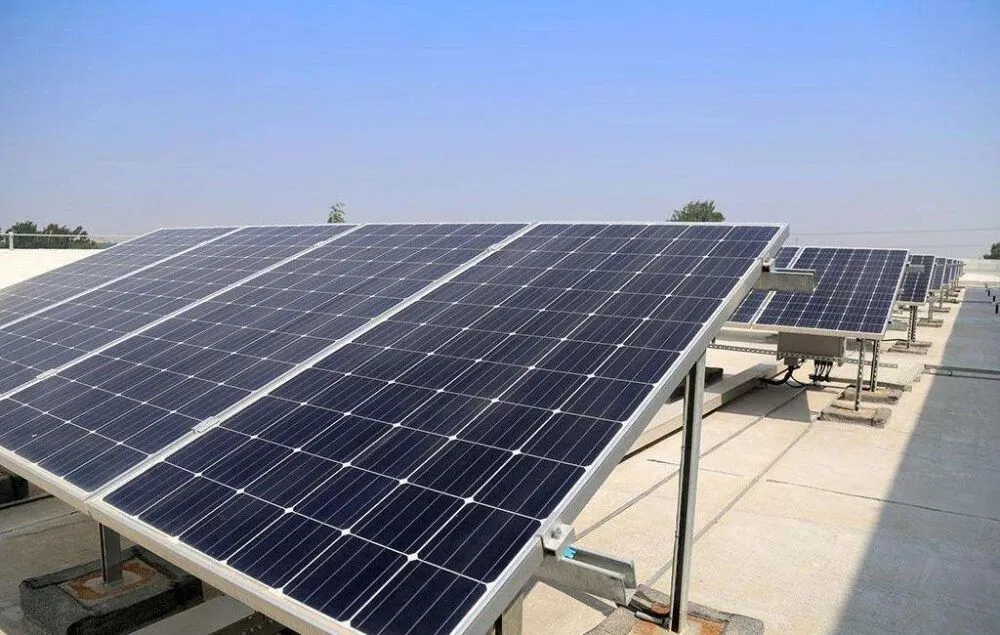

20KW Solar Plant in Mexico

❓ Frequently Asked Questions

What is included in the 10kW On-Grid solar system package?

The system includes high-efficiency Mono solar panels, an on-grid inverter (10kW-500kW options), DC/AC disconnect switches, specialized PV cables, MC4 connectors, and a complete mounting system for roof or ground installation.

Can this system be used for commercial or industrial purposes?

Yes, the system is highly versatile and designed for home, industrial, and commercial applications, with production capacities scalable up to 2 GW per year.

What kind of monitoring does the system support?

The system features a remote monitoring solution using a Data Logging Stick. It supports Wi-Fi, LAN, or GPRS connections, with dedicated apps available for PC, iOS, and Android devices.

What are the technical specifications of the solar panels?

The system typically uses Mono N-Type HJT or 550W 72HF Cells PV modules. For example, the 480W panels feature a maximum power voltage of 49.2V and a short circuit current of 11.2A.

What is the expected lifespan and warranty of the components?

The DC cables and connectors are designed for a lifetime of up to 25 years. The on-grid inverters come with a standard warranty of 5 years in the EU and up to 10 years in the US.

Is the mounting system customizable for different roof types?

Yes, while standard pitched roof mounts are provided, we offer customized options including L-feet for asphalt shingles, hanger bolts, and various clamp sizes (35-50mm) to fit your specific needs.
