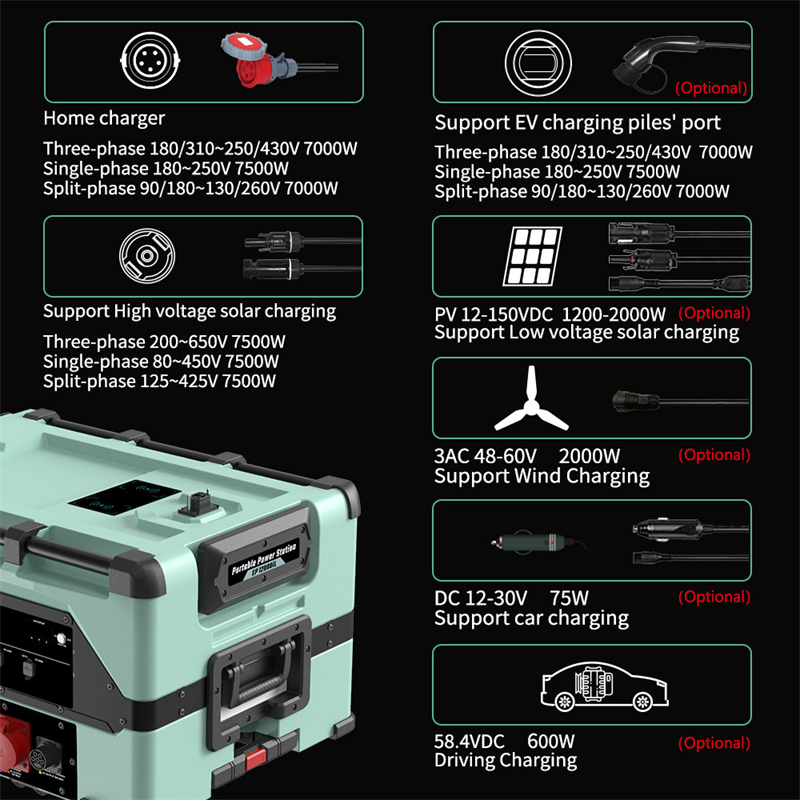

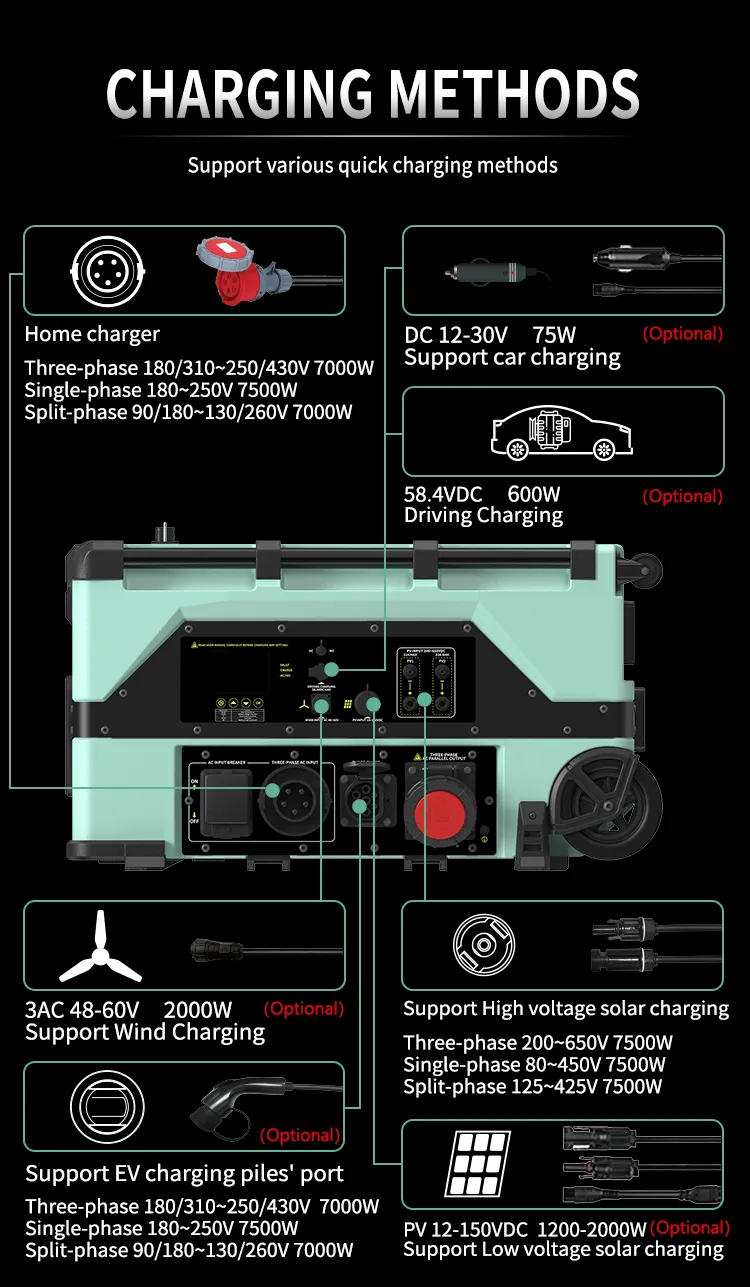

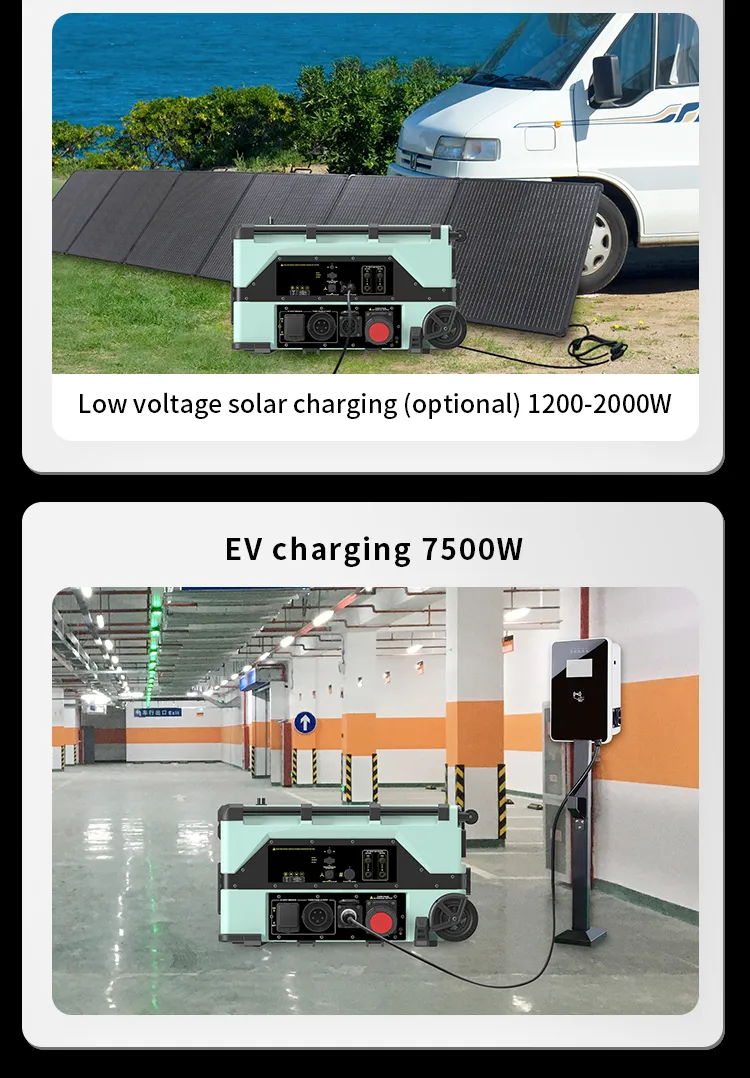

Charging Modes

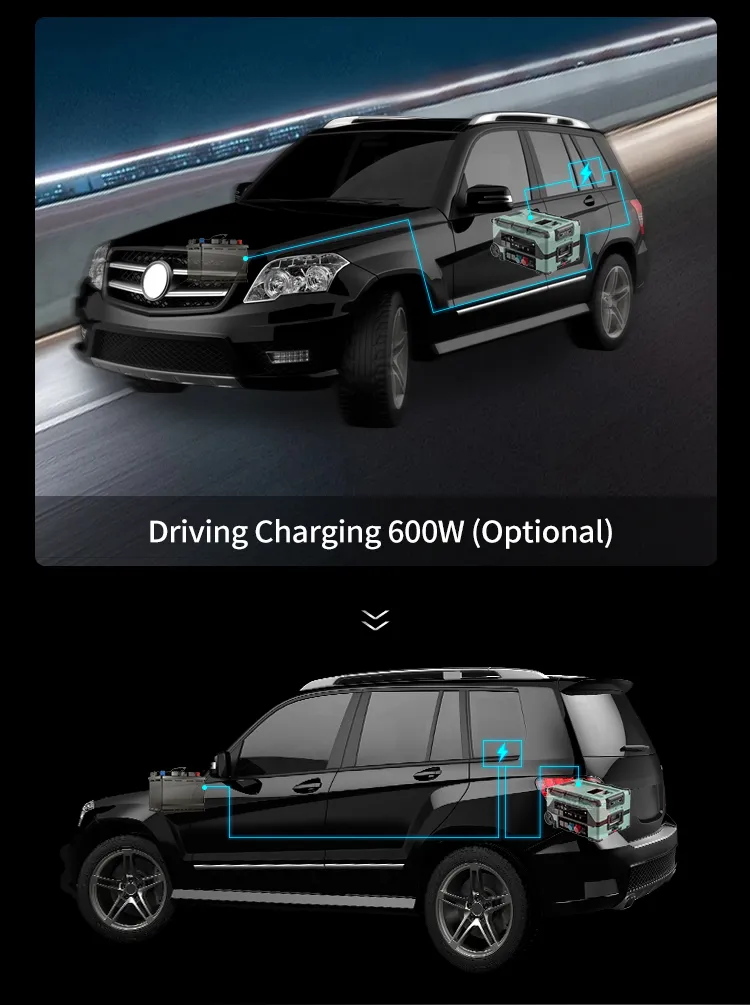

AC, Solar, EV, Driving, DC, Wind
Fast Charging
70 Mins Fully Charged
Certificates
CE, RoHS, IEC62619, UN38.8, MSDS

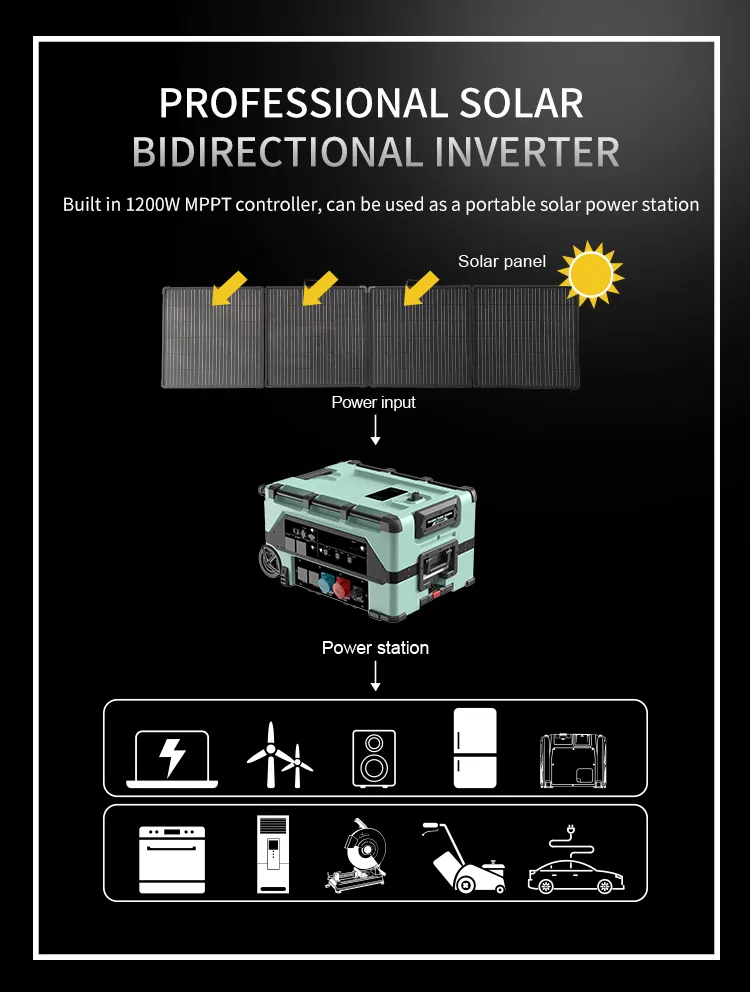

Inverter
Bi-Directional Inverter

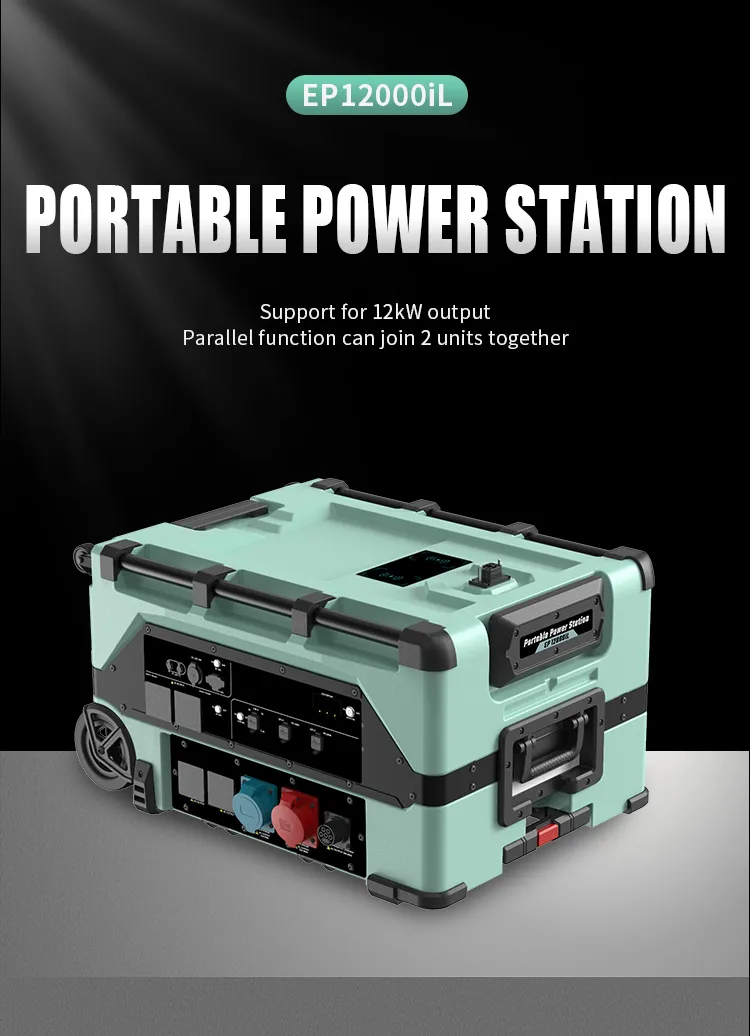

Output
Three-Phase Supported

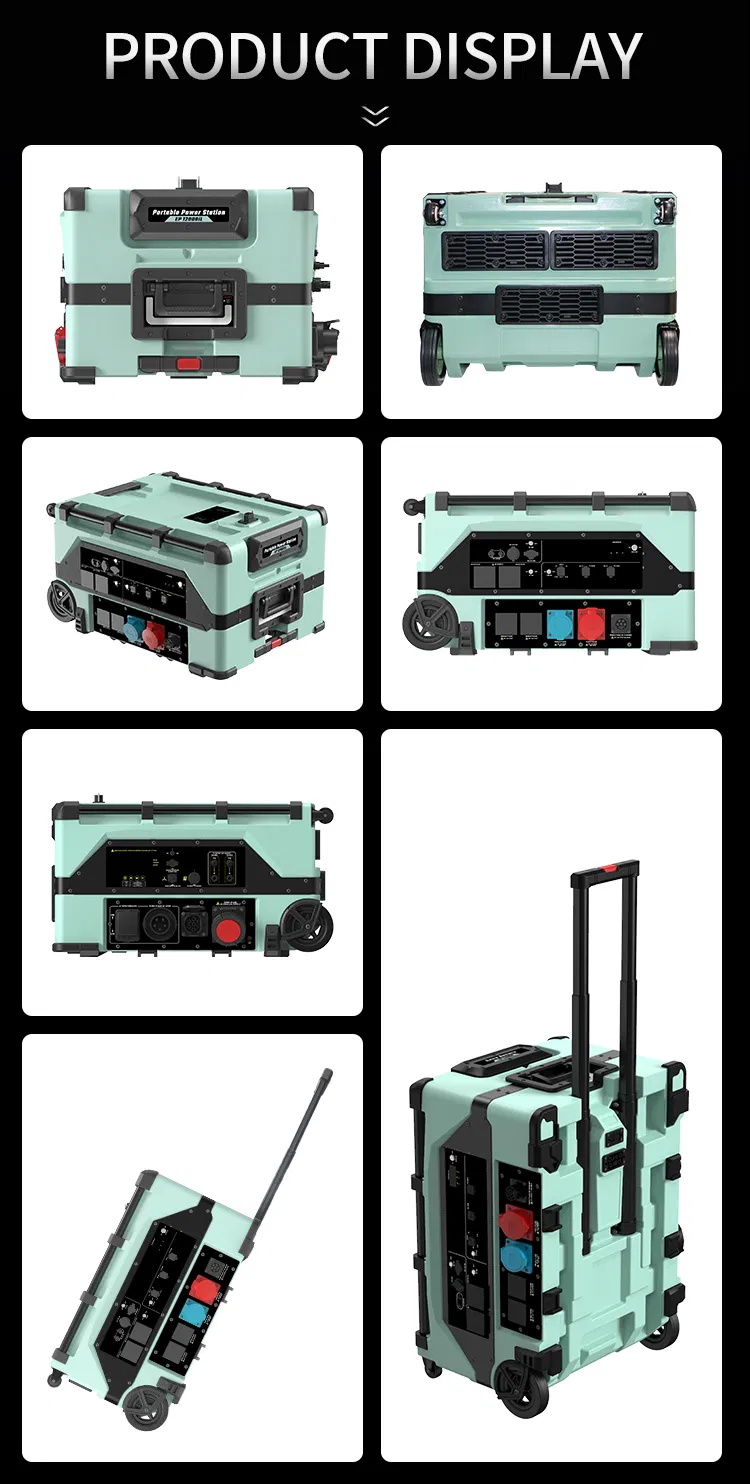

Portability
Drawbar & Wheels
Dimensions
840X670X490mm, 110kg
Frequently Asked Questions
1. How long does it take to fully charge the EP12000iL system?

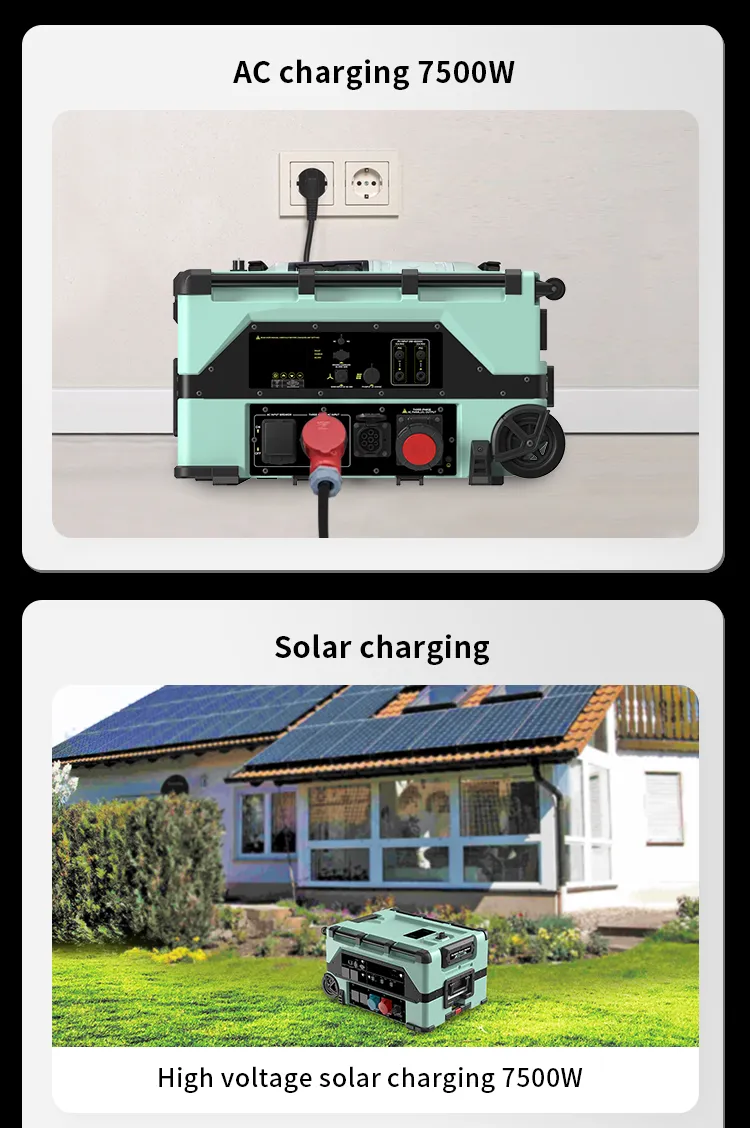

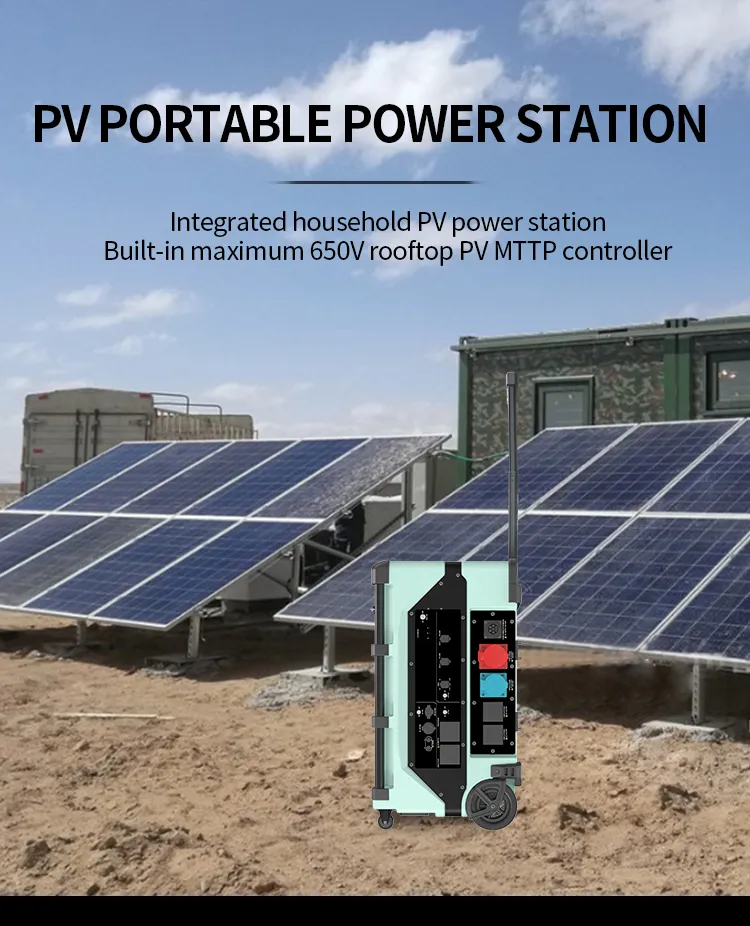

Using AC fast charging or high-voltage solar input, the system can be fully charged in as little as 70 minutes.

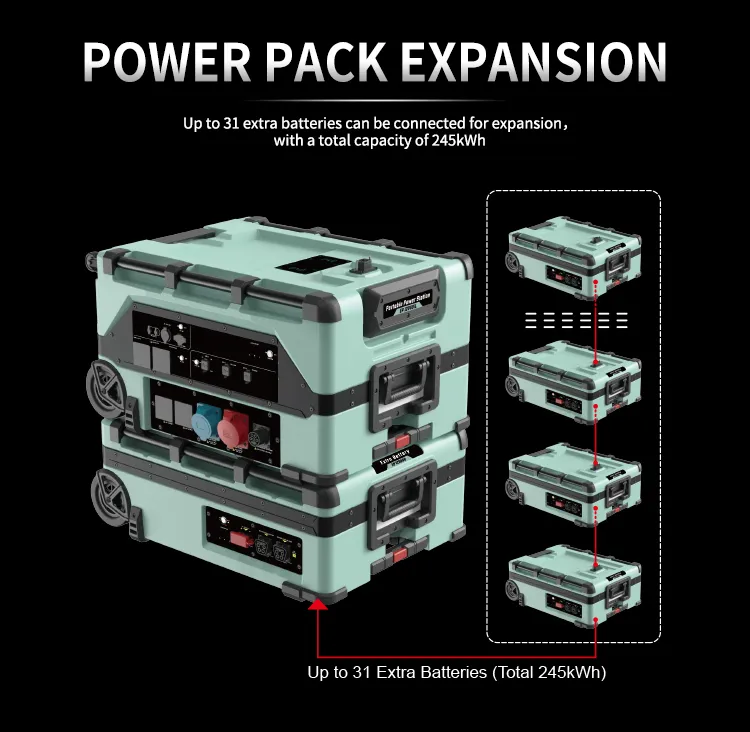

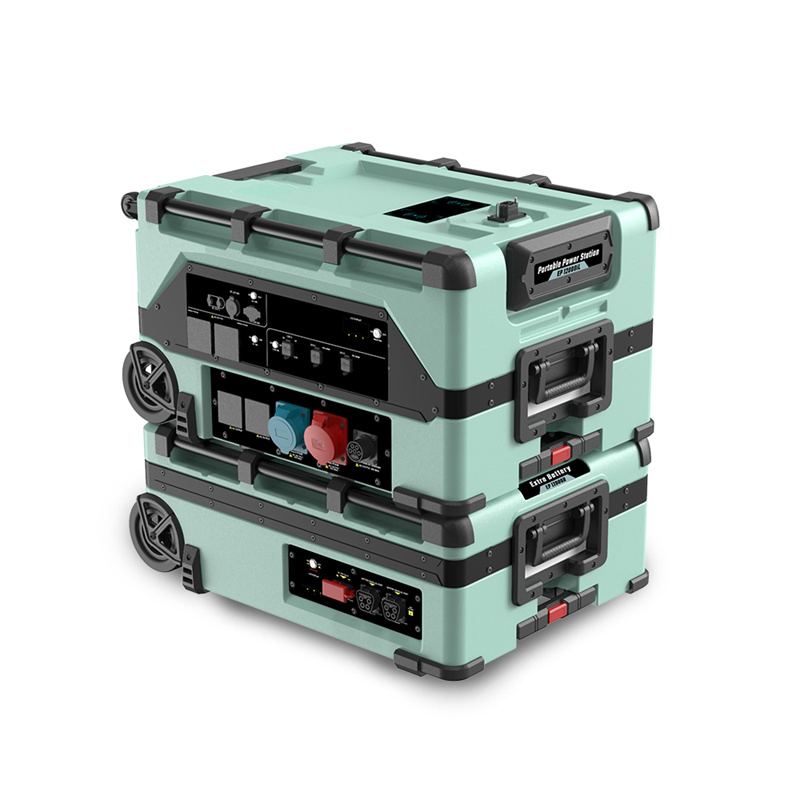

2. What is the maximum battery capacity after expansion?
You can stack and connect up to 31 additional battery packs, reaching a massive total capacity of 245kWh.
3. Can this system charge electric vehicles (EVs)?
Yes, it features a built-in EV charger compatible with Type 1, Type 2, and GB/T standards, supporting output up to 22kW.

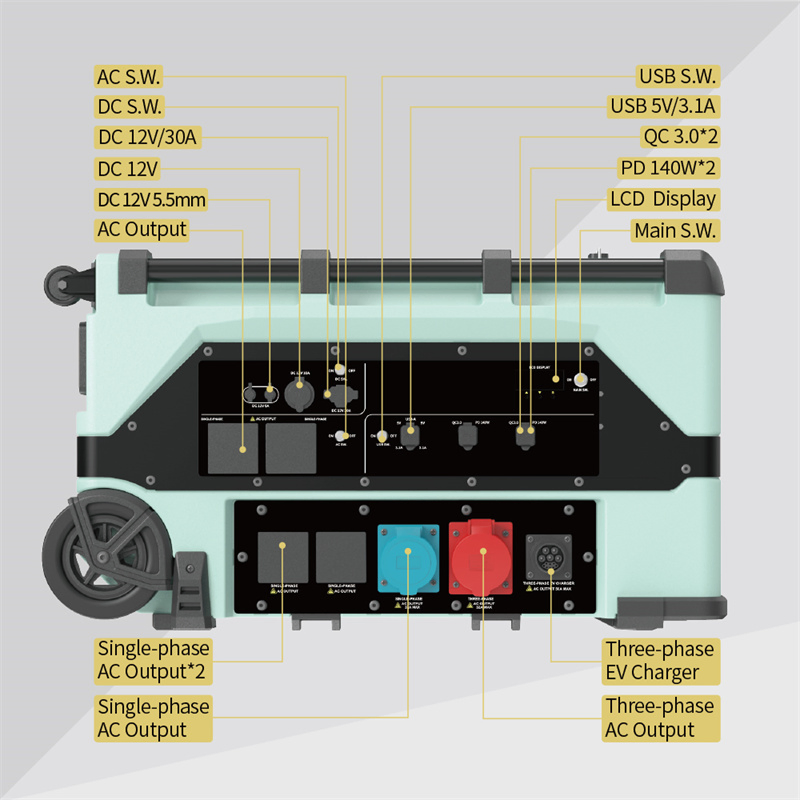

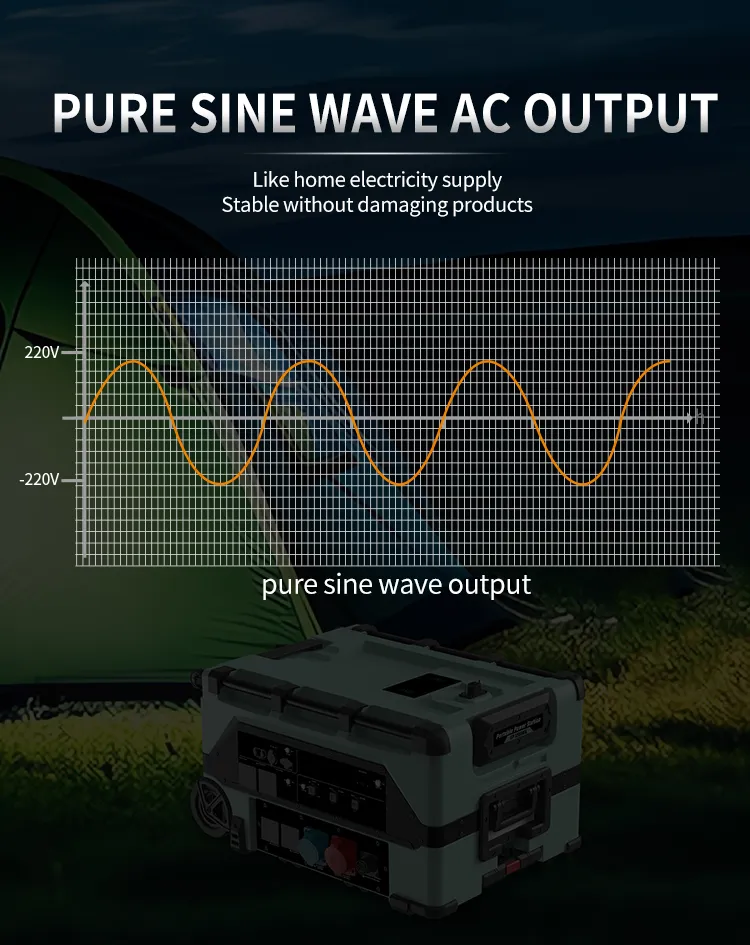

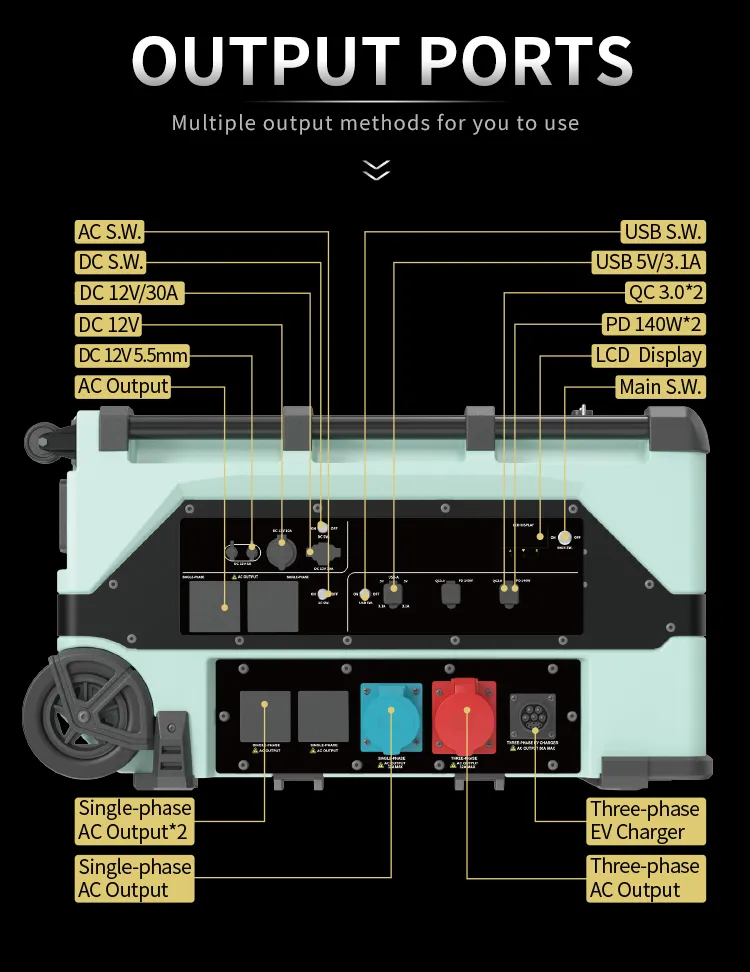

4. What kind of outputs does the AC inverter support?
It supports 12kW Three-phase (220-415V), 11kW Single-phase (220-240V), and 10kW Split-phase (100-240V) output.
5. Is the system suitable for outdoor use?
Yes, the main unit is IP53 rated and the battery packs are IP66 rated, providing excellent protection against dust and water.
6. What is the expected lifespan of the internal battery?
The system uses high-quality LiFePO4 cells designed for over 3,000 cycles while maintaining 80%+ of their original capacity.
