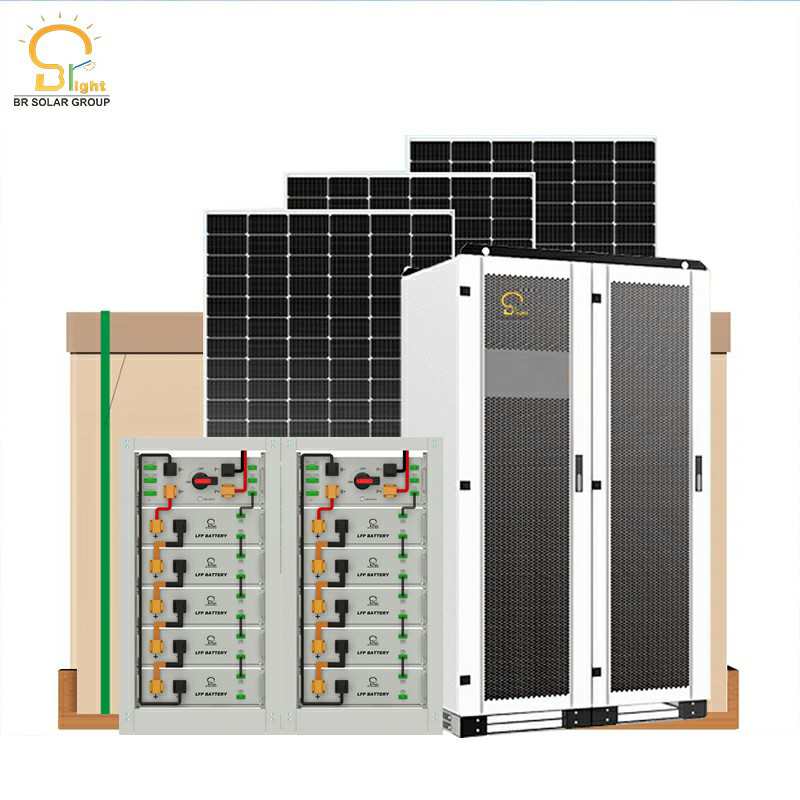

100kw Hybrid/off Grid Solar Voltage Home Power Lithium Ion Battery Inverter PV Module Panels Energy Storage Hybrid Ground Portable System

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.
BR100KW
Condition
New
Certification
CE/Rosh/MSDS/Un38.3/IEC/ISO9001/ISO14001
Application
Home, Industrial, Commercial
Output Frequency
50/60Hz
Output Voltage
220V/380V Us 120/240V
Monitoring
WiFi/GPRS Device
Work Time (H)
24hours/Day
Solar Panel Type
Mono Panels
Safety Class
Class A

Working Principle

Solar System Working Principle

The Solar System absorbs sun's energy to light up your home and power your home electrical appliances including charging mobiles. The components of the solar system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery, and inverter. Some system can be with fan, TV set, laptop, air conditioner, etc.

Providing illumination powered from the sun energy, the solar panel in the system convert the sun's energy directly into electricity. This electricity can be stored in the battery and used for lighting whenever required. Our solar System, compact, portable and easily mountable, is an economical solution to all power problems and comes in an easy-to-install kit.

Solar Energy System Instruction

System Applications

  • Mobile equipment such as motor homes and ships.
  • Civilian life in remote areas without electricity (plateaus, islands, pastoral areas, border posts).
  • Home rooftop grid-connected power generation systems.
  • Photovoltaic water pumps for deep water wells irrigation.
  • Transportation field: beacon lights, signal lights, high-altitude obstacle lights.
  • Communication fields: microwave relay stations, optical cable maintenance, broadcasting power supply.

100KW Solar Power System Components

Component Description & Specification Qty Unit
Solar Panel N-Type TOPCon Solar Module, TUV Certificate, 25 Years Design Lifespan 840 Pcs
PV Combiner Box 6 inputs, 1 output, Over current/voltage & Lightning protection 10 Pcs
Hybrid Inverter IGBT TECHNOLOGY, 3 Phase, Pure sine wave, 15 Years Design Lifespan 1 Set
Lithium Battery 51.2V280AH modules (Total 1003KWH), >8000 cycles, CAN Communication 5 Set
DC Distribution Box Built-in DC Breakers & bolder cables for balanced charging 1 Set
PV Cables 6mm2 Pure Copper 3000 M

Detailed System Diagrams

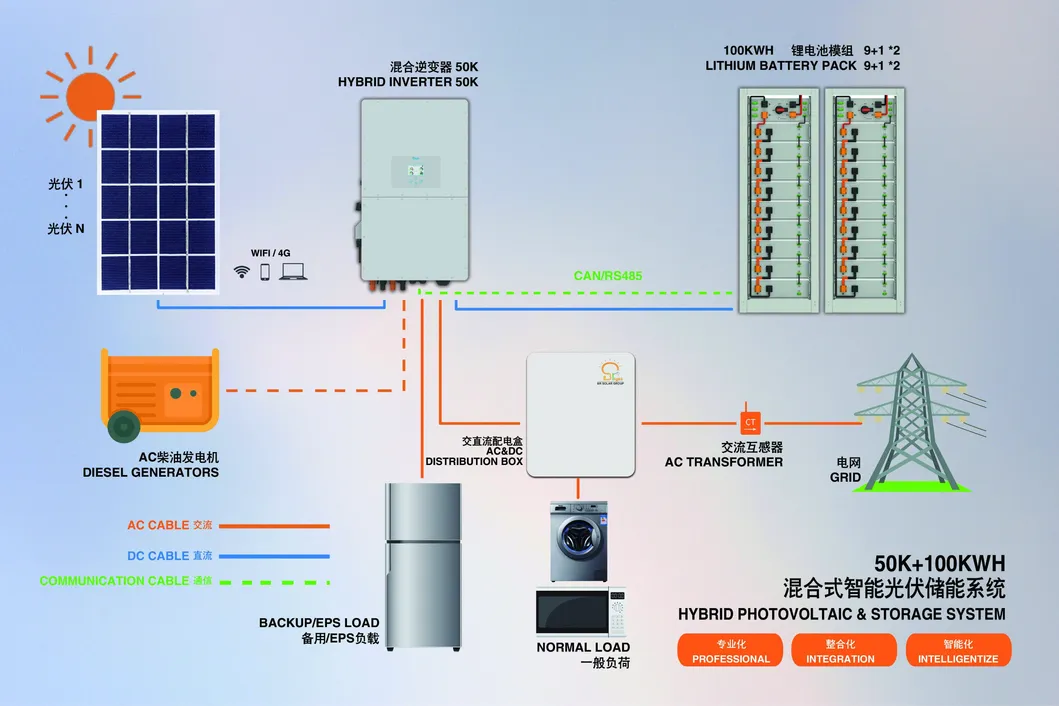

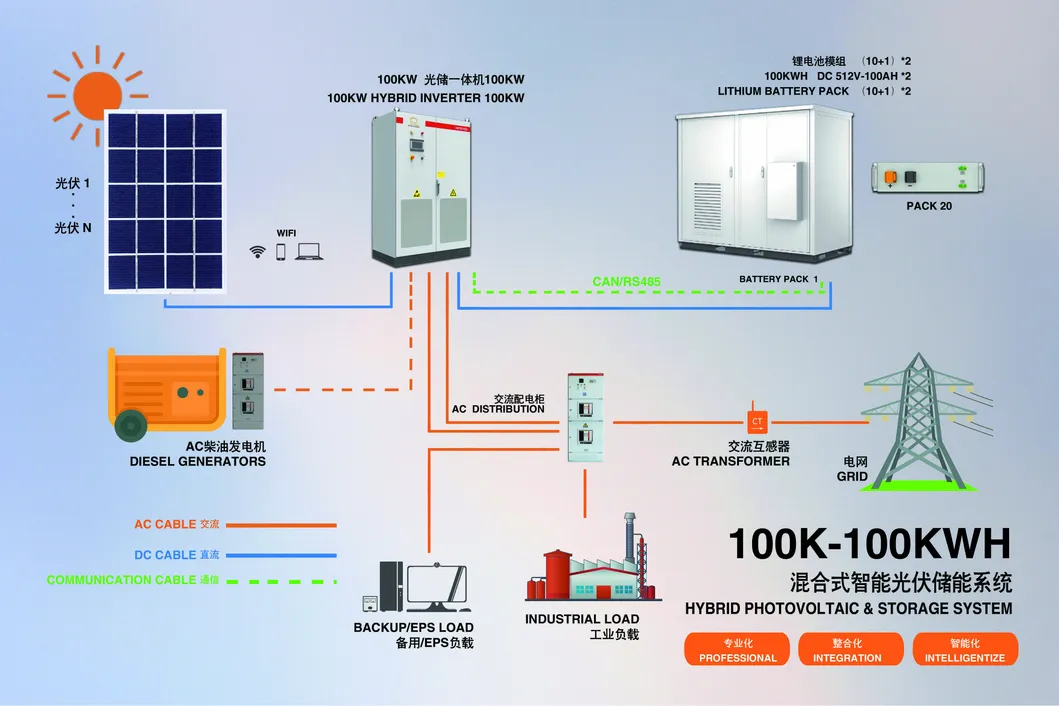

System Diagram 1 System Diagram 2

Factory & Production Details

Factory Details

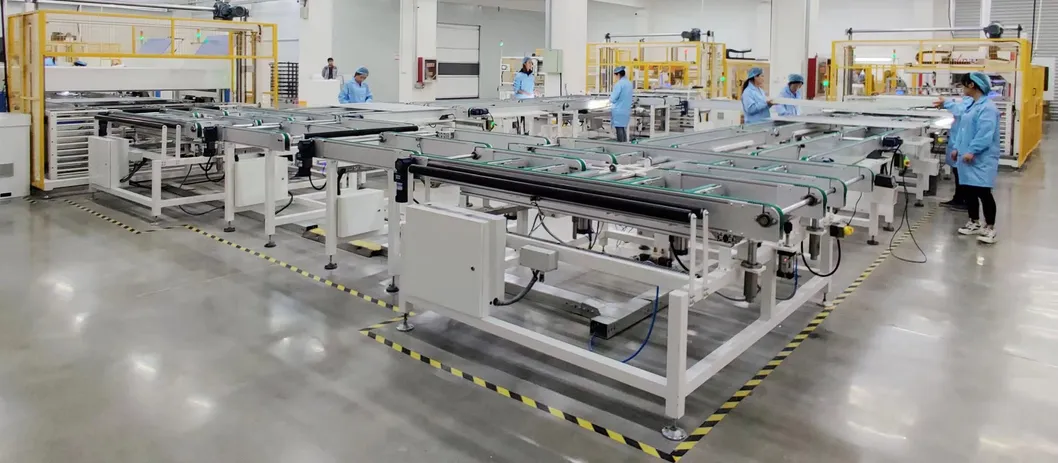

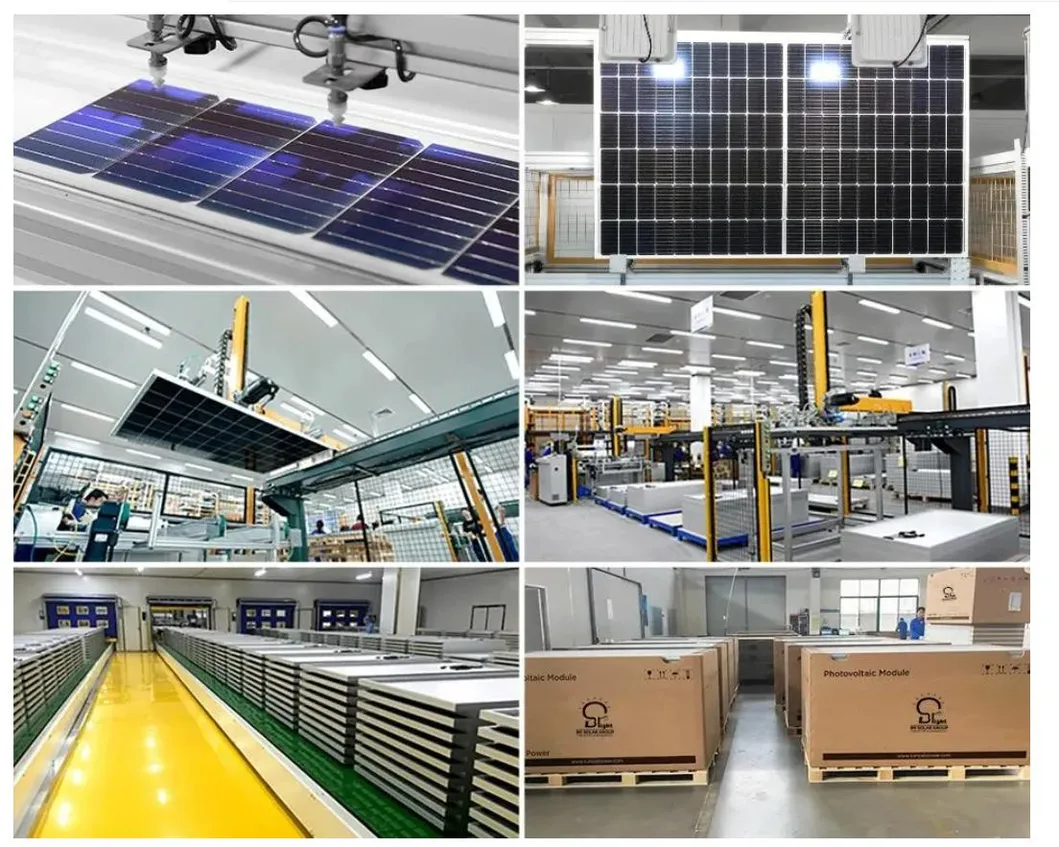

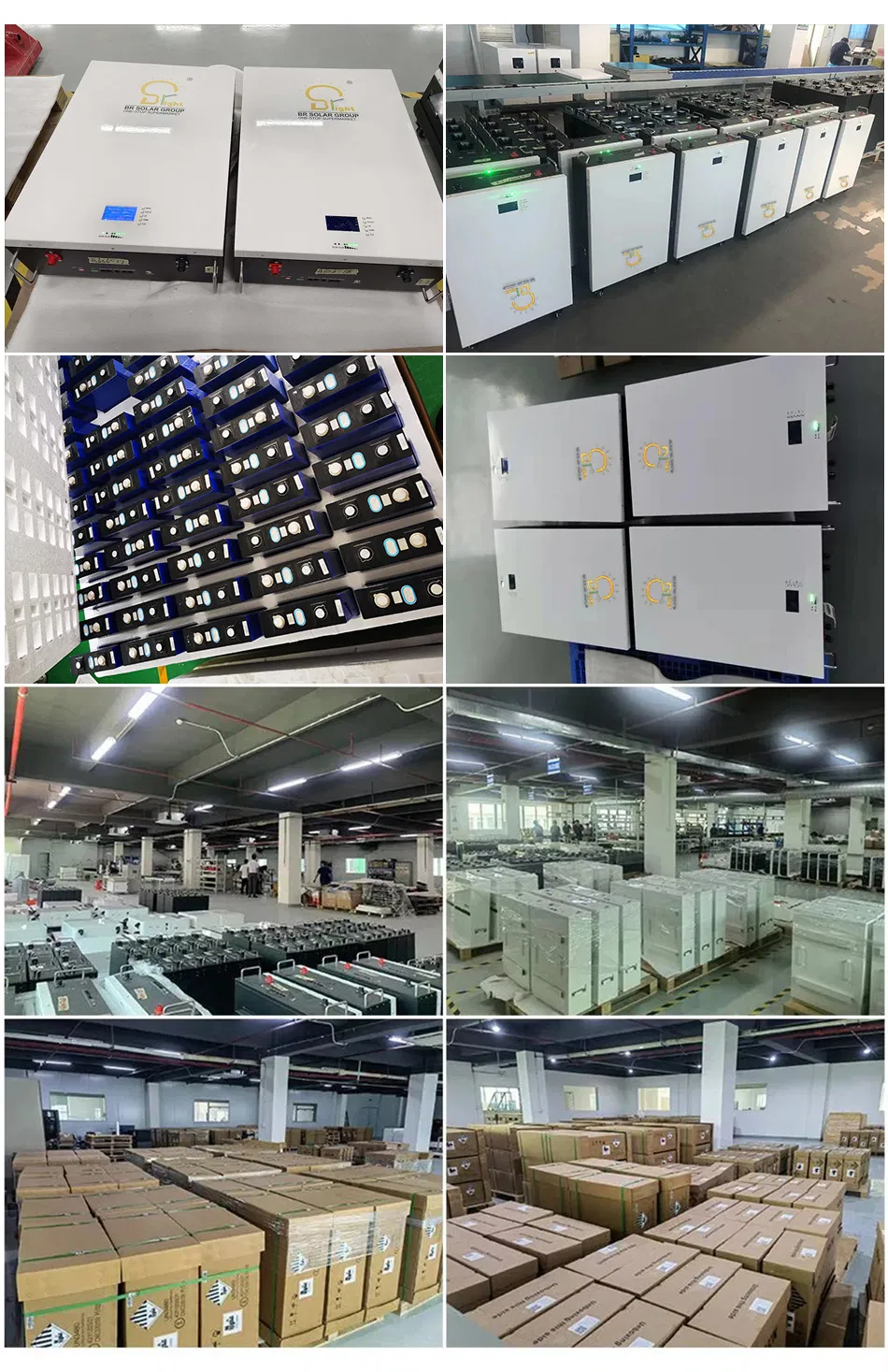

Production Line 1 Production Line 2 Production Line 3

Global Projects & Certificates

Quality is our culture. Our solar products have been successfully applied in more than 128 countries including UN projects and NGO projects.

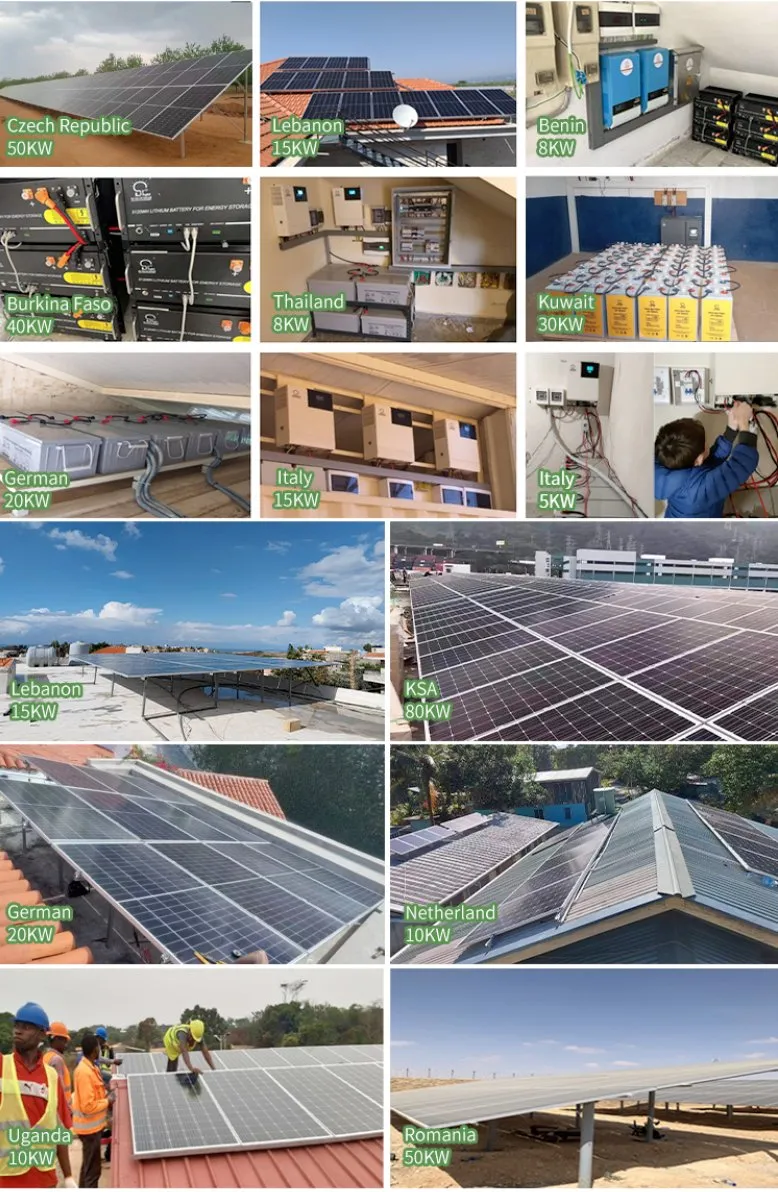

Global Projects

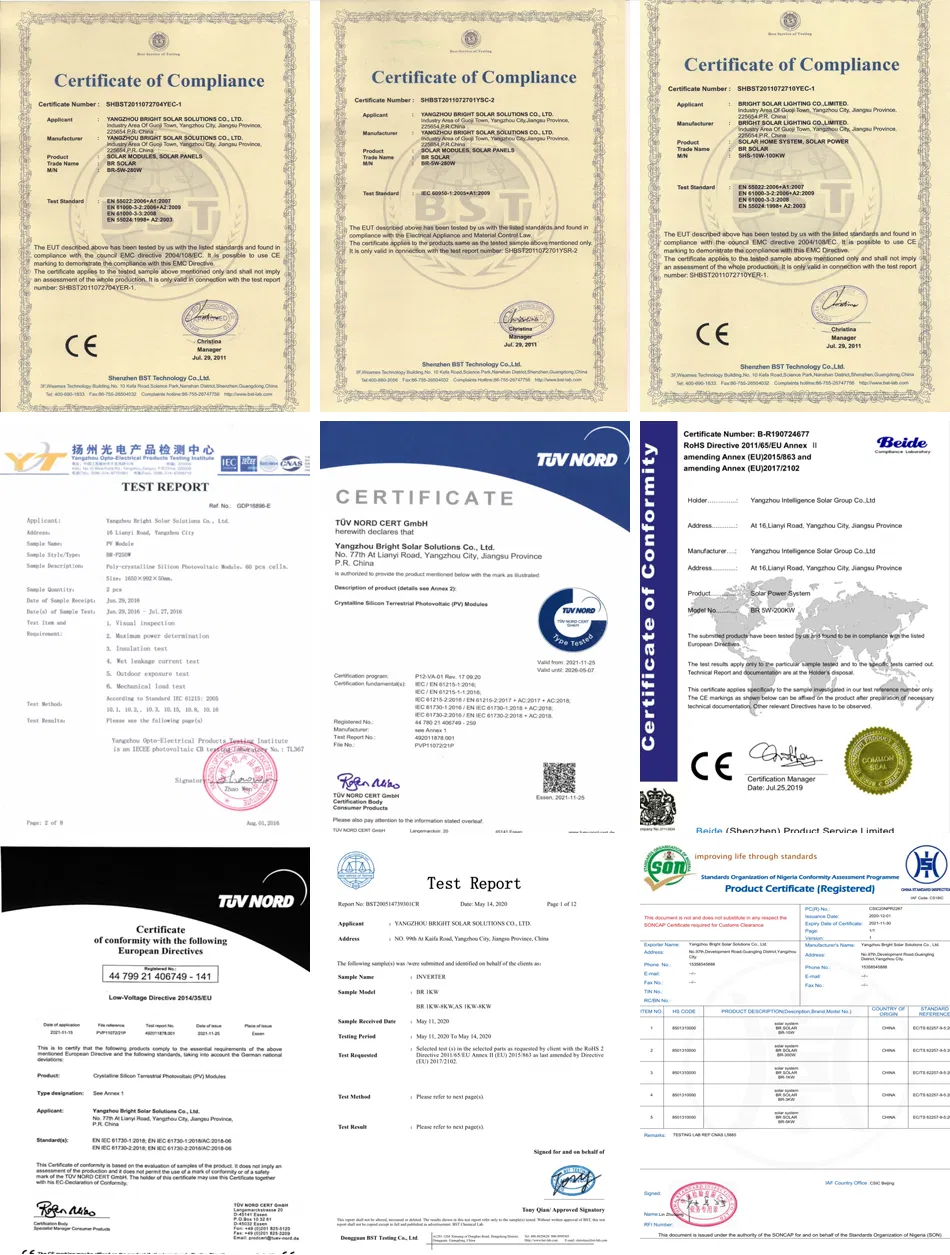

Certificates

Exclusive One-Stop Service

  • Fantastic services: Fast response, professional design solutions, and perfect after-sales support.
  • Diverse cooperation: OBM, OEM, ODM options available.
  • Fast delivery: Standard products within 7 working days; conventional products within 15 working days.
  • Quality Assurance: 3T Method to control the quality and ISO/CE/RoHS/TUV certifications.
  • Global Experience: Manufacturing and exporting experience across more than 114 countries.
  • Installation Support: Video and site guiding installation services available for container orders.

Loading & Packaging

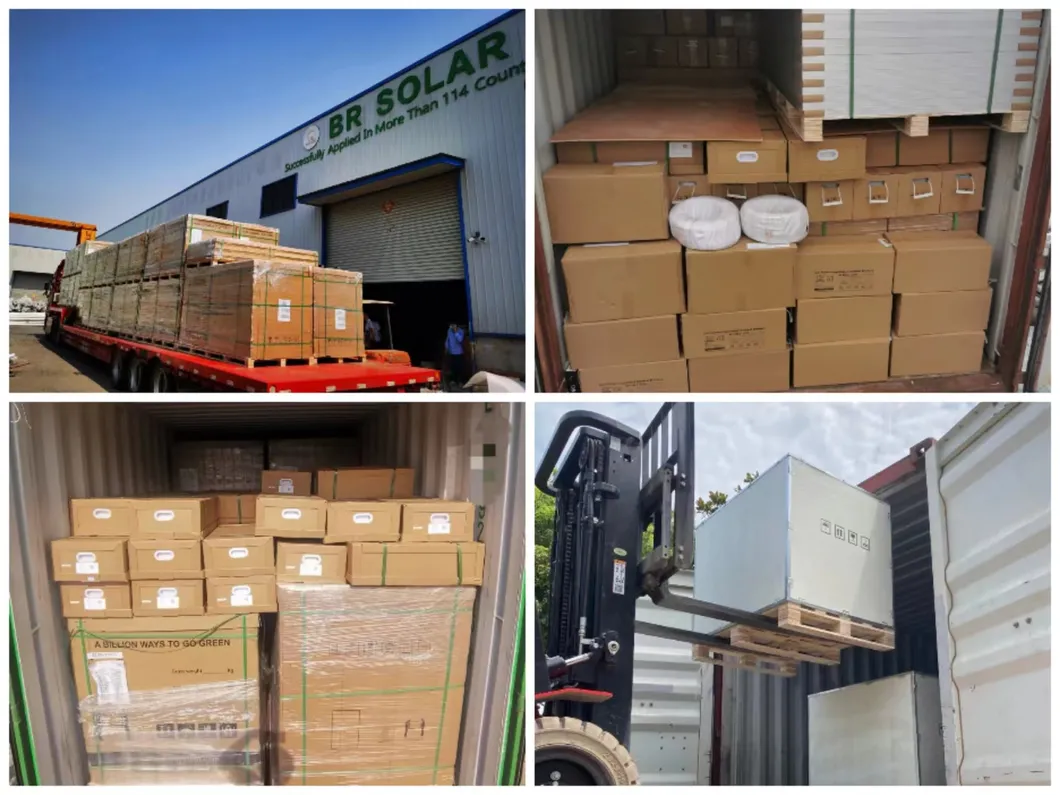

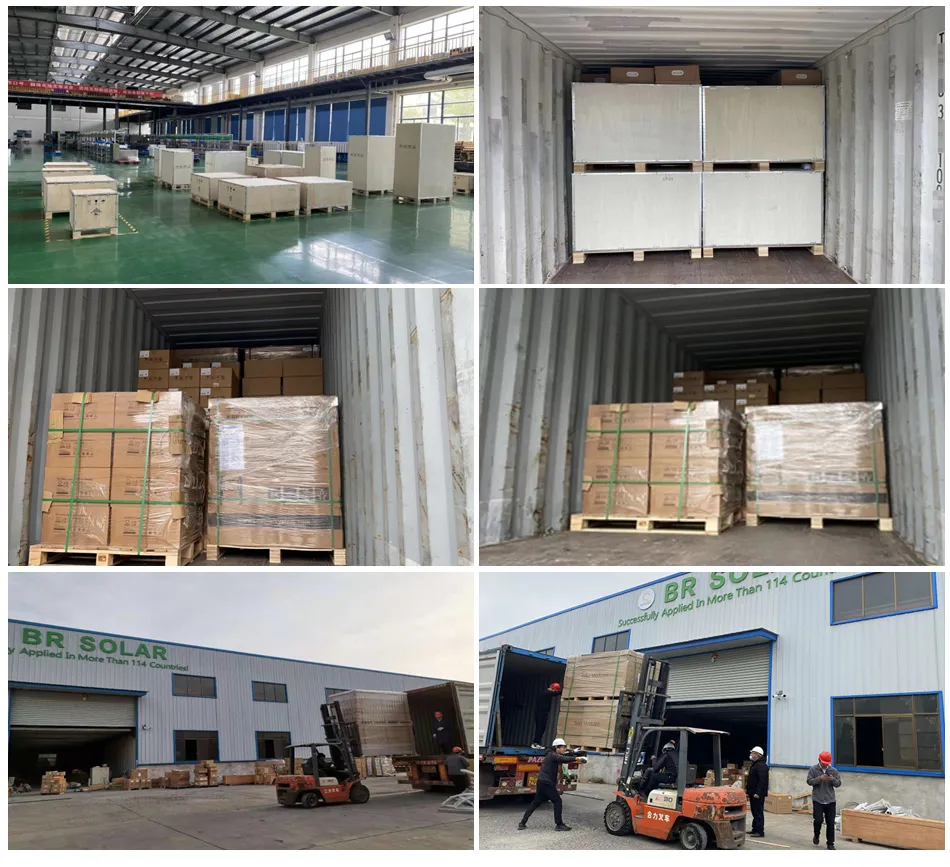

Packaging 1 Packaging 2

Frequently Asked Questions

Can I have a sample order for solar products?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What about the lead time?
Samples need 5-7 days. Mass production time depends on the specific order quantity.
Are you a factory or a trading company?
We are a factory with high production capacity and a wide range of solar products in China. You are welcome to visit us anytime.
How do you ship the goods and how long does it take to arrive?
Samples are typically shipped by DHL, UPS, FedEx, or TNT and take 7-10 days. Airline and sea shipping are also optional for larger orders.
What is your warranty policy?
We offer a 3 to 5-year warranty for the entire system and provide free replacements for any quality problems.
Do you provide installation guidance?
Yes, installation videos and site guiding services are available for container-level orders to ensure proper setup.
